一、linux直接访问Kubernetes集群内部网络

1.部署实例

2.在k8s集群外的centos主机安装kt-connect

3.连接集群

4.访问集群资源

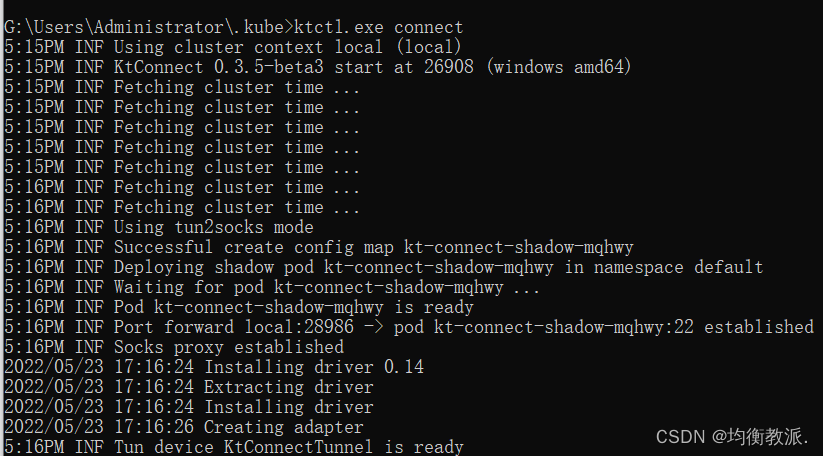

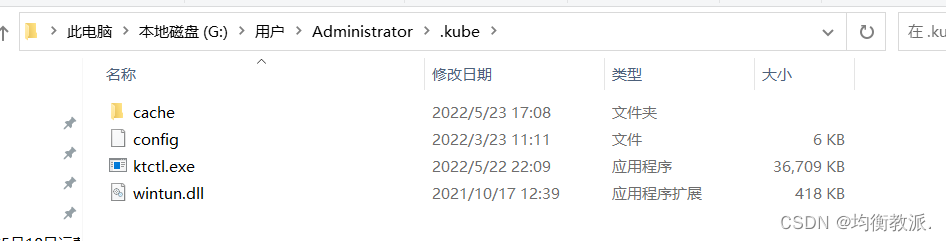

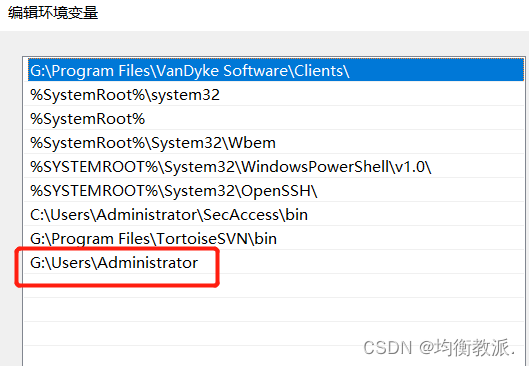

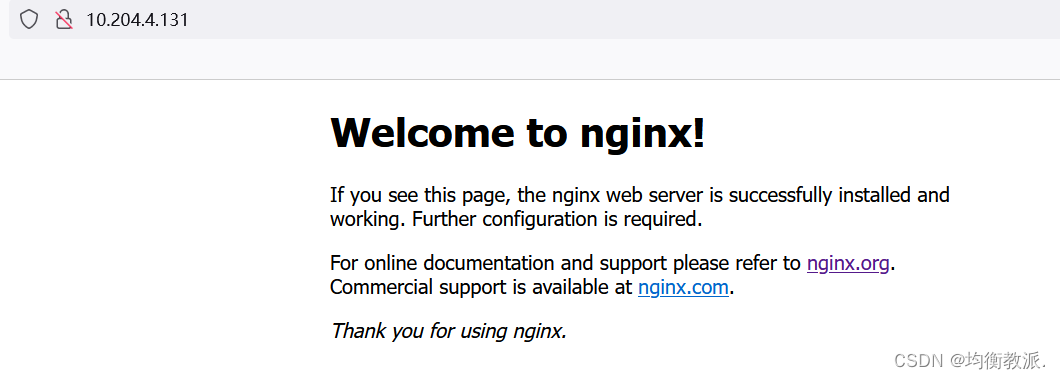

二、windows直接访问Kubernetes集群内部网络

KtConnect介绍：阿里开源的k8s的调试工具，它的作用类似于VPN，实现了开发者本地运行的服务与Kubernetes集群中的服务之间的双向互通。

https://github.com/alibaba/kt-connect

KT: A simple kubernetes development tools

一、linux直接访问Kubernetes集群内部网络

前置条件：在需要访问k8s内部网络的lcentos安装kubectl，并配置好集群证书。

1.部署实例

kubectl create deployment nginx -n lishanbin-public-servcie  --image=registry.cn-shenzhen.aliyuncs.com/lishanbin/nginx:1.0.0 --port=80

kubectl expose deployment nginx -n lishanbin-public-servcie --port=80 --target-port=80

查询Pod和服务的IP地址：

[app@master1 yaml]$ kubectl get svc  -n lishanbin-public-servcie
NAME    TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
nginx   ClusterIP   10.207.136.215   <none>        80/TCP    3m31s
[app@master1 yaml]$ kubectl get pod -n lishanbin-public-servcie -o wide
NAME                     READY   STATUS    RESTARTS   AGE     IP              NODE              NOMINATED NODE   READINESS GATES
nginx-6698c59b8f-lvjbn   1/1     Running   0          7m33s   10.206.36.203   11.12.13.14   <none>           <none>

可知nginx实例的Pod IP为10.206.36.203，服务的Cluster IP为10.207.136.215，记下待用。

2.在k8s集群外的centos主机安装kt-connect

$ curl -OL https://github.com/alibaba/kt-connect/releases/download/v0.3.5-beta1/ktctl_0.3.5-beta1_Linux_x86_64.tar.gz
$ tar zxf ktctl_0.3.5-beta1_Linux_x86_64.tar.gz
$ mv ktctl /usr/local/bin/ktctl
$ ktctl help

3.连接集群

ktctl connect
11:35AM INF Using cluster context local (local)
11:35AM INF KtConnect 0.3.5-beta1 start at 22081 (linux amd64)
11:35AM INF Fetching cluster time ...
11:35AM INF Successful create config map kt-connect-shadow-radtu
11:35AM INF Deploying shadow pod kt-connect-shadow-radtu in namespace default
11:35AM INF Waiting for pod kt-connect-shadow-radtu ...
11:36AM INF Pod kt-connect-shadow-radtu is ready
11:36AM INF Port forward local:16737 -> pod kt-connect-shadow-radtu:22 established
11:36AM INF Socks proxy established
11:36AM INF Tun device kt0 is ready
11:36AM INF Adding route to 10.207.0.0/16
11:36AM INF Adding route to 10.206.0.0/16
11:36AM INF Route to tun device completed
11:36AM INF Setting up dns in local mode
11:36AM INF Port forward local:11083 -> pod kt-connect-shadow-radtu:53 established
11:36AM INF Setup local DNS with upstream [tcp:127.0.0.1:11083 udp:114.114.114.114:53]
11:36AM INF Creating udp dns on port 10053
11:36AM INF ---------------------------------------------------------------
11:36AM INF  All looks good, now you can access to resources in the kubernetes cluster
11:36AM INF ---------------------------------------------------------------

4.访问集群资源

curl 10.206.36.203:80
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx! the version is 1.0.0  </h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>
