使用R包 ggpattern实现柱形图渐变填充

实际项目中碰到该需求，发现ggpattern可实现。话不多说，直接上代码。

R代码

library(ggpattern)
library(ggplot2)

df <- data.frame(level = c("a", "b", "c", 'd'), outcome = c(2.3, 1.9, 3.2, 1))
gg <- ggplot(df) +
  geom_col_pattern(
    aes(level, outcome),pattern_fill = 'green', # 填充渐变色1
    pattern = 'gradient',
    pattern_fill2 = 'red', # 填充渐变色2，配合渐变色1实现多色渐变
    fill = NA
  ) +
  geom_text(aes(x=level,y=outcome+ .1,label='mytext')) +
  theme_bw(18) +
  theme(legend.position = 'none')
plot(gg)
ggsave('gradient-fill.png',width = 8,height = 6)

gg <- ggplot(df) +
  geom_rect_pattern(
    aes(xmin=0,xmax = 1,ymin=0,ymax = 4),
    pattern_fill = 'green',
    pattern_fill2 = 'red',
    fill = NA,
    pattern = 'gradient') +

plot(gg)

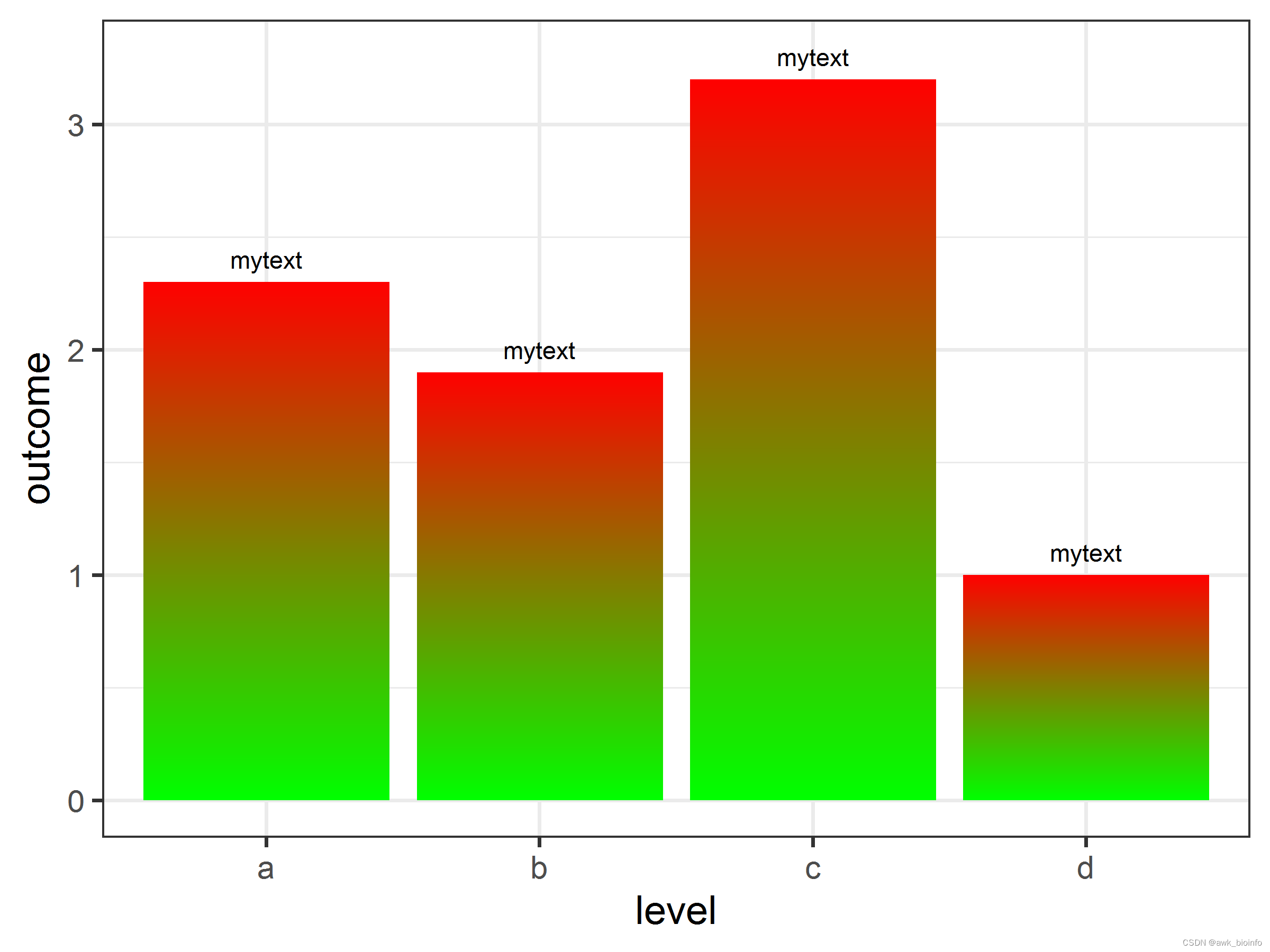

最终效果：
