1.需求说明

1.1 需求

到现在为止的网页访问量

到现在为止从搜索引擎引流过来的网页访问量

项目总体框架如图所示：

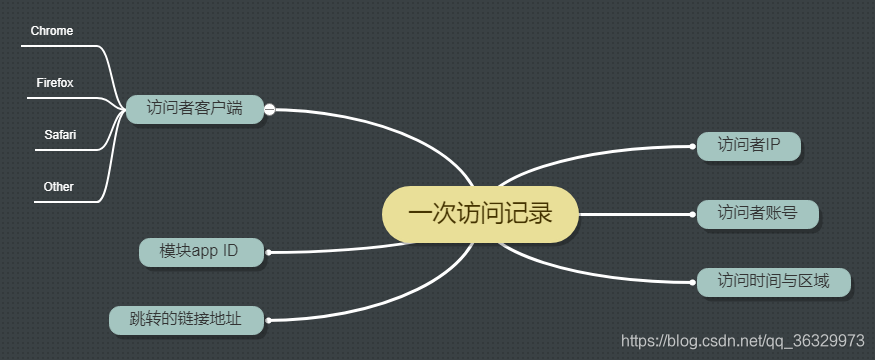

1.2 用户行为日志内容

2.模拟日志数据制作

用Python制作模拟数据，数据包含：

不同的URL地址->url_paths
不同的跳转链接地址->http_refers
不同的搜索关键词->search_keyword
不同的状态码->status_codes
不同的IP地址->ip_slices

#coding=UTF-8
import random
import time

url_paths = [
    "class/112.html",
    "class/128.html",
    "class/145.html",
    "class/146.html",
    "class/131.html",
    "class/130.html",
    "class/145.html",
    "learn/821.html",
    "learn/825.html",
    "course/list"
]

http_refers=[
    "http://www.baidu.com/s?wd={query}",
    "https://www.sogou.com/web?query={query}",
    "http://cn.bing.com/search?q={query}",
    "http://search.yahoo.com/search?p={query}",
]

search_keyword = [
    "Spark+Sql",
    "Hadoop",
    "Storm",
    "Spark+Streaming",
    "大数据",
    "面试"
]

status_codes = ["200","404","500"]

ip_slices = [132,156,132,10,29,145,44,30,21,43,1,7,9,23,55,56,241,134,155,163,172,144,158]

def sample_url():
    return random.sample(url_paths,1)[0]

def sample_ip():
    slice = random.sample(ip_slices,4)
    return ".".join([str(item) for item in slice])

def sample_refer():
    if random.uniform(0,1) > 0.2:
        return "-"
    refer_str = random.sample(http_refers,1)
    query_str = random.sample(search_keyword,1)
    return refer_str[0].format(query=query_str[0])

def sample_status():
    return random.sample(status_codes,1)[0]

def generate_log(count = 10):
    time_str = time.strftime("%Y-%m-%d %H:%M:%S",time.localtime())

    f = open("/home/hadoop/tpdata/project/logs/access.log","w+")
    while count >= 1:
        query_log = "{ip}\t{local_time}\t\"GET /{url} HTTP/1.1\"\t{status}\t{refer}".format(
            local_time=time_str,
            url=sample_url(),
            ip=sample_ip(),
            refer=sample_refer(),
            status=sample_status())
        print(query_log)
        f.write(query_log + "\n")
        count = count - 1

if __name__ == '__main__':
    generate_log(100)

使用Linux Crontab定时调度工具，使其每一分钟产生一批数据。

表达式：

*/1 * * * *

编写python运行脚本：

vi log_generator.sh

python /home/hadoop/tpdata/log.py

chmod u+x log_generator.sh

配置Crontab：

crontab -e

*/1 * * * * /home/hadoop/tpdata/project/log_generator.sh

2.Flume实时收集日志信息

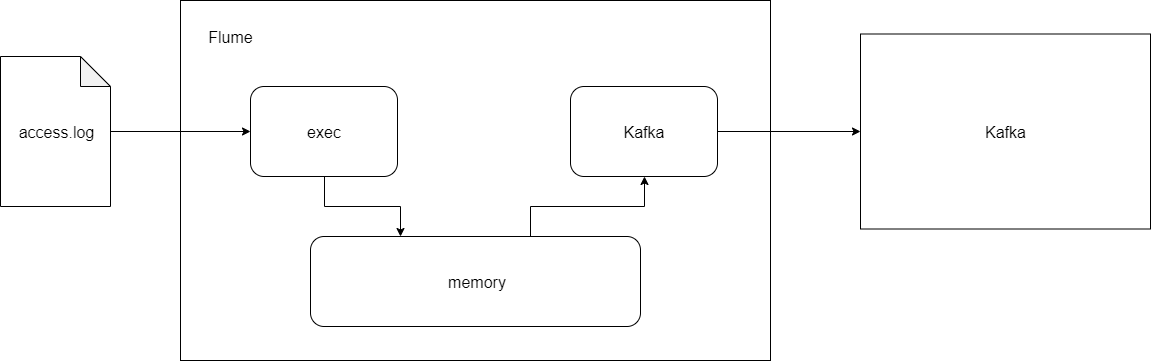

开发时选型：

编写streaming_project.conf：

vi streaming_project.conf

exec-memory-logger.sources = exec-source
exec-memory-logger.sinks = logger-sink
exec-memory-logger.channels = memory-channel

exec-memory-logger.sources.exec-source.type = exec
exec-memory-logger.sources.exec-source.command = tail -F /home/hadoop/tpdata/project/logs/access.log
exec-memory-logger.sources.exec-source.shell = /bin/sh -c

exec-memory-logger.channels.memory-channel.type = memory

exec-memory-logger.sinks.logger-sink.type = logger

exec-memory-logger.sources.exec-source.channels = memory-channel
exec-memory-logger.sinks.logger-sink.channel = memory-channel

启动Flume测试：

flume-ng agent \
--name exec-memory-logger \
--conf $FLUME_HOME/conf \
--conf-file /home/hadoop/tpdata/project/streaming_project.conf \
-Dflume.root.logger=INFO,console

3.对接实时日志数据到Kafka

启动Zookeeper:

./zkServer.sh start

启动Kafka Server：

./kafka-server-start.sh -daemon $KAFKA_HOME/config/server.properties

其中server.properties：

broker.id=0
############################# Socket Server Settings #############################
listeners=PLAINTEXT://:9092
host.name=hadoop000
advertised.host.name=192.168.1.9
advertised.port=9092
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
############################# Log Basics #############################
log.dirs=/home/hadoop/app/tmp/kafka-logs
num.partitions=1
num.recovery.threads.per.data.dir=1
############################# Log Retention Policy #############################
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
log.cleaner.enable=false
############################# Zookeeper #############################
zookeeper.connect=hadoop000:2181
zookeeper.connection.timeout.ms=6000

启动一个Kafka的消费者(topic用的之前的，没有的话可以新建一个)：

kafka-console-consumer.sh --zookeeper hadoop000:2181 --topic streamingtopic

修改Flume配置文件，使得Flume的sink链接到Kafka：

vi streaming_project2.conf

exec-memory-kafka.sources = exec-source
exec-memory-kafka.sinks = kafka-sink
exec-memory-kafka.channels = memory-channel

exec-memory-kafka.sources.exec-source.type = exec
exec-memory-kafka.sources.exec-source.command = tail -F /home/hadoop/tpdata/project/logs/access.log
exec-memory-kafka.sources.exec-source.shell = /bin/sh -c

exec-memory-kafka.channels.memory-channel.type = memory

exec-memory-kafka.sinks.kafka-sink.type = org.apache.flume.sink.kafka.KafkaSink
exec-memory-kafka.sinks.kafka-sink.brokerList = hadoop000:9092
exec-memory-kafka.sinks.kafka-sink.topic = streamingtopic
exec-memory-kafka.sinks.kafka-sink.batchSize = 5
exec-memory-kafka.sinks.kafka-sink.requiredAcks = 1

exec-memory-kafka.sources.exec-source.channels = memory-channel
exec-memory-kafka.sinks.kafka-sink.channel = memory-channel

启动Flume：

flume-ng agent \
--name exec-memory-kafka \
--conf $FLUME_HOME/conf \
--conf-file /home/hadoop/tpdata/project/streaming_project2.conf \
-Dflume.root.logger=INFO,console

kafka消费者拿到数据：

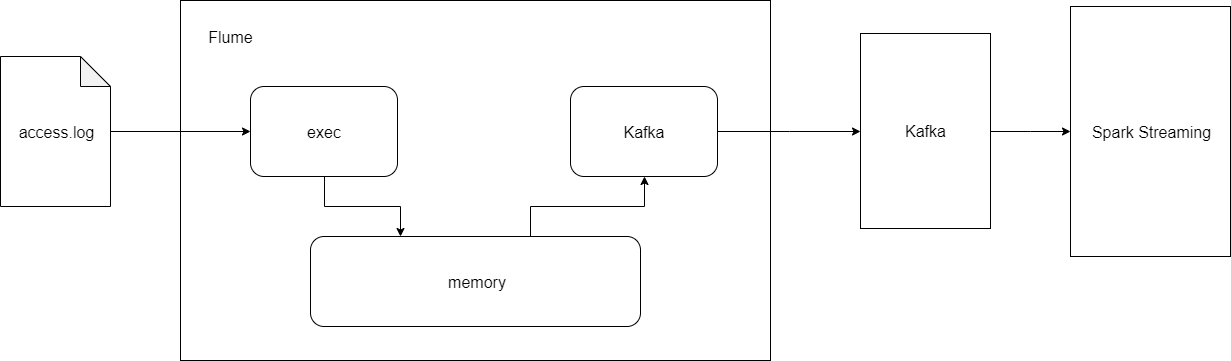

4.Spark Streaming对接Kafka对数据消费

4.1 pom.xml：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.taipark.spark</groupId>
  <artifactId>sparktrain</artifactId>
  <version>1.0</version>
  <inceptionYear>2008</inceptionYear>
  <properties>
    <scala.version>2.11.8</scala.version>
    <kafka.version>0.9.0.0</kafka.version>
    <spark.version>2.2.0</spark.version>
    <hadoop.version>2.6.0-cdh5.7.0</hadoop.version>
    <hbase.version>1.2.0-cdh5.7.0</hbase.version>
  </properties>

  <repositories>
    <repository>
      <id>cloudera</id>
      <url>https://repository.cloudera.com/artifactory/cloudera-repos</url>
    </repository>
  </repositories>

  <dependencies>
    <dependency>
      <groupId>org.scala-lang</groupId>
      <artifactId>scala-library</artifactId>
      <version>${scala.version}</version>
    </dependency>

    <!--
    <dependency>
      <groupId>org.apache.kafka</groupId>
      <artifactId>kafka_2.11</artifactId>
      <version>${kafka.version}</version>
    </dependency>
    -->

    <dependency>
      <groupId>org.apache.hadoop</groupId>
      <artifactId>hadoop-client</artifactId>
      <version>${hadoop.version}</version>
    </dependency>

    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-client</artifactId>
      <version>${hbase.version}</version>
    </dependency>

    <dependency>
      <groupId>org.apache.hbase</groupId>
      <artifactId>hbase-server</artifactId>
      <version>${hbase.version}</version>
    </dependency>

    <dependency>
      <groupId>org.apache.spark</groupId>
      <artifactId>spark-streaming_2.11</artifactId>
      <version>${spark.version}</version>
    </dependency>

    <dependency>
      <groupId>org.apache.spark</groupId>
      <artifactId>spark-streaming-kafka-0-8_2.11</artifactId>
      <version>2.2.0</version>
    </dependency>

    <!--SS整合Flume依赖-->
    <dependency>
      <groupId>org.apache.spark</groupId>
      <artifactId>spark-streaming-flume_2.11</artifactId>
      <version>${spark.version}</version>
    </dependency>

    <!--SS整合sink依赖-->
    <dep
