⼊⼝：SpringCloud充分利⽤了SpringBoot的⾃动装配的特点

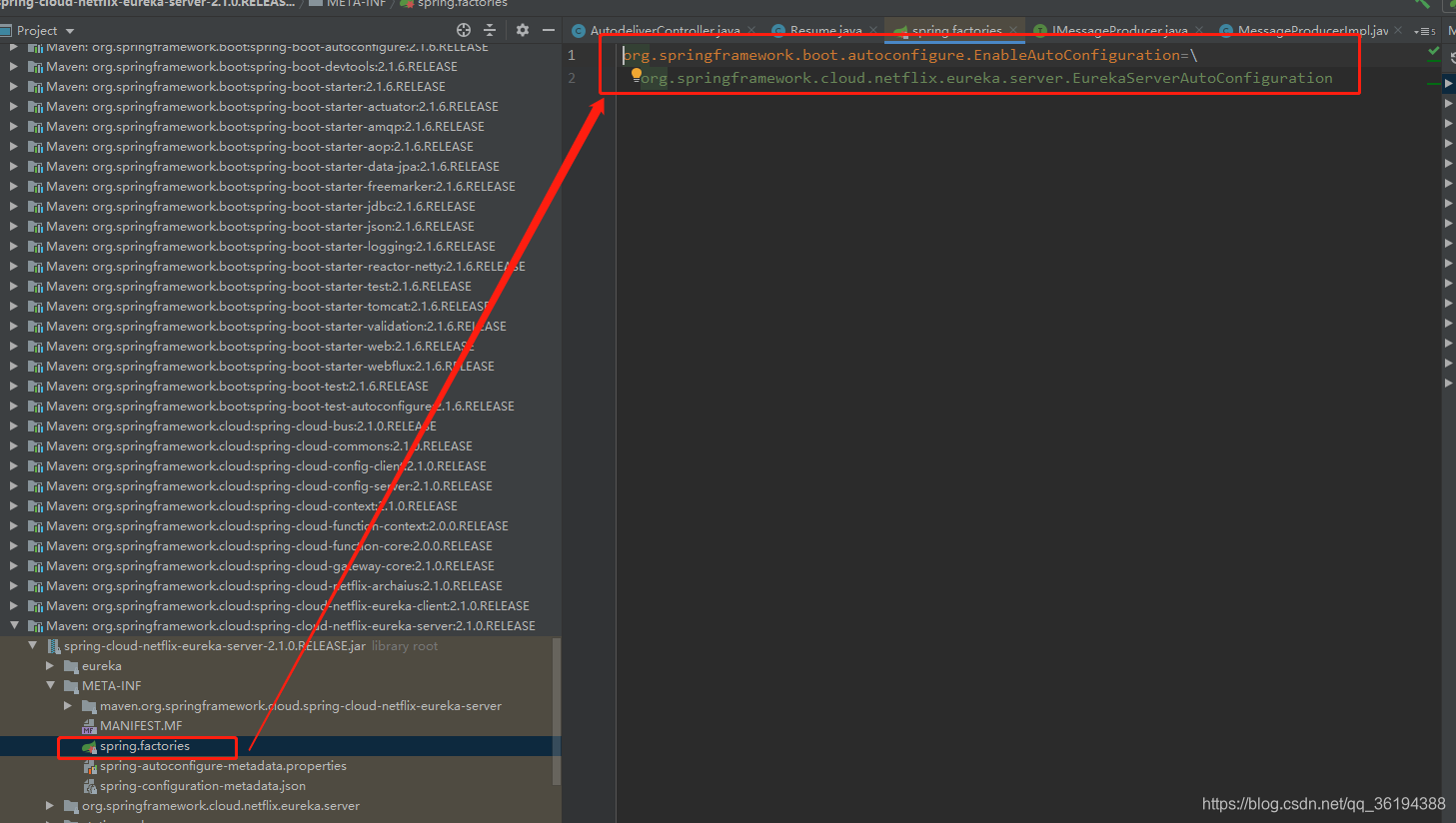

观察eureka-server的jar包，发现在META-INF下⾯有配置⽂件spring.factories

在这里插入图片描述
springboot应⽤启动时会加载EurekaServerAutoConfiguration⾃动配置类
EurekaServerAutoConfiguration类
⾸先观察类头分析

/**
 * @author Gunnar Hillert
 * @author Biju Kunjummen
 * @author Fahim Farook
 */
@Configuration
@Import(EurekaServerInitializerConfiguration.class)  //3、导入inital这样的一个配置类
@ConditionalOnBean(EurekaServerMarkerConfiguration.Marker.class)  //1、装配的前提 是容器中必须要用一个Marker的bean
@EnableConfigurationProperties({ EurekaDashboardProperties.class,
		InstanceRegistryProperties.class })
@PropertySource("classpath:/eureka/server.properties")
public class EurekaServerAutoConfiguration extends WebMvcConfigurerAdapter {

//2、EurekaServerAutoConfiguration  重点关注

1、marker

需要有⼀个marker bean，才能装配Eureka Server，那么这个marker 其实是由
@EnableEurekaServer注解决定的


@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
//EurekaServerMarkerConfiguration 类 实例化了一个 Marker
@Import(EurekaServerMarkerConfiguration.class)
public @interface EnableEurekaServer {

}

@Configuration
public class EurekaServerMarkerConfiguration {

	@Bean
	public Marker eurekaServerMarkerBean() {
		return new Marker();
	}

	class Marker {
	}
}

也就是说只有添加了@EnableEurekaServer注解，才会有后续的动作，这是成为⼀个EurekaServer的
前提

2、EurekaServerAutoConfiguration

EurekaController
注入对外的接口(后台管理界面)
可以在配置文件中eureka.dashboard.enabled = false关闭

@Bean
	@ConditionalOnProperty(prefix = "eureka.dashboard", name = "enabled", matchIfMissing = true)
	public EurekaController eurekaController() {
		return new EurekaController(this.applicationInfoManager);
	}

	static {
		CodecWrappers.registerWrapper(JACKSON_JSON);
		EurekaJacksonCodec.setInstance(JACKSON_JSON.getCodec());
	}

PeerAwareInstanceRegistry
对等节点感知注册器
集群模式下注册服务器使用到的注册器
EurekaServer集群中各个节点是对等的，没有主从之分

	@Bean
	public PeerAwareInstanceRegistry peerAwareInstanceRegistry(
			ServerCodecs serverCodecs) {
		this.eurekaClient.getApplications(); // force initialization
		return new InstanceRegistry(this.eurekaServerConfig, this.eurekaClientConfig,
				serverCodecs, this.eurekaClient,
				this.instanceRegistryProperties.getExpectedNumberOfClientsSendingRenews(),
				this.instanceRegistryProperties.getDefaultOpenForTrafficCount());
	}

PeerEurekaNodes
注入PeerEurekaNodes节点辅助封装对等节点的相关信息和操作，比如：更新集群中的对等节点

	@Bean
	@ConditionalOnMissingBean
	public PeerEurekaNodes peerEurekaNodes(PeerAwareInstanceRegistry registry,
			ServerCodecs serverCodecs) {
		return new RefreshablePeerEurekaNodes(registry, this.eurekaServerConfig,
				this.eurekaClientConfig, serverCodecs, this.applicationInfoManager);
	}

⽽在 com.netflix.eureka.cluster.PeerEurekaNodes#start⽅法中

newSingleThreadScheduledExecutor 构建了线程池
updatePeerEurekaNodes 更新对等节点信息(因为EurekaServer集群节点可能发生了变化)

    public void start() {
        this.taskExecutor = Executors.newSingleThreadScheduledExecutor(new ThreadFactory() {
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r, "Eureka-PeerNodesUpdater");
                thread.setDaemon(true);
                return thread;
            }
        });

        try {
            this.updatePeerEurekaNodes(this.resolvePeerUrls());
            Runnable peersUpdateTask = new Runnable() {
                public void run() {
                    try {
                        PeerEurekaNodes.this.updatePeerEurekaNodes(PeerEurekaNodes.this.resolvePeerUrls());
                    } catch (Throwable var2) {
                        PeerEurekaNodes.logger.error("Cannot update the replica Nodes", var2);
                    }

                }
            };

EurekaServerContext
注入EurekaServer上下文 DefaultEurekaServerContext

	@Bean
	public EurekaServerContext eurekaServerContext(ServerCodecs serverCodecs,
			PeerAwareInstanceRegistry registry, PeerEurekaNodes peerEurekaNodes) {
		return new DefaultEurekaServerContext(this.eurekaServerConfig, serverCodecs,
				registry, peerEurekaNodes, this.applicationInfoManager);
	}

   @Inject
    public DefaultEurekaServerContext(EurekaServerConfig serverConfig, ServerCodecs serverCodecs, PeerAwareInstanceRegistry registry, PeerEurekaNodes peerEurekaNodes, ApplicationInfoManager applicationInfoManager) {
        this.serverConfig = serverConfig;
        this.serverCodecs = serverCodecs;
        this.registry = registry;
        this.peerEurekaNodes = peerEurekaNodes;
        this.applicationInfoManager = applicationInfoManager;
    }

DefaultEurekaServerContext构建完毕后，会执行initialize()
然后会执行PeerEurekaNodes的start()方法


    @PostConstruct
    public void initialize() {
        logger.info("Initializing ...");
        this.peerEurekaNodes.start();

        try {
            this.registry.init(this.peerEurekaNodes);
        } catch (Exception var2) {
            throw new RuntimeException(var2);
        }

        logger.info("Initialized");
    }

EurekaServerBootstrap
注入EurekaServerBootstrap，后续启动需要使用该对象

@Bean
	public EurekaServerBootstrap eurekaServerBootstrap(PeerAwareInstanceRegistry registry,
			EurekaServerContext serverContext) {
		return new EurekaServerBootstrap(this.applicationInfoManager,
				this.eurekaClientConfig, this.eurekaServerConfig, registry,
				serverContext);
	}

FilterRegistrationBean

注册Jersey过滤器
Jersey是一个rest框架帮助我们发布restful服务接口(类似于SpringMVC)

	/**
	 * Register the Jersey filter
	 */
	@Bean
	public FilterRegistrationBean jerseyFilterRegistration(
			javax.ws.rs.core.Application eurekaJerseyApp) {
		FilterRegistrationBean bean = new FilterRegistrationBean();
		bean.setFilter(new ServletContainer(eurekaJerseyApp));
		bean.setOrder(Ordered.LOWEST_PRECEDENCE);
		bean.setUrlPatterns(
				Collections.singletonList(EurekaConstants.DEFAULT_PREFIX + "/*"));

		return bean;
	}

3、EurekaServerInitializerConfiguration

SmartLifecycle
实现该接口，可以在spring容器构建后执行一些start()方法

/**
 * @author Dave Syer
 */
@Configuration
public class EurekaServerInitializerConfiguration
		implements ServletContextAware, SmartLifecycle, Ordered {

	private static final Log log = LogFactory.getLog(EurekaServerInitializerConfiguration.class);

①eurekaServerBootstrap.contextInitialized初始化EurekaServerContext细节
②publish 发布事件
③EurekaServerInitializerConfiguration 状态设置
④publish 发布事件

	@Override
	public void start() {
		new Thread(new Runnable() {
			@Override
			public void run() {
				try {
					//TODO: is this class even needed now?
					eurekaServerBootstrap.contextInitialized(EurekaServerInitializerConfiguration.this.servletContext);
					log.info("Started Eureka Server");

					publish(new EurekaRegistryAvailableEvent(getEurekaServerConfig()));
					EurekaServerInitializerConfiguration.this.running = true;
					publish(new EurekaServerStartedEvent(getEurekaServerConfig()));
				}
				catch (Exception ex) {
					// Help!
					log.error("Could not initialize Eureka servlet context", ex);
				}
			}
		}).start();
	}

EurekaServerBootstrap
重点关注，进⼊
org.springframework.cloud.netflix.eureka.server.EurekaServerBootstrap#contextInitialized
initEurekaEnvironment(); 初始化环境信息
initEurekaServerContext();初始化context细节


	public void contextInitialized(ServletContext context) {
		try {
			initEurekaEnvironment();
			initEurekaServerContext();

			context.setAttribute(EurekaServerContext.class.getName(), this.serverContext);
		}
		catch (Throwable e) {
			log.error("Cannot bootstrap eureka server :", e);
			throw new RuntimeException("Cannot bootstrap eureka server :", e);
		}
	}

org.springframework.cloud.netflix.eureka.server.EurekaServerBootstrap#initEurekaServerContext

	protected void initEurekaServerContext() throws Exception {
		// For backward compatibility
		JsonXStream.getInstance().registerConverter(new V1AwareInstanceInfoConverter(),
				XStream.PRIORITY_VERY_HIGH);
		XmlXStream.getInstance().registerConverter(new V1AwareInstanceInfoConverter(),
				XStream.PRIORITY_VERY_HIGH);

		if (isAws(this.applicationInfoManager.getInfo())) {
			this.awsBinder = new AwsBinderDelegate(this.eurekaServerConfig,
					this.eurekaClientConfig, this.registry, this.applicationInfoManager);
			this.awsBinder.start();
		}
		//为非ioc容器提供获取serverContext对象接口
		EurekaServerContextHolder.initialize(this.serverContext);

		log.info("Initialized server context");

		// Copy registry from neighboring eureka node
		//某一个server实例启动时，从集群中其他的server模块复制一份注册信息(同步)，
		//每个server对其他server来说都是客户端
		int registryCount = this.registry.syncUp();
		//更改实例状态为UP 并对外提供服务
		this.registry.openForTraffic(this.applicationInfoManager, registryCount);

		// Register all monitoring statistics
		//注册统计器.
		EurekaMonitors.registerAllStats();
	}

registry.syncUp()


    public int syncUp() {
        int count = 0;//计数
		//this.serverConfig.getRegistrySyncRetries() 可能上一次没有脸上远程的server 重试机制
        for(int i = 0; i < this.serverConfig.getRegistrySyncRetries() && count == 0; ++i) {
            if (i > 0) {
                try {
                    Thread.sleep(this.serverConfig.getRegistrySyncRetryWaitMs());
                } catch (InterruptedException var10) {
                    logger.warn("Interrupted during registry transfer..");
                    break;
                }
            }
			//获取其他server的注册表信息
            Applications apps = this.eurekaClient.getApplications();
            Iterator var4 = apps.getRegisteredApplications().iterator();

            while(var4.hasNext()) {
                Application app = (Application)var4.next();
                Iterator var6 = app.getInstances().iterator();

                while(var6.hasNext()) {
                	//把从远程获取到的注册信息，注册到自己的注册表中(map)
                    InstanceInfo instance = (InstanceInfo)var6.next();

                    try {
                        if (this.isRegisterable(instance)) {
                            this.register(instance, instance.getLeaseInfo().getDurationInSecs(), true);//是否复制
                            ++count;
                        }
                    } catch (Throwable var9) {
                        logger.error("During DS init copy", var9);
                    }
                }
            }
        }

        return count;
    }

com.netflix.eureka.registry.AbstractInstanceRegistry#register（提供实例注册功能）

	//注册实例到注册表中
    public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
        try {
            this.read.lock();
            Map<String, Lease<InstanceInfo>> gMap = (Map)this.registry.get(registrant.getAppName());
            EurekaMonitors.REGISTER.increment(isReplication);
            if (gMap == null) {
            	//判断有没有服务，如果没有的话就创建一个  new
                ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap();
                gMap = (Map)this.registry.putIfAbsent(registrant.getAppName(), gNewMap);
                if (gMap == null) {
                    gMap = gNewMap;
                }
            }
	//判断服务中有没有该实例，如果没有的话 就创建 Lease 对象
     Lease<InstanceInfo> existingLease = (Lease)((Map)gMap).get(registrant.getId());
            if (existingLease != null && existingLease.getHolder() != null) {
                Long existingLastDirtyTimestamp = ((InstanceInfo)existingLease.getHolder()).getLastDirtyTimestamp();
                Long registrationLastDirtyTimestamp = registrant.getLastDirtyTimestamp();
                logger.debug("Existing lease found (existing={}, provided={}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                if (existingLastDirtyTimestamp > registrationLastDirtyTimestamp) {
                    logger.warn("There is an existing lease and the existing lease's dirty timestamp {} is greater than the one that is being registered {}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                    logger.warn("Using the existing instanceInfo instead of the new instanceInfo as the registrant");
                    registrant = (InstanceInfo)existingLease.getHolder();
                }

继续研究com.netflix.eureka.registry.PeerAwareInstanceRegistryImpl#openForTraffic

 public void openForTraffic(ApplicationInfoManager applicationInfoManager, int count) {
        this.expectedNumberOfClientsSendingRenews = count;
        this.updateRenewsPerMinThreshold();
        logger.info("Got {} instances from neighboring DS node", count);
        logger.info("Renew threshold is: {}", this.numberOfRenewsPerMinThreshold);
        this.startupTime = System.currentTimeMillis();
        if (count > 0) {
            this.peerInstancesTransferEmptyOnStartup = false;
        }

        Name selfName = applicationInfoManager.getInfo().getDataCenterInfo().getName();
        boolean isAws = Name.Amazon == selfName;
        if (isAws && this.serverConfig.shouldPrimeAwsReplicaConnections()) {
            logger.info("Priming AWS connections for all replicas..");
            this.primeAwsReplicas(applicationInfoManager);
        }

        logger.info("Changing status to UP");
        //更改实例状态为  UP
        applicationInfoManager.setInstanceStatus(InstanceStatus.UP);
        super.postInit();//开启定时任务，默认每个60s进行一次服务的实效剔除
    }

进⼊postInit()⽅法查看

    protected void postInit() {
        this.renewsLastMin.start(); //实效剔除的定时任务
        if (this.evictionTaskRef.get() != null) {
            ((AbstractInstanceRegistry.EvictionTask)this.evictionTaskRef.get()).cancel();
        }
		//任务逻辑
        this.evictionTaskRef.set(new AbstractInstanceRegistry.EvictionTask());
        this.evictionTimer.schedule((TimerTask)this.evictionTaskRef.get(), this.serverConfig.getEvictionIntervalTimerInMs(), this.serverConfig.getEvictionIntervalTimerInMs());
    }
