I2C通讯总结：

确定I2C地址；一般i2c有7位跟10位的区分，8位地址是7位地址左移1位，或者读写位，读位1 写为0；

I2C设备的写地址 = I2C设备地址 << 1
I2C设备的读地址 = (I2C设备地址 << 1) + 1
假设一个i2c 7位地址位0x50 ，则它的读地址为(0x50<<1)| 0x1=0xA1，写地址为0xA0;

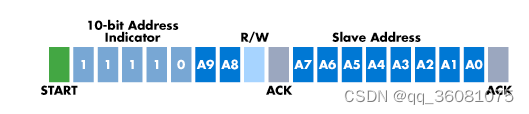

10位地址暂时不谈；
通讯时序
开始信号：

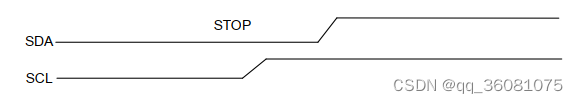

停止信号：

读数据：SCL拉低是SDA可以改变，SCL 高的时候，SDA数据要稳定，SCL高这个时候读SDA数据；
在这里插入图片描述

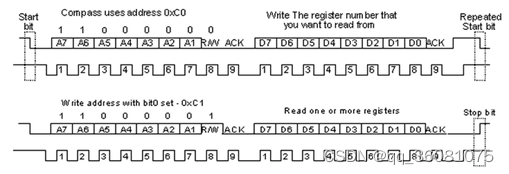

回读reg数据:（包含ack,nack是传完最后一个字节时会回应NACK, NACK SDA为高）
在这里插入图片描述

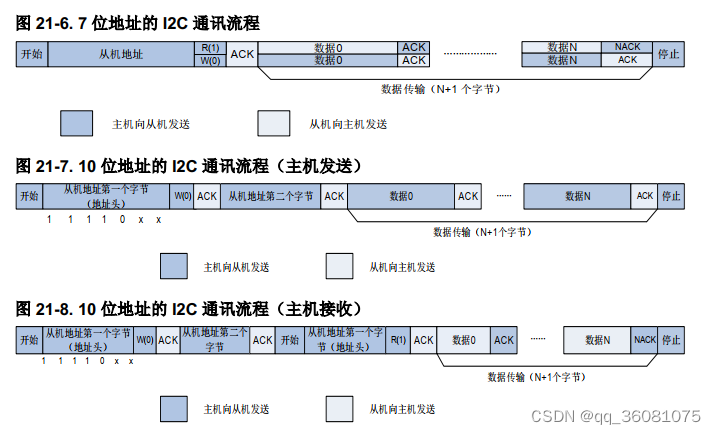

通讯流程

通讯过程步骤：

某个从机A发送start 信号，A变成了主机模式，A发送通讯从机地址B的写地址，如果有ack,表明A已发送地址并收到B回应；
A 发送需要写入/读取的寄存器地址reg_addr,收到ack后，发送restart信号；
A 发送从机B地址（读就发送读地址，写就发送写地址），有ack后，发送要读/写的数据.如果是多个数据，则中间每个数据都会有ack，最后一个字节发送完，会有NACK；
主机A发送停止信号；

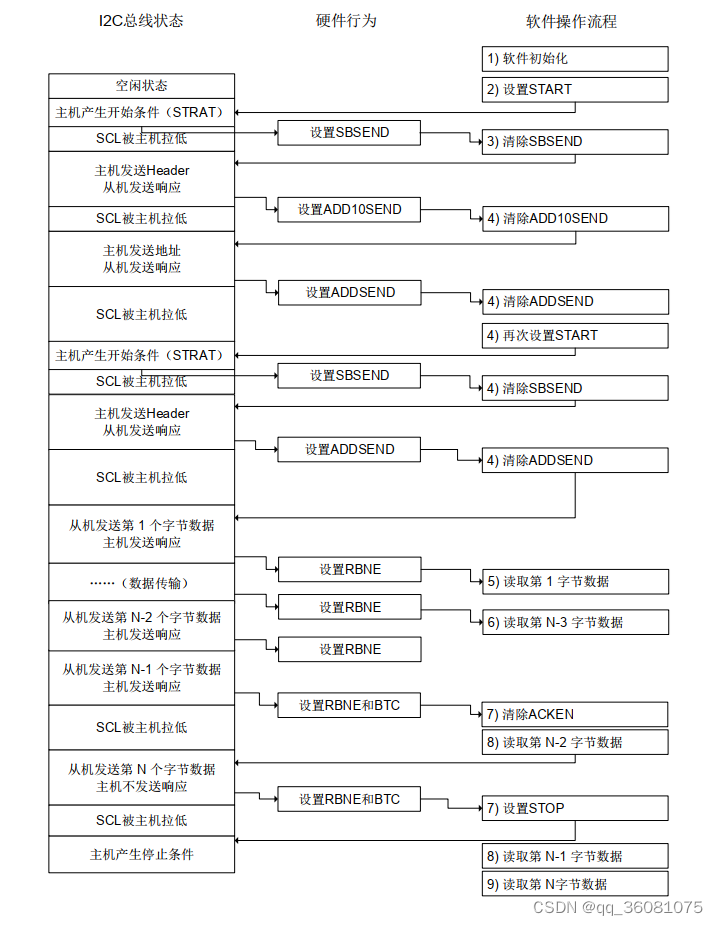

单片机硬件I2C通讯流程：

寄存器介绍：

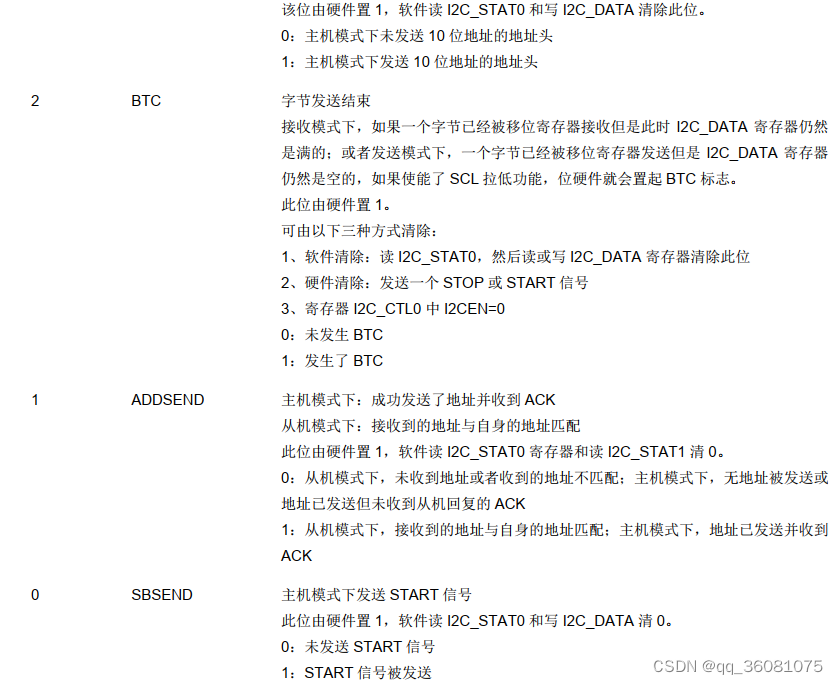

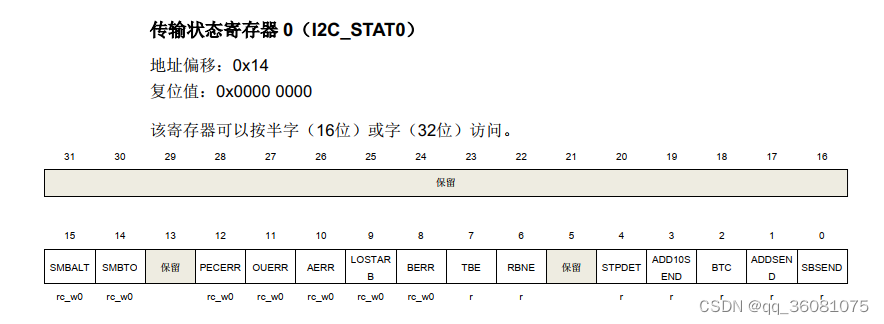

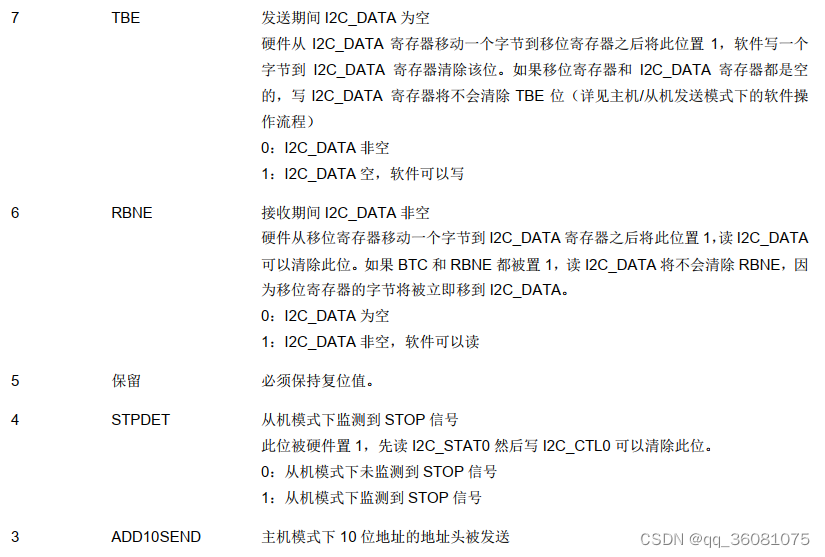

在这里插入图片描述

硬件i2c初始化

void i2c1_config(void)
{

    unsigned char val;
    i2c_cfg[1].i2c_peri = I2C1;
    i2c_cfg[1].addr = DEFAULT_BACKPLANE_ADDR;

    i2c_cfg[1].i2c_rd = rngCreate(I2C_RNG_SIZE);

    i2c_cfg[1].i2c_wr = rngCreate(I2C_RNG_SIZE);

    if(!i2c_cfg[1].i2c_rd || !i2c_cfg[1].i2c_wr)
        return ;
    i2c_cfg[1].mutex = xSemaphoreCreateMutex();

    i2c_cfg[1].xfer.mode = MODE_MASTER;

    rcu_periph_clock_enable(RCU_I2C1);
    /* I2C1 SDA/PB11 SCL/PB10 SMBA/PB12*/
    gpio_init(GPIOB, GPIO_MODE_AF_OD, GPIO_OSPEED_50MHZ, GPIO_PIN_10 | GPIO_PIN_11 | GPIO_PIN_12);

    i2c_deinit(I2C1);
    /* configure I2C clock */
    i2c_clock_config(I2C1, I2C1_SPEED, I2C_DTCY_2);
#ifdef I2C_SMBUS
    /* configure I2C address */
    i2c_mode_addr_config(I2C1, I2C_SMBUSMODE_ENABLE, I2C_ADDFORMAT_7BITS, i2c_cfg[1].addr);
    /* configure SMBUS HOST/DEVICE */
    i2c_smbus_type_config(I2C1, I2C_SMBUS_HOST);
#endif


    i2c_interrupt_enable(I2C1, I2C_INT_EV);
    i2c_interrupt_enable(I2C1, I2C_INT_ERR);
    i2c_interrupt_enable(I2C1, I2C_INT_BUF);
    //i2c_interrupt_enable(I2C1, I2C_INT_STPSEND);

    nvic_irq_enable(I2C1_EV_IRQn, 0, 2);
    nvic_irq_enable(I2C1_ER_IRQn, 0, 2);

    /* enable I2C1 */
    i2c_enable(I2C1);

    i2c_ack_config(I2C1, I2C_ACK_ENABLE);
}

中断处理函数：

//i2c_cfg结构体
 struct I2C_Config {
    RING_ID i2c_rd;
    RING_ID i2c_wr;
    unsigned int i2c_peri;
    unsigned char addr;
    struct i2c_transfer_t xfer;
    SemaphoreHandle_t mutex;
    unsigned char support_eeprom;
};
static struct I2C_Config i2c_cfg[2];

void i2c_ev_isr(unsigned int index)
{
    unsigned char val=0;
    unsigned int i2c_peri = i2c_cfg[index].i2c_peri;

    if(i2c_cfg[index].xfer.mode == MODE_SLAVE){
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_ADDSEND) == SET){
            i2c_interrupt_flag_clear(i2c_peri, I2C_INT_FLAG_ADDSEND);
            //从机发送
            if(i2c_cfg[index].xfer.flag & FLAG_START){

                SMBusCommandProcess(index);
            } else{
                i2c_cfg[index].xfer.flag |= FLAG_START;

            }
        }
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_RBNE) == SET){
            i2c_interrupt_flag_clear(i2c_peri, I2C_INT_FLAG_RBNE);

            val = i2c_data_receive(i2c_peri);

            if(rngBufPut(i2c_cfg[index].i2c_rd, &val, 1) != 1){ printf("i2c data save error \n");;}
                  //printf("I2C%x recv lost %x\r\n", index, val);

            ++i2c_cfg[index].xfer.rd_len;

            printf("MODE_SLAVE 0x%x\n", val);
        }
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_TBE) == SET){

                rngBufGet(i2c_cfg[index].i2c_wr, &val, 1);

                i2c_data_transmit(i2c_peri, val);

                 printf("send 0x%x\n", val);
                //当移位寄存器与DATA都为空，可以再写一个字节
                if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_TBE) == SET){
                    rngBufGet(i2c_cfg[index].i2c_wr, &val, 1);

                    i2c_data_transmit(i2c_peri, val);
                }


        }
        //slave 读结束flag
        if(SET == i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_STPDET)){
            i2c_enable(i2c_cfg[index].i2c_peri);
            //从机接收
            SMBusCommandProcess(index);
            //清空buffer
            rngFlush(i2c_cfg[index].i2c_rd);
            rngFlush(i2c_cfg[index].i2c_wr);

            i2c_cfg[index].xfer.rd_len = 0;
            i2c_cfg[index].xfer.wr_len = 0;

        }
    } else {
      //主机模式下 判断是否发送了地址并收到了ack
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_ADDSEND) == SET){
           //收到发送了地址并收到了ack，清除掉这个标志位
            i2c_interrupt_flag_clear(i2c_peri, I2C_INT_FLAG_ADDSEND);
            i2c_cfg[index].xfer.flag |= FLAG_START;

        }
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_RBNE) == SET){
             printf("i2c_cfg[index].xfer.rd_len:%d\n",i2c_cfg[index].xfer.rd_len);
              if(i2c_cfg[index].xfer.rd_len ==0)
            {

               i2c_interrupt_flag_clear(i2c_peri, I2C_INT_FLAG_RBNE);
               val = i2c_data_receive(i2c_peri);//当接收长度为0时，为了消除I2C_INT_FLAG_RBNE标志位，需要对I2C_DATA进行对操作；
               printf("i2c:len :0x%x  rev val 0x%x\n", i2c_cfg[index].xfer.rd_len,val);
            }
            /* 接收到len-1长度的数据，发送NACK和stop并接收下一个数据 */
              else if(i2c_cfg[index].xfer.rd_len == 1){

                i2c_ack_config(i2c_peri, I2C_ACK_DISABLE);
                i2c_stop_on_bus(i2c_peri);
                i2c_cfg[index].xfer.flag |= FLAG_STOP;

                val = i2c_data_receive(i2c_peri);
                printf("i2c:len :0x%x  rev val 0x%x\n", i2c_cfg[index].xfer.rd_len,val);
                --i2c_cfg[index].xfer.rd_len ;
                if(rngBufPut(i2c_cfg[index].i2c_rd, &val, 1) != 1)
                      ;
            }
            else
            {
                 val = i2c_data_receive(i2c_peri);
                 if(rngBufPut(i2c_cfg[index].i2c_rd, &val, 1) != 1)
                         ;
                 --i2c_cfg[index].xfer.rd_len ;

            }

                        ;
        }
        //判断是否发送了start信号
        if(SET == i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_SBSEND)){
            //判断传输方向
            if(i2c_cfg[index].xfer.direction == DIR_RD){
                 //方向为接收  此处写I2C_DATA
                i2c_master_addressing(i2c_peri, i2c_cfg[index].xfer.xfer_addr, I2C_RECEIVER);
            } else {
                 //方向为发送  此处写I2C_DATA
                i2c_master_addressing(i2c_peri, i2c_cfg[index].xfer.xfer_addr, I2C_TRANSMITTER);
            }

        } //I2C_DATA是否为空  1为空
        if(i2c_interrupt_flag_get(i2c_peri, I2C_INT_FLAG_TBE) == SET){
            /* write完成,发送restart */
            if(i2c_cfg[index].xfer.wr_len == 0 && i2c_cfg[index].xfer.rd_len != 0){
                i2c_cfg[index].xfer.direction = DIR_RD;

                i2c_start_on_bus(i2c_peri);

            /* 收发完成，stop */
            } else if(i2c_cfg[index].xfer.wr_len == 0 && i2c_cfg[index].xfer.rd_len == 0){

                #ifdef I2C_PEC
                i2c_pec_transfer(i2c_peri);
                #endif
                i2c_stop_on_bus(i2c_peri);

                i2c_cfg[index].xfer.flag |= FLAG_STOP;



            /* write */
            } else if(!rngIsEmpty(i2c_cfg[index].i2c_wr)){
                rngBufGet(i2c_cfg[index].i2c_wr, &val, 1);

                i2c_data_transmit(i2c_peri, val);

                --i2c_cfg[index].xfer.wr_len;

            }
        }

    }
}

读写：

int SMBusBlockRead(unsigned int index, unsigned char slaveAddr, unsigned char cmd, unsigned char *buffer, unsigned int len)
{
    int i=0;
    unsigned char val;
    struct I2C_Config *pI2C = &i2c_cfg[index];

    while(i2c_flag_get(pI2C->i2c_peri, I2C_FLAG_I2CBSY) && (i++<SMBUS_TIMEOUT_US))udelay(1);

    if(i>=SMBUS_TIMEOUT_US)
        return ACK_SMBUS_TIMEOUT;
    i2c_prepare_transfer(index);

    MUTEX_TAKE(pI2C->mutex);

    pI2C->xfer.mode = MODE_MASTER;

    pI2C->xfer.xfer_addr = slaveAddr;

    pI2C->xfer.direction = DIR_RDWR;

        //cmd+buffer
      pI2C->xfer.wr_len = 1;
      pI2C->xfer.rd_len = len;
      rngBufPut(pI2C->i2c_wr, (unsigned char *)&cmd, 1);



    i2c_start_on_bus(pI2C->i2c_peri);
#if 0
    //cmd+buffer
    while((rngNBytes(pI2C->i2c_rd)<len) && (i++<SMBUS_TIMEOUT_US))udelay(1);

    if(i>=SMBUS_TIMEOUT_US)
        return -1;
#endif
    //等待传输结束后取数据
    while(!(i2c_cfg[index].xfer.flag & FLAG_STOP)){
        if(i2c_cfg[index].xfer.flag & FLAG_TIMEOUT){
            MUTEX_GIVE(pI2C->mutex);
            return ACK_SMBUS_TIMEOUT;
        }
    }

    rngBufGet(pI2C->i2c_rd, buffer, len);

    i2c_stop_transfer(index);

    MUTEX_GIVE(pI2C->mutex);

    return ACK_OK;
}

int SMBusBlockWrite(unsigned int index, unsigned char slaveAddr, unsigned char cmd, unsigned char *buffer, unsigned int len)
{
    int i=0;
    struct I2C_Config *pI2C = &i2c_cfg[index];

    while(i2c_flag_get(pI2C->i2c_peri, I2C_FLAG_I2CBSY) && (i++<SMBUS_TIMEOUT_US))udelay(1);

    if(i>=SMBUS_TIMEOUT_US)
        return ACK_SMBUS_TIMEOUT;

    i2c_prepare_transfer(index);

    MUTEX_TAKE(pI2C->mutex);

    pI2C->xfer.mode = MODE_MASTER;

    pI2C->xfer.xfer_addr = slaveAddr;

    pI2C->xfer.direction = DIR_WR;
    //cmd+buffer
    pI2C->xfer.wr_len = len+1;

    pI2C->xfer.rd_len = 0;

    rngBufPut(pI2C->i2c_wr, (unsigned char *)&cmd, 1);

    rngBufPut(pI2C->i2c_wr, buffer, len);

    i2c_start_on_bus(pI2C->i2c_peri);

    while(!(i2c_cfg[index].xfer.flag & FLAG_STOP)){
        if(i2c_cfg[index].xfer.flag & FLAG_TIMEOUT){
            MUTEX_GIVE(pI2C->mutex);
            return ACK_SMBUS_TIMEOUT;
        }
    }

    i2c_stop_transfer(index);

    MUTEX_GIVE(pI2C->mutex);

    return ACK_OK;
}
ACK_STATUS SMBusBlockRW(unsigned int index, unsigned char slaveAddr, unsigned char cmd, unsigned char *rbuffer, unsigned int rlen, unsigned char *wbuffer, unsigned int wlen)
{
    int i=0;
    struct I2C_Config *pI2C = &i2c_cfg[index];

    while(i2c_flag_get(pI2C->i2c_peri, I2C_FLAG_I2CBSY) && (i++<SMBUS_TIMEOUT_US))udelay(1);

    if(i>=SMBUS_TIMEOUT_US)
        return ACK_SMBUS_TIMEOUT;

    i2c_prepare_transfer(index);

    MUTEX_TAKE(pI2C->mutex);

    pI2C->xfer.mode = MODE_MASTER;

    pI2C->xfer.xfer_addr = slaveAddr;

    pI2C->xfer.direction = DIR_RDWR;
    //cmd+buffer
    pI2C->xfer.wr_len = 1+wlen;

    pI2C->xfer.rd_len = rlen;

    rngBufPut(pI2C->i2c_wr, (unsigned char *)&cmd, 1);

    rngBufPut(pI2C->i2c_wr, (unsigned char *)wbuffer, wlen);

    i2c_start_on_bus(pI2C->i2c_peri);

    //等待传输结束后取数据
    while(!(i2c_cfg[index].xfer.flag & FLAG_STOP)){
        if(i2c_cfg[index].xfer.flag & FLAG_TIMEOUT){
            MUTEX_GIVE(pI2C->mutex);
            return ACK_SMBUS_TIMEOUT;
        }
    }

    rngBufGet(pI2C->i2c_rd, rbuffer, rlen);

    i2c_stop_transfer(index);

    MUTEX_GIVE(pI2C->mutex);

    return ACK_OK;
}
