我们知道RocketMQ有一个配置autoCreateTopicEnable，开发环境一般我们会设置为true,允许创建topic,而生产上为了统一管理topic, 则会设置成false,在管理界面由管理员统一创建即可
那么， rocketMQ是如何根据这个配置来做处理的呢？
或者你是否遇到过这个异常信息？
No route info of this topic
下面让我们开始解决源码

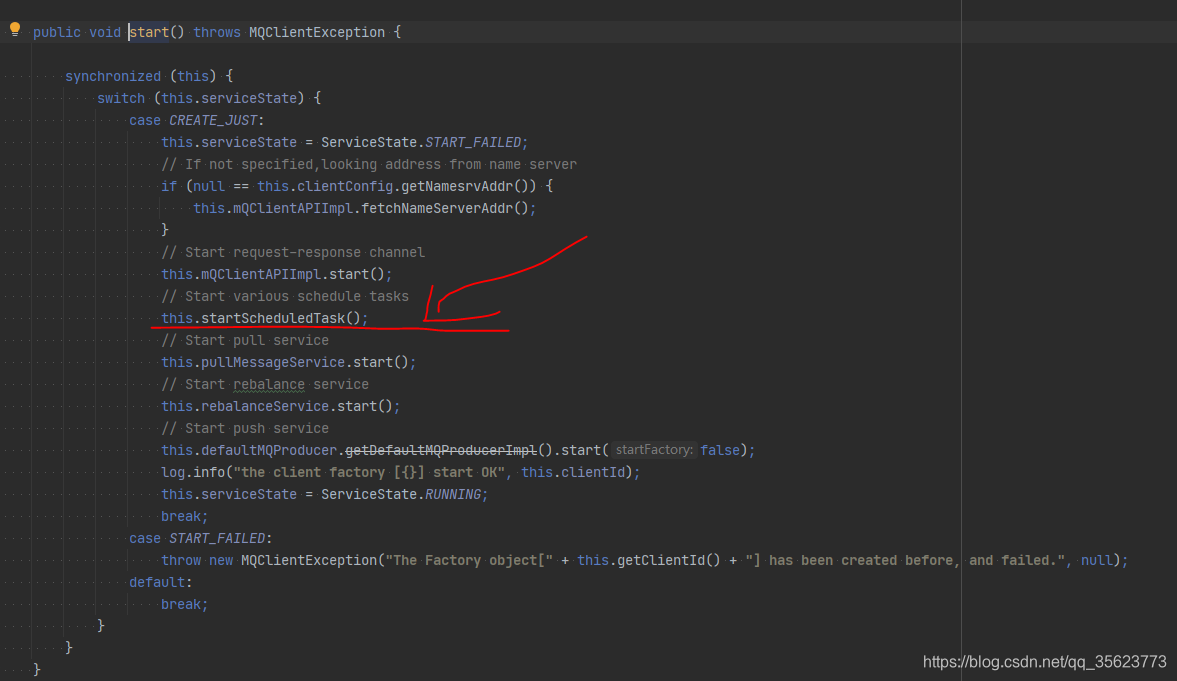

首先，生产者启动时会创建一时定时任务，我们先重点关注下下面的这个定时任务做了什么
MQClientInstance.start()
private void startScheduledTask() {
if (null == this.clientConfig.getNamesrvAddr()) {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.mQClientAPIImpl.fetchNameServerAddr(); //更新nameserver地址
} catch (Exception e) {
log.error("ScheduledTask fetchNameServerAddr exception", e);
}
}
}, 1000 * 10, 1000 * 60 * 2, TimeUnit.MILLISECONDS);
}
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.updateTopicRouteInfoFromNameServer();//更新路由信息
} catch (Exception e) {
log.error("ScheduledTask updateTopicRouteInfoFromNameServer exception", e);
}
}
}, 10, this.clientConfig.getPollNameServerInterval(), TimeUnit.MILLISECONDS);
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.cleanOfflineBroker();
MQClientInstance.this.sendHeartbeatToAllBrokerWithLock();//发送心跳包至broker
} catch (Exception e) {
log.error("ScheduledTask sendHeartbeatToAllBroker exception", e);
}
}
}, 1000, this.clientConfig.getHeartbeatBrokerInterval(), TimeUnit.MILLISECONDS);
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.persistAllConsumerOffset(); //持久化消费者消息消费偏移量
} catch (Exception e) {
log.error("ScheduledTask persistAllConsumerOffset exception", e);
}
}
}, 1000 * 10, this.clientConfig.getPersistConsumerOffsetInterval(), TimeUnit.MILLISECONDS);
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.adjustThreadPool();//调整线程池
} catch (Exception e) {
log.error("ScheduledTask adjustThreadPool exception", e);
}
}
}, 1, 1, TimeUnit.MINUTES);
}
接着看 MQClientInstance.this.updateTopicRouteInfoFromNameServer();//更新路由信息
public void updateTopicRouteInfoFromNameServer() {
Set<String> topicList = new HashSet<String>();
// Consumer 获取当前实例消费者中消费的topic信息
{
Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQConsumerInner> entry = it.next();
MQConsumerInner impl = entry.getValue();
if (impl != null) {
Set<SubscriptionData> subList = impl.subscriptions();
if (subList != null) {
for (SubscriptionData subData : subList) {
topicList.add(subData.getTopic());
}
}
}
}
}
// Producer 获取当前实例生产者中消费的topic信息
{
Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQProducerInner> entry = it.next();
MQProducerInner impl = entry.getValue();
if (impl != null) {
Set<String> lst = impl.getPublishTopicList();
topicList.addAll(lst);
}
}
}
//根据topic从nameserver获取路由信息更新至本地缓存
for (String topic : topicList) {
this.updateTopicRouteInfoFromNameServer(topic);
}
}
接下来是重点，updateTopicRouteInfoFromNameServer方法发送消息时也会调用到，也是这此要重点讲解的方法
public boolean updateTopicRouteInfoFromNameServer(final String topic, boolean isDefault,
DefaultMQProducer defaultMQProducer) {
try {
if (this.lockNamesrv.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
try {
TopicRouteData topicRouteData; // 声明路由信息
if (isDefault && defaultMQProducer != null) { //当topic是默认创建的"TBW102"时会调用此段逻辑 即根据topic没找到路由信息时会进入此段逻辑
topicRouteData = this.mQClientAPIImpl.getDefaultTopicRouteInfoFromNameServer(defaultMQProducer.getCreateTopicKey(),
1000 * 3); // 通过"TBW102" 作为默认的topic找到路由信息
if (topicRouteData != null) {
for (QueueData data : topicRouteData.getQueueDatas()) {
int queueNums = Math.min(defaultMQProducer.getDefaultTopicQueueNums(), data.getReadQueueNums());
data.setReadQueueNums(queueNums);//设置读写队列
data.setWriteQueueNums(queueNums);
}
}
} else {
topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3); // 根据topic从nameserver中找路由信息
}
if (topicRouteData != null) {
TopicRouteData old = this.topicRouteTable.get(topic);//根据topic从本地缓存找路由信息
boolean changed = topicRouteDataIsChange(old, topicRouteData); //判断本地缓存路由信息是否需要更新
if (!changed) {
changed = this.isNeedUpdateTopicRouteInfo(topic);// 为false时更新生产者 消费者本地缓存信息
} else {
log.info("the topic[{}] route info changed, old[{}] ,new[{}]", topic, old, topicRouteData);
}
if (changed) {//x需要更新路由信息
TopicRouteData cloneTopicRouteData = topicRouteData.cloneTopicRouteData();//复制老路由数据
for (BrokerData bd : topicRouteData.getBrokerDatas()) {
this.brokerAddrTable.put(bd.getBrokerName(), bd.getBrokerAddrs());// 更新broker地址信息
}
// Update Pub info
{
TopicPublishInfo publishInfo = topicRouteData2TopicPublishInfo(topic, topicRouteData);
publishInfo.setHaveTopicRouterInfo(true);
Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQProducerInner> entry = it.next();
MQProducerInner impl = entry.getValue();
if (impl != null) {
impl.updateTopicPublishInfo(topic, publishInfo);
}
}
}
// Update sub info
{
Set<MessageQueue> subscribeInfo = topicRouteData2TopicSubscribeInfo(topic, topicRouteData);
Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQConsumerInner> entry = it.next();
MQConsumerInner impl = entry.getValue();
if (impl != null) {
impl.updateTopicSubscribeInfo(topic, subscribeInfo);
}
}
}
log.info("topicRouteTable.put. Topic = {}, TopicRouteData[{}]", topic, cloneTopicRouteData);
this.topicRouteTable.put(topic, cloneTopicRouteData); //保存本地缓存 允许创建topic时会将新的topic信息保存至本地缓存
return true;
}
} else {
log.warn("updateTopicRouteInfoFromNameServer, getTopicRouteInfoFromNameServer return null, Topic: {}. [{}]", topic, this.clientId);
}
} catch (MQClientException e) {
if (!topic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
log.warn("updateTopicRouteInfoFromNameServer Exception", e);
}
} catch (RemotingException e) {
log.error("updateTopicRouteInfoFromNameServer Exception", e);
throw new IllegalStateException(e);
} finally {
this.lockNamesrv.unlock();
}
} else {
log.warn("updateTopicRouteInfoFromNameServer tryLock timeout {}ms. [{}]", LOCK_TIMEOUT_MILLIS, this.clientId);
}
} catch (InterruptedException e) {
log.warn("updateTopicRouteInfoFromNameServer Exception", e);
}
return false;
}
当不允许自动创建topic时从nameserver上是获取不到路由信息的，getTopicRouteInfoFromNameServer方法将会抛出异常， 而updateTopicRouteInfoFromNameServer方法将会返回false.
发送消息时将获取不到路由信息，发送消息方法将会抛出异常。
我们先看下发送消息的方法的源码：
private SendResult sendDefaultImpl(
Message msg,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
this.makeSureStateOK(); //检查生产者是否启动成功
Validators.checkMessage(msg, this.defaultMQProducer); //检查消息是否合法
final long invokeID = random.nextLong();
long beginTimestampFirst = System.currentTimeMillis();
long beginTimestampPrev = beginTimestampFirst;
long endTimestamp = beginTimestampFirst;
TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic()); //根据topic找路由信息 找broker
if (topicPublishInfo != null && topicPublishInfo.ok()) {
boolean callTimeout = false;
MessageQueue mq = null;
Exception exception = null;
SendResult sendResult = null;
//定义消息失败重发的次数 同步发送为三次 异步为1次 但在异步方法的回调中失败了还好重试2次 单向发送为一次
int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
int times = 0;
String[] brokersSent = new String[timesTotal];
for (; times < timesTotal; times++) {
String lastBrokerName = null == mq ? null : mq.getBrokerName();
//选择队列
//根据发送负载均衡策略 选择一个队列 如果开启故障延迟机制 则会从故障的broker中选择一个判断是否可以来选择队列
// 默认算法 维护一个计算器 计算器值和对象大小取余获取相应的队列 当本次发送的broker和上传发送的broker不一样时队列获取成功 一样则再循环一次获取下一个队列
MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
if (mqSelected != null) {
mq = mqSelected;
brokersSent[times] = mq.getBrokerName();
try {
beginTimestampPrev = System.currentTimeMillis();
if (times > 0) {
//Reset topic with namespace during resend.
msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
}
long costTime = beginTimestampPrev - beginTimestampFirst;
if (timeout < costTime) {
callTimeout = true;
break;
}
//发送消息
sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
endTimestamp = System.currentTimeMillis();
//故障延迟机制计算broker故障层级 计算broker不可用时间
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
switch (communicationMode) {
case ASYNC:
return null;
case ONEWAY:
return null;
case SYNC:
if (sendResult.getSendStatus() != SendStatus.SEND_OK) {
if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
continue;
}
}
return sendResult;
default:
break;
}
} catch (RemotingException e) {
endTimestamp = System.currentTimeMillis();
//故障延迟机制计算broker故障层级 计算broker不可用时间
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
continue;
} catch (MQClientException e) {
endTimestamp = System.currentTimeMillis();
//故障延迟机制计算broker故障层级 计算broker不可用时间
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
continue;
} catch (MQBrokerException e) {
endTimestamp = System.currentTimeMillis();
//故障延迟机制计算broker故障层级 计算broker不可用时间
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
exception = e;
switch (e.getResponseCode()) {
case ResponseCode.TOPIC_NOT_EXIST:
case ResponseCode.SERVICE_NOT_AVAILABLE:
case ResponseCode.SYSTEM_ERROR:
case ResponseCode.NO_PERMISSION:
case ResponseCode.NO_BUYER_ID:
case ResponseCode.NOT_IN_CURRENT_UNIT:
continue;
default:
if (sendResult != null) {
return sendResult;
}
throw e;
}
} catch (InterruptedException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
log.warn(String.format("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
log.warn(msg.toString());
log.warn("sendKernelImpl exception", e);
log.warn(msg.toString());
throw e;
}
} else {
break;
}
}
if (sendResult != null) {
return sendResult;
}
String info = String.format("Send [%d] times, still failed, cost [%d]ms, Topic: %s, BrokersSent: %s",
times,
System.currentTimeMillis() - beginTimestampFirst,
msg.getTopic(),
Arrays.toString(brokersSent));
info += FAQUrl.suggestTodo(FAQUrl.SEND_MSG_FAILED);
MQClientException mqClientException = new MQClientException(info, exception);
if (callTimeout) {
throw new RemotingTooMuchRequestException("sendDefaultImpl call timeout");
}
if (exception instanceof MQBrokerException) {
mqClientException.setResponseCode(((MQBrokerException) exception).getResponseCode());
} else if (exception instanceof RemotingConnectException) {
mqClientException.setResponseCode(ClientErrorCode.CONNECT_BROKER_EXCEPTION);
} else if (exception instanceof RemotingTimeoutException) {
mqClientException.setResponseCode(ClientErrorCode.ACCESS_BROKER_TIMEOUT);
} else if (exception instanceof MQClientException) {
mqClientException.setResponseCode(ClientErrorCode.BROKER_NOT_EXIST_EXCEPTION);
}
throw mqClientException;
}
validateNameServerSetting();

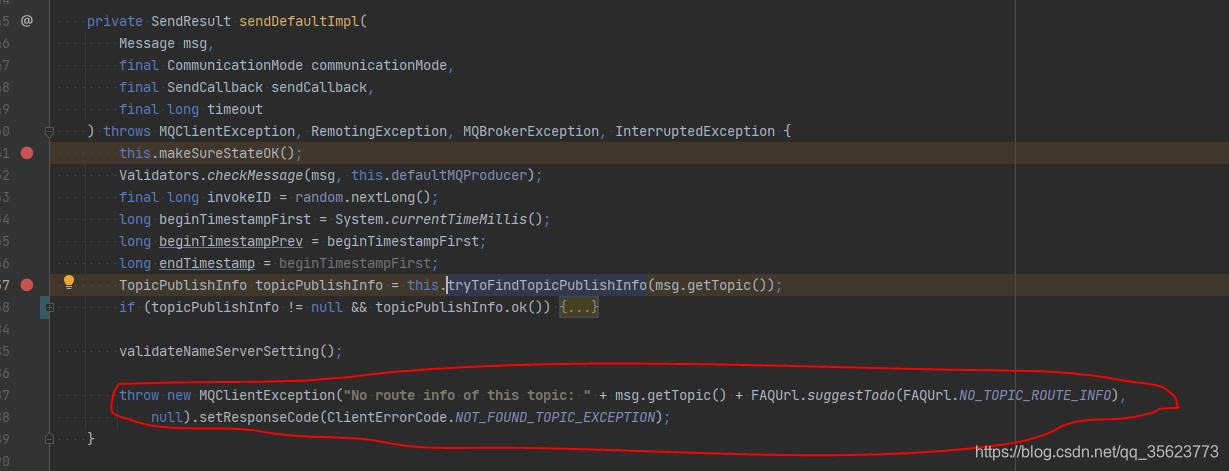

//根据topic找不到路由信息时抛出异常
throw new MQClientException("No route info of this topic: " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO_TOPIC_ROUTE_INFO),
null).setResponseCode(ClientErrorCode.NOT_FOUND_TOPIC_EXCEPTION);
}
在发送消息前会先根据topic获取路由信息 tryToFindTopicPublishInfo：
private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic); // 从本地缓存获取路由信息 新topic此时为空
if (null == topicPublishInfo || !topicPublishInfo.ok()) {
this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic); // 本地为空时先根据topic去nameserver上找路由信息 新topic此时在nameserver上肯定也是获取不到的
topicPublishInfo = this.topicPublishInfoTable.get(topic);
}
if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
return topicPublishInfo; //从nameServer获取到返回
} else {
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer); //通过允许创建topic配置 默认生成的topic找路由信息 不允许自动创建topic时TBW102在nameServer也找不到
topicPublishInfo = this.topicPublishInfoTable.get(topic);
return topicPublishInfo;
}
}
上面代码注释中有提到 ““TBW102”” 这个topic，当允许自动创建topic时会根据这个默认的topic找路由信息，那这个默认的路由信息时何时上报到nameServer的呢？
首先生产者启动的时候会根据是否允许自动创建topic来生成默认的topic信息，broker启动时会创建brokerController对象，而brokerController声明时会创建topicConfigManager对象，在这个类的构造器中存在下面一段代码
{
if (this.brokerController.getBrokerConfig().isAutoCreateTopicEnable()) { //判断是否允许自动创建topic
String topic = TopicValidator.AUTO_CREATE_TOPIC_KEY_TOPIC;
TopicConfig topicConfig = new TopicConfig(topic);
TopicValidator.addSystemTopic(topic);
topicConfig.setReadQueueNums(this.brokerController.getBrokerConfig()
.getDefaultTopicQueueNums());
topicConfig.setWriteQueueNums(this.brokerController.getBrokerConfig()
.getDefaultTopicQueueNums());
int perm = PermName.PERM_INHERIT | PermName.PERM_READ | PermName.PERM_WRITE;
topicConfig.setPerm(perm);
this.topicConfigTable.put(topicConfig.getTopicName(), topicConfig); //存入本地缓存
}
}
那存入this.topicConfigTable后发生了什么呢？
在broker启动时会开启一个定时任务，默认每30s会发送一次心跳信息（心跳时间可配置范围10s~60s）
发送心跳时就会将topicConfigTable中的信息上报给nameServer,这样根据默认生成的topic就能找到路由信息了。
至于nameServer怎么接受broker心跳信息的，读者可自行查看DefaultRequestProcessor.registerBroker方法
public synchronized void registerBrokerAll(final boolean checkOrderConfig, boolean oneway, boolean forceRegister) {
//从topicConfigTable获取topic信息
TopicConfigSerializeWrapper topicConfigWrapper = this.getTopicConfigManager().buildTopicConfigSerializeWrapper();
if (!PermName.isWriteable(this.getBrokerConfig().getBrokerPermission())
|| !PermName.isReadable(this.getBrokerConfig().getBrokerPermission())) {
ConcurrentHashMap<String, TopicConfig> topicConfigTable = new ConcurrentHashMap<String, TopicConfig>();
for (TopicConfig topicConfig : topicConfigWrapper.getTopicConfigTable().values()) {
TopicConfig tmp =
new TopicConfig(topicConfig.getTopicName(), topicConfig.getReadQueueNums(), topicConfig.getWriteQueueNums(),
this.brokerConfig.getBrokerPermission());
topicConfigTable.put(topicConfig.getTopicName(), tmp);
}
topicConfigWrapper.setTopicConfigTable(topicConfigTable);
}
if (forceRegister || needRegister(this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.brokerConfig.getRegisterBrokerTimeoutMills())) {
doRegisterBrokerAll(checkOrderConfig, oneway, topicConfigWrapper); //注册broker信息到每个nameserver上
}
}
从上面一系列的源码我们可以知道，在根据新topic发送消息时在nameServer是找不到路由信息的（没搞懂的建议再看看前面的代码），找不到时会根据默认的topic ““TBW102””去找路由信息，然后再发送消息。可是这时候生产者并没有上报新的topic给nameServer,于是就有了下面的问题。
既然默认生成的topic是由broker的定时任务上送给nameServer的， 那我们自动创建topic时又是怎么上报到nameserver的呢？
既然生产者没有上报，那会不会是broker接收到消息后上报的呢？
我们来看看broker 接收 消息时 做了什么 sendMessage（已同步发送为例），查看源码发现，会调用父类的super.msgCheck(ctx, requestHeader, response);来检查消息
protected RemotingCommand msgCheck(final ChannelHandlerContext ctx,
final SendMessageRequestHeader requestHeader, final RemotingCommand response) {
if (!PermName.isWriteable(this.brokerController.getBrokerConfig().getBrokerPermission()) //判断当前broker角色 是slave时禁止写入数据
&& this.brokerController.getTopicConfigManager().isOrderTopic(requestHeader.getTopic())) {
response.setCode(ResponseCode.NO_PERMISSION);
response.setRemark("the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
+ "] sending message is forbidden");
return response;
}
if (!TopicValidator.validateTopic(requestHeader.getTopic(), response)) { //验证topic是否合法、 topic不能为空 长度不能超过127 topic命名需符合要求 只能为数字字母—_
return response;
}
if (TopicValidator.isNotAllowedSendTopic(requestHeader.getTopic(), response)) {//验证topic命名是系统自带的topic 是则不允许使用
return response;
}
TopicConfig topicConfig =
this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic()); //根据topic从topicConfigTable获取信息
if (null == topicConfig) { //新创建的topic将不会存在 为空
int topicSysFlag = 0;
if (requestHeader.isUnitMode()) {
if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
topicSysFlag = TopicSysFlag.buildSysFlag(false, true);
} else {
topicSysFlag = TopicSysFlag.buildSysFlag(true, false);
}
}
log.warn("the topic {} not exist, producer: {}", requestHeader.getTopic(), ctx.channel().remoteAddress());
topicConfig = this.brokerController.getTopicConfigManager().createTopicInSendMessageMethod( //为空时创建topic信息
requestHeader.getTopic(),
requestHeader.getDefaultTopic(),
RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
requestHeader.getDefaultTopicQueueNums(), topicSysFlag);
if (null == topicConfig) {
if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
topicConfig =
this.brokerController.getTopicConfigManager().createTopicInSendMessageBackMethod(
requestHeader.getTopic(), 1, PermName.PERM_WRITE | PermName.PERM_READ,
topicSysFlag);
}
}
if (null == topicConfig) {
response.setCode(ResponseCode.TOPIC_NOT_EXIST);
response.setRemark("topic[" + requestHeader.getTopic() + "] not exist, apply first please!"
+ FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
return response;
}
}
int queueIdInt = requestHeader.getQueueId();
int idValid = Math.max(topicConfig.getWriteQueueNums(), topicConfig.getReadQueueNums());
if (queueIdInt >= idValid) {
String errorInfo = String.format("request queueId[%d] is illegal, %s Producer: %s",
queueIdInt,
topicConfig.toString(),
RemotingHelper.parseChannelRemoteAddr(ctx.channel()));
log.warn(errorInfo);
response.setCode(ResponseCode.SYSTEM_ERROR);
response.setRemark(errorInfo);
return response;
}
return response;
}
接着看createTopicInSendMessageMethod方法
public TopicConfig createTopicInSendMessageMethod(final String topic, final String defaultTopic,
final String remoteAddress, final int clientDefaultTopicQueueNums, final int topicSysFlag) {
TopicConfig topicConfig = null;
boolean createNew = false;
try {
if (this.lockTopicConfigTable.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
try {
topicConfig = this.topicConfigTable.get(topic); // 从topicConfigTable获取topic信息
if (topicConfig != null)
return topicConfig;
TopicConfig defaultTopicConfig = this.topicConfigTable.get(defaultTopic); //根据默认topic 'TBW102'获取信息
if (defaultTopicConfig != null) {
if (defaultTopic.equals(TopicValidator.AUTO_CREATE_TOPIC_KEY_TOPIC)) {
if (!this.brokerController.getBrokerConfig().isAutoCreateTopicEnable()) {
defaultTopicConfig.setPerm(PermName.PERM_READ | PermName.PERM_WRITE);
}
}
if (PermName.isInherited(defaultTopicConfig.getPerm())) { //允许自动创建topic
topicConfig = new TopicConfig(topic); //基于topic创建topicConfig对象
int queueNums =
clientDefaultTopicQueueNums > defaultTopicConfig.getWriteQueueNums() ? defaultTopicConfig
.getWriteQueueNums() : clientDefaultTopicQueueNums; //定义读写队列数量
if (queueNums < 0) {
queueNums = 0;
}
topicConfig.setReadQueueNums(queueNums);
topicConfig.setWriteQueueNums(queueNums);//设置新topic对象读写队列
int perm = defaultTopicConfig.getPerm();
perm &= ~PermName.PERM_INHERIT;
topicConfig.setPerm(perm);
topicConfig.setTopicSysFlag(topicSysFlag);
topicConfig.setTopicFilterType(defaultTopicConfig.getTopicFilterType());
} else {
log.warn("Create new topic failed, because the default topic[{}] has no perm [{}] producer:[{}]",
defaultTopic, defaultTopicConfig.getPerm(), remoteAddress);
}
} else {
log.warn("Create new topic failed, because the default topic[{}] not exist. producer:[{}]",
defaultTopic, remoteAddress);
}
if (topicConfig != null) {
log.info("Create new topic by default topic:[{}] config:[{}] producer:[{}]",
defaultTopic, topicConfig, remoteAddress);
this.topicConfigTable.put(topic, topicConfig); //添加topic信息到topicConfigTable 再由心跳包发送定时任务上送至nameServer
this.dataVersion.nextVersion();
createNew = true;
this.persist();
}
} finally {
this.lockTopicConfigTable.unlock();
}
}
} catch (InterruptedException e) {
log.error("createTopicInSendMessageMethod exception", e);
}
if (createNew) { //是否创建新的broker
this.brokerController.registerBrokerAll(false, true, true);
}
return topicConfig;
}
从上面方法中可以看出会添加topic信息到topicConfigTable，添加到本地缓存后 再由心跳包发送定时任务上送至nameServer。
至此，topic信息上送至nameServer和生产者根据topic获取路由信息就结束了，但是认真思考的读者可能还会有一个问题？
就是broker是集群搭建的话，会有多个master Broker, 那我自动创建的topic信息那不是只存在一个Broker上，这时候是不是就违背RocketMq高可用的原则了？
一旦这个broker挂掉，那按之前的消息发送重试的逻辑是不是会重新在新的broker上创建呢？
看了nameServer上接收心跳包的方法 DefaultRequestProcessor.registerBroker（）， 发现新创建的topic的信息并不会同步到其它broker上，可能这也是为什么不推荐我们在生产上打开自动创建topic的源码吧？
如果有大佬发现这里有其他的方式处理，欢迎指教学习
===========================================================
更新一下上面的疑问
生产者根据默认的topic能获取到所有的broker信息（每个broker都会创建默认topic），再根据默认的topic拿到路由信息作为新topic的缓存信息存在生产者本地，生产者负载均衡发送消息时再由其他broker上报这个新建的topic信息。
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
