pom配置文件如下：

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.6</version>
        </dependency>
        <!-- druid连接池begin -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!-- druid连接池end -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.58</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>log4j-over-slf4j</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- 分布式atomikos事务begin -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jta-atomikos</artifactId>
        </dependency>
        <!-- 分布式atomikos事务end -->
        <!-- 配置druid的spring监控切面需要依赖begin -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.2</version>
        </dependency>
        <!-- 配置druid的spring监控切面需要依赖end -->
    </dependencies>

application.yml配置文件如下：

#mybatis配置
mybatis:
  config-location: classpath:mybatis/mybatis-config.xml
  mapper-locations: classpath:mybatis/mapper/*.xml
spring:
  datasource:
    type: com.alibaba.druid.pool.xa.DruidXADataSource
    druid:
      url: jdbc:mysql://127.0.0.1:3306/cms_project?characterEncoding=UTF-8
      username: root
      password: root
      driver-class-name: com.mysql.cj.jdbc.Driver
      # 初始化时建立物理连接的个数。初始化发生在显示调用init方法，或者第一次getConnection时
      initial-size: 5
      # 最小连接池数量
      min-idle: 5
      # 最大连接池数量
      max-active: 5
      # 获取连接时最大等待时间，单位毫秒。配置了maxWait之后，缺省启用公平锁，并发效率会有所下降，如果需要可以通过配置useUnfairLock属性为true使用非公平锁。
      max-wait: 60000
      # Destroy线程会检测连接的间隔时间，如果连接空闲时间大于等于minEvictableIdleTimeMillis则关闭物理连接。
      time-between-eviction-runs-millis: 60000
      # 连接保持空闲而不被驱逐的最小时间
      min-evictable-idle-time-millis: 300000
      # 用来检测连接是否有效的sql
      validation-query: select 1 from dual
      # 建议配置为true，不影响性能，并且保证安全性。申请连接的时候检测，如果空闲时间大于timeBetweenEvictionRunsMillis，执行validationQuery检测连接是否有效。
      test-while-idle: true
      # 申请连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能。
      test-on-borrow: false
      # 归还连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能
      test-on-return: false
      # 是否自动回收超时连接
      remove-abandoned: true
      # 超时时间(以秒数为单位)
      remove-abandoned-timeout: 1800
      # 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
      filters: stat,wall,log4j
      # 合并多个DruidDataSource的监控数据
      use-global-data-source-stat: true


      # 以下配置也可在DruidConfig.java配置类中配置
      # begin
      # WebStatFilter用于采集web-jdbc关联监控的数据。
      web-stat-filter:
        # 是否开启 WebStatFilter 默认是true
        enabled: true
        # 需要拦截的url
        url-pattern: /*
        # 排除静态资源的请求
        exclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"
      # Druid内置提供了一个StatViewServlet用于展示Druid的统计信息。
      stat-view-servlet:
        # 是否启用StatViewServlet 默认值true
        enabled: true
        # 需要拦截的url
        url-pattern: /druid/*
        # 允许清空统计数据
        reset-enable: true
        login-username: root
        login-password: root
      # end

DataSourceConfig.java代码如下：

package com.own.cms.config;

import com.alibaba.druid.pool.xa.DruidXADataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jta.atomikos.AtomikosDataSourceBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

/**
 * 数据源配置类
 * 多数据源配置多个DataSource
 */
@Configuration
public class DataSourceConfig {

    /**
     * 初始化DruidXADataSource连接对象
     * @return
     */
    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.druid")
    public DataSource druidXADataSource() {
        return new DruidXADataSource();
    }

    /**
     * 初始化Atomikos数据源连接对象
     * @param druidXADataSource
     * @return
     */
    @Bean
    public DataSource dataSource(DataSource druidXADataSource) {
        AtomikosDataSourceBean atomikosDataSourceBean = new AtomikosDataSourceBean();
        atomikosDataSourceBean.setXaDataSource((DruidXADataSource) druidXADataSource);
        // 必须为数据源指定唯一标识
        atomikosDataSourceBean.setUniqueResourceName("dataSourceOne");// 设置数据源唯一名称
        atomikosDataSourceBean.setTestQuery("select 1 from dual");
        atomikosDataSourceBean.setXaDataSourceClassName("com.alibaba.druid.pool.xa.DruidXADataSource");
        return atomikosDataSourceBean;
    }
}

SqlSessionFactoryConfig.java代码如下：

package com.own.cms.config;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import javax.sql.DataSource;

/**
 * SqlSessionFactory配置类
 * 多数据源配置不同数据源的SqlSessionFactory
 */
@Configuration
@MapperScan(basePackages = "com.own.cms.*", sqlSessionFactoryRef = "sqlSessionFactory",sqlSessionTemplateRef = "sqlSessionTemplate")
public class SqlSessionFactoryConfig {

    // mapper文件位置
    private static final String MAPPER_LOCATION = "classpath:mybatis/mapper/*.xml";

    /**
     * 引用DataSourceConfig中的dataSource
     */
    @Autowired
    @Qualifier("dataSource")
    private DataSource dataSource;

    @Bean
    public SqlSessionFactory sqlSessionFactory() throws Exception {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSource);
        // mybatis的mapper文件位置
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(MAPPER_LOCATION));
        return sqlSessionFactoryBean.getObject();

    }

    @Bean
    public SqlSessionTemplate sqlSessionTemplate() throws Exception {
        SqlSessionTemplate sqlSessionTemplate = new SqlSessionTemplate(sqlSessionFactory()); // 使用上面配置的SqlSessionFactory
        return sqlSessionTemplate;
    }
}

XATransactionManagerConfig.java代码如下：

package com.own.cms.config;

import com.atomikos.icatch.jta.UserTransactionImp;
import com.atomikos.icatch.jta.UserTransactionManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.transaction.jta.JtaTransactionManager;

import javax.transaction.TransactionManager;
import javax.transaction.UserTransaction;

/**
 * JTA事务配置
 */
@Configuration
@EnableTransactionManagement
public class XATransactionManagerConfig {

    @Bean
    public UserTransaction userTransaction() throws Throwable {
        UserTransactionImp userTransactionImp = new UserTransactionImp();
        userTransactionImp.setTransactionTimeout(10000);
        return userTransactionImp;
    }

    @Bean
    public TransactionManager atomikosTransactionManager() {
        UserTransactionManager userTransactionManager = new UserTransactionManager();
        userTransactionManager.setForceShutdown(false);
        return userTransactionManager;
    }

    @Bean
    public PlatformTransactionManager transactionManager(UserTransaction userTransaction, TransactionManager transactionManager) {
        return new JtaTransactionManager(userTransaction, transactionManager);
    }
}

DruidConfig.java代码如下：

package com.own.cms.config;

import com.alibaba.druid.filter.stat.StatFilter;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import com.alibaba.druid.support.spring.stat.DruidStatInterceptor;
import com.alibaba.druid.wall.WallConfig;
import com.alibaba.druid.wall.WallFilter;
import org.springframework.aop.support.DefaultPointcutAdvisor;
import org.springframework.aop.support.JdkRegexpMethodPointcut;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

/**
 * 阿里Druid监控配置类
 * 链接池访问地址

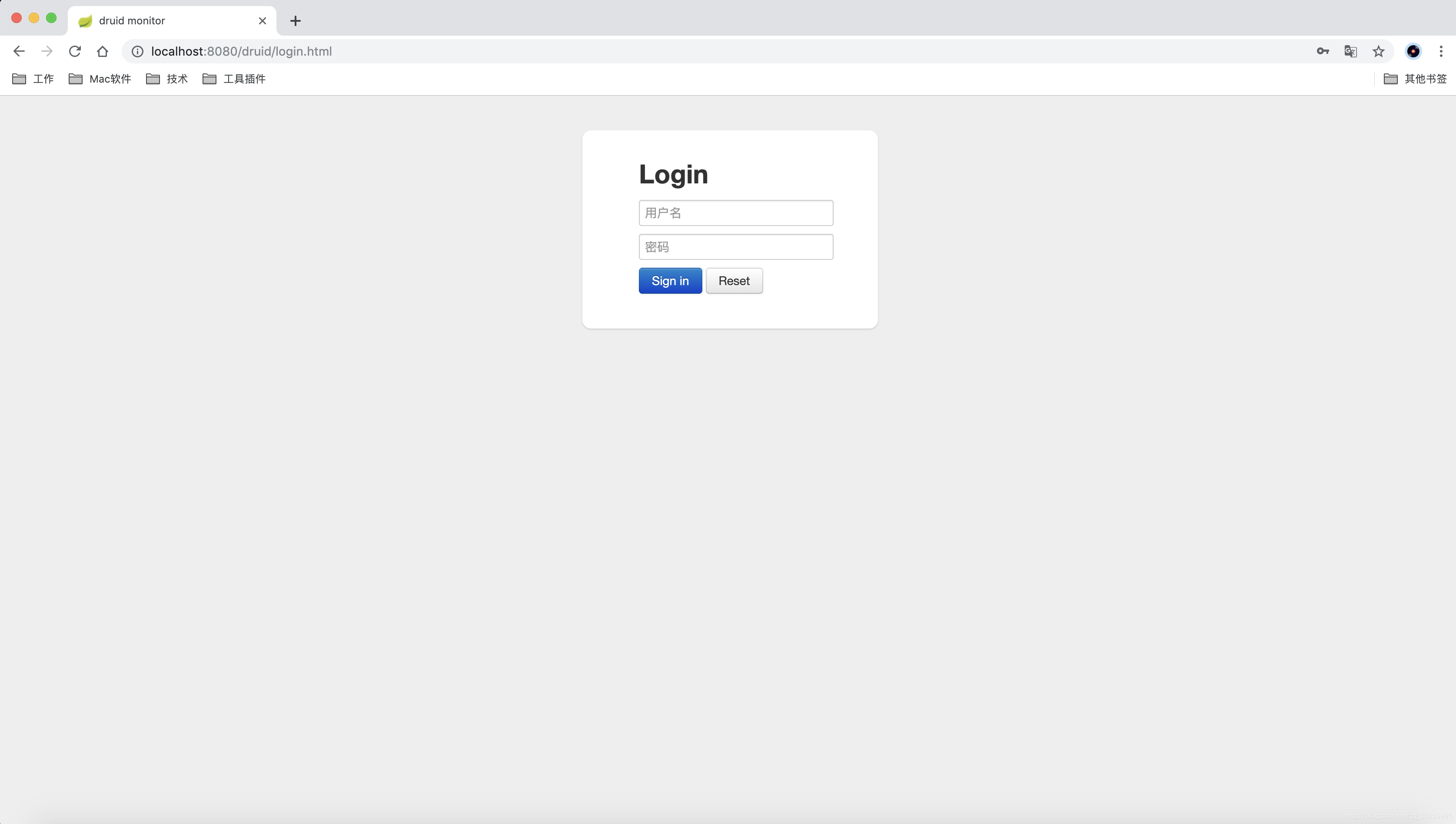

 * http://localhost:8080/druid/login.html
 */
// application.yml也可配置，这里demo参考
@Configuration
public class DruidConfig {

    // 1.配置管理后台的Servlet
    @Bean
    public ServletRegistrationBean servletRegistrationBean() {
        ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");

        Map<String, String> initParams = new HashMap<>();
        initParams.put("loginUsername", "admin");// 用户名
        initParams.put("loginPassword", "admin");// 密码
        initParams.put("allow", "");// IP白名单(没有配置或者为空，则允许所有访问)
        initParams.put("deny", "");// IP黑名单 (存在共同时，deny优先于allow)
        initParams.put("resetEnable", "true");// 禁用HTML页面上的“Reset All”功能

        servletRegistrationBean.setInitParameters(initParams);
        return servletRegistrationBean;
    }

    // 2.配置一个web监控的filter
    @Bean
    public FilterRegistrationBean filterRegistrationBean() {
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();

        Map<String, String> initParams = new HashMap<>();
        initParams.put("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");

        filterRegistrationBean.setFilter(new WebStatFilter());
        filterRegistrationBean.setInitParameters(initParams);
        filterRegistrationBean.setUrlPatterns(Arrays.asList("/*"));

        return filterRegistrationBean;
    }

    @Bean
    public StatFilter statFilter() {
        StatFilter statFilter = new StatFilter();
        statFilter.setLogSlowSql(true); // slowSqlMillis用来配置SQL慢的标准，执行时间超过slowSqlMillis的就是慢。
        statFilter.setMergeSql(true); // SQL合并配置
        statFilter.setSlowSqlMillis(3000);//slowSqlMillis的缺省值为3000，也就是3秒。
        return statFilter;
    }

    @Bean
    public WallFilter wallFilter() {
        WallFilter wallFilter = new WallFilter();
        //允许执行多条SQL
        WallConfig wallConfig = new WallConfig();
        wallConfig.setMultiStatementAllow(true);
        wallFilter.setConfig(wallConfig);
        return wallFilter;
    }

    /**

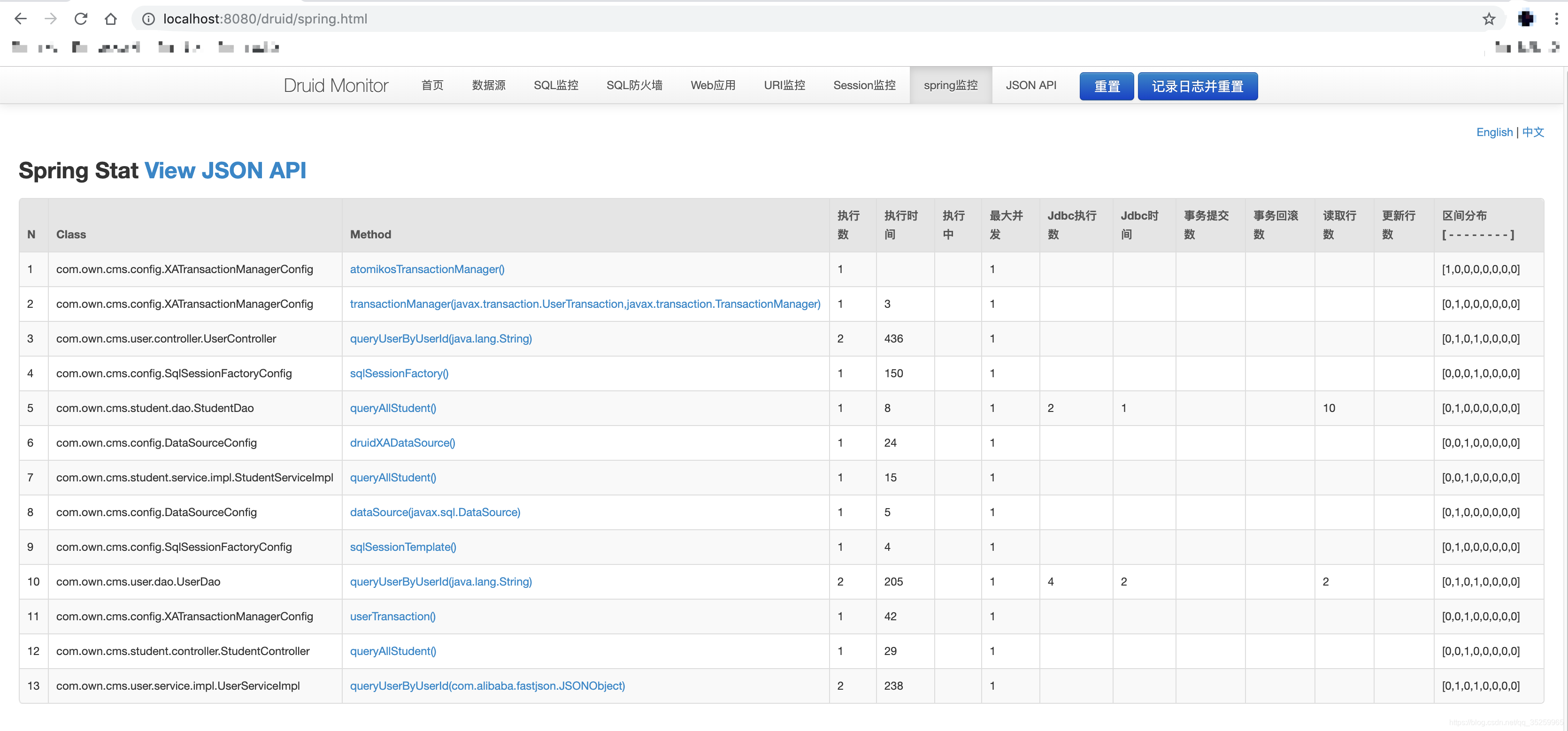

     * 配置Druid的spring监控的拦截器DruidStatInterceptor
     * @return
     */
    @Bean
    public DruidStatInterceptor druidStatInterceptor() {
        DruidStatInterceptor druidStatInterceptor = new DruidStatInterceptor();
        return druidStatInterceptor;
    }

    /**
     * 配置Druid的spring监控的切点JdkRegexpMethodPointcut
     * @return
     */
    @Bean
    @Scope("prototype")
    public JdkRegexpMethodPointcut jdkRegexpMethodPointcut() {
        JdkRegexpMethodPointcut jdkRegexpMethodPointcut = new JdkRegexpMethodPointcut();
        jdkRegexpMethodPointcut.setPatterns("com.own.cms.*");
        return jdkRegexpMethodPointcut;
    }

    /**
     * 配置Druid的spring监控的通知DefaultPointcutAdvisor
     * @param druidStatInterceptor
     * @param druidStatPointcut
     * @return
     */
    @Bean
    public DefaultPointcutAdvisor defaultPointcutAdvisor(DruidStatInterceptor druidStatInterceptor, JdkRegexpMethodPointcut druidStatPointcut) {
        DefaultPointcutAdvisor defaultPointcutAdvisor = new DefaultPointcutAdvisor();
        defaultPointcutAdvisor.setPointcut(druidStatPointcut);
        defaultPointcutAdvisor.setAdvice(druidStatInterceptor);
        return defaultPointcutAdvisor;
    }
}

启动类CmsApplication.java代码如下：

package com.own.cms;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;

@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
public class CmsApplication {

    public static void main(String[] args) {
        SpringApplication.run(CmsApplication.class, args);
    }

}

mybatis-config.xml配置如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <typeAliases>
        <typeAlias alias="String" type="java.lang.String"/>
        <typeAlias alias="Integer" type="java.lang.Integer"/>
        <typeAlias alias="Long" type="java.lang.Long"/>
        <typeAlias alias="Map" type="java.util.Map"/>
        <typeAlias alias="HashMap" type="java.util.HashMap"/>
        <typeAlias alias="LinkedHashMap" type="java.util.LinkedHashMap"/>
        <typeAlias alias="List" type="java.util.List"/>
        <typeAlias alias="ArrayList" type="java.util.ArrayList"/>
        <typeAlias alias="LinkedList" type="java.util.LinkedList"/>
    </typeAliases>
</configuration>

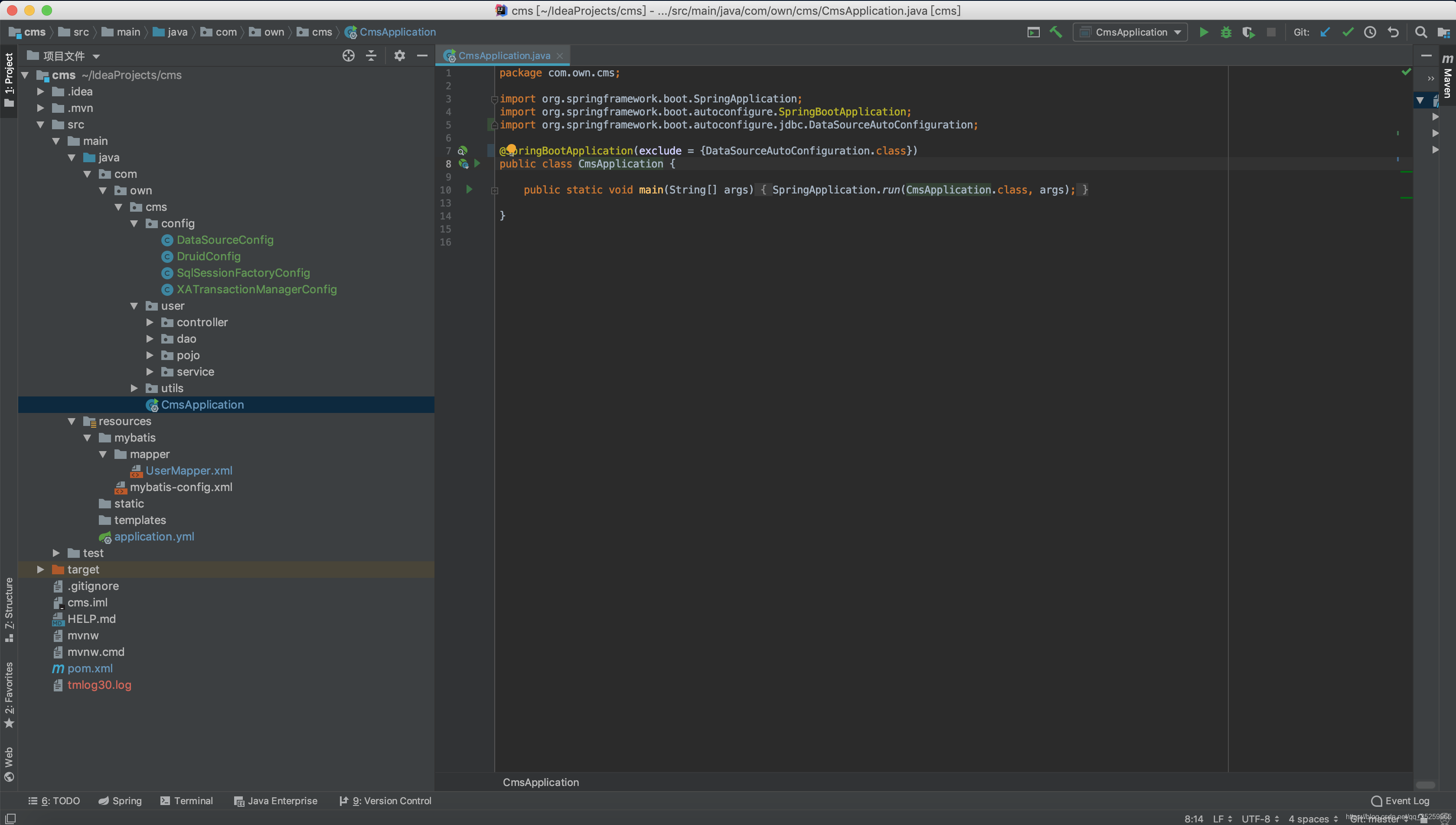

框架结构图如下：
druid访问地址：
http://localhost:8080/druid/login.html

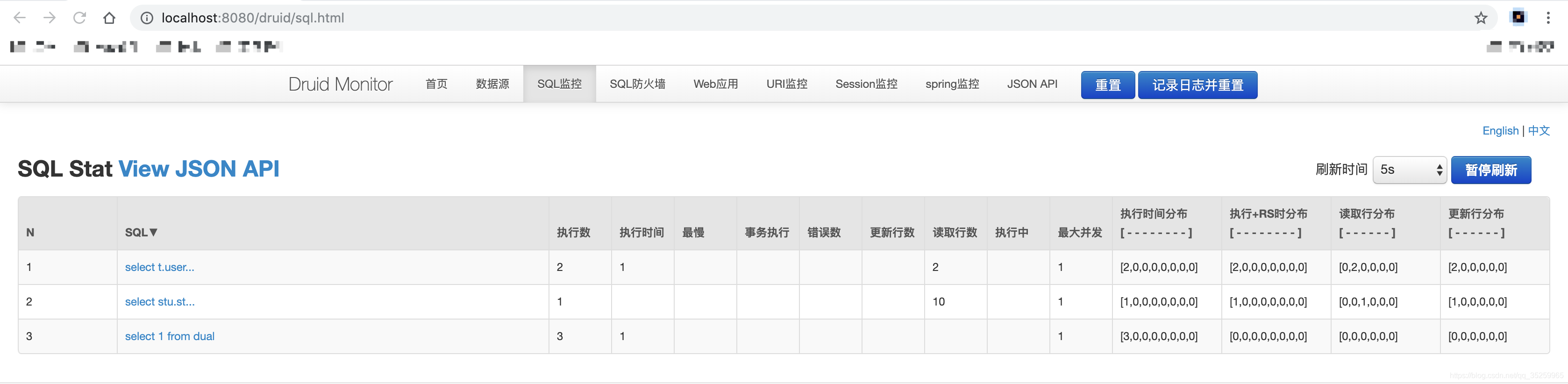

druid登录页 druid的sql监控图：

druid的spring监控图：
