docker-compose搭建prometheus、grafana

一、安装prometheus

1、安装

version: '3.1'

services:
  prometheus:
    image: prom/prometheus:v2.48.0
    container_name: prometheus
    hostname: prometheus
    restart: always
    volumes:
        - ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml
        - ./prometheus/:/etc/prometheus/
    ports:
        - "9090:9090"

启动prometheus： docker-compose up -d prometheus

2、验证

浏览器打开 http://127.0.0.1:9090

二、安装grafana

version: '3.1'
services:
  grafana_v10.2.0:
    container_name: grafana_v10.2.0
    image: grafana/grafana:10.2.0
    restart: always
    links:
      - typcho-mysql
    depends_on:
      - typcho-mysql
    ports:
      - "3000:3000"
    volumes:
      - ./grafana_v10.2.0/data:/var/lib/grafana
      - ./grafana_v10.2.0/config/grafana.ini:/etc/grafana/grafana.ini

启动prometheus： docker-compose up -d grafana_v10.2.0

2、验证

浏览器打开 http://127.0.0.1:3000

默认账号密码：admin/admin

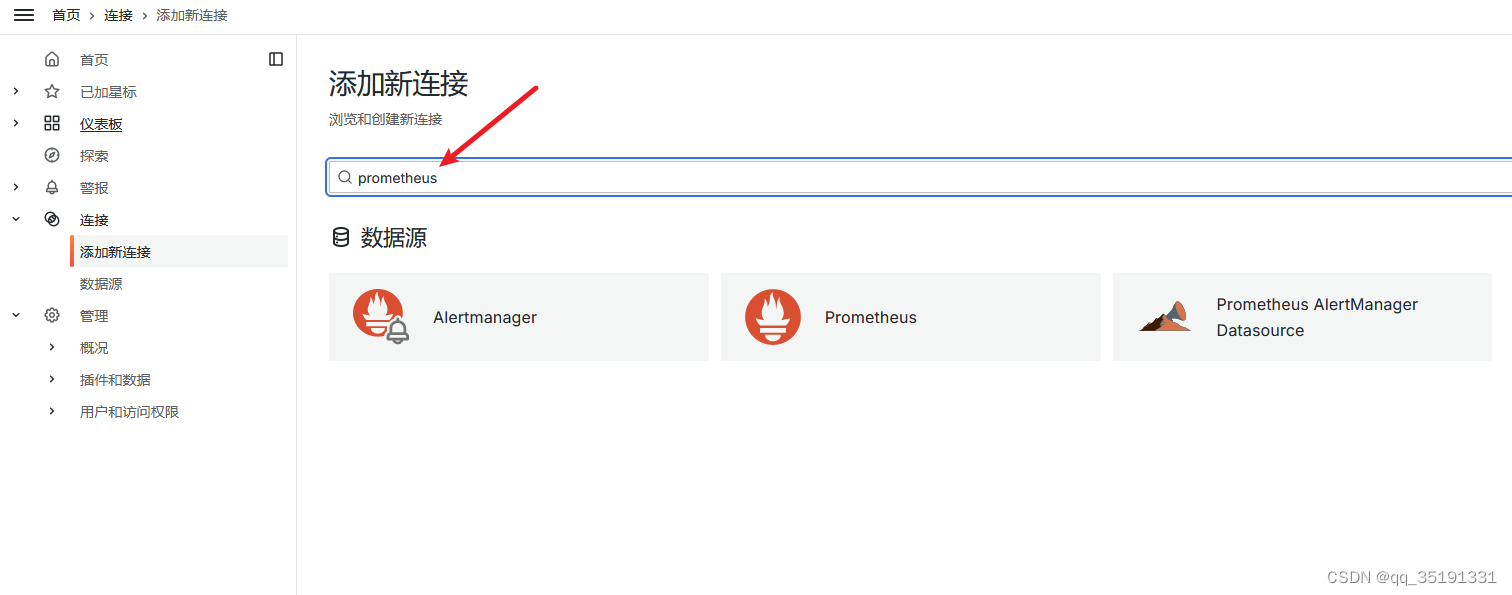

3、配置数据源

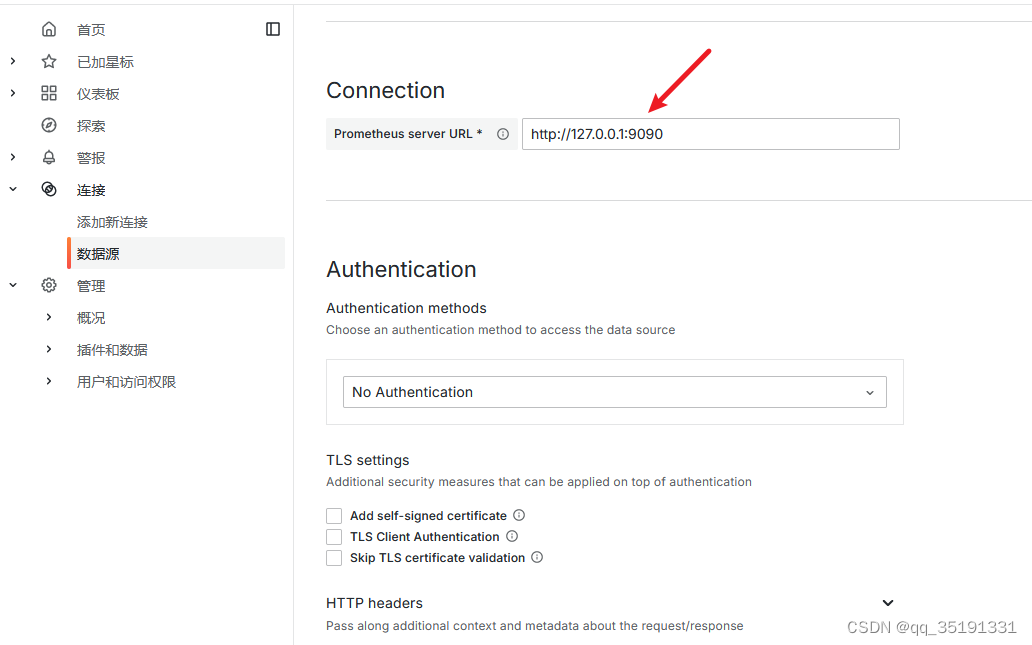

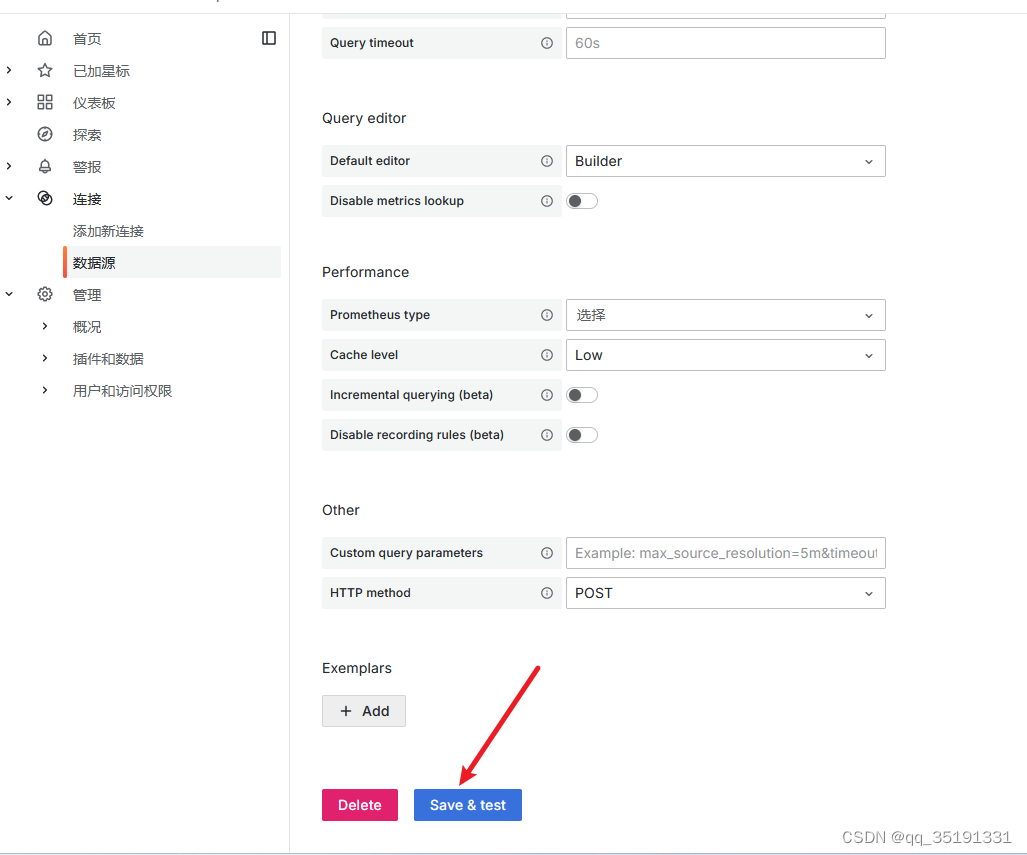

配置prometheus地址
