Thrift协议(C++实现)

• 编写thrift文件

student.thrift
定义自定义类，和接口函数

struct Student{
    1: i32 sno,
    2: string sname,
    3: bool ssex,
    4: i16 sage,
}
service Serv{
    void put(1: Student s),
}

• 生成开发库

thrift -r --gen cpp student.thrift

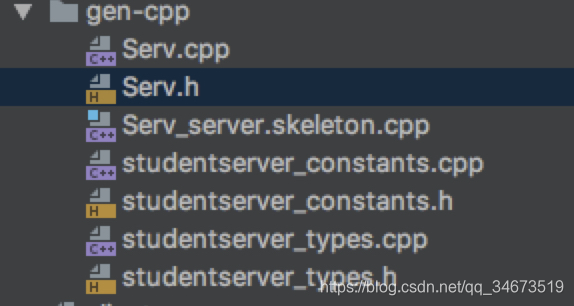

生成基类和服务端cpp

Serv.cpp //接口基类
Serv.h
Serv_server.skeleton.cpp //简单的server端代码，可以修改，一般都参照它来写serve程序
student_constants.cpp
student_constants.h
student_types.cpp
student_types.h

• 服务端
  重编写服务端函数，继承基类

#include "Serv.h"
#include <thrift/protocol/TBinaryProtocol.h>
#include <thrift/server/TSimpleServer.h>
#include <thrift/transport/TServerSocket.h>
#include <thrift/transport/TBufferTransports.h>

using namespace ::apache::thrift;
using namespace ::apache::thrift::protocol;
using namespace ::apache::thrift::transport;
using namespace ::apache::thrift::server;

using boost::shared_ptr;

class ServHandler : virtual public ServIf { //继承基类Serv.cpp的基类ServIf
 public:
  ServHandler() {
    // Your initialization goes here
  }

  void put(const Student& s) {//接口函数
    // Your implementation goes here
    printf("put\n");
  }

};

int main(int argc, char **argv) {
  int port = 9090;
  shared_ptr<ServHandler> handler(new ServHandler());
  shared_ptr<TProcessor> processor(new ServProcessor(handler));
  shared_ptr<TServerTransport> serverTransport(new TServerSocket(port));
  shared_ptr<TTransportFactory> transportFactory(new TBufferedTransportFactory());
  shared_ptr<TProtocolFactory> protocolFactory(new TBinaryProtocolFactory());

  TSimpleServer server(processor, serverTransport, transportFactory, protocolFactory);
  server.serve();//服务
  return 0;
}

shared_ptr<ServHandler> handler(new ServHandler());//ServHandler()自定义派生类

//自己编写的派生类中的接口功能
class ServHandler : virtual public ServIf { //继承基类Serv.cpp的基类ServIf
 public:
  ServHandler() {
    // Your initialization goes here
  }
  void put(const Student& s) {//接口函数
...
  }
};

• 客户端

#include </gen-cpp/Serv.h>
#include </usr/local/include/thrift/transport/TSocket.h>
#include </usr/local/include/thrift/transport/TBufferTransports.h>
#include </usr/local/include/thrift/protocol/TBinaryProtocol.h>
using namespace apache::thrift;
using namespace apache::thrift::protocol;
using namespace apache::thrift::transport;

using boost::shared_ptr;

int main(int argc, char **argv) {
    boost::shared_ptr<TSocket> socket(new TSocket("localhost", 9090)); //注意此处的ip和端口
    boost::shared_ptr<TTransport> transport(new TBufferedTransport(socket));
    boost::shared_ptr<TProtocol> protocol(new TBinaryProtocol(transport));
    transport->open();

    // 我们的代码写在这里

    Student s;
    s.sno = 123;
    s.sname = "xiaoshe";
    s.ssex = 1;
    s.sage = 30;
    ServClient client(protocol);
    client.put(s);
    transport->close();
    return 0;
}

    ServClient client(protocol);
    client.put(s);

//Serv.h ServClient继承ServIf

class ServClient : virtual public ServIf {
 public:
  ServClient(boost::shared_ptr< ::apache::thrift::protocol::TProtocol> prot) {
    setProtocol(prot);
  }
  ServClient(boost::shared_ptr< ::apache::thrift::protocol::TProtocol> iprot, boost::shared_ptr< ::apache::thrift::protocol::TProtocol> oprot) {
    setProtocol(iprot,oprot);
  }
 private:
  void setProtocol(boost::shared_ptr< ::apache::thrift::protocol::TProtocol> prot) {
  setProtocol(prot,prot);
  }
  void setProtocol(boost::shared_ptr< ::apache::thrift::protocol::TProtocol> iprot, boost::shared_ptr< ::apache::thrift::protocol::TProtocol> oprot) {
    piprot_=iprot;
    poprot_=oprot;
    iprot_ = iprot.get();
    oprot_ = oprot.get();
  }
 public:
  boost::shared_ptr< ::apache::thrift::protocol::TProtocol> getInputProtocol() {
    return piprot_;
  }
  boost::shared_ptr< ::apache::thrift::protocol::TProtocol> getOutputProtocol() {
    return poprot_;
  }
  void put(const Student& s);//客户端调用函数
  void send_put(const Student& s);
  void recv_put();
 protected:
  boost::shared_ptr< ::apache::thrift::protocol::TProtocol> piprot_;
  boost::shared_ptr< ::apache::thrift::protocol::TProtocol> poprot_;
  ::apache::thrift::protocol::TProtocol* iprot_;
  ::apache::thrift::protocol::TProtocol* oprot_;
};
