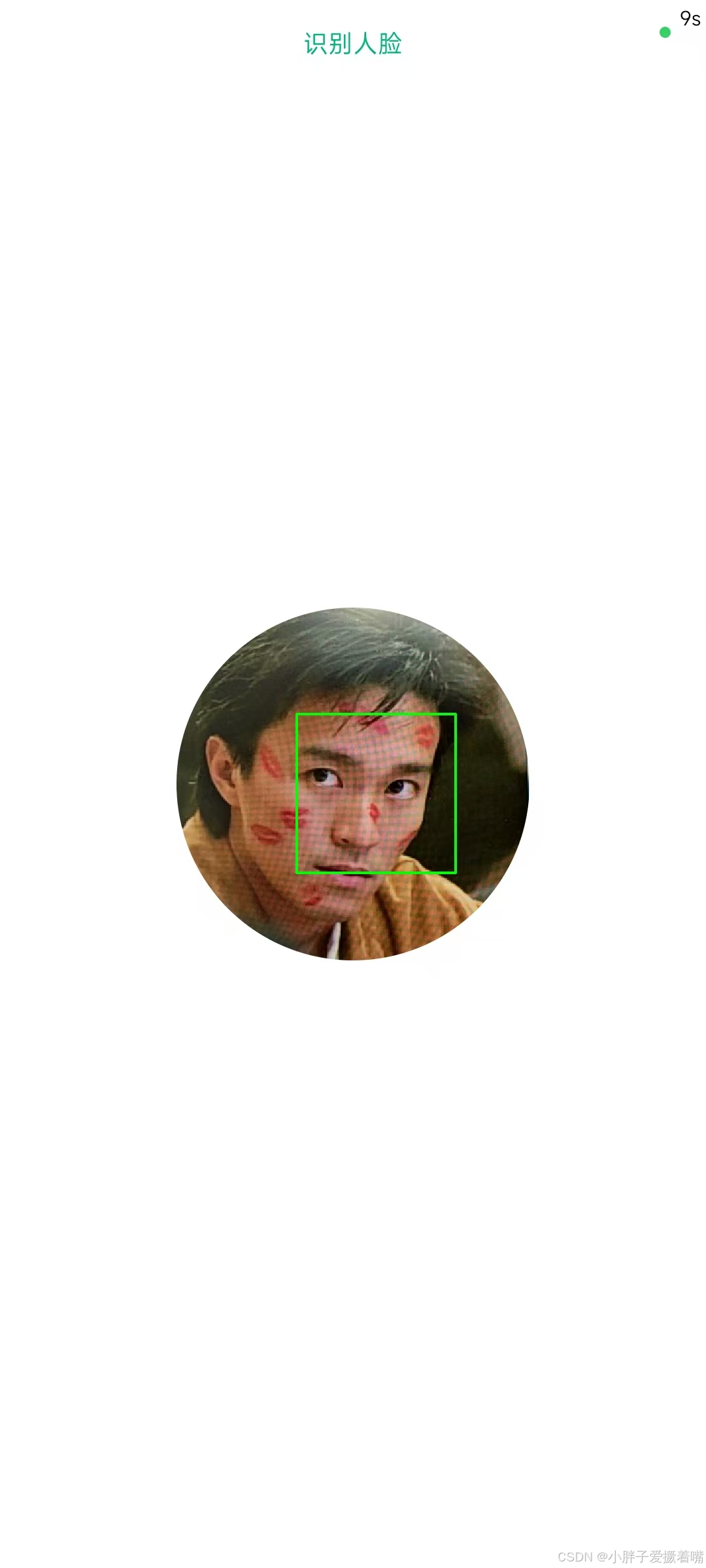

先看效果

1.下载OpenCV

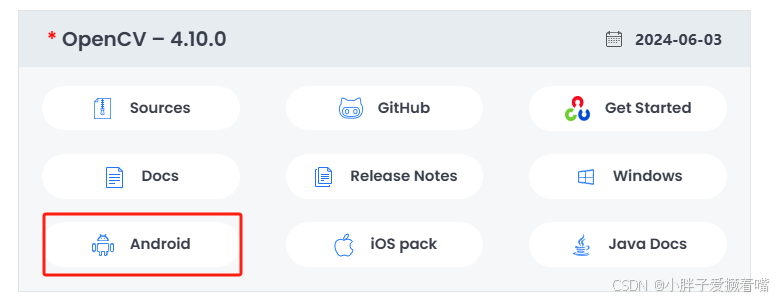

官网地址：opcv官网

找到Android 4.10.0版本下载

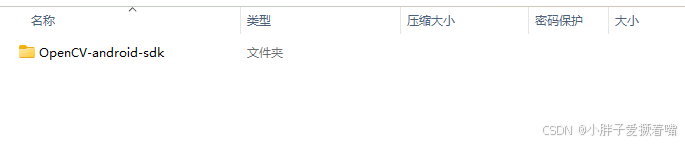

下载完毕解压zip如图：

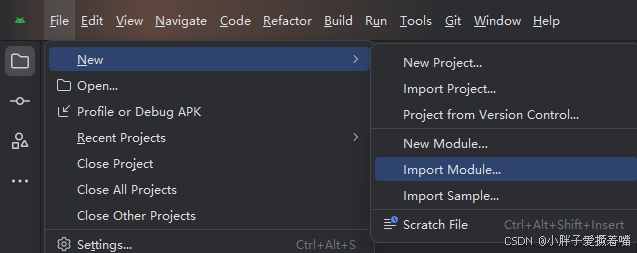

2.将OpenCV-android_sdk导入项目我这里用的最新版的Android studio

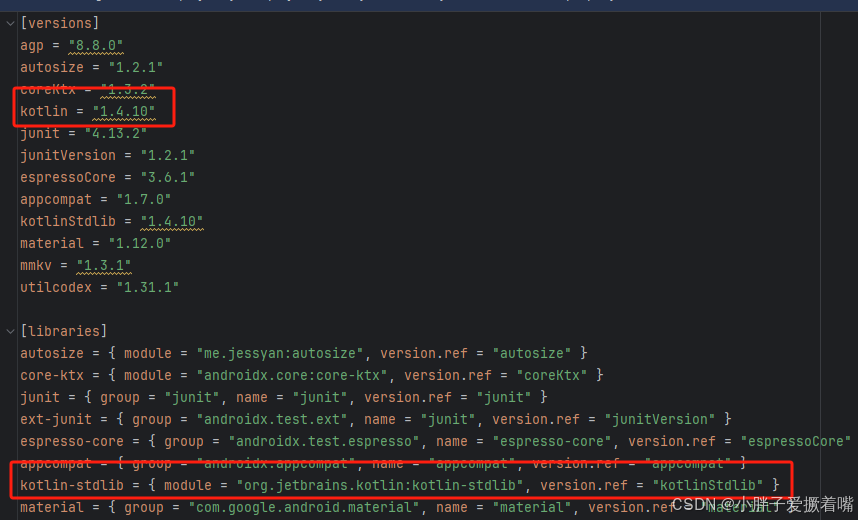

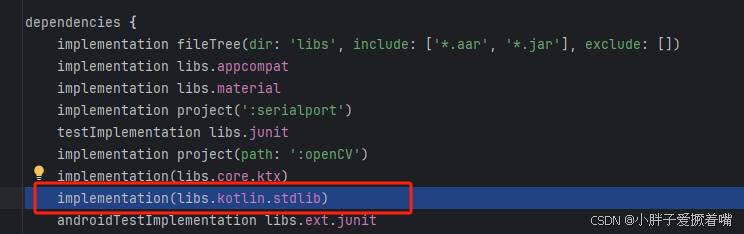

如果是java开发需要添加kotlin的支持。我用的studio比较新可以参考下，如果studio版本比较老请在网上自行寻找 kotlin支持

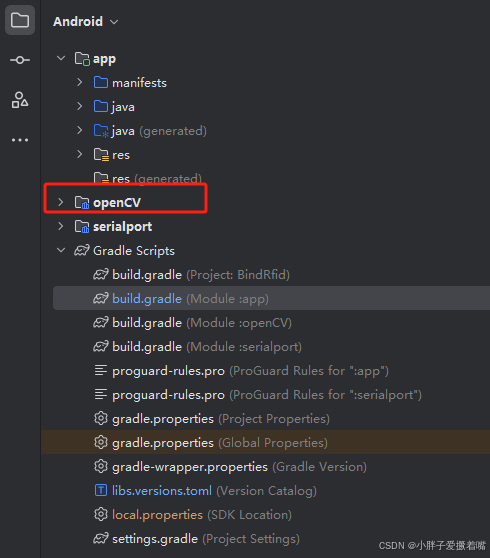

引入完成后如下

3.编写自定义javaCameraView

public class OpenCVCameraView extends JavaCameraView implements CameraBridgeViewBase.CvCameraViewListener2 {
    private boolean isDetecting = true;
    private CascadeClassifier faceDetector;
    private Mat mRgba;
    private Mat mGray;
    private boolean isSaving = false;
    private File cascadeFile;
    private DetectionCallback detectionCallback;
    private int[] previewSize = new int[2];
    private Scalar FACE_RECT_COLOR = new Scalar(0, 255, 0, 255); // 人脸框颜色（绿色）
    private Scalar ROI_COLOR = new Scalar(255, 0, 0, 255);       // 识别区域颜色（蓝色）
    private int frameWidth, frameHeight;
    private int centerX, centerY, radius;

    public interface DetectionCallback {
        void onFaceDetected(Bitmap bitmap);

        void onDetectionStopped();
    }


    private Bitmap bitmap = null;
    private long lastDetectionTime = 0;

    public OpenCVCameraView(Context context, AttributeSet attrs) {
        super(context, attrs);

        initFaceDetection();
    }

    public void setDetectionCallback(DetectionCallback callback) {
        this.detectionCallback = callback;
    }

    public void startDetection() {
        isDetecting = true;
        lastDetectionTime = System.currentTimeMillis();
    }

    public void stopDetection() {
        isDetecting = false;
        if (detectionCallback != null) {
            detectionCallback.onDetectionStopped();
        }
    }

    private void initFaceDetection() {
        try {
            // 加载人脸检测分类器
            InputStream is = getResources().openRawResource(R.raw.lbpcascade_frontalface);
            File cascadeDir = getContext().getDir("cascade", Context.MODE_PRIVATE);
            cascadeFile = new File(cascadeDir, "lbpcascade_frontalface.xml");

            FileOutputStream os = new FileOutputStream(cascadeFile);
            byte[] buffer = new byte[4096];
            int bytesRead;
            while ((bytesRead = is.read(buffer)) != -1) {
                os.write(buffer, 0, bytesRead);
            }
            is.close();
            os.close();

            faceDetector = new CascadeClassifier(cascadeFile.getAbsolutePath());
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    @Override
    public void onCameraViewStarted(int width, int height) {
        mRgba = new Mat();
        mGray = new Mat();
    }

    @Override
    public void onCameraViewStopped() {
        mRgba.release();
        mGray.release();
    }

    @Override
    protected boolean initializeCamera(int width, int height) {
        return super.initializeCamera(width, height);
    }

    @Override
    public Mat onCameraFrame(CvCameraViewFrame inputFrame) {
        mRgba = inputFrame.rgba(); // 使用灰度图进行检测
        frameWidth = mRgba.cols();
        frameHeight = mRgba.rows();
        centerX = frameWidth / 2;
        centerY = frameHeight / 2;
        radius = Math.min(frameWidth, frameHeight) / 4; //调整半径
        Core.flip(mRgba, mRgba, 1); // 参数 1 表示水平翻转

        // 检测人脸
        MatOfRect faces = new MatOfRect();
        if (faceDetector != null) {
            faceDetector.detectMultiScale(mRgba, faces, 1.1, 3, 0,
                    new Size(30, 30), new Size(200, 200));
        }

        // 绘制中间圆形识别区域
//        Imgproc.circle(mRgba, new Point(centerX, centerY), radius, ROI_COLOR, 2);
        long currentTime = System.currentTimeMillis();

        // 过滤并绘制符合条件的人脸
        if (isDetecting && (currentTime - lastDetectionTime > 500)) {

            Rect[] facesArray = faces.toArray();

            for (Rect face : facesArray) {
                int faceCenterX = face.x + face.width / 2;
                int faceCenterY = face.y + face.height / 2;
                double distance = Math.sqrt(Math.pow(faceCenterX - centerX, 2) + Math.pow(faceCenterY - centerY, 2));

                // 仅处理位于圆形区域内的人脸
                if (distance <= radius) {
                    saveImageWithFace(mRgba,face);

                    Imgproc.rectangle(mRgba,
                            new Point(face.x, face.y),
                            new Point(face.x + face.width, face.y + face.height),
                            FACE_RECT_COLOR, 2);
                    if (detectionCallback != null && bitmap != null) {
                        detectionCallback.onFaceDetected(bitmap);
                    }
                }
            }
            lastDetectionTime = currentTime;
        }
        return mRgba; // 返回处理后的帧
    }

    @SuppressLint("StaticFieldLeak")
    private void saveImageWithFace(Mat rgbaMat, Rect faceRect) {
        isSaving = true;
        new AsyncTask<Void, Void, Void>() {
            @Override
            protected Void doInBackground(Void... voids) {
                try {
                    // 裁剪人脸区域
                    Mat faceMat = new Mat(rgbaMat, faceRect);
                    // 转换为Bitmap
                    bitmap = Bitmap.createBitmap(
                            faceMat.cols(),
                            faceMat.rows(),
                            Bitmap.Config.ARGB_8888
                    );
                    Utils.matToBitmap(faceMat, bitmap);

                    // 保存到相册
                      //saveToGallery(bitmap);

                } catch (Exception e) {
                    e.printStackTrace();
                }
                return null;
            }

            @Override
            protected void onPostExecute(Void aVoid) {
                isSaving = false;
            }
        }.execute();
    }

    public void restartDetection() {
        isDetecting = true;
        Log.d("restartDetection", "restartDetection: 重新开始检测");
    }

    private void saveToGallery(Bitmap bitmap) {

        String fileName = "Face_" + System.currentTimeMillis() + ".jpg";
        ContentValues values = new ContentValues();
        values.put(MediaStore.Images.Media.DISPLAY_NAME, fileName);
        values.put(MediaStore.Images.Media.MIME_TYPE, "image/jpeg");

        ContentResolver resolver = getContext().getContentResolver();
        Uri uri = resolver.insert(MediaStore.Images.Media.EXTERNAL_CONTENT_URI, values);

        try (OutputStream out = resolver.openOutputStream(uri)) {
            bitmap.compress(Bitmap.CompressFormat.JPEG, 100, out);
            Log.d("图片保存", "saveToGallery: " + fileName);
            //    Toast.makeText(getContext(), "保存成功: " + fileName, Toast.LENGTH_SHORT).show();
        } catch (IOException e) {
            Toast.makeText(getContext(), "保存失败", Toast.LENGTH_SHORT).show();
            e.printStackTrace();
        }
    }

}

openCVCameraView 包含的功能：500 毫秒检测一次人脸通过lastDatectionTIme判断，打开检测，和关闭检测 startDetection，stopDetection，还可以识别人脸后保存到相册saveToGallery，只检测区域的人脸防止误检测

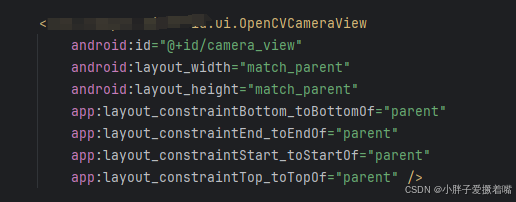

4.在layout 里使用再初始化

 mOpenCvCameraView = findViewById(R.id.camera_view);
 mOpenCvCameraView.setCvCameraViewListener(mOpenCvCameraView);
 mOpenCvCameraView.setDetectionCallback(this);

 @Override
    protected void onResume() {
        super.onResume();
        if (OpenCVLoader.initDebug()) {
            //0:后置摄像头 1:前置摄像头
            mOpenCvCameraView.setCameraIndex(0);
            mOpenCvCameraView.enableView();
            mOpenCvCameraView.setCameraPermissionGranted();
        }

    }

    @Override
    protected void onPause() {
        super.onPause();
        if (mOpenCvCameraView != null) {
            mOpenCvCameraView.disableView();
        }
    }
