【商城项目16】级联选择器，新增属性分组，编辑回显

解决返回空子集合的问题：在children属性加注解

    @JsonInclude(JsonInclude.Include.NON_EMPTY)

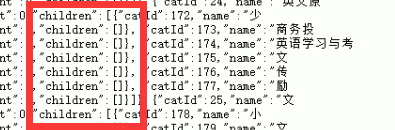

修改前：

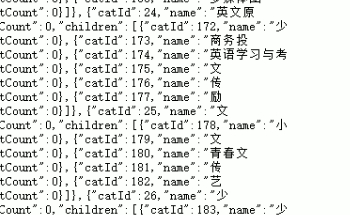

修改后：

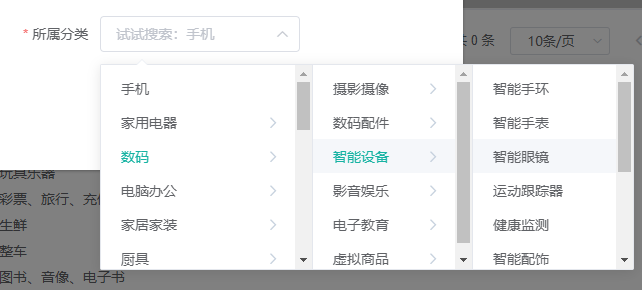

这样级联时候就不会出现空选择了：

1.级联选择器

在分类时，用category-cascader自定义的组件，记得import进来

  <category-cascader :catelogPath.sync="catelogPath"></category-cascader>

category-cascader.vue:

<template>
<!--
使用说明：
1）、引入category-cascader.vue
2）、语法：<category-cascader :catelogPath.sync="catelogPath"></category-cascader>
    解释：
      catelogPath：指定的值是cascader初始化需要显示的值，应该和父组件的catelogPath绑定;
          由于有sync修饰符，所以cascader路径变化以后自动会修改父的catelogPath，这是结合子组件this.$emit("update:catelogPath",v);做的
      -->
  <div>
    <el-cascader
      filterable
      clearable
      placeholder="试试搜索：手机"
      v-model="paths"
      :options="categorys"
      :props="setting"
    ></el-cascader>
  </div>
</template>

<script>
//这里可以导入其他文件（比如：组件，工具js，第三方插件js，json文件，图片文件等等）
//例如：import 《组件名称》 from '《组件路径》';

export default {
  //import引入的组件需要注入到对象中才能使用
  components: {},
  //接受父组件传来的值
  props: {
    catelogPath: {
      type: Array,
      default(){
        return [];
      }
    }
  },
  data() {
    //这里存放数据
    return {
      setting: {
        value: "catId",
        label: "name",
        children: "children"
      },
      categorys: [],
      paths: this.catelogPath
    };
  },
  watch:{
    catelogPath(v){
      this.paths = this.catelogPath;
    },
    paths(v){
      this.$emit("update:catelogPath",v);
      //还可以使用pubsub-js进行传值
      this.PubSub.publish("catPath",v);
    }
  },
  //方法集合
  methods: {
    getCategorys() {
      this.$http({
        url: this.$http.adornUrl("/mailproducts/category/list/tree"),
        method: "get"
      }).then(({ data }) => {
        this.categorys = data.categorytree;
      });
    }
  },
  //生命周期 - 创建完成（可以访问当前this实例）
  created() {
    this.getCategorys();
  }
};
</script>
<style scoped>
</style>

通过级联选择器，在上传时之上传最近的父节点，

attrgroup-add-or-update.vue：

<template>
  <el-dialog
    :title="!dataForm.id ? '新增' : '修改'"
    :close-on-click-modal="false"
    :visible.sync="visible"
    @closed="dialogClose"
  >
    <el-form
      :model="dataForm"
      :rules="dataRule"
      ref="dataForm"
      @keyup.enter.native="dataFormSubmit()"
      label-width="120px"
    >
      <el-form-item label="组名" prop="attrGroupName">
        <el-input v-model="dataForm.attrGroupName" placeholder="组名"></el-input>
      </el-form-item>
      <el-form-item label="排序" prop="sort">
        <el-input v-model="dataForm.sort" placeholder="排序"></el-input>
      </el-form-item>
      <el-form-item label="描述" prop="descript">
        <el-input v-model="dataForm.descript" placeholder="描述"></el-input>
      </el-form-item>
      <el-form-item label="组图标" prop="icon">
        <el-input v-model="dataForm.icon" placeholder="组图标"></el-input>
      </el-form-item>
      <el-form-item label="所属分类" prop="catelogId">
        <!-- <el-input v-model="dataForm.catelogId" placeholder="所属分类id"></el-input> @change="handleChange" -->
        <!-- <el-cascader filterable placeholder="试试搜索：手机" v-model="catelogPath" :options="categorys"  :props="props"></el-cascader> -->
        <!-- :catelogPath="catelogPath"自定义绑定的属性，可以给子组件传值 -->
        <category-cascader :catelogPath.sync="catelogPath"></category-cascader>
      </el-form-item>
    </el-form>
    <span slot="footer" class="dialog-footer">
      <el-button @click="visible = false">取消</el-button>
      <el-button type="primary" @click="dataFormSubmit()">确定</el-button>
    </span>
  </el-dialog>
</template>

<script>
import CategoryCascader from '../common/category-cascader'
export default {
  data() {
    return {
      props:{
        value:"catId",
        label:"name",
        children:"children"
      },
      visible: false,
      categorys: [],
      catelogPath: [],
      dataForm: {
        attrGroupId: 0,
        attrGroupName: "",
        sort: "",
        descript: "",
        icon: "",
        catelogId: 0
      },
      dataRule: {
        attrGroupName: [
          { required: true, message: "组名不能为空", trigger: "blur" }
        ],
        sort: [{ required: true, message: "排序不能为空", trigger: "blur" }],
        descript: [
          { required: true, message: "描述不能为空", trigger: "blur" }
        ],
        icon: [{ required: true, message: "组图标不能为空", trigger: "blur" }],
        catelogId: [
          { required: true, message: "所属分类id不能为空", trigger: "blur" }
        ]
      }
    };
  },
  components:{CategoryCascader},

  methods: {
    dialogClose(){
      this.catelogPath = [];
    },
    getCategorys(){
      this.$http({
        url: this.$http.adornUrl("/product/category/list/tree"),
        method: "get"
      }).then(({ data }) => {
        this.categorys = data.data;
      });
    },
    init(id) {
      this.dataForm.attrGroupId = id || 0;
      this.visible = true;
      this.$nextTick(() => {
        this.$refs["dataForm"].resetFields();
        if (this.dataForm.attrGroupId) {
          this.$http({
            url: this.$http.adornUrl(
              `/product/attrgroup/info/${this.dataForm.attrGroupId}`
            ),
            method: "get",
            params: this.$http.adornParams()
          }).then(({ data }) => {
            if (data && data.code === 0) {
              this.dataForm.attrGroupName = data.attrGroup.attrGroupName;
              this.dataForm.sort = data.attrGroup.sort;
              this.dataForm.descript = data.attrGroup.descript;
              this.dataForm.icon = data.attrGroup.icon;
              this.dataForm.catelogId = data.attrGroup.catelogId;
              //查出catelogId的完整路径
              this.catelogPath =  data.attrGroup.catelogPath;
            }
          });
        }
      });
    },
    // 表单提交
    dataFormSubmit() {
      this.$refs["dataForm"].validate(valid => {
        if (valid) {
          this.$http({
            url: this.$http.adornUrl(
              `/product/attrgroup/${
                !this.dataForm.attrGroupId ? "save" : "update"
              }`
            ),
            method: "post",
            data: this.$http.adornData({
              attrGroupId: this.dataForm.attrGroupId || undefined,
              attrGroupName: this.dataForm.attrGroupName,
              sort: this.dataForm.sort,
              descript: this.dataForm.descript,
              icon: this.dataForm.icon,
              catelogId: this.catelogPath[this.catelogPath.length-1]
            })
          }).then(({ data }) => {
            if (data && data.code === 0) {
              this.$message({
                message: "操作成功",
                type: "success",
                duration: 1500,
                onClose: () => {
                  this.visible = false;
                  this.$emit("refreshDataList");
                }
              });
            } else {
              this.$message.error(data.msg);
            }
          });
        }
      });
    }
  },
  created(){
    this.getCategorys();
  }
};
</script>

2.保存

后端不用改，直接用。

3.修改时如何回显级联

改后端：

给AttrGroupEntity添加属性：

@TableField(exist = false)
	private Long[] catelogPath;

修改AttrGroupController的info函数，注意注注入目录服务：

    @Autowired
    private CategoryService categoryService;

    /**
     * 信息
     */
    @RequestMapping("/info/{attrGroupId}")
    public R info(@PathVariable("attrGroupId") Long attrGroupId){
		AttrGroupEntity attrGroup = attrGroupService.getById(attrGroupId);
        Long catelogId = attrGroup.getCatelogId();
        Long[] path = categoryService.findCatelogPath(catelogId);

        attrGroup.setCatelogPath(path);
        return R.ok().put("attrGroup", attrGroup);
    }

目录category，新建接口findCatelogPath：

    Long[] findCatelogPath(Long catelogId);

接口实现类添加：

//225,25,2
private List<Long> findParentPath(Long catelogId,List<Long> paths){
    //1、收集当前节点id
    paths.add(catelogId);
    CategoryEntity byId = this.getById(catelogId);
    if(byId.getParentCid()!=0){
        findParentPath(byId.getParentCid(),paths);
    }
    return paths;

}

@Override
    public Long[] findCatelogPath(Long catelogId) {
        List<Long> paths = new ArrayList<>();
        List<Long> parentPath = findParentPath(catelogId, paths);
        Collections.reverse(parentPath);
        return parentPath.toArray(new Long[parentPath.size()]);
    }

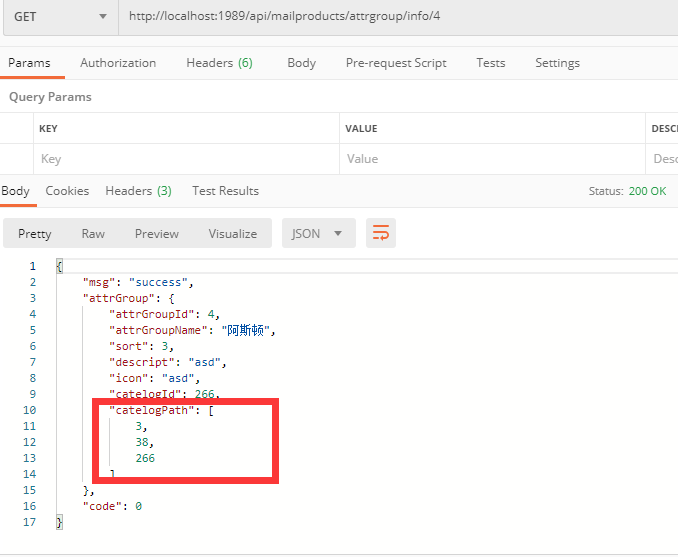

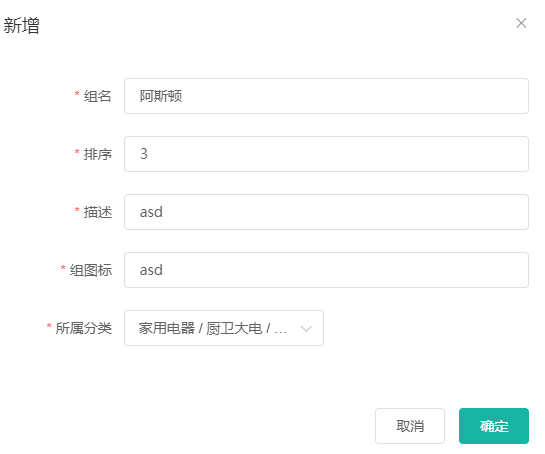

效果：

使级联可搜索：

<category-cascader :catelogPath.sync="catelogPath"></category-cascader>
