RabbitMQ系列04-springboot集成-fanout方式

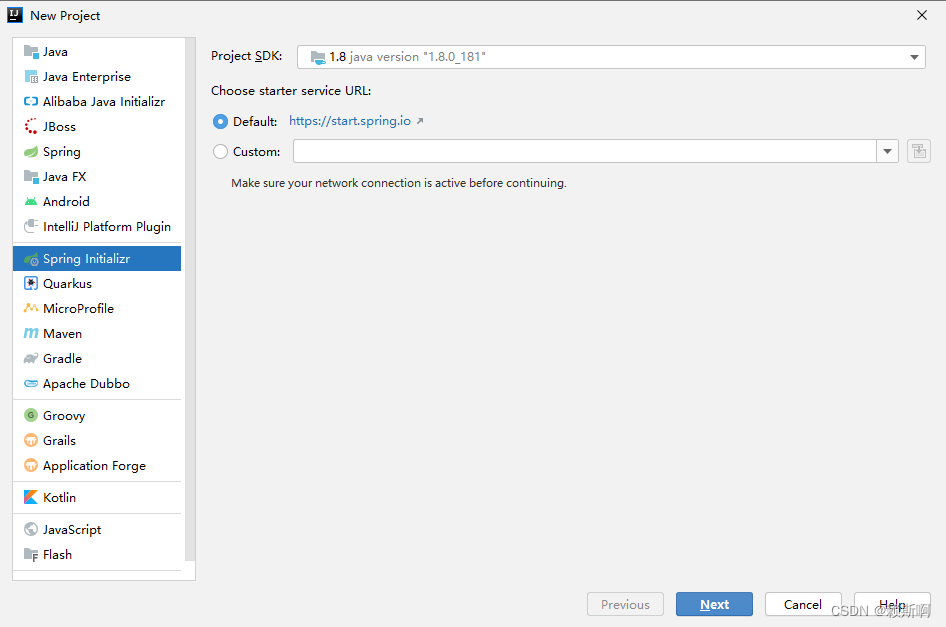

建springboot工程

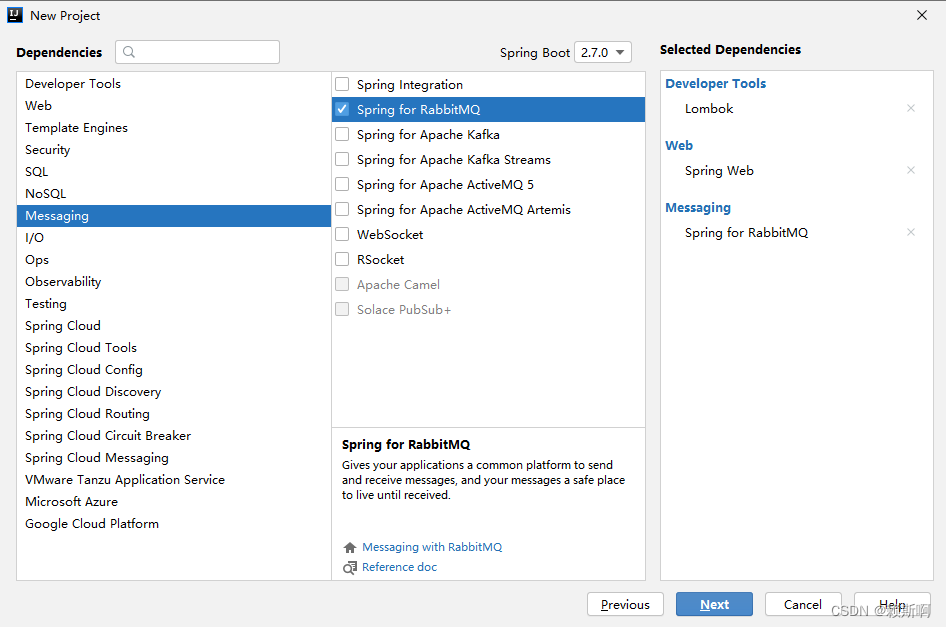

主要引入springweb 及rabbitmq。

pom

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

yml

server:
  port: 8074

spring:
  rabbitmq:
    username: admin
    password: admin
    port: 5672
    host: localhost

config

• 增加交换机。
• 增加队列。
• 绑定队列到交换机。

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @Description TODO
 * @Author chanyu
 * @Date 2022/5/27 16:57
 * @Version 1.0
 **/
@Configuration
public class RabbitConfiguration {

    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange("fanout_order_exchange",true,false);
    }

    @Bean
    public Queue smsQueue(){
        Queue queue = new Queue("smsQueue",true);
        return queue;
    }
    @Bean
    public Queue emailQueue(){
        Queue queue = new Queue("emailQueue",true);
        return queue;
    }

    @Bean
    public Binding smsBinding(){
        return BindingBuilder.bind(smsQueue()).to(fanoutExchange());
    }

    @Bean
    public Binding reduceBinding(){
        return BindingBuilder.bind(emailQueue()).to(fanoutExchange());
    }



}

模拟业务处理

假设订单服务，增加一个订单后发送消息。发送消息本身与订单业务不需要强一致性，通过队列来处理。

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.AmqpException;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessagePostProcessor;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.UUID;

/**
 * @Description TODO
 * @Author chanyu
 * @Date 2022/5/27 16:52
 * @Version 1.0
 **/
@Slf4j
@Service
public class OrderService {

    @Autowired
    private RabbitTemplate rabbitTemplate;

    public void order(String userId , String goodsId , int num , String unit){
        // 订单写入
        String orderId = UUID.randomUUID().toString();

        String msg = "创建订单"+orderId+",用户"+userId+"购买"+num+unit+"商品"+"goodsId";

        log.info("创建订单{},用户{}购买{}{}商品{}",orderId,userId,num,unit,goodsId);

        // 扣减库存

        String exchangeName = "fanout_order_exchange";
        String routingKey = "";
        // 发布消息
        rabbitTemplate.convertAndSend(exchangeName,routingKey,msg);
    }
}

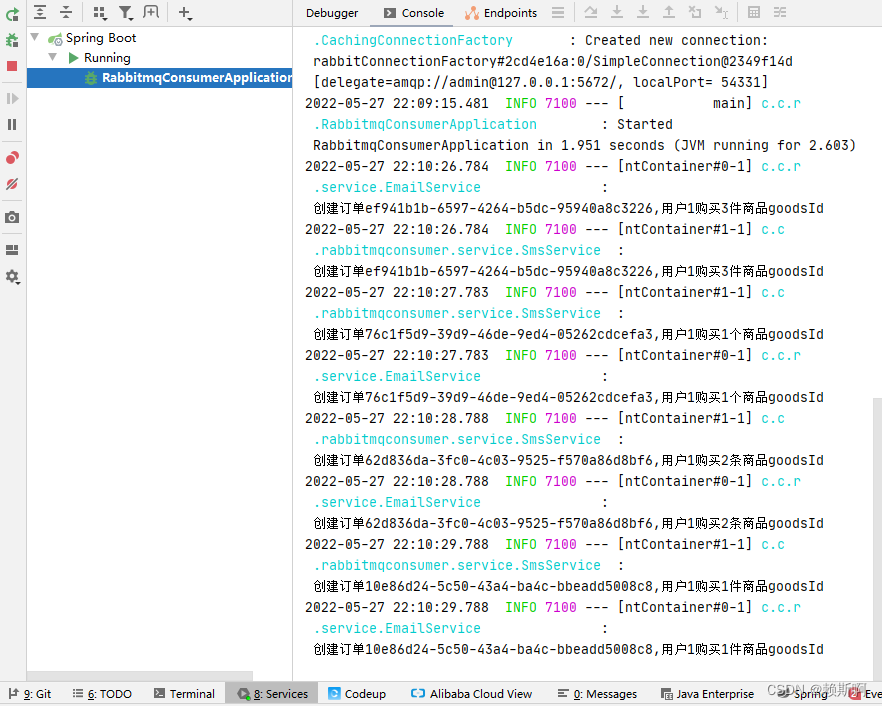

消费端消费

消费端与生产端工程是同样的建法，消费端监听队列处理消息。

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;

/**
 * @Description TODO
 * @Author chanyu
 * @Date 2022/5/27 17:34
 * @Version 1.0
 **/
@Slf4j
@RabbitListener(queues = {"emailQueue"})
@Service
public class EmailService {
    @RabbitHandler
    public void handlerMsg(String msg){
        log.info(msg);
    }
}

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;

/**
 * @Description TODO
 * @Author chanyu
 * @Date 2022/5/27 17:34
 * @Version 1.0
 **/
@Slf4j
@RabbitListener(queues = {"smsQueue"})
@Service
public class SmsService {

    @RabbitHandler
    public void handlerMsg(String msg){
        log.info(msg);
    }
}

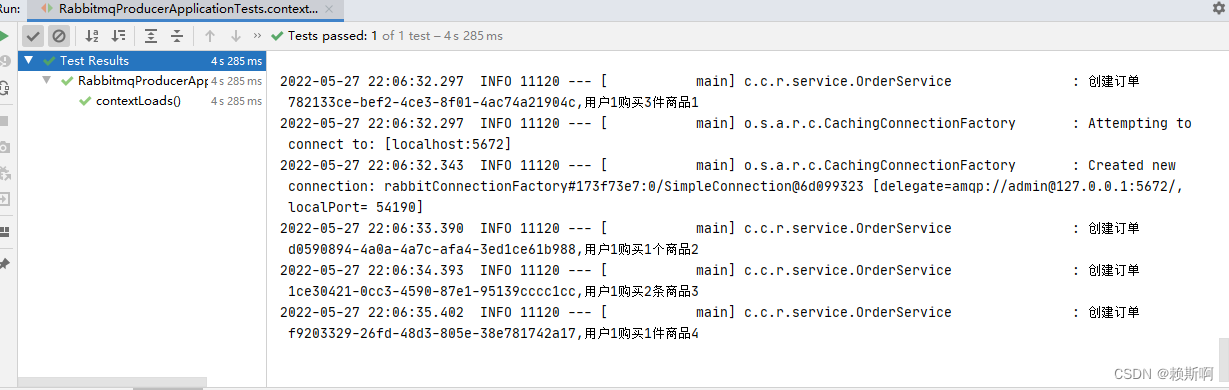

测试

在生产端进行单元测试。

import com.cy.rabbitmqproducer.service.OrderService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.concurrent.TimeUnit;

@SpringBootTest
class RabbitmqProducerApplicationTests {

    @Autowired
    private OrderService orderService;
    @Test
    void contextLoads() throws InterruptedException {
        orderService.order("1","1",3,"件");
        TimeUnit.SECONDS.sleep(1);
        orderService.order("1","2",1,"个");
        TimeUnit.SECONDS.sleep(1);

        orderService.order("1","3",2,"条");
        TimeUnit.SECONDS.sleep(1);

        orderService.order("1","4",1,"件");
        TimeUnit.SECONDS.sleep(1);
    }
}
