Spring Aop初始化源码分析

引言

概述： AOP系列文章：
【1】Spring Aop初始化源码分析
【2】Spring AOP创建代理对象源码解析
【3】Spring AOP 链式调用过程源码解析
【4】Spring 事务执行过程源码解析

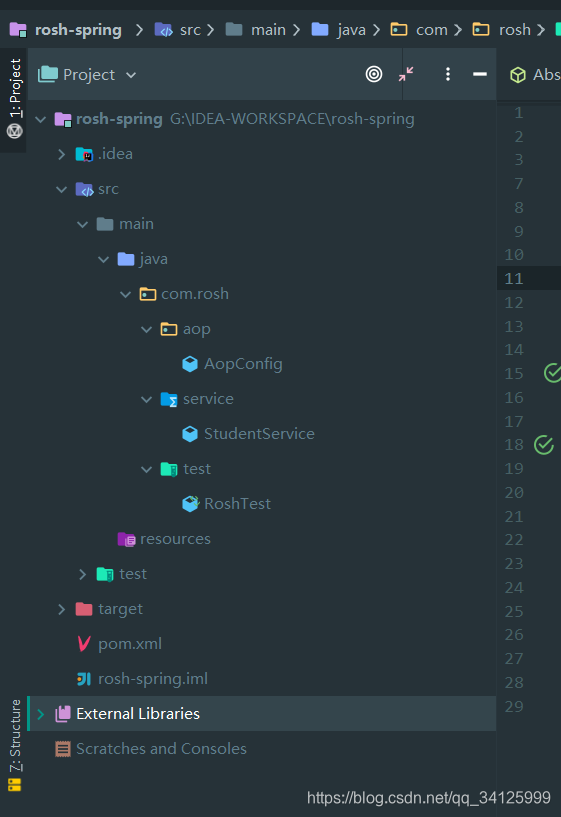

1 工程简介

1.1 pom

<properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <spring.version>5.2.8.RELEASE</spring.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.20</version>
        </dependency>
        <!-- 日志相关依赖 -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.10</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.1.2</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>1.1.2</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
    </dependencies>

1.2 AopConfig

@Configuration
@EnableAspectJAutoProxy
@Aspect
public class AopConfig {

    /**
     * 声明切点
     */
    @Pointcut("execution(* com.rosh.service.*.*(..))")
    public void pointCut() {

    }

    @Around("pointCut()")
    public Object around(ProceedingJoinPoint proceedingJoinPoint) throws Throwable {
        System.out.println("==============调用前=================");
        Object proceed = proceedingJoinPoint.proceed();
        System.out.println("==============调用后=================");
        return proceed;
    }


}

1.3 StudentService

@Service
public class StudentService {

    public void addStudent() {
        System.out.println("添加学生");
    }


}

1.4 RoshTest

public class RoshTest {

    @Test
    public void mainTest(){

        AnnotationConfigApplicationContext applicationContext=new AnnotationConfigApplicationContext("com.rosh");

        StudentService studentService = (StudentService) applicationContext.getBean("studentService");

        studentService.addStudent();

    }

}

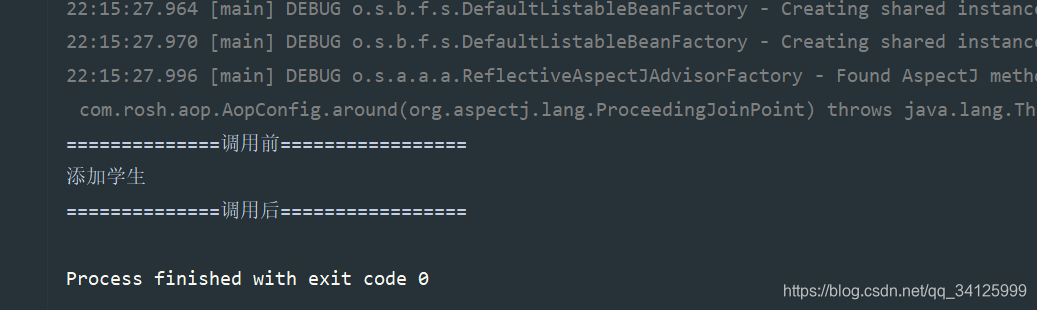

1.5 运行结果

2 @EnableAspectJAutoProxy作用

描述： 开启Spring AOP功能。

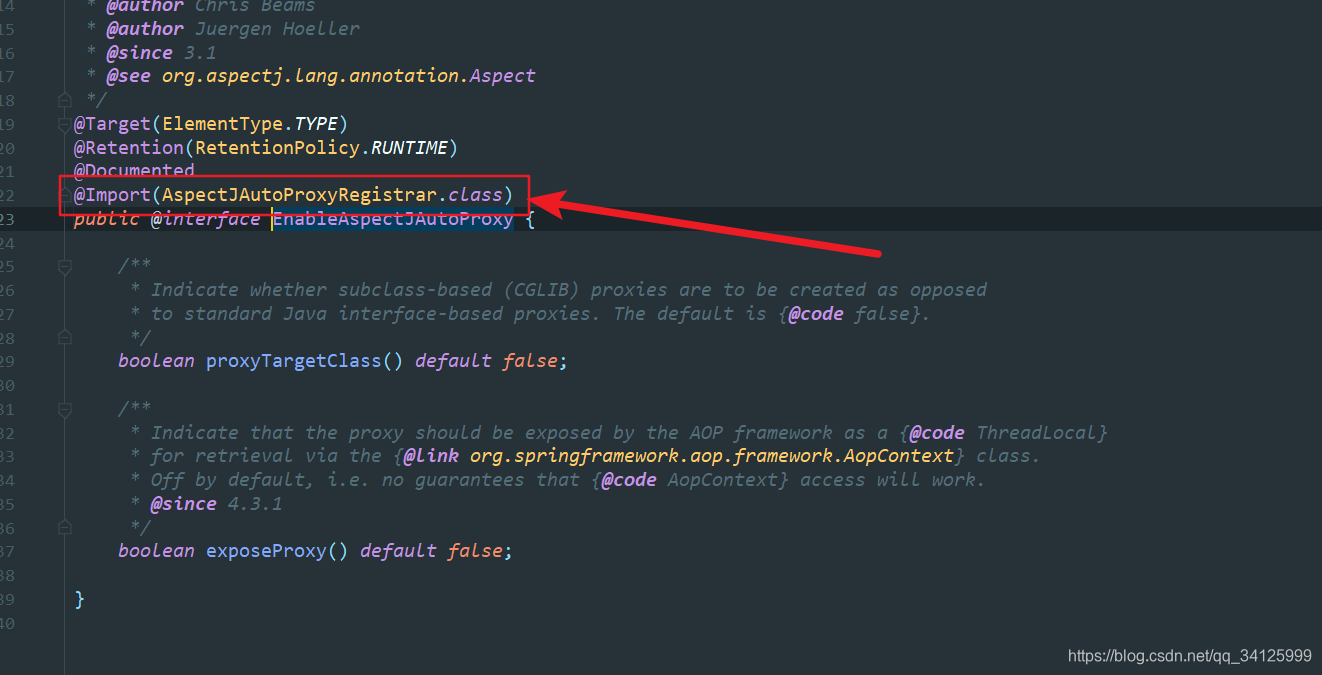

(1) IOC中加入AspectJAutoProxyRegistrar.class

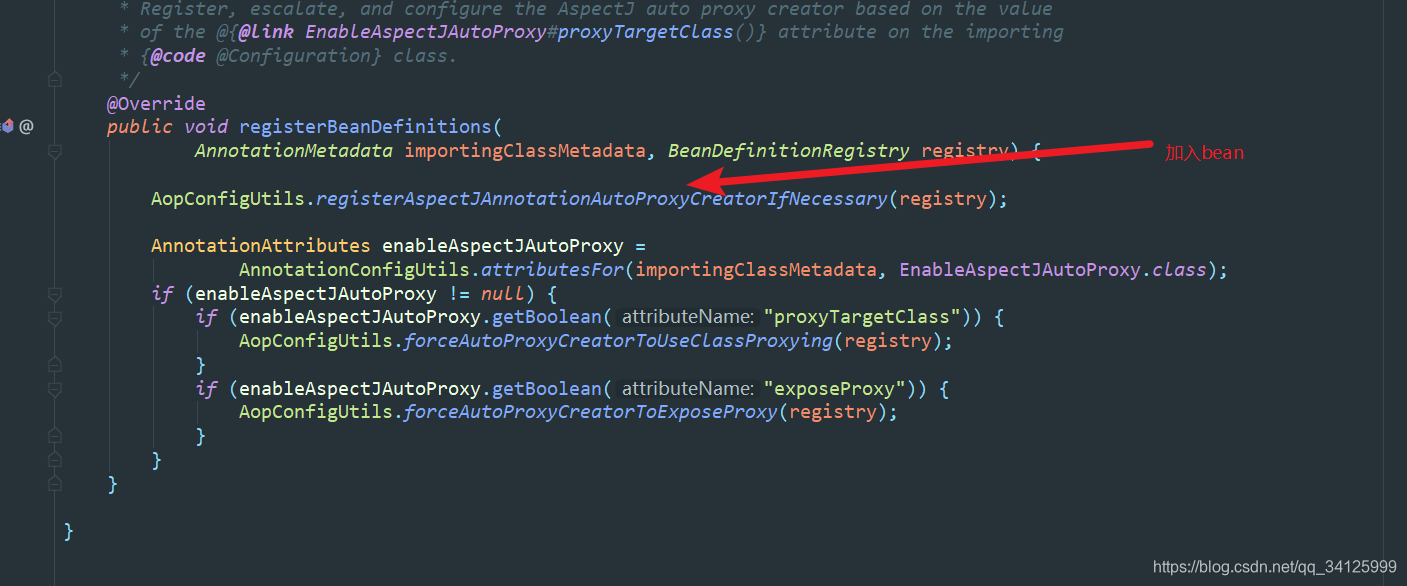

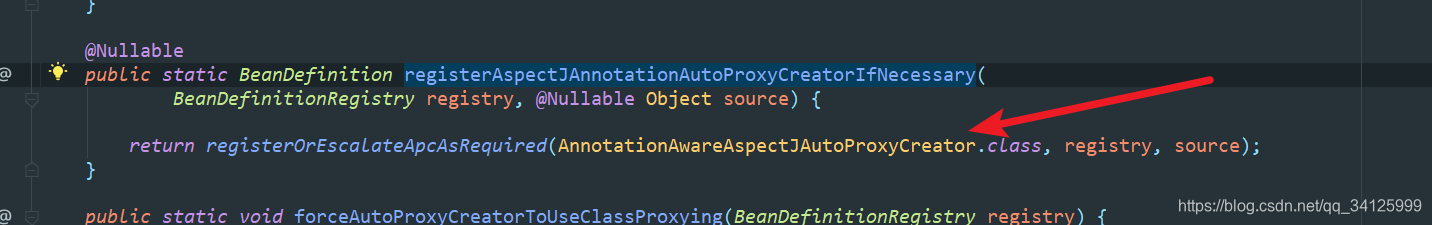

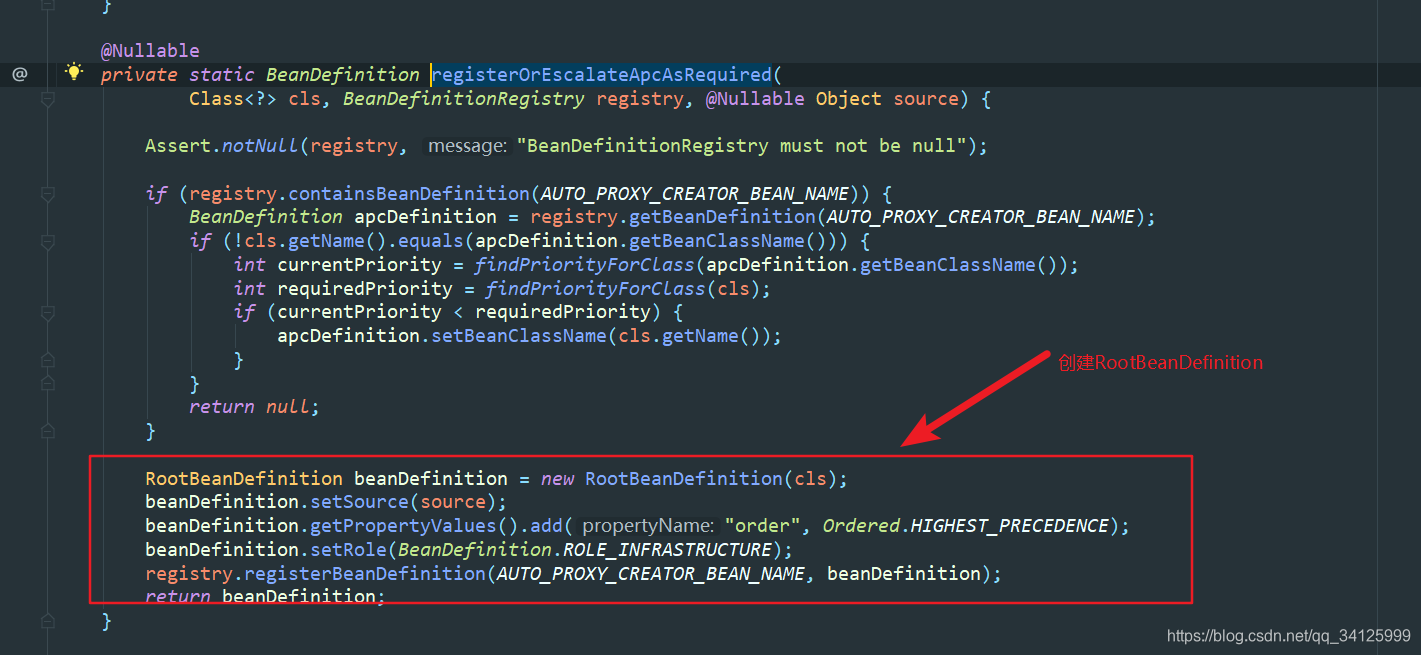

(2) 注册 AnnotationAwareAspectJAutoProxyCreator.class

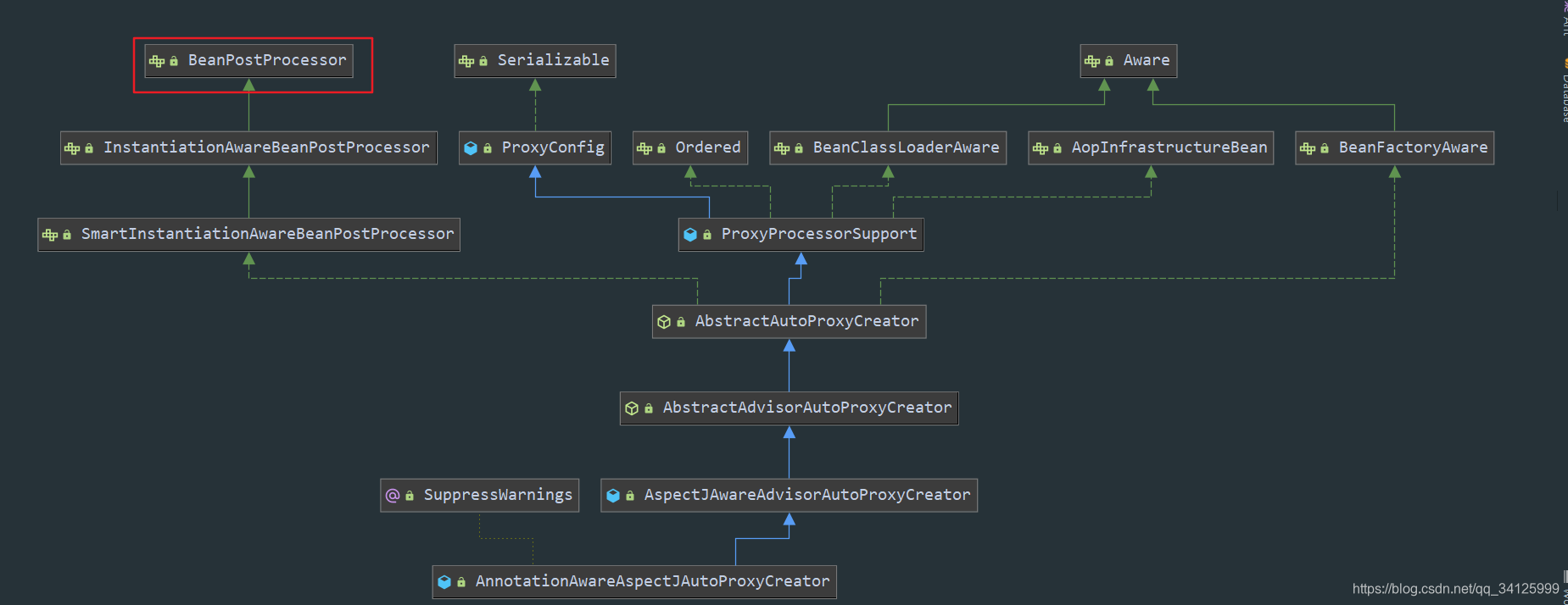

3 AnnotationAwareAspectJAutoProxyCreator.class 源码分析

描述： 该类是AOP核心类。该类实现了BeanPostProcessor接口，说明在bean初始化时，进行后置加强。

该类作用是，当bean初始化时，被该类后置加强：

(1) 查找有效的advisor列表。(advisor=advice+pointCut)
(2) 匹配当前bean，是否在pointCut表达式范围，匹配方法是否需要加强，把匹配到的advisor列表返回。
(3) 根据有效的advisor列表创建代理对象、

3.1 后置加强逻辑

@Override
	public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
		if (bean != null) {
			Object cacheKey = getCacheKey(bean.getClass(), beanName);
			if (this.earlyProxyReferences.remove(cacheKey) != bean) {
				return wrapIfNecessary(bean, beanName, cacheKey);
			}
		}
		return bean;
	}

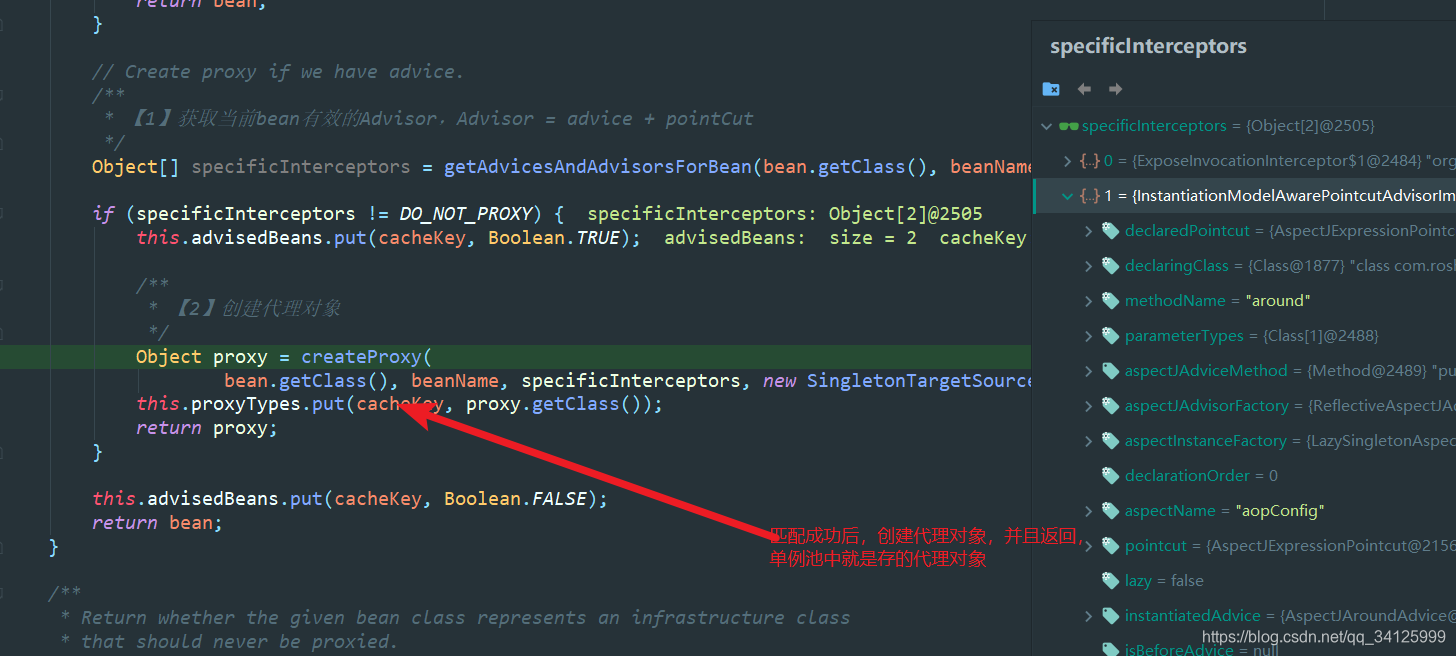

3.2 wrapIfNecessary方法

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// Create proxy if we have advice.
		/**
		 * 【1】获取当前bean有效的Advisor，Advisor = advice + pointCut
		 */
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);

		if (specificInterceptors != DO_NOT_PROXY) {
			this.advisedBeans.put(cacheKey, Boolean.TRUE);

			/**
			 * 【2】创建代理对象
			 */
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}

3.3 getAdvicesAndAdvisorsForBean 方法解析

    @Override
	@Nullable
	protected Object[] getAdvicesAndAdvisorsForBean(
			Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {

		/**
		 * 查找Advisor
		 */
		List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
		if (advisors.isEmpty()) {
			return DO_NOT_PROXY;
		}
		return advisors.toArray();
	}

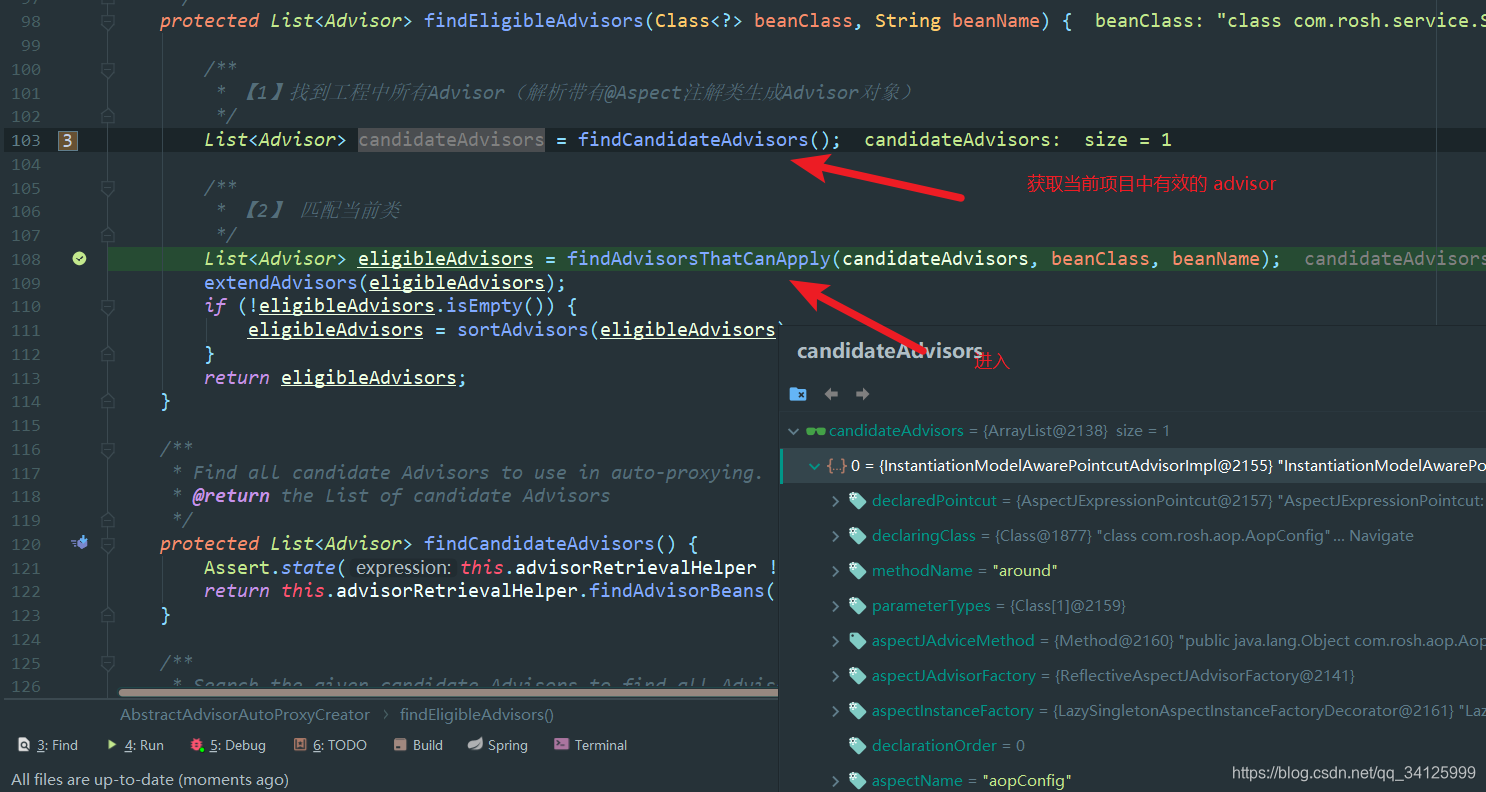

描述： 该方法获取有效的Advisor，主要作用，发现所有的advisor其次匹配当前bean。

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {

		/**
		 * 【1】找到工程中所有Advisor（解析带有@Aspect注解类生成Advisor对象）
		 */
		List<Advisor> candidateAdvisors = findCandidateAdvisors();

		/**
		 * 【2】 匹配当前类
		 */
		List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
		extendAdvisors(eligibleAdvisors);
		if (!eligibleAdvisors.isEmpty()) {
			eligibleAdvisors = sortAdvisors(eligibleAdvisors);
		}
		return eligibleAdvisors;
	}

3.3.1 findCandidateAdvisors

作用： 查找所有的advisor。

@Override
	protected List<Advisor> findCandidateAdvisors() {
		// Add all the Spring advisors found according to superclass rules.
		//找到所有的Advisor
		List<Advisor> advisors = super.findCandidateAdvisors();
		// Build Advisors for all AspectJ aspects in the bean factory.

		/**
		 * 创建候选切面 对@Aspect注解进行处理
		 */
		if (this.aspectJAdvisorsBuilder != null) {
			advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
		}
		return advisors;
	}

核心方法： buildAspectJAdvisors()

public List<Advisor> buildAspectJAdvisors() {
		List<String> aspectNames = this.aspectBeanNames;

		if (aspectNames == null) {
			synchronized (this) {
				aspectNames = this.aspectBeanNames;
				if (aspectNames == null) {
					List<Advisor> advisors = new ArrayList<>();
					aspectNames = new ArrayList<>();

					/**
					 * 从spring 中获取所有的类
					 */
					String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
							this.beanFactory, Object.class, true, false);
					for (String beanName : beanNames) {
						if (!isEligibleBean(beanName)) {
							continue;
						}
						// We must be careful not to instantiate beans eagerly as in this case they
						// would be cached by the Spring container but would not have been weaved.

						/**
						 *  获取beanName 的class
						 */
						Class<?> beanType = this.beanFactory.getType(beanName);
						if (beanType == null) {
							continue;
						}

						/**
						 *  判断类上是否有@Aspect注解
						 */
						if (this.advisorFactory.isAspect(beanType)) {
							aspectNames.add(beanName);
							AspectMetadata amd = new AspectMetadata(beanType, beanName);
							if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {

								//创建获取有@Aspect注解类的实例工厂，负责获取有@Aspect注解的实例
								MetadataAwareAspectInstanceFactory factory =
										new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);

								//创建切面Advisor对象

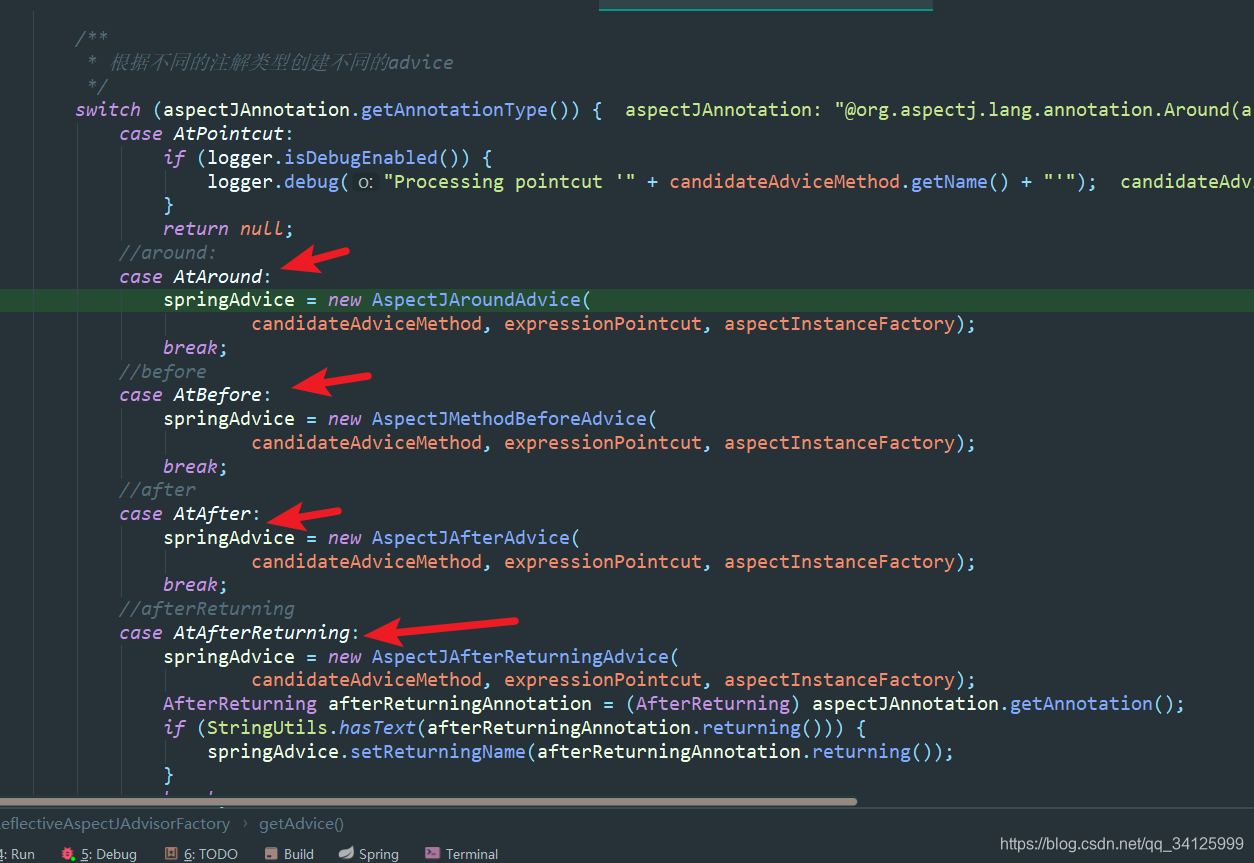

								List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
								if (this.beanFactory.isSingleton(beanName)) {
									this.advisorsCache.put(beanName, classAdvisors);
								}
								else {
									this.aspectFactoryCache.put(beanName, factory);
								}
								advisors.addAll(classAdvisors);
							}
							else {
								// Per target or per this.
								if (this.beanFactory.isSingleton(beanName)) {
									throw new IllegalArgumentException("Bean with name '" + beanName +
											"' is a singleton, but aspect instantiation model is not singleton");
								}
								MetadataAwareAspectInstanceFactory factory =
										new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
								this.aspectFactoryCache.put(beanName, factory);
								advisors.addAll(this.advisorFactory.getAdvisors(factory));
							}
						}
					}
					this.aspectBeanNames = aspectNames;
					return advisors;
				}
			}
		}

		if (aspectNames.isEmpty()) {
			return Collections.emptyList();
		}
		List<Advisor> advisors = new ArrayList<>();
		for (String aspectName : aspectNames) {
			List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
			if (cachedAdvisors != null) {
				advisors.addAll(cachedAdvisors);
			}
			else {
				MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
				advisors.addAll(this.advisorFactory.getAdvisors(factory));
			}
		}
		return advisors;
	}

3.3.2 findAdvisorsThatCanApply

描述： 用所有advisor匹配当前class获取当前类有效的advisor列表。

protected List<Advisor> findAdvisorsThatCanApply(
			List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {

		ProxyCreationContext.setCurrentProxiedBeanName(beanName);
		try {
			/**

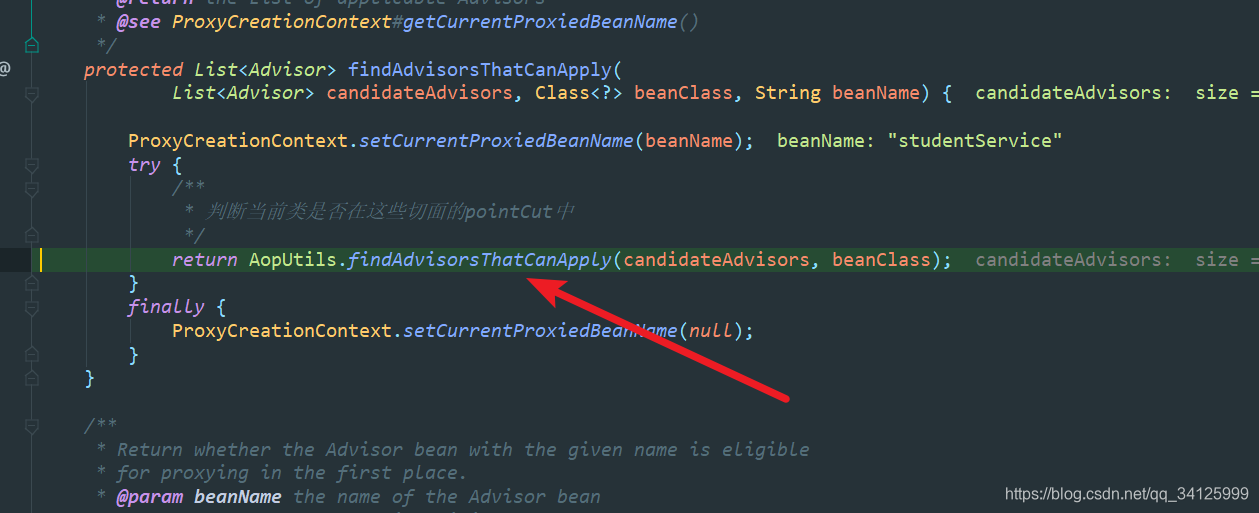

			 * 判断当前类是否在这些切面的pointCut中
			 */
			return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
		}
		finally {
			ProxyCreationContext.setCurrentProxiedBeanName(null);
		}
	}

描述： 找到有效的Advisor后匹配当前bean是否需要加强

public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
		if (candidateAdvisors.isEmpty()) {
			return candidateAdvisors;
		}
		List<Advisor> eligibleAdvisors = new ArrayList<>();
		for (Advisor candidate : candidateAdvisors) {
			if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
				eligibleAdvisors.add(candidate);
			}
		}
		boolean hasIntroductions = !eligibleAdvisors.isEmpty();

		/**
		 * 匹配
		 */
		for (Advisor candidate : candidateAdvisors) {
			if (candidate instanceof IntroductionAdvisor) {
				// already processed
				continue;
			}

			/**

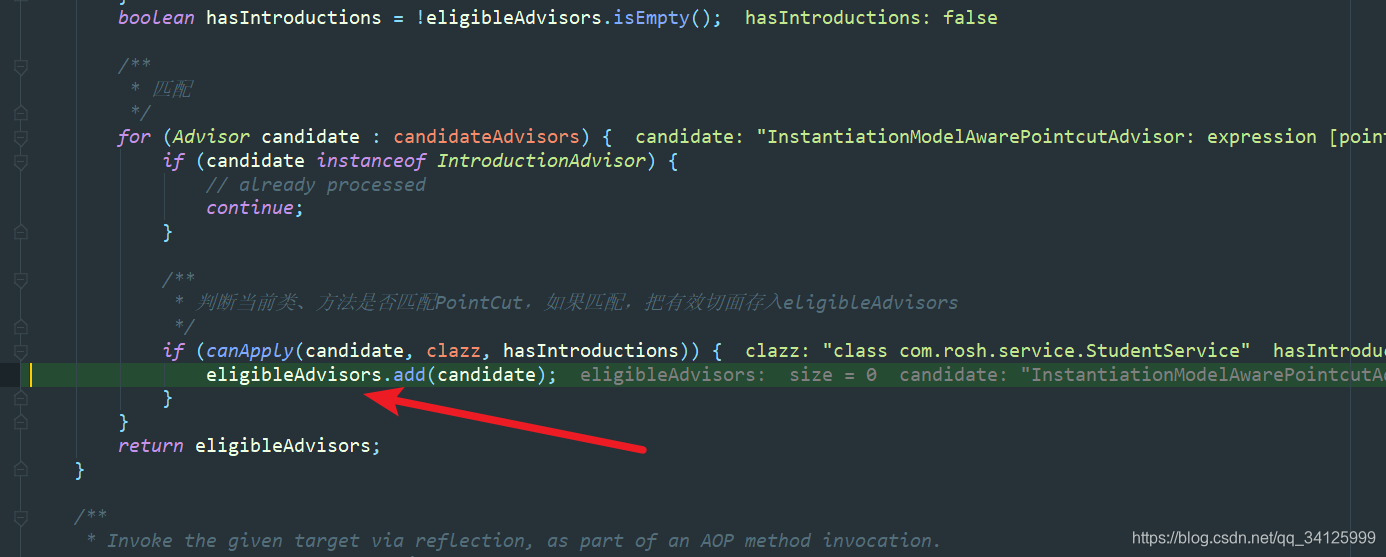

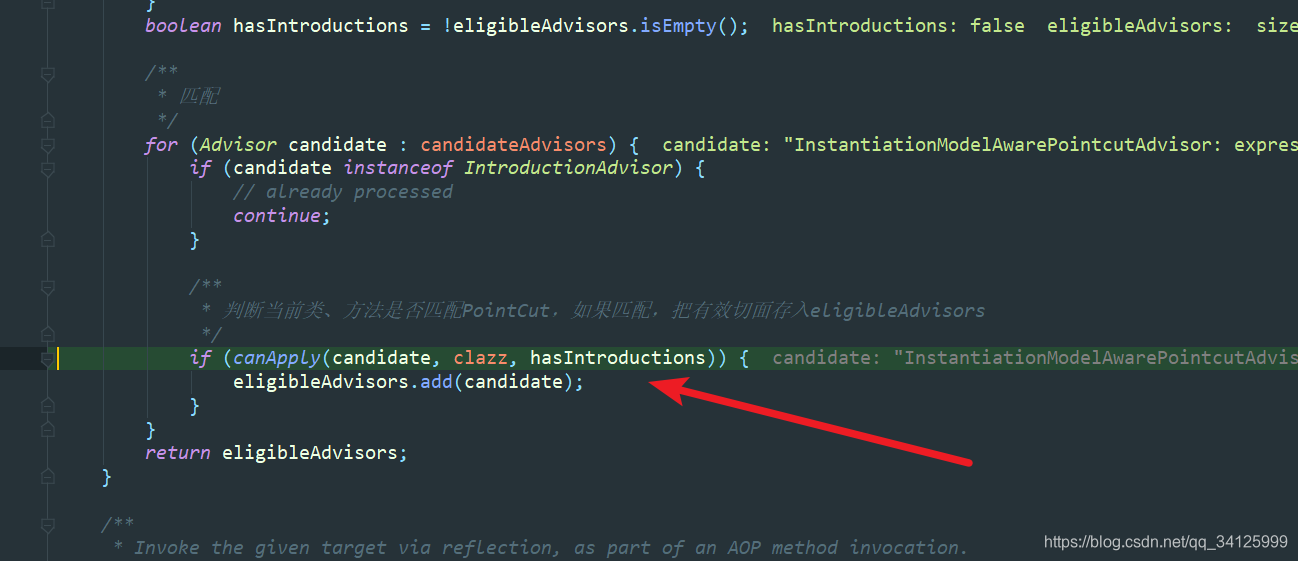

			 * 判断当前类、方法是否匹配PointCut，如果匹配，把有效切面存入eligibleAdvisors
			 */
			if (canApply(candidate, clazz, hasIntroductions)) {
				eligibleAdvisors.add(candidate);
			}
		}
		return eligibleAdvisors;
	}

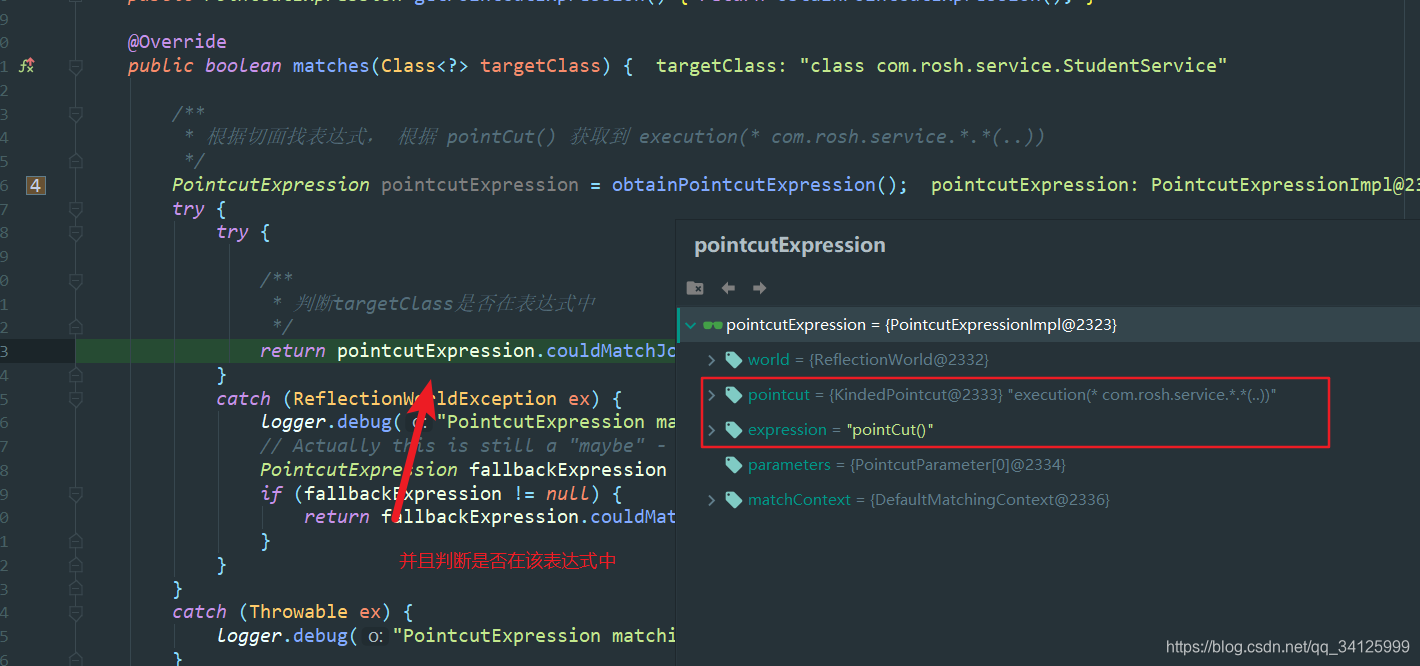

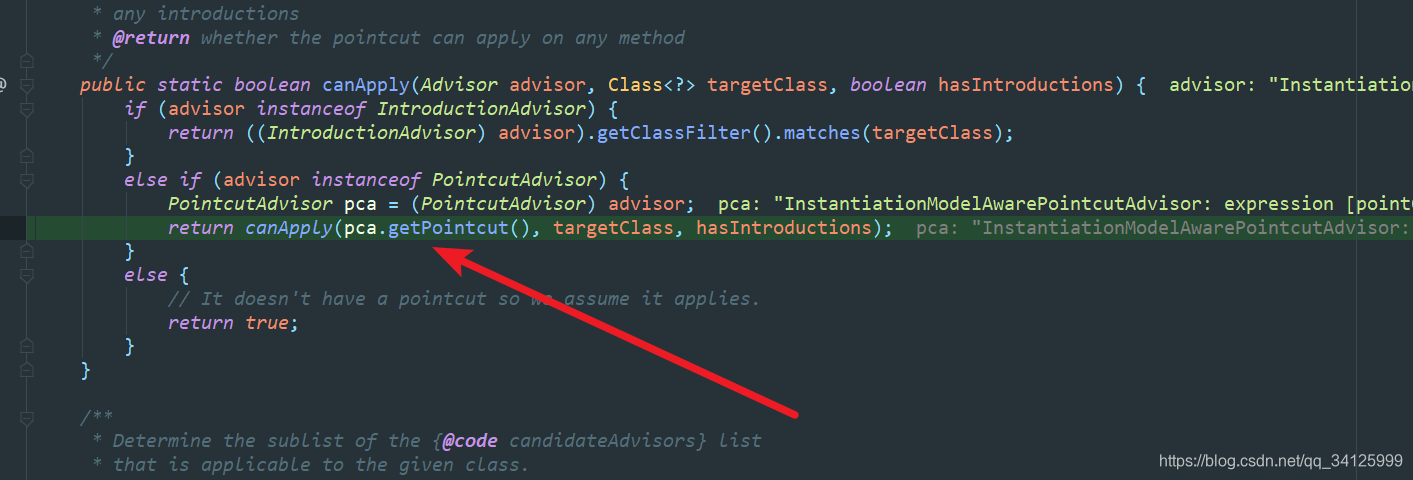

描述： 真正匹配方法，判断当前类是否在pointCut表达式中，在匹配当前方法是否需要加强。

public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
		Assert.notNull(pc, "Pointcut must not be null");

		/**

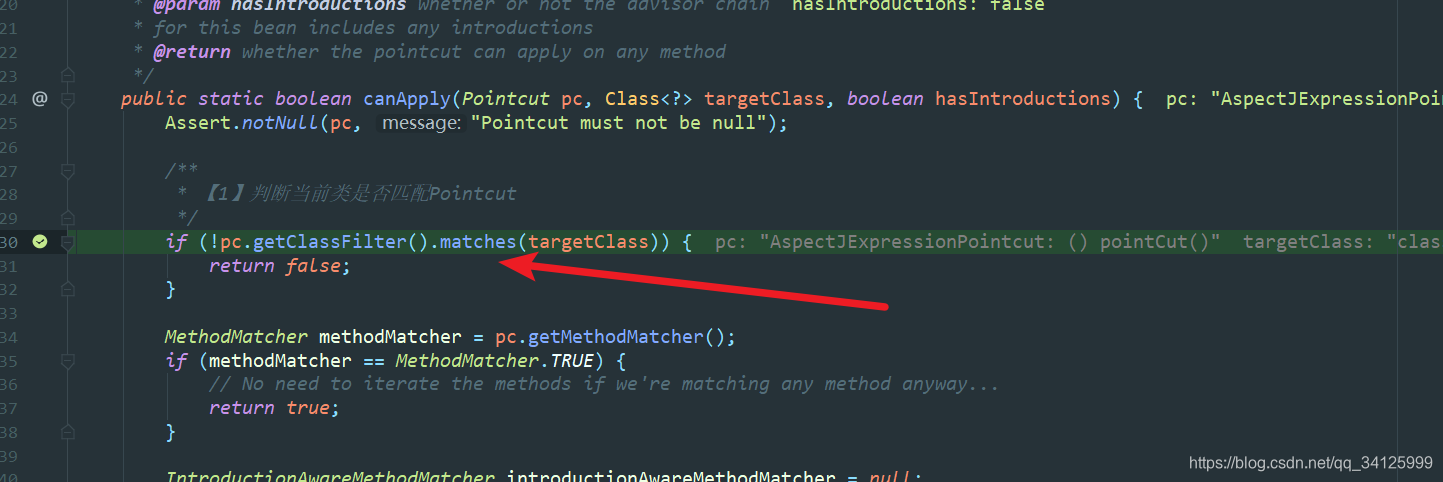

		 * 【1】判断当前类是否匹配Pointcut
		 */
		if (!pc.getClassFilter().matches(targetClass)) {
			return false;
		}

		MethodMatcher methodMatcher = pc.getMethodMatcher();
		if (methodMatcher == MethodMatcher.TRUE) {
			// No need to iterate the methods if we're matching any method anyway...
			return true;
		}

		IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
		if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
			introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
		}

		Set<Class<?>> classes = new LinkedHashSet<>();
		if (!Proxy.isProxyClass(targetClass)) {
			classes.add(ClassUtils.getUserClass(targetClass));
		}
		classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));

		/**

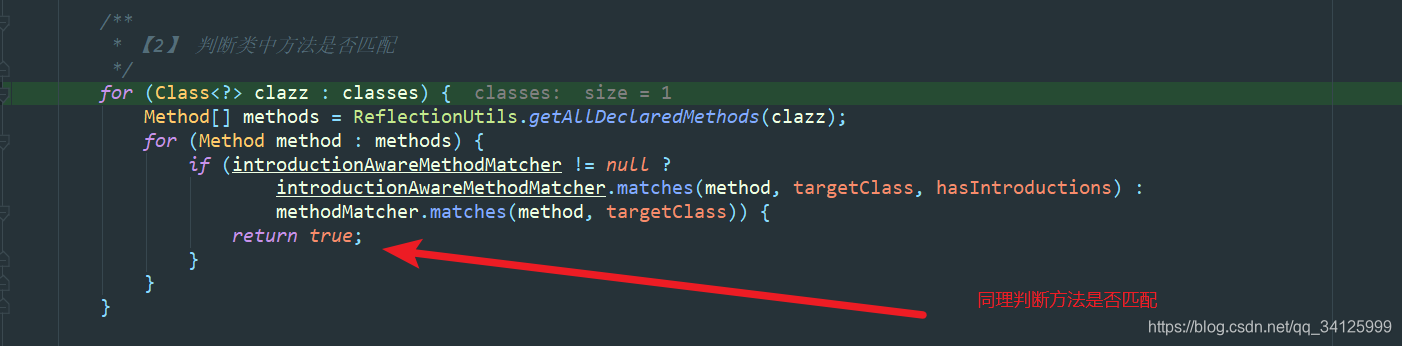

		 * 【2】 判断类中方法是否匹配
		 */
		for (Class<?> clazz : classes) {
			Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
			for (Method method : methods) {
				if (introductionAwareMethodMatcher != null ?
						introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
						methodMatcher.matches(method, targetClass)) {
					return true;
				}
			}
		}

		return false;
	}

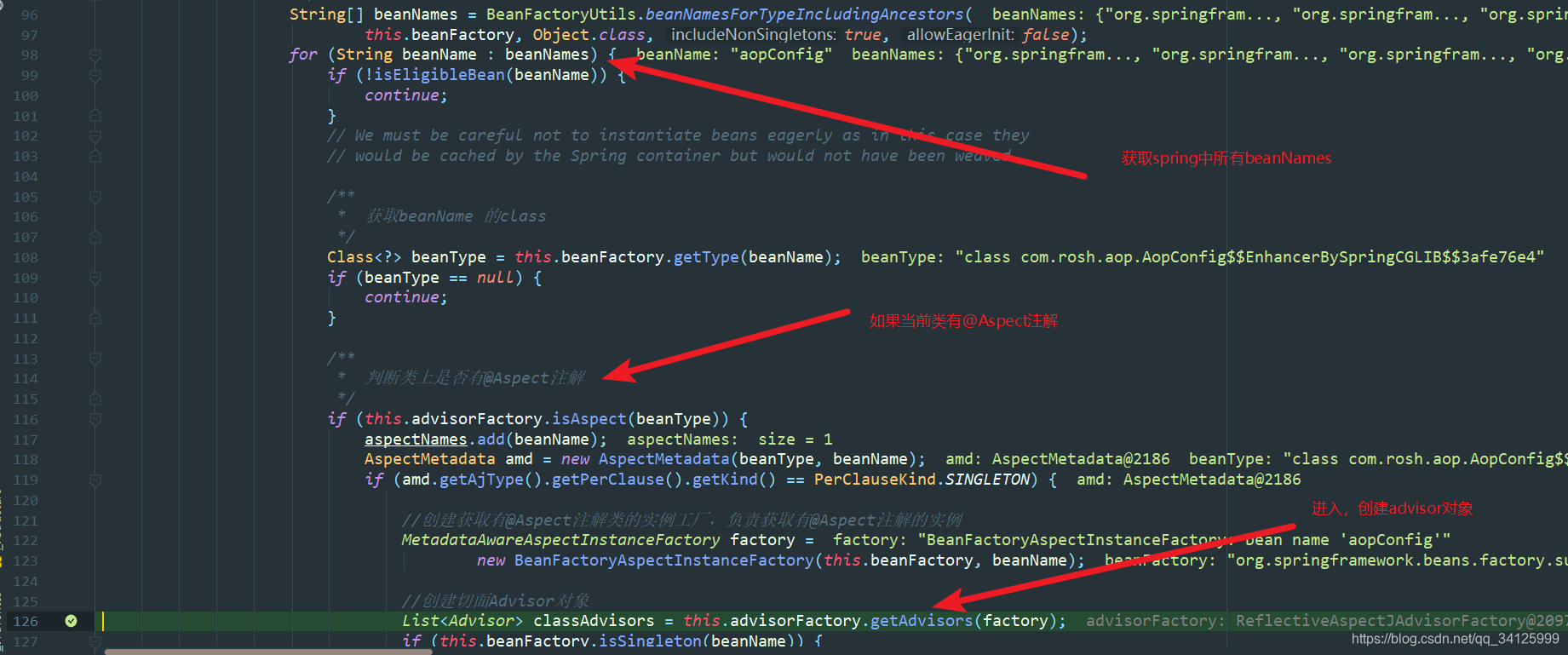

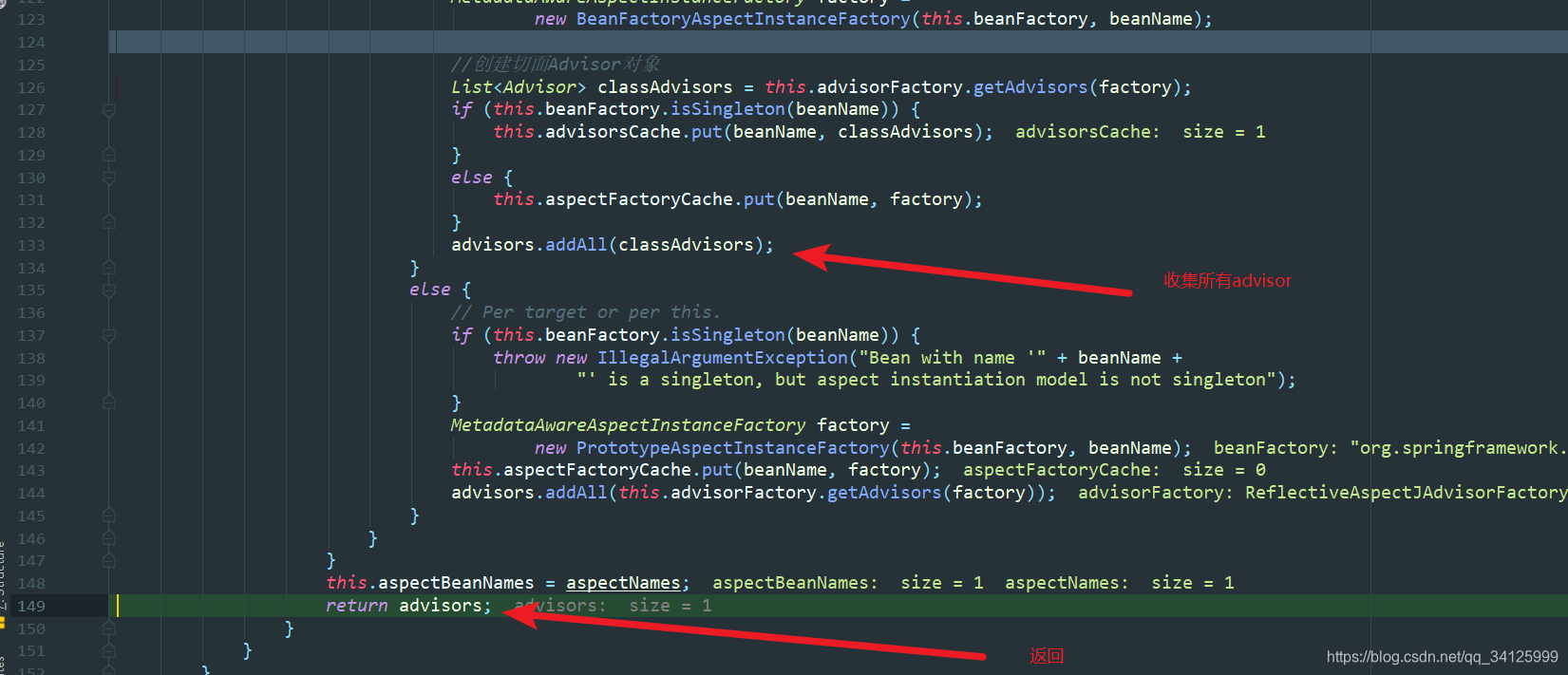

4 buildAspectJAdvisors() 方法debug

描述： 该方法是获取当前项目中所有advisor。一个advisor由pointCut和advice组成，代表一个切面。

public List<Advisor> buildAspectJAdvisors() {
		List<String> aspectNames = this.aspectBeanNames;

		if (aspectNames == null) {
			synchronized (this) {
				aspectNames = this.aspectBeanNames;
				if (aspectNames == null) {
					List<Advisor> advisors = new ArrayList<>();
					aspectNames = new ArrayList<>();

					/**
					 * 从spring 中获取所有的类
					 */
					String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
							this.beanFactory, Object.class, true, false);
					for (String beanName : beanNames) {
						if (!isEligibleBean(beanName)) {
							continue;
						}
						// We must be careful not to instantiate beans eagerly as in this case they
						// would be cached by the Spring container but would not have been weaved.

						/**
						 *  获取beanName 的class
						 */
						Class<?> beanType = this.beanFactory.getType(beanName);
						if (beanType == null) {
							continue;
						}

						/**
						 *  判断类上是否有@Aspect注解
						 */
						if (this.advisorFactory.isAspect(beanType)) {
							aspectNames.add(beanName);
							AspectMetadata amd = new AspectMetadata(beanType, beanName);
							if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {

								//创建获取有@Aspect注解类的实例工厂，负责获取有@Aspect注解的实例
								MetadataAwareAspectInstanceFactory factory =
										new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);

								//创建切面Advisor对象
								List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
								if (this.beanFactory.isSingleton(beanName)) {
									this.advisorsCache.put(beanName, classAdvisors);
								}
								else {
									this.aspectFactoryCache.put(beanName, factory);
								}
								advisors.addAll(classAdvisors);
							}
							else {
								// Per target or per this.
								if (this.beanFactory.isSingleton(beanName)) {
									throw new IllegalArgumentException("Bean with name '" + beanName +
											"' is a singleton, but aspect instantiation model is not singleton");
								}
								MetadataAwareAspectInstanceFactory factory =
										new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
								this.aspectFactoryCache.put(beanName, factory);
								advisors.addAll(this.advisorFactory.getAdvisors(factory));
							}
						}
					}
					this.aspectBeanNames = aspectNames;
					return advisors;
				}
			}
		}

		if (aspectNames.isEmpty()) {
			return Collections.emptyList();
		}
		List<Advisor> advisors = new ArrayList<>();
		for (String aspectName : aspectNames) {
			List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
			if (cachedAdvisors != null) {
				advisors.addAll(cachedAdvisors);
			}
			else {
				MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
				advisors.addAll(this.advisorFactory.getAdvisors(factory));
			}
		}
		return advisors;
	}

描述： 创建pointCut对象

描述： 创建advisor对象，传入参数pointCut。advisor创建时，会创建内部advice对象。

描述： 创建advice

5 匹配流程debug

描述： 匹配类，切点进入当前类，在matches方法中，会把切点转成表达式。



描述： 如果类、方法都匹配advisor，那么当前advisor可以加强当前bean
