jenkins 部署以及基本使用

1 下载最新war包

下载地址：https://www.jenkins.io/zh/download/
下载对应war包文件

2 安装jdk环境

jdk下载地址：https://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html

tar -zxvf jdk-8u60-linux-x64.tar.gz

mv  jdk1.8.0_60 /usr/local/jdk1.8

vim /etc/profile

export JAVA_HOME=/usr/local/jdk1.8
export CLASSPATH=$JAVA_HOME/lib/
export PATH=$JAVA_HOME/bin:$PATH


source /etc/profile

java -version

3 编写启动脚本

创建目录

mkdir -p /home/module/jenkins

把对应的war包拷贝到 上面的目录

touch jenkins.sh

内容如下

#!/bin/bash

#这里可替换为你自己的执行程序，其他代码无需更改
export JENKINS_HOME=/home/module/jenkins
APP_NAME="jenkins.war"
JAVA_OPTS="-Xms512m -Xmx512m"
HTTP_PORT="28888"

#使用说明，用来提示输入参数
usage() {
  echo "Usage: sh demo.sh [start|stop|restart|status]"
  exit 1
}

#检查程序是否在运行
is_exist() {
  pid=$(ps -ef | grep $APP_NAME | grep -v grep | awk '{print $2}')
  #如果不存在返回1，存在返回0
  if [ -z "${pid}" ]; then
    return 1
  else
    return 0
  fi
}

#启动方法
start() {
  is_exist
  if [ $? -eq "0" ]; then
    # java -jar ${APP_NAME}
    echo "${APP_NAME} is already running. pid=${pid} ."
  else
    nohup java ${JAVA_OPTS} -jar ${JENKINS_HOME}/${APP_NAME} --ajp13Port=-1 --httpPort=${HTTP_PORT} >/dev/null 2>&1 &
  fi
}

#停止方法
stop() {
  is_exist
  if [ $? -eq "0" ]; then
    kill -9 $pid
  else
    echo "${APP_NAME} is not running"
  fi
}

#输出运行状态
status() {
  is_exist
  if [ $? -eq "0" ]; then
    echo "${APP_NAME} is running. Pid is ${pid}"
  else
    echo "${APP_NAME} is not running."
  fi
}

#重启
restart() {
  stop
  start
}

#根据输入参数，选择执行对应方法，不输入则执行使用说明
case "$1" in
"start")
  start
  ;;
"stop")
  stop
  ;;
"status")
  status
  ;;
"restart")
  restart
  ;;
*)
  usage
  ;;
esac

4 给脚本授权

chmod 777 jenkins.sh

5 启动、停止jenkins

# 启动
./jenkins.sh start

# 停止
./jenkins.sh stop

# 查看状态
./jenkins.sh status

# 重启
./jenkins.sh restart

6 开机自启设置

在/etc/rc.d/rc.local文件底部，添加内容：

# jenkins
/home/module/jenkins/jenkins.sh start

chmod 777 /etc/rc.d/rc.local

7 重启

reboot

8 基本使用

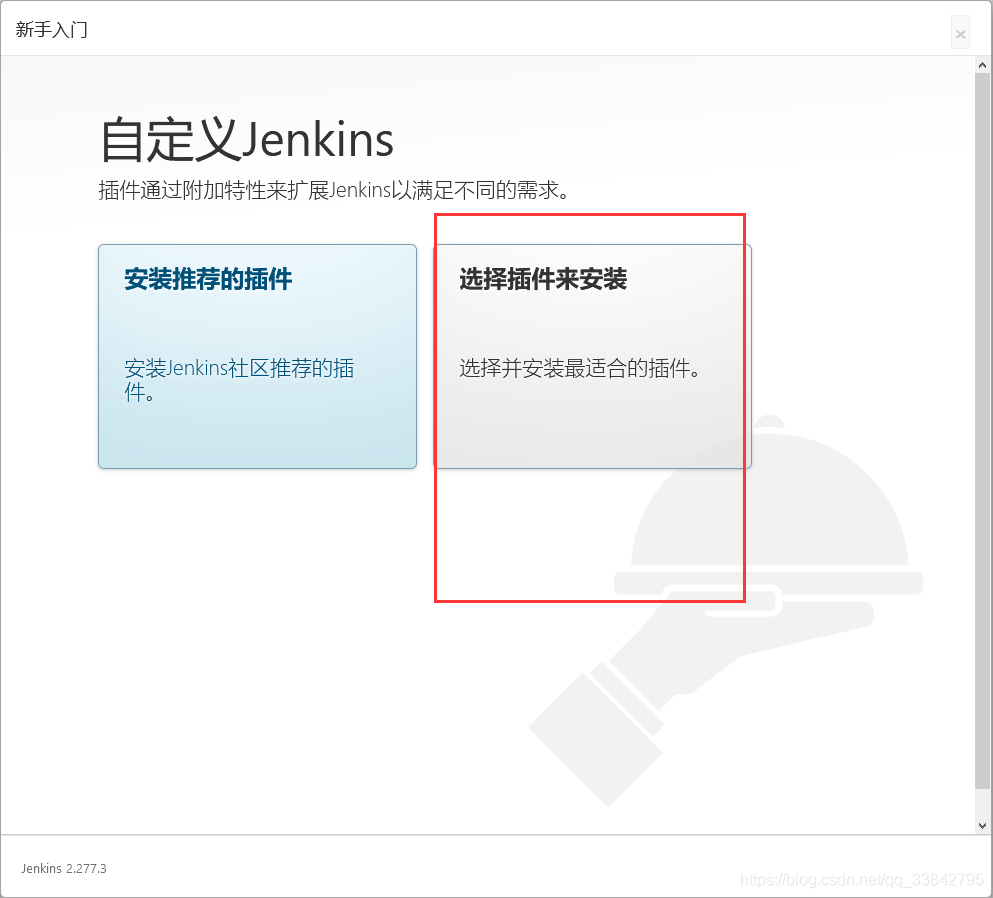

8.1 安装

访问：http://xxx:28888/

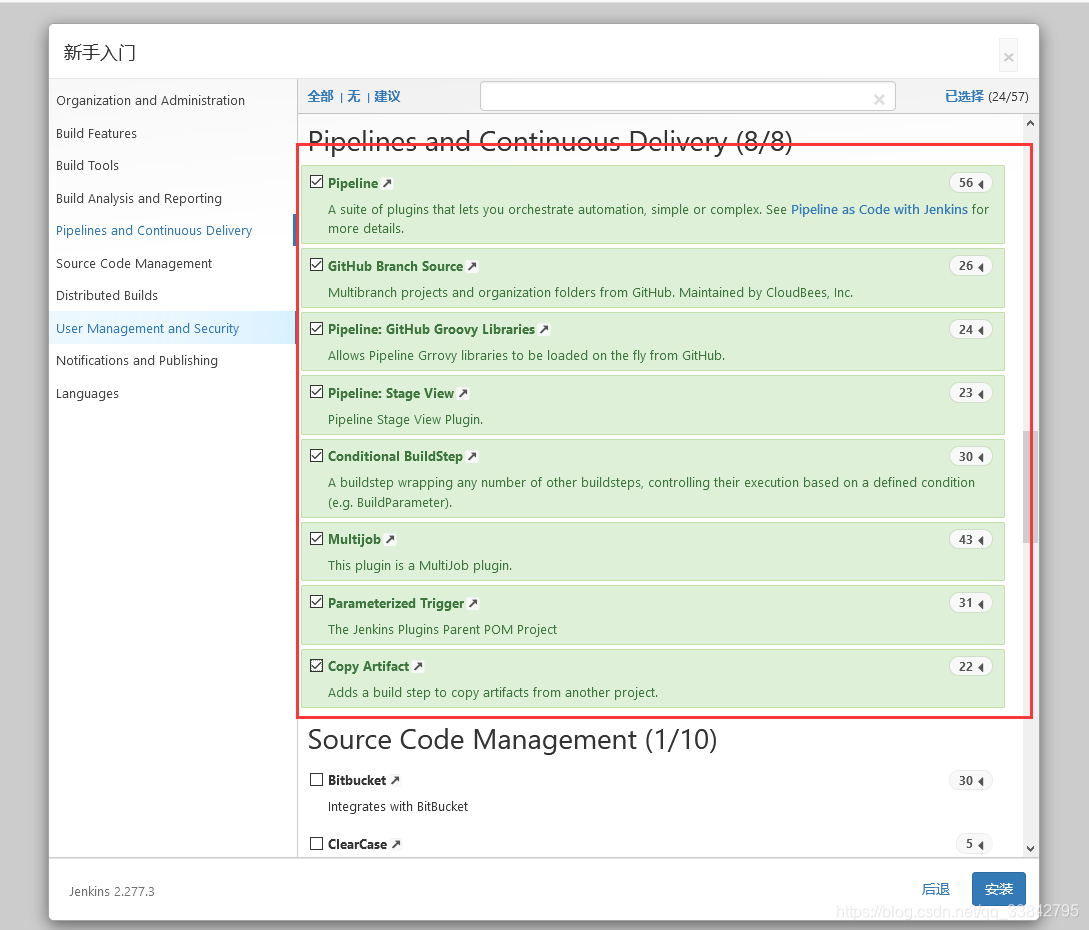

安装pipeline相关插件全部安装上，防止错误

点击安装即可，如果出现安装失败的情况，就重新安装就行。

8.1 webhook配置

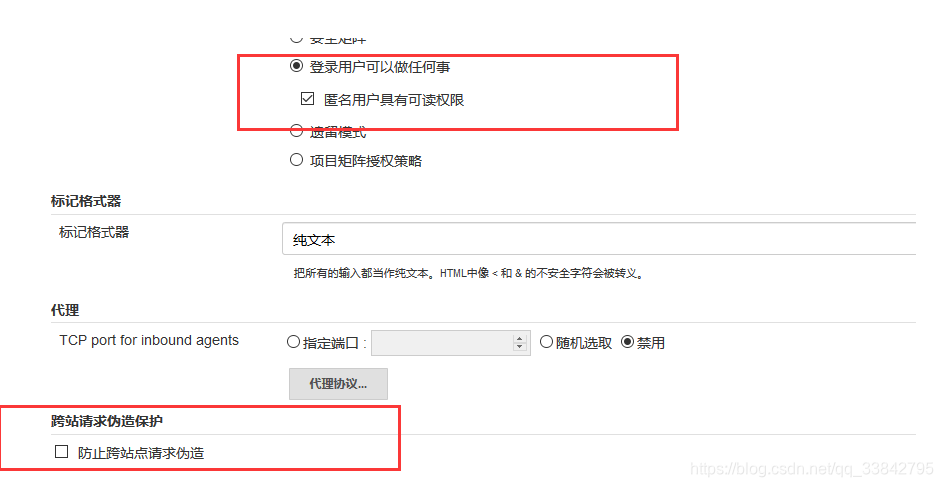

修改配置：
全局安全配置=》登录用户可以做任何事 =》匿名用户具有可读权限 打勾
跨站请求伪造保护 =》 防止跨站点请求伪造 取消打勾

创建流水线

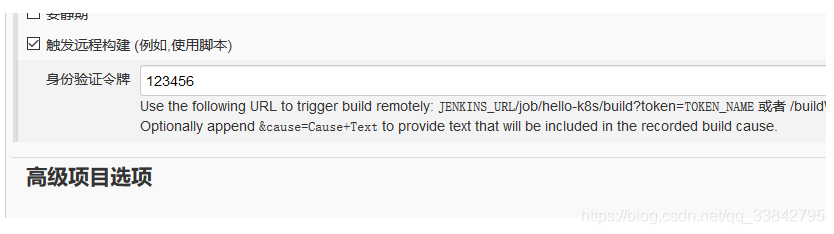

配置：用于gitlab 触发使用

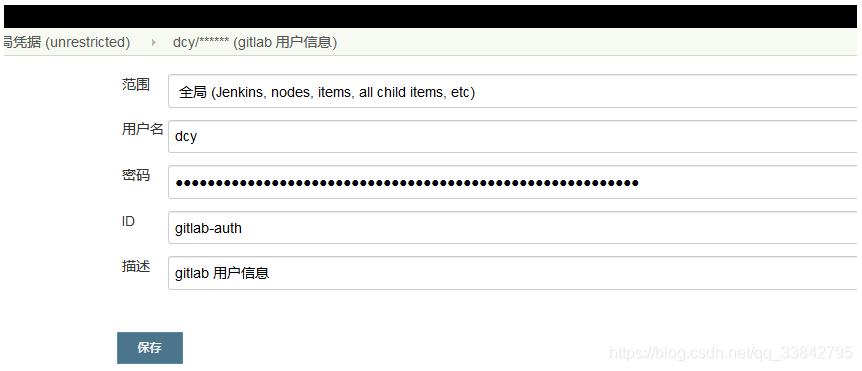

8.2 添加凭证

点击左侧菜单凭证
添加凭证

9 流水线基本使用

maven项目build

// jenkins 服务部署使用
// 获取代码是master主干分支，如果需要修改分支语法：v1-test 对应分支名称
// git branch: 'v1-test',credentialsId: 'gogs-auth', url: "${REPOSITORY}"
pipeline {
    agent any
    environment {
        // gitee仓库地址
        REPOSITORY = "https://gitee.com/dcy421/dcy-fast-cloud.git"
        // 路径前缀
        PATH_PREFIX = "business-center/"
        // 模块名称
        MODULE = "auth-center"
        // 脚本路径
        SCRIPT_PATH = "/data/module/jenkins-scripts/junban-v2"
        // 运行环境
        RUN_ENV = "dev"
    }
    stages {
        stage('获取代码') {
            steps {
                echo "start fetch code from git:${REPOSITORY}"
                // 删除代码
                deleteDir()
                // 获取地址
                git credentialsId: 'gogs-auth', url: "${REPOSITORY}"
            }
        }
        stage('编译代码') {
            steps {
                echo "start compile"
                // 编译模块和依赖的
                sh "mvn -U -pl ${PATH_PREFIX}${MODULE} -am -DskipTests clean package "
            }
        }
        stage('构建镜像') {
            steps {
                echo "start build image"
                sh "${SCRIPT_PATH}/build-images.sh ${MODULE} ${SCRIPT_PATH} ${RUN_ENV} java"
            }
        }
        stage('发布系统') {
            agent any
            steps {
                echo "start deploy"
                sh "${SCRIPT_PATH}/deploy.sh ${MODULE} ${SCRIPT_PATH} ${RUN_ENV} svc"
            }
        }
    }
}

vue前端项目build

pipeline {
    agent any
    environment {
        // gogs仓库地址
        REPOSITORY = "https://gitee.com/dcy421/dcy-fast-cloud-vue.git"
        // 模块名称
        MODULE = "dcy-fast-cloud-vue"
        // 脚本路径
        SCRIPT_PATH = "/data/module/jenkins-scripts/junban-v2"
        // 运行环境
        RUN_ENV = "test"
    }
    stages {
        stage('获取代码') {
            steps {
                echo "start fetch code from git:${REPOSITORY}"
                // 删除代码
                deleteDir()
                // 获取地址
                git branch: 'v1-test', credentialsId: 'gogs-auth', url: "${REPOSITORY}"
            }
        }
        stage('编译代码') {
            steps {
                echo "start compile"
                // 编译模块和依赖的
                sh "sh build.sh"
            }
        }
        stage('构建镜像') {
            steps {
                echo "start build image"
                sh "${SCRIPT_PATH}/build-images.sh ${MODULE} ${SCRIPT_PATH} ${RUN_ENV} web"
            }
        }
        stage('发布系统') {
            agent any
            steps {
                echo "start deploy"
                sh "${SCRIPT_PATH}/deploy.sh ${MODULE} ${SCRIPT_PATH} ${RUN_ENV} web"
            }
        }
    }
}

build-images.sh

#!/bin/bash

# 模块名称
MODULE=$1
# 脚本路径
SCRIPT_PATH=$2
# 环境
ENV=$3
# 项目类型
TYPE=$4

# 获取短版本号
TIME=$(date "+%Y%m%d%H%M")
GIT_REVISION=$(git log -1 --pretty=format:"%h")

# harbor项目名称
project='dcy-fast-cloud-dev'
harborHost='harbor地址'
harborUserName='用户名'
harborPassword='密码'
if [ ${ENV} == 'test' ]; then
  project='dcy-fast-cloud-test'
elif [ ${ENV} == 'prod' ]; then
  # 暂时空着
  project='dcy-fast-cloud-dev'
  harborHost='harbor地址'
  harborUserName='用户名'
  harborPassword='密码'
fi

# 拼接镜像名称
IMAGE_NAME=${harborHost}/${project}/${MODULE}:${TIME}_${GIT_REVISION}

# 进入模块目录
cd ${PATH_PREFIX}${MODULE}

# 打包
if [ ${TYPE} == 'java' ]; then
  docker build -t ${IMAGE_NAME} -f src/main/docker/Dockerfile .
else
  docker build -t ${IMAGE_NAME} -f docker/Dockerfile .
fi

# 登录
docker login ${harborHost} -u ${harborUserName} -p ${harborPassword}

# pull镜像
docker push ${IMAGE_NAME}

# 退出
docker logout ${harborHost}

# 创建临时文件夹
mkdir -p ${SCRIPT_PATH}/${ENV}

# 写临时文件
echo "${IMAGE_NAME}" >${SCRIPT_PATH}/${ENV}/${MODULE}:IMAGE_NAME

deploy.sh

#!/bin/bash

# 模块名称
MODULE=$1
# 脚本路径
SCRIPT_PATH=$2
# 环境
ENV=$3
# 服务名称
SVC=$4

# 进入目录
cd ${SCRIPT_PATH}/${ENV}

# 拼接镜像名称
IMAGE_NAME=$(cat ${MODULE}:IMAGE_NAME)
# 打印镜像名称
echo "update image to:${IMAGE_NAME}"

# k8s命名空间名称
namespaces="dcy-dev"
# 定义请求参数
contentType="content-type: application/strategic-merge-patch+json"
# token
Authorization="Authorization:Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6ImZmTVV5dGUza0dsdzBjcUJMOGx3ekJLNktWZVl3XzlxWHduUkM4NXVZVXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJvYXJkLXVzZXItdG9rZW4tOGp6cHIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoia3Vib2FyZC11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzg5NjVmMDItNTNiZC00YmMxLWI3N2EtYTZhMjFkNDIwNjhlIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmt1Ym9hcmQtdXNlciJ9.2QpWQbgXmrw9OTpPENP6hd3jI1AFvLoB61jvnBVt3aMvOPVueY-99YK3SzlphBabSJ-nSDM1AjEKlFGOhJp8iqe-W5MY4L_boHFDetIRmJJmgLCMS_IIz7rPjAbj8n3LmdSPPAMbcnK8m_ys2YN5LxJH9p3FlNVr87M7MY5lig_T2wObMMFdN0bdTjZcBzy-CDSBoOvKPlqM0n-vY1hrFjseIUD5PluXIE5HqmMh_vVHVuHMPkNyUvhFg76pXt0qoNRggmWA3Vg4oifgt1DyQYuEucJOTU4SxEsBLY-AGKGd8wGx6Xzz3kvxdWEP28cOkBo3iLoeMzUwIou3t6LcHQ"
# 定义k8sapi地址
k8sApiUrl="http://192.168.3.58:32567/k8s-api/apis/apps/v1/namespaces"

# 根据不同环境赋值不同的变量
if [ ${ENV} == 'dev' ]; then
    namespaces="dcy-dev"
    Authorization="Authorization:Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6ImZmTVV5dGUza0dsdzBjcUJMOGx3ekJLNktWZVl3XzlxWHduUkM4NXVZVXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJvYXJkLXVzZXItdG9rZW4tOGp6cHIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoia3Vib2FyZC11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzg5NjVmMDItNTNiZC00YmMxLWI3N2EtYTZhMjFkNDIwNjhlIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmt1Ym9hcmQtdXNlciJ9.2QpWQbgXmrw9OTpPENP6hd3jI1AFvLoB61jvnBVt3aMvOPVueY-99YK3SzlphBabSJ-nSDM1AjEKlFGOhJp8iqe-W5MY4L_boHFDetIRmJJmgLCMS_IIz7rPjAbj8n3LmdSPPAMbcnK8m_ys2YN5LxJH9p3FlNVr87M7MY5lig_T2wObMMFdN0bdTjZcBzy-CDSBoOvKPlqM0n-vY1hrFjseIUD5PluXIE5HqmMh_vVHVuHMPkNyUvhFg76pXt0qoNRggmWA3Vg4oifgt1DyQYuEucJOTU4SxEsBLY-AGKGd8wGx6Xzz3kvxdWEP28cOkBo3iLoeMzUwIou3t6LcHQ"
    k8sApiUrl="http://192.168.3.58:32567/k8s-api/apis/apps/v1/namespaces"
elif [ ${ENV} == 'test' ]; then
    namespaces="dcy-test"
    Authorization="Authorization:Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6ImZmTVV5dGUza0dsdzBjcUJMOGx3ekJLNktWZVl3XzlxWHduUkM4NXVZVXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJvYXJkLXVzZXItdG9rZW4tOGp6cHIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoia3Vib2FyZC11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzg5NjVmMDItNTNiZC00YmMxLWI3N2EtYTZhMjFkNDIwNjhlIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmt1Ym9hcmQtdXNlciJ9.2QpWQbgXmrw9OTpPENP6hd3jI1AFvLoB61jvnBVt3aMvOPVueY-99YK3SzlphBabSJ-nSDM1AjEKlFGOhJp8iqe-W5MY4L_boHFDetIRmJJmgLCMS_IIz7rPjAbj8n3LmdSPPAMbcnK8m_ys2YN5LxJH9p3FlNVr87M7MY5lig_T2wObMMFdN0bdTjZcBzy-CDSBoOvKPlqM0n-vY1hrFjseIUD5PluXIE5HqmMh_vVHVuHMPkNyUvhFg76pXt0qoNRggmWA3Vg4oifgt1DyQYuEucJOTU4SxEsBLY-AGKGd8wGx6Xzz3kvxdWEP28cOkBo3iLoeMzUwIou3t6LcHQ"
    k8sApiUrl="http://192.168.3.58:32567/k8s-api/apis/apps/v1/namespaces"
elif [ ${ENV} == 'prod' ]; then
    namespaces="dcy-prod"
    Authorization="Authorization:Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6ImZmTVV5dGUza0dsdzBjcUJMOGx3ekJLNktWZVl3XzlxWHduUkM4NXVZVXMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJvYXJkLXVzZXItdG9rZW4tOGp6cHIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoia3Vib2FyZC11c2VyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzg5NjVmMDItNTNiZC00YmMxLWI3N2EtYTZhMjFkNDIwNjhlIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmt1Ym9hcmQtdXNlciJ9.2QpWQbgXmrw9OTpPENP6hd3jI1AFvLoB61jvnBVt3aMvOPVueY-99YK3SzlphBabSJ-nSDM1AjEKlFGOhJp8iqe-W5MY4L_boHFDetIRmJJmgLCMS_IIz7rPjAbj8n3LmdSPPAMbcnK8m_ys2YN5LxJH9p3FlNVr87M7MY5lig_T2wObMMFdN0bdTjZcBzy-CDSBoOvKPlqM0n-vY1hrFjseIUD5PluXIE5HqmMh_vVHVuHMPkNyUvhFg76pXt0qoNRggmWA3Vg4oifgt1DyQYuEucJOTU4SxEsBLY-AGKGd8wGx6Xzz3kvxdWEP28cOkBo3iLoeMzUwIou3t6LcHQ"
    k8sApiUrl="http://192.168.3.58:32567/k8s-api/apis/apps/v1/namespaces"
fi

curl -X PATCH \
  -H "${contentType}" \
  -H "${Authorization}" \
  -d '{"spec":{"template":{"spec":{"containers":[{"name":"'${MODULE}'","image":"'${IMAGE_NAME}'"}]}}}}' \
  "${k8sApiUrl}/${namespaces}/deployments/${SVC}-${MODULE}"

chmod -R 777 文件名

10 远程ssh

添加全局凭证

def getHost(){
    def remote = [:]
    remote.name = '名称'
    remote.host = 'xxx.xxx.xxx.xxx'
    remote.port = 22
    withCredentials([usernamePassword(credentialsId: 'xxx.xxx.xxx.xxx:22-ssh', passwordVariable: 'password', usernameVariable: 'username')]) {
        remote.user = "${username}"
        remote.password = "${password}"
    }
    remote.allowAnyHosts = true
    return remote
}
pipeline {
    agent any
    environment {
        // 变量
        REPOSITORY= "http://xxx.xxx.xxx.xxx:8888/xxx/xxxxx.git"
        PATH_PREFIX = "business/admin-center/"
        MODULE = "admin-center-provider"
        SCRIPT_PATH = "/home/xxx/build-scripts"
    }
    stages {
        stage('获取代码'){
            steps {
                echo "start fetch code from git:${REPOSITORY}"
                // 删除代码
                deleteDir()
                // 获取地址
                git credentialsId: 'gogs-auth', url: "${REPOSITORY}"
            }
        }
        stage('编译+单元测试'){
            steps {
                echo "start compile"
                // 编译模块和依赖的
                sh "mvn -U -pl ${PATH_PREFIX}${MODULE} -am -DskipTests clean package"
            }
        }
        stage('构建镜像'){
            steps {
                echo "start build image"
                sh "${SCRIPT_PATH}/build-images.sh ${MODULE} ${PATH_PREFIX}"

            }
        }
        stage('发布系统'){
            steps {
                echo "start deploy"
                script{
                    def IMAGE_NAME = readFile("/home/xxx/build-scripts/IMAGE_NAME")
                    echo "${IMAGE_NAME}"
                    sshCommand remote: getHost(), command: """
                    docker rm -f admin-center-provider
                    docker login xxx.xxx.xxx.xxx:21880 -u pull -p Aa123456
                    docker run -d -p 8999:8999 -e NACOS_SERVER_ADDR="xxx.xxx.xxx.xxx:18848" --net=host --name admin-center-provider ${IMAGE_NAME}
                    docker logout xxx.xxx.xxx.xxx:21880
                    """
                }
            }
        }
    }
}

#!/bin/bash

MODULE=$1
PATH_PREFIX=$2


TIME=`date "+%Y%m%d%H%M"`
GIT_REVISION=`git log -1 --pretty=format:"%h"`
IMAGE_NAME=xxx.xxx.xxx.xxx:21880/xxx/${MODULE}:${TIME}_${GIT_REVISION}

cd ${PATH_PREFIX}${MODULE}

# 打包
docker build -t ${IMAGE_NAME} -f Dockerfile .

# 登录
docker login xxx.xxx.xxx.xxx:21880 -u pull -p Aa123456

# pull镜像
docker push ${IMAGE_NAME}

# 退出
docker logout xxx.xxx.xxx.xxx:21880

#删除镜像
docker rmi ${IMAGE_NAME}

# 写临时文件
echo "${IMAGE_NAME}" > '/home/xxx/build-scripts/'IMAGE_NAME
