ensp静态路由

AR6配置

interface GigabitEthernet0/0/0
 ip address 192.168.3.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 192.168.1.254 255.255.255.0
#
interface NULL0
#
ip route-static 192.168.2.0 255.255.255.0 192.168.3.2

AR7配置

[Huawei]interface GigabitEthernet0/0/1
[Huawei-GigabitEthernet0/0/1]ip add
[Huawei-GigabitEthernet0/0/1]ip address 192.168.2.254 24
[Huawei-GigabitEthernet0/0/1]interface GigabitEthernet0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.3.2 24
[Huawei-GigabitEthernet0/0/0]ip route-static 192.168.1.0 255.255.255.0 192.168.3.1

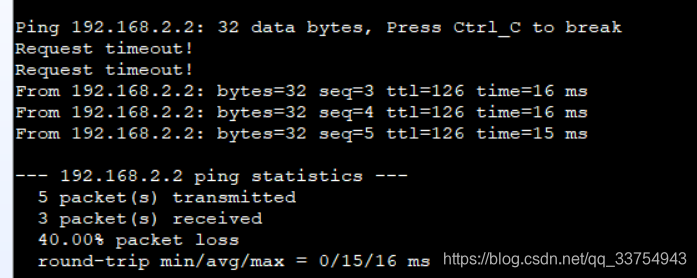

测试

前面的两个丢包为AR6、AR7丢弃，然后各自进行了ARP广播，更新MAC缓存表
