Android FrameWork ---- ServiceManager源码分析

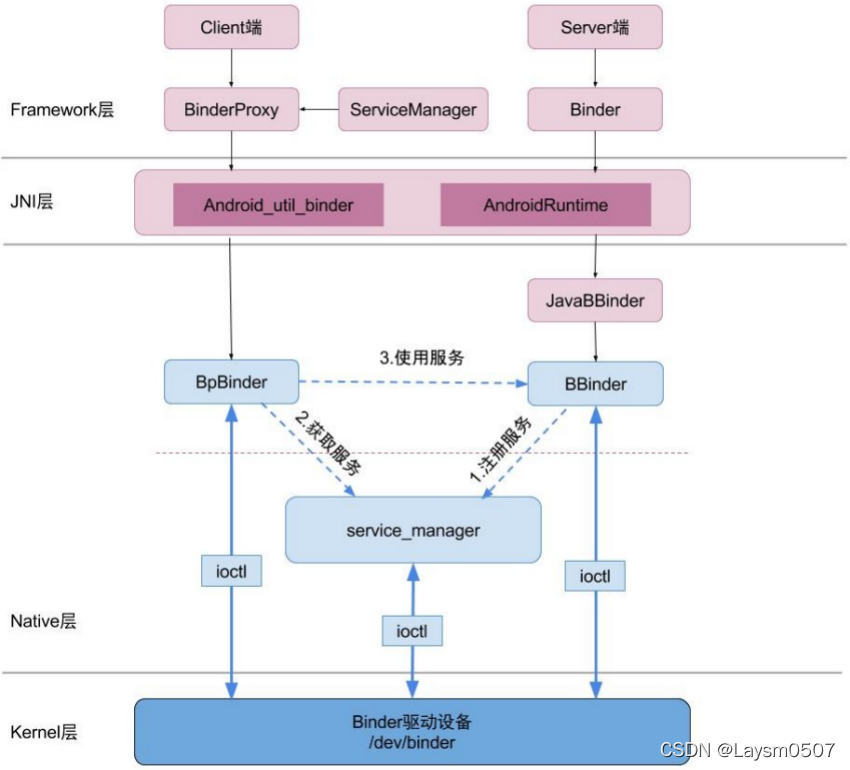

先把图放上来

当客户端想要调用系统的服务时，例如AMS服务（IBinder），客户端想直接拿到这个服务是拿不到的，这种情况下，就需要使用到ServiceManager

ServiceManager是什么呢？ServiceManager也是一个服务，像AMS这种服务，在app进程启动的时候，就已经注册到了ServiceManager中；那么在客户端 调用这个服务的时候，其实是ServiceManager将这个服务返回给客户端，就像是一个大管家，管理全部的服务，然后处理客户端的请求。

1 ServiceManager的启动和注册

同样，ServiceManager也是Init进程启动的时候创建，解析init.rc文件，然后ServiceManager启动入口，在service_manager.c的main方法中

/frameworks/native/cmds/servicemanager/service_manager.c

int main(int argc, char** argv)
{

    struct binder_state *bs;
    union selinux_callback cb;
    char *driver;
    ……
    //step 1    allocate memory is 128k
    bs = binder_open(driver, 128*1024);
    ……
	// setp 2
    if (binder_become_context_manager(bs)) {

        ALOGE("cannot become context manager (%s)\n", strerror(errno));
        return -1;
    }
    ……
    //step 3
    binder_loop(bs, svcmgr_handler);

    return 0;
}

1.1 binder_open干了什么事？

调用了binder_open方法（注意，这可不是Binder驱动里的binder_open），在这个方法中，开启binder驱动，然后将ServiceManager的虚拟内存与内核空间的虚拟内存映射，其中为ServiceManager分配的内存为128K

# /frameworks/native/cmds/servicemanager/binder.c

struct binder_state *binder_open(const char* driver, size_t mapsize)
{

	//开启binder驱动
    bs->fd = open(driver, O_RDWR | O_CLOEXEC);
    ……
    bs->mapsize = mapsize;
    //mmap内存映射
    bs->mapped = mmap(NULL, mapsize, PROT_READ, MAP_PRIVATE, bs->fd, 0);
    if (bs->mapped == MAP_FAILED) {

        fprintf(stderr,"binder: cannot map device (%s)\n",
                strerror(errno));
        goto fail_map;
    }
}

1.2 binder_become_context_manager干了什么事？

然后，调用 binder_become_context_manager ，将ServiceManager设置为大管家；

# /frameworks/native/cmds/servicemanager/binder.c

int binder_become_context_manager(struct binder_state *bs)
{

    return ioctl(bs->fd, BINDER_SET_CONTEXT_MGR, 0);
}

在binder_become_context_manager中，调用了binder驱动的ioctl，cmd指令为BINDER_SET_CONTEXT_MGR

case BINDER_SET_CONTEXT_MGR:
	ret = binder_ioctl_set_ctx_mgr(filp);
	if (ret)
	goto err;
	ret = security_binder_set_context_mgr(proc->tsk);
	if (ret < 0)
	goto err;

static int binder_ioctl_set_ctx_mgr(struct file *filp)
{

	int ret = 0;
	struct binder_proc *proc = filp->private_data;
	kuid_t curr_euid = current_euid();
	……
	if (uid_valid(binder_context_mgr_uid)) {

		if (!uid_eq(binder_context_mgr_uid, curr_euid)) {

			pr_err("BINDER_SET_CONTEXT_MGR bad uid %d != %d\n",
			       from_kuid(&init_user_ns, curr_euid),
			       from_kuid(&init_user_ns,
					binder_context_mgr_uid));
			ret = -EPERM;
			goto out;
		}
	} else {

		binder_context_mgr_uid = curr_euid;
	}
	binder_context_mgr_node = binder_new_node(proc, 0, 0);
	if (binder_context_mgr_node == NULL) {

		ret = -ENOMEM;
		goto out;
	}
	……
}

在BINDER_SET_CONTEXT_MGR指令下，创建了一个binder_node节点，node->proc = proc;
然后将当前进程的信息赋值给node节点，创建了work 和 todo 两个队列，类似于MessageQueue

static struct binder_node *binder_new_node(struct binder_proc *proc,
					   binder_uintptr_t ptr,
					   binder_uintptr_t cookie)
{

	struct rb_node **p = &proc->nodes.rb_node;
	struct rb_node *parent = NULL;
	struct binder_node *node;
	……
	node = kzalloc(sizeof(*node), GFP_KERNEL);
	node->debug_id = ++binder_last_id;
	node->proc = proc;
	node->ptr = ptr;
	node->cookie = cookie;
	node->work.type = BINDER_WORK_NODE;
	INIT_LIST_HEAD(&node->work.entry);
	INIT_LIST_HEAD(&node->async_todo);
	……
}

1.3 binder_loop干了什么事？

最后调用binder_loop方法，用来处理数据，可以看到，binder_loop也是一个死循环

void binder_loop(struct binder_state *bs, binder_handler func)
{

    int res;
    struct binder_write_read bwr;
    uint32_t readbuf[32];
    ……
    readbuf[0] = BC_ENTER_LOOPER;
    //设置状态
    binder_write(bs, readbuf, sizeof(uint32_t));
    //死循环
    for (;;) {

        bwr.read_size = sizeof(readbuf);
        bwr.read_consumed = 0;
        bwr.read_buffer = (uintptr_t) readbuf;
		//再次调用了 binder_ioctl方法
        res = ioctl(bs->fd, BINDER_WRITE_READ, &bwr);
        ……

        res = binder_parse(bs, 0, (uintptr_t) readbuf, bwr.read_consumed, func);
        ……
}

首先执行命令 BC_ENTER_LOOPER，代表进入循环，开始写数据，执行binder_write，这个也不是binder驱动中的binder_write

int binder_write(struct binder_state *bs, void *data, size_t len)
{

    struct binder_write_read bwr;
    int res;
	//这里大于0，可以写
    bwr
