jvm之方法区

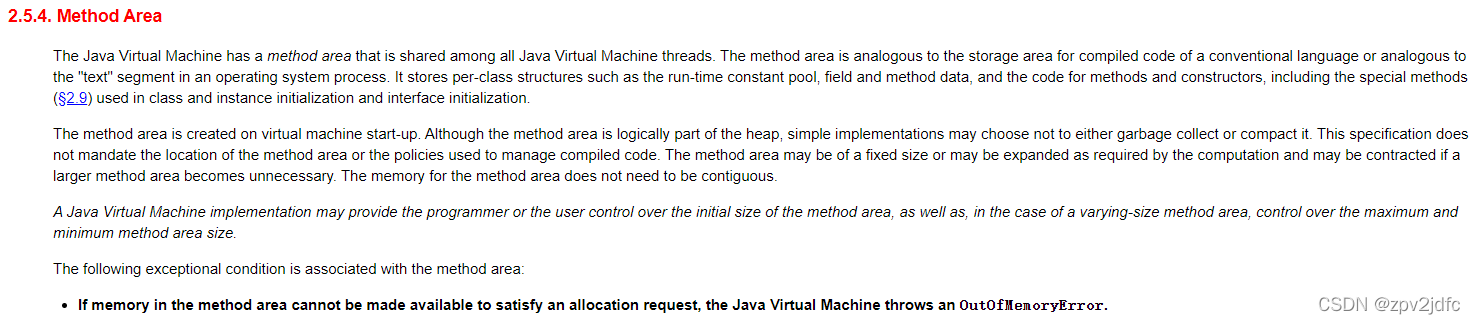

方法区主要是存储类信息、常量的地方,也叫非堆。首先看一下官方文档对方法区的描述:
在这里插入图片描述

The Java Virtual Machine has a method area that is shared among all Java Virtual Machine threads. The method area is analogous to the storage area for compiled code of a conventional language or analogous to the "text" segment in an operating system process. It stores per-class structures such as the run-time constant pool, field and method data, and the code for methods and constructors, including the special methods (§2.9) used in class and instance initialization and interface initialization.

The method area is created on virtual machine start-up. Although the method area is logically part of the heap, simple implementations may choose not to either garbage collect or compact it. This specification does not mandate the location of the method area or the policies used to manage compiled code. The method area may be of a fixed size or may be expanded as required by the computation and may be contracted if a larger method area becomes unnecessary. The memory for the method area does not need to be contiguous.

A Java Virtual Machine implementation may provide the programmer or the user control over the initial size of the method area, as well as, in the case of a varying-size method area, control over the maximum and minimum method area size.

The following exceptional condition is associated with the method area:

If memory in the method area cannot be made available to satisfy an allocation request, the Java Virtual Machine throws an OutOfMemoryError.

简单来说,方法区是线程共享的,主要用来存储类的结构,比如:运行时常量池、字段和方法数据,以及方法和构造函数的代码,包括类和实例初始化以及接口初始化中使用的特殊方法。

虚拟机规范文档对方法区的要求挺宽泛的,实现或不实现GC、大小固定或者可以拓展、内存是否连续都可以。但jdk1.8中hotspot是实现了GC的,元空间直接分配在本地内存,自然也就是可拓展的了。

另外,jdk1.6->1.7->1.8这之间,hotspot方法区的变化还是很大的。在1.6中,方法区叫永久代;在1.7中把字符串常量池和静态变量移除到了堆中;1.8则直接改成了元空间并且直接分配在本地内存。

### JVM 方法区的概念 JVM 方法区是一个运行时数据区域,用于存储已被虚拟机加载的类型信息(类、接口、枚举、注解等)、常量池、静态变量以及即时编译器编译后的代码缓存等内容[^1]。方法区属于堆的一部分,在某些 JDK 版本中也被称为永久代(Permanent Generation, PermGen)。然而,自 Java 8 起,永久代被元空间(Metaspace)取代。 ### 工作机制 #### 类型信息管理 当 JVM 加载一个类时,该类的结构化信息会被解析并存储方法区中。这些信息包括字段定义、方法字节码、构造函数以及其他必要的元数据。通过这种方式,方法区成为支持动态链接和反射操作的核心组件之一。 #### 静态变量与常量池 除了类型的元数据外,方法区还负责维护所有的 `static` 变量及其初始值。此外,字符串常量池和其他运行时常量也被放置在此区域内。 #### 编译优化 为了提高性能,经过 JIT (Just-In-Time) 编译器处理过的热点代码片段同样可以驻留在方法区内作为本地机器指令形式存在,从而减少重复解释执行带来的开销。 ### 常见问题及解决方案 1. **OutOfMemoryError** 如果应用程序频繁创建新类或者使用大量第三方库,则可能导致方法区耗尽可用内存资源进而抛出 OOM 错误。“java.lang.OutOfMemoryError: Metaspace” 是典型的例子。针对这种情况可通过调整 `-XX:MaxMetaspaceSize` 参数来增加允许的最大容量;对于旧版 JDK 使用的是 `-XX:PermSize` 和 `-XX:MaxPermSize` 来控制 Permanent Generation 大小[^3]。 2. **GC Overhead Limit Exceeded** 当 GC 尝试回收足够的空间失败次数过多时触发此异常。这通常表明程序设计存在问题比如循环依赖导致无法释放无用对象等问题。此时应该分析 heap dump 文件找出具体原因所在,并考虑重新规划应用架构或调优相关参数如增大年轻代比例(-Xmn),启用 G1 收集算法 (-XX:+UseG1GC)[^4]。 ```bash # 设置最大元空间大小为512M java -XX:MaxMetaspaceSize=512m MyApplication ``` ### 总结 综上所述,理解 JVM 方法区的工作原理有助于开发者更好地诊断复杂环境下的内存泄漏现象,并采取适当措施加以缓解。合理配置 JVM 启动选项能够显著改善系统的稳定性和响应速度。
