spring--3--spring中的非注解方式自动注入

spring中非注解方式的自动注入

xml配置文件配置的自动注入。这是一种过时的技术，现在基本上没人用了。

我以一个例子来说明一下这个技术

1 项目xml配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

	<!--这里指定了该Bean根据Type自动注入-->
    <bean id="person" class="cn.lx.spring.v1.Person" autowire="byType"></bean>

    <bean id="user" class="cn.lx.spring.v1.User">
        <property name="age" value="12"></property>
        <property name="name" value="LX"></property>
    </bean>

</beans>

2 一些基本类

User

public class User {

    private String name;
    private String password;
    private int age;

    public User() {
    }

    public User(String name, String password) {
        this.name = name;
        this.password = password;
    }

    @Override
    public String toString() {
        return "User{" +
                "name='" + name + '\'' +
                ", password='" + password + '\'' +
                ", age=" + age +
                '}';
    }

    public String getName() {
        return name;
    }


    public void setName(String name) {
        this.name = name;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }
}

Person

public class Person {

    private User user;

    private String type;

    public Person() {
    }

    public Person(User user) {
        this.user = user;
    }

    @Override
    public String toString() {
        return "Person{" +
                "user=" + user +
                ", type='" + type + '\'' +
                '}';
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }
}

启动入口

public static void main(String[] args) {
    //声明一个可以读取xml配置文件的容器
    ClassPathXmlApplicationContext classPathXmlApplicationContext=new
            ClassPathXmlApplicationContext();

    //设置配置文件
    classPathXmlApplicationContext.setConfigLocation("spring-context.xml");

    //刷新容器,这是spring中最重要的方法，看懂了这个方法，bean的生命周期也就懂了
    classPathXmlApplicationContext.refresh();

    Person person = (Person) classPathXmlApplicationContext.getBean("person");

    System.out.println(person);

}

效果

Person{user=User{name='LX', password='null', age=12}, type='null'}

3 bean创建

了解bean的生命周期，直接debug进入bean实例化的方法

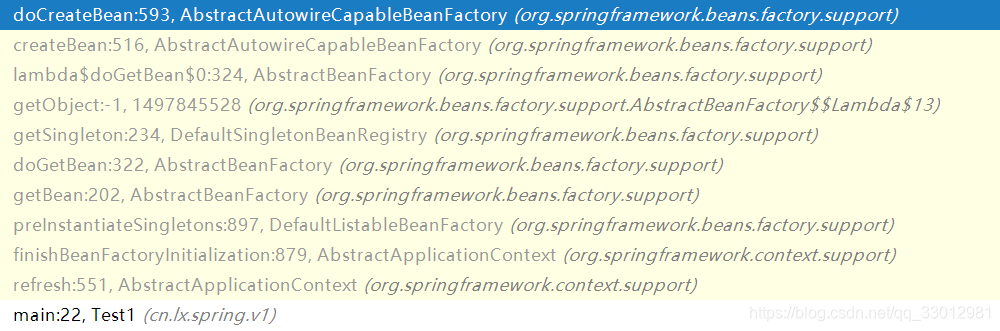

如上图所示，doCreateBean方法开始创建Person对象

/**
 * Actually create the specified bean. Pre-creation processing has already happened
 * at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
 * <p>Differentiates between default bean instantiation, use of a
 * factory method, and autowiring a constructor.
 * @param beanName the name of the bean
 * @param mbd the merged bean definition for the bean
 * @param args explicit arguments to use for constructor or factory method invocation
 * @return a new instance of the bean
 * @throws BeanCreationException if the bean could not be created
 * @see #instantiateBean
 * @see #instantiateUsingFactoryMethod
 * @see #autowireConstructor
 */
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
    throws BeanCreationException {

    // Instantiate the bean.
    BeanWrapper instanceWrapper = null;
    if (mbd.isSingleton()) {
        instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
    }
    if (instanceWrapper == null) {
        //这里使用调用构造方法反射实例化，此处没有对属性赋值
        instanceWrapper = createBeanInstance(beanName, mbd, args);
    }
    Object bean = instanceWrapper.getWrappedInstance();
    Class<?> beanType = instanceWrapper.getWrappedClass();
    if (beanType != NullBean.class) {
        mbd.resolvedTargetType = beanType;
    }

    // Allow post-processors to modify the merged bean definition.
    synchronized (mbd.postProcessingLock) {
        if (!mbd.postProcessed) {
            try {
                applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
            }
            catch (Throwable ex) {
                throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                                "Post-processing of merged bean definition failed", ex);
            }
            mbd.postProcessed = true;
        }
    }

    // Eagerly cache singletons to be able to resolve circular references
    // even when triggered by lifecycle interfaces like BeanFactoryAware.
    boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
                                      isSingletonCurrentlyInCreation(beanName));
    if (earlySingletonExposure) {
        if (logger.isTraceEnabled()) {
            logger.trace("Eagerly caching bean '" + beanName +
                         "' to allow for resolving potential circular references");
        }
        addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
    }

    // Initialize the bean instance.
    Object exposedObject = bean;
    try {
        //属性赋值，自动注入就是在此处完成的
        populateBean(beanName, mbd, instanceWrapper);
        //初始化
        exposedObject = initializeBean(beanName, exposedObject, mbd);
    }
    catch (Throwable ex) {
        if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
            throw (BeanCreationException) ex;
        }
        else {
            throw new BeanCreationException(
                mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
        }
    }

    if (earlySingletonExposure) {
        Object earlySingletonReference = getSingleton(beanName, false);
        if (earlySingletonReference != null) {
            if (exposedObject == bean) {
                exposedObject = earlySingletonReference;
            }
            else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                String[] dependentBeans = getDependentBeans(beanName);
                Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
                for (String dependentBean : dependentBeans) {
                    if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                        actualDependentBeans.add(dependentBean);
                    }
                }
                if (!actualDependentBeans.isEmpty()) {
                    throw new BeanCurrentlyInCreationException(beanName,
                                                               "Bean with name '" + beanName + "' has been injected into other beans [" +
                                                               StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                                                               "] in its raw version as part of a circular reference, but has eventually been " +
                                                               "wrapped. This means that said other beans do not use the final version of the " +
                                                               "bean. This is often the result of over-eager type matching - consider using " +
                                                               "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
                }
            }
        }
    }

    // Register bean as disposable.
    try {
        registerDisposableBeanIfNecessary(beanName, bean, mbd);
    }
    catch (BeanDefinitionValidationException ex) {
        throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
    }

    return exposedObject;
}

看似上面很长，其实核心方法就三个

(1) createBeanInstance 使用反射调用构造方法实例化

(2) populateBean 属性赋值，自动注入就是在此处完成的

(3) initializeBean 初始化

(3)不是重点，我们重点看（1）(2)中的自动注入

3.1 createBeanInstance 实例化阶段

/**
 * Create a new instance for the specified bean, using an appropriate instantiation strategy:
 * factory method, constructor autowiring, or simple instantiation.
 * @param beanName the name of the bean
 * @param mbd the bean definition for the bean
 * @param args explicit arguments to use for constructor or factory method invocation
 * @return a BeanWrapper for the new instance
 * @see #obtainFromSupplier
 * @see #instantiateUsingFactoryMethod
 * @see #autowireConstructor
 * @see #instantiateBean
 */
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
    // Make sure bean class is actually resolved at this point.
    //获取需要实例化的bean的类型
    Class<?> beanClass = resolveBeanClass(mbd, beanName);

    if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
        throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                        "Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
    }

    Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
    if (instanceSupplier != null) {
        return obtainFromSupplier(instanceSupplier, beanName);
    }

    //工厂方法实例化对象
    if (mbd.getFactoryMethodName() != null) {
        return instantiateUsingFactoryMethod(beanName, mbd, args);
    }

    // Shortcut when re-creating the same bean...
    //重新创建对象的快捷方式
    boolean resolved = false;
    boolean autowireNecessary = false;
    if (args == null) {
        synchronized (mbd.constructorArgumentLock) {
            if (mbd.resolvedConstructorOrFactoryMethod != null) {
                resolved = true;
                autowireNecessary = mbd.constructorArgumentsResolved;
            }
        }
    }
    if (resolved) {
        if (autowireNecessary) {
            return autowireConstructor(beanName, mbd, null, null);
        }
        else {
            return instantiateBean(beanName, mbd);
        }
    }
/********************************构造方法自动注入*******************************/
    // Candidate constructors for autowiring?
    //可以使用SmartInstantiationAwareBeanPostProcessor这个增强器来干预使用哪个构造方法实例化对象
    Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
    /**
     * mbd.getResolvedAutowireMode() 获取自动注入的模式
     * 如果指定了autowire="constructor"，就开始贪婪匹配构造方法，实例化对象
     */
    if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
        mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
        //constructor自动注入实例化对象，见6
        return autowireConstructor(beanName, mbd, ctors, args);
    }

    // Preferred constructors for default construction?
    //获取首选的默认构造方法
    ctors = mbd.getPreferredConstructors();
    if (ctors != null) {
        return autowireConstructor(beanName, mbd, ctors, null);
    }

    // No special handling: simply use no-arg constructor.
    //使用无参构造方法
    return instantiateBean(beanName, mbd);
}

3.2 populateBean 属性赋值阶段

/**
 * Populate the bean instance in the given BeanWrapper with the property values
 * from the bean definition.
 * @param beanName the name of the bean
 * @param mbd the bean definition for the bean
 * @param bw the BeanWrapper with bean instance
 */
@SuppressWarnings("deprecation")  // for postProcessPropertyValues
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
/***************************************************************************************/
    //bw是spring对实例的一种包装，里面除了实例，还有实例类的class对象等等
   if (bw == null) {
      if (mbd.hasPropertyValues()) {
         throw new BeanCreationException(
               mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
      }
      else {
         // Skip property population phase for null instance.
         return;
      }
   }
/***************************************************************************************/
   // Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
   // state of the bean before properties are set. This can be used, for example,
   // to support styles of field injection.
    //InstantiationAwareBeanPostProcessor的postProcessAfterInstantiation方法，手动赋值
   if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
      for (BeanPostProcessor bp : getBeanPostProcessors()) {
         if (bp instanceof InstantiationAwareBeanPostProcessor) {
            InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
            if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
               return;
            }
         }
      }
   }
/***************************************************************************************/
    /**
     * xml中的property标签内容会解析到BeanDefinition中的PropertyValues中
     * <property name="age" value="12"></property>
     * <property name="name" value="LX"></property>
     */
   PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);

     /**
     * xml中指定自动注入的类型
     * (1)<beans default-autowire="byType"> beans中指定
     * (2) <bean autowire="byType"></bean> bean中指定
     * 一种可以指定4种 byType、byName、no、default
     */
   int resolvedAutowireMode = mbd.getResolvedAutowireMode();
   if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
      MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
      // Add property values based on autowire by name if applicable.
      if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
         //byName自动注入
         autowireByName(beanName, mbd, bw, newPvs);
      }
      // Add property values based on autowire by type if applicable.
      if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
          //byType自动注入
         autowireByType(beanName, mbd, bw, newPvs);
      }
      pvs = newPvs;
   }

   /***************************************************************************************/

    //@Autowired、@Resource注解功能在此处实现
   boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
   boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);

   PropertyDescriptor[] filteredPds = null;
   if (hasInstAwareBpps) {
      if (pvs == null) {
         pvs = mbd.getPropertyValues();
      }
      for (BeanPostProcessor bp : getBeanPostProcessors()) {
         if (bp instanceof InstantiationAwareBeanPostProcessor) {
            InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
            PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
            if (pvsToUse == null) {
               if (filteredPds == null) {
                  filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
               }
               pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
               if (pvsToUse == null) {
                  return;
               }
            }
            pvs = pvsToUse;
         }
      }
   }
   if (needsDepCheck) {
      if (filteredPds == null) {
         filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
      }
      checkDependencies(beanName, mbd, filteredPds, pvs);
   }

/***************************************************************************************/
   if (pvs != null) {
       //将属性值设置到对象中
      applyPropertyValues(beanName, mbd, bw, pvs);
   }
}

4 byType自动注入

autowireByType(beanName, mbd, bw, newPvs);

进入该方法

/**
 * Abstract method defining "autowire by type" (bean properties by type) behavior.
 * <p>This is like PicoContainer default, in which there must be exactly one bean
 * of the property type in the bean factory. This makes bean factories simple to
 * configure for small namespaces, but doesn't work as well as standard Spring
 * behavior for bigger applications.
 * @param beanName the name of the bean to autowire by type
 * @param mbd the merged bean definition to update through autowiring
 * @param bw the BeanWrapper from which we can obtain information about the bean
 * @param pvs the PropertyValues to register wired objects with
 */
protected void autowireByType(
    String beanName, AbstractBeanDefinition mbd, BeanWrapper bw, MutablePropertyValues pvs) {

    //获取自定义的TypeConverter
    //TypeConverter是定义类型转换的接口
    TypeConverter converter = getCustomTypeConverter();
    if (converter == null) {
        //BeanWrapper是TypeConverter的子接口
        converter = bw;
    }

    Set<String> autowiredBeanNames = new LinkedHashSet<>(4);
    //5.1 获取bean中非简单属性的名字（不是基础属性，基础属性的包装属性，string）
    String[] propertyNames = unsatisfiedNonSimpleProperties(mbd, bw);
    for (String propertyName : propertyNames) {
        try {
            //得到对应属性名字的属性描述
            PropertyDescriptor pd = bw.getPropertyDescriptor(propertyName);
            // Don't try autowiring by type for type Object: never makes sense,
            // even if it technically is a unsatisfied, non-simple property.
            //object类型的不能自动注入
            if (Object.class != pd.getPropertyType()) {
                //获取属性set方法对象包装（里面包含方法名）
                MethodParameter methodParam = BeanUtils.getWriteMethodParameter(pd);
                // Do not allow eager init for type matching in case of a prioritized post-processor.
                boolean eager = !(bw.getWrappedInstance() instanceof PriorityOrdered);
                DependencyDescriptor desc = new AutowireByTypeDependencyDescriptor(methodParam, eager);
                //5.2解析依赖，获取依赖对应的对象
                Object autowiredArgument = resolveDependency(desc, beanName, autowiredBeanNames, converter);
                if (autowiredArgument != null) {
                    //加入到MutablePropertyValues中，等待applyPropertyValues(beanName, mbd, bw, pvs);统一赋值
                    pvs.add(propertyName, autowiredArgument);
                }
                for (String autowiredBeanName : autowiredBeanNames) {
                    registerDependentBean(autowiredBeanName, beanName);
                    if (logger.isTraceEnabled()) {
                        logger.trace("Autowiring by type from bean name '" + beanName + "' via property '" +
                                     propertyName + "' to bean named '" + autowiredBeanName + "'");
                    }
                }
                autowiredBeanNames.clear();
            }
        }
        catch (BeansException ex) {
            throw new UnsatisfiedDependencyException(mbd.getResourceDescription(), beanName, propertyName, ex);
        }
    }
}

4.1 获取bean中非简单属性的名字

/**
 * Return an array of non-simple bean properties that are unsatisfied.
 * These are probably unsatisfied references to other beans in the
 * factory. Does not include simple properties like primitives or Strings.
 * @param mbd the merged bean definition the bean was created with
 * @param bw the BeanWrapper the bean was created with
 * @return an array of bean property names
 * @see org.springframework.beans.BeanUtils#isSimpleProperty
 */
protected String[] unsatisfiedNonSimpleProperties(AbstractBeanDefinition mbd, BeanWrapper bw) {
   Set<String> result = new TreeSet<>();
    //得到需要设置值的所有属性的键值对
   PropertyValues pvs = mbd.getPropertyValues();
    /**
    * 获取当前bean的属性描述(必然包含当前类的class描述，它也是属性)
    * pd.getWriteMethod() 会获取当前属性set方法对象
    * pd.getPropertyType() 获取当前属性的类型
    * isExcludedFromDependencyCheck 当前属性是否被排除（排除cglib生成的类的内部属性，
    * spring容器的内部属性（实现了spring中的aware接口），这个需要通过BeanPostProcessor接口注入）
    * !pvs.contains(pd.getName()) 已有的属性集合中不包含（非手动注入过的属性）
    * !BeanUtils.isSimpleProperty(pd.getPropertyType()) 非简单属性
    */
   PropertyDescriptor[] pds = bw.getPropertyDescriptors();
   for (PropertyDescriptor pd : pds) {
      if (pd.getWriteMethod() != null && !isExcludedFromDependencyCheck(pd) && !pvs.contains(pd.getName()) &&
            !BeanUtils.isSimpleProperty(pd.getPropertyType())) {
         result.add(pd.getName());
      }
   }
   return StringUtils.toStringArray(result);
}

总结：

由此我们可以推断能自动注入的属性必须具备以下几点

（1）有对应的set方法

（2）非cglib生成的类的内部属性

（3）非通过spring中aware接口设置的属性，也就是说你可以注入容器内部属性，但是不能实现这个属性的aware接口

（4）非配置文件中手动注入的属性（property标签）

（5）非简单属性

4.2解析依赖，获取依赖对应的对象

public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
                                @Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

    /**
     * descriptor.getDependencyType() 解析set方法，获取set方法注入属性的类型
     * Optional、ObjectFactory、ObjectProvider、javaxInjectProviderClass
     * 都是类型判断，这些类型有特殊的对象创建方式
     */
    descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
    if (Optional.class == descriptor.getDependencyType()) {
        return createOptionalDependency(descriptor, requestingBeanName);
    }
    else if (ObjectFactory.class == descriptor.getDependencyType() ||
             ObjectProvider.class == descriptor.getDependencyType()) {
        return new DependencyObjectProvider(descriptor, requestingBeanName);
    }
    else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
        return new Jsr330Factory().createDependencyProvider(descriptor, requestingBeanName);
    }
/**************************重点来了***************************************************/
    else {
        //空方法，无实现
        Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
            descriptor, requestingBeanName);
        if (result == null) {
            //这里是真正获取依赖对象的方法
            result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
        }
        return result;
    }
}

解析依赖

这里只是简单看一下方法的流程，具体的解析在注解方式的自动注入里面详细说明。

public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
      @Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

   InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
   try {
      Object shortcut = descriptor.resolveShortcut(this);
      if (shortcut != null) {
         return shortcut;
      }

       //获取自动注入的属性class类型
      Class<?> type = descriptor.getDependencyType();
      Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
      if (value != null) {
         if (value instanceof String) {
            String strVal = resolveEmbeddedValue((String) value);
            BeanDefinition bd = (beanName != null && containsBean(beanName) ?
                  getMergedBeanDefinition(beanName) : null);
            value = evaluateBeanDefinitionString(strVal, bd);
         }
         TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
         try {
            return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
         }
         catch (UnsupportedOperationException ex) {
            // A custom TypeConverter which does not support TypeDescriptor resolution...
            return (descriptor.getField() != null ?
                  converter.convertIfNecessary(value, type, descriptor.getField()) :
                  converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
         }
      }

      //处理List<User> users这种类型的自动注入
      Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
      if (multipleBeans != null) {
         return multipleBeans;
      }

       //根据类型获取匹配的bean（注解方式注入也是调用findAutowireCandidates这个方法处理）
      Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
       //空的说明没找到
      if (matchingBeans.isEmpty()) {
         if (isRequired(descriptor)) {
            raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
         }
         return null;
      }

      String autowiredBeanName;
      Object instanceCandidate;

       //说明有多个和该属性相同类型的bean
      if (matchingBeans.size() > 1) {
          //获取配置中指定的候选bean
         autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
          //没有肯定报异常了
         if (autowiredBeanName == null) {
            if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
               return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
            }
            else {
               // In case of an optional Collection/Map, silently ignore a non-unique case:
               // possibly it was meant to be an empty collection of multiple regular beans
               // (before 4.3 in particular when we didn't even look for collection beans).
               return null;
            }
         }
          //有就获取指定的候选bean
         instanceCandidate = matchingBeans.get(autowiredBeanName);
      }
       //说明只有一个和该属性相同类型的bean
      else {
         // We have exactly one match.
         Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
         autowiredBeanName = entry.getKey();
          //instanceCandidate可以是已经实例化的对象，也可以是对应类型的class对象
         instanceCandidate = entry.getValue();
      }

      if (autowiredBeanNames != null) {
         autowiredBeanNames.add(autowiredBeanName);
      }

       //如果是class类型，就实例化
      if (instanceCandidate instanceof Class) {
         //该方法里面调用beanFactory.getBean(beanName)实例化
         instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
      }
       //赋值给result，返回result
      Object result = instanceCandidate;

       //对象是否为NullBean
      if (result instanceof NullBean) {
         if (isRequired(descriptor)) {
            raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
         }
         result = null;
      }

       //类型是否匹配
      if (!ClassUtils.isAssignableValue(type, result)) {
         throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
      }

       //返回
      return result;
   }
   finally {
      ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
   }
}

找到所有指定类型bean

/**
 * Find bean instances that match the required type.
 * Called during autowiring for the specified bean.
 * @param beanName the name of the bean that is about to be wired
 * @param requiredType the actual type of bean to look for
 * (may be an array component type or collection element type)
 * @param descriptor the descriptor of the dependency to resolve
 * @return a Map of candidate names and candidate instances that match
 * the required type (never {@code null})
 * @throws BeansException in case of errors
 * @see #autowireByType
 * @see #autowireConstructor
 */
protected Map<String, Object> findAutowireCandidates(
    @Nullable String beanName, Class<?> requiredType, DependencyDescriptor descriptor) {

    //找到容器中所有的符合requiredType类型的bean的名字（包括没有实例化的）
    String[] candidateNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
        this, requiredType, true, descriptor.isEager());
    Map<String, Object> result = new LinkedHashMap<>(candidateNames.length);
    /**
     * this.resolvableDependencies 有4个对象，都是容器内部对象
     * ApplicationEventPublisher
     * ResourceLoader
     * ApplicationContext
     * BeanFactory
     * 这4中类型的属性在此处可以自动注入
     */
    for (Map.Entry<Class<?>, Object> classObjectEntry : this.resolvableDependencies.entrySet()) {
        Class<?> autowiringType = classObjectEntry.getKey();
        //autowiringType和requiredType类型相同或autowiringType是requiredType的超类
        if (autowiringType.isAssignableFrom(requiredType)) {
            Object autowiringValue = classObjectEntry.getValue();
            autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
            if (requiredType.isInstance(autowiringValue)) {
                result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
                break;
            }
        }
    }

    for (String candidate : candidateNames) {
        if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, descriptor)) {
            // 获取依赖candidate
            addCandidateEntry(result, candidate, descriptor, requiredType);
        }
    }

     //考虑循环依赖情况
    if (result.isEmpty()) {
        boolean multiple = indicatesMultipleBeans(requiredType);
        // Consider fallback matches if the first pass failed to find anything...
        DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
        for (String candidate : candidateNames) {
            if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, fallbackDescriptor) &&
                (!multiple || getAutowireCandidateResolver().hasQualifier(descriptor))) {
                addCandidateEntry(result, candidate, descriptor, requiredType);
            }
        }
        if (result.isEmpty() && !multiple) {
            // Consider self references as a final pass...
            // but in the case of a dependency collection, not the very same bean itself.
            for (String candidate : candidateNames) {
                if (isSelfReference(beanName, candidate) &&
                    (!(descriptor instanceof MultiElementDescriptor) || !beanName.equals(candidate)) &&
                    isAutowireCandidate(candidate, fallbackDescriptor)) {
                    addCandidateEntry(result, candidate, descriptor, requiredType);
                }
            }
        }
    }
    return result;
}

5 byName自动注入

 autowireByName(beanName, mbd, bw, newPvs);

进入该方法

/**
 * Fill in any missing property values with references to
 * other beans in this factory if autowire is set to "byName".
 * @param beanName the name of the bean we're wiring up.
 * Useful for debugging messages; not used functionally.
 * @param mbd bean definition to update through autowiring
 * @param bw the BeanWrapper from which we can obtain information about the bean
 * @param pvs the PropertyValues to register wired objects with
 */
protected void autowireByName(
      String beanName, AbstractBeanDefinition mbd, BeanWrapper bw, MutablePropertyValues pvs) {

    //同样的方法，获取bean中的非简单属性的名字
   String[] propertyNames = unsatisfiedNonSimpleProperties(mbd, bw);
    //遍历
   for (String propertyName : propertyNames) {
      if (containsBean(propertyName)) {
          //根据名字获取到对应的bean对象
         Object bean = getBean(propertyName);
          //添加到属性集合中，等待调用 applyPropertyValues(beanName, mbd, bw, pvs);
         pvs.add(propertyName, bean);
         registerDependentBean(propertyName, beanName);
         if (logger.isTraceEnabled()) {
            logger.trace("Added autowiring by name from bean name '" + beanName +
                  "' via property '" + propertyName + "' to bean named '" + propertyName + "'");
         }
      }
      else {
         if (logger.isTraceEnabled()) {
            logger.trace("Not autowiring property '" + propertyName + "' of bean '" + beanName +
                  "' by name: no matching bean found");
         }
      }
   }
}

了解了byTpe，byName方式就非常简单了，只需要找到需要自动注入的属性名字，然后调用getBean方法获取容器中对应的Bean对象，设置到实例对象中就行了。

6 constructor自动注入

我们这里单独指定person是构造方法自动注入

<bean id="person" class="cn.lx.spring.v1.Person" autowire="constructor"></bean>

接下来，我们进入autowireConstructor(beanName, mbd, ctors, args)这个方法

/**
 * "autowire constructor" (with constructor arguments by type) behavior.
 * Also applied if explicit constructor argument values are specified,
 * matching all remaining arguments with beans from the bean factory.
 * <p>This corresponds to constructor injection: In this mode, a Spring
 * bean factory is able to host components that expect constructor-based
 * dependency resolution.
 * @param beanName the name of the bean
 * @param mbd the bean definition for the bean
 * @param ctors the chosen candidate constructors
 * @param explicitArgs argument values passed in programmatically via the getBean method,
 * or {@code null} if none (-> use constructor argument values from bean definition)
 * @return a BeanWrapper for the new instance
 */
protected BeanWrapper autowireConstructor(
    String beanName, RootBeanDefinition mbd, @Nullable Constructor<?>[] ctors, @Nullable Object[] explicitArgs) {

    //使用构造方法解析器来帮助实例化对象
    return new ConstructorResolver(this).autowireConstructor(beanName, mbd, ctors, explicitArgs);
}

进入ConstructorResolver的autowireConstructor方法

/**
 * "autowire constructor" (with constructor arguments by type) behavior.
 * Also applied if explicit constructor argument values are specified,
 * matching all remaining arguments with beans from the bean factory.
 * <p>This corresponds to constructor injection: In this mode, a Spring
 * bean factory is able to host components that expect constructor-based
 * dependency resolution.
 * @param beanName the name of the bean
 * @param mbd the merged bean definition for the bean
 * @param chosenCtors chosen candidate constructors (or {@code null} if none)
 * @param explicitArgs argument values passed in programmatically via the getBean method,
 * or {@code null} if none (-> use constructor argument values from bean definition)
 * @return a BeanWrapper for the new instance
 */
public BeanWrapper autowireConstructor(String beanName, RootBeanDefinition mbd,
                                       @Nullable Constructor<?>[] chosenCtors, @Nullable Object[] explicitArgs) {

    //创建并初始化BeanWrapper
    BeanWrapperImpl bw = new BeanWrapperImpl();
    this.beanFactory.initBeanWrapper(bw);

    Constructor<?> constructorToUse = null;
    ArgumentsHolder argsHolderToUse = null;
    Object[] argsToUse = null;

    /**
     * getBean方法可以自定构造方法参数值
     * <T> T getBean(Class<T> requiredType, Object... args) throws BeansException;
     */
    if (explicitArgs != null) {
        argsToUse = explicitArgs;
    }
    else {
        Object[] argsToResolve = null;
        synchronized (mbd.constructorArgumentLock) {
            //获取缓存的构造方法和参数（主要为方便创建Protype类型的对象）
            constructorToUse = (Constructor<?>) mbd.resolvedConstructorOrFactoryMethod;
            if (constructorToUse != null && mbd.constructorArgumentsResolved) {
                // Found a cached constructor...
                argsToUse = mbd.resolvedConstructorArguments;
                if (argsToUse == null) {
                    //获取部分准备好的构造方法参数
                    argsToResolve = mbd.preparedConstructorArguments;
                }
            }
        }
        //解析部分准备好的构造方法参数
        if (argsToResolve != null) {
            argsToUse = resolvePreparedArguments(beanName, mbd, bw, constructorToUse, argsToResolve, true);
        }
    }

    if (constructorToUse == null || argsToUse == null) {
        // Take specified constructors, if any.
        /**
         * 如果指定了构造方法，就从指定的构造方法找出最合适的构造方法
         * 在bean实例化之前，会调用这个AutowiredAnnotationBeanPostProcessor增强器的
         * determineCandidateConstructors方法，该方法返回有@Autowired注解的构造方法
         * chosenCtors就是determineCandidateConstructors方法的返回值
         */
        Constructor<?>[] candidates = chosenCtors;
        //为空的话，就先获取所有构造方法，然后从中找出最合适的构造方法实例化
        if (candidates == null) {
            Class<?> beanClass = mbd.getBeanClass();
            try {
                /**
                 * mbd.isNonPublicAccessAllowed() 判断是否允许使用非public的构造方法实例化对象
                 * beanClass.getDeclaredConstructors() 获取所有的构造方法
                 * beanClass.getConstructors() 只获取public的构造方法
                 */
                candidates = (mbd.isNonPublicAccessAllowed() ?
                              beanClass.getDeclaredConstructors() : beanClass.getConstructors());
            }
            catch (Throwable ex) {
                throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                                "Resolution of declared constructors on bean Class [" + beanClass.getName() +
                                                "] from ClassLoader [" + beanClass.getClassLoader() + "] failed", ex);
            }
        }

/*******************************单构造方法************************************/
        if (candidates.length == 1 && explicitArgs == null && !mbd.hasConstructorArgumentValues()) {
            Constructor<?> uniqueCandidate = candidates[0];
            //构造方法参数个数为0，实际就是默认构造方法
            if (uniqueCandidate.getParameterCount() == 0) {
                //缓存构造方法和参数
                synchronized (mbd.constructorArgumentLock) {
                    mbd.resolvedConstructorOrFactoryMethod = uniqueCandidate;
                    mbd.constructorArgumentsResolved = true;
                    mbd.resolvedConstructorArguments = EMPTY_ARGS;
                }
                //使用该构造方法实例化
                bw.setBeanInstance(instantiate(beanName, mbd, uniqueCandidate, EMPTY_ARGS));
                return bw;
            }
        }

/*******************************多构造方法************************************/
        // Need to resolve the constructor.
        //要么指定了构造方法，要么开启了自动注入构造
        boolean autowiring = (chosenCtors != null ||
                              mbd.getResolvedAutowireMode() == AutowireCapableBeanFactory.AUTOWIRE_CONSTRUCTOR);
        ConstructorArgumentValues resolvedValues = null;

        int minNrOfArgs;
        if (explicitArgs != null) {
            minNrOfArgs = explicitArgs.length;
        }
        else {
            //获取beanDefinition中缓存的构造方法参数值ConstructorArgumentValues
            ConstructorArgumentValues cargs = mbd.getConstructorArgumentValues();
            resolvedValues = new ConstructorArgumentValues();
            //6.1解析对应的Bean的构造方法，并将方法参数封装到resolvedValues中
            minNrOfArgs = resolveConstructorArguments(beanName, mbd, bw, cargs, resolvedValues);
        }

        /**
         * 对构造方法进行排序,会按照如下顺序
         * public并且方法参数越多越靠前
         * 非public并且方法参数越多越靠前
         */
        AutowireUtils.sortConstructors(candidates);
        int minTypeDiffWeight = Integer.MAX_VALUE;
        Set<Constructor<?>> ambiguousConstructors = null;
        LinkedList<UnsatisfiedDependencyException> causes = null;

        for (Constructor<?> candidate : candidates) {
            //获取当前构造方法的参数数量
            int parameterCount = candidate.getParameterCount();

            //满足下面三个条件，说明该构造方法可用，直接使用当前构造方法和参数
            if (constructorToUse != null && argsToUse != null && argsToUse.length > parameterCount) {
                // Already found greedy constructor that can be satisfied ->
                // do not look any further, there are only less greedy constructors left.
                break;
            }
            //匹配的参数数量不够，继续下一个构造方法
            if (parameterCount < minNrOfArgs) {
                continue;
            }

            ArgumentsHolder argsHolder;
            //获取构造方法的参数类型
            Class<?>[] paramTypes = candidate.getParameterTypes();
            if (resolvedValues != null) {
                try {
                    /**
                     * 解析@ConstructorProperties注解
                     * 这个注解实际上就是显示指定构造方法的参数名
                     * 通过此注解可以直接获取参数名
                     */
                    String[] paramNames = ConstructorPropertiesChecker.evaluate(candidate, parameterCount);
                    if (paramNames == null) {
                        //没有手动标注参数名，就使用ParameterNameDiscoverer解析构造方法的参数名
                        ParameterNameDiscoverer pnd = this.beanFactory.getParameterNameDiscoverer();
                        if (pnd != null) {

                            /**
                             * 获取构造方法的参数名
                             * 实际上流程很简单，都是反射的知识
                             * Parameter[] parameters=Constructor.getParameters() 获取所有的参数
                             * parameter.getName() 遍历获取每个参数的参数名字
                             */
                            paramNames = pnd.getParameterNames(candidate);
                        }
                    }

                    /**
                     * 6.2创建ArgumentsHolder
                     * getUserDeclaredConstructor(candidate)
                     * 从名字上理解，就是获取用户声明的构造方法，这主要是避免这么一种情况，
                     * 当前这个构造方法所属的类是由cglib生成的子类，那么此时，就不能使用子类的
                     * 必须得获取原始类的构造方法
                     */
                    argsHolder = createArgumentArray(beanName, mbd, resolvedValues, bw, paramTypes, paramNames,
                                                     getUserDeclaredConstructor(candidate), autowiring, candidates.length == 1);
                }
                catch (UnsatisfiedDependencyException ex) {
                    if (logger.isTraceEnabled()) {
                        logger.trace("Ignoring constructor [" + candidate + "] of bean '" + beanName + "': " + ex);
                    }
                    // Swallow and try next constructor.
                    if (causes == null) {
                        causes = new LinkedList<>();
                    }
                    causes.add(ex);
                    continue;
                }
            }
            else {
                // Explicit arguments given -> arguments length must match exactly.
                if (parameterCount != explicitArgs.length) {
                    continue;
                }
                argsHolder = new ArgumentsHolder(explicitArgs);
            }

            /**
             * mbd.isLenientConstructorResolution()获取构造方法的匹配模式（宽松、严格）
             * 使用算法计算出当前构造方法的权重值（值越小越匹配）
             */
            int typeDiffWeight = (mbd.isLenientConstructorResolution() ?
                                  argsHolder.getTypeDifferenceWeight(paramTypes) : argsHolder.getAssignabilityWeight(paramTypes));
            // Choose this constructor if it represents the closest match.
            //使用权重值小的构造方法
            if (typeDiffWeight < minTypeDiffWeight) {
                //将当前构造方法设置为使用的构造方法
                constructorToUse = candidate;
                argsHolderToUse = argsHolder;
                 //将当前参数设置为构造方法使用的参数
                argsToUse = argsHolder.arguments;
                //覆盖上一个构造方法的权重值
                minTypeDiffWeight = typeDiffWeight;
                ambiguousConstructors = null;
            }
            else if (constructorToUse != null && typeDiffWeight == minTypeDiffWeight) {
                if (ambiguousConstructors == null) {
                    ambiguousConstructors = new LinkedHashSet<>();
                    ambiguousConstructors.add(constructorToUse);
                }
                ambiguousConstructors.add(candidate);
            }
        }

        //找不到合适的构造方法，抛异常
        if (constructorToUse == null) {
            if (causes != null) {
                UnsatisfiedDependencyException ex = causes.removeLast();
                for (Exception cause : causes) {
                    this.beanFactory.onSuppressedException(cause);
                }
                throw ex;
            }
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                            "Could not resolve matching constructor " +
                                            "(hint: specify index/type/name arguments for simple parameters to avoid type ambiguities)");
        }
        else if (ambiguousConstructors != null && !mbd.isLenientConstructorResolution()) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                            "Ambiguous constructor matches found in bean '" + beanName + "' " +
                                            "(hint: specify index/type/name arguments for simple parameters to avoid type ambiguities): " +
                                            ambiguousConstructors);
        }

        //缓存当前使用的构造方法和参数，以备下次实例化对象使用
        if (explicitArgs == null && argsHolderToUse != null) {
            argsHolderToUse.storeCache(mbd, constructorToUse);
        }
    }

    Assert.state(argsToUse != null, "Unresolved constructor arguments");
    //instantiate	实例化对象
    bw.setBeanInstance(instantiate(beanName, mbd, constructorToUse, argsToUse));
    return bw;
}

6.1解析对应的Bean的构造方法，并将方法参数封装到ConstructorArgumentValues中

/**
 * Resolve the constructor arguments for this bean into the resolvedValues object.
 * This may involve looking up other beans.
 * <p>This method is also used for handling invocations of static factory methods.
 */
private int resolveConstructorArguments(String beanName, RootBeanDefinition mbd, BeanWrapper bw,
                                        ConstructorArgumentValues cargs, ConstructorArgumentValues resolvedValues) {

    //获取定制的类型转换器
    TypeConverter customConverter = this.beanFactory.getCustomTypeConverter();
    TypeConverter converter = (customConverter != null ? customConverter : bw);
    BeanDefinitionValueResolver valueResolver =
        new BeanDefinitionValueResolver(this.beanFactory, beanName, mbd, converter);

    //获取构造方法参数数量
    int minNrOfArgs = cargs.getArgumentCount();

    //遍历构造方法参数，解析参数
    for (Map.Entry<Integer, ConstructorArgumentValues.ValueHolder> entry : cargs.getIndexedArgumentValues().entrySet()) {
        //参数位置索引，从0开始
        int index = entry.getKey();
        if (index < 0) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                            "Invalid constructor argument index: " + index);
        }
        if (index + 1 > minNrOfArgs) {
            minNrOfArgs = index + 1;
        }
        //获取值持有者
        ConstructorArgumentValues.ValueHolder valueHolder = entry.getValue();
        //该参数已经被解析
        if (valueHolder.isConverted()) {
            resolvedValues.addIndexedArgumentValue(index, valueHolder);
        }
        //该参数未被解析
        else {
            //去容器中获取当前参数对应的值
            Object resolvedValue =
                valueResolver.resolveValueIfNecessary("constructor argument", valueHolder.getValue());
            //使用解析后的值构建值持有者
            ConstructorArgumentValues.ValueHolder resolvedValueHolder =
                new ConstructorArgumentValues.ValueHolder(resolvedValue, valueHolder.getType(), valueHolder.getName());
            //将原始的保存
            resolvedValueHolder.setSource(valueHolder);
            //解析后的值持有者保存到resolvedValues中
            resolvedValues.addIndexedArgumentValue(index, resolvedValueHolder);
        }
    }

    //遍历所有泛型参数持有者
    for (ConstructorArgumentValues.ValueHolder valueHolder : cargs.getGenericArgumentValues()) {
        if (valueHolder.isConverted()) {
            resolvedValues.addGenericArgumentValue(valueHolder);
        }
        else {
            Object resolvedValue =
                valueResolver.resolveValueIfNecessary("constructor argument", valueHolder.getValue());
            ConstructorArgumentValues.ValueHolder resolvedValueHolder = new ConstructorArgumentValues.ValueHolder(
                resolvedValue, valueHolder.getType(), valueHolder.getName());
            resolvedValueHolder.setSource(valueHolder);
            resolvedValues.addGenericArgumentValue(resolvedValueHolder);
        }
    }

    return minNrOfArgs;
}

6.2创建ArgumentsHolder

/**
 * Create an array of arguments to invoke a constructor or factory method,
 * given the resolved constructor argument values.
 */
private ArgumentsHolder createArgumentArray(
    String beanName, RootBeanDefinition mbd, @Nullable ConstructorArgumentValues resolvedValues,
    BeanWrapper bw, Class<?>[] paramTypes, @Nullable String[] paramNames, Executable executable,
    boolean autowiring, boolean fallback) throws UnsatisfiedDependencyException {

    TypeConverter customConverter = this.beanFactory.getCustomTypeConverter();
    TypeConverter converter = (customConverter != null ? customConverter : bw);

    //创建一个和当前构造方法参数个数匹配的参数持有者
    ArgumentsHolder args = new ArgumentsHolder(paramTypes.length);
    //创建一个和当前构造方法参数个数匹配的值持有者
    Set<ConstructorArgumentValues.ValueHolder> usedValueHolders = new HashSet<>(paramTypes.length);
    Set<String> autowiredBeanNames = new LinkedHashSet<>(4);

    //遍历构造方法的所有参数
    for (int paramIndex = 0; paramIndex < paramTypes.length; paramIndex++) {
        Class<?> paramType = paramTypes[paramIndex];
        String paramName = (paramNames != null ? paramNames[paramIndex] : "");
        // Try to find matching constructor argument value, either indexed or generic.
        ConstructorArgumentValues.ValueHolder valueHolder = null;
        //ConstructorArgumentValues中获取参数（6.1中解析的）
        if (resolvedValues != null) {
            //获取指定参数位置的值持有者
            valueHolder = resolvedValues.getArgumentValue(paramIndex, paramType, paramName, usedValueHolders);
            // If we couldn't find a direct match and are not supposed to autowire,
            // let's try the next generic, untyped argument value as fallback:
            // it could match after type conversion (for example, String -> int).
            if (valueHolder == null && (!autowiring || paramTypes.length == resolvedValues.getArgumentCount())) {
                valueHolder = resolvedValues.getGenericArgumentValue(null, null, usedValueHolders);
            }
        }
        if (valueHolder != null) {
            // We found a potential match - let's give it a try.
            // Do not consider the same value definition multiple times!
            usedValueHolders.add(valueHolder);
            //获取原始值
            Object originalValue = valueHolder.getValue();
            Object convertedValue;
            //已经获取到对应类型的参数
            if (valueHolder.isConverted()) {
                //直接取出来
                convertedValue = valueHolder.getConvertedValue();
                args.preparedArguments[paramIndex] = convertedValue;
            }
            else {
                //executable就是当前的构造方法，通过构造方法和参数索引构建一个方法参数对象
                MethodParameter methodParam = MethodParameter.forExecutable(executable, paramIndex);
                try {
                    //解析原始参数值，获取对应的参数值对象
                    convertedValue = converter.convertIfNecessary(originalValue, paramType, methodParam);
                }
                catch (TypeMismatchException ex) {
                    throw new UnsatisfiedDependencyException(
                        mbd.getResourceDescription(), beanName, new InjectionPoint(methodParam),
                        "Could not convert argument value of type [" +
                        ObjectUtils.nullSafeClassName(valueHolder.getValue()) +
                        "] to required type [" + paramType.getName() + "]: " + ex.getMessage());
                }
                Object sourceHolder = valueHolder.getSource();
                if (sourceHolder instanceof ConstructorArgumentValues.ValueHolder) {
                    Object sourceValue = ((ConstructorArgumentValues.ValueHolder) sourceHolder).getValue();
                    args.resolveNecessary = true;
                    args.preparedArguments[paramIndex] = sourceValue;
                }
            }
            //封装解析的值
            args.arguments[paramIndex] = convertedValue;
            args.rawArguments[paramIndex] = originalValue;
        }
        //参数没有被解析过，解析
        else {
            MethodParameter methodParam = MethodParameter.forExecutable(executable, paramIndex);
            // No explicit match found: we're either supposed to autowire or
            // have to fail creating an argument array for the given constructor.
            if (!autowiring) {
                throw new UnsatisfiedDependencyException(
                    mbd.getResourceDescription(), beanName, new InjectionPoint(methodParam),
                    "Ambiguous argument values for parameter of type [" + paramType.getName() +
                    "] - did you specify the correct bean references as arguments?");
            }
/*********************************重点来了************************************/
            try {
                //获取参数匹配的对象
                Object autowiredArgument = resolveAutowiredArgument(
                    methodParam, beanName, autowiredBeanNames, converter, fallback);
                //设置到ArgumentsHolder中
                args.rawArguments[paramIndex] = autowiredArgument;
                args.arguments[paramIndex] = autowiredArgument;
                args.preparedArguments[paramIndex] = autowiredArgumentMarker;
                args.resolveNecessary = true;
            }
            catch (BeansException ex) {
                throw new UnsatisfiedDependencyException(
                    mbd.getResourceDescription(), beanName, new InjectionPoint(methodParam), ex);
            }
        }
    }

    //注册依赖关系，并打印日志
    for (String autowiredBeanName : autowiredBeanNames) {
        this.beanFactory.registerDependentBean(autowiredBeanName, beanName);
        if (logger.isDebugEnabled()) {
            logger.debug("Autowiring by type from bean name '" + beanName +
                         "' via " + (executable instanceof Constructor ? "constructor" : "factory method") +
                         " to bean named '" + autowiredBeanName + "'");
        }
    }

    //最终返回ArgumentsHolder
    return args;
}

获取参数匹配的对象

/**
 * Template method for resolving the specified argument which is supposed to be autowired.
 */
@Nullable
protected Object resolveAutowiredArgument(MethodParameter param, String beanName,
                                          @Nullable Set<String> autowiredBeanNames, TypeConverter typeConverter, boolean fallback) {

    Class<?> paramType = param.getParameterType();
    if (InjectionPoint.class.isAssignableFrom(paramType)) {
        InjectionPoint injectionPoint = currentInjectionPoint.get();
        if (injectionPoint == null) {
            throw new IllegalStateException("No current InjectionPoint available for " + param);
        }
        return injectionPoint;
    }
    try {
        //看到这个方法没有，无论是构造方法，还是属性，最终都是调用这个方法解析依赖，获取依赖对象
        //这个方法我会在注解方式的自动注入中详细剖析源码，见下一篇文章
        return this.beanFactory.resolveDependency(
            new DependencyDescriptor(param, true), beanName, autowiredBeanNames, typeConverter);
    }
    catch (NoUniqueBeanDefinitionException ex) {
        throw ex;
    }
    catch (NoSuchBeanDefinitionException ex) {
        if (fallback) {
            // Single constructor or factory method -> let's return an empty array/collection
            // for e.g. a vararg or a non-null List/Set/Map parameter.
            if (paramType.isArray()) {
                return Array.newInstance(paramType.getComponentType(), 0);
            }
            else if (CollectionFactory.isApproximableCollectionType(paramType)) {
                return CollectionFactory.createCollection(paramType, 0);
            }
            else if (CollectionFactory.isApproximableMapType(paramType)) {
                return CollectionFactory.createMap(paramType, 0);
            }
        }
        throw ex;
    }
}
