本文介绍如何在SpringBoot项目中整合MyBatis和Druid数据源，包括配置多数据源、Druid监控页面及AOP监控，提供了一个可直接使用的GitHub项目链接。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

目录

一、依赖包

二、druid 配置文件

1、需要忽略哪些文件

2、关于druid 管理页面的配置

3、数据库第一个连接

4、数据库第二个连接

5、application.properties 配置文件

6、如果还要监控与 spring 相关的东西：druid-bean.xml

7、springboot 入口类

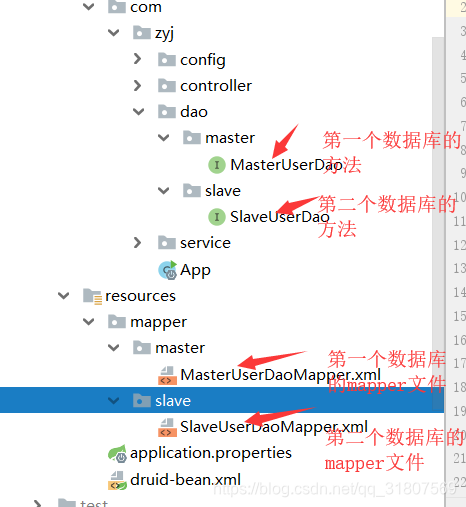

1、首先包目录结构如下。

四、该项目的github 连接，改一下数据库连接就可以直接用;

该项目的github 连接：

https://github.com/Zhao2018Mr/springboot_mybatis_druid

该例使用的是 postgresql 数据库,如果用其他的,改下jdbc 连接就可以了

一、依赖包

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjtools</artifactId>
            <version>1.6.2</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.16</version>
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
            <scope>runtime</scope>
        </dependency>

二、druid 配置文件

1、需要忽略哪些文件

import com.alibaba.druid.support.http.WebStatFilter;

import javax.servlet.annotation.WebFilter;
import javax.servlet.annotation.WebInitParam;

@WebFilter(filterName="druidWebStatFilter",urlPatterns="/*",
        initParams={
                @WebInitParam(name="exclusions",value="*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*")//忽略资源
        }
)
public class DruidStatFilter extends WebStatFilter {


}

2、关于druid 管理页面的配置


import com.alibaba.druid.support.http.StatViewServlet;
import javax.servlet.annotation.WebInitParam;
import javax.servlet.annotation.WebServlet;

@WebServlet(urlPatterns="/druid/*",
        initParams={
                @WebInitParam(name="allow",value="127.0.0.1"),// IP白名单(没有配置或者为空，则允许所有访问)
                @WebInitParam(name="deny",value="192.168.1.73"),// IP黑名单 (存在共同时，deny优先于allow)
                @WebInitParam(name="loginUsername",value="admin"),// 用户名
                @WebInitParam(name="loginPassword",value="123456"),// 密码
                @WebInitParam(name="resetEnable",value="false")// 禁用HTML页面上的“Reset All”功能
        })
public class DruidStatViewServlet extends StatViewServlet {
    private static final long serialVersionUID = -2688872071445249539L;

}

3、数据库第一个连接

package com.zyj.config.druid;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.wall.WallConfig;
import com.alibaba.druid.wall.WallFilter;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;
import java.util.ArrayList;
import java.util.List;

@Configuration
@MapperScan(basePackages = MasterDruidDBConfig.PACKAGE,sqlSessionFactoryRef = "masterSqlSessionFactory")
public class MasterDruidDBConfig {
    private static Logger logger = LoggerFactory.getLogger(MasterDruidDBConfig.class);
    static final String PACKAGE = "com.zyj.dao.master";
    static final String MAPPER_LOCATION = "classpath:mapper/master/*.xml";
    @Value("${spring.datasource.master.url}")
    private String dbUrl;

    @Value("${spring.datasource.master.username}")
    private String username;

    @Value("${spring.datasource.master.password}")
    private String password;

    @Value("${spring.datasource.driver-class-name}")
    private String driverClassName;

    @Value("${spring.datasource.initialSize}")
    private int initialSize;

    @Value("${spring.datasource.minIdle}")
    private int minIdle;

    @Value("${spring.datasource.maxActive}")
    private int maxActive;

    @Value("${spring.datasource.maxWait}")
    private int maxWait;

    @Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
    private int timeBetweenEvictionRunsMillis;

    @Value("${spring.datasource.minEvictableIdleTimeMillis}")
    private int minEvictableIdleTimeMillis;

    @Value("${spring.datasource.validationQuery}")
    private String validationQuery;

    @Value("${spring.datasource.testWhileIdle}")
    private boolean testWhileIdle;

    @Value("${spring.datasource.testOnBorrow}")
    private boolean testOnBorrow;

    @Value("${spring.datasource.testOnReturn}")
    private boolean testOnReturn;

    @Value("${spring.datasource.poolPreparedStatements}")
    private boolean poolPreparedStatements;

    @Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
    private int maxPoolPreparedStatementPerConnectionSize;

    @Value("${spring.datasource.filters}")
    private String filters;

    @Value("{spring.datasource.connectionProperties}")
    private String connectionProperties;

    @Bean("dataSourceMaster")     //声明其为Bean实例
     //在同样的DataSource中，首先使用被标注的DataSource
    public DataSource dataSource(){
        DruidDataSource datasource = new DruidDataSource();
        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        try {
            List filterList=new ArrayList<>();
            filterList.add(wallFilter());
            datasource.setProxyFilters(filterList);
            // sql 监控
            datasource.setFilters(filters);
        } catch (Exception e) {
            logger.error("druid configuration initialization filter", e);
        }
        datasource.setConnectionProperties(connectionProperties);
        return datasource;
    }

    @Bean
    public WallFilter wallFilter(){
        WallFilter wallFilter=new WallFilter();
        wallFilter.setConfig(wallConfig());
        return wallFilter;
    }

    @Bean
    public WallConfig wallConfig(){
        WallConfig config =new WallConfig();
        config.setMultiStatementAllow(true);//允许一次执行多条语句
        config.setNoneBaseStatementAllow(true);//允许非基本语句的其他语句
        return config;

    }
    @Bean(name = "masterTransactionManager")
    public DataSourceTransactionManager adsTransactionManager(@Qualifier("dataSourceMaster") DataSource adsDataSource) {
        return new DataSourceTransactionManager(adsDataSource);
    }

    @Bean(name = "masterSqlSessionFactory")
    public SqlSessionFactory adsSqlSessionFactory(@Qualifier("dataSourceMaster") DataSource adsDataSource) throws Exception {
        final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
        sessionFactory.setDataSource(adsDataSource);
        sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
                .getResources(MasterDruidDBConfig.MAPPER_LOCATION));
        return sessionFactory.getObject();
    }
}

4、数据库第二个连接

package com.zyj.config.druid;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.wall.WallConfig;
import com.alibaba.druid.wall.WallFilter;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;
import java.util.ArrayList;
import java.util.List;

@Configuration
@MapperScan(basePackages = slaveDruidDBConfig.PACKAGE,sqlSessionFactoryRef = "slaveSqlSessionFactory")
public class slaveDruidDBConfig {
    private static Logger logger = LoggerFactory.getLogger(slaveDruidDBConfig.class);
    static final String PACKAGE = "com.zyj.dao.slave";
    static final String MAPPER_LOCATION = "classpath:mapper/slave/*.xml";
    @Value("${spring.datasource.slave.url}")
    private String dbUrl;

    @Value("${spring.datasource.slave.username}")
    private String username;

    @Value("${spring.datasource.slave.password}")
    private String password;

    @Value("${spring.datasource.driver-class-name}")
    private String driverClassName;

    @Value("${spring.datasource.initialSize}")
    private int initialSize;

    @Value("${spring.datasource.minIdle}")
    private int minIdle;

    @Value("${spring.datasource.maxActive}")
    private int maxActive;

    @Value("${spring.datasource.maxWait}")
    private int maxWait;

    @Value("${spring.datasource.timeBetweenEvictionRunsMillis}")
    private int timeBetweenEvictionRunsMillis;

    @Value("${spring.datasource.minEvictableIdleTimeMillis}")
    private int minEvictableIdleTimeMillis;

    @Value("${spring.datasource.validationQuery}")
    private String validationQuery;

    @Value("${spring.datasource.testWhileIdle}")
    private boolean testWhileIdle;

    @Value("${spring.datasource.testOnBorrow}")
    private boolean testOnBorrow;

    @Value("${spring.datasource.testOnReturn}")
    private boolean testOnReturn;

    @Value("${spring.datasource.poolPreparedStatements}")
    private boolean poolPreparedStatements;

    @Value("${spring.datasource.maxPoolPreparedStatementPerConnectionSize}")
    private int maxPoolPreparedStatementPerConnectionSize;

    @Value("${spring.datasource.filters}")
    private String filters;

    @Value("{spring.datasource.connectionProperties}")
    private String connectionProperties;

    @Bean("dataSourceSlave")  //声明其为Bean实例
    @Primary
     //在同样的DataSource中，首先使用被标注的DataSource
    public DataSource dataSource(){
        DruidDataSource datasource = new DruidDataSource();

        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        try {
            List filterList=new ArrayList<>();
            filterList.add(wallFilter());
            datasource.setFilters(filters);
            datasource.setProxyFilters(filterList);
        } catch (Exception e) {
            logger.error("druid configuration initialization filter", e);
        }
        datasource.setConnectionProperties(connectionProperties);
        return datasource;
    }

    @Bean

    public WallFilter wallFilter(){
        WallFilter wallFilter=new WallFilter();
        wallFilter.setConfig(wallConfig());
        return wallFilter;
    }

    @Bean

    public WallConfig wallConfig(){
        WallConfig config =new WallConfig();
        config.setMultiStatementAllow(true);//允许一次执行多条语句
        config.setNoneBaseStatementAllow(true);//允许非基本语句的其他语句
        return config;

    }
    @Bean(name = "slaveTransactionManager")
    @Primary
    public DataSourceTransactionManager adsTransactionManager(@Qualifier("dataSourceSlave") DataSource adsDataSource) {
        return new DataSourceTransactionManager(adsDataSource);
    }

    @Bean(name = "slaveSqlSessionFactory")
    @Primary
    public SqlSessionFactory adsSqlSessionFactory(@Qualifier("dataSourceSlave") DataSource adsDataSource) throws Exception {
        final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
        sessionFactory.setDataSource(adsDataSource);
        sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
                .getResources(slaveDruidDBConfig.MAPPER_LOCATION));
        return sessionFactory.getObject();
    }
}

5、application.properties 配置文件


spring.datasource.master.url=jdbc:postgresql://127.0.0.1:5432/master?allowMultiQueries=true
spring.datasource.master.username=postgres
spring.datasource.master.password=lcck1345

spring.datasource.slave.url=jdbc:postgresql://127.0.0.1:5432/slave?allowMultiQueries=true
spring.datasource.slave.username=postgres
spring.datasource.slave.password=lcck1345


# 连接池的配置信息
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.driver-class-name=org.postgresql.Driver
# 初始化大小，最小，最大
spring.datasource.initialSize=1
spring.datasource.minIdle=1
spring.datasource.maxActive=10
# 配置获取连接等待超时的时间
spring.datasource.maxWait=180000
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
spring.datasource.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
spring.datasource.minEvictableIdleTimeMillis=300000
spring.datasource.validationQuery=SELECT version()
spring.datasource.testWhileIdle=true
spring.datasource.testOnBorrow=false
spring.datasource.testOnReturn=false
# 打开PSCache，并且指定每个连接上PSCache的大小
spring.datasource.poolPreparedStatements=true
spring.datasource.maxPoolPreparedStatementPerConnectionSize=20
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
spring.datasource.filters=stat,wall,log4j
# 通过connectProperties属性来打开mergeSql功能；慢SQL记录
spring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000

6、如果还要监控与 spring 相关的东西：druid-bean.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd">

    <!-- 配置_Druid和Spring关联监控配置 -->
    <bean id="druid-stat-interceptor"
          class="com.alibaba.druid.support.spring.stat.DruidStatInterceptor"></bean>

    <!-- 方法名正则匹配拦截配置 -->
    <bean id="druid-stat-pointcut" class="org.springframework.aop.support.JdkRegexpMethodPointcut"
          scope="prototype">
        <property name="patterns">
            <list>
                <value>com.zyj.dao.*</value>
            </list>
        </property>
    </bean>

    <aop:config proxy-target-class="true">
        <aop:advisor advice-ref="druid-stat-interceptor"
                     pointcut-ref="druid-stat-pointcut" />
    </aop:config>

</beans>

7、springboot 入口类


import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;
import org.springframework.context.annotation.ImportResource;

/**
 *  ServletComponentScan
 *  druid监控页面是一个servlet，需要让SpingBoot支持servlet.在程序入口添加注解
 *
 * MapperScan("com.cmbird.dao")
 * 扫描对应的包
 *
 *  ImportResource(locations = { "classpath:druid-bean.xml" })
 * 对于spring 监控 不需要可以不要
 *
 */
@ServletComponentScan
@SpringBootApplication
@MapperScan("com.cmbird.dao")
@ImportResource(locations = { "classpath:druid-bean.xml" })
public class App {

    public static void main(String[] args) {
        SpringApplication.run(App.class);
    }

}

三、使用

1、首先包目录结构如下。

注意：包名要和数据库 MasterDruidDBConfig.java 和 slaveDruidDBConfig.java 中配置的package 包名一样.

2.使用按照正常方法使用 ;

四、该项目的github 连接，改一下数据库连接就可以直接用;

https://github.com/Zhao2018Mr/springboot_mybatis_druid

评论 2

被折叠的条评论为什么被折叠?

到【灌水乐园】发言

查看更多评论

添加红包

成就一亿技术人!

hope_wisdom

发出的红包

实付元

使用余额支付

点击重新获取

扫码支付

钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。
