flowable 基本示例

package com.lemon;

import org.flowable.engine.*;
import org.flowable.engine.history.HistoricActivityInstance;
import org.flowable.engine.impl.cfg.StandaloneProcessEngineConfiguration;
import org.flowable.engine.repository.Deployment;
import org.flowable.engine.repository.ProcessDefinition;
import org.flowable.engine.runtime.ProcessInstance;
import org.flowable.task.api.Task;

import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Scanner;

public class HolidayRequest {
    public static void main(String[] args) {
        //流程配置
        ProcessEngineConfiguration cfg = new
                StandaloneProcessEngineConfiguration()
                .setJdbcUrl("jdbc:h2:mem:flowable;DB_CLOSE_DELAY=-1")
                .setJdbcUsername("sa")
                .setJdbcPassword("")
                .setJdbcDriver("org.h2.Driver")
                .setDatabaseSchemaUpdate
                        (ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);
        //流程引擎配置
        ProcessEngine processEngine = cfg.buildProcessEngine();

        //流程定义部署
        RepositoryService repositoryService = processEngine.
                getRepositoryService();
        Deployment deployment = repositoryService.createDeployment()
                .addClasspathResource("holiday-request.bpmn20.xml")
                .deploy();
        //流程定义查询
        ProcessDefinition processDefinition =
                repositoryService.createProcessDefinitionQuery()
                        .deploymentId(deployment.getId())
                        .singleResult();
        System.out.println("Found process definition : " +
                processDefinition.getName());



        Scanner scanner= new Scanner(System.in);
        System.out.println("Who are you?");
        String employee = scanner.nextLine();
        System.out.println("How many holidays do you want to request?");
        Integer nrOfHolidays = Integer.valueOf(scanner.nextLine());
        System.out.println("Why do you need them?");
        String description = scanner.nextLine();

        //流程启动
        RuntimeService runtimeService = processEngine.getRuntimeService();
        Map<String, Object> variables = new HashMap<String, Object>();
        variables.put("employee", employee);
        variables.put("nrOfHolidays", nrOfHolidays);
        variables.put("description", description);
        ProcessInstance processInstance =
                runtimeService.startProcessInstanceByKey("holidayRequest", variables);

        // 获取人物列表
        TaskService taskService = processEngine.getTaskService();
        List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup
                ("managers").list();
        System.out.println("You have " + tasks.size() + " tasks:");
        for (int i=0; i<tasks.size(); i++) {
            System.out.println((i+1) + ") " + tasks.get(i).getName());
        }

        System.out.println("Which task would you like to complete?");
        //流程执行
        int taskIndex = Integer.valueOf(scanner.nextLine());
        Task task = tasks.get(taskIndex - 1);
        Map<String, Object> processVariables = taskService.getVariables
                (task.getId());
        System.out.println(processVariables.get("employee") + " wants " +
                processVariables.get("nrOfHolidays") + " of holidays. Do you approve this?");

        boolean approved = scanner.nextLine().toLowerCase().equals("y");
        variables = new HashMap<String, Object>();
        variables.put("approved", approved);
        taskService.complete(task.getId(), variables);
        List<Task> list = taskService.createTaskQuery().taskAssignee("lisi").list();
        taskService.complete(list.get(0).getId());
        //
        List<Task> list2 = taskService.createTaskQuery().list();
        HistoryService historyService = processEngine.getHistoryService();
        List<HistoricActivityInstance> activities =
                historyService.createHistoricActivityInstanceQuery()
                        .processInstanceId(processInstance.getId())
                        .finished()
                        .orderByHistoricActivityInstanceEndTime().asc()
                        .list();
        for (HistoricActivityInstance activity : activities) {
            System.out.println(activity.getActivityId() + " took "
                    + activity.getDurationInMillis() + " milliseconds");
        }
    }

 }

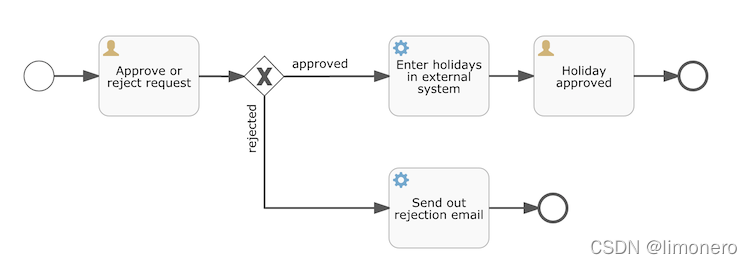

xml文件

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:xsd="http://www.w3.org/2001/XMLSchema"
             xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
             xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
             xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
             xmlns:flowable="http://flowable.org/bpmn"
             typeLanguage="http://www.w3.org/2001/XMLSchema"
             expressionLanguage="http://www.w3.org/1999/XPath"
             targetNamespace="http://www.flowable.org/processdef">
    <process id="holidayRequest" name="Holiday Request"
             isExecutable="true">
        <startEvent id="startEvent"/>
        <sequenceFlow sourceRef="startEvent" targetRef="approveTask"/>
        <userTask id="approveTask" name="Approve or reject request" flowable:candidateGroups="managers" />
        <sequenceFlow sourceRef="approveTask" targetRef="decision"/>
        <exclusiveGateway id="decision"/>
        <sequenceFlow sourceRef="decision" targetRef="externalSystemCall">
            <conditionExpression xsi:type="tFormalExpression">
                <![CDATA[${approved}]]>
            </conditionExpression>
        </sequenceFlow>
        <sequenceFlow sourceRef="decision" targetRef="sendRejectionMail">
            <conditionExpression xsi:type="tFormalExpression">
                <![CDATA[${!approved}]]>
            </conditionExpression>
        </sequenceFlow>
        <serviceTask id="externalSystemCall" name="Enter holidays in
external system"
                     flowable:class="com.lemon.CallOneDelegate"/>
        <sequenceFlow sourceRef="externalSystemCall"
                      targetRef="holidayApprovedTask"/>
        <userTask id="holidayApprovedTask" name="Holiday approved"  flowable:assignee="${employee}"/>
        <sequenceFlow sourceRef="holidayApprovedTask" targetRef=
                "approveEnd"/>
        <serviceTask id="sendRejectionMail" name="Send out rejection email"
                     flowable:class="com.lemon.CallMailDelegate"/>
        <sequenceFlow sourceRef="sendRejectionMail" targetRef="rejectEnd"/>
        <endEvent id="approveEnd"/>
        <endEvent id="rejectEnd"/>
    </process>
</definitions>
