一、概述

最近几年，都提倡将复杂的应用系统，按照业务或者功能拆分成多个职能单一的微服务（只处理自己的业务或者功能），各个服务之间通过PRC或者Restful通信，而且微服务开发效率高、部署简单、代码好维护、稳定性高、扩展性强、松耦合、可以使用不同语言开发等优点，但是也存在测试难度提升、管理复杂、调用复杂、分布式事务等劣势。
对于事务，之前的单体应用，不需要考虑跨模块回滚事务的问题，但是在分布式系统中，我们需要保证事务最终一致。
现有分布式事务的主要实现方式：

XA 方案
TCC 方案
可靠消息最终一致性方案
最大努力通知方案

本文只讨论通过RocketMQ事务消息来实现分布式事务的最终一致。

具体方案：A系统在执行本地事务之前，先发送一条prepare消息，然后RocketMQ broker轮询这条prepare消息是否可以提交提交（或者回归，或者继续等待），当A系统本地事务执行成功之后，broker将提交这条消息；B系统监听到这条消息之后，开始执行本地事务。

潜在的问题：
1、发送prepare消息失败：那么A系统本地事务就不需要执行，直接丢弃这条消息。
2、B系统在收到消息之后，重试多次之后依旧失败：只能人工干预，回滚数据，没有完美的设计方案。
3、prepare消息每隔多长时间轮询一次，prepare消息是否可以提交、回归、继续等待：默认每隔1分钟轮询一次，可以在broker.config配置轮询时间。
4、最大轮询次数：默认15次，超过上限之后，丢弃消息。

二、具体实现

在上一篇文章的基础之上（RocketMq顺序消息解决方案），来写这次的demo

1、OrderConstant

package com.cn.dl.springbootdemo.constant;


public interface OrderConstant {
    String ORDER_TOPIC = "order_msg";

    String ORDER_CONSUMER_GROUP = "order_msg_consumer";

    String REPAY_TRANSACTION_GROUP = "repay_transaction_group";

    String REPAY_MSG_TOPIC = "repay_msg_topic";

    String REPAY_MSG_GROUP = "repay_msg_group";

    String RANDOM_INT = "random_int";
}

2、RepayTransactionProducer

package com.cn.dl.springbootdemo.mq;

import com.cn.dl.springbootdemo.bean.Repay;
import com.cn.dl.springbootdemo.constant.OrderConstant;
import org.apache.rocketmq.client.producer.TransactionSendResult;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.apache.rocketmq.spring.support.RocketMQHeaders;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;

/**
 * Created by yanshao on 2020-11-05.
 */
@Component
public class RepayTransactionProducer {

    private static final Logger logger = LoggerFactory.getLogger(RepayTransactionProducer.class);


    @Resource
    private RocketMQTemplate rocketMQTemplate;

    public void sendRepayTransactionMsg(Repay repay){
        Message<? extends Repay> message = MessageBuilder.withPayload(repay)
                .setHeader(RocketMQHeaders.TRANSACTION_ID,repay.getRepayId())
                .build();
        TransactionSendResult sendResult = rocketMQTemplate.sendMessageInTransaction(
                OrderConstant.REPAY_TRANSACTION_GROUP,OrderConstant.REPAY_MSG_TOPIC,message,new String[]{"test","demo"});
        logger.info("send repay transaction msg. repay: {},sendResult: {}",repay,sendResult);
    }
}

3、RepayTransactionListener

package com.cn.dl.springbootdemo.mq;

import com.cn.dl.springbootdemo.constant.OrderConstant;
import org.apache.rocketmq.spring.annotation.RocketMQTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionState;
import org.apache.rocketmq.spring.support.RocketMQHeaders;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Component;

/**
 * Created by yanshao on 2020-11-05.
 */
@Component
@RocketMQTransactionListener(txProducerGroup = OrderConstant.REPAY_TRANSACTION_GROUP)
public class RepayTransactionListener implements RocketMQLocalTransactionListener {

    private static final Logger logger = LoggerFactory.getLogger(RepayTransactionListener.class);

    /**
      发送prepare消息成功后会这样这个方法,只执行一次
      @param message 消息头、消息体
      @param args 接受额外的参数
      @return 返回事务状态，COMMIT：提交  ROLLBACK：回滚  UNKNOW：回调
     */
    @Override
    public RocketMQLocalTransactionState executeLocalTransaction(Message message, Object args) {
        logger.info("execute local transaction transactionId: {},args: {}"
                ,message.getHeaders().get(RocketMQHeaders.TRANSACTION_ID),args);
        return RocketMQLocalTransactionState.UNKNOWN;
    }

    /**
     * 判断本地事务的执行状态，如果本地执行成功，返回COMMIT，如果本地事务还在进行中或者状态未知，
     * 返回UNKNOW，如果本地事务执行失败，返回ROLLBACK
     *
     * 默认执行15次，超过上限则丢弃消息
     * @param message
     * @return
     */
    @Override
    public RocketMQLocalTransactionState checkLocalTransaction(Message message) {
        logger.info("check local transaction transactionId: {}",message.getHeaders().get(RocketMQHeaders.TRANSACTION_ID));
        return RocketMQLocalTransactionState.COMMIT;
    }
}

4、RepayMsgConsumer

package com.cn.dl.springbootdemo.mq;

import com.alibaba.fastjson.JSONObject;
import com.cn.dl.springbootdemo.bean.Repay;
import com.cn.dl.springbootdemo.constant.OrderConstant;
import org.apache.rocketmq.common.message.MessageExt;
import org.apache.rocketmq.spring.annotation.RocketMQMessageListener;
import org.apache.rocketmq.spring.core.RocketMQListener;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import java.nio.charset.StandardCharsets;

/**
 * Created by yanshao on 2020-11-05.
 */
@Component
@RocketMQMessageListener(
        topic = OrderConstant.REPAY_MSG_TOPIC,
        consumerGroup = OrderConstant.REPAY_MSG_GROUP
)
public class RepayMsgConsumer implements RocketMQListener<MessageExt> {

    private static final Logger logger = LoggerFactory.getLogger(RepayTransactionListener.class);


    @Override
    public void onMessage(MessageExt messageExt) {
        String msg = null;
        try {
            msg = new String(messageExt.getBody(), StandardCharsets.UTF_8.name());
            Repay repay = JSONObject.parseObject(msg, Repay.class);
            logger.info("repay msg consumer. repay: {}",repay);
        }catch (Exception e){
            logger.error("repay msg consumer exception. msgId: {}",messageExt.getMsgId());
            throw new RuntimeException("repay msg consumer exception!");
        }
    }

}

5、Repay

package com.cn.dl.springbootdemo.bean;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;
import java.math.BigDecimal;

/**
 * Created by yanshao on 2020-11-05.
 */
@Data
@Builder
@AllArgsConstructor
@NoArgsConstructor
public class Repay implements Serializable {
    private static final long serialVersionUID = -5915842247156810870L;

    /**
     * 还款唯一ID
     */
    private String repayId;
    /**
     * 用户ID
     */
    private String customerId;
    /**
     * 还款金额
     */
    private BigDecimal repayAmount;
    /**
     * 备注
     */
    private String remark;
}

6、测试入口

    @Resource
    private RepayTransactionProducer repayTransactionProducer;
    @Test
    public void sendRepayTransaction() throws InterruptedException {
        for(int i=0; i<1; i++){
            Repay repay = Repay.builder()
                    .customerId("customerId" + i)
                    .repayId("repayId" + i)
                    .repayAmount(new BigDecimal(i * 1000))
                    .build();
            repayTransactionProducer.sendRepayTransactionMsg(repay);
        }

        TimeUnit.SECONDS.sleep(30000);
    }

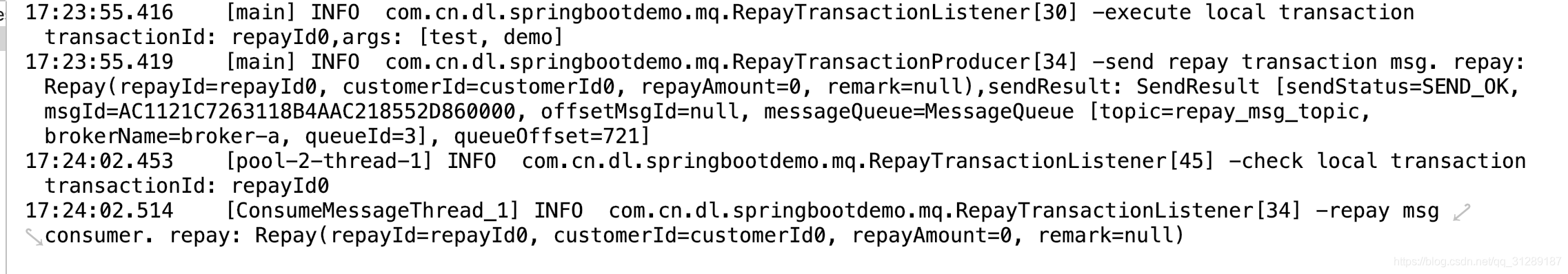

7、执行结果

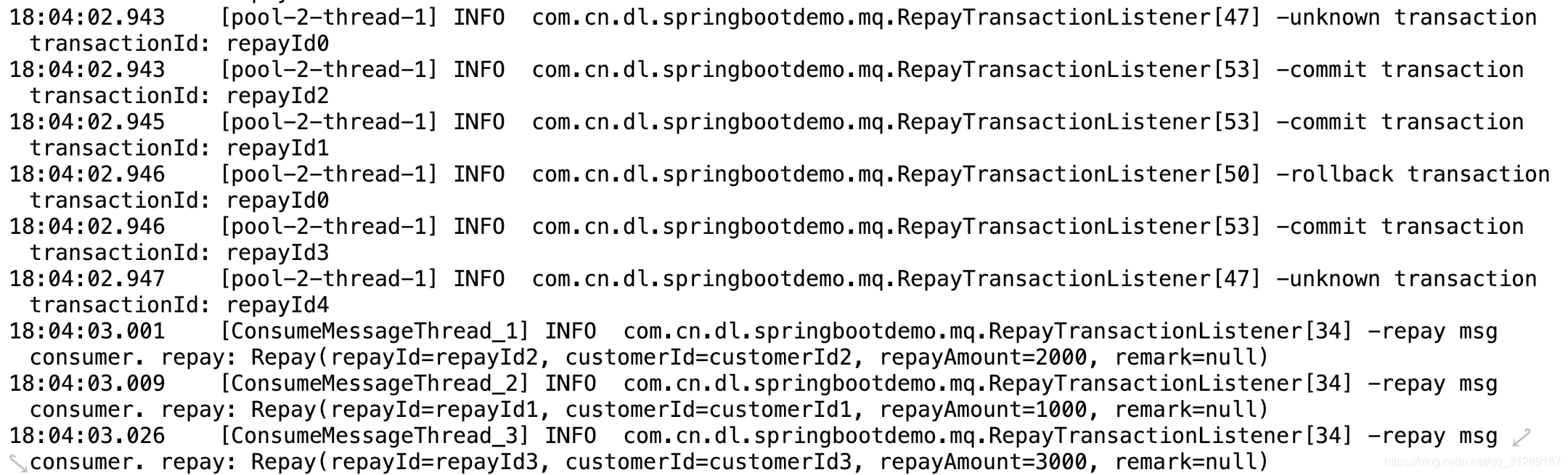

8、测试丢弃和继续等待两种状态，修改RepayTransactionProducer、RepayTransactionListener

public void sendRepayTransactionMsg(Repay repay){
        Message<? extends Repay> message = MessageBuilder.withPayload(repay)
                .setHeader(RocketMQHeaders.TRANSACTION_ID,repay.getRepayId())
                //为了测试，这里增加随机树，默认本地是否执行失败等情况
                .setHeader(OrderConstant.RANDOM_INT,new Random().nextInt(10))
                .build();

        TransactionSendResult sendResult = rocketMQTemplate.sendMessageInTransaction(
                OrderConstant.REPAY_TRANSACTION_GROUP,
                OrderConstant.REPAY_MSG_TOPIC,
                message,
                new String[]{"test","demo"});
        logger.info("send repay transaction msg. repay: {},sendResult: {}",repay,sendResult);
    }

@Override
    public RocketMQLocalTransactionState checkLocalTransaction(Message message) {
        int randomInt = Integer.parseInt(String.valueOf(message.getHeaders().get(OrderConstant.RANDOM_INT)));
        if(randomInt < 3){
            logger.info("unknown transaction transactionId: {}",message.getHeaders().get(RocketMQHeaders.TRANSACTION_ID));
            return RocketMQLocalTransactionState.UNKNOWN;
        } else if(randomInt % 2 == 0){//如果随机数大于2 && 为偶数，丢弃消息
            logger.info("rollback transaction transactionId: {}",message.getHeaders().get(RocketMQHeaders.TRANSACTION_ID));
            return RocketMQLocalTransactionState.ROLLBACK;
        } else {
            logger.info("commit transaction transactionId: {}",message.getHeaders().get(RocketMQHeaders.TRANSACTION_ID));
            return RocketMQLocalTransactionState.COMMIT;
        }
    }
