Ansible部署zabbix-server端

文档作者：MINE_菜鸟
写作时间：2023/6/10
操作环境：Centos yml 食用方法看最后文章
1.因为剧本写的可能会受到系统环境影响，可能会出现问题，具体问题再看看吧，目前只遇到1个问题，文章最后写的处理办法。其他的还没发现。
2.写剧本首先要将你要执行的任务列出来，然后根据python模块一点一点去垒代码，最后测试达到效果，yml格式就不用说了，写多了，就会格式了。
3.只在server执行该剧本，别整错了 ，主机清单添加server机器

本来zabbix-server端就单台的，用不到Ansible，但是练习yml语法，所以写了部署zabbix-server端的yml剧本

 **_只在server执行该剧本，别整错了_**

• zabbix-server剧本

---
- hosts: all
  remote_user: root
  gather_facts: yes
  tasks:
  - name: wget zabbix_repo
    get_url:
      url: "https://repo.zabbix.com/zabbix/5.0/rhel/7/x86_64/zabbix-release-5.0-1.el7.noarch.rpm"
      dest: "/tmp/zabbix-release-5.0-1.el7.noarch.rpm"
      validate_certs: no
  - name: yum install zabbix-release-5.0
    yum:
      name: "/tmp/zabbix-release-5.0-1.el7.noarch.rpm"
      state: present
  - name: clean
    shell: yum clean all;yum makecache fast
  - name: install zabbix-agent zabbix-get zabbix-sender zabbix-server-mysql  epel-release
    yum:
      name: "{{ item }}"
      state: present
    with_items:
      #- epel-release
      - zabbix-agent
      - zabbix-get
      - zabbix-sender
      - zabbix-server-mysql
      - bind-utils
  - name: touch mariadb.repo
    file:
      path: "/etc/yum.repos.d/mariadb.repo"
      state: touch
      mode: 0644
  - name: insert mariadbrepo
    lineinfile:
      path: "/etc/yum.repos.d/mariadb.repo"
      insertafter: EOF
      line: "[mariadb]"
  - name: insert baseurl gpgkey gpgcheck
    lineinfile:
      path: "/etc/yum.repos.d/mariadb.repo"
      insertafter: '[mariadb]'
      line: |
        name = MariaDB
        baseurl = https://mirrors.ustc.edu.cn/mariadb/yum/10.4/centos7-amd64
        gpgkey=https://mirrors.ustc.edu.cn/mariadb/yum/RPM-GPG-KEY-MariaDB
        gpgcheck=0
  - name: install mariadb
    yum:
     name: "MariaDB-server,MariaDB-client,MySQL-python"
     state: present
  - name: touch /etc/my.cnf.d/server.cnf
    file:
      path: "/etc/my.cnf.d/server.cnf"
      state: "touch"
  - name: "insert mariadbdata"
    lineinfile:
      path: "/etc/my.cnf.d/server.cnf"
      insertafter: EOF
      line: "[mysqld]"
  - name: "mariadbdata"
    lineinfile:
      path: "/etc/my.cnf.d/server.cnf"
      insertafter: '[mysqld]'
      line: |
       skip_name_resolve = ON
       innodb_file_per_table = ON
       innodb_buffer_pool_size = 256M
       max_connections = 2000
       log-bin = master-log
  - name: "service start mariadb"
    service:
     name: mariadb
     state: started
  - name: "Login to MySQL and create a database"
    mysql_db:
     name: zabbix
     encoding: utf8
     collation: utf8_bin
     login_user: root
     login_host: localhost
     state: present
  - name: "grant all zabbix and set password keer"
    mysql_user:
     name: zabbix
     password: "keer"
     priv: "zabbix.*:ALL"
     host: "%"
     login_host: localhost
     state: present
  - name: "exec flush privileges"
    community.mysql.mysql_query:
     query: "flush privileges;"
  - name: "zcat data"
    vars:
     sqldata: "/usr/share/doc/zabbix-server-mysql-*/create.sql.gz"
    shell:
     zcat {{ sqldata }} | mysql -uzabbix -pkeer -h 127.0.0.1 zabbix
  - name: "backup /etc/zabbix/zabbix_server.conf"
    vars:
     zabbix_server: "/etc/zabbix/zabbix_server.conf"
     zabbix_server_bak: "/etc/zabbix/zabbix_server.conf_bak"
    copy:
     src: "{{ zabbix_server }}"
     dest: "{{ zabbix_server_bak }}"
     backup: "yes"
  - name: "change ListenPort"
    vars:
     file: /etc/zabbix/zabbix_server.conf
     db_passwd: keer
     db_port: 3306
    shell: |
     sed -ri 's/# ListenPort=10051/ListenPort=10051/' {{ file }};
     #sed -ri 's/# SourceIP=/SourceIP="{{ ansible_default_ipv4 }}"/' {{ file }};
     #sed -ri 's/# DBHost=/DBHost="{{ ansible_default_ipv4 }}"/' {{ file }};
     sed -i "s/# SourceIP=/SourceIP=$(dig +short myip.opendns.com @resolver1.opendns.com)/" {{ file }};
     sed -i "s/# DBHost=/DBHost=$(dig +short myip.opendns.com @resolver1.opendns.com)/"   {{ file }};
     sed -ri 's/# DBPassword=/DBPassword={{ db_passwd }}/' {{ file }};
     sed -ri 's/# DBPort=/DBPort={{ db_port }}/' {{ file }}
  - name: systemctl start zabbix-server
    systemd:
     name: zabbix-server
     state: started
  #- name: replace enabled=1
  #   lineinfile:
  #   path: /etc/yum.repos.d/zabbix.repo
  #   regexp: '^enabled='
  #   line: 'enabled=1'
  #   section: '[zabbix-frontend]'
  - name: change zabbix.repo
    shell:
      sed -ri '11s/enabled=0/enabled=1/'  /etc/yum.repos.d/zabbix.repo
  - name: install centos-release-scl-rh centos-release-scl zabbix-web-mysql-scl zabbix-nginx-conf-scl
    package:
      name: "{{ item }}"
      state: present
    with_items:
     - centos-release-scl
     - zabbix-web-mysql-scl
     - zabbix-nginx-conf-scl
  - name: detele nginx model
    vars:
      zabbix: /etc/opt/rh/rh-nginx116/nginx/nginx.conf
    shell:
      sed -i '38,80d'  {{ zabbix }}
  - name: change date and set
    vars:
      datetime: "/etc/opt/rh/rh-php72/php-fpm.d/zabbix.conf"
    shell: |
      sed -ri 's/listen.acl_users = apache/listen.acl_users = apache,nginx/' {{ datetime }}
      sed -ri 's/; php_value\[date.timezone\] = Europe\/Riga/php_value[date.timezone] = Asia\/Shanghai/' {{ datetime }}
  - name: systemctl restart zabbix-server zabbix-agent rh-nginx116-nginx rh-php72-php-fpm
    systemd:
     name: zabbix-server
     state: restarted
     enabled: yes
  - name: restart zabbix-agent
    systemd:
     name: zabbix-agent
     state: restarted
     enabled: yes
  - name: restart rh-nginx116-nginx
    systemd:
     name: rh-nginx116-nginx
     state: restarted
     enabled: yes
  - name: restart rh-php72-php-fpm
    systemd:
     name: rh-php72-php-fpm
     state: restarted
     enabled: yes

• 最后试了一下mariadb启动了，但是接下来要进mariadb数据库操作，但是我不知道Ansible有没有关于python模块进入数据库，创建数据库，增加字段等操作，所以还没研究，等有时间在看，yml代码没问题，可以直接部署：(已经解决)
•

• yml代码，等有时间在添加注释（估计没时间了）
• ansible-galaxy collection install community.mysql 这个用到python的第三方模块community.mysql
• #这个用到python的第三方模块community.mysql 才能执行授权sql语句（见代码区）

用法：
1.首先先安装mysql第三方模块
ansible-galaxy collection install community.mysql

2.关闭主机密钥检测 (将注释打开)
vim /etc/ansible/ansible.cfg
host_key_checking = False

3.主机清单里面的要执行主机用户加上sudo权限。(vim /etc/sudoer) 例如被执行的用户为tom用户
tom     ALL=(ALL)       NOPASSWD: ALL
加上就行
4.执行剧本
ansible-playbook -i 指定主机清单 -b 剧本文件

-b 提权 或者--become


问题合集:目前就发现一个
"changed": true, "cmd": "zcat /usr/share/doc/zabbix-server-mysql-*/create.sql.gz |
mysql -uzabbix -pkeer -h 127.0.0.1 zabbix", "delta": "0:00:00.021476", "end":
"2023-06-12 23:39:54.322874", "msg": "non-zero return code",
"rc": 1, "start": "2023-06-12 23:39:54.301398", "stderr":
"ERROR 1050 (42S01) at line 1: Table 'users' already exists",
"stderr_lines": ["ERROR 1050 (42S01) at line 1: Table 'users' already exists"],
"stdout": "", "stdout_lines": []}
报错一: 只要执行过这个剧本就会导致包这个错误，就是剧本已经导入zabbix数据库
需要进数据库删除,然后在执行剧本
mysql -h localhost
drop database zabbix;

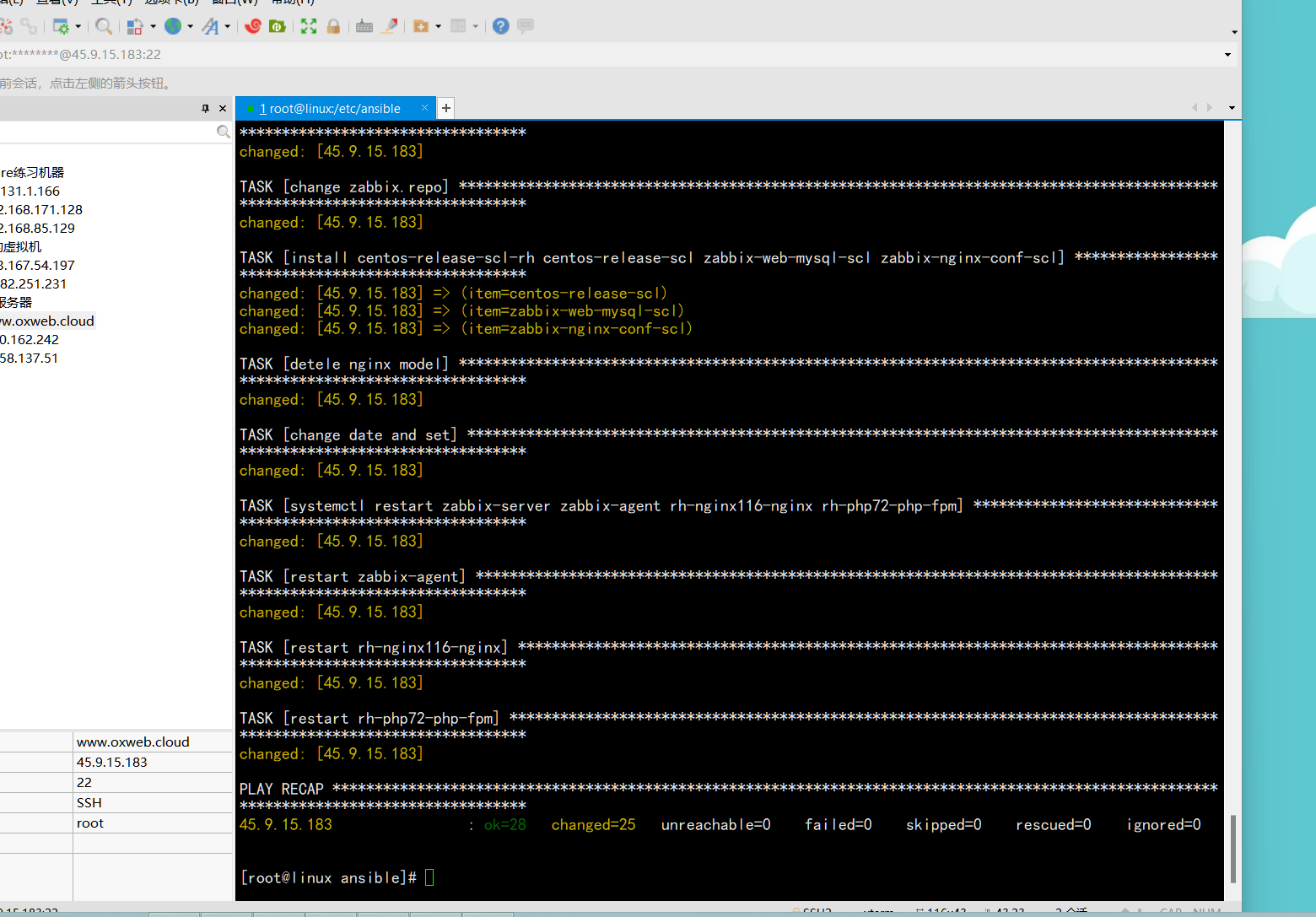

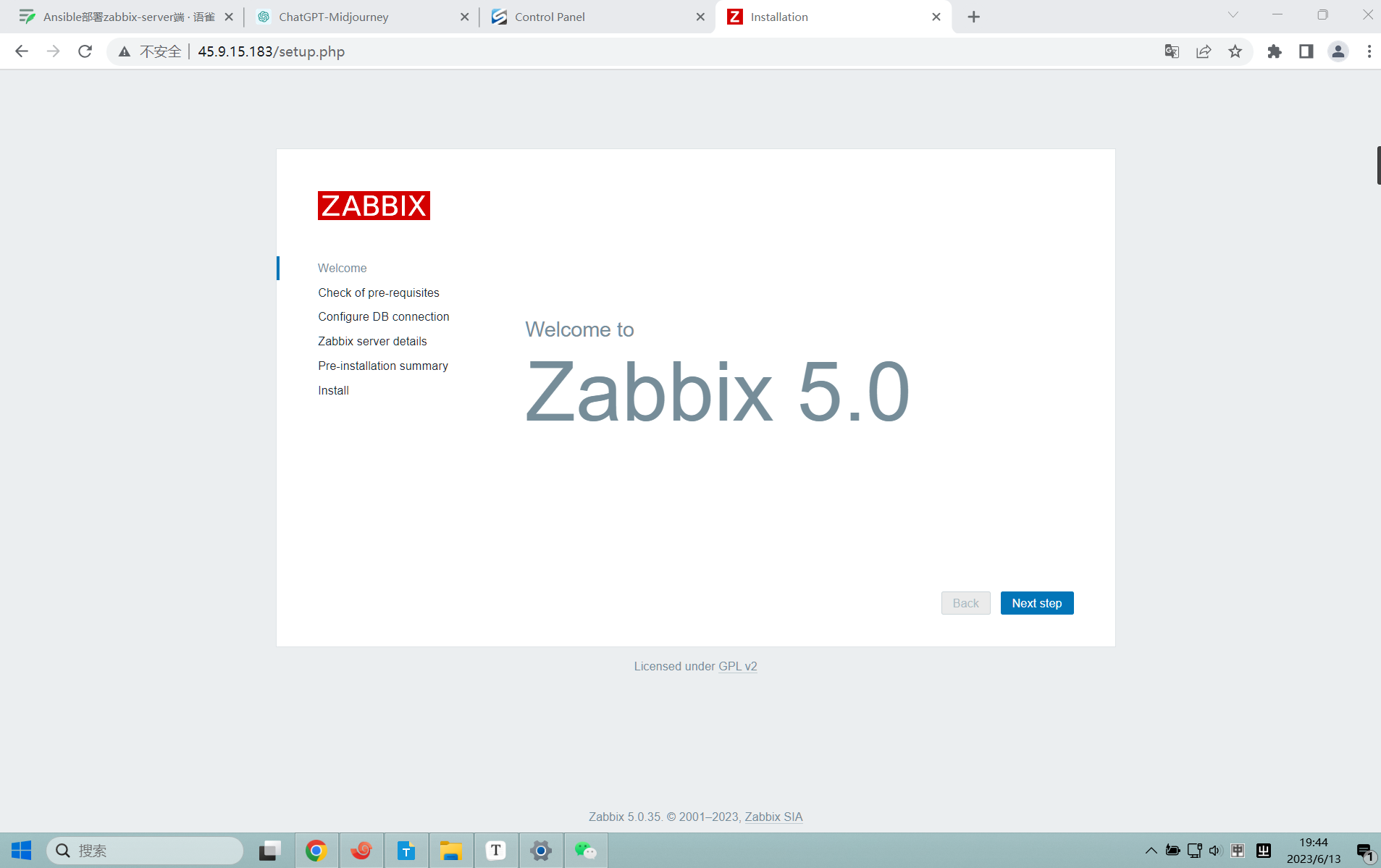

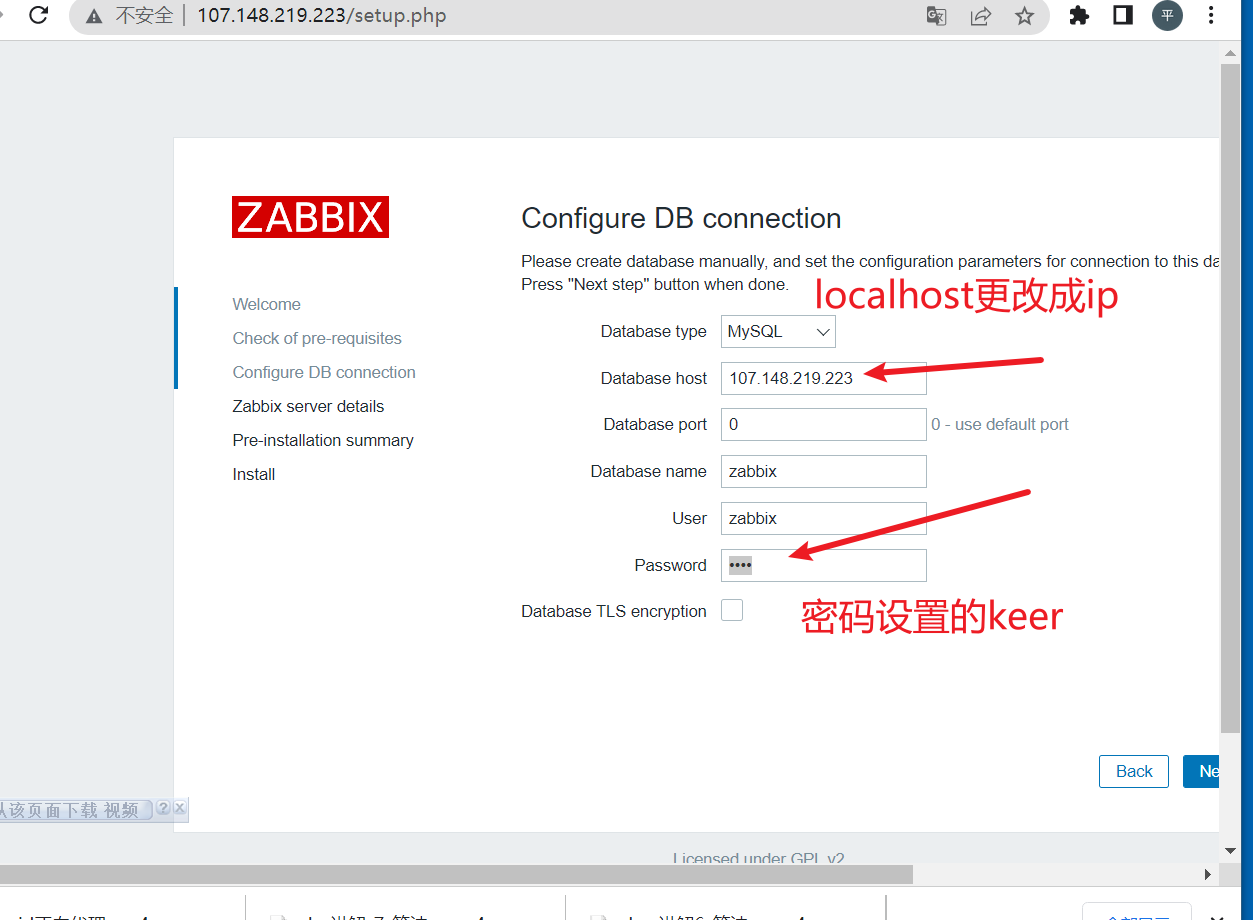

运行效果图
