Maven驱动包

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <!--11是JDK版本-->
    <maven.compiler.source>11</maven.compiler.source>
    <maven.compiler.target>11</maven.compiler.target>
    <!--规定Spring版本-->
    <springversion>5.0.8.RELEASE</springversion>
 </properties>

<dependencies>
    <!--lombok插件-->
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.2</version>
    <scope>provided</scope>
  </dependency>
    <!--junit-->
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.11</version>
    <scope>test</scope>
  </dependency>
  <!-- 加入ServletAPI -->
  <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>3.1.0</version>
    <scope>provided</scope>
  </dependency>
  <!-- MySQL依赖 start -->
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.38</version>
  </dependency>
  <!-- 加入MyBatis 依赖 start -->
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis</artifactId>
    <version>3.2.8</version>
  </dependency>
  <!-- 引入Spring(包含SpringMVC) 依赖 start -->
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-core</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-web</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-oxm</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-tx</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aop</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context-support</artifactId>
    <version>${springversion}</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-test</artifactId>
    <version>${springversion}</version>
  </dependency>
  <!-- 引用插件依赖：MyBatis整合Spring,如果mybatis版本在3.4及以上版本
  mybatis-spring的版本要在1.3以上 -->
  <dependency>
    <groupId>org.mybatis</groupId>
    <artifactId>mybatis-spring</artifactId>
    <version>1.2.2</version>
  </dependency>
  <!-- JSTL -->
  <dependency>
    <groupId>jstl</groupId>
    <artifactId>jstl</artifactId>
    <version>1.2</version>
  </dependency>
  <!-- 德鲁伊数据连接池 -->
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid</artifactId>
    <version>1.0.9</version>
  </dependency>
  <!-- pagehelper -->
  <dependency>
    <groupId>com.github.pagehelper</groupId>
    <artifactId>pagehelper</artifactId>
    <version>4.1.6</version>
  </dependency>
  <!--处理json-->
  <dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.9.5</version>
  </dependency>
  <!--javaee-->
  <dependency>
    <groupId>javax</groupId>
    <artifactId>javaee-api</artifactId>
    <version>7.0</version>
    <scope>provided</scope>
  </dependency>
  <!--文件上传下载-->
  <dependency>
    <groupId>commons-fileupload</groupId>
    <artifactId>commons-fileupload</artifactId>
    <version>1.3.1</version>
  </dependency>
  <dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.4</version>
  </dependency>
</dependencies>

applicationContext.xml配置(Spring)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd
                           http://www.springframework.org/schema/mvc
                           http://www.springframework.org/schema/mvc/spring-mvc.xsd
                           http://www.springframework.org/schema/tx
                           http://www.springframework.org/schema/tx/spring-tx.xsd
">
    <!--applicationContext.xml配置的八件事-->
    <!--配置数据源-->
    <bean id="db" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
        <property name="url" value="jdbc:mysql://localhost:3306/test?useUnicode=true&amp;characterEncoding=utf8"></property>
        <property name="username" value="root"></property>
        <property name="password" value="root"></property>
    </bean>
    <!--创建SqlSessionFactory-->
    <bean id="fac" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="db"></property>
        <!--指定mybatis的配置文件路径-->
        <property name="configLocation" value="classpath:mybatis-config.xml"></property>
        <!--指定mapper位置，在mapper文件夹下-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"></property>
    </bean>
    <!--二选一即可-->
    <!--1.实例化Dao层，创建SqlSessionTemplate，没有无参构造-->
    <bean class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg index="0" ref="fac"></constructor-arg>
    </bean>
    <!--2.不用实例化Dao层，创建MapperScannerConfigurer，可省略实现类-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="fac"></property>
        <!--接口所在的包路径-->
        <property name="basePackage" value="com.hsp.dao"></property>
    </bean>
    <!--配置事务-->
    <bean id="mytx" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="db"></property>
    </bean>
    <tx:annotation-driven transaction-manager="mytx"></tx:annotation-driven>
    <!--启用mvc注解-->
    <mvc:annotation-driven></mvc:annotation-driven>
    <!--配置视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
    <!--扫描注解包-->
    <context:component-scan base-package="com.hsp"></context:component-scan>
    <!--配置静态资源访问-->
    <mvc:default-servlet-handler></mvc:default-servlet-handler>
</beans>

web.xml配置

<!--默认头信息是2.3的，需要修改下头信息-->
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">

	<!--配置前端控制器-->
    <servlet>
        <servlet-name>mvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
    </servlet>
    <servlet-mapping>
        <servlet-name>mvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <!--处理乱码-->
    <filter>
        <filter-name>aa</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>aa</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--给包起别名-->
    <!--<typeAliases>
        <package name="com.hsp.bean"/>
    </typeAliases>-->

    <!--分页插件-->
    <plugins>
        <plugin interceptor="com.github.pagehelper.PageHelper">
            <property name="dialect" value="mysql"/>
        </plugin>
    </plugins>
</configuration>

mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="接口的完整路径">

</mapper>

例

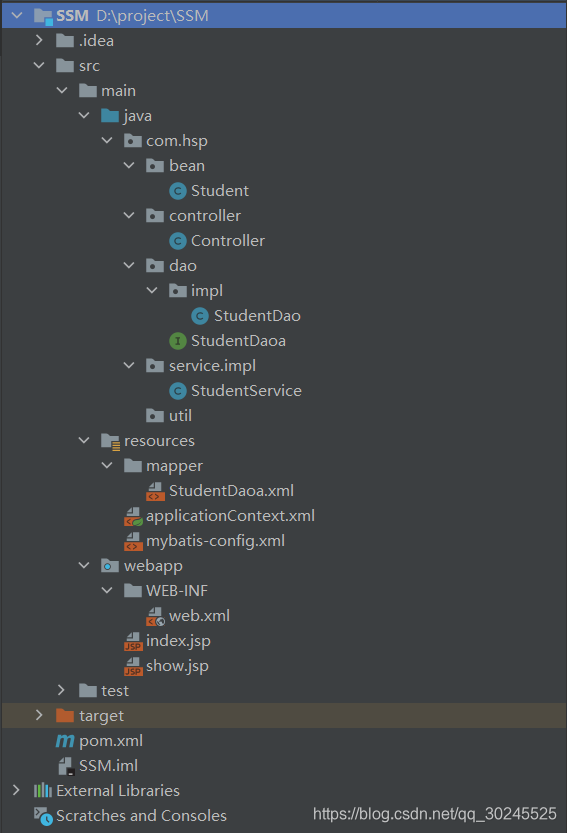

包结构

在这里插入图片描述

数据库

在这里插入图片描述

bean层

package com.hsp.bean;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.ToString;
import org.springframework.stereotype.Component;

@Data
@ToString
@AllArgsConstructor
@NoArgsConstructor
@Component
public class Student {
    private int id;
    private String Name;
}

dao层

实现类

package com.hsp.dao.impl;

import com.hsp.bean.Student;
import org.mybatis.spring.SqlSessionTemplate;
import org.springframework.stereotype.Repository;

import javax.annotation.Resource;
import java.util.List;
@Repository
public class StudentDao implements com.hsp.dao.StudentDaoa {
    @Resource
    private SqlSessionTemplate sqlSessionTemplate;
    public List<Student> getAll(){
        return sqlSessionTemplate.selectList("com.hsp.dao.StudentDaoa.getAll");
    }
}

接口

package com.hsp.dao;

import com.hsp.bean.Student;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public interface StudentDaoa {

    public List<Student> getAll();
}

Service层

package com.hsp.service.impl;


import com.hsp.bean.Student;
import com.hsp.dao.StudentDaoa;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;

@Service
public class StudentService {
    @Resource
    private StudentDaoa dao;
    public List<Student> getAll(){
        return dao.getAll();
    }
}

控制层

package com.hsp.controller;

import com.hsp.bean.Student;
import com.hsp.service.impl.StudentService;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;


import javax.annotation.Resource;
import java.util.List;
@org.springframework.stereotype.Controller
public class Controller {
    @Resource
    private StudentService studentService;

    @RequestMapping("/text")
    public String getAll(ModelMap map){

        List<Student> students = studentService.getAll();
        for (Student student : students) {
            System.out.println(student);
        }
        map.addAttribute("stu",students);
        return "show";
    }
}

index.jsp

<%--
  Created by IntelliJ IDEA.
  User: 何世鹏
  Date: 2020/12/22
  Time: 16:29
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
    <a href="/text">text</a>
</body>
</html>

show.jsp

<%--
  Created by IntelliJ IDEA.
  User: 何世鹏
  Date: 2020/12/22
  Time: 16:34
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
    <c:forEach items="${stu}" var="student">
    ${student.id}--${student.name}<br>
    </c:forEach>
</body>
</html>

结果

在这里插入图片描述
