SpringCloud 笔记

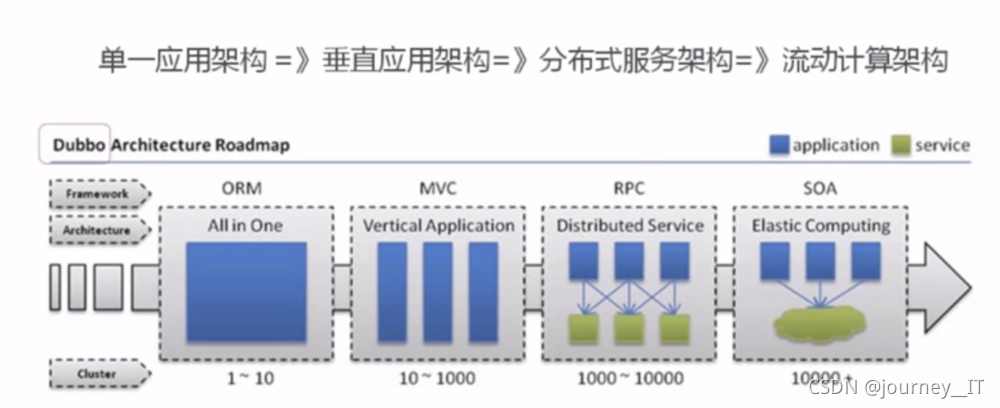

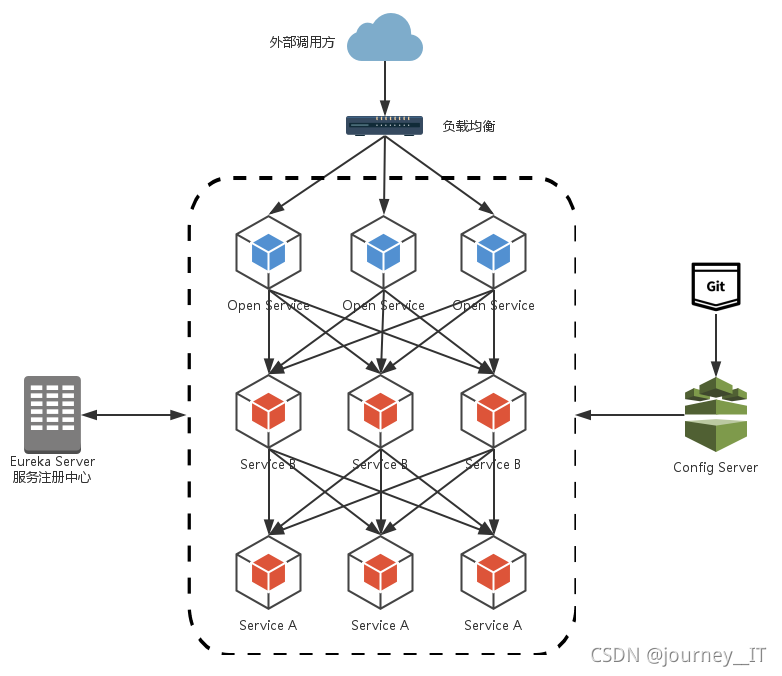

简单微服务架构

微服务架构的基础框架/组件

• 服务注册发现
• 服务网关(Service Gateway)
• 后端通用服务(也称中间层服务Middle Tier Service)
• 前端服务(也称边缘服务Edge Service)

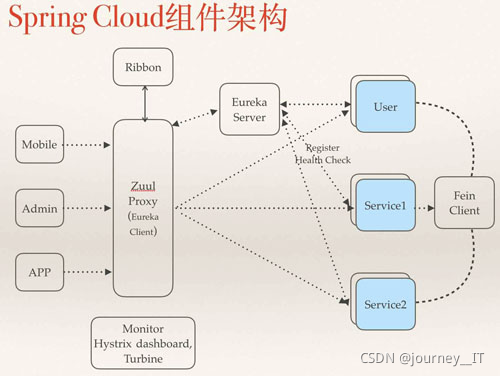

SpringCloud架构

• 所有请求都统一通过 API 网关(Zuul)来访问内部服务。
• 网关接收到请求后，从注册中心(Eureka)获取可用服务。
• 由 Ribbon 进行均衡负载后，分发到后端的具体实例。

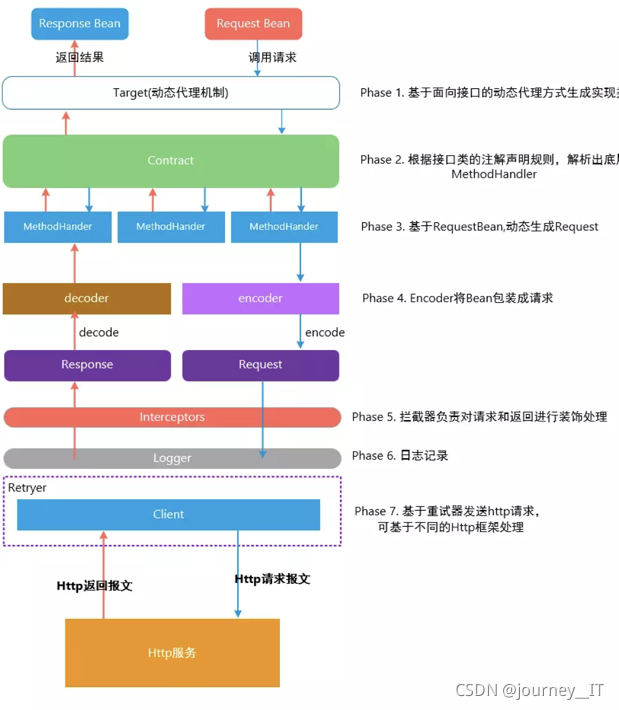

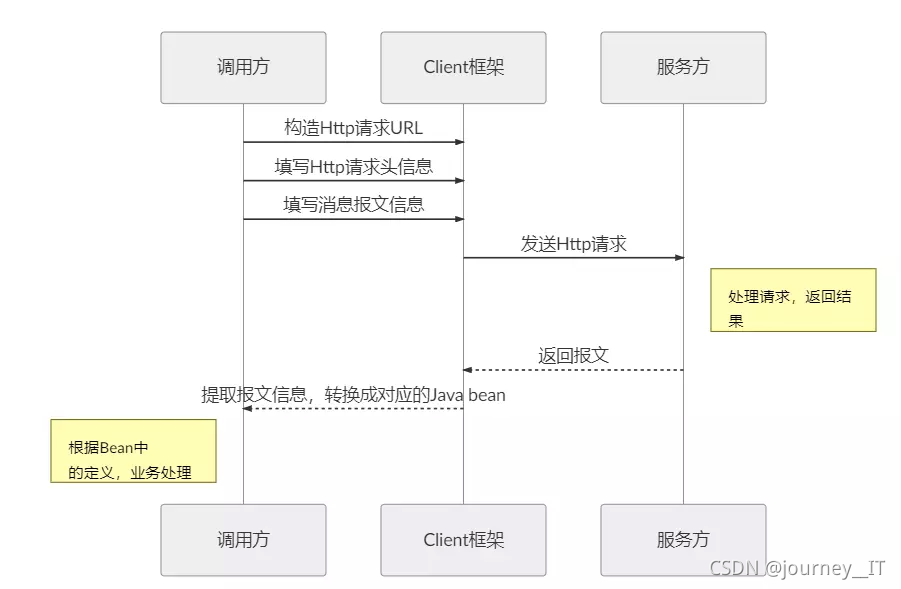

• 微服务之间通过 Feign 进行通信处理业务。
• Hystrix 负责处理服务超时熔断。
• Turbine 监控服务间的调用和熔断相关指标。

两大”配方“

阿里系

• Dubbo
• zookeeper
• springmvc or springboot
• ...

SpringCloud

• spring cloud netflix eureka
• springboot
• ...

SpringCloud 是什么

SpringCloud 是一个开发工具集，包含多个子项目

• 利用springboot 的开发便利
• 主要是基于对Netflix 开源组件的进一步封装

SpringCloud 简化了分布式开发

• 分布式/版本化配置。
• 服务注册和发现。
• 路由。
• 服务和服务之间的调用。
• 负载均衡。
• 断路器。
• 分布式消息传递。

掌握如何使用，更要理解分布式、架构的特点

Spring Cloud 工具框架

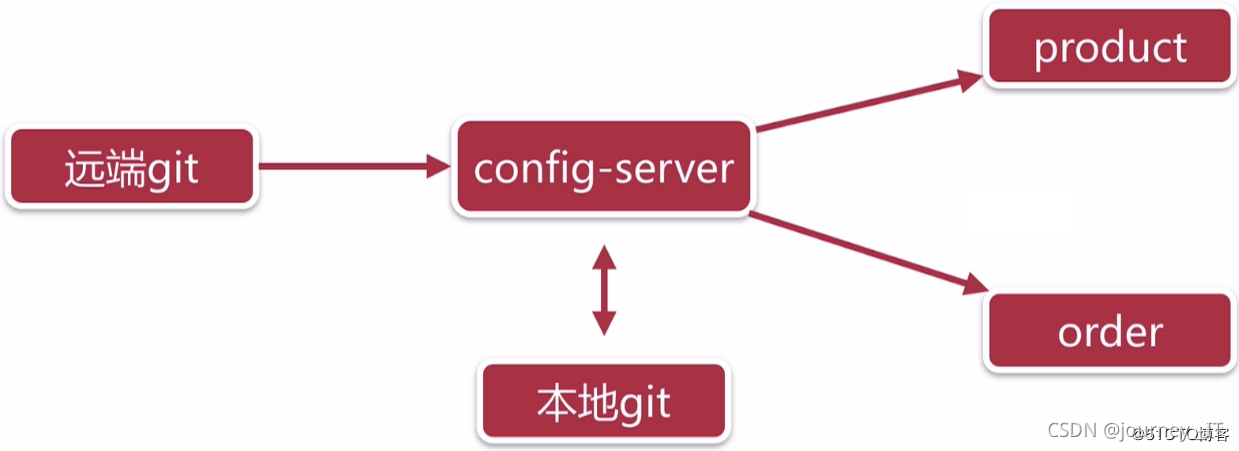

• Spring Cloud Config，配置中心，利用 git 集中管理程序的配置。
• Spring Cloud Netflix，集成众多 Netflix 的开源软件。

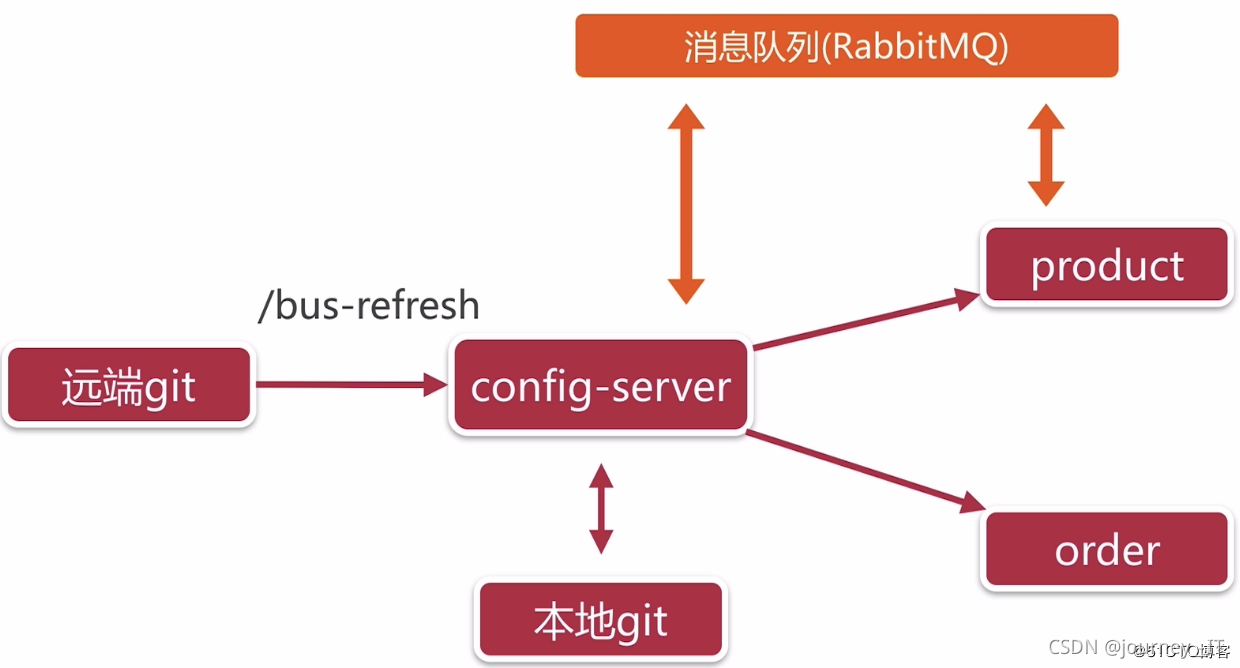

• Spring Cloud Bus，消息总线，利用分布式消息将服务和服务实例连接在一起，用于在一个集群中传播状态的变化 。
• Spring Cloud for Cloud Foundry，利用 Pivotal Cloudfoundry 集成你的应用程序。
• Spring Cloud Foundry Service Broker，为建立管理云托管服务的服务代理提供了一个起点。
• Spring Cloud Cluster，基于 Zookeeper、Redis、Hazelcast、Consul 实现的领导选举和平民状态模式的抽象和实现。
• Spring Cloud Consul，基于 Hashicorp Consul 实现的服务发现和配置管理。
• Spring Cloud Security，在 Zuul 代理中为 OAuth2 rest 客户端和认证头转发提供负载均衡。
• Spring Cloud Sleuth Spring Cloud，应用的分布式追踪系统和 Zipkin、HTrace、ELK 兼容。
• Spring Cloud Data Flow，一个云本地程序和操作模型，组成数据微服务在一个结构化的平台上。
• Spring Cloud Stream，基于 Redis、Rabbit、Kafka 实现的消息微服务，简单声明模型用以在 Spring Cloud 应用中收发消息。
• Spring Cloud Stream App Starters，基于 Spring Boot 为外部系统提供 Spring 的集成。
• Spring Cloud Task，短生命周期的微服务，为 Spring Boot 应用简单声明添加功能和非功能特性。
• Spring Cloud Task App Starters。
• Spring Cloud Zookeeper，服务发现和配置管理基于 Apache Zookeeper。
• Spring Cloud for Amazon Web Services，快速和亚马逊网络服务集成。
• Spring Cloud Connectors，便于 PaaS 应用在各种平台上连接到后端像数据库和消息经纪服务。
• Spring Cloud Starters，项目已经终止并且在 Angel.SR2 后的版本和其他项目合并。
• Spring Cloud CLI，插件用 Groovy 快速的创建 Spring Cloud 组件应用。

Spring Cloud Eureka

基于Netflix Eureka 做了二次封装

两个组件组成

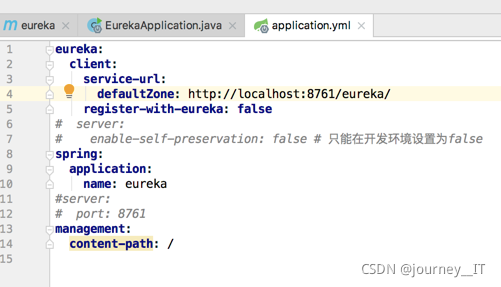

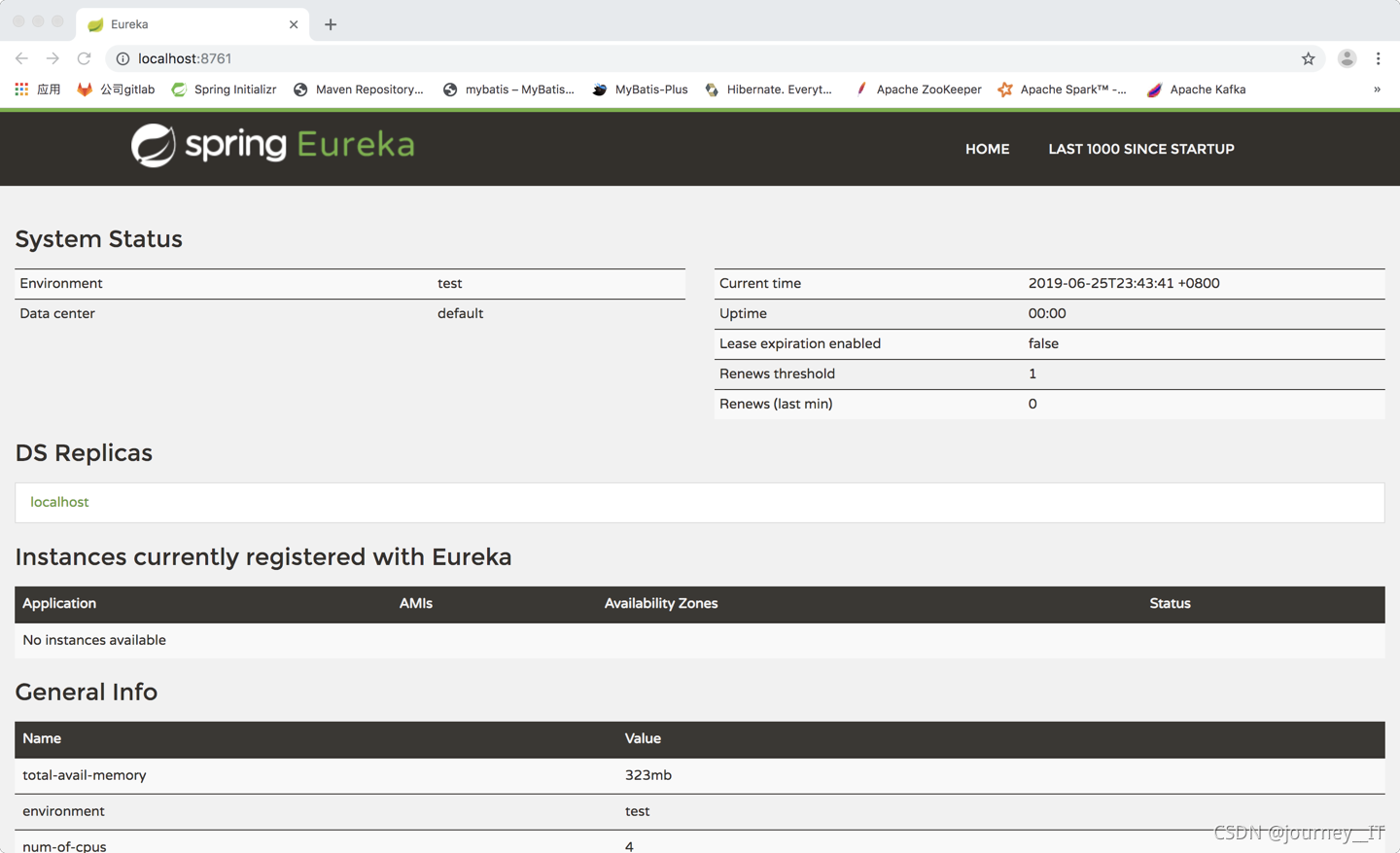

Eureka Server 注册中心

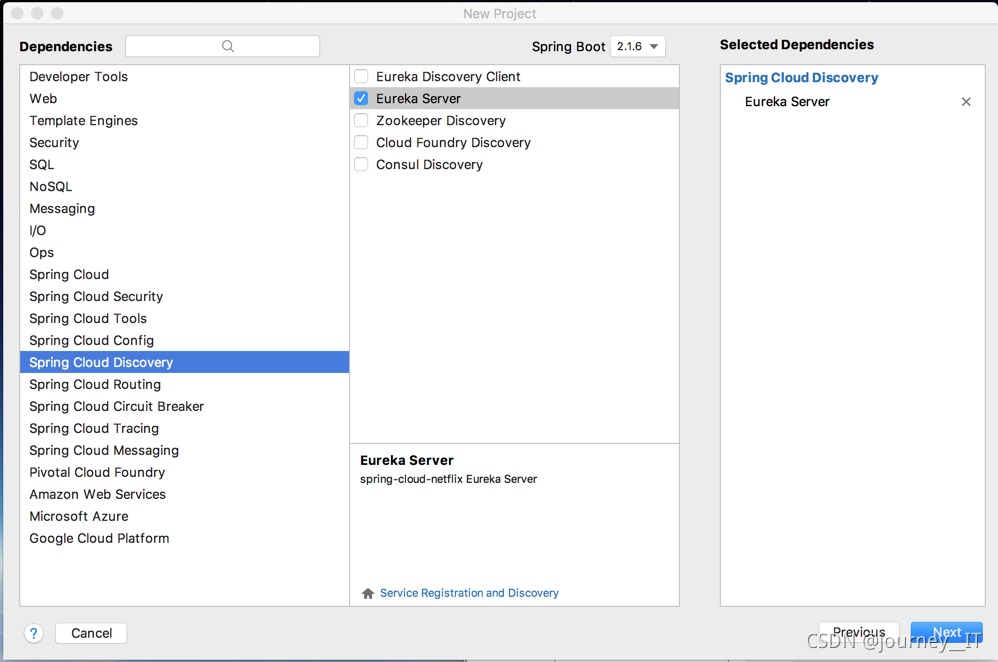

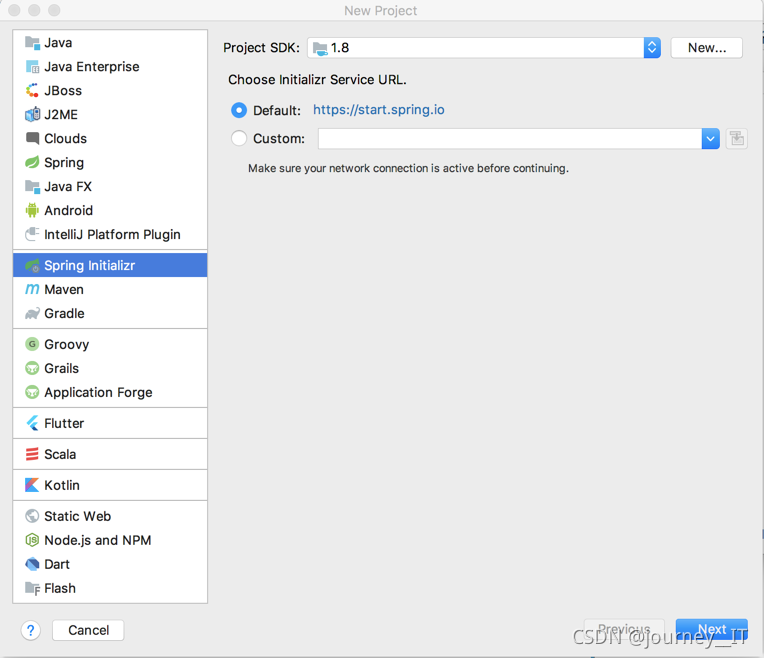

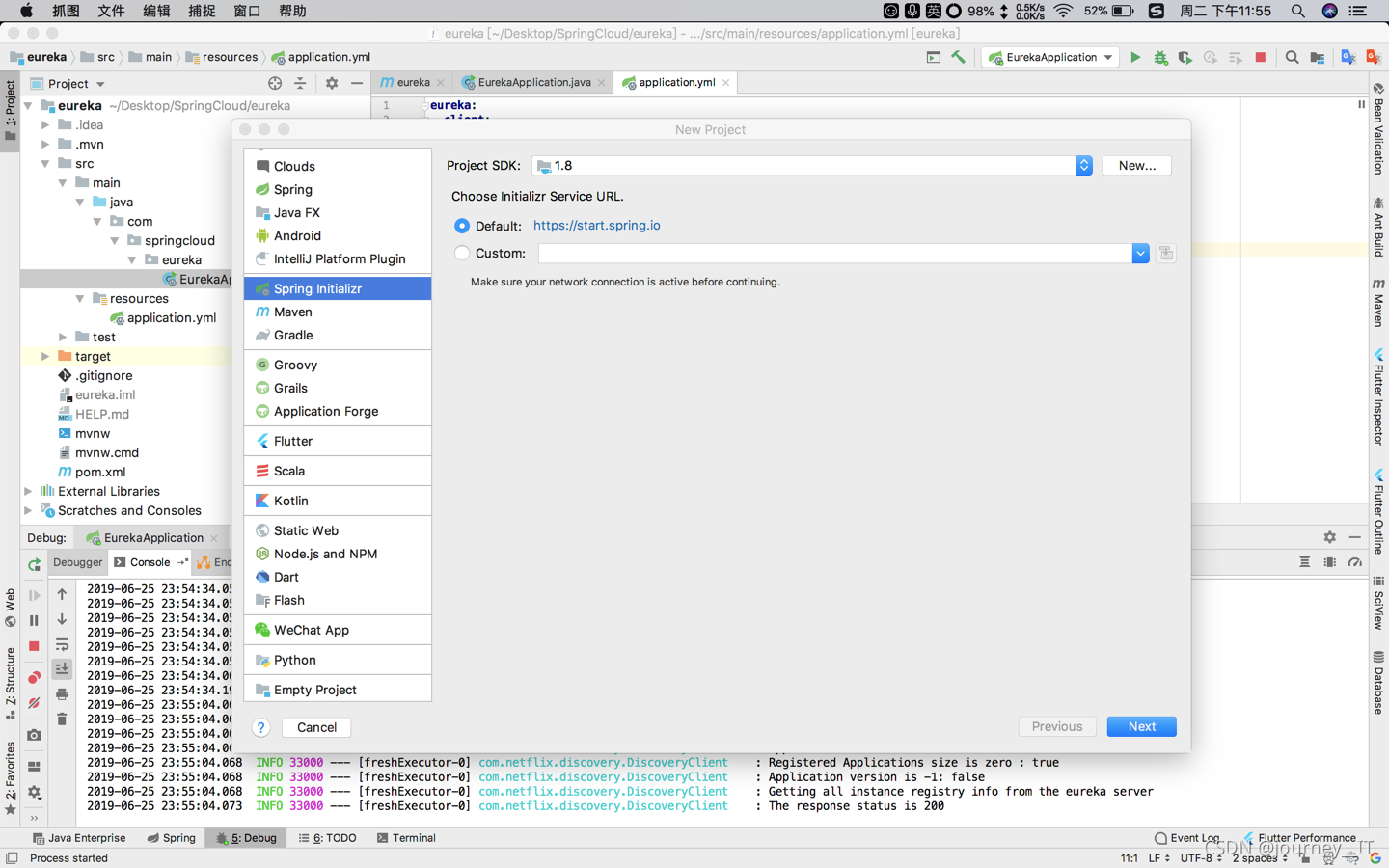

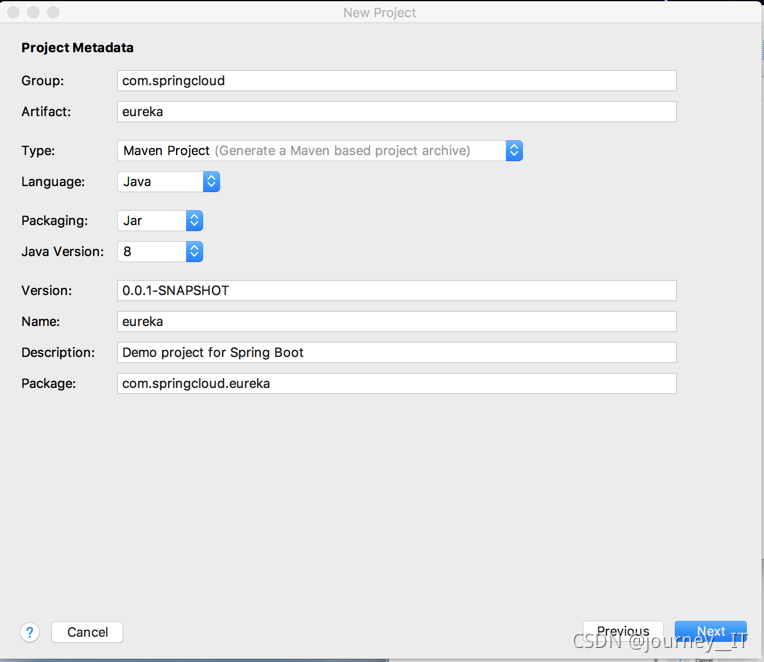

一、创建
二、打包并运行

1. 项目更目录下面运行打包命令 mvn clean package
2. java -jar xxxx.jar 启动(后台运行 nohup java -jar xxxxx.jar > /dev/null 2>&1 &)

Eureka Client 服务注册

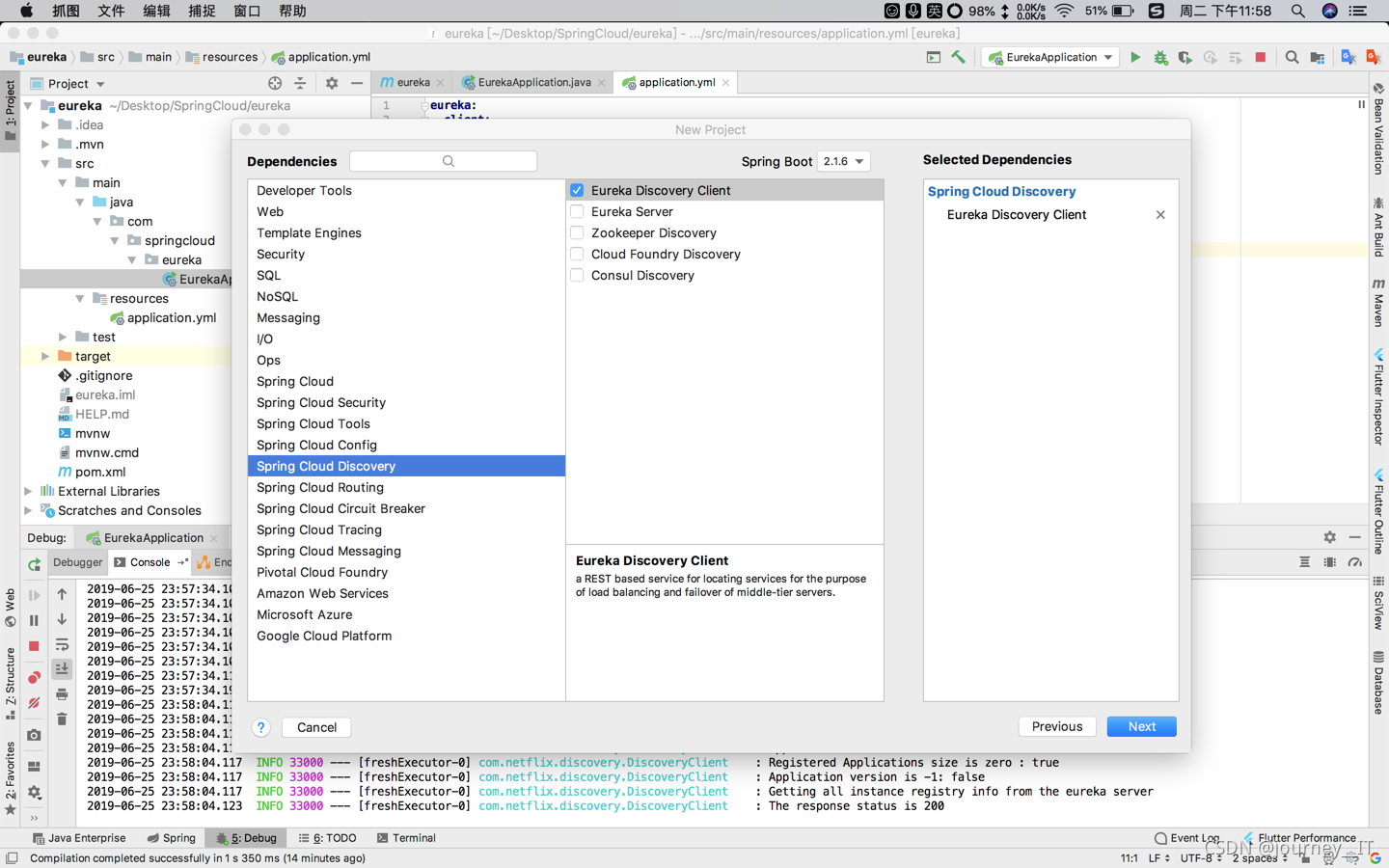

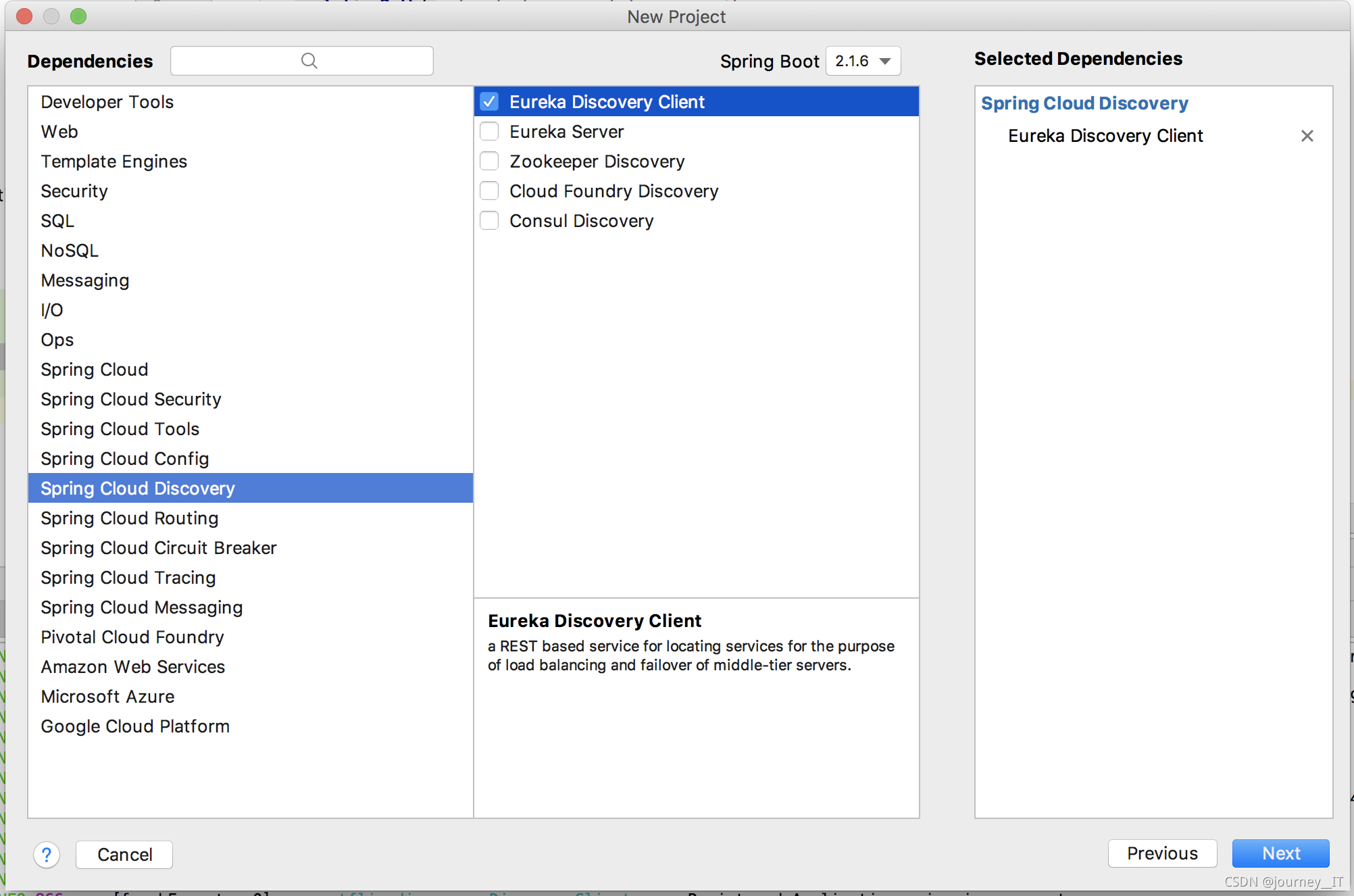

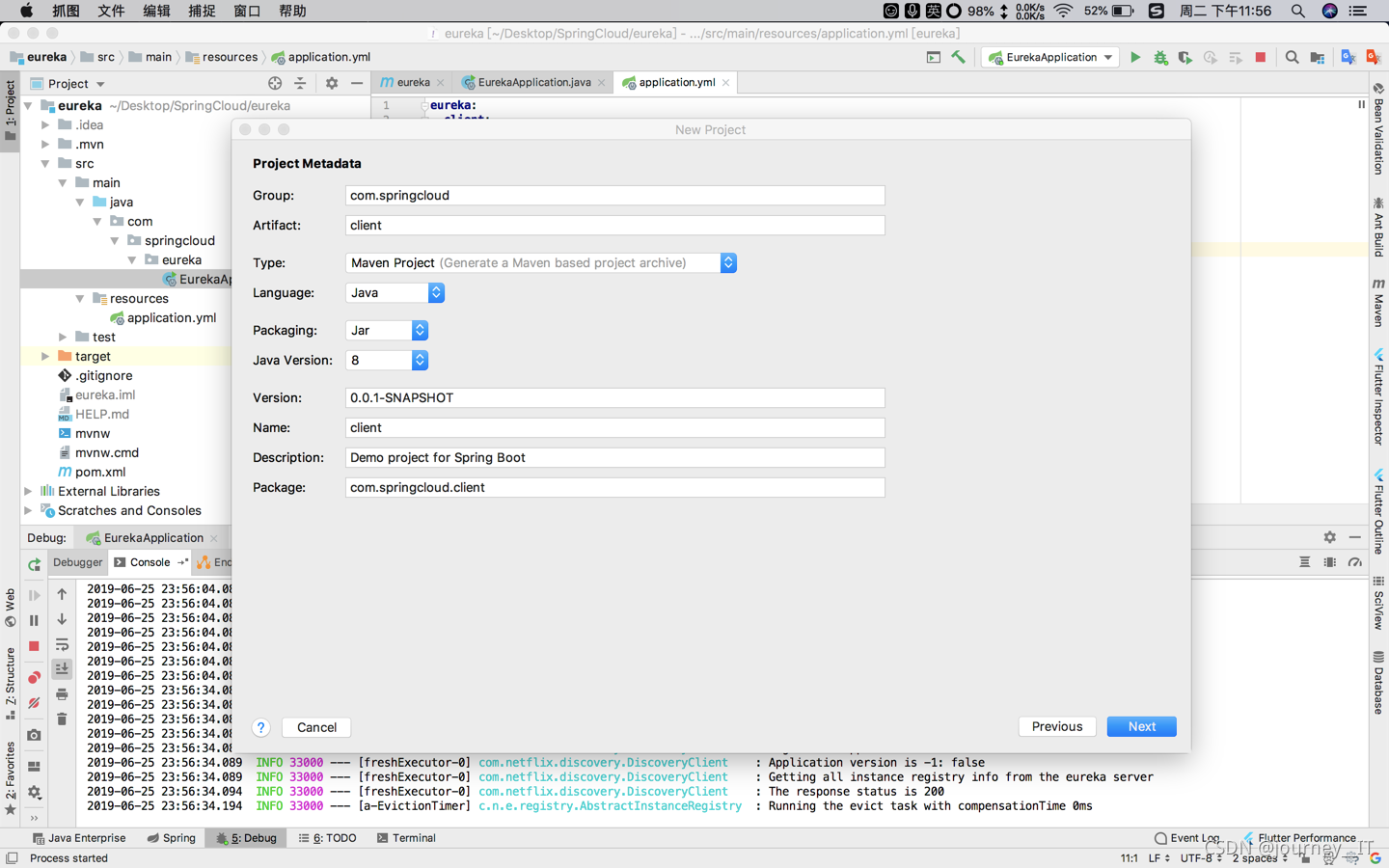

一、创建

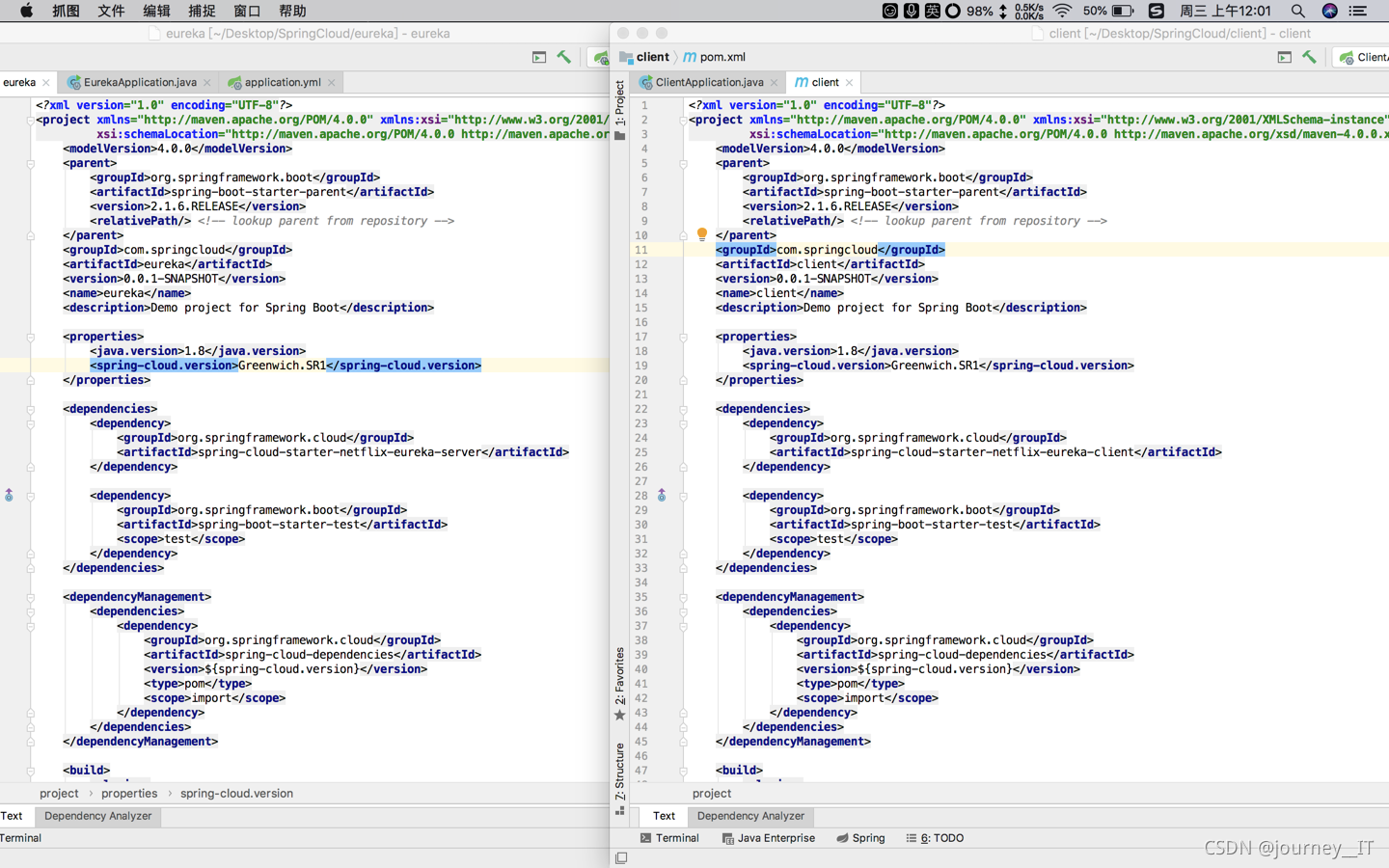

统一版本

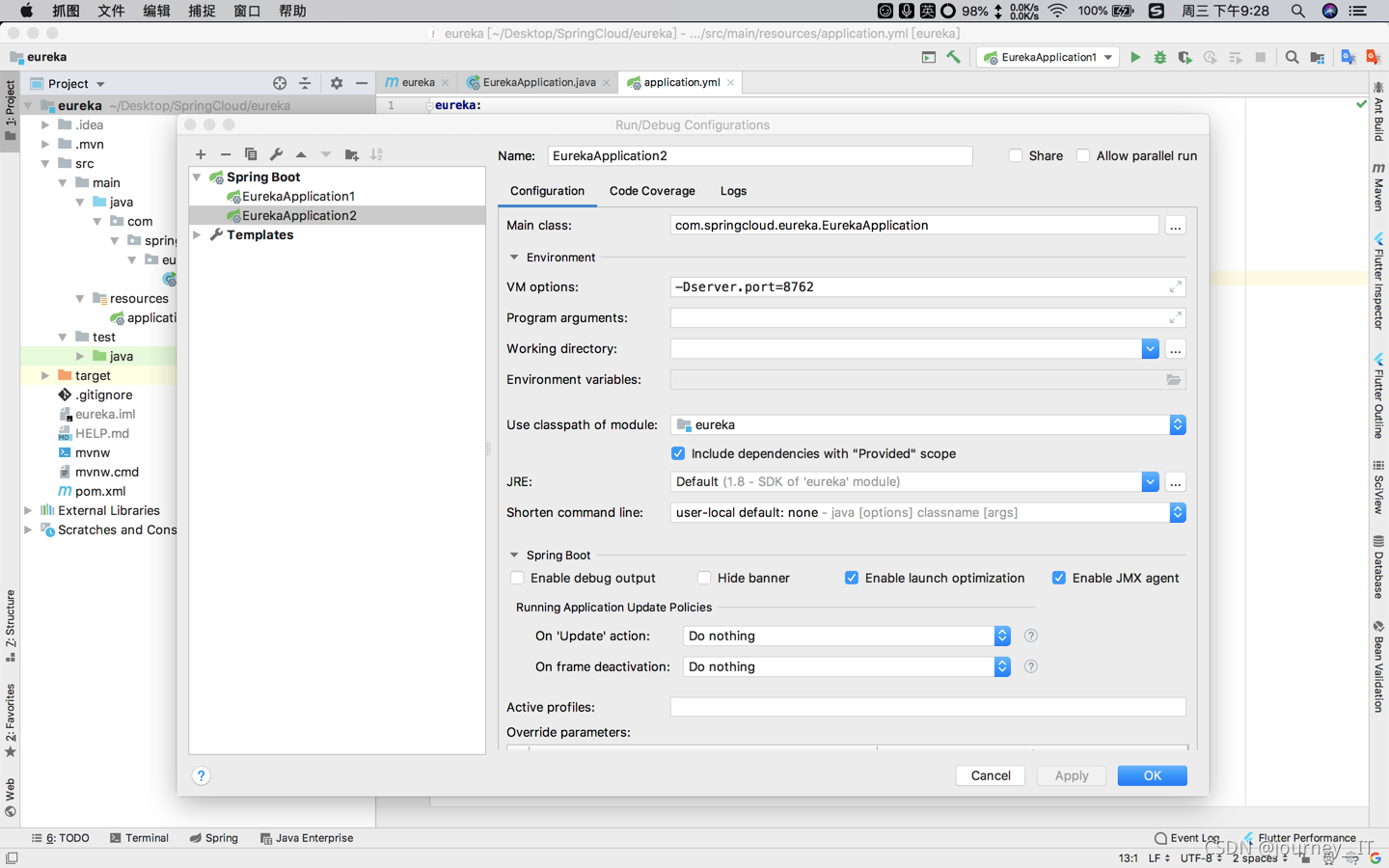

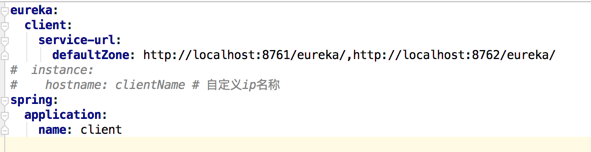

高可用

spring-cloud为基础的微服务架构，所有的微服务都需要注册到注册中心，如果这个注册中心阻塞或者崩了，那么整个系统都无法继续正常提供服务，所以，这里就需要对注册中心进行集群，换言之，高可用(HA)

服务发现的两种方式

• 客户端发现
  • Eureka
• 服务端发现
  • Nginx
  • Dubbo、Zookeeper
  • Kubernetes

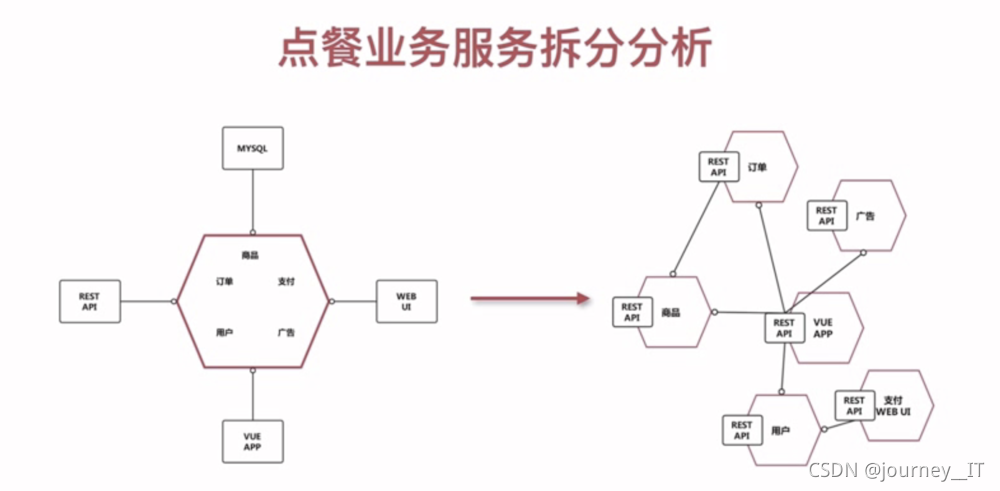

微服务中的服务拆分

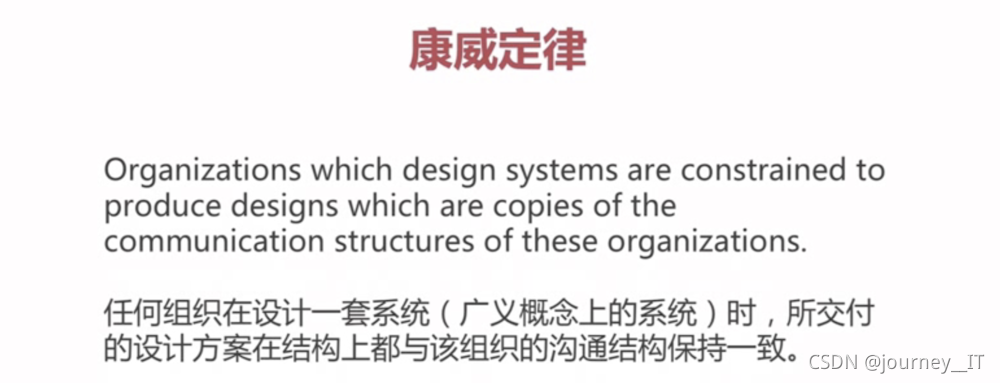

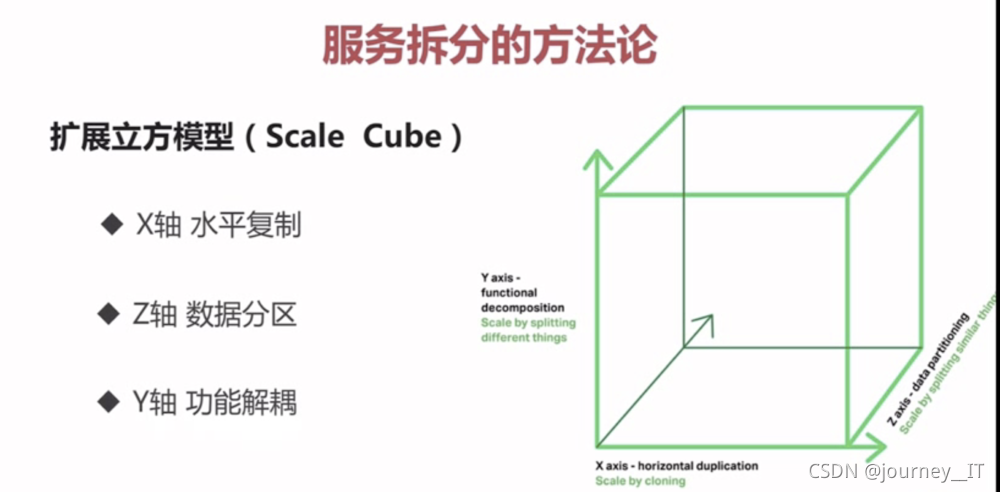

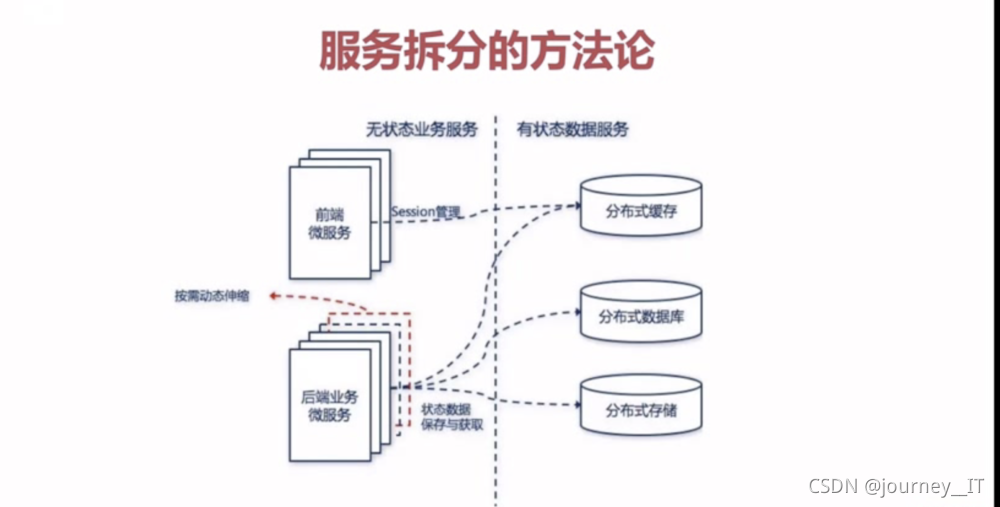

服务拆分的方法论

如何拆“功能”

• 单一职责，松耦合、高内聚
• 关注点分离
  • 按职责
  • 按通用性
  • 按粒度级别

服务和数据的关系

• 先考虑业务功能，再考虑数据
• 无状态服务

商品服务API和SQL介绍

API

商品列表

GET /product/list

参数

无

返回

{
    "code": 0,
    "msg": "成功",
    "data": [
        {
            "name": "热榜",
            "type": 1,
            "foods": [
                {
                    "id": "123456",
                    "name": "皮蛋粥",
                    "price": 1.2,
                    "description": "好吃的皮蛋粥",
                    "icon": "http://xxx.com",
                }
            ]
        },
        {
            "name": "好吃的",
            "type": 2,
            "foods": [
                {
                    "id": "123457",
                    "name": "慕斯蛋糕",
                    "price": 10.9,
                    "description": "美味爽口",
                    "icon": "http://xxx.com",
                }
            ]
        }
    ]
}

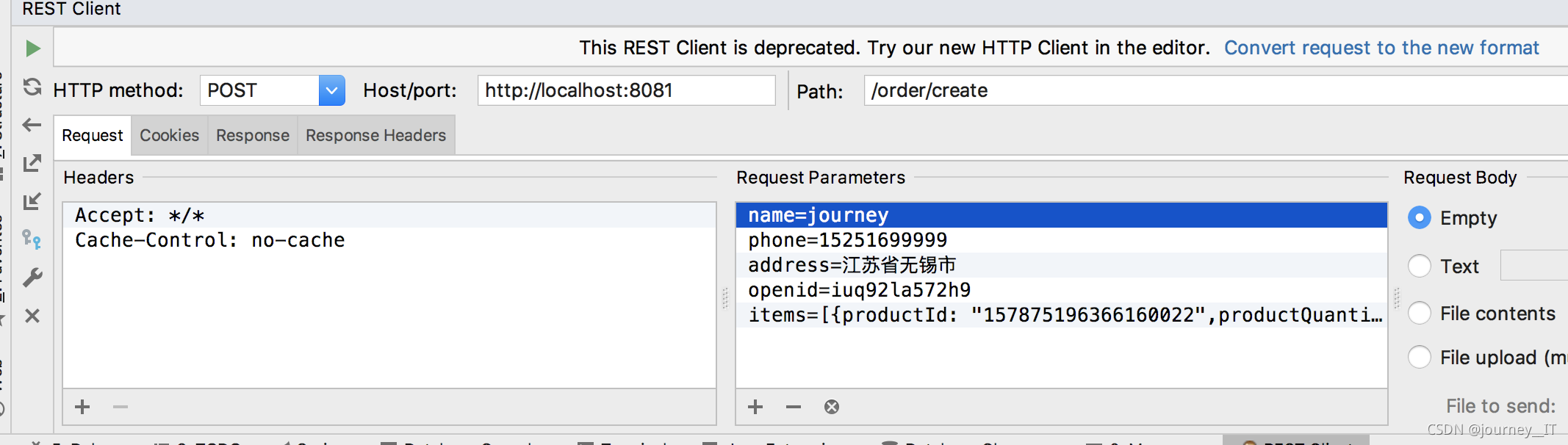

创建订单

POST /order/create

参数

name: "张三"
phone: "18868822111"
address: "慕课网总部"
openid: "ew3euwhd7sjw9diwkq" //用户的微信openid
items: [{
    productId: "1423113435324",
    productQuantity: 2 //购买数量
}]

返回

{
  "code": 0,
  "msg": "成功",
  "data": {
      "orderId": "147283992738221"
  }
}

买家登录

GET /login/buyer

参数

openid: abc

返回

cookie里设置openid=abc

{
    code: 0,
    msg: "成功",
    data: null
}

卖家登录

GET /login/seller

参数

openid: xyz

返回

cookie里设置token=UUID, redis设置key=UUID, value=xyz

{
    code: 0,
    msg: "成功",
    data: null
}

SQL

-- 类目
create table `product_category` (
    `category_id` int not null auto_increment,
    `category_name` varchar(64) not null comment '类目名字',
    `category_type` int not null comment '类目编号',
    `create_time` timestamp not null default current_timestamp comment '创建时间',
    `update_time` timestamp not null default current_timestamp on update current_timestamp comment '修改时间',
    primary key (`category_id`),
    unique key `uqe_category_type` (`category_type`)
);
INSERT INTO `product_category` (`category_id`, `category_name`, `category_type`, `create_time`, `update_time`)
VALUES
	(1,'热榜',11,'2017-03-28 16:40:22','2017-11-26 23:39:36'),
	(2,'好吃的',22,'2017-03-14 17:38:46','2017-11-26 23:39:40');

-- 商品
create table `product_info` (
    `product_id` varchar(32) not null,
    `product_name` varchar(64) not null comment '商品名称',
    `product_price` decimal(8,2) not null comment '单价',
    `product_stock` int not null comment '库存',
    `product_description` varchar(64) comment '描述',
    `product_icon` varchar(512) comment '小图',
    `product_status` tinyint(3) DEFAULT '0' COMMENT '商品状态,0正常1下架',
    `category_type` int not null comment '类目编号',
    `create_time` timestamp not null default current_timestamp comment '创建时间',
    `update_time` timestamp not null default current_timestamp on update current_timestamp comment '修改时间',
    primary key (`product_id`)
);
INSERT INTO `product_info` (`product_id`, `product_name`, `product_price`, `product_stock`, `product_description`, `product_icon`, `product_status`, `category_type`, `create_time`, `update_time`)
VALUES
	('157875196366160022','皮蛋粥',0.01,39,'好吃的皮蛋粥','//fuss10.elemecdn.com/0/49/65d10ef215d3c770ebb2b5ea962a7jpeg.jpeg',0,1,'2017-03-28 19:39:15','2017-07-02 11:45:44'),
	('157875227953464068','慕斯蛋糕',10.90,200,'美味爽口','//fuss10.elemecdn.com/9/93/91994e8456818dfe7b0bd95f10a50jpeg.jpeg',1,1,'2017-03-28 19:35:54','2017-04-21 10:05:57'),
	('164103465734242707','蜜汁鸡翅',0.02,982,'好吃','//fuss10.elemecdn.com/7/4a/f307f56216b03f067155aec8b124ejpeg.jpeg',0,1,'2017-03-30 17:11:56','2017-06-24 19:20:54');

-- 订单
create table `order_master` (
    `order_id` varchar(32) not null,
    `buyer_name` varchar(32) not null comment '买家名字',
    `buyer_phone` varchar(32) not null comment '买家电话',
    `buyer_address` varchar(128) not null comment '买家地址',
    `buyer_openid` varchar(64) not null comment '买家微信openid',
    `order_amount` decimal(8,2) not null comment '订单总金额',
    `order_status` tinyint(3) not null default '0' comment '订单状态, 默认为新下单',
    `pay_status` tinyint(3) not null default '0' comment '支付状态, 默认未支付',
    `create_time` timestamp not null default current_timestamp comment '创建时间',
    `update_time` timestamp not null default current_timestamp on update current_timestamp comment '修改时间',
    primary key (`order_id`),
    key `idx_buyer_openid` (`buyer_openid`)
);

-- 订单商品
create table `order_detail` (
    `detail_id` varchar(32) not null,
    `order_id` varchar(32) not null,
    `product_id` varchar(32) not null,
    `product_name` varchar(64) not null comment '商品名称',
    `product_price` decimal(8,2) not null comment '当前价格,单位分',
    `product_quantity` int not null comment '数量',
    `product_icon` varchar(512) comment '小图',
    `create_time` timestamp not null default current_timestamp comment '创建时间',
    `update_time` timestamp not null default current_timestamp on update current_timestamp comment '修改时间',
    primary key (`detail_id`),
    key `idx_order_id` (`order_id`)
);

-- 用户
CREATE TABLE `user_info` (
  `id` varchar(32) NOT NULL,
  `username` varchar(32) DEFAULT '',
  `password` varchar(32) DEFAULT '',
  `openid` varchar(64) DEFAULT '' COMMENT '微信openid',
  `role` tinyint(1) NOT NULL COMMENT '1买家2卖家',
  `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',
  PRIMARY KEY (`id`)
);

商品服务编码实战

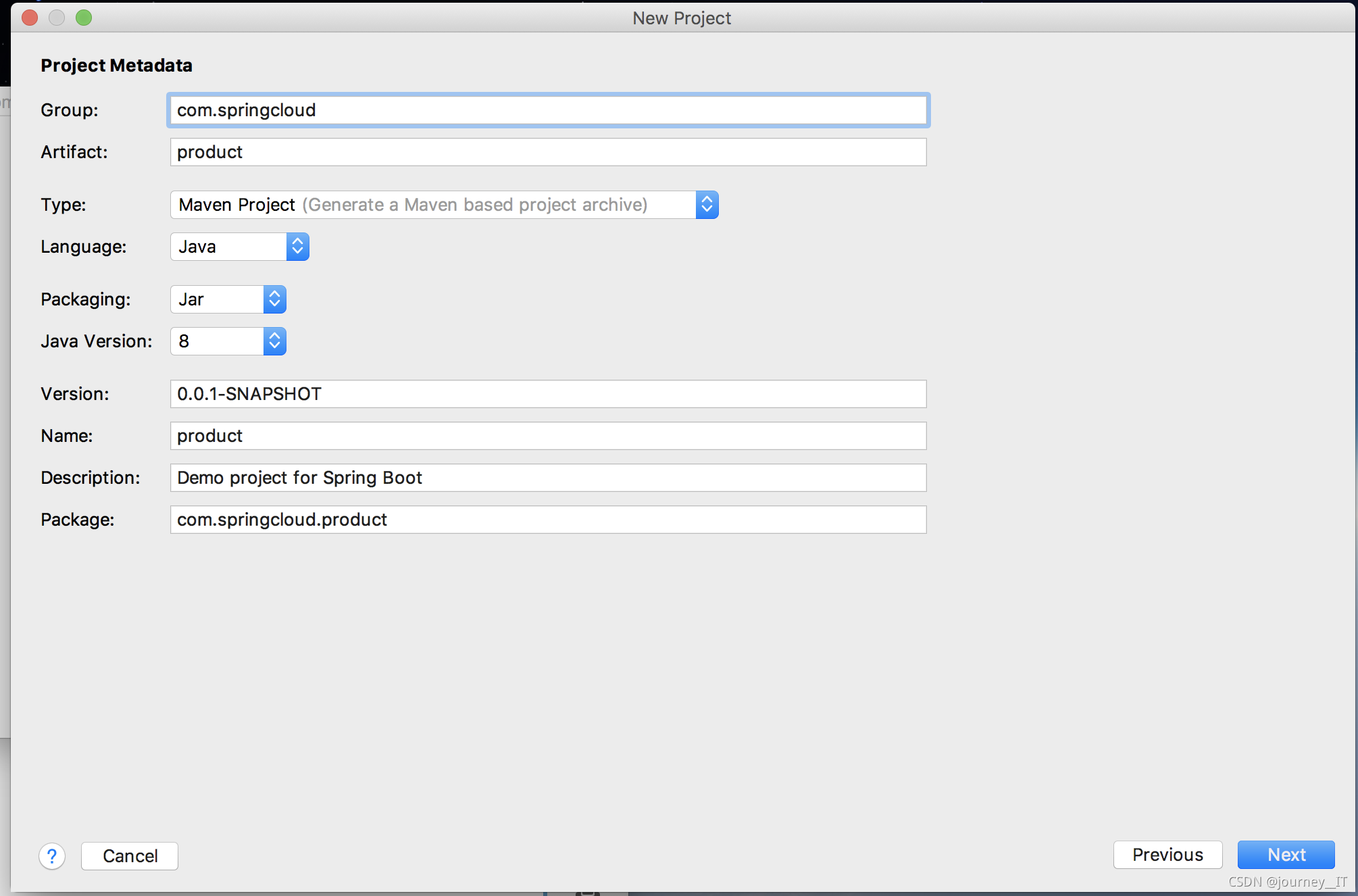

一、创建

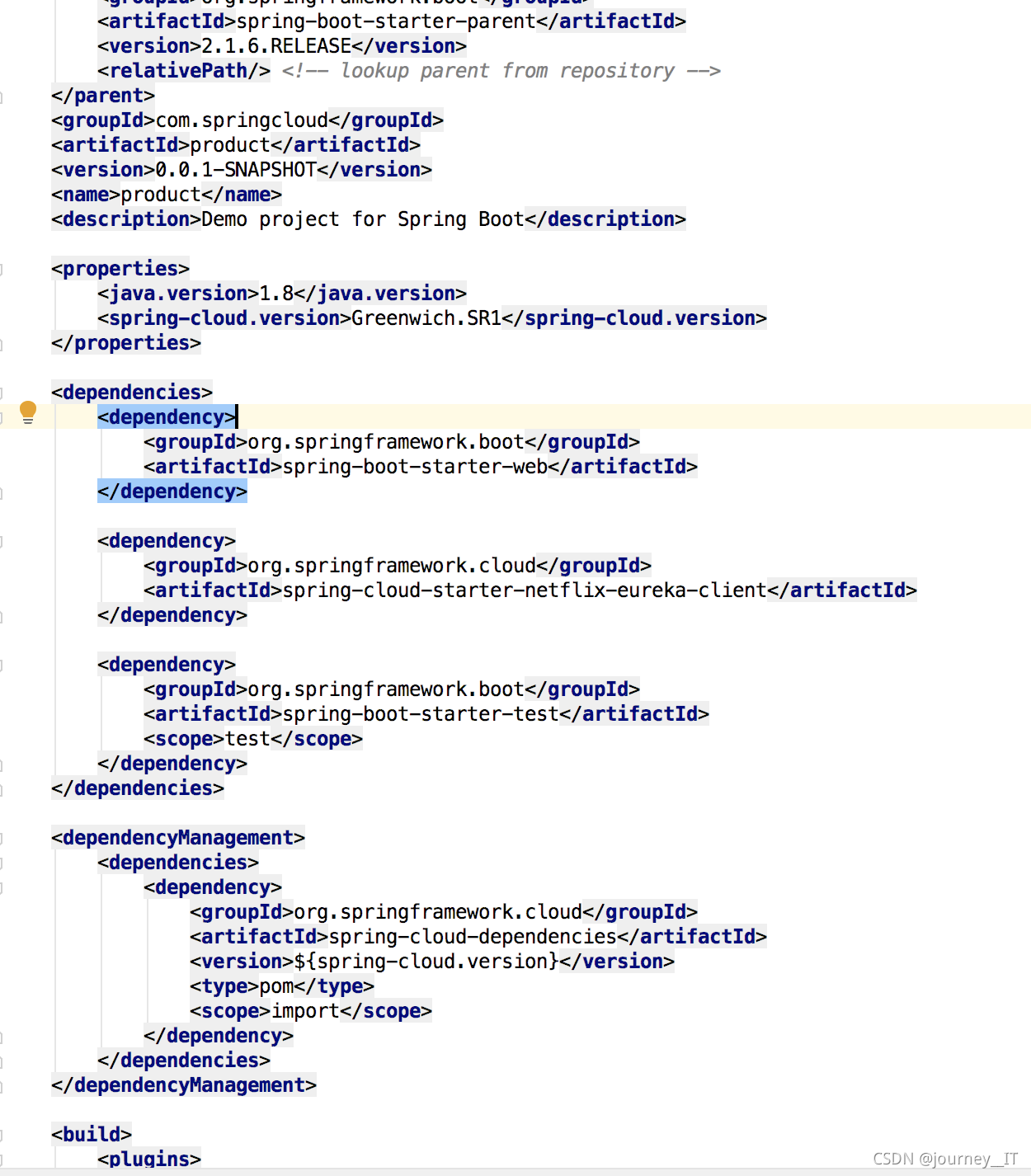

二、项目初始化pom文件

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

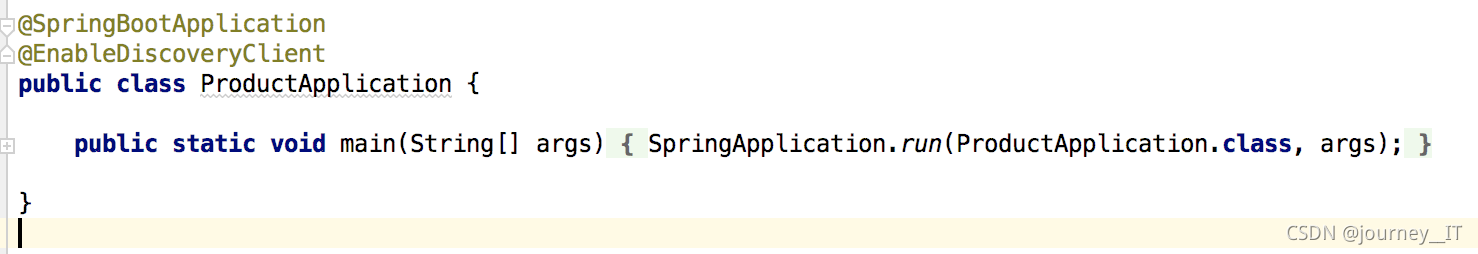

三、启动类添加该注解
四、基础配置
五、添加数据库依赖

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
	<version>5.1.34</version>
</dependency>

添加配置

spring:
  application:
    name: product
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://192.168.180.199:3306/SpringCloud_Sell?characterEncoding=utf-8&useSSL=false
  jpa:
    show-sql: true
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka

六、添加lombok

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
</dependency>

七、测试

1. 商品查询测试

编写实体类

package com.springcloud.product.dataobject;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
import java.math.BigDecimal;
import java.util.Date;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-27
 * @Time: 22:36
 * @ProjectName: product
 * @Name: ProductInfo
 * @Version: 1.0.0
 * @Description: 商品实体类
 */

//@Table(name = "T_xxxxxxx")
@Data
@Entity
public class ProductInfo {
    @Id
    private String productId;
    private String productName;
    private BigDecimal productPrice;
    private Integer productStock;
    private String productDescription;
    private String productIcon;
    private Integer productStatus;
    private Integer categoryType;
    private Date createTime;
    private Date updateTime;
}

编写商品repository接口

package com.springcloud.product.repository;

import com.springcloud.product.dataobject.ProductInfo;
import org.springframework.data.jpa.repository.JpaRepository;

import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-27
 * @Time: 22:36
 * @ProjectName: product
 * @Name: ProductInfoRepository
 * @Version: 1.0.0
 * @Description: 商品repository接口
 */
public interface ProductInfoRepository extends JpaRepository<ProductInfo,String> {
    /**
     * 通过状态查询商品
     * @param productStatus
     * @return
     */
    List<ProductInfo> findByProductStatus(Integer productStatus);
}

编写测试类

package com.springcloud.product.repository;

import com.springcloud.product.dataobject.ProductInfo;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.util.List;

@RunWith(SpringRunner.class)
@SpringBootTest
public class ProductInfoRepositoryTest {
    @Autowired
    private ProductInfoRepository productInfoRepository;

    @Test
    public void findByProductStatus() throws Exception{
        List<ProductInfo> productInfoList = productInfoRepository.findByProductStatus(1);
        Assert.assertTrue(productInfoList.size() > 0);
    }

}

2. 商品类目查询测试

编写实体类

package com.springcloud.product.dataobject;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import java.util.Date;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-27
 * @Time: 23:02
 * @ProjectName: product
 * @Name: ProductCategory
 * @Version: 1.0.0
 * @Description: 商品类别
 */
@Data
@Entity
public class ProductCategory {
    @Id
    @GeneratedValue
    private Integer categoryId;
    private String categoryName;
    private Integer categoryType;
    private Date createTime;
    private Date updateTime;
}

编写DAO层代码

package com.springcloud.product.repository;

import com.springcloud.product.dataobject.ProductCategory;
import org.springframework.data.jpa.repository.JpaRepository;

import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-27
 * @Time: 22:36
 * @ProjectName: product
 * @Name: ProductCategoryRepository
 * @Version: 1.0.0
 * @Description: 商品类目repository接口
 */
public interface ProductCategoryRepository extends JpaRepository<ProductCategory,Integer> {
    /**
     * 通过类目状态查询商品类目
     * @param categoryTypeList
     * @return
     */
    List<ProductCategory> findByCategoryTypeIn(List<Integer> categoryTypeList);
}

编写测试类

package com.springcloud.product.repository;

import com.springcloud.product.dataobject.ProductCategory;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

import static org.junit.Assert.*;

@RunWith(SpringRunner.class)
@SpringBootTest
public class ProductCategoryRepositoryTest {
    @Autowired
    private ProductCategoryRepository productCategoryRepository;

    @Test
    public void findByCategoryTypeTest() throws Exception{
        List<ProductCategory> productCategoryList = productCategoryRepository.findByCategoryTypeIn(Arrays.asList(11,12));
        Assert.assertTrue(productCategoryList.size() > 0);
    }

}

八、编写service

1. interface

• ProductService

package com.springcloud.product.service;

import com.springcloud.product.dataobject.ProductInfo;

import java.util.List;

/**
 * @author journey
 */
public interface ProductService {
    List<ProductInfo> findUpAll();
}

• ProductCategoryService

package com.springcloud.product.service;

import com.springcloud.product.dataobject.ProductCategory;

import java.util.List;

/**
 * @author journey
 */
public interface ProductCategoryService {
    /**
     * 通过categoryType 查找productCategory
     * @param categoryTypeList
     * @return
     */
    List<ProductCategory> findByCategoryTypeIn(List<Integer> categoryTypeList);
}

2. 接口实现类

package com.springcloud.product.service.impl;

import com.springcloud.product.common.ProductStatusEnum;
import com.springcloud.product.dataobject.ProductInfo;
import com.springcloud.product.repository.ProductInfoRepository;
import com.springcloud.product.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-28
 * @Time: 00:02
 * @ProjectName: product
 * @Name: ProductServiceImpl
 * @Version: 1.0.0
 * @Description: 商品service
 */
@Service
public class ProductServiceImpl implements ProductService {
    @Autowired
    private ProductInfoRepository productInfoRepository;

    @Override
    public List<ProductInfo> findUpAll() {
        return productInfoRepository.findByProductStatus(ProductStatusEnum.UP.getCode());
    }
}

package com.springcloud.product.service.impl;

import com.netflix.discovery.converters.Auto;
import com.springcloud.product.dataobject.ProductCategory;
import com.springcloud.product.repository.ProductCategoryRepository;
import com.springcloud.product.service.ProductCategoryService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 11:20
 * @ProjectName: product
 * @Name: ProductCategoryServiceImpl
 * @Version: 1.0.0
 * @Description: 商品类目接口实现类
 */
@Service
public class ProductCategoryServiceImpl implements ProductCategoryService {
    @Autowired
    private ProductCategoryRepository productCategoryRepository;

    @Override
    public List<ProductCategory> findByCategoryTypeIn(List<Integer> categoryTypeList) {
        return productCategoryRepository.findByCategoryTypeIn(categoryTypeList);
    }
}

3. 编写返回数据结构类

{
    "code": 0,
    "msg": "成功",
    "data": [
        {
            "name": "热榜",
            "type": 1,
            "foods": [
                {
                    "id": "123456",
                    "name": "皮蛋粥",
                    "price": 1.2,
                    "description": "好吃的皮蛋粥",
                    "icon": "http://xxx.com",
                }
            ]
        },
        {
            "name": "好吃的",
            "type": 2,
            "foods": [
                {
                    "id": "123457",
                    "name": "慕斯蛋糕",
                    "price": 10.9,
                    "description": "美味爽口",
                    "icon": "http://xxx.com",
                }
            ]
        }
    ]
}

ResultVO

package com.springcloud.product.vo;

import lombok.Data;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 11:32
 * @ProjectName: product
 * @Name: ResultVO
 * @Version: 1.0.0
 * @Description: http请求返回的最外层对象
 */
@Data
public class ResultVO<T> {
    /**
     * 状态码
     */
    private Integer code;
    /**
     * 信息
     */
    private String msg;
    /**
     * 具体内容
     */
    private T data;
}

ProductVO

package com.springcloud.product.vo;

import com.fasterxml.jackson.annotation.JsonProperty;
import lombok.Data;

import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 11:37
 * @ProjectName: product
 * @Name: ProductVO
 * @Version: 1.0.0
 * @Description: ProductVO
 */
@Data
public class ProductVO {

    @JsonProperty("name")
    private String categoryName;

    @JsonProperty("type")
    private Integer categoryType;

    @JsonProperty("foods")
    List<ProductInfoVO> productInfoVOList;
}

ProductInfoVO

package com.springcloud.product.vo;

import com.fasterxml.jackson.annotation.JsonProperty;
import lombok.Data;

import java.math.BigDecimal;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 11:40
 * @ProjectName: product
 * @Name: ProductInfoVO
 * @Version: 1.0.0
 * @Description: ProductInfoVO
 */
@Data
public class ProductInfoVO {
    @JsonProperty("id")
    private Integer productId;

    @JsonProperty("name")
    private String productName;

    @JsonProperty("price")
    private BigDecimal productPrice;

    @JsonProperty("description")
    private String productDescription;

    @JsonProperty("icon")
    private String productIcon;
}

编写ResultVOUtil

package com.springcloud.product.util;

import com.springcloud.product.vo.ResultVO;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 12:32
 * @ProjectName: product
 * @Name: ResultVOUtil
 * @Version: 1.0.0
 * @Description: ResultVOUtil
 */
public class ResultVOUtil {

    public static ResultVO success(Object object){
        ResultVO resultVO = new ResultVO();
        resultVO.setData(object);
        resultVO.setMsg("成功");
        resultVO.setCode(0);
        return resultVO;
    }
}

编写controller
ProductContoller

package com.springcloud.product.controller;

import com.springcloud.product.dataobject.ProductCategory;
import com.springcloud.product.dataobject.ProductInfo;
import com.springcloud.product.service.ProductCategoryService;
import com.springcloud.product.service.ProductService;
import com.springcloud.product.vo.ProductInfoVO;
import com.springcloud.product.vo.ProductVO;
import com.springcloud.product.vo.ResultVO;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @author journey
 */
@RestController
@RequestMapping("/product")
public class ProductContoller {
    @Autowired
    private ProductService productService;

    @Autowired
    private ProductCategoryService productCategoryService;
    /**
     * 1. 查询所有在架的商品
     * 2. 查询类目type列表
     * 3. 查询类目
     * 4. 构造数据
     */
    @GetMapping("/list")
    public ResultVO<ProductVO> list(){
        List<ProductInfo> productInfoList = productService.findUpAll();
        List<Integer> productCategoryTypeList = productInfoList.stream().map(ProductInfo::getCategoryType).collect(Collectors.toList());
        List<ProductCategory> productCategoryList = productCategoryService.findByCategoryTypeIn(productCategoryTypeList);

        List<ProductVO> productVOList = new ArrayList<>();
        for(ProductCategory productCategory: productCategoryList){
            ProductVO productVO = new ProductVO();
            productVO.setCategoryName(productCategory.getCategoryName());
            productVO.setCategoryType(productCategory.getCategoryType());

            List<ProductInfoVO> productInfoVOList = new ArrayList<>();

            for(ProductInfo productInfo: productInfoList){
                if(productInfo.getCategoryType().equals(productCategory.getCategoryType())){
                    ProductInfoVO productInfoVO = new ProductInfoVO();
                    BeanUtils.copyProperties(productInfo , productInfoVO);
                    productInfoVOList.add(productInfoVO);
                }
            }
            productVO.setProductInfoVOList(productInfoVOList);
            productVOList.add(productVO);
        }

        return ResultVOUtil.success(productVOList);
    }
}

订单服务

一、创建

二、编写相关代码
entity

OrderMaster

package com.springcloud.order.dataobject;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.Id;
import java.math.BigDecimal;
import java.util.Date;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 13:44
 * @ProjectName: order
 * @Name: OrderMaster
 * @Version: 1.0.0
 * @Description: 订单实体
 */
@Data
@Entity
public class OrderMaster {
    @Id
    private String orderId;

    private String buyerName;

    private String buyerPhone;

    private String buyerAddress;

    private String buyerOpenid;

    private BigDecimal orderAmount;

    private Integer orderStatus;

    private Integer payStatus;

    private Date createTime;

    private Date updateTime;
}

OrderDetail

package com.springcloud.order.dataobject;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.Id;
import java.math.BigDecimal;
import java.util.Date;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 13:57
 * @ProjectName: order
 * @Name: OrderDetail
 * @Version: 1.0.0
 * @Description: OrderDetail
 */
@Data
@Entity
public class OrderDetail {
    @Id
    private String detailId;

    private String orderId;

    private String productId;

    private String productName;

    private BigDecimal productPrice;

    private Integer productQuantity;

    private String productIcon;

    private Date createTime;

    private Date updateTime;
}

reponsitory

• OrderMasterReponsitory

public interface OrderMasterReponsitory extends JpaRepository<OrderMaster, String> {

}

• OrderDetailReponsitory

public interface OrderDetailReponsitory extends JpaRepository<OrderDetail, String> {

}

enums

• OrderStatusEnum

package com.springcloud.order.common;

import lombok.Getter;

@Getter
public enum OrderStatusEnum {
    NEW(0, "新订单"),
    FINISHED(1, "完结"),
    CANCEL(2, "取消"),
    ;
    private Integer code;

    private String message;

    OrderStatusEnum(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
}

• PayStatusEnum

package com.springcloud.order.common;

import lombok.Getter;

@Getter
public enum PayStatusEnum {
    WAIT(0, "等待支付"),
    SUCCESS(1, "支付成功"),
    ;
    private Integer code;

    private String message;

    PayStatusEnum(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
}

• ResultEnum

package com.springcloud.order.common;

import lombok.Getter;

@Getter
public enum ResultEnum {
    PARAM_ERROR(1, "参数错误"),
    CART_EMPTY(2, "购物车为空")

    ;

    private Integer code;

    private String message;

    ResultEnum(Integer code, String message ){
        this.code = code;
        this.message = message;
    }
}

controller

@RestController
@RequestMapping("/order")
@Slf4j
public class OrderController {
    @Autowired
    private OrderService orderService;


    @PostMapping("/create")
    public ResultVO<Map<String, String>> create(@Valid OrderForm orderForm,
                                                BindingResult bindingResult) {

        if(bindingResult.hasErrors()){
            log.error("【创建订单】参数不正确, orderForm={}", orderForm);
            throw new OrderException(ResultEnum.PARAM_ERROR.getCode(),
                    bindingResult.getFieldError().getDefaultMessage());
        }

        OrderDTO orderDTO = OrderForm2OrderDTOConverter.convert(orderForm);
        if (CollectionUtils.isEmpty(orderDTO.getOrderDetailList())) {
            log.error("【创建订单】购物车信息为空");
            throw new OrderException(ResultEnum.CART_EMPTY);
        }

        OrderDTO result = orderService.create(orderDTO);

        Map<String, String> map = new HashMap<>();
        map.put("orderId", result.getOrderId());
        return ResultVOUtil.success(map);
    }
}

vo

• ResultVO

@Data
public class ResultVO<T> {
    private Integer code;
    private String msg;
    private T data;
}

form

• OrderForm

@Data
public class OrderForm {
    @NotEmpty(message = "姓名必填")
    private String name;

    @NotEmpty(message = "手机号必填")
    private String phone;

    @NotEmpty(message = "地址必填")
    private String address;

    @NotEmpty(message = "openid必填")
    private String openid;

    @NotEmpty(message = "购物车不能为空")
    private String items;
}

exception

• OrderException

public class OrderException extends RuntimeException{
    private Integer code;

    public OrderException(Integer code, String message) {
        super(message);
        this.code = code;
    }

    public OrderException(ResultEnum resultEnum) {
        super(resultEnum.getMessage());
        this.code = resultEnum.getCode();
    }
}

converter
-OrderForm2OrderDTOConverter

@Slf4j
public class OrderForm2OrderDTOConverter {
    public static OrderDTO convert(OrderForm orderForm) {
        Gson gson = new Gson();
        OrderDTO orderDTO = new OrderDTO();
        orderDTO.setBuyerName(orderForm.getName());
        orderDTO.setBuyerPhone(orderForm.getPhone());
        orderDTO.setBuyerAddress(orderForm.getAddress());
        orderDTO.setBuyerOpenid(orderForm.getOpenid());

        List<OrderDetail> orderDetailList = new ArrayList<>();
        try {
            orderDetailList = gson.fromJson(orderForm.getItems(),
                    new TypeToken<List<OrderDetail>>() {
                    }.getType());
        } catch (Exception e) {
            log.error("【json转换】错误, string={}", orderForm.getItems());
            throw new OrderException(ResultEnum.PARAM_ERROR);
        }
        orderDTO.setOrderDetailList(orderDetailList);

        return orderDTO;
    }
}

List<OrderDetail> orderDetailList = new ArrayList<>();
try {
    orderDetailList = gson.fromJson(orderForm.getItems(),
            new TypeToken<List<OrderDetail>>() {
            }.getType());
} catch (Exception e) {
    log.error("【json转换】错误, string={}", orderForm.getItems());
    throw new OrderException(ResultEnum.PARAM_ERROR);
}
orderDTO.setOrderDetailList(orderDetailList);

dto

• OrderDTO

package com.springcloud.order.dto;

import com.springcloud.order.dataobject.OrderDetail;
import lombok.Data;

import java.math.BigDecimal;
import java.util.List;

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 14:42
 * @ProjectName: order
 * @Name: OrderDTO
 * @Version: 1.0.0
 * @Description: OrderDTO
 */
@Data
public class OrderDTO {
    /** 订单id. */
    private String orderId;

    /** 买家名字. */
    private String buyerName;

    /** 买家手机号. */
    private String buyerPhone;

    /** 买家地址. */
    private String buyerAddress;

    /** 买家微信Openid. */
    private String buyerOpenid;

    /** 订单总金额. */
    private BigDecimal orderAmount;

    /** 订单状态, 默认为0新下单. */
    private Integer orderStatus;

    /** 支付状态, 默认为0未支付. */
    private Integer payStatus;

    private List<OrderDetail> orderDetailList;
}

注意：使用json转化

name: "张三"
phone: "18868822111"
address: "慕课网总部"
openid: "ew3euwhd7sjw9diwkq" //用户的微信openid
items: [{
    productId: "1423113435324",
    productQuantity: 2 //购买数量
}]

service

• OrderService

/**
 * @author journey
 */
public interface OrderService {
    /**
     * 创建订单
     * @param orderDTO
     * @return
     */
    OrderDTO create(OrderDTO orderDTO);
}

• impl
  • OrderServiceImpl

@Service
public class OrderServiceImpl implements OrderService {

    @Autowired
    private OrderMasterReponsitory orderMasterReponsitory;

    @Autowired
    private OrderDetailReponsitory orderDetailReponsitory;


    @Override
    public OrderDTO create(OrderDTO orderDTO) {

        String orderId = KeyUtil.genUniqueKey();

        OrderMaster orderMaster = new OrderMaster();
        orderDTO.setOrderId(orderId);
        BeanUtils.copyProperties(orderDTO, orderMaster);
        orderMaster.setOrderAmount(new BigDecimal(5));
        orderMaster.setOrderStatus(OrderStatusEnum.NEW.getCode());
        orderMaster.setPayStatus(PayStatusEnum.WAIT.getCode());
        orderMasterReponsitory.save(orderMaster);
        return orderDTO;
    }
}

util

• ResultVOUtil

public class ResultVOUtil {
    public static ResultVO success(Object object) {
        ResultVO resultVO = new ResultVO();
        resultVO.setCode(0);
        resultVO.setMsg("成功");
        resultVO.setData(object);
        return resultVO;
    }
}

• KeyUtil

public class KeyUtil {
    /**
     * 生成唯一的主键
     * 格式: 时间+随机数
     */
    public static synchronized String genUniqueKey() {
        Random random = new Random();
        Integer number = random.nextInt(900000) + 100000;

        return System.currentTimeMillis() + String.valueOf(number);
    }
}

应用间的通信

HTTP

SpringCloud 中服务间两种restful调用方式

RestTemplate

第一种方式：直接使用restTemplate，url写死

@Slf4j
@RestController
public class ClientController {

    @GetMapping("/getProductMsg")
    public String getProductMsg(){
        // 1、第一种方式(直接使用restTemplate，url写死)
        RestTemplate restTemplate = new RestTemplate();
        String response = restTemplate.getForObject("http://localhost:9082/msg",String.class);
        log.info("response={}",response);
        return response;
    }

}

第二种方式：利用loadBalancerClient通过应用名获取url，然后再使用restTemplate

@Slf4j
@RestController
public class ClientController {

    @Autowired
    private LoadBalancerClient loadBalancerClient;

    @GetMapping("/getProductMsg")
    public String getProductMsg(){

        //2、第二种方式(利用loadBalancerClient通过应用名获取url，然后再使用restTemplate)
        ServiceInstance serviceInstance = loadBalancerClient.choose("PRODUCT");
        String url = String.format("http://%s:%s",serviceInstance.getHost(),serviceInstance.getPort()) + "/msg";
        RestTemplate restTemplate = new RestTemplate();
        String response = restTemplate.getForObject(url,String.class);

        log.info("response={}",response);
        return response;
    }

}

第三种方式：利用@LoadBalanced，可再restTemplate里使用应用名字

@Component
public class RestTemplateConfig {

    @Bean
    @LoadBalanced
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }

}

@Slf4j
@RestController
public class ClientController {

    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/getProductMsg")
    public String getProductMsg(){

        //3、第三种方式(利用@LoadBalanced，可再restTemplate里使用应用名字)
        String response = restTemplate.getForObject("http://PRODUCT/msg",String.class);

        log.info("response={}",response);
        return response;
    }

}

Feign

Feign负载均衡

• Feign 解决什么问题
• Feign设计原理

使用Feign实现组件间的通信

添加依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

启动类上加注解

@EnableFeignClients

编写调用接口

@FeignClient(name = "product")
public interface ProductClient {
    @GetMapping("/msg")
    String productMsg();
}

编写controller

@RestController
@Slf4j
public class FeginProductController {
    @Autowired
    private ProductClient productClient;

    @GetMapping("/getProductMsg")
    public String getProductMsg(){
        String response = productClient.productMsg();
        log.info("response={}" ,response);
        return response;
    }
}

fegin实例

获取商品列表
product

• controller

/**
  * 获取商品列表(给订单服务用的)
  *
  * @param productIdList
  * @return
  */
 @PostMapping("/listForOrder")
 public List<ProductInfo> listForOrder(@RequestBody List<String> productIdList) {
     return productService.findList(productIdList);
 }

• service

List<ProductInfo> findList(List<String> productIdList);

• impl

@Override
public List<ProductInfo> findList(List<String> productIdList) {
    return productInfoRepository.findByProductIdIn(productIdList);
}

• reponsitory

List<ProductInfo> findByProductIdIn(List<String> productIdList);

order

• client

@FeignClient(name = "product")
public interface ProductClient {
    @GetMapping("/msg")
    String productMsg();

    @PostMapping("/product/listForOrder")
    List<ProductInfo> listForOrder(@RequestBody List<String> productIdList);
}

• controller

@PostMapping("/listForOrder")
    public List<ProductInfo> listForOrder(@RequestBody List<String> productIdList) {
        return productService.findList(productIdList);
    }

扣库存
product

• controller

/**
     * 根据商品id 和数量扣去相应存储数量
     *
     * @param cartDTOList
     */
    @PostMapping("/decreaseStock")
    public void decreaseStocl(@RequestBody List<CartDTO> cartDTOList){
        productService.decreaseStock(cartDTOList);
    }

• service

void decreaseStock(List<CartDTO> cartDTOList);

• impl

@Override
    @Transactional
    public void decreaseStock(List<CartDTO> cartDTOList) {
        for(CartDTO cartDTO: cartDTOList){
            Optional<ProductInfo> productInfoOptional = productInfoRepository.findById(cartDTO.getProductId());
            // 判断商品是否存在
            if(!productInfoOptional.isPresent()){
                throw new ProductException(ResultEnum.PRODUCT_NOT_EXIST);
            }
            // 库存是否足够
            ProductInfo productInfo = productInfoOptional.get();
            Integer result = productInfo.getProductStock() - cartDTO.getProductQuantity();
            if(result < 0){
                throw new ProductException(ResultEnum.PRODUCT_STOCK_ERROR);
            }

            productInfo.setProductStock(result);
            productInfoRepository.save(productInfo);
        }
    }

Optional:java8新特性类，主要解决空指针异常(NullPointerException)问题。https://www.runoob.com/java/java8-optional-class.html

dto

• CartDTO

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-07-07
 * @Time: 15:22
 * @ProjectName: product
 * @Name: CartDTO
 * @Version: 1.0.0
 * @Description: CartDTO
 */
@Data
public class CartDTO {
    /**
     * 商品id
     */
    private String productId;

    /**
     * 商品数量
     */
    private Integer productQuantity;

    public CartDTO() {
    }

    public CartDTO(String productId, Integer productQuantity) {
        this.productId = productId;
        this.productQuantity = productQuantity;
    }
}

exception

• ProductException

public class ProductException extends RuntimeException {
    private Integer code;

    public ProductException(Integer code , String message){
        super(message);
        this.code = code;
    }

    public ProductException(ResultEnum resultEnum){
        super(resultEnum.getMessage());
        this.code = resultEnum.getCode();
    }
}

enums

• ResultEnum

@Getter
public enum ResultEnum {
    PRODUCT_NOT_EXIST(1, "商品不存在"),

    PRODUCT_STOCK_ERROR(2, "库存有误")
    ;

    private Integer code;

    private String message;

    ResultEnum(Integer code , String message){
        this.code = code;
        this.message = message;
    }
}

order

• client

@PostMapping("/product/decreaseStock")
void decreaseStock(@RequestBody List<CartDTO> cartDTOList);

• FeginProductController

@GetMapping("/productDecreaseStock")
    public String productDecreaseStock(){
        productClient.decreaseStock(Arrays.asList(new CartDTO("157875196366160022",2)));
        return "ok";
    }

整合接口打通下单流程

• OrderServiceImpl

/**
 * Create with IntelliJ IDEA.
 *
 * @Author: journey
 * @Date: 2019-06-30
 * @Time: 14:45
 * @ProjectName: order
 * @Name: OrderServiceImpl
 * @Version: 1.0.0
 * @Description: OrderServiveImpl
 */
@Service
public class OrderServiceImpl implements OrderService {

    @Autowired
    private OrderMasterReponsitory orderMasterReponsitory;

    @Autowired
    private OrderDetailReponsitory orderDetailReponsitory;

    @Autowired
    private ProductClient productClient;


    @Override
    public OrderDTO create(OrderDTO orderDTO) {
        String orderId = KeyUtil.genUniqueKey();

        // 查询商品信息
        List<String> productIdList = orderDTO.getOrderDetailList().stream().map(OrderDetail::getProductId).collect(Collectors.toList());
        List<ProductInfo> productInfoList = productClient.listForOrder(productIdList);

        // 计算总价
        BigDecimal bigDecimal = new BigDecimal(0);
        for(OrderDetail orderDetail: orderDTO.getOrderDetailList()){
            for(ProductInfo productInfo: productInfoList){
                if(productInfo.getProductId().equals(orderDetail.getProductId())){
                    // 单价 * 数量
                    bigDecimal = productInfo.getProductPrice().multiply(new BigDecimal(orderDetail.getProductQuantity())).add(bigDecimal);

                    BeanUtils.copyProperties(productInfo,orderDetail);
                    orderDetail.setOrderId(orderId);
                    orderDetail.setDetailId(KeyUtil.genUniqueKey());
                    // 订单详情入库
                    orderDetailReponsitory.save(orderDetail);
                }
            }
        }

        // 扣库存
        List<CartDTO> cartDTOList = orderDTO.getOrderDetailList().stream().map(e -> new CartDTO(e.getProductId(), e.getProductQuantity())).collect(Collectors.toList());
        productClient.decreaseStock(cartDTOList);

        // 订单入口
        OrderMaster orderMaster = new OrderMaster();
        orderDTO.setOrderId(orderId);
        BeanUtils.copyProperties(orderDTO, orderMaster);
//        orderMaster.setOrderAmount(new BigDecimal(5));
        orderMaster.setOrderAmount(bigDecimal);
        orderMaster.setOrderStatus(OrderStatusEnum.NEW.getCode());
        orderMaster.setPayStatus(PayStatusEnum.WAIT.getCode());
        orderMasterReponsitory.save(orderMaster);
        return orderDTO;
    }
}

微服务之间的服务调用

服务调用示例

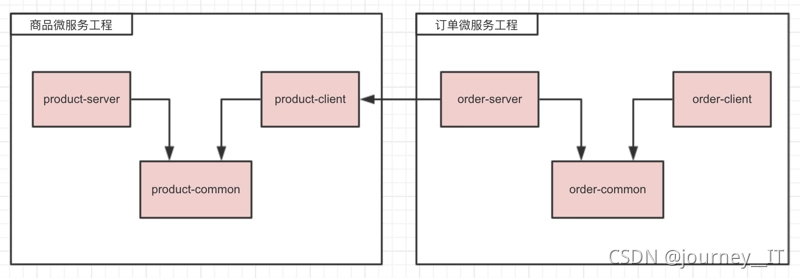

项目改成多模块

外层product pom

<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.1.6.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.springcloud</groupId>
<artifactId>product</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>product</name>
<description>Demo project for Spring Boot</description>
<packaging>pom</packaging>

<modules>
    <module>product-common</module>
    <module>product-client</module>
    <module>product-server</module>
</modules>

<properties>
    <java.version>1.8</java.version>
    <spring-cloud.version>Greenwich.SR1</spring-cloud.version>
</properties>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
        <dependency>
            <groupId>com.springcloud</groupId>
            <artifactId>product-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>
</dependencyManagement>

product-common pom

<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>com.springcloud</groupId>
    <artifactId>product</artifactId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>product-common</artifactId>

<dependencies>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
</dependencies>

product-client初始pom.xml

<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>com.springcloud</groupId>
    <artifactId>product</artifactId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<artifactId>product-client</artifactId>

<dependencies>
    <dependency>
        <groupId>com.springcloud</groupId>
        <artifactId>product-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
</dependencies>

product-server的初始pom.xml

<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.1.6.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.springcloud</groupId>
<artifactId>product</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>product</name>
<description>Demo project for Spring Boot</description>
<packaging>pom</packaging>

<modules>
    <module>product-common</module>
    <module>product-client</module>
    <module>product-server</module>
</modules>

<properties>
    <java.version>1.8</java.version>
    <spring-cloud.version>Greenwich.SR1</spring-cloud.version>
</properties>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
        <dependency>
            <groupId>com.springcloud</groupId>
            <artifactId>product-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>
</dependencyManagement>

为product-server添加Eureka client相关依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-web</artifactId>
</dependency>

启动类加注解@EnableDiscoveryClient

多模块项目创建

构建主工程

File-->New-->Project
-->Maven-->Create from archetype-->maven-archetype-quickstart-Next
-->GroupId={你的GroupId}-->AritifactId={你的ArtifactId}
-->Next-->Next-->Finish-->New Whindow

构建子模块

右键点击项目名称-->New-->Module
选中Spring Initializr-->Next
-->Group={主工程的GroupId}-->Aritifact={当前模块的ArtifactId}、
-->Next-->Next-->Finish

product

root

product的pom

<modelVersion>4.0.0</modelVersion>

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.1.6.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.springcloud</groupId>
<artifactId>product</artifactId>
<version>0.0.1-SNAPSHOT</version>
<modules>
    <module>product-common</module>
    <module>product-client</module>
    <module>product-server</module>
</modules>
<packaging>pom</packaging>
<name>product</name>
<description>SpringCloud_sell's Demo project for Spring Cloud</description>

<properties>
    <java.version>1.8</java.version>
    <spring-cloud.version>Greenwich.SR1</spring-cloud.version>
</properties>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
        <dependency>
            <groupId>com.springcloud</groupId>
            <artifactId>product-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>
</dependencyManagement>

modules

product-common的pom

<parent>
    <artifactId>product</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>product-common</artifactId>

<dependencies>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
</dependencies>

product-client的pom

<parent>
    <artifactId>product</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>product-client</artifactId>

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-web</artifactId>
    </dependency>

    <dependency>
        <groupId>com.springcloud</groupId>
        <artifactId>product-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
</dependencies>

product-server的pom

<parent>
    <artifactId>product</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>product-server</artifactId>

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>

    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.34</version>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>

    <dependency>
        <groupId>com.springcloud</groupId>
        <artifactId>product-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-config-client</artifactId>
    </dependency>

    <!--<dependency>-->
    <!--<groupId>org.springframework.boot</groupId>-->
    <!--<artifactId>spring-boot-starter-amqp</artifactId>-->
    <!--</dependency>-->

    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-starter-sleuth</artifactId>-->
    <!--</dependency>-->
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>

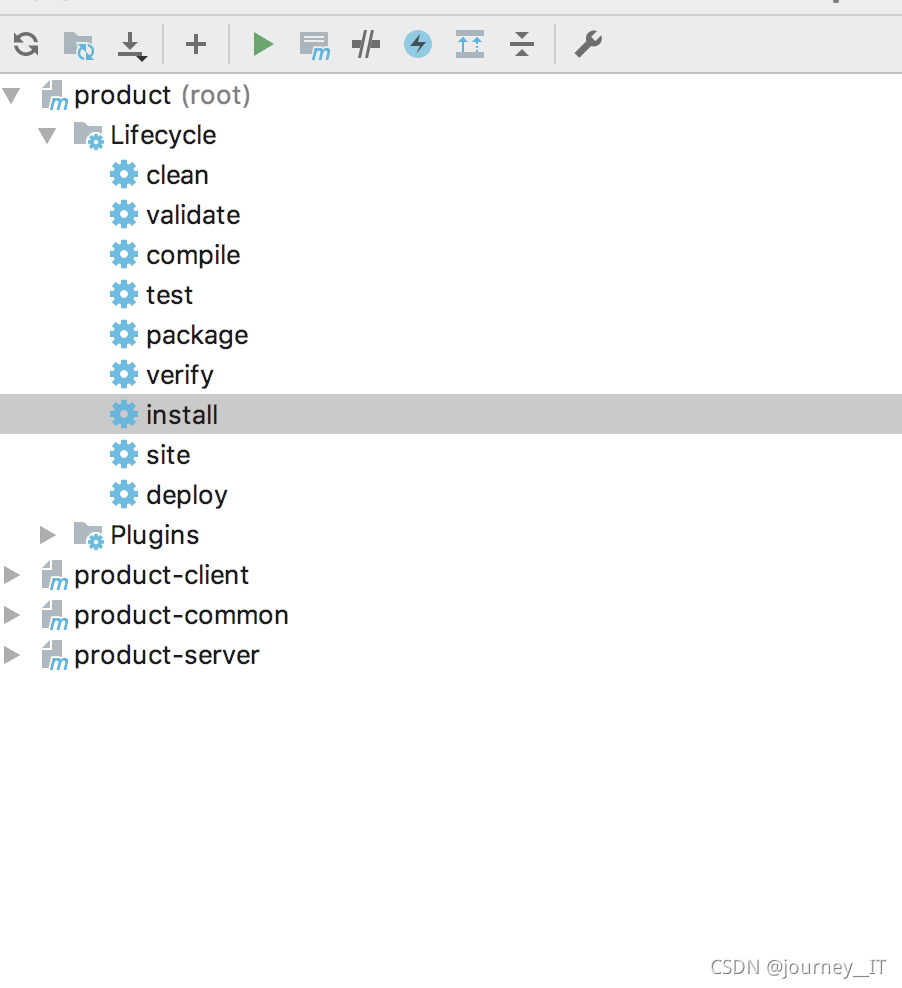

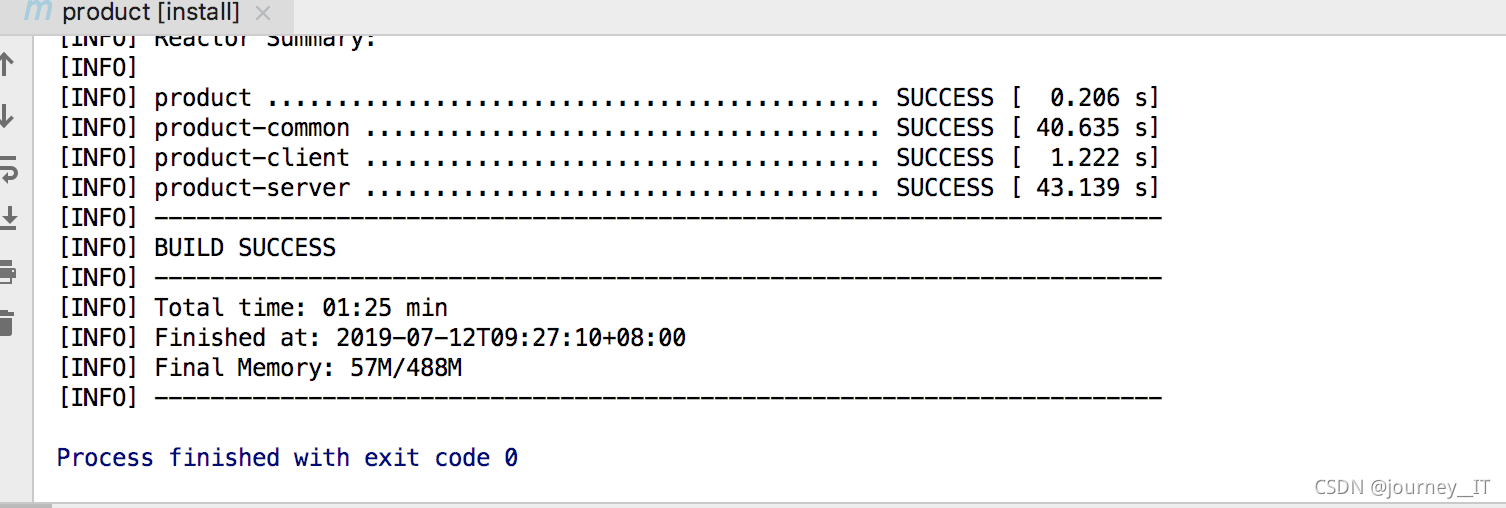

将product 项目打包成可供依赖的jar包

order

root

order的pom

<modelVersion>4.0.0</modelVersion>
<modules>
    <module>order-common</module>
    <module>order-client</module>
    <module>order-server</module>
</modules>

<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.1.6.RELEASE</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.springcloud</groupId>
<artifactId>order</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<name>order</name>
<description>SpringCloud_sell's Demo project for Spring Cloud</description>

<properties>
    <java.version>1.8</java.version>
    <spring-cloud.version>Greenwich.SR1</spring-cloud.version>
</properties>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <dependency>
            <groupId>com.springcloud</groupId>
            <artifactId>product-client</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>com.springcloud</groupId>
            <artifactId>order-common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>
</dependencyManagement>

<repositories>
    <repository>
        <id>spring-snapshots</id>
        <name>Spring Snapshots</name>
        <url>https://repo.spring.io/snapshot</url>
        <snapshots>
            <enabled>true</enabled>
        </snapshots>
    </repository>
    <repository>
        <id>spring-milestones</id>
        <name>Spring Milestones</name>
        <url>https://repo.spring.io/milestone</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
</repositories>

<pluginRepositories>
    <pluginRepository>
        <id>spring-snapshots</id>
        <name>Spring Snapshots</name>
        <url>https://repo.spring.io/snapshot</url>
        <snapshots>
            <enabled>true</enabled>
        </snapshots>
    </pluginRepository>
    <pluginRepository>
        <id>spring-milestones</id>
        <name>Spring Milestones</name>
        <url>https://repo.spring.io/milestone</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </pluginRepository>
</pluginRepositories>

modules

order-common的pom

<parent>
    <artifactId>order</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>order-common</artifactId>

<name>order-common</name>
<dependencies>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
</dependencies>

order-client的pom

<parent>
    <artifactId>order</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>order-client</artifactId>

<name>order-client</name>

order-server的pom

<parent>
    <artifactId>order</artifactId>
    <groupId>com.springcloud</groupId>
    <version>0.0.1-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>

<groupId>com.springcloud</groupId>
<artifactId>order-server</artifactId>

<name>order-server</name>

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>

    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>

    <dependency>
        <groupId>com.google.code.gson</groupId>
        <artifactId>gson</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>

    <dependency>
        <groupId>com.springcloud</groupId>
        <artifactId>product-client</artifactId>
    </dependency>

    <dependency>
        <groupId>com.springcloud</groupId>
        <artifactId>order-common</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-config-client</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-bus-amqp</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-amqp</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
    </dependency>

    <!--<dependency>-->
    <!--<groupId>org.springframework.boot</groupId>-->
    <!--<artifactId>spring-boot-starter-data-redis</artifactId>-->
    <!--</dependency>-->

    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-starter-netflix-hystrix</artifactId>-->
    <!--</dependency>-->

    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-starter-sleuth</artifactId>-->
    <!--</dependency>-->

    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-sleuth-zipkin</artifactId>-->
    <!--</dependency>-->

    <!--包含sleuth和zipkin-->
    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-starter-zipkin</artifactId>-->
    <!--</dependency>-->

    <!--<dependency>-->
    <!--<groupId>org.springframework.cloud</groupId>-->
    <!--<artifactId>spring-cloud-starter-bus-amqp</artifactId>-->
    <!--</dependency>-->
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>

接口暴露与发现

product

@FeignClient(name="product",fallback = ProductClient.ProductClientFallback.class)
public interface ProductClient {

    @PostMapping("/product/listForOrder")
    List<ProductInfoOutput> listForOrder(@RequestBody List<String> productIdList);

    @PostMapping("/product/decreaseStock")
    void decreaseStock(@RequestBody List<DecreaseStockInput> decreaseStockInputList);

    @Component
    static class ProductClientFallback implements ProductClient {

        @Override
        public List<ProductInfoOutput> listForOrder(List<String> productIdList) {
            return null;
        }

        @Override
        public void decreaseStock(List<DecreaseStockInput> decreaseStockInputList) {

        }
    }
}

order

@EnableFeignClients(basePackages = "com.product.xxxxxxxx")

统一配置中心 Spring Cloud Config

统一配置中心概述

如果微服务架构中没有使用统一配置中心时，所存在的问题：

• 配置文件分散在各个项目里，不方便维护
• 配置内容安全与权限，实际开发中，开发人员是不知道线上环境的配置的
• 更新配置后，项目需要重启

Config server

新建一个Spring Initializr项目
pom依赖
添加注解

@SpringBootApplication
@EnableDiscoveryClient
@EnableConfigServer

新建git仓库
略

配置yml文件

spring:
  application:
    name: config
  cloud:
    config:
      server:
        git:
          uri: https://github.com/journeyC/SpringCloud.git
          username: 15251693879@163.com
          password:
	baseDir: /Users/journey/code/............
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8761/eureka/

启动并运行http://localhost:8080/order-a.ymlhttp://localhost:8080/order-a.propertieshttp://localhost:8080/order-a.json

config client

项目pom文件中添加依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-config-client</artifactId>
</dependency>

启动类上添加注解

@EnableDiscoveryClient

配置yml文件
将文件名改为 bootstrap.yml

spring:
  application:
    name: product
  cloud:
    config:
      discovery:
        service-id: CONFIG
        enabled: true
      profile: dev

配置文件路径名称
/{name}-{profiles}.yml
/{label}/{name}-{profiles}.yml

• label 分支
• name 服务
• profiles 环境
• .yml/json/properties 配置文件格式

Spring Cloud Bus

新增pom依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>

修改yml

rabbitmq:
    host: 192.168.180.199
    port: 5672
    username: admin
    password: admin

使用bus-refresh

management:
  endpoints:
    web:
      exposure:
        include: "*"

http://localhost:8080/actuator/bus-refresh (post)

集成WebHooks实现动态更新

Ribbon负载均衡

添加Ribbon依赖

<!-- Ribbon相关 -->
<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-eureka</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-ribbon</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-config</artifactId>
</dependency>

修改yml

eureka:
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://xxx:8761/eureka/,http://xxx:8762/eureka/,http://xxx:8763/eureka/

对ConfigBean进行新注解@LoadBalanced 获得Rest时加入Ribbon的配置

@Configuration
public class ConfigBean
{
  @Bean
  @LoadBalanced
  public RestTemplate getRestTemplate()
  {
   return new RestTemplate();
  }
}

异步和消息

RabbitMQ的基本使用

接收MQ消息

@Slf4j
@Component
public class MqReceiver {
    //    手动创建队列，并绑定@RabbitListener(queues = "myQueue")
    //    自动创建队列    @RabbitListener(queuesToDeclare = @Queue("myQueue"))
    //    自动创建 Exchange和Queue绑定
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue("myQueue"),
            exchange = @Exchange("myExchange")
    ))
    public void process(String message) {
        log.info("接受到rabbitMQ消息:{}", message);
    }


    /**
     * 数码供应商服务 接受消息
     * @param message 接受消息
     */
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue("myOrder"),
            key = "computer",
            exchange = @Exchange("computerOrder")
    ))
    public void processComputer(String message) {
        log.info("Computer,接受到rabbitMQ消息:{}", message);
    }


    /**
     * 水果供应商服务 接受消息
     * @param message 接受消息
     */
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue("myOrder"),
            key = "fruit",
            exchange = @Exchange("fruitOrder")
    ))
    public void processFruit(String message) {
        log.info("fruit,接受到rabbitMQ消息:{}", message);
    }

}

手动创建队列，并绑定@RabbitListener(queues = "myQueue")
自动创建队列 @RabbitListener(queuesToDeclare = @Queue("myQueue"))
自动创建 Exchange和Queue绑定

MQReceiverTest

/**
 * @Author: journey
 * @Date: 2019-07-21
 * @Time: 16:03
 * @Description: 发送mq消息测试
 */
public class MQReceiverTest extends OrderApplicationTest {
    @Autowired
    private AmqpTemplate amqpTemplate;

    @Test
    public void send() {
        amqpTemplate.convertAndSend("myQueue", "发送消息测试");
    }

    @Test
    public void sendMessage() {
        amqpTemplate.convertAndSend("computerOrder","computer", "发送消息测试");
    }
}

OrderApplicationTest

@RunWith(SpringRunner.class)
@SpringBootTest
public class OrderApplicationTest {

    @Test
    public void main() {
    }
}

SpringCloud Stream的基础使用

引入pom依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
</dependency>

配置 yml

stream:
  bindings:
    myMessage:
      group: order

发送方

@RestController
public class SendMessageController {
    @Autowired
    private StreamClient streamClient;
    @GetMapping("/sendMessage")
    public void process (){
        String message = "now " + new Date();
        streamClient.output().send(MessageBuilder.withPayload(message).build());
    }
}

接收方
接口

public interface StreamClient {
    String INPUT = "input";

    String OUTPUT = "output";

    @Input(StreamClient.INPUT)
    SubscribableChannel input();

    @Output(StreamClient.OUTPUT)
    MessageChannel output();
}

实现类

/**
 * @Author: journey
 * @Date: 2019-07-21
 * @Time: 16:48
 * @Description:
 */
@Component
@EnableBinding(StreamClient.class)
@Slf4j
public class StreamReceiver {
    @StreamListener(StreamClient.INPUT)
    @SendTo(StreamClient.OUTPUT)
    public Object process(Object message){
        log.info("StreamReceiver: {}" , message);
        return message;
    }

    @StreamListener(StreamClient.OUTPUT)
    public void processOutput(Object message){
        log.info("StreamReceiver: {}" , message);
    }
}

SpringCloud Stream RabbitMQ Redis案例

product
添加pom依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-amqp</artifactId>
</dependency>

添加yml配置

rabbitmq:
    host: 192.168.180.199
    port: 5672
    username: admin
    password: admin
    virtual-host: /

service

@Autowired
private AmqpTemplate amqpTemplate;

......

@Override
public void decreaseStock(List<DecreaseStockInput> decreaseStockInputList) {
    // 发送 mq 消息
    List<ProductInfoOutput> productInfoOutputList = decreaseStockProcess(decreaseStockInputList).stream()
            .map(e -> {
                ProductInfoOutput output = new ProductInfoOutput();
                BeanUtils.copyProperties(e, output);
                return output;
            })
            .collect(Collectors.toList());

    amqpTemplate.convertAndSend("decreaseStockQueue", JsonUtil.toJson(productInfoOutputList));
}

@Transactional
public List<ProductInfo> decreaseStockProcess(List<DecreaseStockInput> decreaseStockInputList) {
    List<ProductInfo> productInfoList = new ArrayList<>();
    for(DecreaseStockInput decreaseStockInput : decreaseStockInputList){
        Optional<ProductInfo> productInfoOptional = productInfoRepository.findById(decreaseStockInput.getProductId());
        // 商品是否存在
        if(!productInfoOptional.isPresent())
            throw new ProductException(ResultEnum.PRODUCT_NOT_EXIST);
        ProductInfo productInfo = productInfoOptional.get();
        int result = productInfo.getProductStock() - decreaseStockInput.getProductQuantity();
        // 商品库存是否充足
        if(result < 0)
            throw new ProductException(ResultEnum.PRODUCT_STOCK_ERROR);
        productInfo.setProductStock(result);
        productInfoRepository.save(productInfo);
        productInfoList.add(productInfo);
    }
    return productInfoList;
}

order
ProductInfoReceiver

@Component
@Slf4j
public class ProductInfoReceiver {
    @RabbitListener(queuesToDeclare = @Queue("decreaseStockQueue"))
    public void process(String message){
        // message => productInfoOutput
        List<ProductInfoOutput> productInfoOutputList = JsonUtil.fromJson(message,
                new TypeReference<List<ProductInfoOutput>>() {});
        log.info("从队列【{}】接收到消息：{}", "decreaseStockQueue", productInfoOutputList);
    }

}

添加redis数据库缓存
新增redis依赖

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

添加yml配置

redis:
    host: 192.168.180.199
    port: 6379
    database: 0

redis设置
redis-server /etc/redis.conf

/**
 * @Author: journey
 * @Date: 2019-07-21
 * @Time: 20:09
 * @Description:
 */
@Component
@Slf4j
public class ProductInfoReceiver {
    private static String PRODUCT_STOCK_TEMPLATE = "product_stock_%s";

    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    @RabbitListener(queuesToDeclare = @Queue("decreaseStockQueue"))
    public void process(String message){
        // message => productInfoOutput
        List<ProductInfoOutput> productInfoOutputList = JsonUtil.fromJson(message,
                new TypeReference<List<ProductInfoOutput>>() {});
        log.info("从队列【{}】接收到消息：{}", "decreaseStockQueue", productInfoOutputList);

        // 存储到 redis 中
        for(ProductInfoOutput productInfoOutput : productInfoOutputList)
            stringRedisTemplate.opsForValue()
                    .set(String.format(PRODUCT_STOCK_TEMPLATE, productInfoOutput.getProductId()),
                            String.valueOf(productInfoOutput.getProductStock()));
    }

}

服务网关和Zuul

zuul路由网关
添加pom依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
    </dependency>

    <!--注册中心-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        <exclusions>
            <exclusion>
                <groupId>com.google.code.gson</groupId>
                <artifactId>gson</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
</dependencies>

添加yml配置

server:
  port: 8000
spring:
  application:
    name: journey-zuul


zuul:
  routes:
    ribbon:
      path: /ribbon/**
      service-id: journey-edu  #转发到消费者 /ribbon/
    feign:
      path: /feign/**
      service-id: journey-edu # 转发到消费者 /feign/

eureka:
  client:
    service-url:
      default-zone: http://localhost:8761/eureka

创建MyFallbackProvider文件

@Component
public class MyFallbackProvider implements FallbackProvider {
    @Override
    public String getRoute() {
        return "journey-edu";
    }

    @Override
    public ClientHttpResponse fallbackResponse(String route, Throwable cause) {
        System.out.println("route:"+route);
        System.out.println("exception:"+cause.getMessage());
        return new ClientHttpResponse() {
            @Override
            public HttpStatus getStatusCode() throws IOException {
                return HttpStatus.OK;
            }

            @Override
            public int getRawStatusCode() throws IOException {
                return 200;
            }

            @Override
            public String getStatusText() throws IOException {
                return "ok";
            }

            @Override
            public void close() {

            }

            @Override
            public InputStream getBody() throws IOException {
                return new ByteArrayInputStream("Sorry, the service is unavailable now.".getBytes());
            }

            @Override
            public HttpHeaders getHeaders() {
                HttpHeaders headers = new HttpHeaders();
                headers.setContentType(MediaType.APPLICATION_JSON);
                return headers;
            }
        };
    }
}

创建MyFilter

Component
public class MyFilter extends ZuulFilter {

    private static Logger log=LoggerFactory.getLogger(MyFilter.class);

    @Override
    public String filterType() {
        return "pre"; // 定义filter的类型，有pre、route、post、error四种
    }

    @Override
    public int filterOrder() {
        return 0; // 定义filter的顺序，数字越小表示顺序越高，越先执行
    }

    @Override
    public boolean shouldFilter() {
        return true; // 表示是否需要执行该filter，true表示执行，false表示不执行
    }

    @Override
    public Object run() throws ZuulException {
        // filter需要执行的具体操作
        RequestContext ctx = RequestContext.getCurrentContext();
        HttpServletRequest request = ctx.getRequest();
        String token = request.getParameter("token");
        System.out.println(token);
        if(token==null){
            log.warn("there is no request token");
            ctx.setSendZuulResponse(false);
            ctx.setResponseStatusCode(401);
            try {
                ctx.getResponse().getWriter().write("there is no request token");
            } catch (IOException e) {
                e.printStackTrace();
            }
            return null;
        }
        log.info("ok");
        return null;
    }
}

创建启动类ZuulApplication

@EnableZuulProxy
@SpringBootApplication
public class ZuulApplication {

    public static void main(String[] args) {
        SpringApplication.run(ZuulApplication.class, args);
    }

}

PRC

Dubbo
