【UML学习】

引用文章

继承、实现：

https://www.cnblogs.com/xrq730/p/5527115.html

关联、聚合、组合、依赖：

https://www.cnblogs.com/xrq730/p/5533019.html

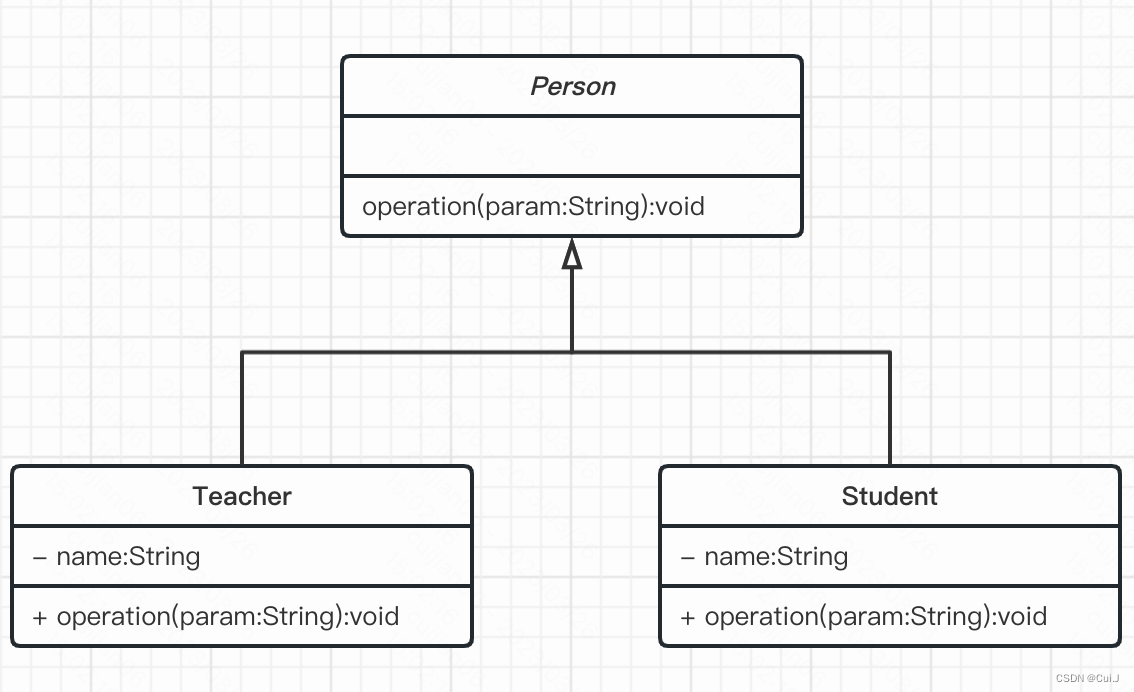

继承

继承也叫作泛化（Generalization），用于描述父子类之间的关系，父类又称为基类或者超类，子类又称作派生类。在UML中，泛化关系用带空心三角形的实线来表示。

public abstract class Person {

   void operation(String param);
}

public class Student extends Person {

    private String name;

    public void operation(String param){
    }
}

public class Teacher extends Person {

    private String name;

    public void operation(String param){
    }
}

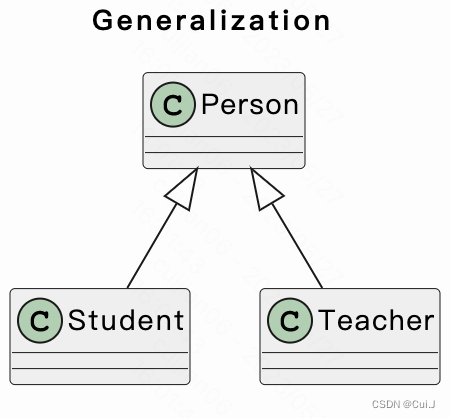

 PlantUML

@startuml

title Generalization

class Person
class Student
class Teacher

Person <|-- Student
Person <|-- Teacher

@enduml

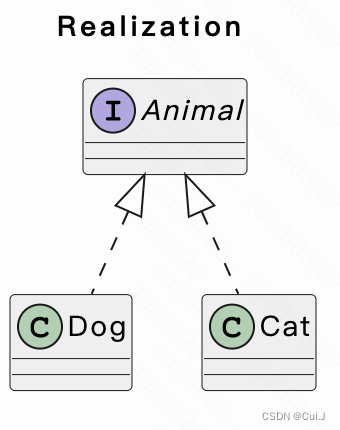

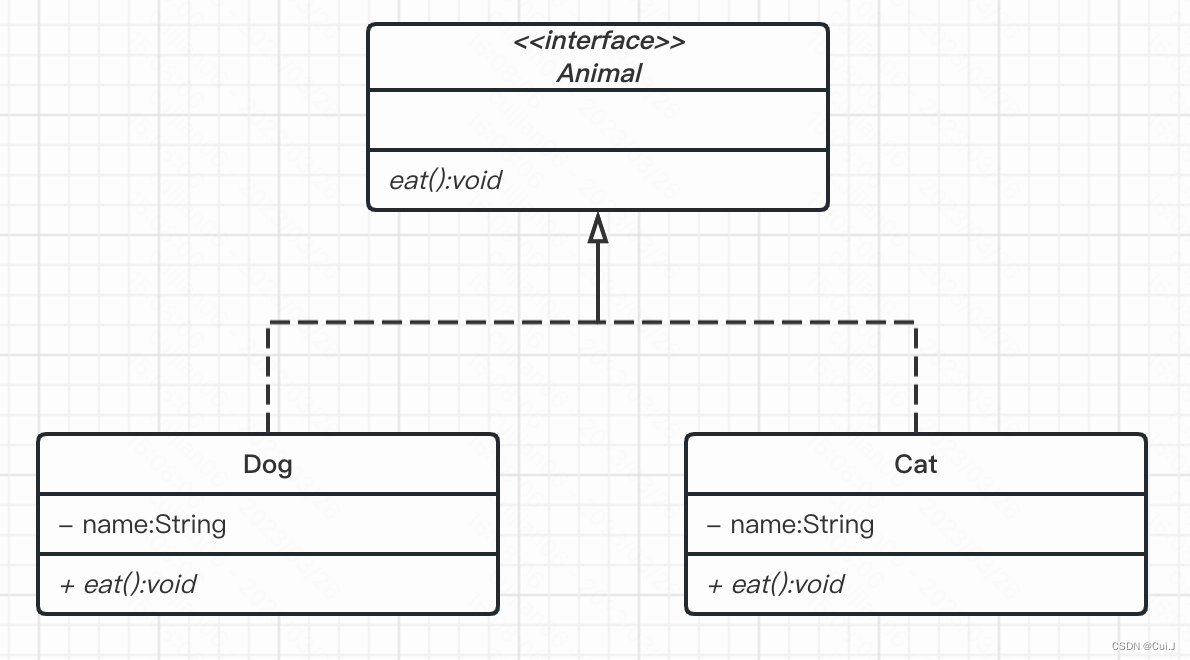

实现

public interface Animal {

   void eat();
}

public class Dog implements Animal {

    private String name;

    public void eat(){
    }
}

public class Cat implements Animal {

    private String name;

    public void eat(){
    }
}

PlantUML

@startuml
title Realization

interface Animal
class Dog
class Cat

Animal <|.. Dog
Animal <|.. Cat
@enduml

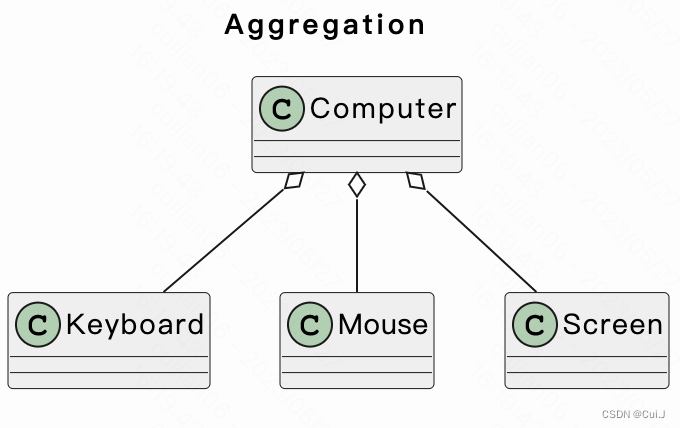

聚合

表示整体由部分组成，但是整体和部分不是强依赖的，整体不存在了部分还是会存在。

@startuml
title Aggregation

class Computer
class Keyboard
class Mouse
class Screen

Computer o-- Keyboard
Computer o-- Mouse
Computer o-- Screen
@enduml

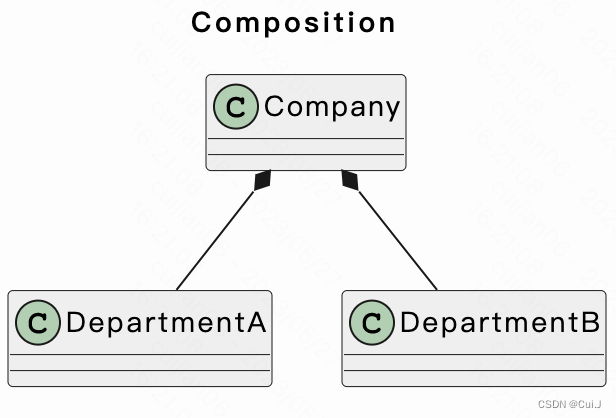

组合

@startuml
title Composition

class Company
class DepartmentA
class DepartmentB

Company *-- DepartmentA
Company *-- DepartmentB
@enduml

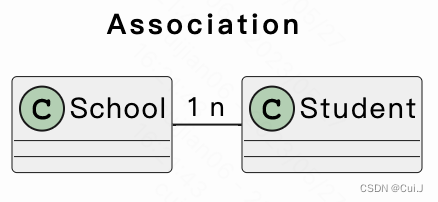

关联

@startuml
title Association

class School
class Student

School "1" - "n" Student
@enduml

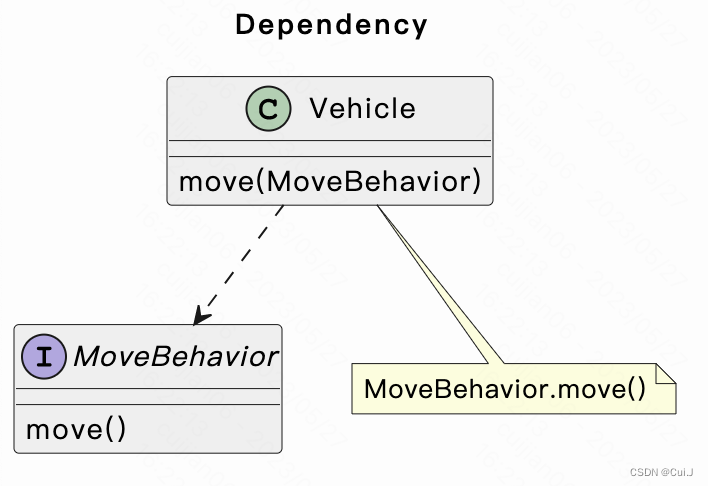

依赖

@startuml
title Dependency

class Vehicle {
    move(MoveBehavior)
}

interface MoveBehavior {
    move()
}

note "MoveBehavior.move()" as N

Vehicle ..> MoveBehavior

Vehicle .. N
@enduml
