Mybatis源码解析之Exexutor

深入认识MyBatis执行体系

本文主要讲解MyBatis的Executor的执行体系

Jdbc的执行过程

Jdbc常用的三种Statement

1. Statement：一般不用了，只能处理静态sql
2. PreparedStatement：可以对Sql预编译，防止Sql注入
3. CallableStatement：执行存储过程（不过现在存储过程一般不推荐用）

ParparedStatement的执行过程

Jdbc的执行过程总体来说分为以下四步：

1. 获取连接
2. 预编译SQL
3. 执行SQL
4. 读取结果

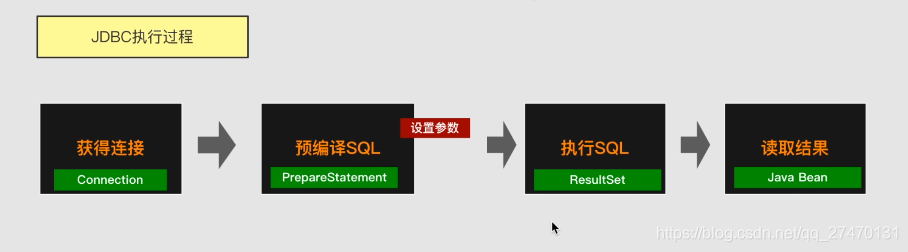

图示如下：

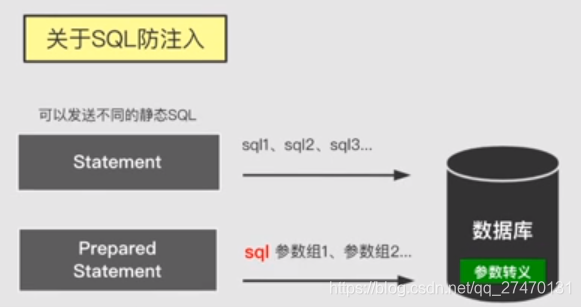

关于防止sql注入的图示：

Jdbc常用的代码演示

代码准备

依赖

    <dependencies>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.3</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.19</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

数据库脚本

create table student
(
	id bigint auto_increment
		primary key,
	name varchar(50) null,
	age int null
);

INSERT INTO student (id, name, age) VALUES (1, 'daxiong', 24);
INSERT INTO student (id, name, age) VALUES (2, '鲁班', 35);

数据库连接的创建代码

 private Connection connection;
    @Before
    public void init() throws SQLException {
        //DATASOURCE为数据库连接信息的常量类
        connection = DriverManager.getConnection(DATASOURCE.URL, DATASOURCE.USER, DATASOURCE.PASSWORD);
    }
    @After
    public void close() throws SQLException {
        connection.close();
    }

查询的简单例子

 @Test
    public void preparedStatementSelectTest() throws SQLException {
        // 预编译
        String selectSql = "SELECT name,age FROM student WHERE `name`=? ";
        PreparedStatement preparedStatement = connection.prepareStatement(selectSql);
        //添加参数
        preparedStatement.setString(1,"daxiong");
        //执行sql
        preparedStatement.execute();
        //获取结果集
        ResultSet resultSet = preparedStatement.getResultSet();
        while (resultSet.next()) {
            String resultMsg = String.format("查询到的名字为:【%s】,age为:【%d】",
                    resultSet.getString(1),
                    resultSet.getInt(2));
            System.out.println(resultMsg);
        }
        resultSet.close();
        preparedStatement.close();;
    }

结果

批量操作

PreparedStatement：

1） addBatch()将一组参数添加到PreparedStatement对象内部。

2） executeBatch()将一批参数提交给数据库来执行，如果全部命令执行成功，则返回更新计数组成的数组。

Statement：

1） addBatch(String sql)方法会在批处理缓存中加入一条sql语句。

2） executeBatch()执行批处理缓存中的所有sql语句。

注意：PreparedStatement中使用批量更新时，要先设置好参数后再使用addBatch()方法加入缓存。批量更新中只能使用更改、删除或插入语句

PreparedStatement批量插入代码

    @Test
    public void preparedStatementBatchTest() throws SQLException {
        //插入语句
        String sql = "INSERT INTO student (`name`,age) VALUES (?,?)";
        //通过insert创建预编译声明
        PreparedStatement preparedStatement = connection.prepareStatement(sql);
        long startTime = System.currentTimeMillis();
        //每一次遍历添加一组参数
        for (int i = 0; i < 100; i++) {
            preparedStatement.setString(1, UUID.randomUUID().toString());
            preparedStatement.setInt(2, (int)(Math.random()*10+1) );
            preparedStatement.addBatch();
        }
        // 批处理  一次发射
        preparedStatement.executeBatch();
        System.out.println(String.format("批量处理使用了:【%d】ms",System.currentTimeMillis() - startTime));
        preparedStatement.close();
    }

Mybatis的执行过程

SqlSession（Sql会话）

​ SqlSession为mybatis对外的大管家，采用门面模式（外观模式）提供了基础的增删改查的API，也提供了提交、关闭会话以及缓存相关的辅助Api

SqlSession中有两个重要的成员变量

• configuration: 当前会话的配置
• executor：具体处理数据库操作的执行器

创建SqlSession的过程

通过DefaultSqlSessionFactory实例化的SqlSession是线程不安全的。提供了多个重载的openSesson的方法

SqlSession openSession();
//是否自动提交
SqlSession openSession(boolean autoCommit);
//通过数据库连接获取SqlSessonn
SqlSession openSession(Connection connection);
//事务的隔离级别
SqlSession openSession(TransactionIsolationLevel level);
//执行器的类型
SqlSession openSession(ExecutorType execType);

SqlSession openSession(ExecutorType execType, boolean autoCommit);

SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level);

SqlSession openSession(ExecutorType execType, Connection connection);

通过数据库获取SqlSession

 private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      //获取当前的环境信息
      final Environment environment = configuration.getEnvironment();
      //获取事务工厂
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      //事务的创建
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
      //执行器的创建
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

通过连接获取SqlSession

  private SqlSession openSessionFromConnection(ExecutorType execType, Connection connection) {
    try {
      boolean autoCommit;
      try {
        autoCommit = connection.getAutoCommit();
      } catch (SQLException e) {
        // Failover to true, as most poor drivers
        // or databases won't support transactions
        autoCommit = true;
      }
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      final Transaction tx = transactionFactory.newTransaction(connection);
      final Executor executor = configuration.newExecutor(tx, execType);
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

其中比较关键的就是Executor executor = configuration.newExecutor(tx, execType);

 public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
     //判断参数，如果为null取默认的SimpleExecutor
    executorType = executorType == null ? defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Executor executor;

    if (ExecutorType.BATCH == executorType) {
      executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
      executor = new ReuseExecutor(this, transaction);
    } else {
      executor = new SimpleExecutor(this, transaction);
    }
    //判断二级缓存是否开启，开启时创建CachingExecutor对原有的Executor进行装饰
    if (cacheEnabled) {
      executor = new CachingExecutor(executor);
    }
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
  }

通过SqlSessionManager.startSession()创建的是线程安全的。

//维护了ThreadLocal变量
private final ThreadLocal<SqlSession> localSqlSession = new ThreadLocal<>();

public void startManagedSession() { this.localSqlSession.set(openSession()); }

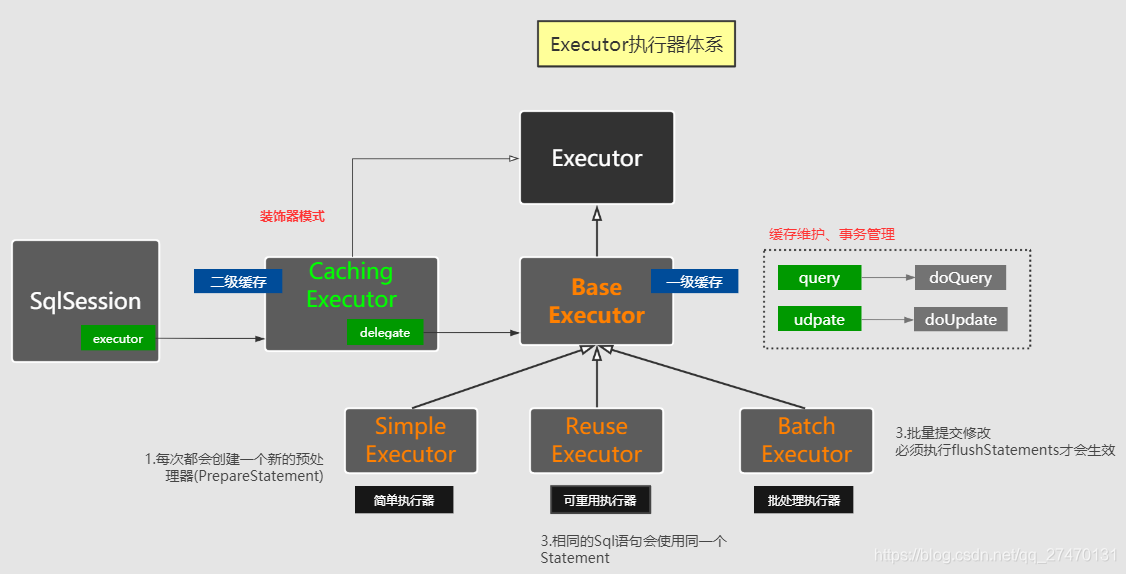

Executor（执行器）

​ SqlSession是面向程序的，而Executor是面向数据库的，SqlSession的所有的方法都会调用到自己内部注册的Executor类的query和update方法执行具体的方法，采用的是模板方法的设计模式。执行器的种类有：基础执行器、简单执行器、重用执行器和批处理执行器，此外通过装饰器形式添加了一个缓存执行器。对应功能包括缓存处理、事物处理、重用处理以及批处理，而这些都是会话中多个SQL执行中有共性地方。执行器存在的意义就是去处理这些共性。

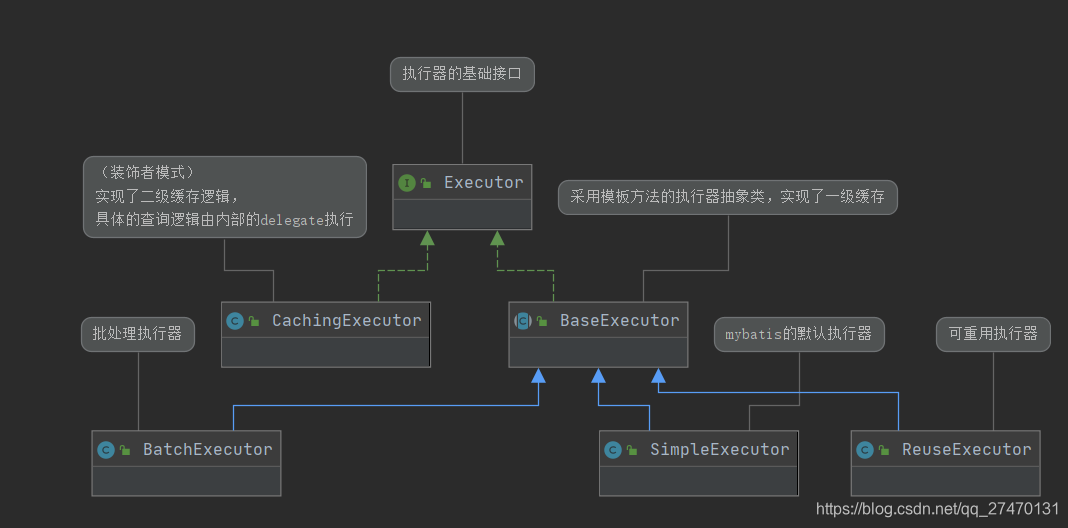

Executor的继承类图和简介：

BaseExecutor （基础执行器）

BaseExecutor采用的模板方法的设计模式实现了Executor接口，并处理了一级缓存的相关逻辑（在后续缓存章节讲解）。

下面的四个方法是真正执行Sql语句的方法，BaseExecutor中并没有实现其逻辑，都由其子类实现

 protected abstract int doUpdate(MappedStatement ms, Object parameter)
      throws SQLException;

  protected abstract List<BatchResult> doFlushStatements(boolean isRollback)
      throws SQLException;

  protected abstract <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql)
      throws SQLException;

  protected abstract <E> Cursor<E> doQueryCursor(MappedStatement ms, Object parameter, RowBounds rowBounds, BoundSql boundSql)
      throws SQLException;

SimpleExecutor（简单执行器）

SimpleExecutor为最基础的执行器，每一次查询都会创建一个PreparedStatament，再没有配置ExecutortType或者配置的为null时，默认的都会使用此执行器。

ReuseExecutor （可重用执行器）

ReuseExecutor 为可重用执行器，当执行的相同的sql语句时会重用Statement，实现逻辑也比较简单。

1. 内部维护一个HashMap来缓存Statement
2. 执行query或者update前，先判断当前的sql语句在map中是否已经存在，如果存在返回缓存的Statement，不存在编译后缓存，key值为sql，value为Statement

具体代码如下：

//用于缓存Statement的HashMap
private final Map<String, Statement> statementMap = new HashMap<>();
//继承自BaseExecutor的相关的执行逻辑的方法
@Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Configuration configuration = ms.getConfiguration();
    StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
    Statement stmt = prepareStatement(handler, ms.getStatementLog());
    return handler.query(stmt, resultHandler);
  }
//准备Statement的方法
 private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    BoundSql boundSql = handler.getBoundSql();
    String sql = boundSql.getSql();
     //判断当前sql是否已经缓存
    if (hasStatementFor(sql)) {
        //命中时直接返回
      stmt = getStatement(sql);
        //应用事务的超时时间，如果查询的超时时间为0，或者事务的超时时间小于查询的超时时间时，设置查询的超时时间为事务的超时时间。
      applyTransactionTimeout(stmt);
    } else {
        //准备Statement放入缓存
      Connection connection = getConnection(statementLog);
      stmt = handler.prepare(connection, transaction.getTimeout());
      putStatement(sql, stmt);
    }
    handler.parameterize(stmt);
    return stmt;
  }
  //判断是否命中缓存
  private boolean hasStatementFor(String sql) {
    try {
      return statementMap.keySet().contains(sql) && !statementMap.get(sql).getConnection().isClosed();
    } catch (SQLException e) {
      return false;
    }
  }
  //获取缓存中的Statement
  private Statement getStatement(String s) {
    return statementMap.get(s);
  }
  //放置缓存中的Statement
  private void putStatement(String sql, Statement stmt) {
    statementMap.put(sql, stmt);
  }

BaseExecutor中更新查询的超时时间

//应用事务的超时时间，如果查询的超时时间为0，或者事务的超时时间小于查询的超时时间时，设置查询的超时时间为事务的超时时间。
protected void applyTransactionTimeout(Statement statement) throws SQLException {
    StatementUtil.applyTransactionTimeout(statement, statement.getQueryTimeout(), transaction.getTimeout());
  }

StatementUtil的applyTransactionTimeout方法

public static void applyTransactionTimeout(Statement statement, Integer queryTimeout, Integer transactionTimeout) throws SQLException {
  if (transactionTimeout == null){
    return;
  }
  Integer timeToLiveOfQuery = null;
  if (queryTimeout == null || queryTimeout == 0) {
    timeToLiveOfQuery = transactionTimeout;
  } else if (transactionTimeout < queryTimeout) {
    timeToLiveOfQuery = transactionTimeout;
  }
  if (timeToLiveOfQuery != null) {
    statement.setQueryTimeout(timeToLiveOfQuery);
  }
}

BatchExecutor（批处理执行器）

BatchExecutor可以批量执行非查询操作，当相同和连续的Statement执行时，会公用同一个Statement，但必须要执行SqlSession的flushStatements才会生效,具体实现的代码如下：

声明的记录缓存的变量

//执行的Statement记录
private final List<Statement> statementList = new ArrayList<>();
//当前执行的语句
private String currentSql;
//处理结果集合
private final List<BatchResult> batchResultList = new ArrayList<>();
//当前的Statement
private MappedStatement currentStatement;

具体的判断逻辑

 public int doUpdate(MappedStatement ms, Object parameterObject) throws SQLException {
    final Configuration configuration = ms.getConfiguration();
    final StatementHandler handler = configuration.newStatementHandler(this, ms, parameterObject, RowBounds.DEFAULT, null, null);
    final BoundSql boundSql = handler.getBoundSql();
    final String sql = boundSql.getSql();
    final Statement stmt;
     //判断此次执行的Sql和Statement和记录的是否相同
    if (sql.equals(currentSql) && ms.equals(currentStatement)) {
      int last = statementList.size() - 1;
      //命中时，获取当前的最后一个Statement
      stmt = statementList.get(last);
      applyTransactionTimeout(stmt);
      handler.parameterize(stmt);//fix Issues 322
      BatchResult batchResult = batchResultList.get(last);
      batchResult.addParameterObject(parameterObject);
    } else {
      Connection connection = getConnection(ms.getStatementLog());
      stmt = handler.prepare(connection, transaction.getTimeout());
      handler.parameterize(stmt);    //fix Issues 322
      //为命中时，给current和currentStatement赋值
      currentSql = sql;
      currentStatement = ms;
      statementList.add(stmt);
      batchResultList.add(new BatchResult(ms, sql, parameterObject));
    }
    handler.batch(stmt);
    return BATCH_UPDATE_RETURN_VALUE;
  }

批量提交操作

 public List<BatchResult> doFlushStatements(boolean isRollback) throws SQLException {
    try {
      List<BatchResult> results = new ArrayList<>();
      if (isRollback) {
        return Collections.emptyList();
      }
        //遍历Statement集合
      for (int i = 0, n = statementList.size(); i < n; i++) {
        Statement stmt = statementList.get(i);
        applyTransactionTimeout(stmt);
        BatchResult batchResult = batchResultList.get(i);
        try {
          //执行结构封装
          batchResult.setUpdateCounts(stmt.executeBatch());
          MappedStatement ms = batchResult.getMappedStatement();
          List<Object> parameterObjects = batchResult.getParameterObjects();
          KeyGenerator keyGenerator = ms.getKeyGenerator();
          if (Jdbc3KeyGenerator.class.equals(keyGenerator.getClass())) {
            Jdbc3KeyGenerator jdbc3KeyGenerator = (Jdbc3KeyGenerator) keyGenerator;
            jdbc3KeyGenerator.processBatch(ms, stmt, parameterObjects);
          } else if (!NoKeyGenerator.class.equals(keyGenerator.getClass())) { //issue #141
            for (Object parameter : parameterObjects) {
              keyGenerator.processAfter(this, ms, stmt, parameter);
            }
          }
          // Close statement to close cursor #1109
          closeStatement(stmt);
        } catch (BatchUpdateException e) {
          StringBuilder message = new StringBuilder();
          message.append(batchResult.getMappedStatement().getId())
              .append(" (batch index #")
              .append(i + 1)
              .append(")")
              .append(" failed.");
          if (i > 0) {
            message.append(" ")
                .append(i)
                .append(" prior sub executor(s) completed successfully, but will be rolled back.");
          }
          throw new BatchExecutorException(message.toString(), e, results, batchResult);
        }
        results.add(batchResult);
      }
      return results;
    } finally {
      for (Statement stmt : statementList) {
        closeStatement(stmt);
      }
      currentSql = null;
      statementList.clear();
      batchResultList.clear();
    }
  }

以上三种执行器如何指定

配置文件中配置默认的executor

  <settings>
        <setting name="defaultExecutorType" value="REUSE"/>
    </settings>

创建SqlSesson中使用带有ExecutorType的方法

  SqlSession openSession(ExecutorType execType);

  SqlSession openSession(ExecutorType execType, boolean autoCommit);

  SqlSession openSession(ExecutorType execType, TransactionIsolationLevel level);

  SqlSession openSession(ExecutorType execType, Connection connection);

CachingExecutor（二级缓存执行器）

CachingExecutor使用了装饰者模式，对其他三种执行器进行了包装，使其有了二级缓存的功能。其内部的执行sql的方法都调用其内部包装的Executor对象，二级缓存具体如何工作，在后面的缓存章节进行介绍

简单列出CachingExecutor的构造方法和update的实现

 private final Executor delegate;
  private final TransactionalCacheManager tcm = new TransactionalCacheManager();

  public CachingExecutor(Executor delegate) {
    this.delegate = delegate;
    delegate.setExecutorWrapper(this);
  }
public int update(MappedStatement ms, Object parameterObject) throws SQLException {
    flushCacheIfRequired(ms);
    return delegate.update(ms, parameterObject);
  }

SqlSession调用Executor的执行过程

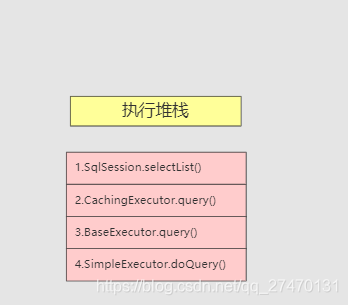

执行堆栈

StatementHandler（声明处理器）

未完
