前言:ssm框架是目前比较流行,广泛使用的框架,所以我们需要学会如何食用它

鉴于能力有限,小弟第一次搭建ssm框架,该博客可能会有很多不合理之处甚至一些错误,望指正!

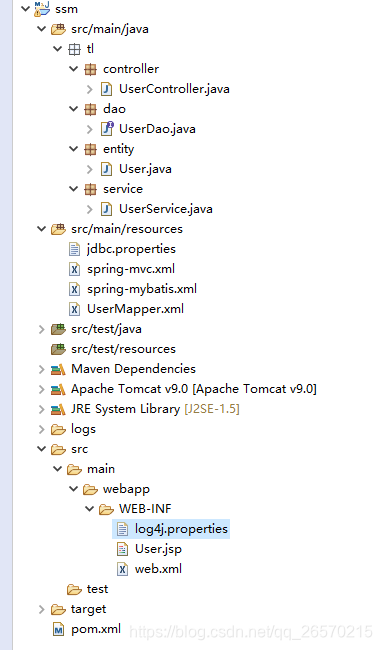

首先:上项目目录截图:

第一步:创建一个简单的Maven项目

注:(专业术语不会,看不懂没关系,略过,反正会报错你也跳不过去)

0.Packaging 选war

1.Targeted Runtimes 选中你的Tomcat

2.Generage deployment descriptor stub(小奶瓶)

第二步:导包

spring spring-jdbc spring-webmvc mybatis mybatis-spring MySQL Oracle junit 等等... 上代码:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>TXD</groupId>
  <artifactId>ssm</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <packaging>war</packaging>
  <build>
    <resources>
      <!-- maven项目中src源代码下的xml等资源文件编译进classes文件夹，
        注意：如果没有这个，它会自动搜索resources下是否有mapper.xml文件，
        如果没有就会报org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): com.pet.mapper.PetMapper.selectByPrimaryKey-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>

      <!--将resources目录下的配置文件编译进classes文件  -->
      <resource>
            <directory>src/main/resources</directory>
      </resource>
    </resources>
  </build>
  <properties>
		<!-- spring版本号 -->
		<spring.version>4.0.2.RELEASE</spring.version>
		<!-- mybatis版本号 -->
		<mybatis.version>3.2.6</mybatis.version>
		<!-- log4j日志文件管理包版本 -->
		<slf4j.version>1.7.7</slf4j.version>
		<log4j.version>1.2.17</log4j.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.11</version>
			<!-- 表示开发的时候引入，发布的时候不会加载此包 -->
			<scope>test</scope>
		</dependency>
		<!-- spring核心包 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-oxm</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- mybatis核心包 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>${mybatis.version}</version>
		</dependency>
		<!-- mybatis/spring包 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.2.2</version>
		</dependency>
		<!-- 导入java ee jar 包 -->
		<dependency>
			<groupId>javax</groupId>
			<artifactId>javaee-api</artifactId>
			<version>7.0</version>
		</dependency>
		<!-- 导入Mysql数据库链接jar包 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.30</version>
		</dependency>
		<dependency>
		<!-- 导入Oracle数据库连接jar包 -->
    <groupId>com.oracle</groupId>
    <artifactId>ojdbc6</artifactId>
    <version>11.2.0.3</version>
</dependency>

		<!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
		<dependency>
			<groupId>commons-dbcp</groupId>
			<artifactId>commons-dbcp</artifactId>
			<version>1.2.2</version>
		</dependency>
		<!-- JSTL标签类 -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
		<!-- 日志文件管理包 -->
		<!-- log start -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>


		<!-- 格式化对象，方便输出日志 -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.1.41</version>
		</dependency>


		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>

		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<!-- log end -->
		<!-- 映入JSON -->
		<dependency>
			<groupId>org.codehaus.jackson</groupId>
			<artifactId>jackson-mapper-asl</artifactId>
			<version>1.9.13</version>
		</dependency>
		<!-- 上传组件包 -->
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.3.1</version>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.4</version>
		</dependency>
		<dependency>
			<groupId>commons-codec</groupId>
			<artifactId>commons-codec</artifactId>
			<version>1.9</version>
		</dependency>


	</dependencies>
</project>

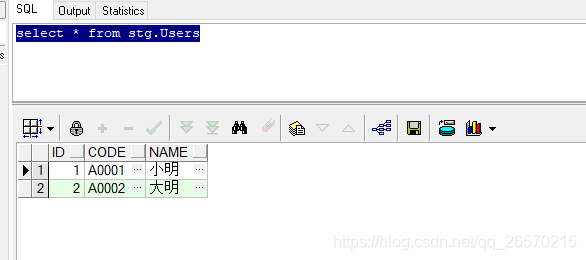

第三步 :在数据库中创建一个User表:

第四步:根据数据库中的表创建一个实体类Users---上代码:

User.java

package tl.entity;

public class User {
	private int id;
	private String code;
	private String name;

	public String getCode() {
		return code;
	}
	public void setCode(String code) {
		this.code = code;
	}
	public int getId() {
		return id;
	}
	public void setId(int id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
}

第五步:使用MyBatis Generator自动创建代码

感谢 shu_lin 大佬的 https://blog.youkuaiyun.com/zhshulin/article/details/23912615 文章

会生成DAO接口和Mapper的配置.上代码:

UserDao.java

package tl.dao;


import java.util.List;

import org.springframework.stereotype.Repository;

import tl.entity.User;
@Repository
public interface UserDao {
    int insert(User user);

    int insertSelective(User user);

    List<User> selectAll();
}

UserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
 <!--namespace务必和接口的全类名一致 -->
<mapper namespace="tl.dao.UserDao">
 <!--字段名和属性名不同时，使用resultMap映射-->
  <resultMap id="BaseResultMap" type="tl.entity.User">
    <result column="ID" jdbcType="DECIMAL" property="id" />
    <result column="CODE" jdbcType="VARCHAR" property="code" />
    <result column="NAME" jdbcType="VARCHAR" property="name" />
  </resultMap>
  <insert id="insert" parameterType="tl.entity.User">
    insert into USERS (ID, CODE, NAME
      )
    values (#{id,jdbcType=DECIMAL}, #{code,jdbcType=VARCHAR}, #{name,jdbcType=VARCHAR}
      )
  </insert>
  <insert id="insertSelective" parameterType="tl.entity.User">
    insert into USERS
    <trim prefix="(" suffix=")" suffixOverrides=",">
      <if test="id != null">
        ID,
      </if>
      <if test="code != null">
        CODE,
      </if>
      <if test="name != null">
        NAME,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides=",">
      <if test="id != null">
        #{id,jdbcType=DECIMAL},
      </if>
      <if test="code != null">
        #{code,jdbcType=VARCHAR},
      </if>
      <if test="name != null">
        #{name,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  	<select id="selectAll" resultType="tl.entity.User">
		select id,code,name from stg.users
	</select>
</mapper>

再三叮嘱: mapper配置文件中 namespace 务必和接口的全类名一致!

第六步:添加配置文件

jdbc.properties

driver=oracle.jdbc.driver.OracleDriver
url=jdbc:oracle:thin:@10.135.17.124:1521/edwdev
username=ods
password=???
#定义初始连接数
initialSize=0
#定义最大连接数
maxActive=20
#定义最大空闲
maxIdle=20
#定义最小空闲
minIdle=1
#定义最长等待时间
maxWait=60000

spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/mvc
	http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
	<!-- 自动扫描 -->
	<context:component-scan base-package="tl" />
	<!-- 引入配置文件 -->
	<!-- jdbc.property -->
	<bean id="Configurerproperties"
				class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="location" value="classpath:jdbc.properties" />
	</bean>

	<!-- dbcp 数据源配置-->
	<bean id="dataSource"
				class="org.apache.commons.dbcp.BasicDataSource"
				destroy-method="close">
		<property name="driverClassName" value="${driver}" />
		<property name="url" value="${url}" />
		<property name="username" value="${username}" />
		<property name="password" value="${password}" />
		<!-- 初始化连接大小 -->
		<property name="initialSize" value="${initialSize}"></property>
		<!-- 连接池最大数量 -->
		<property name="maxActive" value="${maxActive}"></property>
		<!-- 连接池最大空闲 -->
		<property name="maxIdle" value="${maxIdle}"></property>
		<!-- 连接池最小空闲 -->
		<property name="minIdle" value="${minIdle}"></property>
		<!-- 获取连接最大等待时间 -->
		<property name="maxWait" value="${maxWait}"></property>
	</bean>

	<!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<!-- 自动扫描mapping.xml文件 -->
		<property name="mapperLocations" value="classpath:UserMapper.xml"></property>
	</bean>

	<!-- DAO接口所在包名，Spring会自动查找其下的类 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="tl.dao" />
		<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
	</bean>

	<!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource" />
	</bean>

</beans>

第七步:创建controller层和service层

UserController.java

package tl.controller;


import java.util.HashMap;
import java.util.List;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import tl.entity.User;
import tl.service.UserService;

@Controller
public class UserController {
	@Resource
	private UserService userService;
	@RequestMapping(value="getUser")
	public ModelAndView getUser(HttpServletRequest request,HttpServletResponse response) {
		List<User> luser=userService.selectAll();
		String username;
		HashMap<String, String> map=new HashMap<String,String>();
		for(User user:luser) {
			username=user.getName();
			map.put("username", username);
		}
		return new ModelAndView("User",map);
	}
}

UserService.java

package tl.service;


import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import tl.dao.UserDao;
import tl.entity.User;
@Service
public class UserService {
	@Autowired
	private UserDao userDao;

	public int insert(User user) {
		return userDao.insert(user);
	}
	public List<User> selectAll() {
		return userDao.selectAll();
	}
}

第八步:添加配置文件

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context-3.1.xsd
	http://www.springframework.org/schema/mvc
	http://www.springframework.org/schema/mvc/spring-mvc-3.1.xsd">
	<!-- 自动扫描该包，使SpringMVC认为包下用了@controller注解的类是控制器   组件扫描-->
	<context:component-scan base-package="tl.controller" />

	<!-- 扩充了注解驱动，可以将请求参数绑定到控制参数-->
	<mvc:annotation-driven />


	<!-- 定义跳转的文件的前后缀 ，视图模式配置  视图解析-->
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<!-- 这里的配置我的理解是自动给后面action的方法return的字符串加上前缀和后缀，变成一个 可用的url地址 -->
		<property name="prefix" value="/WEB-INF/" />
		<property name="suffix" value=".jsp" />
	</bean>

	<!--避免IE执行AJAX时，返回JSON出现下载文件 -->
	<bean id="mappingJacksonHttpMessageConverter"
		class="org.springframework.http.converter.json.MappingJacksonHttpMessageConverter">
		<property name="supportedMediaTypes">
			<list>
				<value>text/html;charset=UTF-8</value>
			</list>
		</property>
	</bean>
	<!-- 启动SpringMVC的注解功能，完成请求和注解POJO的映射 -->
	<bean
		class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
		<property name="messageConverters">
			<list>
				<ref bean="mappingJacksonHttpMessageConverter" />	<!-- JSON转换器 -->
			</list>
		</property>
	</bean>


	<!-- 配置文件上传，如果没有使用文件上传可以不用配置，当然如果不配，那么配置文件中也不必引入上传组件包 -->
	<bean id="multipartResolver"
        class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="utf-8" />
        <!-- 文件大小最大值 -->
        <property name="maxUploadSize" value="10485760000" />
        <!-- 内存中的最大值 -->
        <property name="maxInMemorySize" value="40960" />
    </bean>
</beans>

注:这里主要功能就是配置了注解扫描和视图解析器

第九步:创建用来返回的视图

User.jsp

<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
	<title>测试</title>
  </head>
  <body>
    姓名是:${username}
  </body>
</html>

第十步:配置log4j.properties

貌似这些都是固定不变的,而且即使不配置也不影响程序的运行

log4j.properties

#定义LOG输出级别
log4j.rootLogger=INFO,Console,File
#定义日志输出目的地为控制台
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
#可以灵活地指定日志输出格式，下面一行是指定具体的格式
log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%c] - %m%n

#文件大小到达指定尺寸的时候产生一个新的文件
log4j.appender.File = org.apache.log4j.RollingFileAppender
#指定输出目录
log4j.appender.File.File = logs/ssm.log
#定义文件最大大小
log4j.appender.File.MaxFileSize = 10MB
# 输出所以日志，如果换成DEBUG表示输出DEBUG以上级别日志
log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n

第十一步:配置DispatcherServlet

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:spring-mybatis.xml</param-value>
  </context-param>
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <listener>
    <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
  </listener>
  <servlet>
    <servlet-name>SpringMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring-mvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>SpringMVC</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

第十二步:在WEB-INF下创建jsp文件

User.jsp

<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
	<title>测试</title>
  </head>
  <body>
    姓名是:${username}
  </body>
</html>

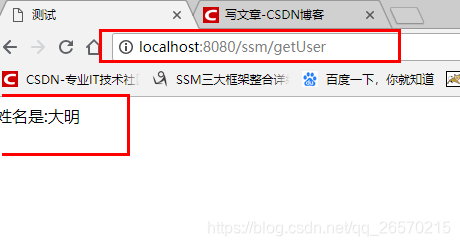

最后,启动并运行该程序,前台成功返回jsp页面与参数
