k8s rolling update and rolling back

Rolling update can ensure the continuity of business because during the update there are copies running all the time.

demo:

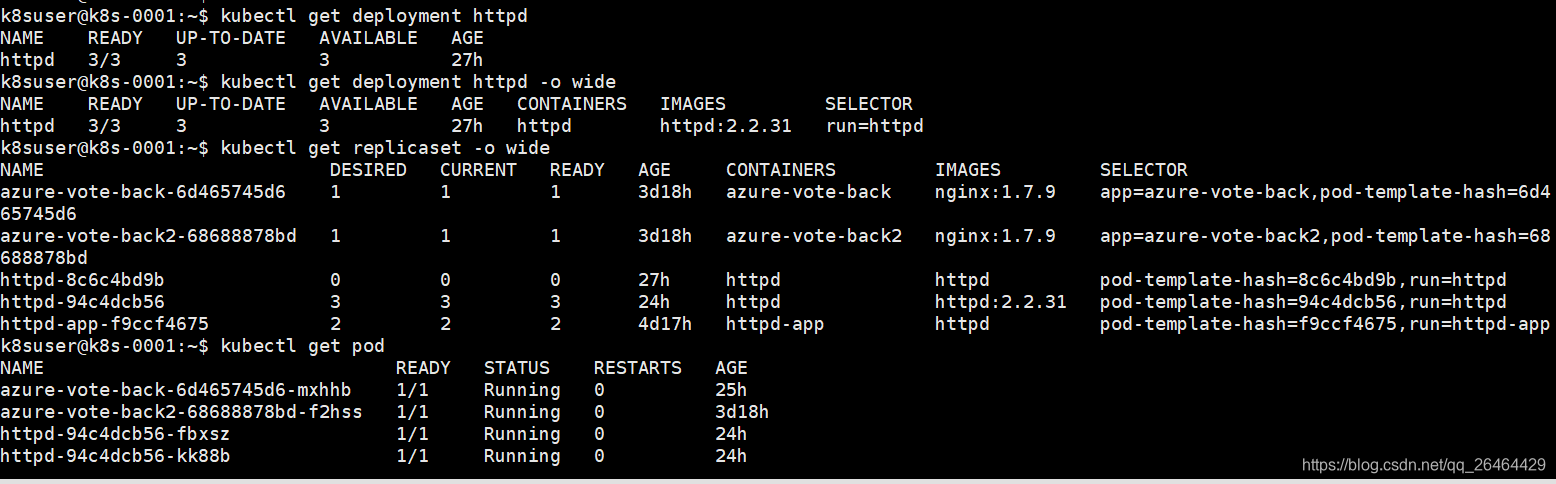

create Deployment httpd
create ReplicaSet httpd-8*
create three Pods
now the version of image is 2.2.31

vertify the yaml as httpd:2.2.32 and apply yaml

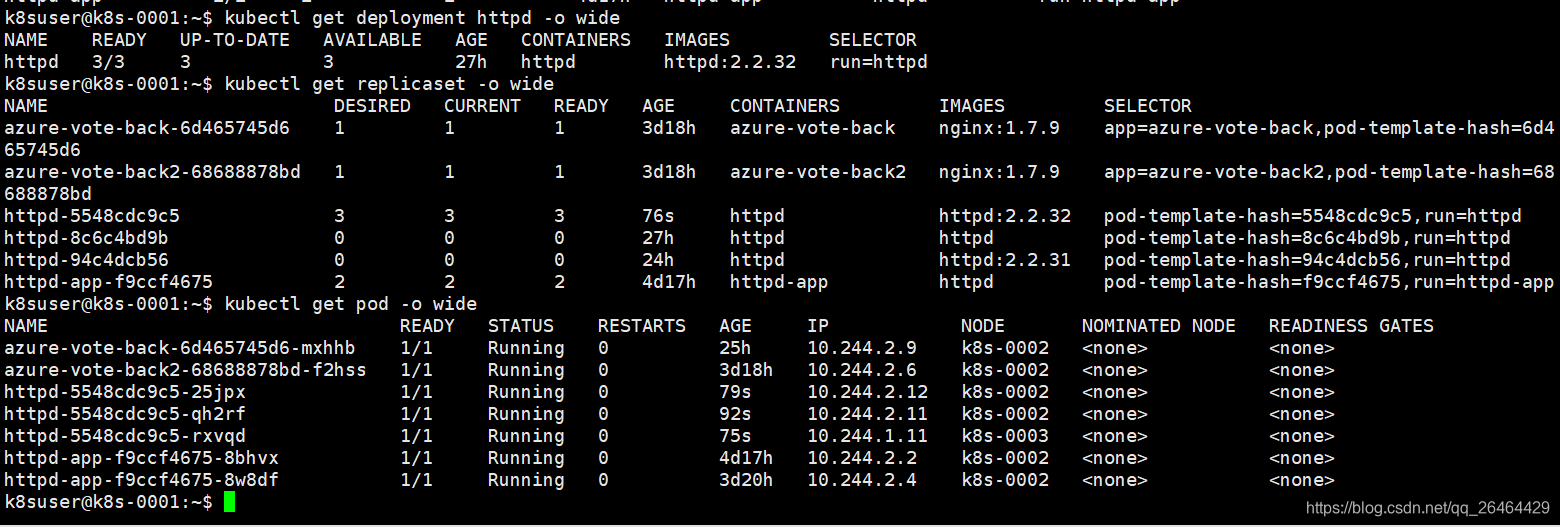

the Deployment httpd 's image updates 2.2.32
the Replicaset updates 2.2.32,which has 3 Pods
the newest Pods are in the Replicaset 2.2.32

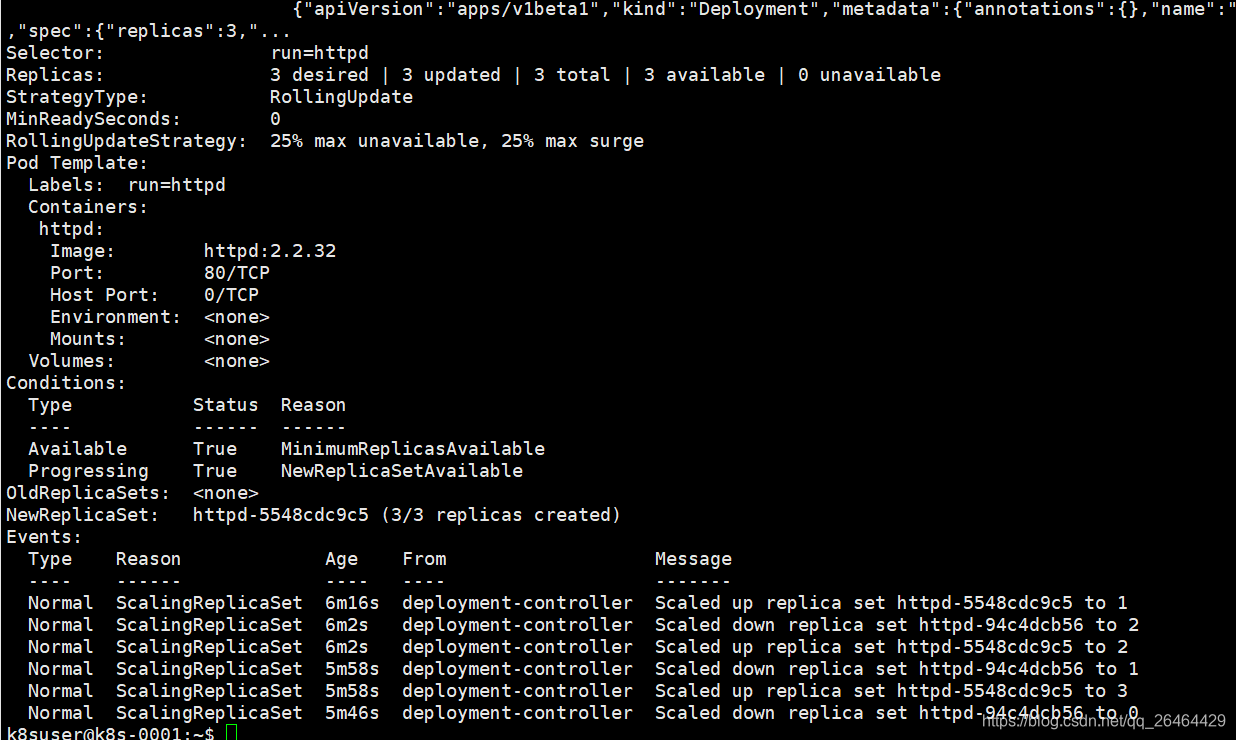

each time update only one Pod ,the old ReplicaSet scales down from 3 to 0,the new ReplicaSet scales up from 0 to 3

Rolling back

kubectl applying will save a configuration in revision which can be used to roll back.

demo：

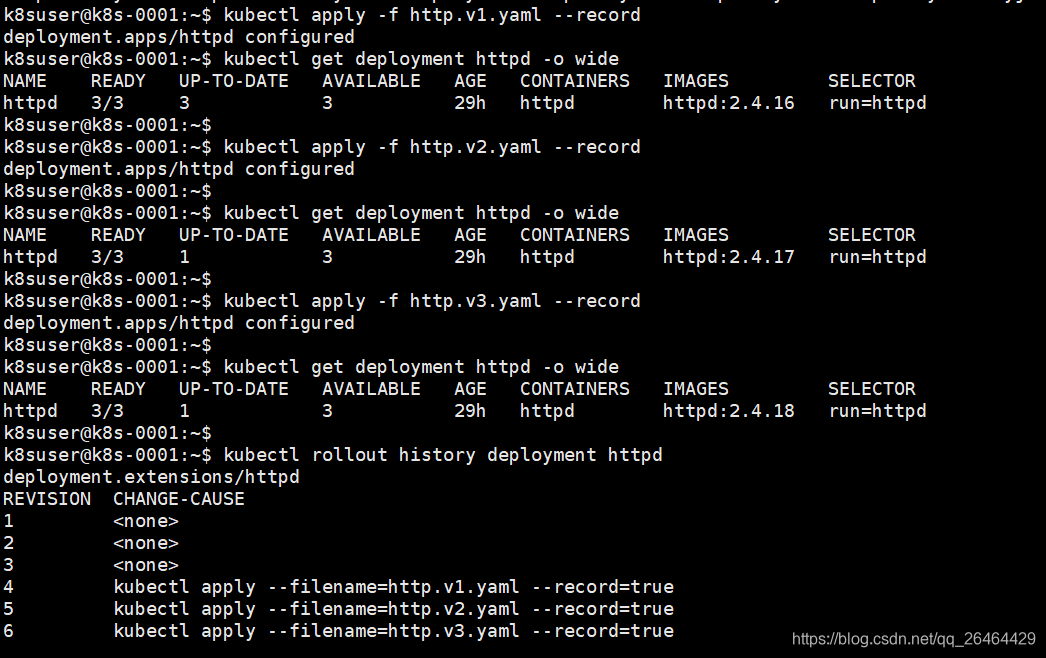

apply deployment three times

kubectl rollout history deployment httpd
to see the version,we can roll back to certain version 1 and 4

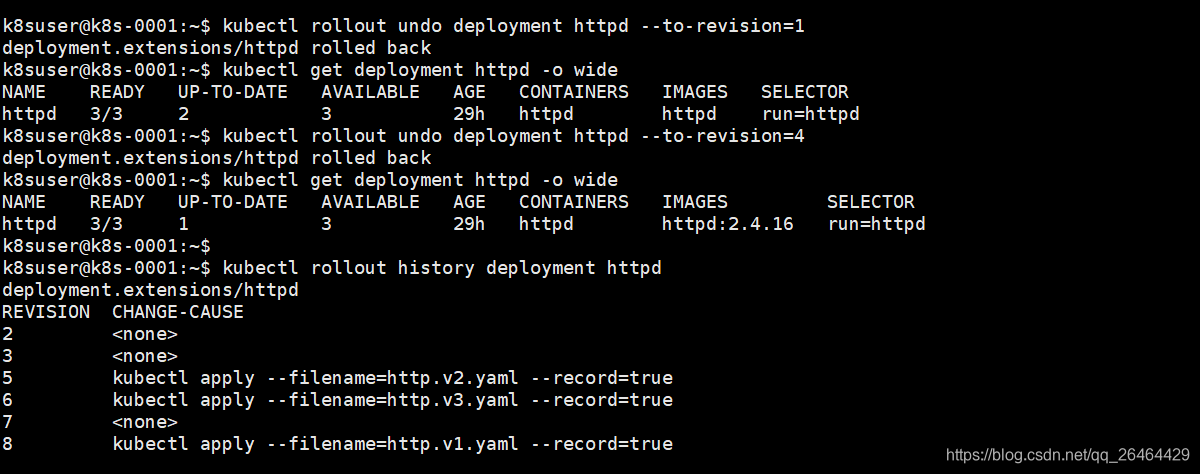

kubectl rollout undo deployment httpd --to-revision=4

we can use helm to update the application-level container in k8s:

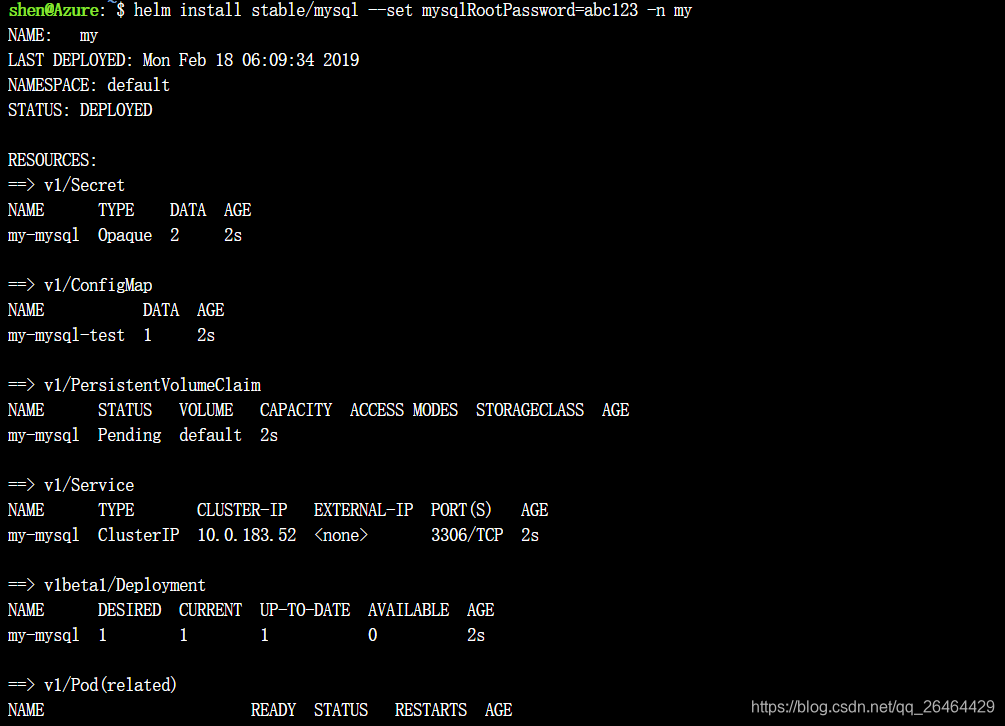

install mysql chart,and set parameter

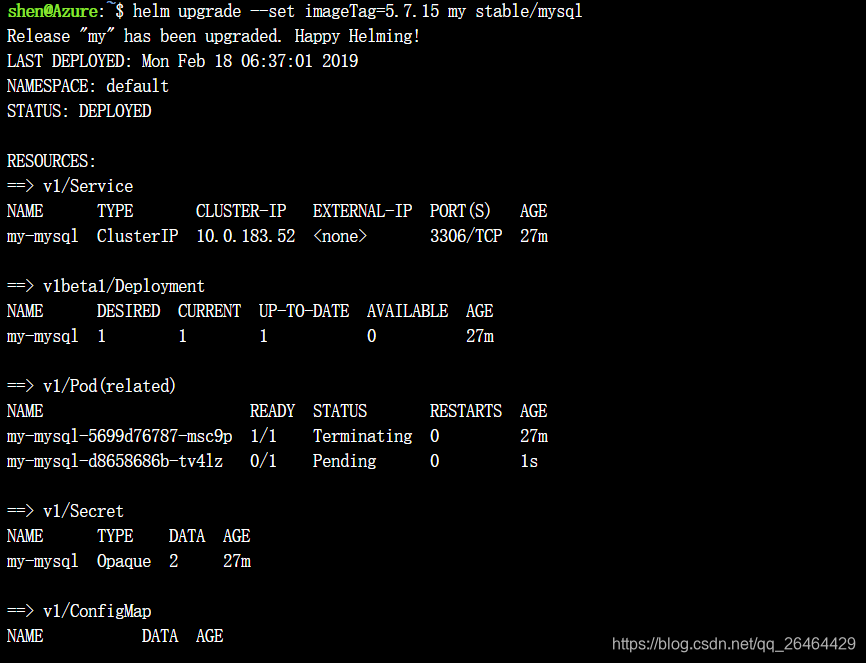

upgrade chart:

update successfully,

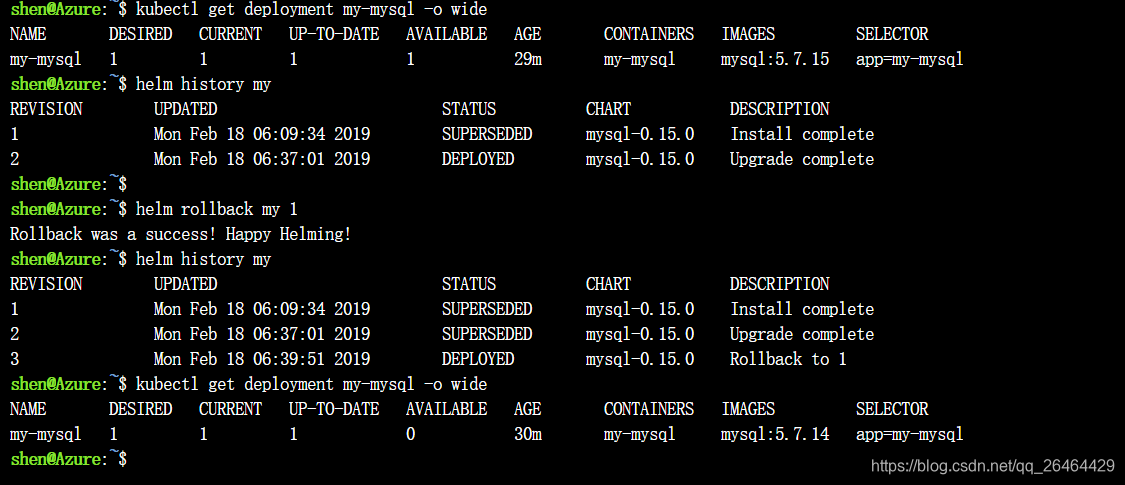

helm history can shows version of releases

helm rollback can rollback release to certain version
