IC验证仿真时Dump波形时fsdbDumpvars的参数介绍

fsdb系统任务

$fsdbDumpfile(“file_name.fsdb”);
$fsdbAutoSwitchDumpfile(1000,"wave.fsdb",10,"fsdb_dump.log")
$fsdbDumpvars(0,"top.dut")
$fsdbDumpFlush
$fsdbDumpon
$fsdbDumpoff
$fsdbDumpFinish

$fsdbDumpvars 有三个参数：depth，scope和parameter。

depth：用来设置hierarchy tree层级结构的最大深度

scope：用来设置从哪个scope开始

parameter：用来控制某些特殊功能的打开或者关闭

使用方法：$fsdbDumpvars(depth, scope, parameter)

这三个参数是位置无关的，所以也可以这样写$fsdbDumpvars(depth, parameter，scope)

下面重点记录下各个parameter

"+mda"
Dump all memory and MDA signals in all scopes specified in fsdbDumpvars option or the entire design if no scope is specified. This option is covered by the "+all" option and is effective for SystemVerilog's MDAs only. For VCS users, the VCS option "+memcbk" may be needed while compiling the desing

"+packedmda"
Only dump the packed signals in the design (without array and memory types).

For example:

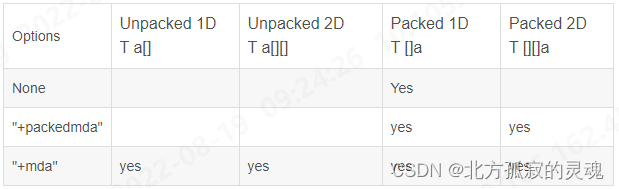

                                                     Table for packedmda and mda

"+functions"
Set to enable dumping the signals in function and task

"+Reg_Only"
Only reg type signals are dumped

"+packedmda"
dumps the packed signals in the desing. see example in table above

"+all"
dumps all

"+struct"
Dumps all structs in all scopes specified in fsdbDumpvars or in the entire design if no scope is specified
