最简单的k8s安装记录（包含dashboard）

使用sealos一键安装k8s集群

sealos-githubsealos使用文档

wget  https://github.com/labring/sealos/releases/download/v4.1.4/sealos_4.1.4_linux_amd64.tar.gz  && \
    tar -zxvf sealos_4.1.4_linux_amd64.tar.gz sealos &&  chmod +x sealos && mv sealos /usr/bin

sealos run labring/kubernetes:v1.25.0 labring/helm:v3.8.2 labring/calico:v3.24.1 \
     --masters 192.168.1.161 \
     --nodes 192.168.1.162,192.168.1.163 -p password

安装dashboard

k8s-1.25.0对应dashboard版本为v2.7.0，查看合适版本。

找到合适版本后apply，执行指令后可以看到新增的内容。

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.7.0/aio/deploy/recommended.yaml

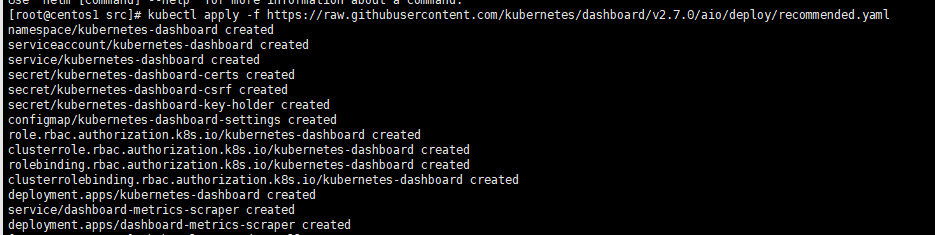

新增的内容

修改service/kubernetes-dashboard的暴露服务类型为NortPort

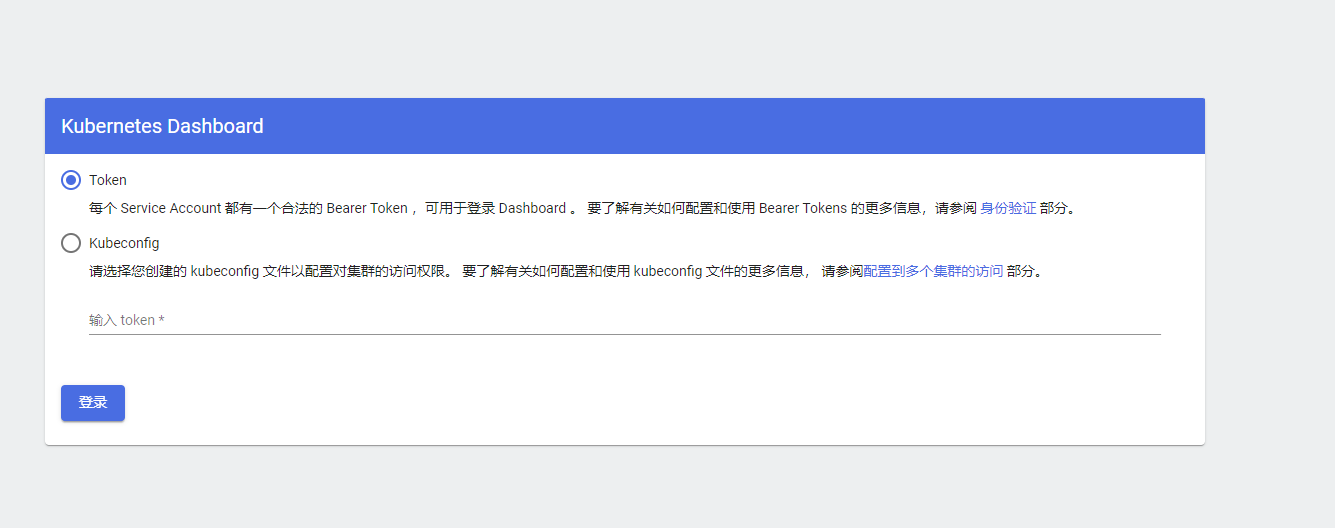

这时候访问暴露的dashboard端口能看到，需要使用token登录。

创建dashboard管理用户

cat > dashboard-svc-account.yaml <<-EOF
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: dashboard-admin
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: dashboard-admin-cluster-role
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: dashboard-admin
    namespace: kubernetes-dashboard
EOF
kubectl apply -f dashboard-svc-account.yaml

生成token后填入登录即可看到界面。kubectl -n kubernetes-dashboard create token dashboard-admin

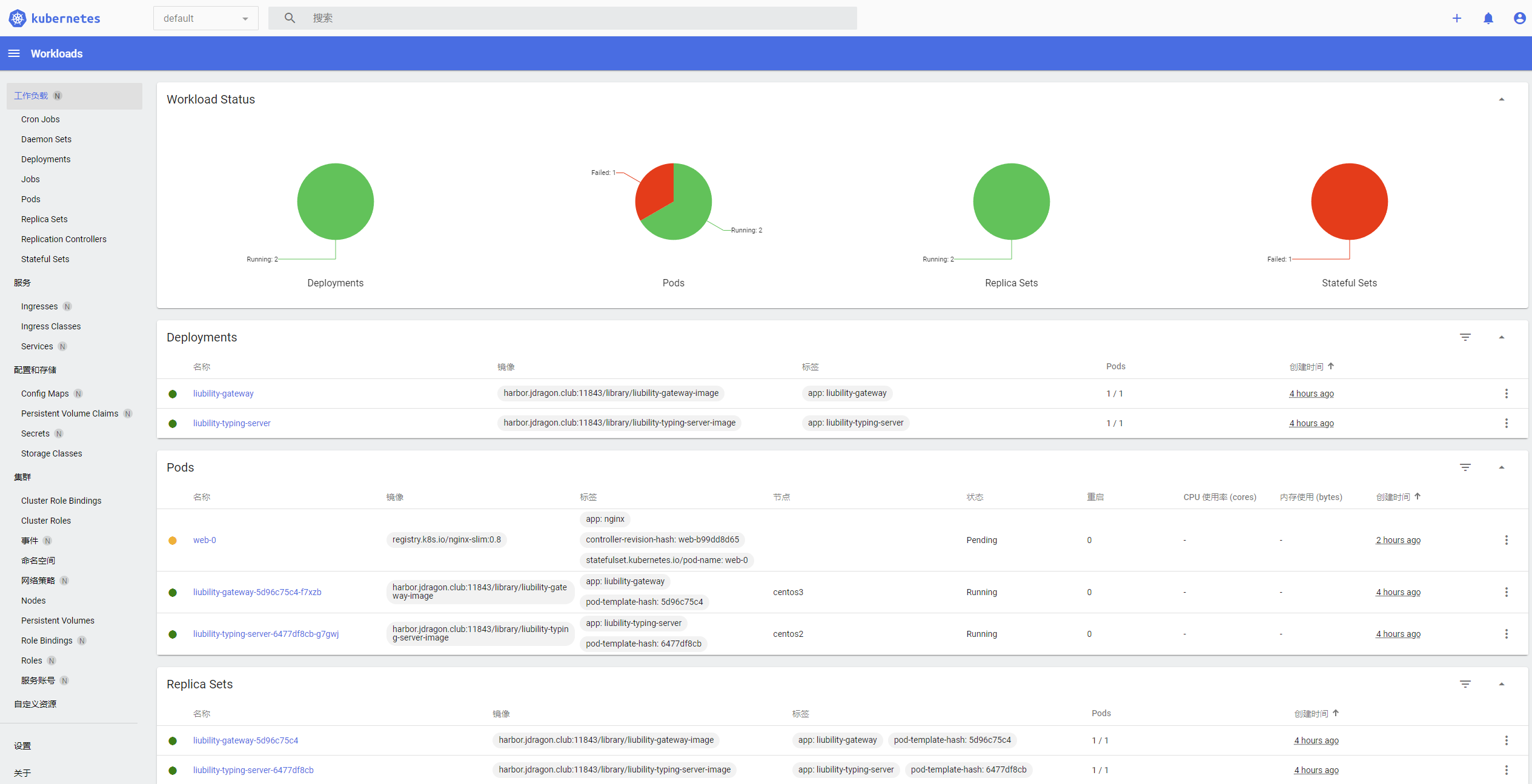

k8s-dashboard

参考

dashboard创建用户k8sk8s学习笔记4--搭建dashboard
