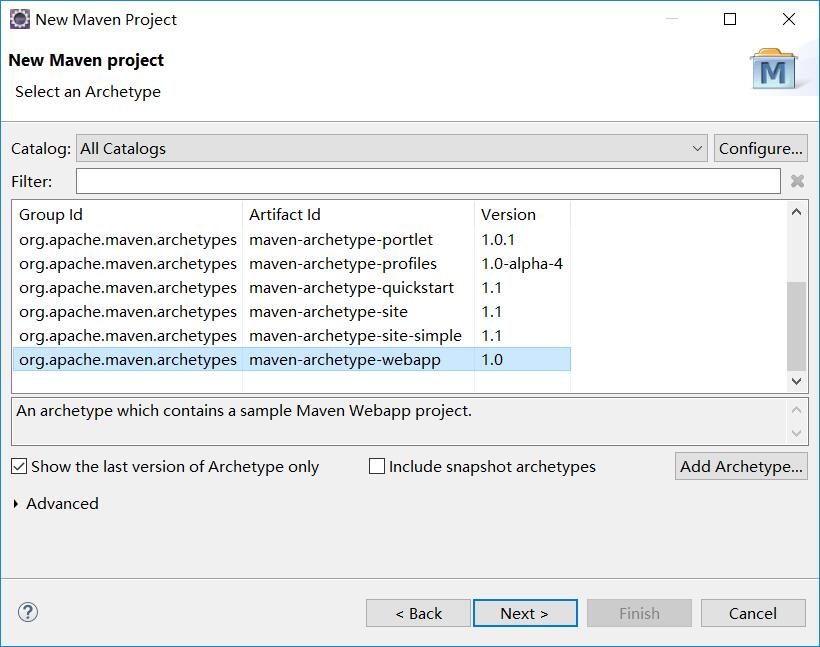

1.创建maven项目如下图：

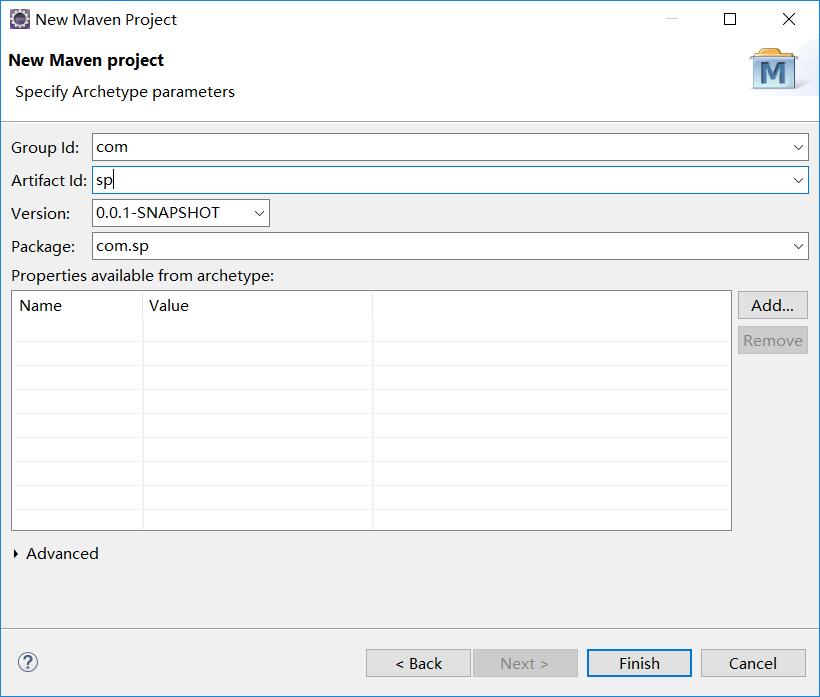

2.如下图所示：

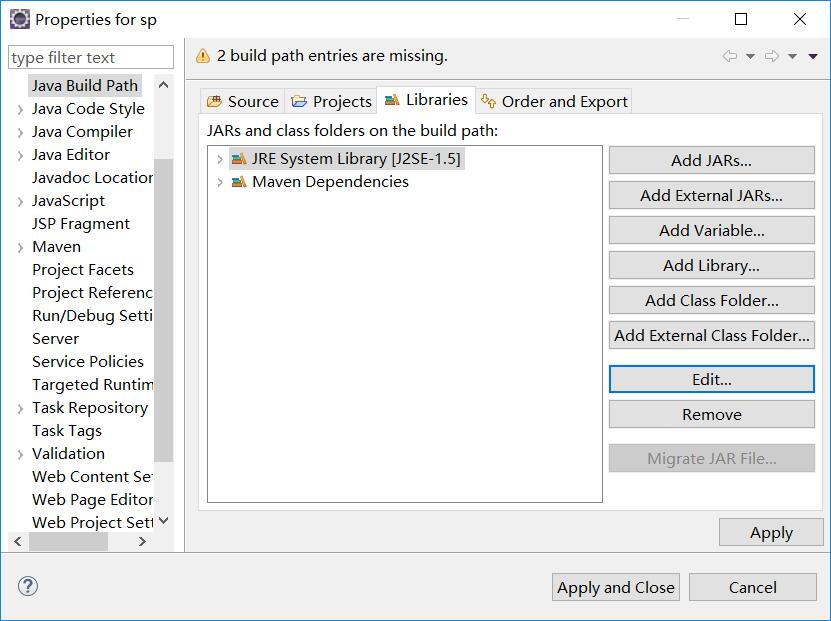

3.如下图所示生成资源文件夹：

4.复制如下pom.xml代码至自己pom.xml文件中：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com</groupId>
  <artifactId>sp</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>sp Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <properties>
    <spring.version>4.1.3.RELEASE</spring.version>
    <pagehelper.version>5.1.2-beta</pagehelper.version>
    <mysql.version>5.1.6</mysql.version>
    <mybatis.spring.version>1.2.3</mybatis.spring.version>
    <mybatis.version>3.1.1</mybatis.version>
    <junit.version>4.12</junit.version>
    <jstl.version>1.2</jstl.version>
    <jsqlparser.version>1.0</jsqlparser.version>
    <jackson.version>1.2.7</jackson.version>
    <servlet-api.version>3.1.0</servlet-api.version>
    <druid.version>1.0.18</druid.version>
    <log4j.version>1.2.16</log4j.version>
    <commons-logging.version>1.2</commons-logging.version>
    <commons-fileupload.version>1.2.1</commons-fileupload.version>
    <commons-io.version>1.3.2</commons-io.version>
    <commons-lang.version>2.6</commons-lang.version>
    <aopalliance.version>1.0</aopalliance.version>
    <mybatis-generator.version>1.3.5</mybatis-generator.version>
  </properties>

  <dependencies>

    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis.spring.version}</version>
    </dependency>

    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>

    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>${druid.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- JSP相关 -->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>${jstl.version}</version>
    </dependency>

    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet-api.version}</version>
      <scope>provided</scope>
    </dependency>

    <!-- pageHelper -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>

    <!--jsqlparser-->
    <dependency>
      <groupId>com.github.jsqlparser</groupId>
      <artifactId>jsqlparser</artifactId>
      <version>${jsqlparser.version}</version>
    </dependency>
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>

    <dependency>
      <groupId>commons-logging</groupId>
      <artifactId>commons-logging</artifactId>
      <version>${commons-logging.version}</version>
    </dependency>

    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>${commons-fileupload.version}</version>
    </dependency>

    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>${commons-io.version}</version>
    </dependency>

    <dependency>
      <groupId>commons-lang</groupId>
      <artifactId>commons-lang</artifactId>
      <version>${commons-lang.version}</version>
    </dependency>

    <dependency>
      <groupId>aopalliance</groupId>
      <artifactId>aopalliance</artifactId>
      <version>${aopalliance.version}</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis.generator</groupId>
      <artifactId>mybatis-generator-core</artifactId>
      <version>${mybatis-generator.version}</version>
    </dependency>

    <dependency>
    	<groupId>com.fasterxml.jackson.core</groupId>
    	<artifactId>jackson-databind</artifactId>
    	<version>2.5.4</version>
    </dependency>
    <dependency>
    	<groupId>com.fasterxml.jackson.core</groupId>
    	<artifactId>jackson-core</artifactId>
    	<version>2.5.4</version>
    </dependency>
    <dependency>
    	<groupId>com.fasterxml.jackson.core</groupId>
    	<artifactId>jackson-annotations</artifactId>
    	<version>2.9.0</version>
    </dependency>
    <dependency>
    	<groupId>taglibs</groupId>
    	<artifactId>standard</artifactId>
    	<version>1.1.2</version>
    </dependency>
  </dependencies>

  <build>
    <finalName>${project.artifactId}</finalName>
    <plugins>
      <!-- 资源文件拷贝插件 -->
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-resources-plugin</artifactId>
        <version>2.7</version>
        <configuration>
          <encoding>UTF-8</encoding>
        </configuration>
      </plugin>
      <!-- java编译插件 -->
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.2</version>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
          <encoding>UTF-8</encoding>
        </configuration>
      </plugin>
    </plugins>
    <pluginManagement>
      <plugins>
        <!-- 配置Tomcat插件 -->
        <plugin>
          <groupId>org.apache.tomcat.maven</groupId>
          <artifactId>tomcat7-maven-plugin</artifactId>
          <version>2.2</version>
        </plugin>
      </plugins>
    </pluginManagement>

    <resources>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
          <include>**/*.tld</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>

  </build>

</project>

5.然后更新maven：右键项目->Maven->Update Project：

没有错误，继续。

6.将spring 的web.xml文件复制到自己的项目web.xml文件中

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:web="http://java.sun.com/xml/ns/javaee"
          xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0">
     <web:session-config>

     </web:session-config>
    <!-- spring的配置文件-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- spring mvc核心：分发servlet -->
    <servlet>
        <servlet-name>mvc-dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- spring mvc的配置文件 -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springMVC.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>mvc-dispatcher</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <!--加载静态文件  -->
</web-app>

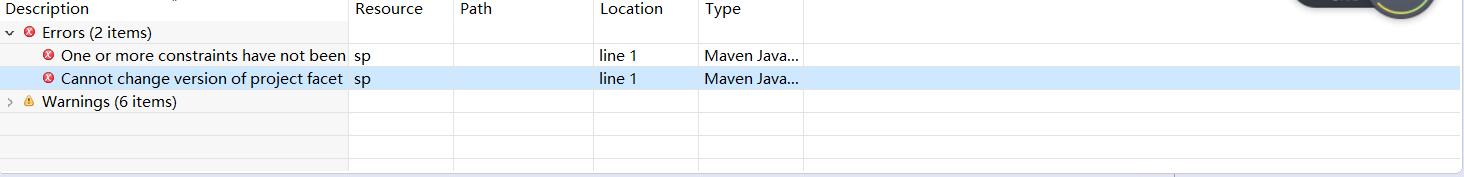

然后出现错误如下图：

然后进行如下步骤处理报错：

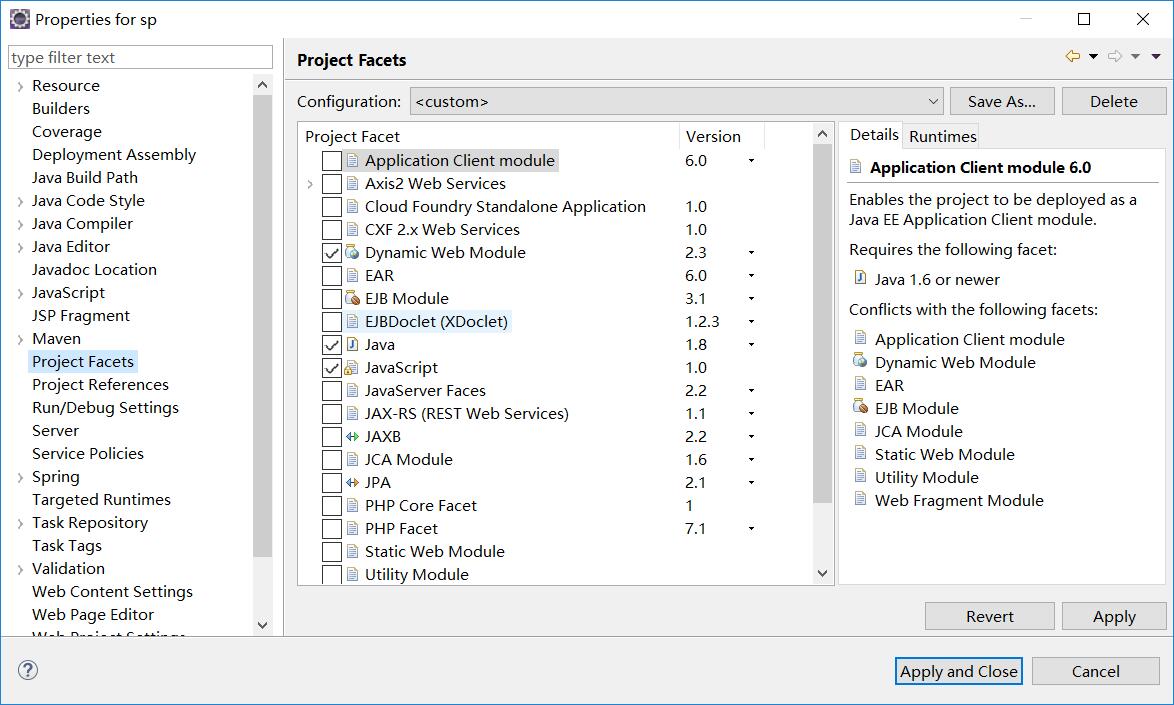

将dynamic web module 取消勾选然后应用：

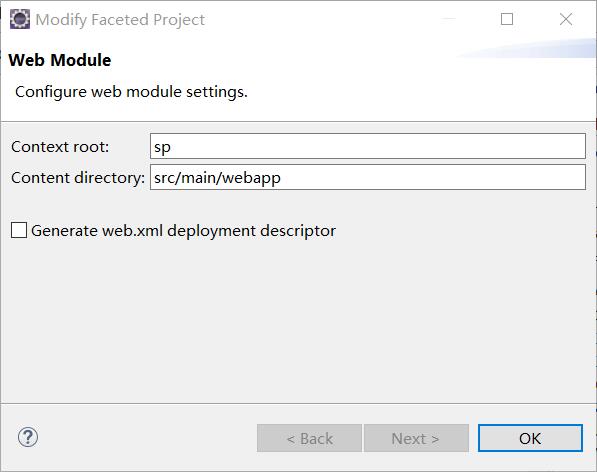

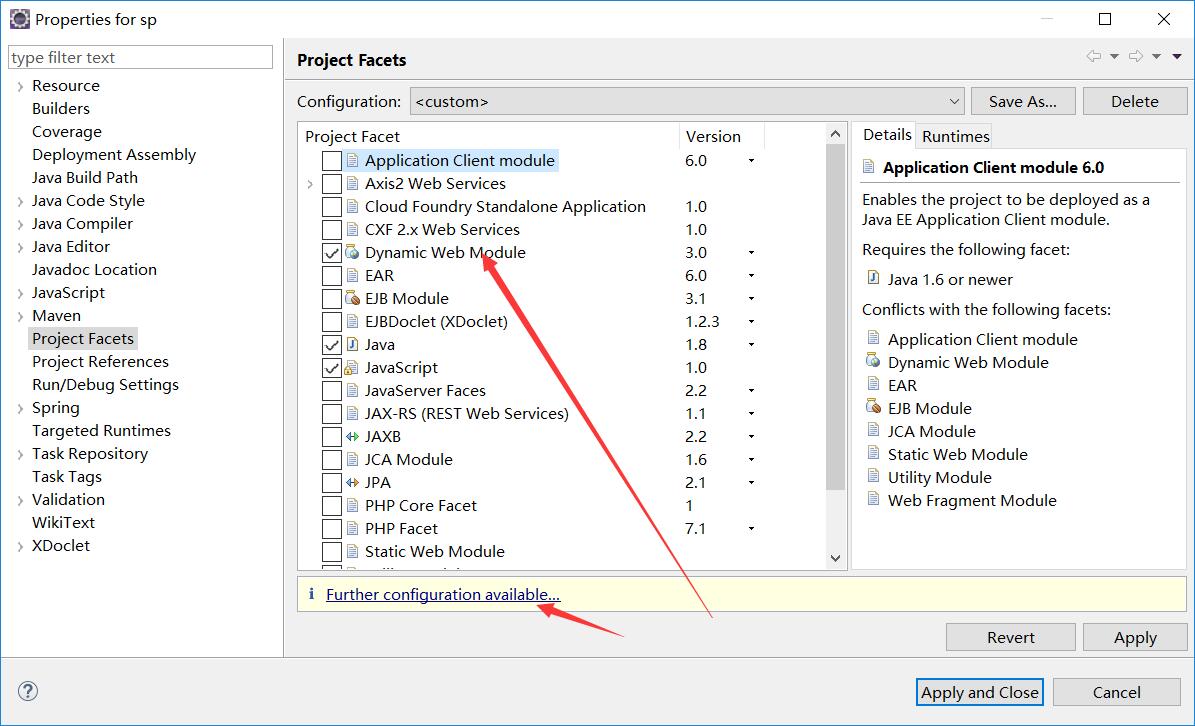

再次打开如图选项：勾选dynamic web module,并且打开futher 并且更改至如下图内容：

最后再次更新maven：右键项目->Maven->Update Project，错误消失。

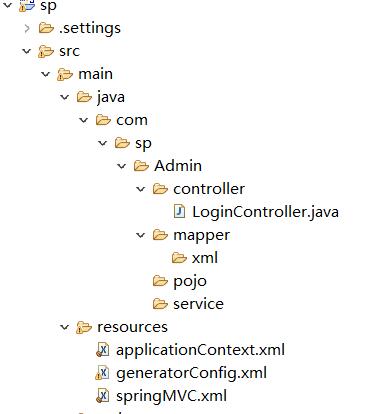

然后开始添加如下spring配置文件去自己的resource文件夹下：

配置文件代码为：

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="
     http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
     http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
     http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-3.0.xsd
     http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
     http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
     http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

            <!-- 通过注解，将Service的生命周期纳入Spring的管理 -->
   <context:annotation-config />
	<context:component-scan base-package="com.sp.Admin.service" />
			<!-- 配置数据源 -->
	<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
	  <property name="driverClassName">
	      <value>com.mysql.jdbc.Driver</value>
	  </property>

	  <property name="url">
	      <value>jdbc:mysql://localhost:3306/ssmblog?characterEncoding=UTF-8&useSSL=false</value>
	  </property>
	  <property name="username">
	      <value>root</value>
	  </property>
	  <property name="password">
	      <value>201314spsp</value>
	  </property>
	</bean>
			 <!-- 扫描存放SQL语句的Category.xml -->
	<bean id="sqlSession" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="typeAliasesPackage" value="com.sp.Admin.pojo" />
		<property name="dataSource" ref="dataSource"/>
		<property name="mapperLocations" value="classpath:com/sp/Admin/mapper/xml/*.xml"/>
	</bean>
			 <!-- 扫描Mapper，并将其生命周期纳入Spring的管理 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.sp.Admin.mapper"/>
	</bean>

</beans>

springMVC.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:tx="http://www.springframework.org/schema/tx" xmlns:jdbc="http://www.springframework.org/schema/jdbc"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-3.0.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">

    <context:annotation-config/>
	<!-- 扫描Controller,并将其生命周期纳入Spring管理 -->
    <context:component-scan base-package="com.sp.Admin.controller">
          <context:include-filter type="annotation"
          expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

     <context:component-scan base-package="com.sp.Admin.controller">
          <context:include-filter type="annotation"
          expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>
      <!-- 注解驱动，以使得访问路径与方法的匹配可以通过注解配置 -->
    <mvc:annotation-driven />
    <!-- 静态页面，如html,css,js,images可以访问 -->

    <mvc:default-servlet-handler />



	<!-- 视图定位 -->
    <bean
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass"
            value="org.springframework.web.servlet.view.JstlView" />
        <property name="prefix" value="/WEB-INF/Admin/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>
   <!--
    <mvc:interceptors>
         <mvc:interceptor>
            拦截全部地址
            <mvc:mapping path="/**"/>
            登录拦截类
            <bean id="loginInterceptor" class="com.sp.Admin.interceptor.LoginInterceptor">
            </bean>
         </mvc:interceptor>
    </mvc:interceptors>  -->



 <!--   <bean id="exceptionResolver" class="org.springframework.web.servlet.handler.SimpleMappingExceptionResolver">
         <property name="exceptionMappings">
           <props>
            登录失败异常类
             <prop key="com.sp.Admin.exception.UnLoginException">redirect:/toLogin</prop>
           </props>
         </property>
       </bean>     -->

</beans>

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!--数据库驱动-->
    <!--
        如果IDE(eclipse或者idea) 项目里导入了jar包，那么就不需要配置了jar包的绝对路径了
         <classPathEntry    location="e:/project/mybatis/lib/mysql-connector-java-5.0.8-bin.jar"/>
    -->
    <context id="DB2Tables"    targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <property name="suppressAllComments" value="false"/>
        </commentGenerator>
        <!--数据库链接地址账号密码-->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/ssmblog" userId="root" password="201314spsp">
        </jdbcConnection>
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>
        <!--生成Model类存放位置-->
        <javaModelGenerator targetPackage="main.java.com.sp.Admin.pojo" targetProject="src">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>
        <!--生成映射文件存放位置-->
        <sqlMapGenerator targetPackage="main.java.com.sp.Admin.mapper.xml" targetProject="src">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>
        <!--生成Dao类存放位置-->

        <javaClientGenerator type="XMLMAPPER" targetPackage="main.java.com.sp.Admin.mapper" targetProject="src">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>
        <!--生成对应表及类名-->
        <table tableName="blog_userdetail" domainObjectName="blog_userdetail" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="true" selectByExampleQueryId="false">
            <property name="my.isgen.usekeys" value="true"/>
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
<!--         <table tableName="product_" domainObjectName="Product" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false"></table> -->
    </context>
</generatorConfiguration>

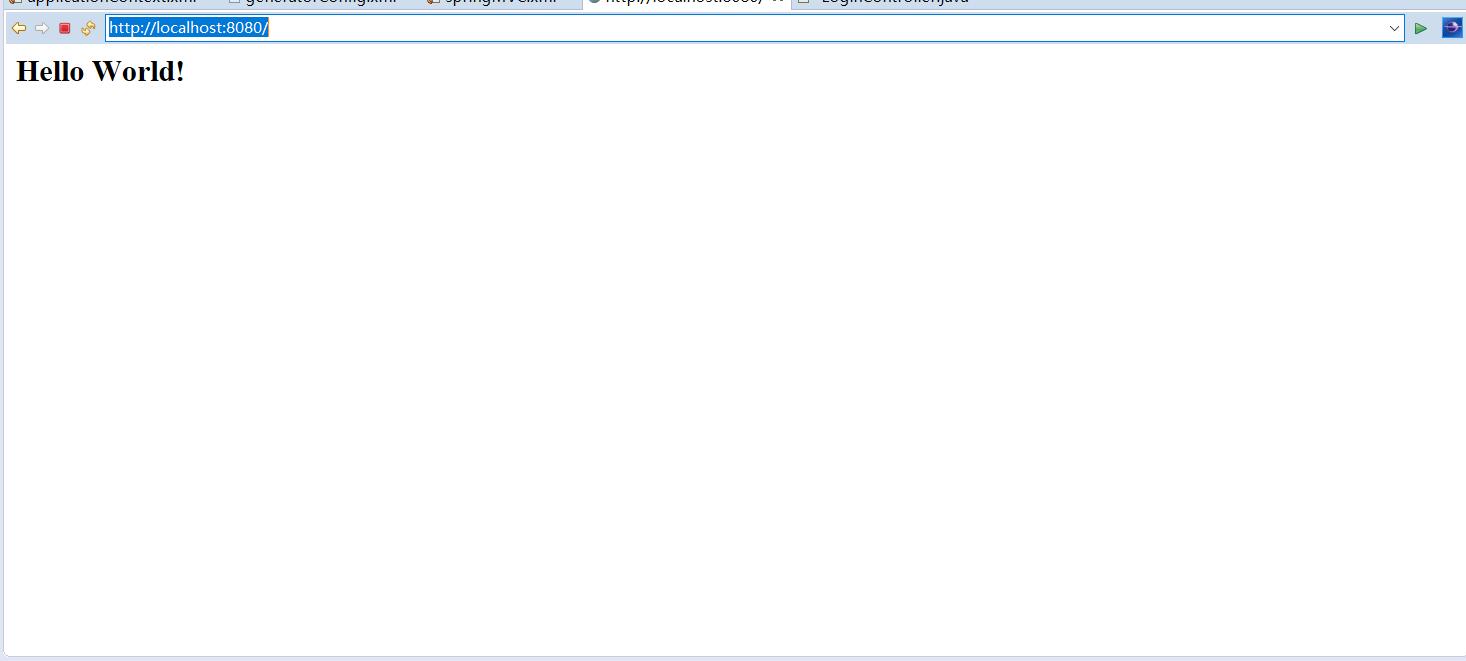

然后在tomcat下运行：成功了！

再做一写个控制器试一试

package com.sp.Admin.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
@RequestMapping(value="/admin")
public class LoginController {

@RequestMapping("test")
public void test() {
	System.out.println("nishizhu");
}
}

浏览器输入http://localhost:8080/sp/admin/test

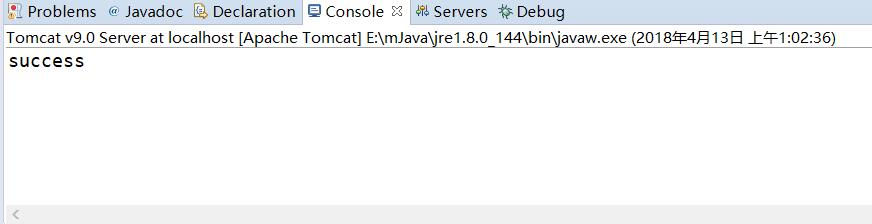

控制台成功打印：
