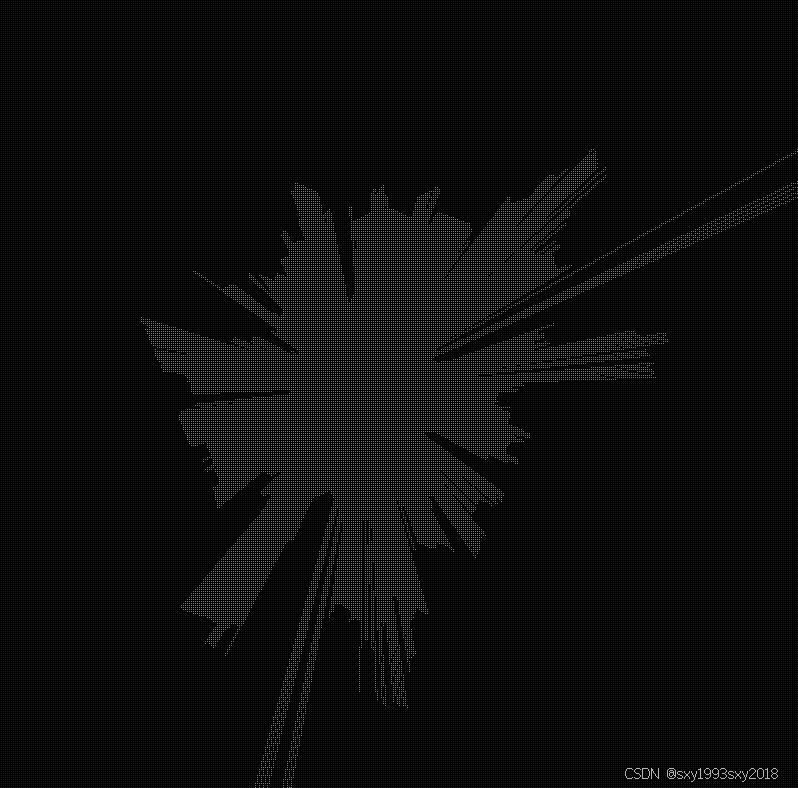

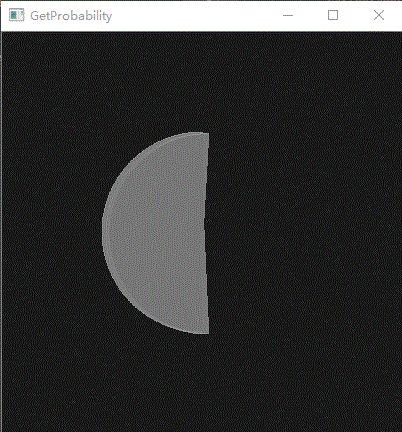

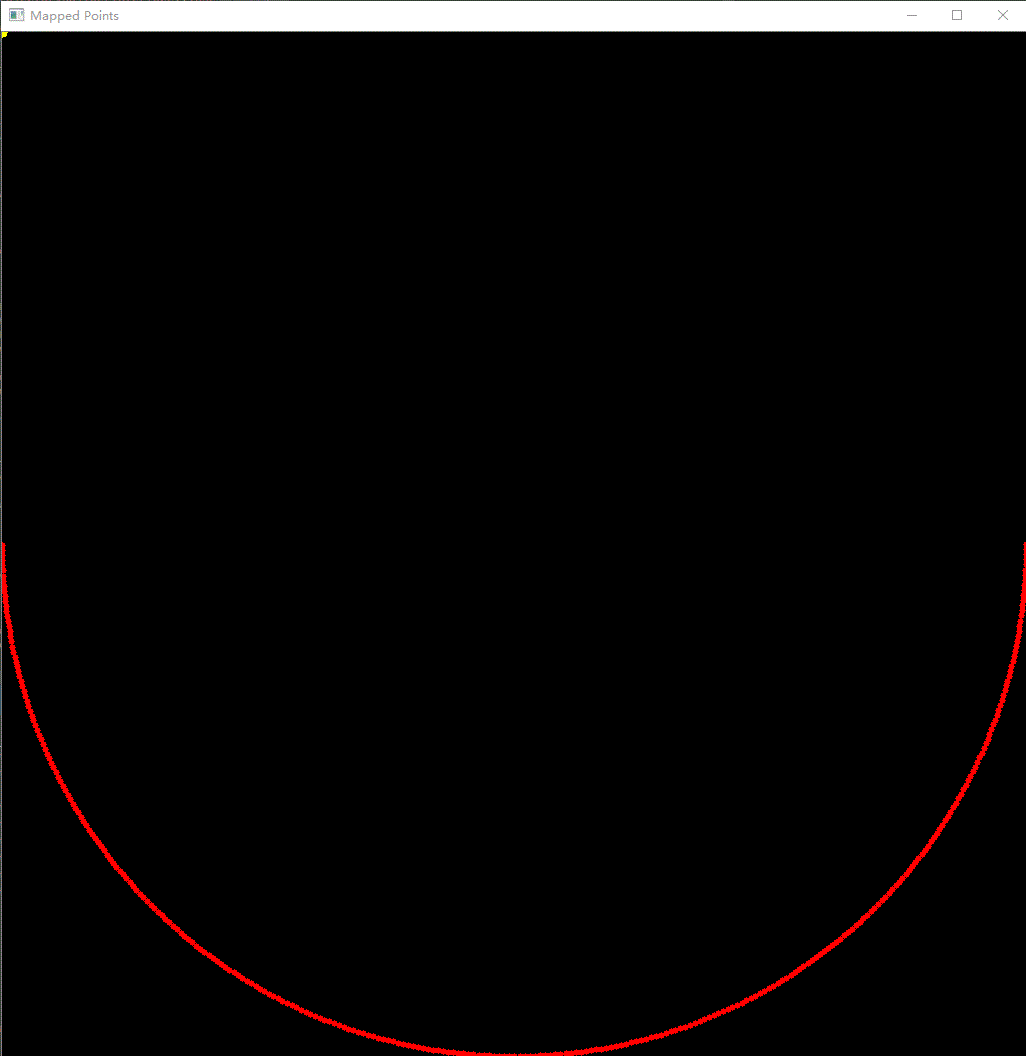

实测数据

省流

激光雷达数据经过一系列的分发处理，
最终在LocalTrajectoryBuilder2D::AddRangeData(
const std::string& sensor_id,
const sensor::TimedPointCloudData& unsynchronized_data) ；中进行算法处理
另外插入处理的结果（更新部分）通过int MapBuilder::AddTrajectoryBuilder(
const std::set& expected_sensor_ids,
const proto::TrajectoryBuilderOptions& trajectory_options,
LocalSlamResultCallback local_slam_result_callback)；传递出来

总结

搞了两天，终于绘制出测试数据，若干坑：
输入的数据，需要满足一定规范，激光雷达数据进去总是报错，Range data collator filling buffer，更换的单元测试中的数据就ok
绘图，所需要的数据很难找。考虑过将.pbstream转成jpg，有点麻烦，没成功
最后用的是回调函数中的数据

源码分析

起点：mapping::TrajectoryBuilderInterface::AddSensorData( const std::string& sensor_id, const sensor::TimedPointCloudData& timed_point_cloud_data)
TrajectoryBuilderInterface有多个子类
在int MapBuilder::AddTrajectoryBuilder()查看，使用的是哪一个。项目中配置的是2d。

...
else {
    std::unique_ptr<LocalTrajectoryBuilder2D> local_trajectory_builder;
    if (trajectory_options.has_trajectory_builder_2d_options()) {
      local_trajectory_builder = absl::make_unique<LocalTrajectoryBuilder2D>(
          trajectory_options.trajectory_builder_2d_options(),
          SelectRangeSensorIds(expected_sensor_ids));
    }
    DCHECK(dynamic_cast<PoseGraph2D*>(pose_graph_.get()));
    trajectory_builders_.push_back(absl::make_unique<CollatedTrajectoryBuilder>(
        trajectory_options, sensor_collator_.get(), trajectory_id,
        expected_sensor_ids,
        CreateGlobalTrajectoryBuilder2D(
            std::move(local_trajectory_builder), trajectory_id,
            static_cast<PoseGraph2D*>(pose_graph_.get()),
            local_slam_result_callback, pose_graph_odometry_motion_filter)));
  }
...

代码中看起来，用的是 class CollatedTrajectoryBuilder : public TrajectoryBuilderInterface{}，继续看AddSensorData()

 void AddSensorData(
      const std::string& sensor_id,
      const sensor::TimedPointCloudData& timed_point_cloud_data) override {
    AddData(sensor::MakeDispatchable(sensor_id, timed_point_cloud_data));
  }

void CollatedTrajectoryBuilder::AddData(std::unique_ptr<sensor::Data> data) {
  sensor_collator_->AddSensorData(trajectory_id_, std::move(data));
}

void TrajectoryCollator::AddSensorData(const int trajectory_id,
                                       std::unique_ptr<Data> data) {
  QueueKey queue_key{trajectory_id, data->GetSensorId()};
  auto* metric = GetOrCreateSensorMetric(data->GetSensorId(), trajectory_id);
  metric->Increment();
  trajectory_to_queue_.at(trajectory_id)
      .Add(std::move(queue_key), std::move(data));
}
//collator_metrics_family_ 用于存储计数器的指标家族。
//metrics_map_ 用于存储每个传感器 ID 对应的计数器，追踪与传感器相关的事件数量。
//trajectory_to_queue_ 将每个轨迹 ID 映射到一个有序多队列，用于管理与轨迹相关的多个队列。
//trajectory_to_queue_keys_ 用于存储每个轨迹 ID 所有关联的队列键，可能用于进一步的队列管理和数据调度。
/// 数据传入到   absl::flat_hash_map<int, OrderedMultiQueue> trajectory_to_queue_;


metrics::Counter* TrajectoryCollator::GetOrCreateSensorMetric(
    const std::string& sensor_id, int trajectory_id) {
  const std::string trajectory_id_str = absl::StrCat(trajectory_id);
  const std::string map_key = absl::StrCat(sensor_id, "/", trajectory_id_str);

  auto metrics_map_itr = metrics_map_.find(map_key);
  if (metrics_map_itr != metrics_map_.end()) {
    return metrics_map_itr->second;
  }

  LOG(INFO) << "Create metrics handler for key: " << map_key;
  auto new_counter = collator_metrics_family_->Add(
      {{"sensor_id", sensor_id}, {"trajectory_id", trajectory_id_str}});

  metrics_map_[map_key] = new_counter;
  return new_counter;
}

//GetOrCreateSensorMetric 函数的主要作用是：
//    查找已有计数器：它首先尝试在 metrics_map_ 中查找是否已经存在与给定 sensor_id 和 trajectory_id 相关的计数器。
//    创建新计数器：如果没有找到，它会创建一个新的计数器，并将其添加到 metrics_map_ 中。
//    返回计数器：无论是找到已有计数器还是创建新计数器，最终都会返回该计数器。

void OrderedMultiQueue::Add(const QueueKey& queue_key,
                            std::unique_ptr<Data> data) {
  auto it = queues_.find(queue_key);
  if (it == queues_.end()) {
    LOG_EVERY_N(WARNING, 1000)
        << "Ignored data for queue: '" << queue_key << "'";
    return;
  }
  it->second.queue.Push(std::move(data));
  Dispatch();
}
/// 数据分发给另一队列   struct Queue {}
/// 从多个队列中提取时间顺序最早的数据，并且按照合并排序的方式依次分发

Dispatch();
/// 目标是以合并排序的方式将各个队列中的数据按时间顺序分发出去，确保每个队列的数据都能在正确的时间顺序中被处理

  struct Queue {
    common::BlockingQueue<std::unique_ptr<Data>> queue;
    Callback callback;
    bool finished = false;
  };


void OrderedMultiQueue::Dispatch() {
  while (true) {
    const Data* next_data = nullptr;
    Queue* next_queue = nullptr;
    QueueKey next_queue_key;
    for (auto it = queues_.begin(); it != queues_.end();) {
      const auto* data = it->second.queue.Peek<Data>();
      if (data == nullptr) {
        if (it->second.finished) {
          queues_.erase(it++);
          continue;
        }
        CannotMakeProgress(it->first);
        return;
      }
      if (next_data == nullptr || data->GetTime() < next_data->GetTime()) {
        next_data = data;
        next_queue = &it->second;
        next_queue_key = it->first;
      }
      CHECK_LE(last_dispatched_time_, next_data->GetTime())
          << "Non-sorted data added to queue: '" << it->first << "'";
      ++it;
    }
    if (next_data == nullptr) {
      CHECK(queues_.empty());
      return;
    }

    // If we haven't dispatched any data for this trajectory yet, fast forward
    // all queues of this trajectory until a common start time has been reached.
    const common::Time common_start_time =
        GetCommonStartTime(next_queue_key.trajectory_id);

    if (next_data->GetTime() >= common_start_time) {
      // Happy case, we are beyond the 'common_start_time' already.
      last_dispatched_time_ = next_data->GetTime();
      next_queue->callback(next_queue->queue.Pop());
    } else if (next_queue->queue.Size() < 2) {
      if (!next_queue->finished) {
        // We cannot decide whether to drop or dispatch this yet.
        CannotMakeProgress(next_queue_key);
        return;
      }
      last_dispatched_time_ = next_data->GetTime();
      next_queue->callback(next_queue->queue.Pop());
    } else {
      // We take a peek at the time after next data. If it also is not beyond
      // 'common_start_time' we drop 'next_data', otherwise we just found the
      // first packet to dispatch from this queue.
      std::unique_ptr<Data> next_data_owner = next_queue->queue.Pop();
      if (next_queue->queue.Peek<Data>()->GetTime() > common_start_time) {
        last_dispatched_time_ = next_data->GetTime();
        next_queue->callback(std::move(next_data_owner));
      }
    }
  }
}
// 数据在哪处理？callback比较可疑

/// 预先设置了OrderedMultiQueue的回调
void TrajectoryCollator::AddTrajectory(
    const int trajectory_id,
    const absl::flat_hash_set<std::string>& expected_sensor_ids,
    const Callback& callback) {
  CHECK_EQ(trajectory_to_queue_.count(trajectory_id), 0);
  for (const auto& sensor_id : expected_sensor_ids) {
    const auto queue_key = QueueKey{trajectory_id, sensor_id};
    trajectory_to_queue_[trajectory_id].AddQueue(
        queue_key, [callback, sensor_id](std::unique_ptr<Data> data) {
          callback(sensor_id, std::move(data));
        });
    trajectory_to_queue_keys_[trajectory_id].push_back(queue_key);
  }
}

/// 再往前找，CollatedTrajectoryBuilder
CollatedTrajectoryBuilder::CollatedTrajectoryBuilder(
    const proto::TrajectoryBuilderOptions& trajectory_options,
    sensor::CollatorInterface* const sensor_collator, const int trajectory_id,
    const std::set<SensorId>& expected_sensor_ids,
    std::unique_ptr<TrajectoryBuilderInterface> wrapped_trajectory_builder)
    : sensor_collator_(sensor_collator),
      collate_landmarks_(trajectory_options.collate_landmarks()),
      collate_fixed_frame_(trajectory_options.collate_fixed_frame()),
      trajectory_id_(trajectory_id),
      wrapped_trajectory_builder_(std::move(wrapped_trajectory_builder)),
      last_logging_time_(std::chrono::steady_clock::now()) {
  absl::flat_hash_set<std::string> expected_sensor_id_strings;
  for (const auto& sensor_id : expected_sensor_ids) {
    if (sensor_id.type == SensorId::SensorType::LANDMARK &&
        !collate_landmarks_) {
      continue;
    }
    if (sensor_id.type == SensorId::SensorType::FIXED_FRAME_POSE &&
        !collate_fixed_frame_) {
      continue;
    }
    expected_sensor_id_strings.insert(sensor_id.id);
  }
  sensor_collator_->AddTrajectory(
      trajectory_id, expected_sensor_id_strings,
      [this](const std::string& sensor_id, std::unique_ptr<sensor::Data> data) {
        HandleCollatedSensorData(sensor_id, std::move(data));
      });
}

/// 数据被添加到 GlobalTrajectoryBuilder2D
void CollatedTrajectoryBuilder::HandleCollatedSensorData(
    const std::string& sensor_id, std::unique_ptr<sensor::Data> data) {
  auto it = rate_timers_.find(sensor_id);
  if (it == rate_timers_.end()) {
    it = rate_timers_
             .emplace(
                 std::piecewise_construct, std::forward_as_tuple(sensor_id),
                 std::forward_as_tuple(
                     common::FromSeconds(kSensorDataRatesLoggingPeriodSeconds)))
             .first;
  }
  it->second.Pulse(data->GetTime());

  if (std::chrono::steady_clock::now() - last_logging_time_ >
      common::FromSeconds(kSensorDataRatesLoggingPeriodSeconds)) {
    for (const auto& pair : rate_timers_) {
      LOG(INFO) << pair.first << " rate: " << pair.second.DebugString();
    }
    last_logging_time_ = std::chrono::steady_clock::now();
  }

  data->AddToTrajectoryBuilder(wrapped_trajectory_builder_.get());
}
/// 最后添加到 GlobalTrajectoryBuilder

  void AddSensorData(
      const std::string& sensor_id,
      const sensor::TimedPointCloudData& timed_point_cloud_data) override {
    CHECK(local_trajectory_builder_)
        << "Cannot add TimedPointCloudData without a LocalTrajectoryBuilder.";
    std::unique_ptr<typename LocalTrajectoryBuilder::MatchingResult>
        matching_result = local_trajectory_builder_->AddRangeData(
            sensor_id, timed_point_cloud_data);
    if (matching_result == nullptr) {
      // The range data has not been fully accumulated yet.
      return;
    }
    kLocalSlamMatchingResults->Increment();
    std::unique_ptr<InsertionResult> insertion_result;
    if (matching_result->insertion_result != nullptr) {
      kLocalSlamInsertionResults->Increment();
      auto node_id = pose_graph_->AddNode(
          matching_result->insertion_result->constant_data, trajectory_id_,
          matching_result->insertion_result->insertion_submaps);
      CHECK_EQ(node_id.trajectory_id, trajectory_id_);
      insertion_result = absl::make_unique<InsertionResult>(InsertionResult{
          node_id, matching_result->insertion_result->constant_data,
          std::vector<std::shared_ptr<const Submap>>(
              matching_result->insertion_result->insertion_submaps.begin(),
              matching_result->insertion_result->insertion_submaps.end())});
    }
    if (local_slam_result_callback_) {
      local_slam_result_callback_(
          trajectory_id_, matching_result->time, matching_result->local_pose,
          std::move(matching_result->range_data_in_local),
          std::move(insertion_result));
    }
  }
  /// local_trajectory_builder_->AddRangeData 数据到了local_trajectory_builder_ (LocalTrajectoryBuilder2D)
  /// 返回 matching_result
  struct MatchingResult {
    common::Time time;
    transform::Rigid3d local_pose;
    sensor::RangeData range_data_in_local;
    // 'nullptr' if dropped by the motion filter.
    std::unique_ptr<const InsertionResult> insertion_result;
  };
  /// matching_result 添加到 pose_graph_
  /// 通过回调函数传递出去 local_slam_result_callback_，这个回调函数正是
  int MapBuilderStub::AddTrajectoryBuilder(
    const std::set<SensorId>& expected_sensor_ids,
    const mapping::proto::TrajectoryBuilderOptions& trajectory_options,
    LocalSlamResultCallback local_slam_result_callback)；设置的的
     struct InsertionResult {
    std::shared_ptr<const TrajectoryNode::Data> constant_data;
    std::vector<std::shared_ptr<const Submap2D>> insertion_submaps;
  };

/// 前面分析的都是代码逻辑，终于到算法部分了！
/// 不过我们主要关注数据存储的数据结构
/// 激光雷达数据：
//    激光雷达数据存储在 synchronized_data 中，尤其是 synchronized_data.ranges 中。
//    synchronized_data 是从 range_data_collator_.AddRangeData(sensor_id,unsynchronized_data) 返回的结果，这个数据包含了经过同步处理的激光雷达数据（即每个点云数据的时间戳和位置）。
//地图数据：
 //   地图数据的累积存储在 accumulated_range_data_ 中，这个变量保存了从激光雷达数据中提取的有效范围数据（returns 和 misses）。
//    当积累的数据达到预设的数量时（由 options_.num_accumulated_range_data() 控制），就会生成最终的地图数据并返回。
// range_data_poses 中保存的是经过外推的激光雷达数据的位姿信息（即每个点云的相对位置）。
//而 synchronized_data.ranges 则是激光雷达点云数据本身
std::unique_ptr<LocalTrajectoryBuilder2D::MatchingResult>
LocalTrajectoryBuilder2D::AddRangeData(
    const std::string& sensor_id,
    const sensor::TimedPointCloudData& unsynchronized_data) {
  auto synchronized_data =
      range_data_collator_.AddRangeData(sensor_id, unsynchronized_data);
  if (synchronized_data.ranges.empty()) {
    LOG(INFO) << "Range data collator filling buffer.";
    return nullptr;
  }

  const common::Time& time = synchronized_data.time;
  // Initialize extrapolator now if we do not ever use an IMU.
  if (!options_.use_imu_data()) {
    InitializeExtrapolator(time);
  }

  if (extrapolator_ == nullptr) {
    // Until we've initialized the extrapolator with our first IMU message, we
    // cannot compute the orientation of the rangefinder.
    LOG(INFO) << "Extrapolator not yet initialized.";
    return nullptr;
  }

  CHECK(!synchronized_data.ranges.empty());
  // TODO(gaschler): Check if this can strictly be 0.
  CHECK_LE(synchronized_data.ranges.back().point_time.time, 0.f);
  const common::Time time_first_point =
      time +
      common::FromSeconds(synchronized_data.ranges.front().point_time.time);
  if (time_first_point < extrapolator_->GetLastPoseTime()) {
    LOG(INFO) << "Extrapolator is still initializing.";
    return nullptr;
  }

  std::vector<transform::Rigid3f> range_data_poses;
  range_data_poses.reserve(synchronized_data.ranges.size());
  bool warned = false;
  for (const auto& range : synchronized_data.ranges) {
    common::Time time_point = time + common::FromSeconds(range.point_time.time);
    if (time_point < extrapolator_->GetLastExtrapolatedTime()) {
      if (!warned) {
        LOG(ERROR)
            << "Timestamp of individual range data point jumps backwards from "
            << extrapolator_->GetLastExtrapolatedTime() << " to " << time_point;
        warned = true;
      }
      time_point = extrapolator_->GetLastExtrapolatedTime();
    }
    range_data_poses.push_back(
        extrapolator_->ExtrapolatePose(time_point).cast<float>());
  }

  if (num_accumulated_ == 0) {
    // 'accumulated_range_data_.origin' is uninitialized until the last
    // accumulation.
    accumulated_range_data_ = sensor::RangeData{{}, {}, {}};
  }

  // Drop any returns below the minimum range and convert returns beyond the
  // maximum range into misses.
  for (size_t i = 0; i < synchronized_data.ranges.size(); ++i) {
    const sensor::TimedRangefinderPoint& hit =
        synchronized_data.ranges[i].point_time;
    const Eigen::Vector3f origin_in_local =
        range_data_poses[i] *
        synchronized_data.origins.at(synchronized_data.ranges[i].origin_index);
    sensor::RangefinderPoint hit_in_local =
        range_data_poses[i] * sensor::ToRangefinderPoint(hit);
    const Eigen::Vector3f delta = hit_in_local.position - origin_in_local;
    const float range = delta.norm();
    if (range >= options_.min_range()) {
      if (range <= options_.max_range()) {
        accumulated_range_data_.returns.push_back(hit_in_local);
      } else {
        hit_in_local.position =
            origin_in_local +
            options_.missing_data_ray_length() / range * delta;
        accumulated_range_data_.misses.push_back(hit_in_local);
      }
    }
  }
  ++num_accumulated_;

  if (num_accumulated_ >= options_.num_accumulated_range_data()) {
    const common::Time current_sensor_time = synchronized_data.time;
    absl::optional<common::Duration> sensor_duration;
    if (last_sensor_time_.has_value()) {
      sensor_duration = current_sensor_time - last_sensor_time_.value();
    }
    last_sensor_time_ = current_sensor_time;
    num_accumulated_ = 0;
    const transform::Rigid3d gravity_alignment = transform::Rigid3d::Rotation(
        extrapolator_->EstimateGravityOrientation(time));
    // TODO(gaschler): This assumes that 'range_data_poses.back()' is at time
    // 'time'.
    accumulated_range_data_.origin = range_data_poses.back().translation();
    return AddAccumulatedRangeData(
        time,
        TransformToGravityAlignedFrameAndFilter(
            gravity_alignment.cast<float>() * range_data_poses.back().inverse(),
            accumulated_range_data_),
        gravity_alignment, sensor_duration);
  }
  return nullptr;
}
/// 主要功能是将未同步的传感器数据（即 unsynchronized_data）与其他数据进行同步，并将其处理为累积的范围数据。
/// 这一过程涉及多项操作，包括数据同步、姿态外推（pose extrapolation）、范围数据的筛选（如去除不合法的距离）以及将数据存储并返回
