RabbitMQ-路由模式

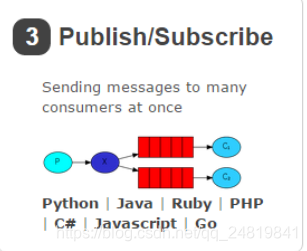

订阅模式（fanout）

channel.exchangeDeclare(EXCHANGE_NAME, "fanout");

类似广播，不处理路由键

生产者发送消息到交换器，与该路由器绑定的队列都能收到信息。

package com.test.rabbitmq.ps;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.test.rabbitmq.util.ConnectUtils;

public class Send {

	private static final String EXCHANGE_NAME = "test_exchange_fanout";

	public static void main(String[] args) throws IOException, TimeoutException {

		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.exchangeDeclare(EXCHANGE_NAME, "fanout");

		String msg = "Hello============PS";
		channel.basicPublish(EXCHANGE_NAME, "", null, msg.getBytes());

		System.out.println("Send : " + msg);

		channel.close();
		connection.close();


	}
}

package com.test.rabbitmq.ps;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.AMQP.BasicProperties;
import com.test.rabbitmq.util.ConnectUtils;

public class Rec1 {

	private static final String QUEUE_NAME = "test_queue_fanout_email";
	private static final String EXCHANGE_NAME = "test_exchange_fanout";

	public static void main(String[] args) throws IOException, TimeoutException {
		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.queueDeclare(QUEUE_NAME, false, false, false, null);

		channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "");

		channel.basicQos(1);

		DefaultConsumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
					throws IOException {
				String msg = new String(body);
				System.out.println("1--RECEI=====" + msg);

				try {
					Thread.sleep(2 * 1000);
				} catch (InterruptedException e) {
					// TODO Auto-generated catch block
					e.printStackTrace();
				} finally {
					channel.basicAck(envelope.getDeliveryTag(), false);
				}
			}
		};

		boolean autoAck = false;
		channel.basicConsume(QUEUE_NAME, autoAck, consumer);

	}

}

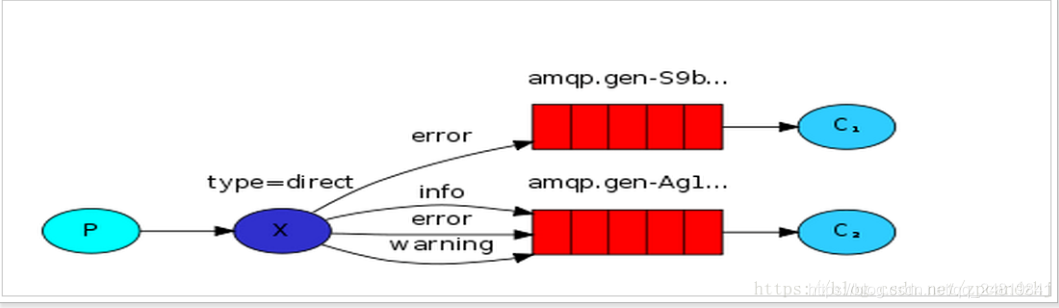

路由模式（DIRECT）

点对点通信

channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

消费者发送消息到路由器，路由器根据路由键转发消息到对应的队列。

package com.test.rabbitmq.routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.test.rabbitmq.util.ConnectUtils;

public class Send {

	private static final String EXCHANGE_NAME = "test_exchange_direct";

	public static void main(String[] args) throws IOException, TimeoutException {
		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

		String msg = "Hello derict !!!!!!!!!";

		String routingKey = "info";
		channel.basicPublish(EXCHANGE_NAME, routingKey, null, msg.getBytes());

		System.out.println("Send =========== " + msg);

		channel.close();
		connection.close();
	}

}

package com.test.rabbitmq.routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.AMQP.BasicProperties;
import com.test.rabbitmq.util.ConnectUtils;

public class Rec2 {

	private static final String EXCHANGE_NAME = "test_exchange_direct";
	private static final String QUEUE_NAME = "test_queue_direct_2";

	public static void main(String[] args) throws IOException, TimeoutException {
		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.queueDeclare(QUEUE_NAME, false, false, false, null);

		channel.basicQos(1);

		channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "error");
		channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "info");
		channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "warning");

		DefaultConsumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
					throws IOException {

				String msg = new String(body);
				System.out.println("REC2========" + msg);

				try {
					Thread.sleep(2000);
				} catch (Exception e) {
					e.printStackTrace();
				}finally {
					channel.basicAck(envelope.getDeliveryTag(), false);
				}
			}

		};

		boolean autoAck = false;
		channel.basicConsume(QUEUE_NAME, autoAck, consumer);
	}
}

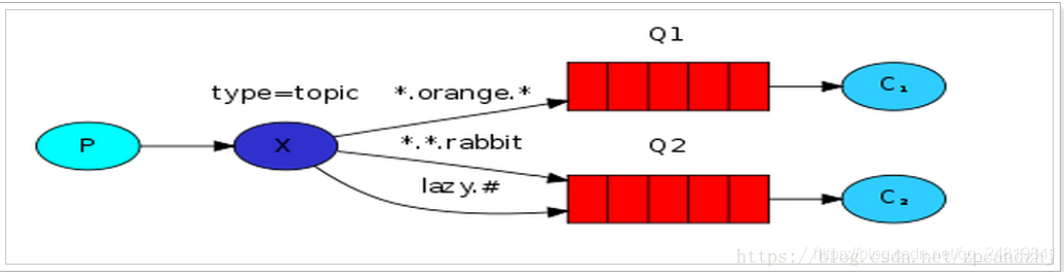

主题模式（TOPIC）

channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);

通配符模式
“ # ” 匹配多个
“ * ” 匹配一个

生产者发送消息到路由器，路由器根据通配符转发到相应队列

package com.test.rabbitmq.topic;

import static org.hamcrest.CoreMatchers.nullValue;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.test.rabbitmq.util.ConnectUtils;

public class Send {

	private static final String EXCHANGE_NAME = "test_exchange_topic";

	public static void main(String[] args) throws IOException, TimeoutException {
		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);

		String msg = "商品.............";

		channel.basicPublish(EXCHANGE_NAME, "goods.update", null, msg.getBytes());

		System.out.println("Send ========== " + msg);

		channel.close();
		connection.close();
	}
}

package com.test.rabbitmq.topic;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;
import com.rabbitmq.client.AMQP.BasicProperties;
import com.test.rabbitmq.util.ConnectUtils;

public class Rec2 {

	private static final String EXCHANGE_NAME = "test_exchange_topic";
	private static final String QUEUE_NAME = "test_queue_topic_2";

	public static void main(String[] args) throws IOException, TimeoutException {
		Connection connection = ConnectUtils.getConnection();
		Channel channel = connection.createChannel();

		channel.queueDeclare(QUEUE_NAME, false, false, false, null);
		channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "goods.#");

		DefaultConsumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
					throws IOException {
				String msg = new String(body);
				System.out.println("REC2 ======== " + msg);
				try {

				} catch (Exception e) {
					// TODO: handle exception
				}finally {
					channel.basicAck(envelope.getDeliveryTag(), false);
				}
			}
		};

		boolean autoAck = false;
		channel.basicConsume(QUEUE_NAME, autoAck, consumer);

	}
}
