CPU设计笔记4.1-IF(取值模块)

imem.v  使用$readmemh函数初始化存储器 注意$readmemh和$readmemb的区别

module imem(
       input CLK,
       input CEN,
       input WEN,
       input [7:0]A,
       input [31:0]D,
       output reg [31:0]Q
);

reg[31:0]mem[255:0];

initial $readmemh("D:/workspace/verilog/EDA/RISC-V_CPU_2019/RISC-V_CPU_2019.srcs/sources_1/new/riscv.hex",mem);

always@(posedge CLK)
if(~CEN & ~WEN)
    mem[A] <= D;//读入

always@(posedge CLK)
if(~CEN)//读请求
   Q <= mem[A];//读出 （延迟一个时钟输出）

endmodule

IF.v

module IF(
    input clk,
    input nrst,
    input stall,
    input br_en,
    input [31:0 ] br_addr,
    output [31:0] PC,
    output [31:0] ins_out
    );

    reg CEN = 1'b0;
    reg WEN = 1'b1;;
    reg [31:0] D = 32'h0;

    reg [31:0] PC_reg = 32'h0;

    imem imem0(
       .CLK(clk),
       .CEN(CEN),
       .WEN(WEN),
       .A(PC[9:2]),
       .D(D),
       .Q(ins_out)
    );


always @ (posedge clk)
begin
    if(~nrst)
        begin
            PC_reg = 32'h0;
        end

    else if(~stall)
        PC_reg <= PC + 32'd4;

end

assign PC = br_en ? br_addr:PC_reg;

endmodule

IF_tb.v

module IF_tb(

    );

   reg clk;
   reg nrst;
   reg stall;
   reg br_en;
   reg [31:0 ] br_addr;
   wire [31:0] PC;
   wire [31:0] ins_out;

    IF IF1 (
        .clk(clk),
        .nrst(nrst),
        .stall(stall),
        .br_en(br_en),
        .br_addr(br_addr),
        .PC(PC),
        .ins_out(ins_out)
    );


initial
    begin
        clk = 0;
        nrst = 1;
        stall = 0;
        br_en = 0;
        br_addr = 32'h2;

        #100 stall = 1;

        #100 stall = 0;

        #50 br_en = 1;
        #50 br_en = 0;


    end



always #5 clk = ~clk;


endmodule

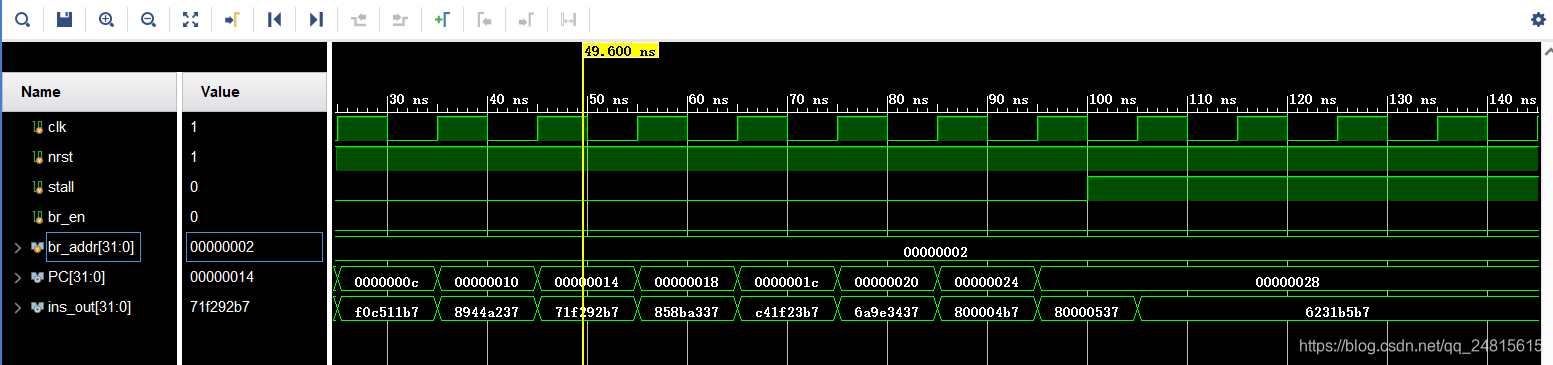

仿真结果如下图：
