本文介绍了如何将activiti的REST接口集成到Spring Boot项目中，通过配置pom.xml文件，设置config scan扫描activiti-rest的controller，然后详细配置七大接口的数据信息，最后成功启动项目，展示activiti-rest的controller已被加载。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

activiti rest接口扫描进　自己spring　boot 项目 (不懂的欢迎留言咨询)
pom.xml配置文件

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>southernfund</groupId>
	<artifactId>activiti</artifactId>
	<version>1.0</version>
	<packaging>jar</packaging>

	<!-- <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId>
		<version>1.3.5.RELEASE</version> <relativePath /> </parent> -->

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.3.5.RELEASE</version>
		<relativePath />
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<java.version>1.8</java.version>
	</properties>
	<dependencies>

		<dependency>
			<groupId>net.sf.json-lib</groupId>
			<artifactId>json-lib</artifactId>
			<version>2.4</version>
			<classifier>jdk15</classifier>
		</dependency>





		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.4.0</version>
		</dependency>

		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.4.0</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>


		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-hystrix</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>
		</dependency>

		<dependency>
			<groupId>org.crazycake</groupId>
			<artifactId>jdbctemplatetool</artifactId>
			<version>1.0.4-RELEASE</version>
			<exclusions>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>slf4j-log4j12</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
		</dependency>

		<dependency>
			<groupId>com.oracle</groupId>
			<artifactId>ojdbc6</artifactId>
			<version>11.2.0.1.0</version>
			<!-- <version>11.2.0.4</version> -->
		</dependency>

		<!-- https://mvnrepository.com/artifact/biz.paluch.logging/logstash-gelf -->
		<dependency>
			<groupId>biz.paluch.logging</groupId>
			<artifactId>logstash-gelf</artifactId>
			<version>1.11.0</version>
		</dependency>


		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.5</version>
		</dependency>

		<!-- <dependency> <groupId>org.apache.cxf</groupId> <artifactId>cxf-rt-frontend-jaxws</artifactId>
			<version>2.7.16</version> </dependency> <dependency> <groupId>org.apache.cxf</groupId>
			<artifactId>cxf-rt-transports-http</artifactId> <version>2.7.16</version>
			</dependency> <dependency> <groupId>org.apache.cxf</groupId> <artifactId>cxf-rt-transports-http-jetty</artifactId>
			<version>2.7.16</version> </dependency> -->


		<!-- https://mvnrepository.com/artifact/org.activiti/activiti-engine -->

		<!-- https://mvnrepository.com/artifact/org.activiti/activiti-diagram-rest -->
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-diagram-rest</artifactId>
			<version>5.22.0</version>
			<exclusions>
				<exclusion>
					<groupId>org.springframework.security</groupId>
					<artifactId>spring-security-config</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.springframework.security</groupId>
					<artifactId>spring-security-crypto</artifactId>
				</exclusion>

				<exclusion>
					<groupId>org.springframework.security</groupId>
					<artifactId>spring-security-web</artifactId>
				</exclusion>

			</exclusions>
		</dependency>

		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-engine</artifactId>
			<exclusions>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>slf4j-api</artifactId>
				</exclusion>

				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>jcl-over-slf4j</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>slf4j-log4j12</artifactId>
				</exclusion>

			</exclusions>
			<version>5.22.0</version>
		</dependency>
		<!-- <dependency> <groupId>org.activiti</groupId> <artifactId>activiti-spring-boot-starter-basic</artifactId>
			<version>5.21.0</version> </dependency> <dependency> <groupId>org.activiti</groupId>
			<artifactId>activiti-spring-boot-starter-rest-api</artifactId> <version>5.21.0</version>
			</dependency> -->
		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-spring</artifactId>
			<version>5.22.0</version>
			<exclusions>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>slf4j-api</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>jcl-over-slf4j</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.slf4j</groupId>
					<artifactId>slf4j-log4j12</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<dependency>
			<groupId>org.activiti</groupId>
			<artifactId>activiti-rest</artifactId>
			<version>5.22.0</version>
			<exclusions>
				<exclusion>
					<groupId>org.eclipse.jetty.orbit</groupId>
					<artifactId>javax.servlet</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-server</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-servlet</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-http</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-webapp</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-io</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.eclipse.jetty</groupId>
					<artifactId>jetty-util</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!-- <dependency> <groupId>org.activiti</groupId> <artifactId>activiti-bpmn-model</artifactId>
			<version>5.22.0</version> </dependency> <dependency> <groupId>org.apache.activemq</groupId>
			<artifactId>activemq-client</artifactId> </dependency> -->
		<!-- <dependency> <groupId>org.activiti</groupId> <artifactId>activiti-spring</artifactId>
			<version>5.22.0</version> </dependency> -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid</artifactId>
			<version>1.1.4</version>
		</dependency>
	</dependencies>
	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>Brixton.SR5</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-netflix</artifactId>
				<version>1.1.6.RELEASE</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<profiles>
		<profile>
			<id>testEnv</id>
			<properties>
				<package.environment>testEnv</package.environment>
			</properties>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
		</profile>
		<profile>
			<id>produceEnv</id>
			<properties>
				<package.environment>produceEnv</package.environment>
			</properties>

		</profile>
	</profiles>

	<build>

		<resources>
			<resource>
				<directory>src/main/resources</directory>
				<!-- 资源根目录排除各环境的配置，使用单独的资源目录来指定 -->
				<excludes>
					<exclude>testEnv/*</exclude>
					<exclude>produceEnv/*</exclude>
				</excludes>
			</resource>
			<resource>
				<directory>src/main/resources/${package.environment}</directory>
			</resource>
		</resources>

		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<mainClass>com.App</mainClass>
				</configuration>
				<executions>
					<execution>
						<goals>
							<goal>repackage</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
		</plugins>
	</build>
</project>

配置config scan扫描activiti-rest 的controller 接口信息

@Configuration
@ComponentScan(basePackages = { "org.activiti.rest.diagram", "org.activiti.rest"}, includeFilters = {
		@Filter(type = FilterType.ANNOTATION, classes = {
				RestController.class }) }, useDefaultFilters = false, lazyInit = false)
public class ScanConfig {

}

配置数据源信息 以及要扫描注入的activiti bean


/*
 * ApplicationContext ac1 =
 * WebApplicationContextUtils.getRequiredWebApplicationContext(
 * ServletContext sc); /* ApplicationContext ac2 =
 * WebApplicationContextUtils.getWebApplicationContext(ServletContext sc);
 * /* ac1.getBean("beanId"); /* ac2.getBean("beanId");
 */
@Bean(name = "ProcessEngineConfiguration")
public ProcessEngineConfiguration getProcess(@Qualifier("flowdataDataSource") DataSource dataSource) {
	ProcessEngineConfiguration configuration = ProcessEngineConfiguration
			.createStandaloneProcessEngineConfiguration();
	configuration.setDataSource(dataSource);
	configuration.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);
	configuration.buildProcessEngine();
	configuration.setActivityFontName("宋体");
	configuration.setLabelFontName("宋体");
	return configuration;
}

@Bean(name = "restResponseFactory")
public RestResponseFactory restResponseFactory() {
	return new RestResponseFactory();
}

@Bean(name = "contentTypeResolver")
public ContentTypeResolver contentTypeResolver() {
	return new DefaultContentTypeResolver();
}

@Bean(name = "processEngineConfiguration")
public ProcessEngineConfiguration processEngineConfiguration() {
	return processEngineConfiguration;
}

接下来配置七大接口数据信息


@Configuration
public class ActivitiServiceConfig {

	@Bean
	public StandaloneProcessEngineConfiguration getStandaloneProcessEngineConfiguration() {
		StandaloneProcessEngineConfiguration standaloneProcessEngineConfiguration = new StandaloneProcessEngineConfiguration();
		return standaloneProcessEngineConfiguration;
	}
	@Bean(name = "processEngine") // processEngineConfiguration
	public ProcessEngine getProsessEngien(@Qualifier("ProcessEngineConfiguration") ProcessEngineConfiguration pro) {
		return pro.buildProcessEngine();
	}

	@Bean(name = "RepositoryService")
	public RepositoryService getRepositoryService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getRepositoryService();
	}

	@Bean(name = "RuntimeService")
	public RuntimeService getRuntimeService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getRuntimeService();
	}

	@Bean(name = "TaskService")
	public TaskService getTaskService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getTaskService();
	}

	@Bean(name = "FormService")
	public FormService getFormService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getFormService();
	}

	@Bean(name = "HistoryService")
	public HistoryService getHistoryService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getHistoryService();
	}

	@Bean(name = "ManagementService")
	public ManagementService getManagementService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getManagementService();
	}

	@Bean(name = "IdentityService")
	public IdentityService getIdentityService(@Qualifier("processEngine") ProcessEngine ProcessEngine) {
		return ProcessEngine.getIdentityService();
	}
}

启动项目

package com;

import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
//import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * Spring demos created by Guo Qingtao 2016-09-01
 */

@EnableHystrixDashboard
@EnableCircuitBreaker
// @EnableEurekaClient
//@EnableAutoConfiguration
@EnableDiscoveryClient
@RestController
@SpringBootApplication
@EnableTransactionManagement
// @EnableScheduling
@EnableAutoConfiguration(exclude = { org.activiti.rest.security.BasicAuthenticationProvider.class,
		org.springframework.boot.autoconfigure.security.SecurityAutoConfiguration.class,
		org.springframework.boot.actuate.autoconfigure.ManagementWebSecurityAutoConfiguration.class,
		org.activiti.rest.security.BasicAuthenticationProvider.class })
/*
 * @ComponentScan(basePackages = { "org.activiti.rest.diagram",
 * "org.activiti.rest" }, includeFilters = {
 *
 * @Filter(type = FilterType.ANNOTATION, classes = { RestController.class }) },
 * useDefaultFilters = false, lazyInit = false)
 */
// <mvc:annotation-driven />
public class App {// implements CommandLineRunner {

	@RequestMapping("/")
	public String index() {
		return "hello world at home!";
	}
	public static void main(String[] args) {
		// SpringApplication.run(App.class, args);
		new SpringApplicationBuilder(App.class).web(true).run(args);
	}
}

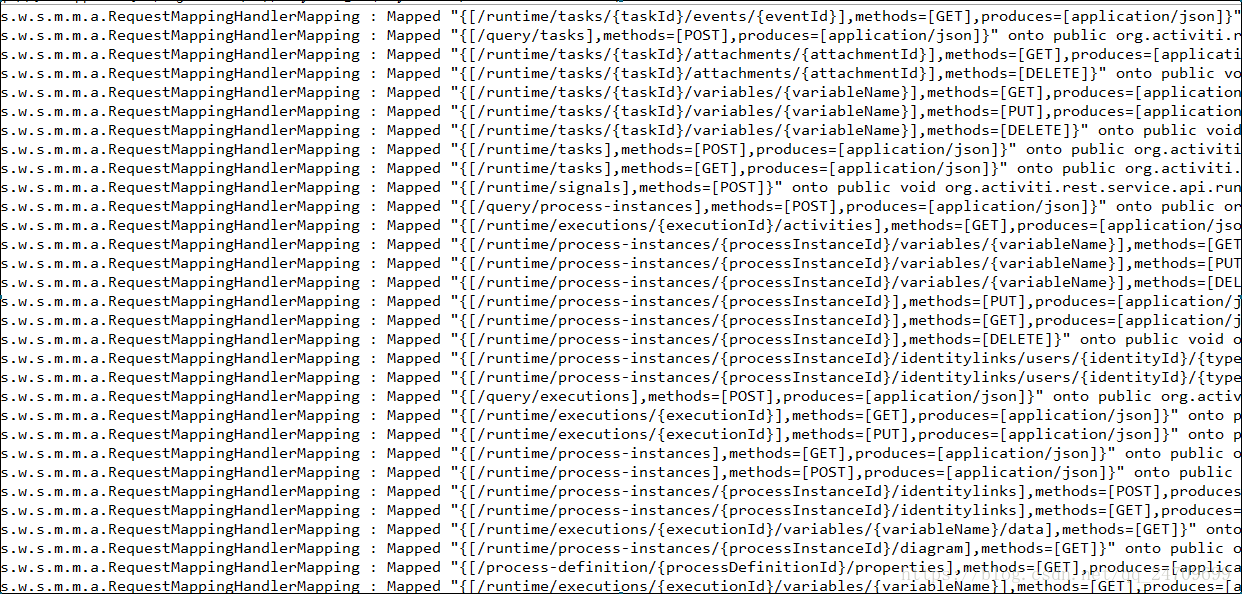

启动项目截图 我们发现activiti-rest 的controller 已经加载进来了
这里写图片描述

Spring Boot整合Activiti工作流详解
weixin_51040479的博客
03-24 1983
通过Spring Boot与Activiti的整合，可以快速构建基于工作流的业务系统，大大提高开发效率和系统灵活性。
springboot集成activiti5.22
04-24
1. 用户管理：用户是系统操作者，该功能主要完成系统用户配置。 2. 部门管理：配置系统组织机构（公司、部门、小组），树结构展现支持数据权限。 3. 岗位管理：配置系统用户所属担任职务。 4. 菜单管理：配置系统菜单，操作权限，按钮权限标识等。 5. 角色管理：角色菜单权限分配、设置角色按机构进行数据范围权限划分。 6. 字典管理：对系统中经常使用的一些较为固定的数据进行维护。 7. 参数管理：对系统动态配置常用参数。 8. 通知公告：系统通知公告信息发布维护。 9. 操作日志：系统正常操作日志记录和查询；系统异常信息日志记录和查询。 10. 登录日志：系统登录日志记录查询包含登录异常。 11. 在线用户：当前系统中活跃用户状态监控。 12. 定时任务：在线（添加、修改、删除)任务调度包含执行结果日志。 13. 代码生成：前后端代码的生成（java、html、xml、sql)支持CRUD下载 。 14. 系统接口：根据业务代码自动生成相关的api接口文档。 15. 在线构建器：拖动表单元素生成相应的HTML代码。 16. 连接池监视：监视当期系统数据库连接池状态，可进行分析SQL找出系统性能瓶颈。 17.集成activiti5.22
SpringBoot整合Activiti5.22 Demo
01-16
SpringBoot整合Activiti简单示例，示例中包含正常流程执行、中文乱码解决、指定流程节点执行人等测试代码。
SpringBoot之集成activiti5.22.0
船长灬普朗克的博客
08-11 2805
二、Maven配置文件的引入 <dependency> <groupId>org.activiti</groupId> <artifactId>activiti-spring-boot-starter-basic</artifactId> <version>${activiti.version}</version> <exclusions> <exclusion>
简单的springboot整合activiti5.22.0
最新发布
qq_19342829的博客
06-26 1330
springboot整合activiti5.22.0
Activiti5.22整合Springboot(画图详解，会签监听事件，附带源码)
qq_45537574的博客
08-27 6263
9.13前完成
spring boot+activiti+shiro+layui+Mysql权限管理系统源码
07-01
这是一个基于Spring Boot、Activiti、Shiro和Layui的权限管理系统源码，结合了MySQL数据库，用于实现高效、安全的后台管理功能。下面将详细解释这套系统的各个组成部分及其核心知识点。 1. **Spring Boot**: Spring...
springboot+activiti+vue+thymleaf 版本
11-02
标题中的“springboot+activiti+vue+thymleaf 版本”指的是一个基于Spring Boot、Activiti、Vue.js和Thymeleaf的综合工作流管理系统。这个系统结合了四个关键的技术栈，构建了一个功能丰富的业务流程自动化平台。 1...
springboot+activiti+angular 这是spring boot框架集成activiti工作流实现.zip
04-24
一、Spring Boot基础应用 Spring Boot特征 概念： 约定优于配置，简单来说就是你所期待的配置与约定的配置一致，那么就可以不做任何配置，约定不符合期待时才需要对约定进行替换配置。 特征： 1. SpringBoot ...
activiti-spring-boot-starter-basic-6.0.0适配springboot2.1.2
04-15
activiti-spring-boot-starter-basic-6.0.0适配springboot2.1.2
spring boot + shiro + cas + dubbo + zookeeper + activiti +.zip
02-22
spring boot + shiro + cas + dubbo + zookeeper + activiti +
springboot 2.0 集成 Activiti5.22包括流程跟踪和在线设计
04-02
springboot 2.0 集成 Activiti5.22包括流程跟踪和在线设计
springboot2.1.1整合activiti5.22web流程设计器
01-16
springboot2.1整合activiti5.2，web流程设计器，跑起来直接可用，终极版整合，去掉了其它整合版的很多bug
Springboot 2.1.0.RELEASE版本 + activiti 5.22.0版本 + mysql 代码整合真实案例,绝对能跑得起来
12-18
Springboot 2.1.0.RELEASE版本 + activiti 5.22.0版本 + mysql 代码整合真实案例,绝对能跑得起来
springboot 2.0.3+activiti 5.22 设计器整合
07-02
springboot 2.0.3+activiti 5.22+mysql，包含创建模型，删除，待办，已办，流程跟踪，完成任务，撤回等相关接口以及网页设计器整合，真正的开箱即用。
spring boot整合activiti modeler实例源码下载
06-06
spring boot 1.5.3整合activiti modeler 5.22.0，详细参考：http://blog.youkuaiyun.com/chenhai201/article/details/72668275
springboot集成activiti5.22.0在线设计器
qq_20994165的博客
03-31 1254
（源码所在位置：Activiti-activiti-5.22.0\modules\activiti-modeler\src\main\java\org\activiti\rest\editor\model）③StencilsetRestResource #获取编辑器组件及配置项信息（源码所在位置：Activiti-activiti-5.22.0\modules\activiti-modeler\src\main\java\org\activiti\rest\editor\main）创建model的页面。
Spring boot整合activiti modeler 5.22
热门推荐
chenhai201的博客
05-23 2万+
Spring boot 整合activiti modeler 前言 一目录结构 二整合流程 1 复制文件 2 修改文件 三activiti modeler 导入现有流程文件Spring boot 整合activiti modeler前言瞎整了一个晚上加一个上午，终于整合完成了，记录以便下次使用Spring boot版本：1.5.3activiti版本：5.22.0一、目录结构其中：二、整合流程2.1
Activiti 7 + Spring Boot2 实现灵活的任务指派
### Activiti 7与Spring Boot 2集成系列教程：组任务的实现 #### 知识点一：Activiti 7 与 Spring Boot 2 的集成 Activiti 是一个轻量级的、基于Java的业务流程管理(BPM)平台。它允许企业通过业务流程模型与现有...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
