bit interleaving

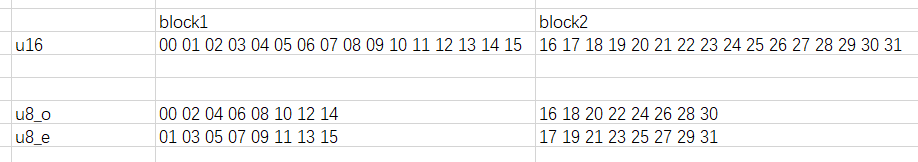

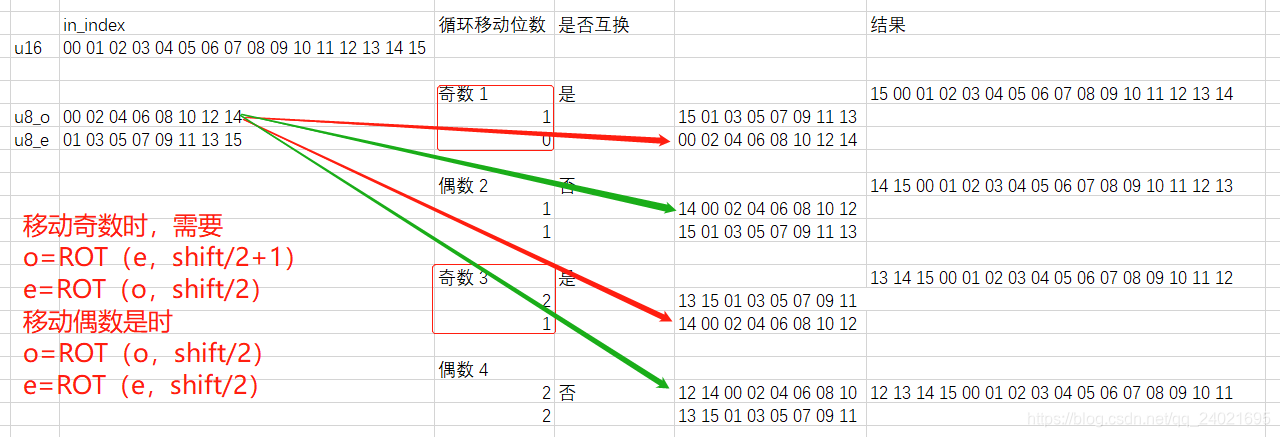

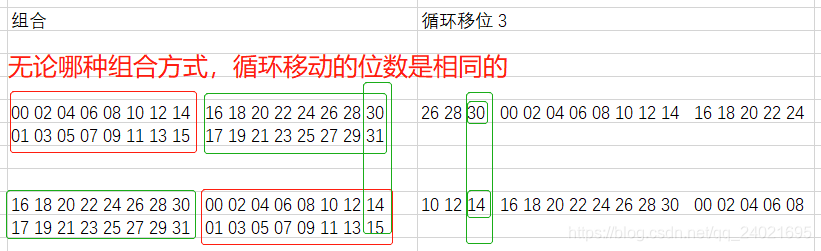

原理

#include"stdio.h"
#include <time.h>
#include <stdlib.h>
typedef unsigned char u8;
typedef unsigned int u32;
typedef unsigned long long u64;
#define ROTR64(x,n) (((x)>>(n))|((x)<<(64-(n))))
#define ROTR32(x, n) (((x) >> (n)) | ((x) << (32 - (n))))
#define U32BIG(x) (x)
#define U64BIG(x) (x)
//u8 in[8]  ;u32 out[2]。
void zxfto_bit_interleaving(u32 * out, u8 * in) {
 u32 t0 = U32BIG(((u32*)in)[0]);
 u32 t1 = U32BIG(((u32*)in)[1]);
 u32 r0, r1;
 r0 = (t0 ^ (t0 >> 1)) & 0x22222222, t0 ^= r0 ^ (r0 << 1);
 r0 = (t0 ^ (t0 >> 2)) & 0x0C0C0C0C, t0 ^= r0 ^ (r0 << 2);
 r0 = (t0 ^ (t0 >> 4)) & 0x00F000F0, t0 ^= r0 ^ (r0 << 4);
 r0 = (t0 ^ (t0 >> 8)) & 0x0000FF00, t0 ^= r0 ^ (r0 << 8);  //t0 odd(双) even(单)
 r1 = (t1 ^ (t1 >> 1)) & 0x22222222, t1 ^= r1 ^ (r1 << 1);
 r1 = (t1 ^ (t1 >> 2)) & 0x0C0C0C0C, t1 ^= r1 ^ (r1 << 2);
 r1 = (t1 ^ (t1 >> 4)) & 0x00F000F0, t1 ^= r1 ^ (r1 << 4);
 r1 = (t1 ^ (t1 >> 8)) & 0x0000FF00, t1 ^= r1 ^ (r1 << 8);  //t1 odd(双) even(单)
 out[0] = (t1 & 0xFFFF0000) | (t0 >> 16);                 // t1.odd|t0.odd
 out[1] =  (t1 << 16)| (t0 & 0x0000FFFF);                 // t1.even|t0.even
}
//u8 out[8]  ;u32 in[2]。
// Credit to Henry S. Warren, Hacker's Delight, Addison-Wesley, 2002
void zxffrom_bit_interleaving(u8 * out, u32 * in) {
 u32 t1 = (in[0] & 0xFFFF0000) | (in[1] >> 16);
 u32 t0 = (in[1] & 0x0000FFFF) | (in[0] << 16);
 u32 r0, r1;
    r0 = (t0 ^ (t0 >> 8)) & 0x0000FF00, t0 ^= r0 ^ (r0 << 8); \
    r0 = (t0 ^ (t0 >> 4)) & 0x00F000F0, t0 ^= r0 ^ (r0 << 4); \
    r0 = (t0 ^ (t0 >> 2)) & 0x0C0C0C0C, t0 ^= r0 ^ (r0 << 2); \
    r0 = (t0 ^ (t0 >> 1)) & 0x22222222, t0 ^= r0 ^ (r0 << 1); \
    r1 = (t1 ^ (t1 >> 8)) & 0x0000FF00, t1 ^= r1 ^ (r1 << 8); \
    r1 = (t1 ^ (t1 >> 4)) & 0x00F000F0, t1 ^= r1 ^ (r1 << 4); \
    r1 = (t1 ^ (t1 >> 2)) & 0x0C0C0C0C, t1 ^= r1 ^ (r1 << 2); \
    r1 = (t1 ^ (t1 >> 1)) & 0x22222222, t1 ^= r1 ^ (r1 << 1); \
 *((u64*)out) = ((u64)t1 << 32 | t0);
 //out = ((u64)t1 << 32 | t0);
}
void test() {
 u32 temp[2] = { 0 }, t[2];
 int i, j, shift=2, shiftTemp;
 unsigned char in[8] = {0 };
 //u64 temp64 = 0x00000055000000aa, temp1;
 u64 temp64 = 0x000000290000005a, temp1;
 //srand((unsigned)time(NULL));
 for (j = 0; j < 4; j++) {
  shift = j;
  //shift = rand() % 20 + 3;
  //temp64 = rand();
  printf("\nshift:%2d  in:%016llx  \n", shift, temp64);
//////////////////////
  printf("ROTR64:             ");
  temp1 = ROTR64(temp64, shift);
  printf("out:%016llx\n", temp1);
//////////////////////
  for (i = 0; i < 8; i++) {
   in[i]=((u8*)&temp64)[i];
  }
  //begin
  printf("BIT_INTERVEL:    \nin(u8倒叙输出):\t\t\t  ");
  for (i = 7; i >=0; i--) {
   printf("%02x", in[i]);
  }
  printf("\n");
  zxfto_bit_interleaving(temp, in);
  printf("interleaving(偶数，奇数 u32类型)：%08x  %08x\n", temp[0], temp[1]);
  printf("未移位前转换格式(是否与输入相同)：");
  zxffrom_bit_interleaving(in, temp);
  for (i = 7; i >= 0; i--) {
   printf("%02x", in[i]);
  }
  printf("\n");
  shiftTemp = 0;
  shiftTemp = shift / 2;
  if (shift % 2 != 0) {
   t[0] = ROTR32(temp[1], shiftTemp+1);
   t[1] = ROTR32(temp[0], shiftTemp);
  }
  else {
   t[0] = ROTR32(temp[0], shiftTemp);
   t[1] = ROTR32(temp[1], shiftTemp);
  }
  printf("循环移位\t       ：shift=%d  %08x ;  %08x\n转换格式\t out： ", shiftTemp, t[0], t[1]);
  zxffrom_bit_interleaving(in, t);
  for (i = 7; i >= 0; i--) {
   printf("%02x", in[i]);
  }
  printf("\n");
 }
}
