Eclipse/Idea 搭建 SpringBoot+Mybatis整合html、jsp、easyui（在线STS方式）

• eclipse搭建springBoot不通数据库
• 代码的自动生成类Eclipse，见[参考文档1]
• 代码的自动生成类idea，见[参考文档2]
• 参考demo

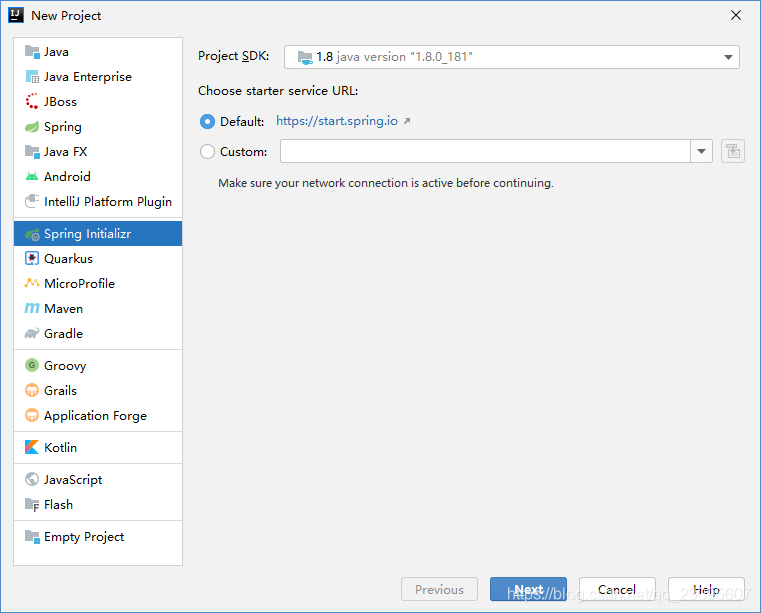

• 当https://start.spring.io/特别卡时，custom选项使用 阿里云构建：https://start.aliyun.com/

https://github.com/860277630/SpringBoot_HelloWorld.git

• 重要的事情：★★★★★★★★★★★★★★★

• ①idea社区版是无论如何都不支持jsp的，可以考虑使用eclipse或者使用idea收费版

• ②jsp在到了新的浏览器中运行，如果jsp失效，可以考虑清理一下缓存，因为浏览器缓存经常会导致jsp失效

• ③eclipse推荐使用


• ④关于eclipse修改springboot及其组建的版本在STS创建的最后一步


• eclipse : SpringBoot+Mybatis + html

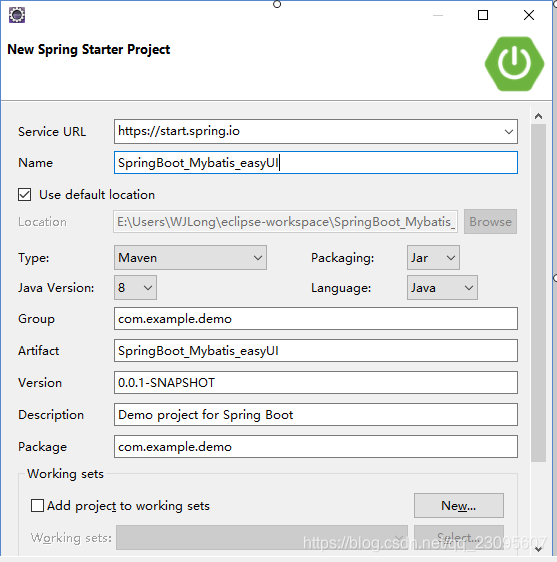

  1.新建spring boot项目

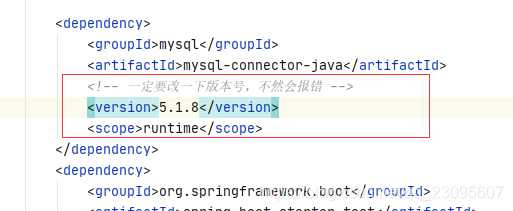

• 完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）


		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

@Mapper
public interface UserMapper {

    User Sel(int id);
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
@RequestMapping("/testBoot")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("getUser/{id}")
    public String GetUser(@PathVariable int id,Model model){
    	User user =  userService.Sel(id);
    	model.addAttribute("user", user);
        System.out.println("xxxxxxxxxxxxxxxxxx"+user.toString());
        return "index";
    }
}

注意：启动类必须在执行类的同级甚至上面!!!
4. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
  port: 8080
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    username: root
    password: 123888
    driver-class-name: com.mysql.jdbc.Driver
mybatis:
#记住包名一定要这样写，而不要用点，直接拷贝路径复制过来就行
  mapper-locations: classpath:com/example/demo/mapper/*.xml
  type-aliases-package: com.example.demo.model

#日志打印配置  --新添加的，demo里面没有
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

pom文件里面增加xml文件的位置，因为默认是resource文件夹下的，我们把它放在了src文件夹下

		<resources>
			<!-- mapper.xml文件在java目录下 -->
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>mapper/*.xml</include>
				</includes>
			</resource>
			<!-- mapper.xml文件在resources目录下 -->
			<resource>
				<directory>src/main/resources</directory>
			</resource>
		</resources>

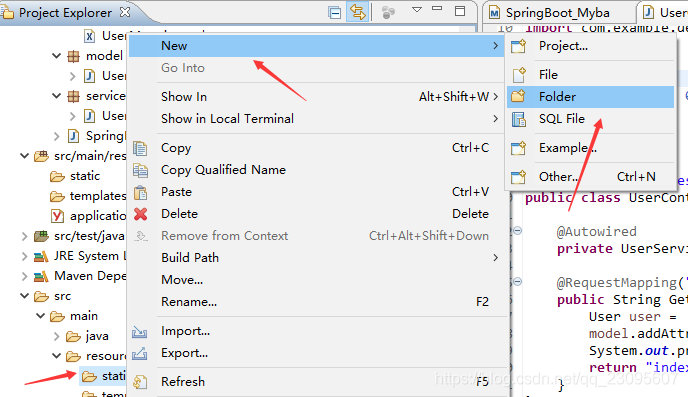

在resources/templates文件夹📁下增加index.html文件

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<table  style = "border:2px solid #000000">
<tr><td>ID:</td><td th:text="${user.id}"></td></tr>
<tr><td>userName:</td><td th:text="${user.userName}"></td></tr>
<tr><td>passWord:</td><td th:text="${user.passWord}"></td></tr>
<tr><td>realName:</td><td th:text="${user.realName}"></td></tr>
</table>
</body>
</html>

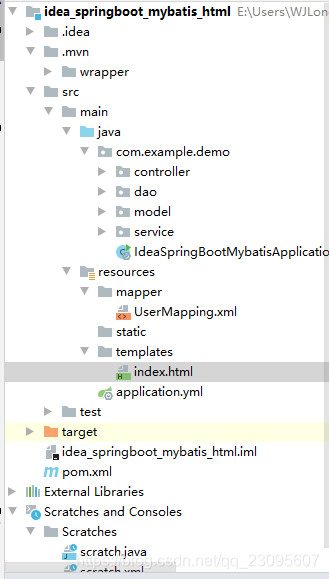

• 配置好布局为：


6.访问：http://localhost:8080/testBoot/getUser/1，可以看到页面

• eclipse : SpringBoot+Mybatis + jsp

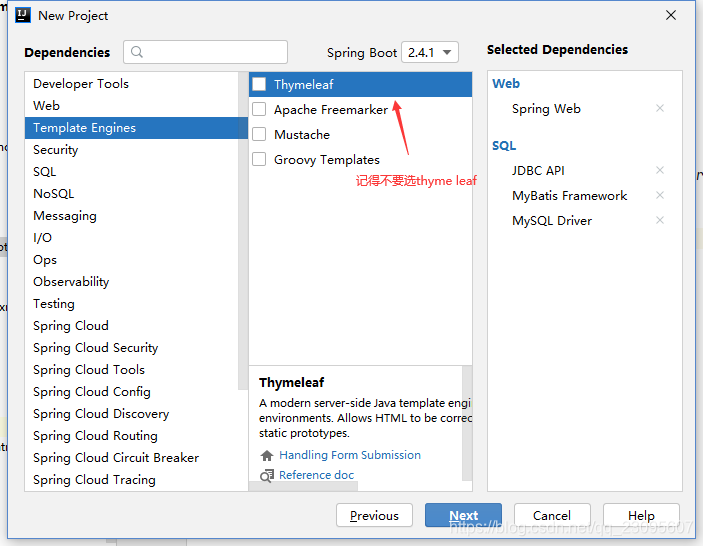

  1.新建spring boot项目




2. 完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）


		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

@Mapper
public interface UserMapper {

    User Sel(int id);
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
@RequestMapping("/testBoot")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("getUser/{id}")
    public String GetUser(@PathVariable int id,Model model){
    	User user =  userService.Sel(id);
    	model.addAttribute("user", user);
        System.out.println("xxxxxxxxxxxxxxxxxx"+user.toString());
        return "index";
    }
}

注意：启动类必须在执行类的同级甚至上面!!!
4. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
   port: 8088
spring:
   datasource:
      url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
      username: root
      password: 123888
      driver-class-name: com.mysql.jdbc.Driver
   mvc:
      view:
         prefix: /WEB-INF/jsp/
         suffix: .jsp
mybatis:
#记住包名一定要这样写，而不要用点，直接拷贝路径复制过来就行
   mapper-locations: classpath:com/example/demo/mapper/*.xml
   type-aliases-package: com.example.demo.model

#日志打印配置  --新添加的
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

pom文件里面增加xml文件的位置，因为默认是resource文件夹下的，我们把它放在了src文件夹下

		<resources>
			<!-- mapper.xml文件在java目录下 -->
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>mapper/*.xml</include>
				</includes>
			</resource>
			<!-- mapper.xml文件在resources目录下 -->
			<resource>
				<directory>src/main/resources</directory>
			</resource>
		</resources>

然后添加相关JSP支持依赖


		        <!-- 添加servlet依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>provided</scope>
        </dependency>
        <!-- 添加jstl标签库依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!--添加tomcat依赖模块.-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>
        <!-- 使用jsp引擎，springboot内置tomcat没有此依赖 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.28</version>
        </dependency>

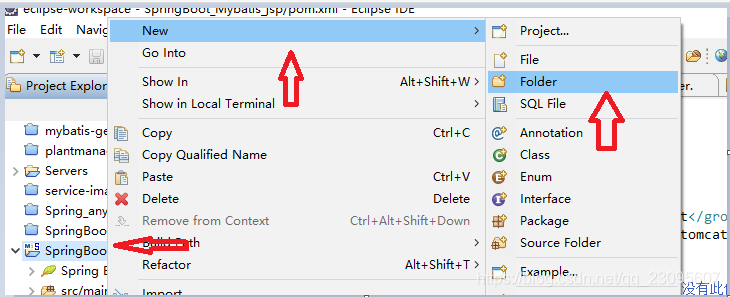

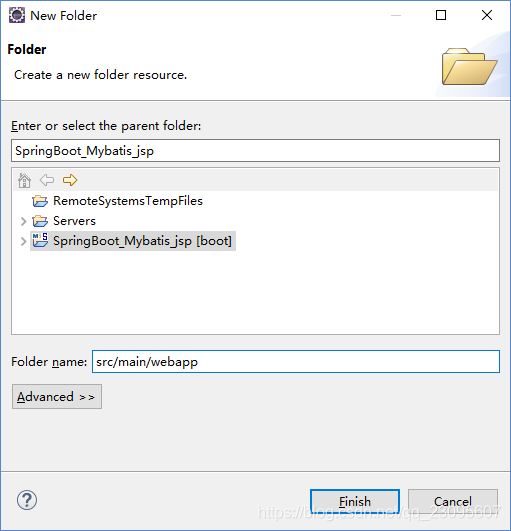

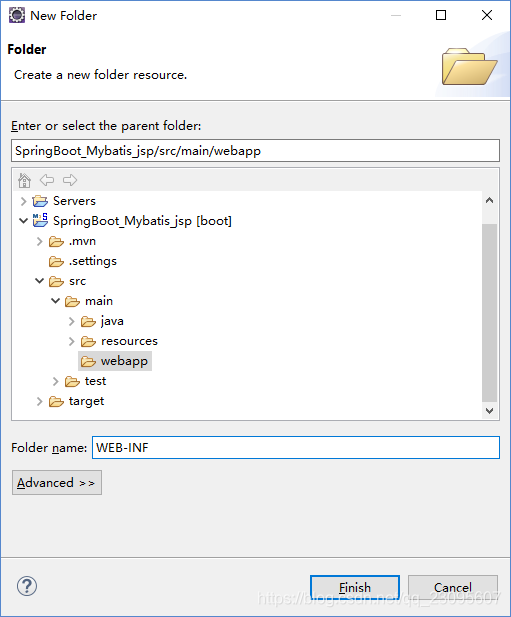

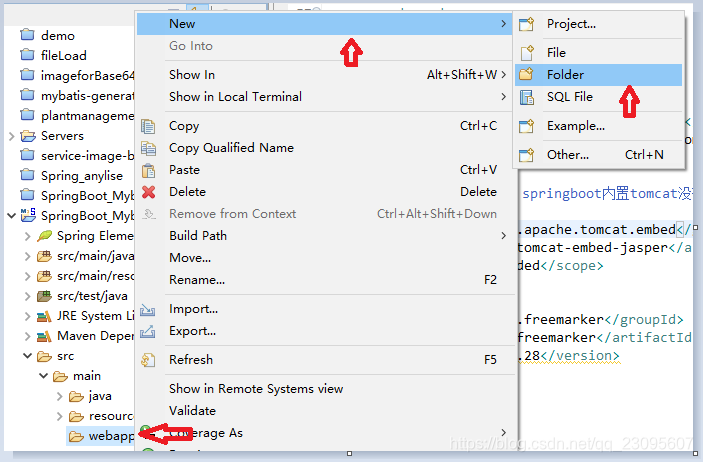

创建webapp/WEB-INF/jsp文件夹📁

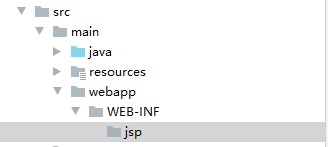

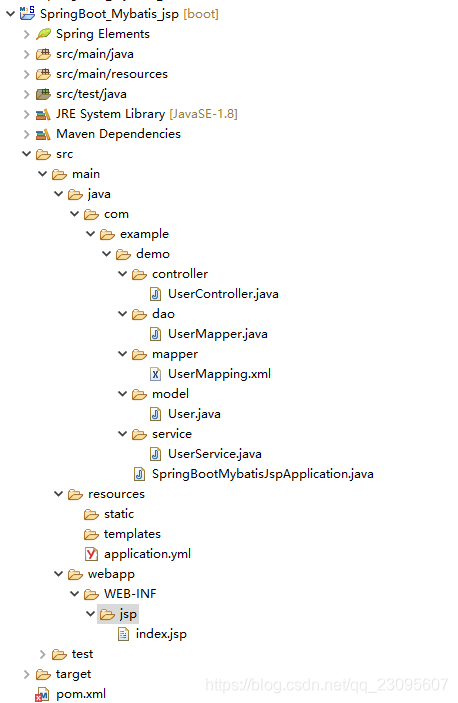

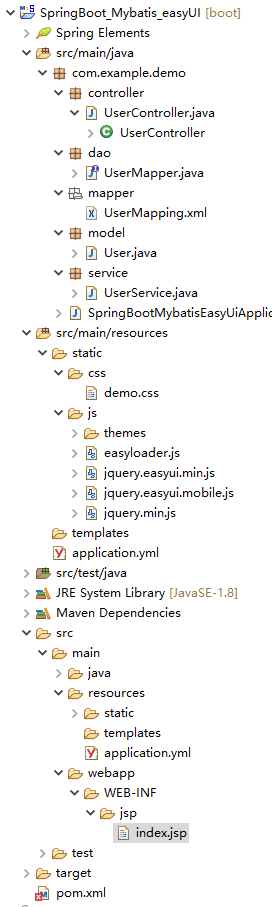

• 配置好布局为：

  index.jsp内容

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<table  style = "border:2px solid #000000">
<tr><td>ID:</td><td>${user.id}</td></tr>
<tr><td>userName:</td><td >${user.userName}</td></tr>
<tr><td>passWord:</td><td >${user.passWord}</td></tr>
<tr><td>realName:</td><td >${user.realName}</td></tr>
</table>
</body>
</html>

6.访问：http://localhost:8080/testBoot/getUser/1，可以看到页面

• eclipse : SpringBoot+Mybatis + easyUI
  这是JSP版本，和HTML的版本唯一的区别就是JSP和HTML的位置不一样，JS,CSS，图片等静态资源的位置不变
  1.新建spring boot项目




2. 完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）


		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

@Mapper
public interface UserMapper {

    User Sel(int id);
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
@RequestMapping("/testBoot")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("getUser/{id}")
    public String GetUser(@PathVariable int id,Model model){
    	User user =  userService.Sel(id);
    	model.addAttribute("user", user);
        System.out.println("xxxxxxxxxxxxxxxxxx"+user.toString());
        return "index";
    }
}

注意：启动类必须在执行类的同级甚至上面!!!
4. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
   port: 8088
spring:
   datasource:
      url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
      username: root
      password: 123888
      driver-class-name: com.mysql.jdbc.Driver
   mvc:
      view:
         prefix: /WEB-INF/jsp/
         suffix: .jsp
mybatis:
#记住包名一定要这样写，而不要用点，直接拷贝路径复制过来就行
   mapper-locations: classpath:com/example/demo/mapper/*.xml
   type-aliases-package: com.example.demo.model

#日志打印配置  --新添加的
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

pom文件里面增加xml文件的位置，因为默认是resource文件夹下的，我们把它放在了src文件夹下

		<resources>
			<!-- mapper.xml文件在java目录下 -->
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>mapper/*.xml</include>
				</includes>
			</resource>
			<!-- mapper.xml文件在resources目录下 -->
			<resource>
				<directory>src/main/resources</directory>
			</resource>
		</resources>

然后添加相关JSP支持依赖


		        <!-- 添加servlet依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>provided</scope>
        </dependency>
        <!-- 添加jstl标签库依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!--添加tomcat依赖模块.-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>
        <!-- 使用jsp引擎，springboot内置tomcat没有此依赖 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.28</version>
        </dependency>

创建webapp/WEB-INF/jsp文件夹📁

• 配置好布局为：

  6.下载easyUI

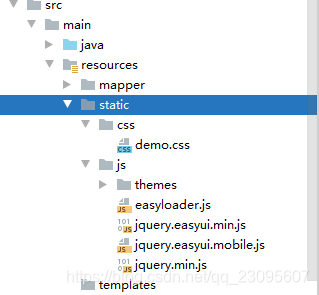

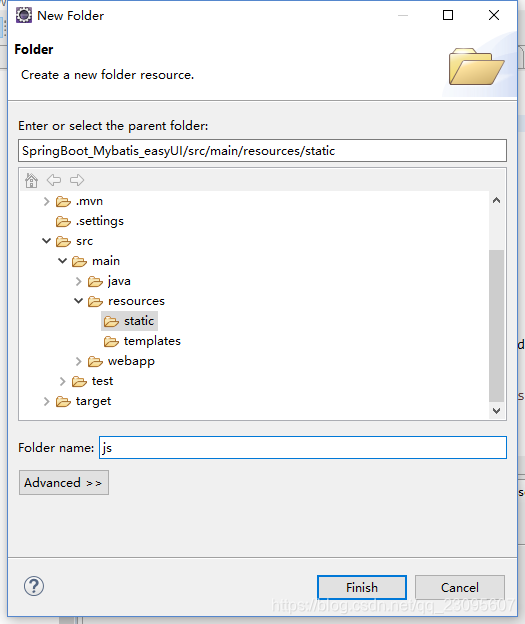

  7.在resources/static 文件夹下 创建 js 和 css文件夹📁

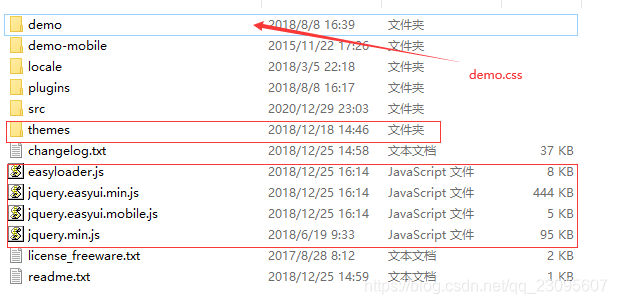

  8.然后将下载的easyUI文件解压，将demo文件夹里的demo.css放入CSS文件夹📁中，将themes，及外面的JS放入js文件夹📁中


  9.index.jsp的内部代码

<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<c:set var="basePath" value="${pageContext.request.contextPath}"></c:set>
<html>
<head>
    <meta charset="UTF-8">
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <meta http-equiv="Pragma" content="no-cache">
    <meta http-equiv="Cache-Control" content="no-cache">
    <meta http-equiv="Expires" content="0">
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <title>Insert title here</title>
    <link rel="stylesheet"  type="text/css" href="${basePath}/js/themes/default/easyui.css">
    <link rel="stylesheet"  type="text/css" href="${basePath}/js/themes/icon.css">
    <link rel="stylesheet"  type="text/css" href="${basePath}/css/demo.css">
    <script type="text/javascript" src="${basePath}/js/jquery.min.js"></script>
    <script type="text/javascript" src="${basePath}/js/jquery.easyui.min.js"></script>
</head>
<body>
<div style="margin:20px 0;"></div>

<table id="dg" title="My Users" class="easyui-datagrid" style="width:550px;height:250px"
       url="get_users.php"
       toolbar="#toolbar"
       rownumbers="true" fitColumns="true" singleSelect="true">
    <thead>
    <tr>
        <th data-options="field:'itemid',width:80">区域id</th>
        <th data-options="field:'productid',width:100">上级区域id</th>
        <th data-options="field:'listprice',width:80,align:'right'">区域名称</th>
        <th data-options="field:'unitcost',width:80,align:'right'">区域编号</th>
    </tr>
    </thead>
    <tbody>
        <tr>
            <td>${user.id }</td>
            <td>${user.userName }</td>
            <td>${user.passWord }</td>
            <td>${user.realName }</td>
        </tr>
    </tbody>
</table>
</body>
</html>

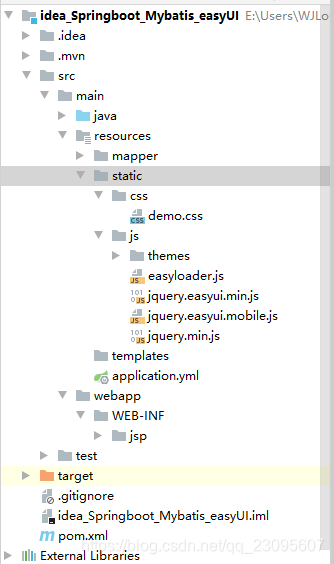

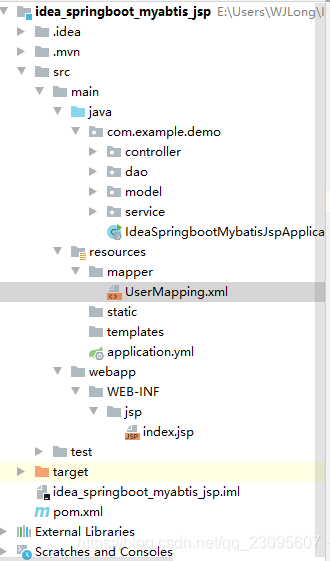

10.布置结构如图

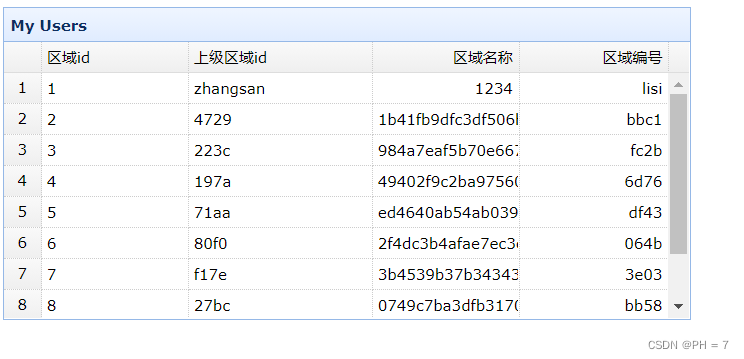

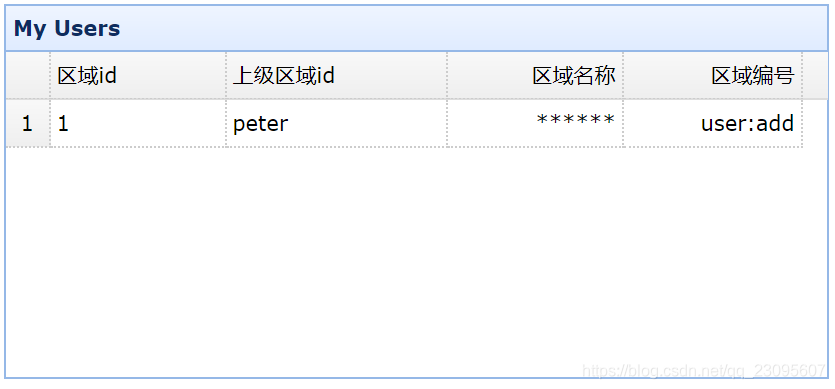

11，访问 http://localhost:8088/testBoot/getUser/1 结果如下

• idea: SpringBoot+Mybatis+html
  idea 与 eclipse 最大的区别就是 mapper.xml文件 要创建在resource文件夹📁下面 其他的基本无差异
  1.File→new→project →Spring initializr

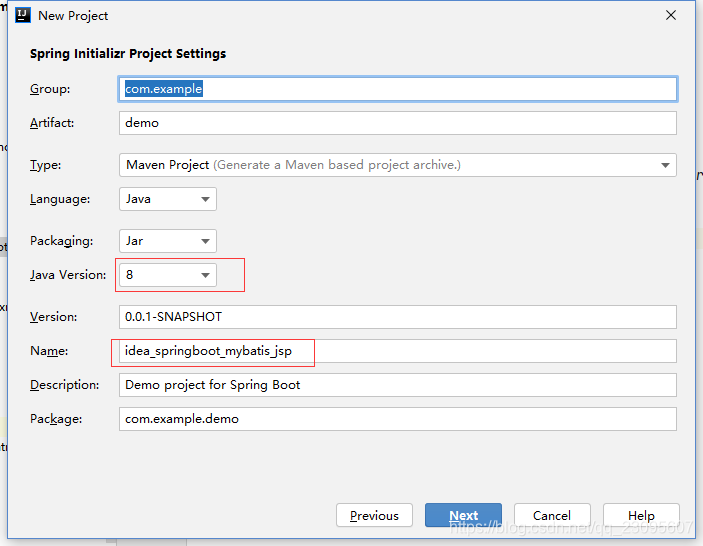

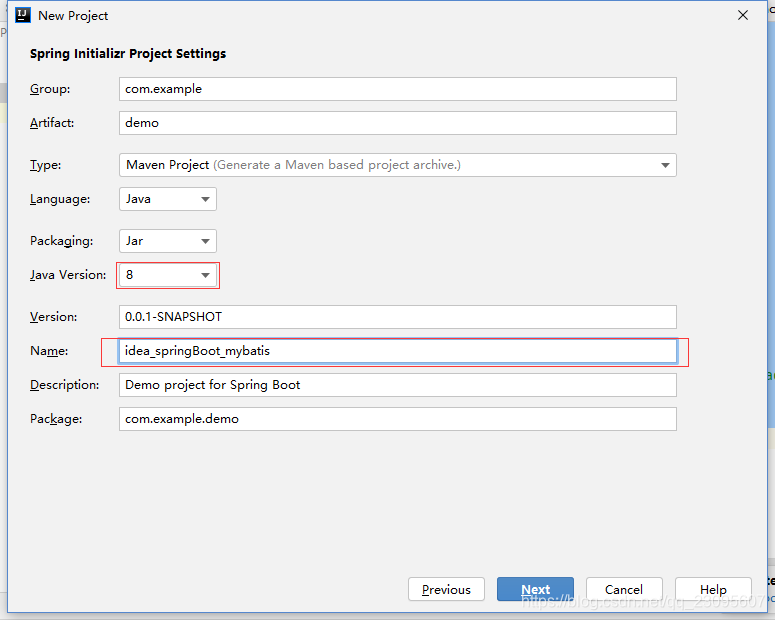

  2.next→选择对应的版本

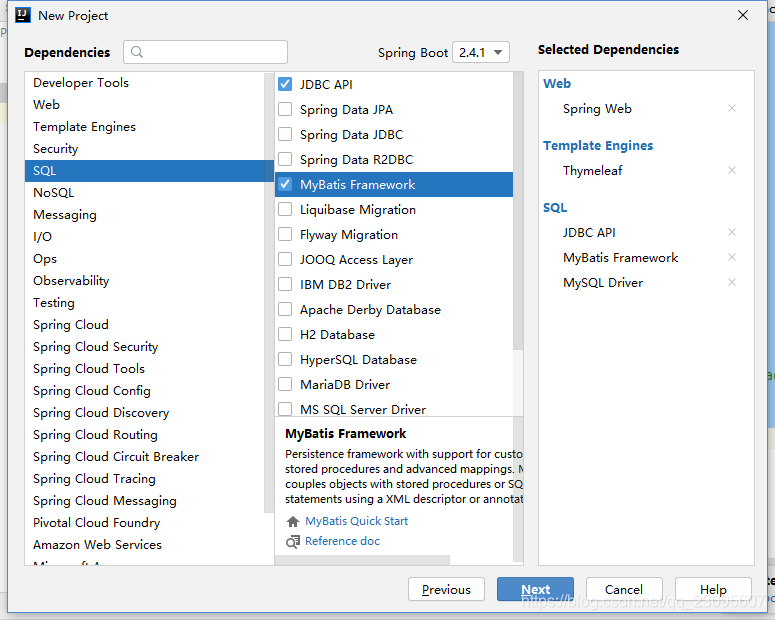

  3.选择对应的依赖

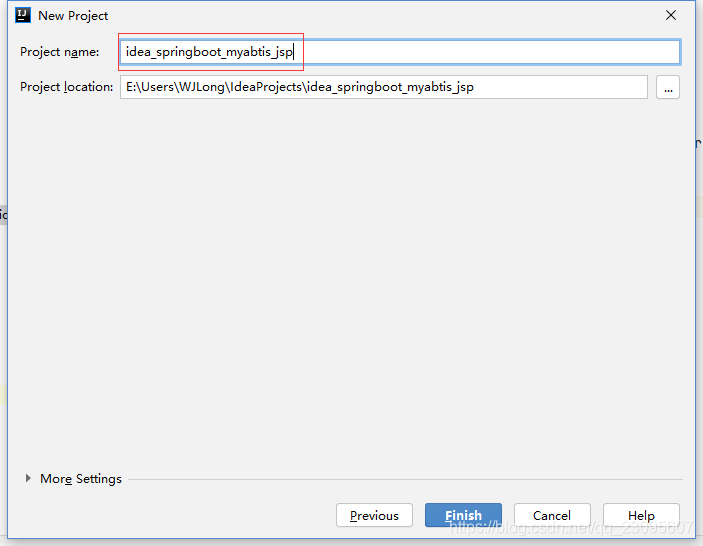

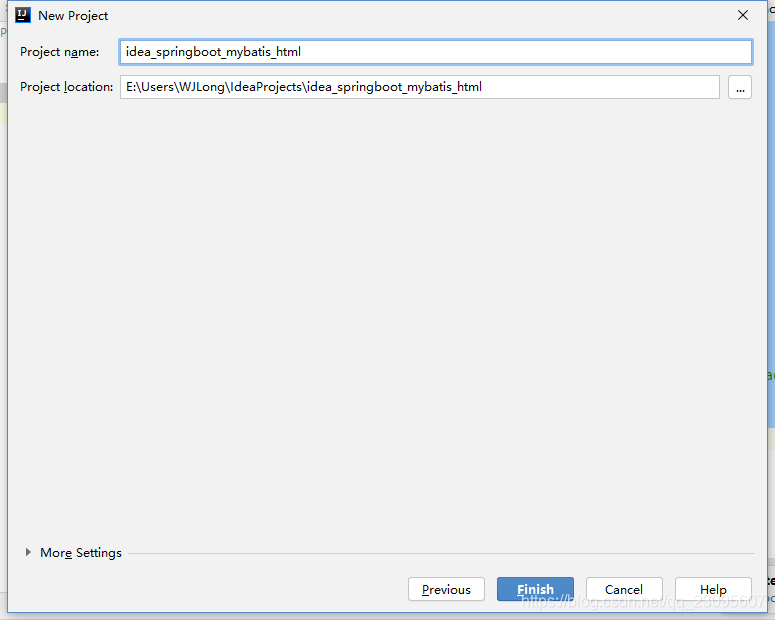

  4.然后指定名字，完成。

  5.完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）


		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml（注意这里是resources文件夹下创建mapper文件夹📁）

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

@Mapper
public interface UserMapper {

    User Sel(int id);
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
@RequestMapping("/testBoot")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("getUser/{id}")
    public String GetUser(@PathVariable int id,Model model){
    	User user =  userService.Sel(id);
    	model.addAttribute("user", user);
        System.out.println("xxxxxxxxxxxxxxxxxx"+user.toString());
        return "index";
    }
}

注意：启动类必须在执行类的同级甚至上面!!!
6. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
  port: 8088
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    username: root
    password: 123888
    driver-class-name: com.mysql.jdbc.Driver

mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.example.demo.model

#idea配置文件默认不允许有中文注释
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

在resources/templates文件夹📁下增加index.html文件

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<table  style = "border:2px solid #000000">
<tr><td>ID:</td><td th:text="${user.id}"></td></tr>
<tr><td>userName:</td><td th:text="${user.userName}"></td></tr>
<tr><td>passWord:</td><td th:text="${user.passWord}"></td></tr>
<tr><td>realName:</td><td th:text="${user.realName}"></td></tr>
</table>
</body>
</html>

• 配置好布局为：


7.访问：http://localhost:8088/testBoot/getUser/1，可以看到页面

• idea: SpringBoot+Mybatis+jsp
  1.File→new→project →Spring initializr

  2.next→选择对应的版本


3.选择对应的依赖

4.然后指定名字，完成。

5.完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml（注意这里是resources文件夹下创建mapper文件夹📁）

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

@Mapper
public interface UserMapper {

    User Sel(int id);
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
@RequestMapping("/testBoot")
public class UserController {

    @Autowired
    private UserService userService;

    @RequestMapping("getUser/{id}")
    public String GetUser(@PathVariable int id,Model model){
    	User user =  userService.Sel(id);
    	model.addAttribute("user", user);
        System.out.println("xxxxxxxxxxxxxxxxxx"+user.toString());
        return "index";
    }
}

注意：启动类必须在执行类的同级甚至上面!!!
6. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
  port: 8088
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    username: root
    password: 123888
    driver-class-name: com.mysql.jdbc.Driver
  mvc:
    view:
      prefix: /WEB-INF/jsp/
      suffix: .jsp
mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.example.demo.model
#idea配置文件默认不允许有中文注释
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

然后添加相关JSP支持依赖


        <!-- 添加servlet依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>compile</scope>
        </dependency>
        <!-- 添加jstl标签库依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!--添加tomcat依赖模块.绝大部分情况不需要这个-->
<!--        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>-->
        <!-- 使用jsp引擎，springboot内置tomcat没有此依赖 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.28</version>
        </dependency>

创建webapp/WEB-INF/jsp文件夹📁 注意是main文件夹📁下

• 配置好布局为：


index.jsp内容

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<table  style = "border:2px solid #000000">
<tr><td>ID:</td><td>${user.id}</td></tr>
<tr><td>userName:</td><td >${user.userName}</td></tr>
<tr><td>passWord:</td><td >${user.passWord}</td></tr>
<tr><td>realName:</td><td >${user.realName}</td></tr>
</table>
</body>
</html>

6.访问：http://localhost:8080/testBoot/getUser/1，可以看到页面

• Idea SpringBoot+Mybatis 整合easyUI
  1.File→new→project →Spring initializr

  2.next→选择对应的版本


3.选择对应的依赖

4.然后指定名字，完成。

5.完成后进行相应的配置文件修改，本人用mysql来做例子，要更改jar包版本，不然会报错CLIENT_PLUGIN_AUTH is required，打开pom文件，并修改版本号，匹配自己的数组库版本（一般是5.1.18）

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<!-- 一定要改一下版本号，不然会报错 -->
			<version>5.1.8</version>
			<scope>runtime</scope>
		</dependency>

3. 然后创建表

数据库：

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

User.java

package com.example.demo.model;

public class User {
    private Integer id;
    private String userName;
    private String passWord;
    private String realName;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }

    public String getRealName() {
        return realName;
    }

    public void setRealName(String realName) {
        this.realName = realName;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", userName='" + userName + '\'' +
                ", passWord='" + passWord + '\'' +
                ", realName='" + realName + '\'' +
                '}';
    }
}

UserMapping.xml（注意这里是resources文件夹下创建mapper文件夹📁）

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.UserMapper">

    <resultMap id="BaseResultMap" type="com.example.demo.model.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="Sel" resultMap="BaseResultMap" parameterType="Object">
        select * from user where id = #{id}
    </select>

    <select id="selAll" resultMap="BaseResultMap" parameterType="Object">
        select * from user LIMIT 0,10
    </select>

</mapper>

UserMapper.java

package com.example.demo.dao;

import org.apache.ibatis.annotations.Mapper;

import com.example.demo.model.User;

import java.util.List;

@Mapper
public interface UserMapper {

    User Sel(int id);

    List<User> selAll();
}

UserService.java

package com.example.demo.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.example.demo.dao.UserMapper;
import com.example.demo.model.User;

import java.util.List;

@Service
public class UserService {
    @Autowired
    UserMapper userMapper;
    public User Sel(int id){
        return userMapper.Sel(id);
    }

    public List<User> SelAll(){
        return userMapper.selAll();
    }
}

UserController.java

package com.example.demo.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import com.example.demo.model.User;
import com.example.demo.service.UserService;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.List;

/**
 * @Author:wjup
 * @Date: 2018/9/26 0026
 * @Time: 14:42
 */

@Controller
public class UserController {

    @Autowired
    private UserService userService;


    @RequestMapping("index")
    public String index(){
        return "index";
    }

    @RequestMapping("getData")
    @ResponseBody
    public List<User> getDatas(){
        return userService.SelAll();
    }

}

注意：启动类必须在执行类的同级甚至上面!!!
6. 完成相应配置文件的修改
将/src/main/resources/application.properties 下的配置文件改为application.yml文件，添加配置

server:
  port: 8088
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    username: root
    password: 123888
    driver-class-name: com.mysql.jdbc.Driver
  mvc:
    view:
      prefix: /WEB-INF/jsp/
      suffix: .jsp
mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.example.demo.model
#idea配置文件默认不允许有中文注释
logging:
  level:
    com.example.demo.dao: debug

启动类里面增加扫描：

@MapperScan("com.example.demo.dao")//是mapper接口，而不是映射文件

然后添加相关JSP支持依赖


        <!-- 添加servlet依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <scope>compile</scope>
        </dependency>
        <!-- 添加jstl标签库依赖模块 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!--添加tomcat依赖模块.绝大部分情况不需要这个-->
<!--        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>-->
        <!-- 使用jsp引擎，springboot内置tomcat没有此依赖 -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.28</version>
        </dependency>

创建webapp/WEB-INF/jsp文件夹📁 注意是main文件夹📁下

6.下载easyUI

7.在resources/static 文件夹下 创建 js 和 css文件夹📁

8.然后将下载的easyUI文件解压，将demo文件夹里的demo.css放入CSS文件夹📁中，将themes，及外面的JS放入js文件夹📁中

9.jsp 文件夹下创建index.jsp的内部代码

<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<c:set var="basePath" value="${pageContext.request.contextPath}"></c:set>
<html>
<head>
    <meta charset="UTF-8">
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <meta http-equiv="Pragma" content="no-cache">
    <meta http-equiv="Cache-Control" content="no-cache">
    <meta http-equiv="Expires" content="0">
    <meta http-equiv="X-UA-Compatible" content="IE=edge"/>
    <title>Insert title here</title>
    <link rel="stylesheet"  type="text/css" href="${basePath}/js/themes/default/easyui.css">
    <link rel="stylesheet"  type="text/css" href="${basePath}/js/themes/icon.css">
    <link rel="stylesheet"  type="text/css" href="${basePath}/css/demo.css">
    <script type="text/javascript" src="${basePath}/js/jquery.min.js"></script>
    <script type="text/javascript" src="${basePath}/js/jquery.easyui.min.js"></script>
</head>
<body>
<div style="margin:20px 0;"></div>

<table id="dg" title="My Users" class="easyui-datagrid" style="width:550px;height:250px"
       url="/getData"
       toolbar="#toolbar"
       rownumbers="true" fitColumns="true" singleSelect="true">
    <thead>
    <tr>
        <th data-options="field:'id',width:80">区域id</th>
        <th data-options="field:'userName',width:100">上级区域id</th>
        <th data-options="field:'passWord',width:80,align:'right'">区域名称</th>
        <th data-options="field:'realName',width:80,align:'right'">区域编号</th>
    </tr>
    </thead>
    <tbody>
    <tr>
        <td>${id }</td>
        <td>${userName }</td>
        <td>${passWord }</td>
        <td>${realName }</td>
    </tr>
    </tbody>
</table>
</body>
</html>

10.布置结构如图

11，访问 http://localhost:8088/index 结果如下
