【日志跟踪】SpringBoot实现简单的日志链路追踪

引入依赖

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

自定义日子拦截器

import org.slf4j.MDC;
import org.springframework.util.StringUtils;
import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.UUID;

/**
 * @description: 自定义日子拦截器
 * @author: 黎剑
 * @create: 2024-04-15 22:56
 **/
public class LogInterceptor implements HandlerInterceptor {

    private static final String TRACE_ID = "trace_id";

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        // 使用UUID自动生成链路ID
        String tid = UUID.randomUUID().toString().replace("-", "");
        // 客户端可以传入链路ID，需要唯一性
        String traceId = request.getHeader(TRACE_ID);
        if (!StringUtils.isEmpty(traceId)) {
            tid = request.getHeader(TRACE_ID);
        }
        // MDC(Mapped Diagnostic Context)诊断上下文映射，是@Slf4j提供的一个支持动态打印日志信息的工具
        MDC.put(TRACE_ID, tid);
        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        MDC.remove(TRACE_ID);
    }
}

注意： trace_id的大小写需要于logback-spring.xml里面的trace_id的大小写一致，否则取不到值！！

添加拦截器

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * @description: 添加拦截器
 * @author: 黎剑
 * @create: 2024-04-15 22:57
 **/
@Configuration
public class WebConfigurerAdapter implements WebMvcConfigurer {

    @Bean
    public LogInterceptor logInterceptor() {
        return new LogInterceptor();
    }

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(logInterceptor())
                // 自定义需要拦截的和不需要拦截的
                .addPathPatterns("/**").excludePathPatterns("/login*****.html");

    }
}

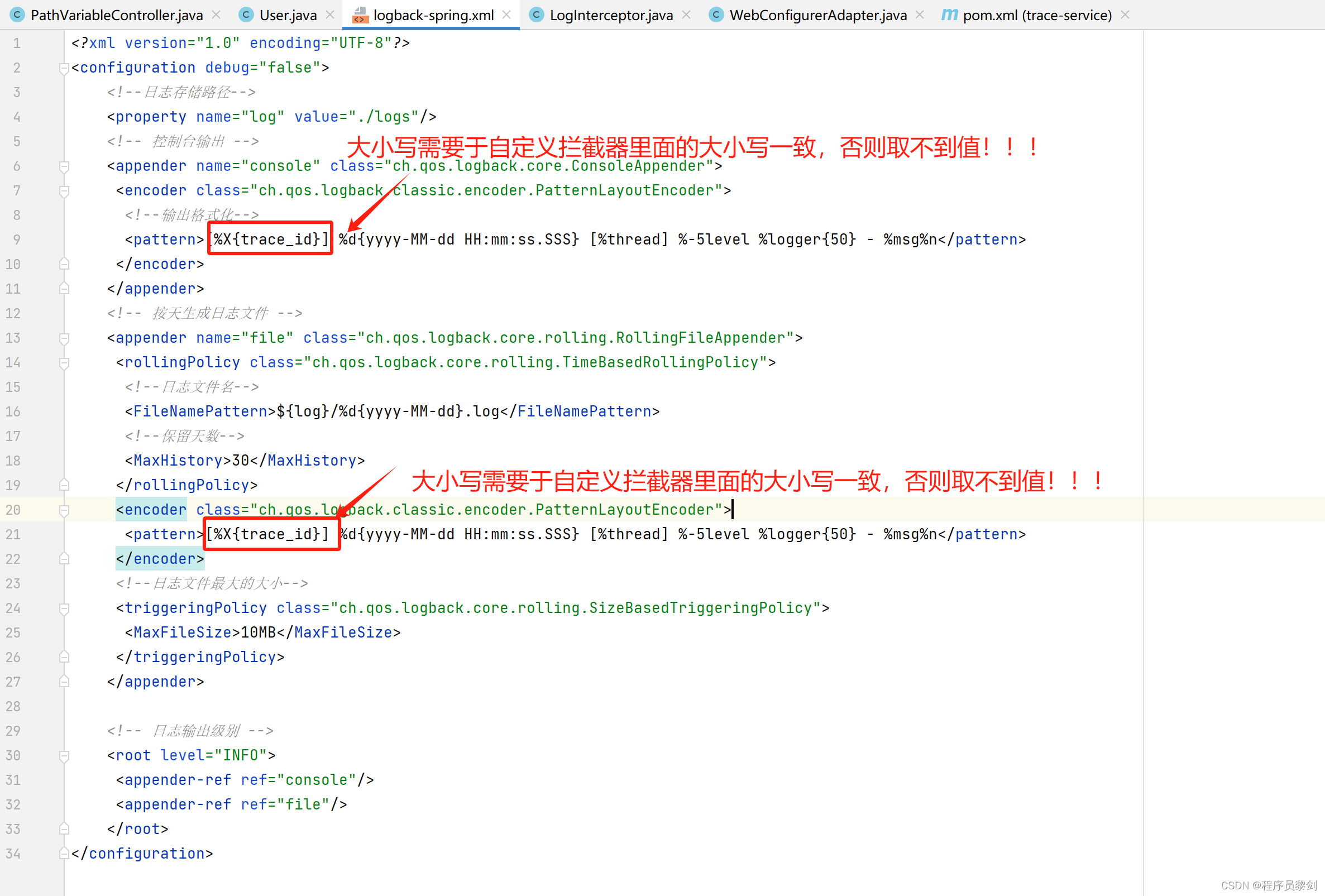

创建logback-spring.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false">
    <!--日志存储路径-->
    <property name="log" value="./logs"/>
    <!-- 控制台输出 -->
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
     <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
      <!--输出格式化-->
      <pattern>[%X{trace_id}] %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
     </encoder>
    </appender>
    <!-- 按天生成日志文件 -->
    <appender name="file" class="ch.qos.logback.core.rolling.RollingFileAppender">
     <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
      <!--日志文件名-->
      <FileNamePattern>${log}/%d{yyyy-MM-dd}.log</FileNamePattern>
      <!--保留天数-->
      <MaxHistory>30</MaxHistory>
     </rollingPolicy>
     <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
      <pattern>[%X{trace_id}] %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
     </encoder>
     <!--日志文件最大的大小-->
     <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
      <MaxFileSize>10MB</MaxFileSize>
     </triggeringPolicy>
    </appender>

    <!-- 日志输出级别 -->
    <root level="INFO">
     <appender-ref ref="console"/>
     <appender-ref ref="file"/>
    </root>
</configuration>



测试controller

import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

@RestController
@Slf4j
public class PathVariableController {

    // http://127.0.0.1:8080/user/123/roles/222
    @RequestMapping(value = "/user/{userId}/roles/{roleId}", method = RequestMethod.GET)
    @ResponseBody
    public String getLogin(@PathVariable("userId") String userId, @PathVariable("roleId") String roleId) {
        log.info("入参: {}", "User Id : " + userId + " Role Id : " + roleId);
        return "User Id : " + userId + " Role Id : " + roleId;
    }

    // http://127.0.0.1:8080/javabeat/somewords
    @RequestMapping(value = "/javabeat/{regexp1:[a-z-]+}", method = RequestMethod.GET)
    @ResponseBody
    public String getRegExp(@PathVariable("regexp1") String regexp1) {
        return "URI Part : " + regexp1;
    }
}

实体类

public class User {

    private String name;

    private Integer age;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }
}

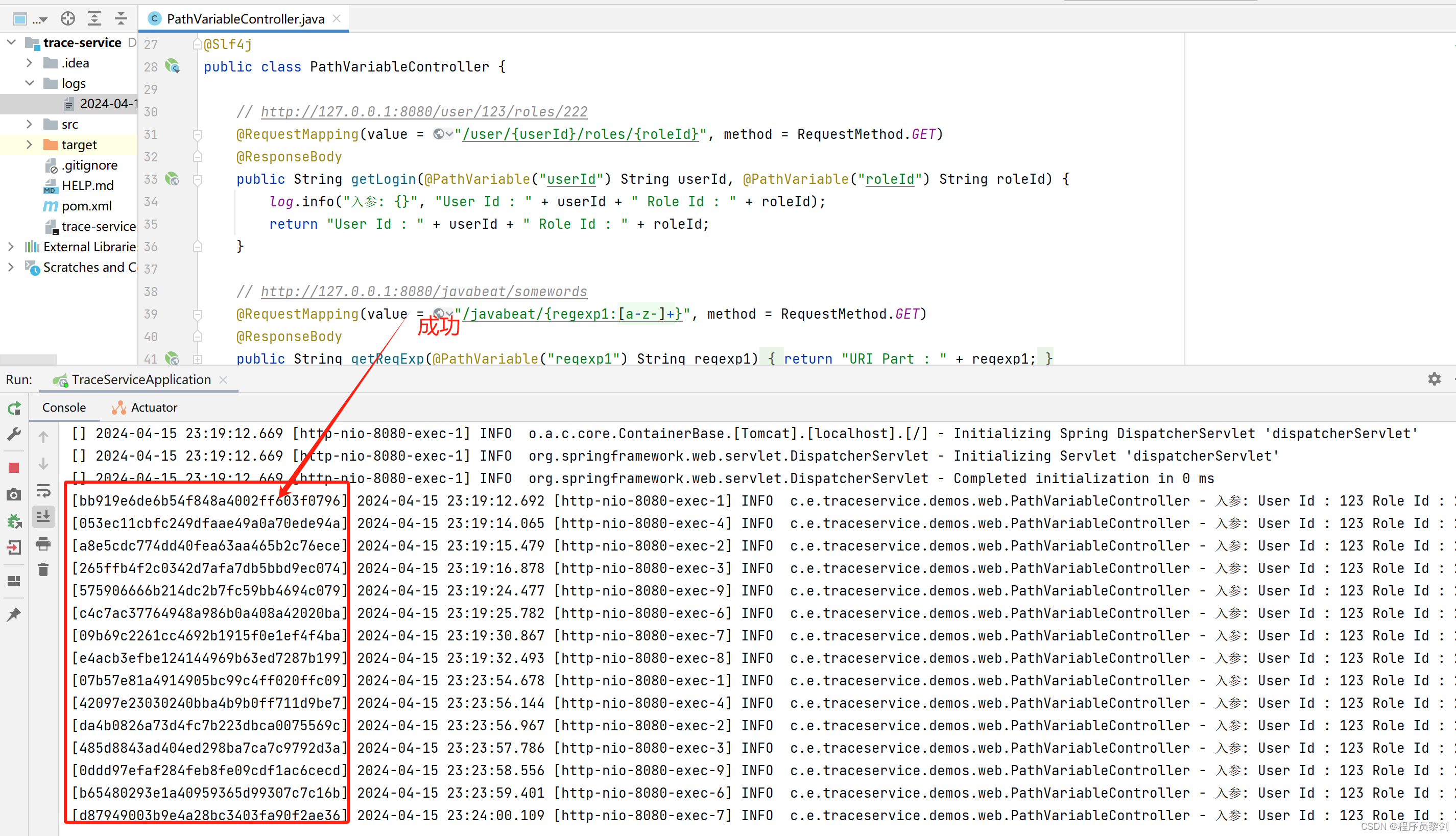

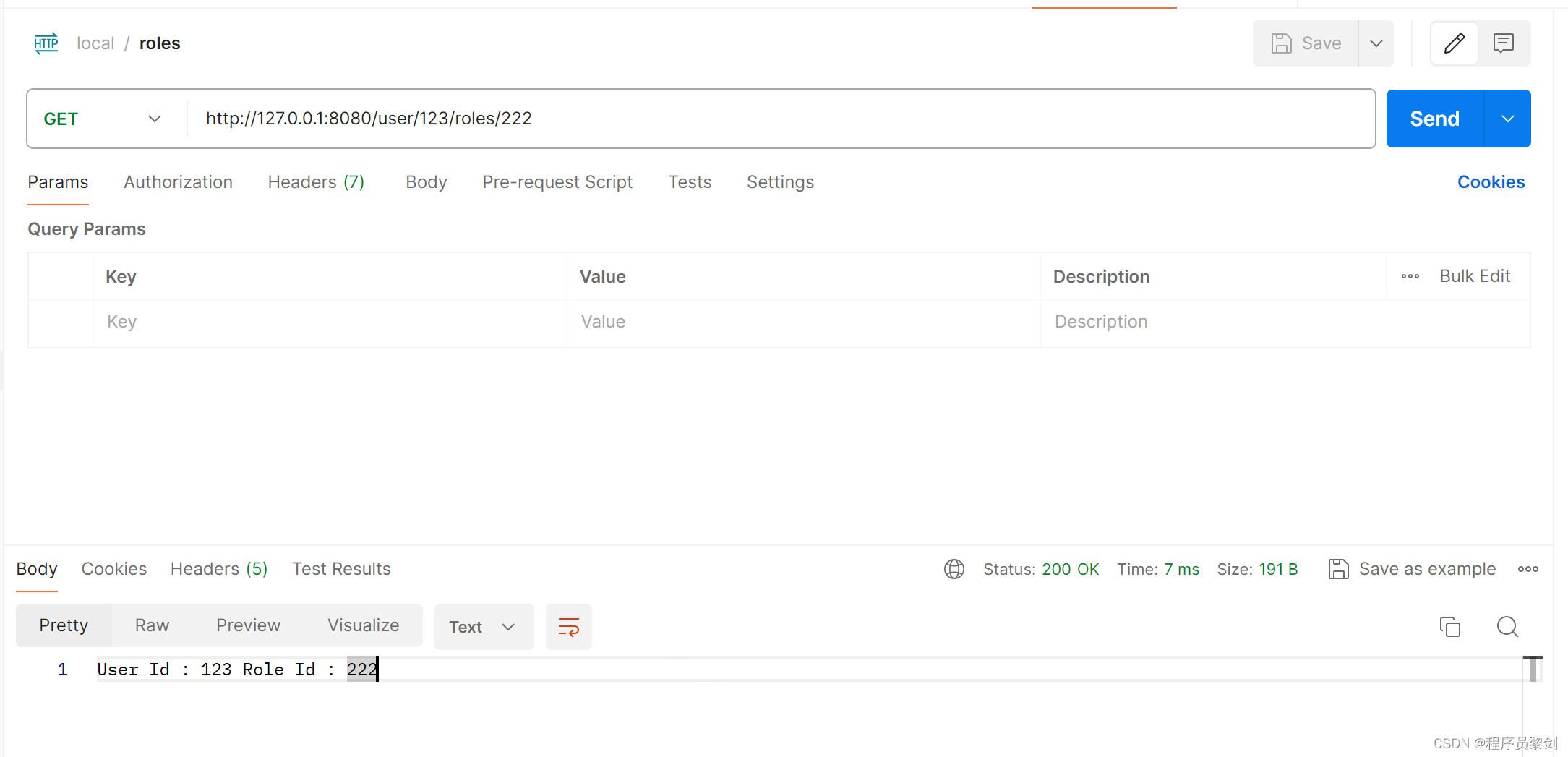

使用postman调用

         同时也可以在接口返回参数里面加上requestId，值就可以取traceId，这样可以借助其他的日志采集组件，实现日志查询，请求链路跟踪。
