eNSP-RIP 2配置

文章目录

eNSP-RIP 2配置

一、拓扑结构

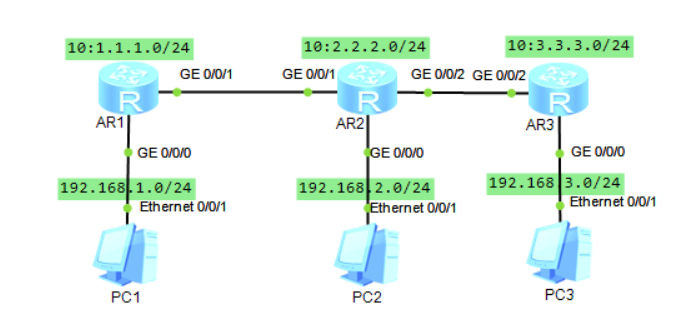

拓扑结构如图所示

在这里插入图片描述

二、基本配置

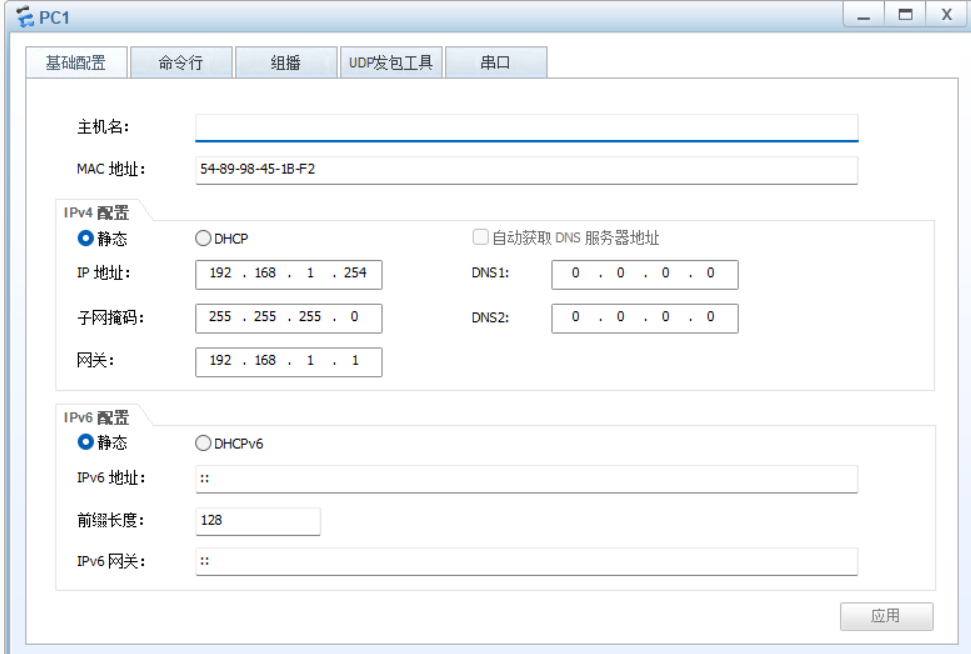

PC1:

在这里插入图片描述

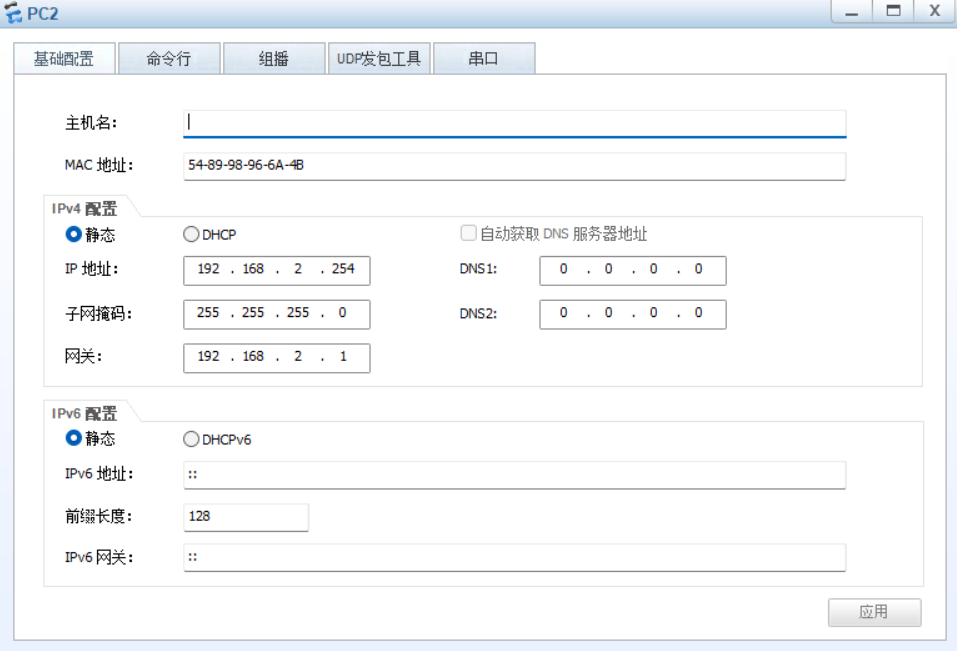

PC2:
在这里插入图片描述

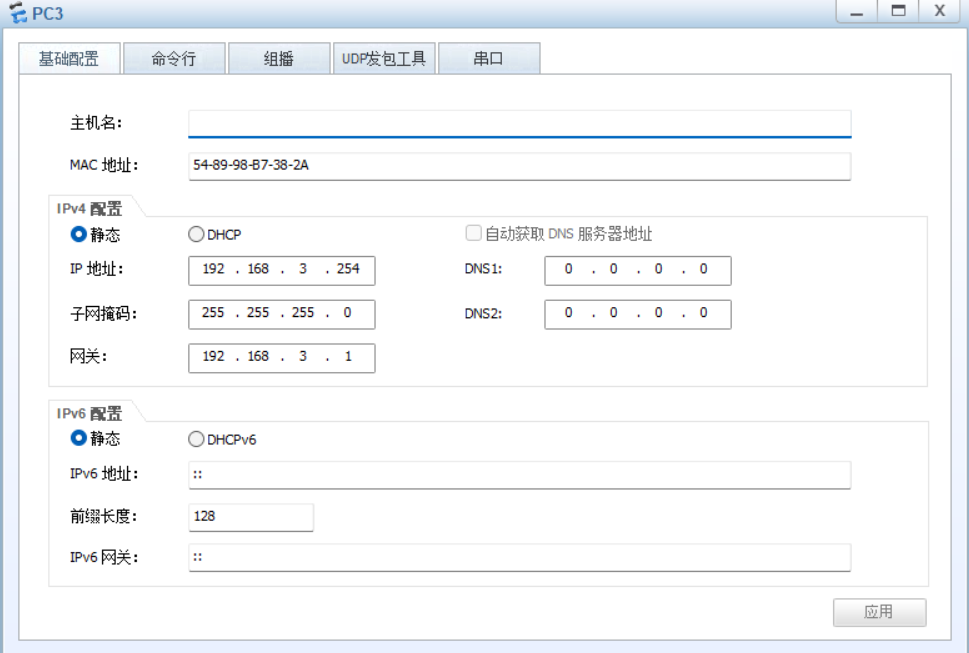

PC3:

在这里插入图片描述

R1:

<Huawei> SYS
Enter system view, return user view with Ctrl+Z.
[Huawei]un in en
Info: Information center is disabled.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.1 24
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 12.0.0.1 24
[Huawei-GigabitEthernet0/0/1]q
[Huawei]rip
[Huawei-rip-1]version 2
[Huawei-rip-1]network 192.168.1.0
[Huawei-rip-1]network 12.0.0.0

R2:

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]un in en
Info: Information center is disabled.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 192.168.2.1 24
[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 12.0.0.2 24
[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]ip add 23.0.0.1 24
[Huawei-GigabitEthernet0/0/2]rip
[Huawei-rip-1]version 2
[Huawei-rip-1]network 192.168.2.0
[Huawei-rip-1]network 12.0.0.0
[Huawei-rip-1]network 23.0.0.0

R3:

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]un in en
Info: Information center is disabled.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 192.168.3.1 24
[Huawei-GigabitEthernet0/0/0]int g0/0/2
[Huawei-GigabitEthernet0/0/2]ip add 23.0.0.2 24
[Huawei-GigabitEthernet0/0/2]rip
[Huawei-rip-1]version 2
[Huawei-rip-1]network 192.168.3.0
[Huawei-rip-1]network 23.0.0.0

三、测试验证

查看R1路由表，可知R1学习到了R3的路由信息

[Huawei]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 13       Routes : 13

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

       12.0.0.0/24  Direct  0    0           D   12.0.0.1        GigabitEthernet
0/0/1
       12.0.0.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
     12.0.0.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/1
       23.0.0.0/24  RIP     100  1           D   12.0.0.2        GigabitEthernet
0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
    192.168.1.0/24  Direct  0    0           D   192.168.1.1     GigabitEthernet
0/0/0
    192.168.1.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
  192.168.1.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet
0/0/0
    192.168.2.0/24  RIP     100  1           D   12.0.0.2        GigabitEthernet
0/0/1
    192.168.3.0/24  RIP     100  2           D   12.0.0.2        GigabitEthernet
0/0/1
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

PC1pingPC3

PC>PING 192.168.3.254

Ping 192.168.3.254: 32 data bytes, Press Ctrl_C to break
From 192.168.3.254: bytes=32 seq=1 ttl=125 time=31 ms
From 192.168.3.254: bytes=32 seq=2 ttl=125 time=31 ms
From 192.168.3.254: bytes=32 seq=3 ttl=125 time=32 ms
From 192.168.3.254: bytes=32 seq=4 ttl=125 time=47 ms
From 192.168.3.254: bytes=32 seq=5 ttl=125 time=15 ms

--- 192.168.3.254 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 15/31/47 ms
