日常记录：springboot 给websocket 添加拦截、认证（二）

前言

上一章的websocket拦截和这次讲的不同，这次是stomp协议广播消息的拦截。

一、配置拦截

这次是由AbstractWebSocketMessageBrokerConfigurer抽象类里面一个configureClientInboundChannel方法，添加拦截器。

自定义WebSocketEmptyLogInterceptor拦截器，覆盖ChannelInterceptorAdapter接口preSend方法。ChannelInterceptorAdapter是ChannelInterceptor的适配器，覆盖preSend，在发送前认证token即可。

package com.sakyoka.test.systemconfig.interceptor;

import org.apache.commons.lang3.StringUtils;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.simp.stomp.StompCommand;
import org.springframework.messaging.simp.stomp.StompHeaderAccessor;
import org.springframework.messaging.support.ChannelInterceptorAdapter;
import org.springframework.messaging.support.MessageHeaderAccessor;
import org.springframework.stereotype.Component;

import com.sakyoka.test.utils.JwtTokenUtils;

import lombok.extern.log4j.Log4j;

/**
 *
 * 描述：stomp websocket 拦截器
 * @author sakyoka
 * @date 2022年9月2日 下午5:27:12
 */
@Component
@Log4j
public class WebSocketEmptyLogInterceptor extends ChannelInterceptorAdapter{

    @Override
    public Message<?> preSend(Message<?> message, MessageChannel channel) {
    	final StompHeaderAccessor accessor =
    			MessageHeaderAccessor.getAccessor(message, StompHeaderAccessor.class);
    	//连接
    	if (StompCommand.CONNECT.equals(accessor.getCommand())) {
        	String token = accessor.getFirstNativeHeader("token");
    		if (StringUtils.isBlank(token)){
    			log.info("token is null");
    			throw new RuntimeException("token is null");
    		}

    		//判断token有效性
    		boolean tokenValid = JwtTokenUtils.tokenValid(token);
    		if (!tokenValid){
    			log.info("invalid token");
    			throw new RuntimeException("invalid token");
    		}
    	}
    	return message;
    }
}

在第一次连接时候，从头部信息获取token值，这里是从header获取，对应前端需要传到header。

注册WebSocketEmptyLogInterceptor拦截器，在configureClientInboundChannel的setInterceptors添加

package com.sakyoka.test.systemconfig.socket;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.messaging.simp.config.ChannelRegistration;
import org.springframework.messaging.simp.config.MessageBrokerRegistry;
import org.springframework.web.socket.config.annotation.AbstractWebSocketMessageBrokerConfigurer;
import org.springframework.web.socket.config.annotation.EnableWebSocket;
import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;
import org.springframework.web.socket.config.annotation.StompEndpointRegistry;
import org.springframework.web.socket.config.annotation.WebSocketConfigurer;
import org.springframework.web.socket.config.annotation.WebSocketHandlerRegistry;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

import com.sakyoka.test.systemconfig.interceptor.WebSocketEmptyLogInterceptor;
import com.sakyoka.test.systemconfig.interceptor.WebSocketReadLogInterceptor;
import com.sakyoka.test.webscoketlog.websocket.TokenWebSocketHandler;

/**
 *
 * 描述：开启WebSocket、注册ServerEndpointExporter实例、开启STOMP协议来传输基于代理
 * @author sakyoka
 * @date 2022年8月14日 2022
 */
@Configuration
@EnableWebSocket
@EnableWebSocketMessageBroker
public class WebSocketConfig extends AbstractWebSocketMessageBrokerConfigurer implements WebSocketConfigurer{

	@Autowired
	WebSocketReadLogInterceptor webSocketReadLogInterceptor;

	@Autowired
	WebSocketEmptyLogInterceptor webSocketEmptyLogInterceptor;

	@Autowired
	TokenWebSocketHandler tokenWebSocketHandler;

    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

	@Override
	public void registerStompEndpoints(StompEndpointRegistry registry) {
		//添加一个stomp协议的endpoint
		registry.addEndpoint("/server").withSockJS();
	}

	@Override
	public void configureMessageBroker(MessageBrokerRegistry registry) {
		//添加一个topic代理节点
		registry.enableSimpleBroker("/topic");
	}

	@Override
	public void registerWebSocketHandlers(WebSocketHandlerRegistry registry) {

		// /ws/websocket/log 路径就是前端要访问的路径 类似@ServerEndpoint("/websocket/log")
		//添加处理器、添加拦截地址、添加拦截器
		registry.addHandler(tokenWebSocketHandler, "/ws/websocket/log")
		        .setAllowedOrigins("*")
		        .addInterceptors(webSocketReadLogInterceptor);

		/* use configureClientInboundChannel interceptors
		 * 放弃addHandler方式， 目前测试这种使广播订阅地址失效
		*/
//		registry.addHandler(new TextSocketHandler(), "/server/**")
//				.addInterceptors(webSocketInterceptor)
//				.setAllowedOrigins("*")
//		        .withSockJS();
	}

	@Override
	public void configureClientInboundChannel(ChannelRegistration registration) {
		//添加路由拦截，判断请求头是否带上token、token是否有效
		registration.setInterceptors(webSocketEmptyLogInterceptor);
	}
}

二、页面添加header

页面代码

<%@ page contentType="text/html; charset=UTF-8" %>
<!DOCTYPE html>
<html>
<head>
    <title>jarLog</title>
	<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
	<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" />
	<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no">
	<meta name="renderer" content="webkit">
    <jsp:include page="/WEB-INF/views/common/commonstatic.jsp" flush="true" />
    <!-- socketjs插件 -->
    <script type="text/javascript" src="${root}/components/socketjs/sockjs.js"></script>
    <script type="text/javascript" src="${root}/components/socketjs/stomp.js"></script>
    <!-- jquery菜单 -->
    <link rel="stylesheet" type="text/css" href="${root}/components/jquery/jquery.contextMenu.css"/>
    <script type="text/javascript" src="${root}/components/jquery/jquery.contextMenu.js"></script>
</head>
<body>
<div style="background-color:black;width:99%; height:500px; padding: 10px" id="console-parent">
    <div id="console" style="width:99%; height:95%; color:white;overflow-y: auto; overflow-x:hidden;"></div>
</div>
</body>
<script type="text/javascript" src="${root}/js/console.js"></script>
<script type="text/javascript" src="${root}/js/console-websocket.js"></script>
<script type="text/javascript" src="${root}/js/console-websocket-stomp.js"></script>
<script type="text/javascript">
//已在登录时候设置到缓存里面
var token = localStorage.getItem("token");
//var port = window.location.port;//如果经过代理？这个经过网关是网关的端口
//var port = "${pageContext.request.serverPort}";//这个才是后端端口
var jarWebSocket;
var jarConsole;
//jarId根据实际定义传过来，现在只有本系统的日志打印可以定义为system，其它jar的可以定义一个uuid关联标识
var jarId = "system";
//@ServerEndpoint("/log")
var wsurl = 'ws://'+ ip +':'+ port + root +'/ws/websocket/log?jarId=' + jarId + "&token=" token;
//registry.addEndpoint("/server").withSockJS();
var serverurl = 'http://'+ ip +':'+ port + root + '/server';
$(function(){
	//添加console-parent内容变化,调整滚动条位置，自动滚动最下面
	$("#console").bind("DOMNodeInserted",function(e){
	 	var height = $(this).prop("scrollHeight");
	 	$(this).animate({scrollTop: height}, 10);
	});

	registerConsoleLogSocket();

	registerEmptyLogSocket();

	addRightClickListener();
});

/**
 * 注册控制台打印的socket事件
 */
function registerConsoleLogSocket(){
	jarConsole = new JarConsole();
	jarConsole.load('console');
    jarWebSocket= new JarWebSocket({
		url: wsurl,
		//获取后台返回信息
		onmessage: function(event){
			jarConsole.fill(event.data);
		}

	}).addEventListener();
}

/**
 * 注册清空日志的socket事件,采用消息订阅形式
 */
function registerEmptyLogSocket(){
	new StompSocketDefine({
		serverUrl: serverurl,
		//这里添加token
		headers: {token: token},
		subscribes: [{
			subscribeUrl: '/topic/emptylog',
			onmessage: function(res){
				//后端通知需要重新连接
				if (res.body == jarId && jarWebSocket.isConnect()){
					jarWebSocket.close();
					jarWebSocket.reset().reconnect();
				}
			}
		}]
	}).connect();
}

/**
 * 添加右键菜单
 */
function addRightClickListener(){
	var items = {
	         "clear": {
	        	 name: "清空控制台信息",
	        	 callback: function(){
	        		 jarConsole.clear();
	          }},
	         'emptyLog': {
	        	 name: "清空日志文件内容",
	        	 callback: function(){
	        		 var url = root + '/log/emptylog';
	        		 $.get(url, {jarId: jarId}, function(res){
	        			 console.log("emptylog result >>> " + res);
	        		 });
	        	 }
	         }
    };

	//右键菜单
    $.contextMenu({
        selector: '#console',
        events:{preShow: function(){}},
        items: items
    });
}
</script>
</html>

在registerEmptyLogSocket的订阅方法参数上添加headers,追加token值。

对应改造console-websocket-stomp.js，添加headers传值

/**
 * add by sakyoka 2022-08-26
 * stomp协议的scoket
 *
 */
var StompSocketDefine = function(config){

	/**配置数据对象 */
	config = config || {};
	/**server 地址*/
	var serverUrl = config.serverUrl;
	/**订阅信息集合*/
	var subscribes = config.subscribes || [];
	/**创建socket*/
	var socket = new SockJS(serverUrl);
	/**使用stomp协议*/
	var stompClient = Stomp.over(socket);
	/**是否自动重连 */
	var autoConnect = config.autoConnect || true;
	/**判断是否主动关闭*/
	var driving = false;
	/** 尝试重新连接次数*/
	var defaultFailTryConnTimes = config.failTryConnTimes || 5;
	/**尝试累加次数 */
	var tryConnTimes = 0;
	/**是否连接中 */
	var isConnect = false;
	var _this = this;
	/** headers对象*/
	var headers = config.headers || {};

	/**
	 * 恢复初始状态值
	 */
	this.reset = function(){
		autoConnect = config.autoConnect || true;
		driving = false;
		defaultFailTryConnTimes = config.failTryConnTimes || 5;
		tryConnTimes = 0;
		isConnect = false;
	}

	/**
	 * 获取client
	 */
	this.getStompClient = function(){
		return stompClient;
	}

	/**
	 * 断开连接
	 */
	this.disconnect = function(){
		driving = true;
		if (stompClient != undefined){
			stompClient.disconnect();
		}
		return this;
	}

	/**
	 * 连接
	 */
	this.connect = function(){

		/**
		 * 链接服务
		 */
		stompClient.connect(headers, function(frame){
			isConnect = true;
			driving = false;
			tryConnTimes = 0;
			console.log("stomp socket link state: "+ frame);
			/**
			 * 遍历订阅地址
			 */
			for (var i in subscribes){
				var subscribeObject = subscribes[i];
				var subscribeUrl = subscribeObject.subscribeUrl;
				var onmessage = subscribeObject.onmessage;
				stompClient.subscribe(subscribeUrl, function(res){
					if (onmessage){
						onmessage(res);
					}
				});
			}

		}, function(){
			isConnect = false;
			console.log('stomp socket link error');
			if (isConnect === false
			         && autoConnect === true
			         && driving === false){
				if (defaultFailTryConnTimes > tryConnTimes){
					_this.tryToConnect();
				}
			}
		});

		return this;
	}

	/**
	 * 尝试连接
	 */
	this.tryToConnect = function(){
		console.log('stomp socket try to connect...');
		socket = new SockJS(serverUrl);
		stompClient = Stomp.over(socket);
	    var _tryToConnect = function (){

			tryConnTimes += 1;
			if (defaultFailTryConnTimes < tryConnTimes){
				console.log('stomp socket try to connect times is more than max times:' + tryConnTimes);
				return ;
			}

			if (isConnect === true){
				return ;
			}

			_this.connect();

			setTimeout(function(){
				_tryToConnect();
		    }, 3000);
		}

		_tryToConnect();
	}

	/**
	 * 刷新页面前把连接关掉
	 */
	window.onbeforeunload = function(){

		driving = true;

		if (stompClient != undefined){
			stompClient.disconnect();
		}
	}
}

ok，测试

三、测试

带token,可以发现有传token,连接正常

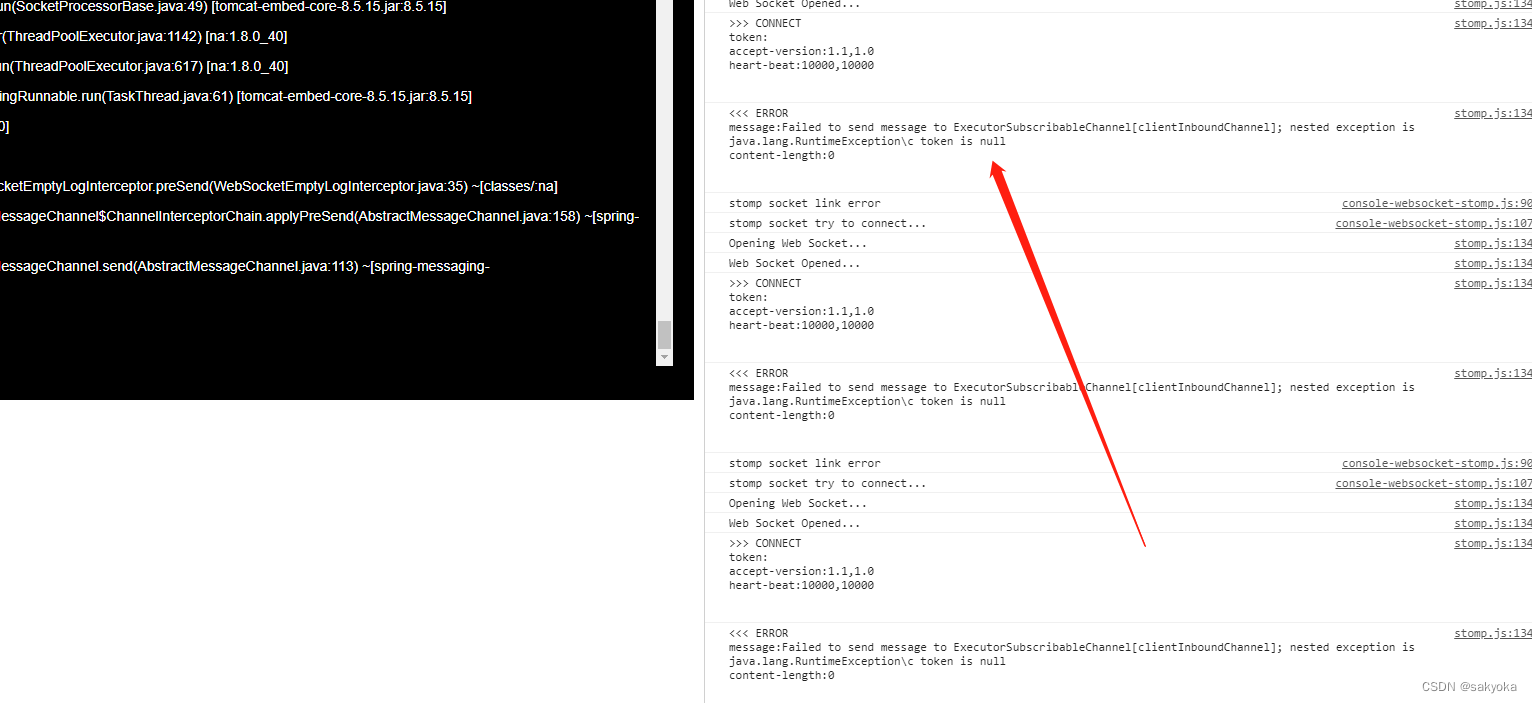

 不带token，发现有异常信息，连接失败

 ok，拦截成功了。
