基于XPO创建ZeroCode数据感知Winform应用程序

Visual Studio V2019

Net.Framework V4.6.1

创建一个WinForm应用程序

Step 1：修改Program.cs



using DevExpress.Xpo;
using DevExpress.Xpo.DB;

    static class Program
    {
        //public const string ConnectionString = @"XpoProvider=MSSqlServer;data source=(local);integrated security=SSPI;initial catalog=XpoTutorial1";
        public const string ConnectionString = @"XpoProvider=MSAccess;Provider=Microsoft.Jet.OLEDB.4.0;Mode=Share Deny None;data source=E:\DEV_TEST\Report_Test\Report_Test\test.MDB;user id=;password=;";

        /// <summary>
        /// 应用程序的主入口点。
        /// </summary>
        [STAThread]
        static void Main()
        {
            XpoDefault.DataLayer = XpoDefault.GetDataLayer(ConnectionString, AutoCreateOption.DatabaseAndSchema);

            Application.EnableVisualStyles();
            Application.SetCompatibleTextRenderingDefault(false);
            Application.Run(new XtraForm1());
        }
}

Step 2：创建Code First：

public class Customer : XPObject

{

    public Customer() : base()

    {

        // This constructor is used when an object is loaded from a persistent storage.

        // Do not place any code here.

    }



    public Customer(Session session) : base(session)

    {

        // This constructor is used when an object is loaded from a persistent storage.

        // Do not place any code here.

    }



    string fName;

    public string Name

    {

        get { return fName; }

        set { SetPropertyValue<string>("Name", ref fName, value); }

    }

    ushort fAge;

    public ushort Age

    {

        get { return fAge; }

        set { SetPropertyValue<ushort>("Age", ref fAge, value); }

    }



    public override void AfterConstruction()

    {

        base.AfterConstruction();

        // Place here your initialization code.

    }

}

Step 3：添加XtraForm1

拖控件：

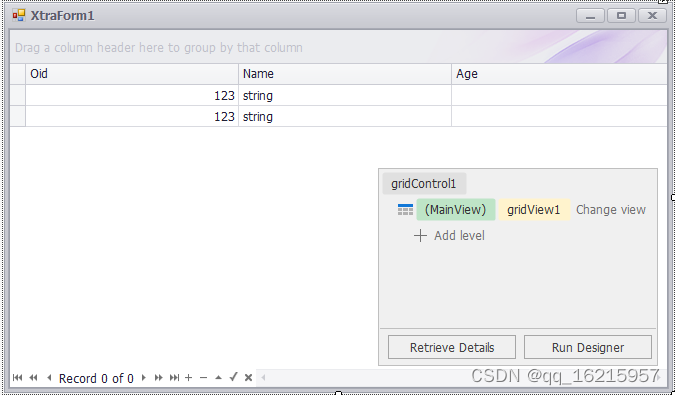

拖GridControl

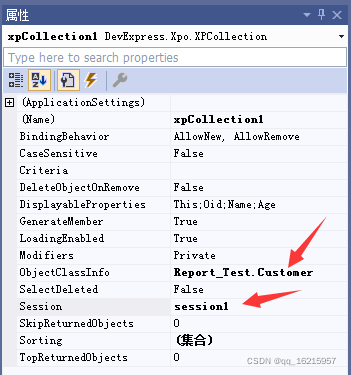

设置XPCollection属性

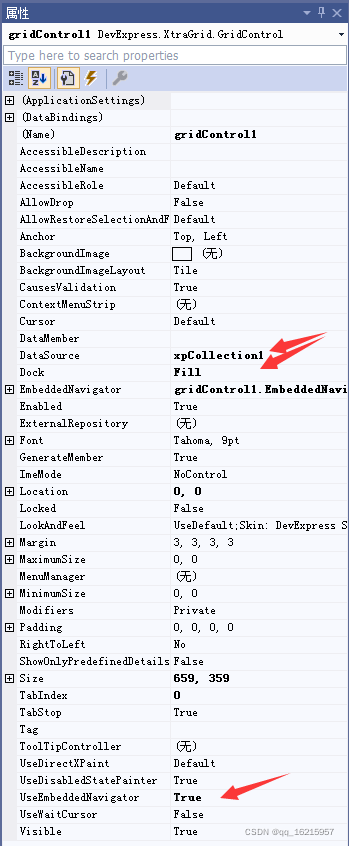

设置GridControl属性：

代码：

public partial class XtraForm1 : DevExpress.XtraEditors.XtraForm

{

    public XtraForm1()

    {

        InitializeComponent();

    }



    private void XtraForm1_Load(object sender, EventArgs e)

    {

        if (xpCollection1.Count == 0)

        {

            var customer1 = new Customer(session1);

            customer1.Name = "John";

            customer1.Age = 21;

            customer1.Save();

            xpCollection1.Add(customer1);

            var customer2 = new Customer(session1);

            customer2.Name = "Bob";

            customer2.Age = 37;

            customer2.Save();

            xpCollection1.Add(customer2);

        }

    }

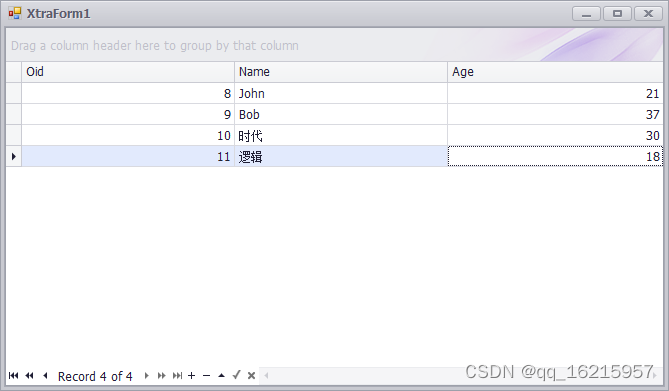

效果：

使用代码设置属性：

XPCollection xpCollectionPerson = new XPCollection(typeof(Person));

xpCollectionPerson.DisplayableProperties = "Name;Group.GroupName";

gridControl1.DataSource = xpCollectionPerson;



gridControl1.UseEmbeddedNavigator = true;



// Create an XPClassInfo object corresponding to the Person_Contact class.

XPClassInfo classInfo = XpoDefault.Session.GetClassInfo(typeof(Person_Contact));

// Create a filter that selects records which contain names starting with 'A'

// in the LastName column

CriteriaOperator criteria = CriteriaOperator.Parse("[LastName] LIKE ?", "A%");

//Create a data source.

XPServerCollectionSource serverModeDS = new XPServerCollectionSource(

XpoDefault.Session, classInfo, criteria);
