Docker

参考资料

https://docs.docker.com/
https://www.runoob.com/docker/docker-tutorial.html
https://blog.youkuaiyun.com/huangjhai/article/details/118854733

http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

docker安装

  • 参考文档

    https://docs.docker.com/engine/install/rhel/

  • 卸载旧版本

    Uninstall old versions

    Older versions of Docker were called docker or docker-engine. If these are installed, uninstall them, along with associated dependencies. Also uninstall Podman and the associated dependencies if installed already.

    sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-engine \
                  podman \
                  runc

    It’s OK if yum reports that none of these packages are installed.

    The contents of /var/lib/docker/, including images, containers, volumes, and networks, are preserved. The Docker Engine package is now called docker-ce.

  • 安装镜像地址

    Install the yum-utils package (which provides the yum-config-manager utility) and set up the stable repository.

    yum install -y yum-utils
yum-config-manager \
    --add-repo \
    #https://download.docker.com/linux/rhel/docker-ce.repo
    #推荐使用国内的镜像地址
    http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache

    #也可以直接下载对应的镜像仓库到yum文件夹内
cd /etc/yum.repos.d
wget -c http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache

  • 安装docker

    Install the latest version of Docker Engine and containerd, or go to the next step to install a specific version:

    #ce 社区版
yum install docker-ce docker-ce-cli containerd.io

    To install a specific version of Docker Engine, list the available versions in the repo, then select and install:

    a. List and sort the versions available in your repo. This example sorts results by version number, highest to lowest, and is truncated:

    The list returned depends on which repositories are enabled, and is specific to your version of RHEL (indicated by the .el8 suffix in this example).

    yum list docker-ce --showduplicates | sort -r

    b. Install a specific version by its fully qualified package name, which is the package name (docker-ce) plus the version string (2nd column) starting at the first colon (:), up to the first hyphen, separated by a hyphen (-). For example, docker-ce-20.10.7.

    This command installs Docker, but it doesn’t start Docker. It also creates a docker group, however, it doesn’t add any users to the group by default.

    yum install docker-ce-<VERSION_STRING> docker-ce-cli-<VERSION_STRING> containerd.io

  • 运行docker

    docker --version
systemctl start docker
docker version
docker run hello-world

  • 查看已下载的镜像

    docker images

  • 卸载docker

    Uninstall the Docker Engine, CLI, and Containerd packages:

    yum remove docker-ce docker-ce-cli containerd.io

Images, containers, volumes, or customized configuration files on your host are not automatically removed. To delete all images, containers, and volumes:

   sudo rm -rf /var/lib/docker
   sudo rm -rf /var/lib/containerd

You must delete any edited configuration files manually.

docker基础命令

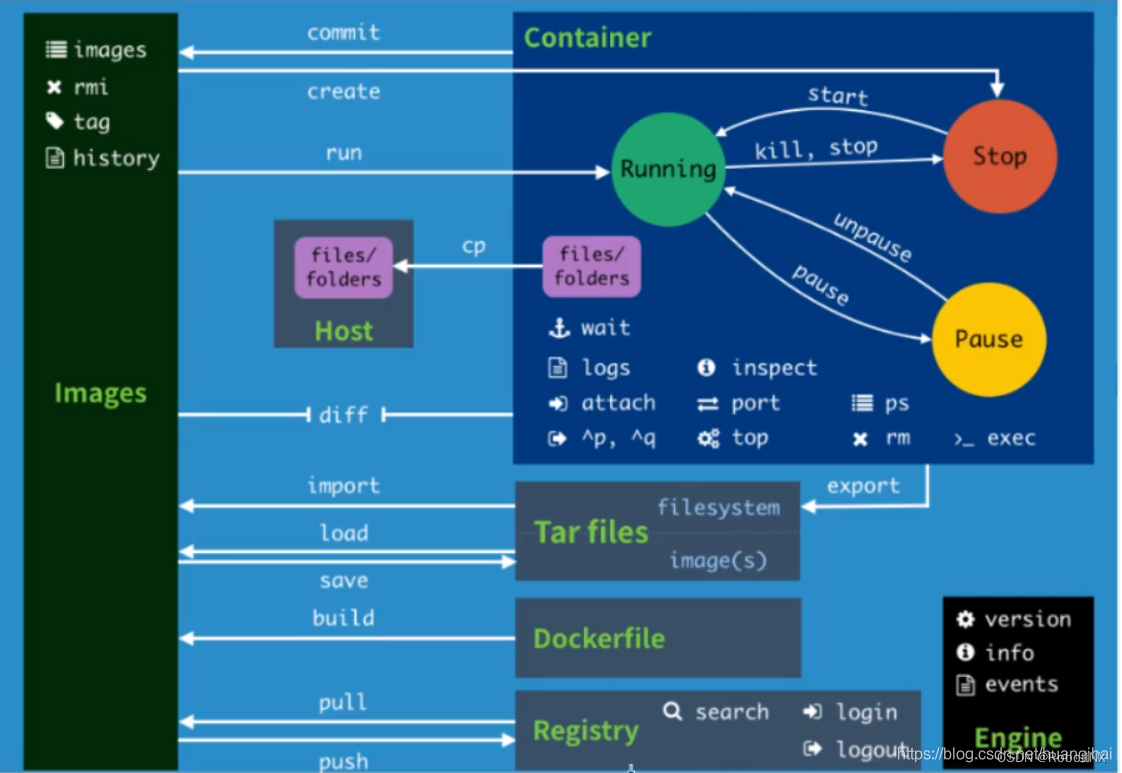

图解

docker命令图解

参考文档

https://docs.docker.com/engine/reference/run/

版本和帮助

#显示docker的版本信息
docker version
docker --version
#显示docker的系统信息，包括镜像和容器的数量
docker info
#显现具体指令的帮助
docker command --help

docker images

#查看本地主机的所有镜像
docker images

[root@VM-0-13-centos ~]# docker images
REPOSITORY    TAG       IMAGE ID       CREATED        SIZE
ubuntu        latest    825d55fb6340   2 weeks ago    72.8MB
hello-world   latest    feb5d9fea6a5   7 months ago   13.3kB
Name, shorthandDefaultDescription
--all , -aShow all images (default hides intermediate images)
--digestsShow digests
--filter , -fFilter output based on conditions provided
--formatPretty-print images using a Go template
--no-truncDon’t truncate output
--quiet , -qOnly show image IDs

docker search

#docker search云仓库中的镜像
docker search mysql
#可选项，通过stars过滤，搜索stars数3000以上的镜像
docker search mysql -f=stars=3000

docker pull

#docker pull下载镜像
docker pull mysql

[root@VM-0-13-centos ~]# docker pull mysql
#默认下载最新的镜像
Using default tag: latest
latest: Pulling from library/mysql
#分层下载
4be315f6562f: Pull complete
96e2eb237a1b: Pull complete
8aa3ac85066b: Pull complete
ac7e524f6c89: Pull complete
f6a88631064f: Pull complete
15bb3ec3ff50: Pull complete
ae65dc337dcb: Pull complete
654aa78d12d6: Pull complete
6dd1a07a253d: Pull complete
a32905dc9e58: Pull complete
152d41026e44: Pull complete
42e0f73ebe32: Pull complete
Digest: sha256:fc77d54cacef90ad3d75964837fad0f2a9a368b69e7d799665a3f4e90e600c2d
Status: Downloaded newer image for mysql:latest
#真实地址
#以下两个命令等价
#docker pull mysql
#docker pull docker.io/library/mysql:latest
docker.io/library/mysql:latest

#指定版本下载
docker pull mysql:5.7

[root@VM-0-13-centos ~]# docker pull mysql:5.7
5.7: Pulling from library/mysql
#通过分层下载大大减少了下载量和文件复用率
4be315f6562f: Already exists
96e2eb237a1b: Already exists
8aa3ac85066b: Already exists
ac7e524f6c89: Already exists
f6a88631064f: Already exists
15bb3ec3ff50: Already exists
ae65dc337dcb: Already exists
291c7612f7a8: Pull complete
ffdc84226e0b: Pull complete
81340df4a52c: Pull complete
f3ec63f52b87: Pull complete
Digest: sha256:151ecb87a07404f2c2588464e86381bdf74795c6d24090f9c50bc8e947a57797
Status: Downloaded newer image for mysql:5.7
docker.io/library/mysql:5.7

docker rmi

#通过镜像ID删除镜像
docker rmi 82d2d47667cf

[root@VM-0-13-centos ~]# docker rmi -f 82d2d47667cf
Untagged: mysql:5.7
Untagged: mysql@sha256:151ecb87a07404f2c2588464e86381bdf74795c6d24090f9c50bc8e947a57797
Deleted: sha256:82d2d47667cf062cc9e70c31b9322fafc527ed61806f32f48d8797a0e1488ac6
Deleted: sha256:738c94167bcba88b380640dcf3cd3f2b346d31aa45fd252ef7b3a133022097b7
Deleted: sha256:7daea859ebdee4608b42b29967a2e579219b506102a60dac4f3d09a88e004a24
Deleted: sha256:9769b9ac6c804c2741f620e368ac101a96058f983aad95eea2ea247ce8199181
Deleted: sha256:5225e8e0c4b170bb30d22a63f320ffb5eb580e6d4f293c76860e2be9c677232c

[root@VM-0-13-centos ~]# docker images
REPOSITORY    TAG       IMAGE ID       CREATED        SIZE
mysql         latest    f2ad9f23df82   2 days ago     521MB
ubuntu        latest    825d55fb6340   2 weeks ago    72.8MB
hello-world   latest    feb5d9fea6a5   7 months ago   13.3kB

#可以通过多个ID一次性删除多个镜像
docker rmi -f f2ad9f23df82 825d55fb6340

#通过变量删除所有镜像
docker rmi -f $(docker images -qa)

docker run

docker run {options} image

#参数说明
--name="Name"                    容器名字，如tomcat01  tomcat02，用来区分容器
-d                               后台方式运行，同linux中的nohup
-it                              使用交互方式运行，进入容器查看内容
-p                               指定容器的端口
	-p ip：port：container_port  绑定指定IP主机的端口号和容器端口号绑定
	-p port:container_port		指定主机端口号与容器端口号绑定
	-p containcer_port		    指定容器端口号
	container_port               指定容器端口号
-P                               随机指定端口

#后台启动容器
docker run -d centos
#这种方式启动的centos会自杀
#docker容器使用后台运行，必须要有一个前台进程，否则会自动停止
#nginx容器启动后，会发现自己没有提供服务，就会立刻停止

#创建并进入容器
docker run -it centos /bin/bash

docker ps

#列出正在运行的容器
docker ps
#列出运行过的容器
docker ps -a
#显示最近创建的容器
docker ps
#n后面可以加数字表示最近创建的n个容器
#显示最近创建的四个容器
docker ps -n=4
#显示最近创建的容器，只显示编号
docker ps -q

docker logs

#docker logs -f -t -tail count 7825a42fea77
#首先用容器运行命令
docker run -d centos /bin/sh -c "while true; do echo hello world; sleep 1; done"
#默认查看容器的所有日志，t：timestap，f：format
docker ps
docker logs -tf 977cb92394d3
#查看容器的前十条日志
docker logs -tfn 10 977cb92394d3

docker top

#查看docker运行的状态
#docker top container_id
docker top 977cb92394d3

docker inspect

docker inspect

[root@VM-0-13-centos ~]# docker inspect 977cb92394d3
[
    {
        "Id": "977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4",
        "Created": "2022-04-23T03:50:52.688989592Z",
        "Path": "/bin/sh",
        "Args": [
            "-c",
            "while true; do echo hello world; sleep 1; done"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 20918,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2022-04-23T03:50:53.013592399Z",
            "FinishedAt": "0001-01-01T00:00:00Z"
        },
        "Image": "sha256:5d0da3dc976460b72c77d94c8a1ad043720b0416bfc16c52c45d4847e53fadb6",
        "ResolvConfPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/hostname",
        "HostsPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/hosts",
        "LogPath": "/var/lib/docker/containers/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4/977cb92394d3d2084c5f2a413530614363d48fa7edf7214ebc16cb240701b7d4-json.log",
        "Name": "/determined_volhard",
        "RestartCount": 0,
        "Driver": "overlay2",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": null,
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "default",
            "PortBindings": {},
            "RestartPolicy": {
                "Name": "no",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "host",
            "Dns": [],
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "ConsoleSize": [
                0,
                0
            ],
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": null,
            "BlkioDeviceWriteBps": null,
            "BlkioDeviceReadIOps": null,
            "BlkioDeviceWriteIOps": null,
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "KernelMemory": 0,
            "KernelMemoryTCP": 0,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": false,
            "PidsLimit": null,
            "Ulimits": null,
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/asound",
                "/proc/acpi",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "GraphDriver": {
            "Data": {
                "LowerDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6-init/diff:/var/lib/docker/overlay2/eed6607f3ba3cf5470bed74dfb9a246be0f81948e468a0e1a6298b7d3a7d34a6/diff",
                "MergedDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/merged",
                "UpperDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/diff",
                "WorkDir": "/var/lib/docker/overlay2/a1eccd6df24e9e3bb3940684d7f23bb56b3cac1aab2dc7733fc741d2f08bb7c6/work"
            },
            "Name": "overlay2"
        },
        "Mounts": [],
        "Config": {
            "Hostname": "977cb92394d3",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "Tty": false,
            "OpenStdin": false,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
            ],
            "Cmd": [
                "/bin/sh",
                "-c",
                "while true; do echo hello world; sleep 1; done"
            ],
            "Image": "centos",
            "Volumes": null,
            "WorkingDir": "",
            "Entrypoint": null,
            "OnBuild": null,
            "Labels": {
                "org.label-schema.build-date": "20210915",
                "org.label-schema.license": "GPLv2",
                "org.label-schema.name": "CentOS Base Image",
                "org.label-schema.schema-version": "1.0",
                "org.label-schema.vendor": "CentOS"
            }
        },
        "NetworkSettings": {
            "Bridge": "",
            "SandboxID": "0fe71300ae26d4cf9cec19ebc2718b2846adcdfe448d089a93d9c6ca0fb1bee1",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {},
            "SandboxKey": "/var/run/docker/netns/0fe71300ae26",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "99aaf132f4e7e8b657eb719f415cad31a391eaded9c1f35ffd64b34fe7b72a66",
            "Gateway": "172.18.0.1",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "172.18.0.3",
            "IPPrefixLen": 16,
            "IPv6Gateway": "",
            "MacAddress": "02:42:ac:12:00:03",
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "736b3357a7cceaca5af2169c24487c5a8042f1fef63c3518cf3f619fb800f40a",
                    "EndpointID": "99aaf132f4e7e8b657eb719f415cad31a391eaded9c1f35ffd64b34fe7b72a66",
                    "Gateway": "172.18.0.1",
                    "IPAddress": "172.18.0.3",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:12:00:03",
                    "DriverOpts": null
                }
            }
        }
    }
]

docker exec

#容器执行某条命令
docker exec -it 3247f7599fea ls
#可以通过前台执行bash进入容器中的centos
docker exec -it 3247f7599fea /bin/bash

docker attach

#进入某个正在运行的容器
docker attach 3247f7599fea

docker cp

#容器和主机之间的文件复制
docker cp 3247f7599fea:/home/test /home
#这是手动复制，后面可以使用 -v 卷技术实现文件同步，可以自动同步文件改动

容器的启动和停止

docker start container_id
docker stop container_id
docker restart container_id
docker kill container_id

退出容器

#退出并关闭容器
exit
#退出但不关闭容器：escape sequence
CTRL +  Q + P

docker rm

#删除指定容器，不能删除正在运行的容器
docker rm container_id
#可以通过-f强行删除正在运行的容器
docker rm -f 01904bac7216
#强行删除所有容器
docker rm -f $(docker ps -qa)
docker ps -qa | xargs docker rm -f

docker staus

#查看docker运行的状态
docker stats

docker commit

#由于原版的tomcat是没有webapps的，我们可以将修改之后的tomcat重新打包
#首先正常部署一个tomcat容器
docker run -d -p 4040:8080 --name tomcat01 tomcat
#然后将tomcat里面webapps.dist的内容复制到webapps
docker exec -it tomcat01 /bin/bash
cp -r webapps.dist/* webapps/
#退出之后关闭容器之后就可以打包
docker commit -a="Robotinx" -m="add webapps" tomcat01 tomcat_add_webapps

[root@VM-0-13-centos tomcat_docker]# docker commit --help

Usage:  docker commit [OPTIONS] CONTAINER [REPOSITORY[:TAG]]

Create a new image from a container's changes

Options:
  -a, --author string    Author (e.g., "John Hannibal Smith <hannibal@a-team.com>")
  -c, --change list      Apply Dockerfile instruction to the created image
  -m, --message string   Commit message
  -p, --pause            Pause container during commit (default true)

docker save/load

#通过docker save 可以将现有的镜像输出成文件进行备份
#备份的镜像文件可以通过docker load 读取出来

docker save -o mytomcat  mytomcat
[root@VM-0-13-centos tomcat_docker]# docker save --help

Usage:  docker save [OPTIONS] IMAGE [IMAGE...]

Save one or more images to a tar archive (streamed to STDOUT by default)

Options:
  -o, --output string   Write to a file, instead of STDOUT

docker load -i mytomcat
[root@VM-0-13-centos tomcat_docker]# docker load --help

Usage:  docker load [OPTIONS]

Load an image from a tar archive or STDIN

Options:
  -i, --input string   Read from tar archive file, instead of STDIN
  -q, --quiet          Suppress the load output

部署nginx

#搜索nginx镜像
docker search nginx
#下载nginx镜像
docker pull nginx
#后台启动nginx镜像，绑定端口号3344，指定容器名nginx01
docker run -d --name nginx01 -p 3344:80 nginx
#进入容器
docker exec -it nginx01 /bin/bash

#使用容器卷技术，将网页文件夹和配置文件夹双向同步到docker镜像中
#/usr/share/nginx/html/
#/etc/nginx/
docker run -it -p 9998:80 \
	-v /usr/share/nginx/html/:/usr/share/nginx/html/ -v /etc/nginx/:/etc/nginx/ nginx

部署tomcat

#直接创建tomcat容器，tomcat版本用9.0版本，端口映射3366:8080，容器名tomcat04
docker run -it -p 3366:8080 --name tomcat04 tomcat:9.0
#因为官方镜像默认是保证最小可运行的镜像，Linux命令不全，也没有webapps，所有不必要的功能都剔除掉了
#所以部署成功之后访问的网页是报错的
#但是在相关的网页在webapps.disk中还是有备份的
#我们把webapps.dist里的内容都复制一份到webapps中
cp -r webapps.dist/* webapps/

部署es+kabana

#es:elastic search
#es暴露的端口很多
#es十分耗内存
#es的数据一般需要放置到安全目录，挂载

#--net somnetwork 网络配置
#-e 环境配置修改

#首先启动elasticsearch容器
docker run  -d --name elaticsearch01 -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" elasticsearch:7.6.2
#查看当前占用资源状态
docker stats container_id
#限制elastic search 的内存使用
docker run -d --name elaticsearch02 -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" -e ES_JAVA_OPTS="-Xms64m -Xmx512m" elasticsearch:7.6.2

部署MySQL

#部署时需要将数据文件双向同步
docker run -d -p 3310:3306 \
	-v /home/mysql/conf:/etc/mysql/conf.d \
	-v /home/mysql/data:/var/lib/mysql \
	-e MYSQL_ROOT_PASSWORD=Liang123 \
	--name=mysql01 mysql

可视化

portainer

#安装
#-v 挂载
#--privileged 授权

docker run -d -p 8088:9000 \
	--restart=always -v /var/run/docker.sock:/var/run/docker.sock --privileged=true portainer/portainer

Rancher

容器数据卷

描述

容器之间的数据共享技术，使得Docker容器中产生的数据可以同步到本地

其实就是目录的挂载，将容器内的目录，挂载到 linux中的

目的是完成容器的持久化和同步操作

同时容器之间也是可以数据共享的

使用数据卷

  • 方式1：直接使用命令挂载 -v

    docker run -it --names=centos01 -v /home:/home centos
#这种方式挂载的文件目录，会双向同步
#通过inspect命令可以查看mounts部分会有相应的挂载信息
docker inspect centos01

        "Mounts": [
            {
                "Type": "bind",
                #主机内的地址
                "Source": "/home",
                #docker容器内的地址
                "Destination": "/home",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            }

    #引用实战部署nginx的内容
#/usr/share/nginx/html/
#/etc/nginx/
docker run -it -p 9998:80 \
	-v /usr/share/nginx/html/:/usr/share/nginx/html/ -v /etc/nginx/:/etc/nginx/ nginx

    #引用实战部署MySQL的内容
#部署时需要将数据文件双向同步
#/home/mysql/conf:/etc/mysql/conf.d
#/home/mysql/data:/var/lib/mysql
docker run -d -p 3310:3306 \
	-v /home/mysql/conf:/etc/mysql/conf.d \
	-v /home/mysql/data:/var/lib/mysql \
	-e MYSQL_ROOT_PASSWORD=Liang123 \
	--name=mysql01 mysql

具名挂载和匿名挂载

  • 匿名挂载

    #匿名挂载
#将容器内指定的文件挂载到本地的docker文件夹内
#cd /var/lib/docker
#-v container_path
#这种挂载生成的挂载名字是随机的
#不推荐挂载方式
docker run -d -P --name=nginx01 -v /etc/nginx nginx
[root@VM-0-13-centos volumes]# ll /var/lib/docker/volumes/
total 36
drwx-----x 3 root root   4096 Apr 23 14:54 10783f0d4d85577e140d5626c3adfad6dddfc9322ada3df3ddbee478e3e9c06b
drwx-----x 3 root root   4096 Apr 23 15:03 80868c3985566ebd1017fcc1249a704b8e0421f0fd12dd34d8cd8db09cc690a5
brw------- 1 root root 253, 1 Apr 21 23:20 backingFsBlockDev
drwx-----x 3 root root   4096 Apr 23 14:51 f13cc3d8a03358c21b3b41f7ea24ae2e03559da3121fc353b5297d7519b4c16d
-rw------- 1 root root  32768 Apr 23 15:03 metadata.db

  • 具名挂载

    #具名挂载
#将容器内指定的文件挂载到本地的docker文件夹内
#cd /var/lib/docker
#-v volums_name:/etc/nginx
#这种挂载生成的挂载名字是指定的
#推荐挂载方式
docker run -d --name juming_nginx -v juming_nginx:/etc/nginx/ nginx
[root@VM-0-13-centos volumes]# ll /var/lib/docker/volumes/
total 40
drwx-----x 3 root root   4096 Apr 23 14:54 10783f0d4d85577e140d5626c3adfad6dddfc9322ada3df3ddbee478e3e9c06b
drwx-----x 3 root root   4096 Apr 23 15:03 80868c3985566ebd1017fcc1249a704b8e0421f0fd12dd34d8cd8db09cc690a5
brw------- 1 root root 253, 1 Apr 21 23:20 backingFsBlockDev
drwx-----x 3 root root   4096 Apr 23 14:51 f13cc3d8a03358c21b3b41f7ea24ae2e03559da3121fc353b5297d7519b4c16d
drwx-----x 3 root root   4096 Apr 23 19:32 juming_nginx
-rw------- 1 root root  32768 Apr 23 19:32 metadata.db

  • 指定路径挂载

    #指定路径挂载
#将本地的指定文件夹与docker镜像内的指定文件夹关联起来
#两边修改的文件都会互相同步

  • 挂载内容

    #挂载内容
#可以看到指定的文件夹内部的内容都已经挂载到了容器的_data文件夹里了
[root@VM-0-13-centos _data]# ll /var/lib/docker/volumes/juming_nginx/_data
total 28
drwxr-xr-x 2 root root 4096 Apr 23 19:32 conf.d
-rw-r--r-- 1 root root 1007 Jan 25 23:03 fastcgi_params
-rw-r--r-- 1 root root 5349 Jan 25 23:03 mime.types
lrwxrwxrwx 1 root root   22 Jan 25 23:13 modules -> /usr/lib/nginx/modules
-rw-r--r-- 1 root root  648 Jan 25 23:13 nginx.conf
-rw-r--r-- 1 root root  636 Jan 25 23:03 scgi_params
-rw-r--r-- 1 root root  664 Jan 25 23:03 uwsgi_params

  • docker volums

    [root@VM-0-13-centos _data]# docker volume --help

Usage:  docker volume COMMAND

Manage volumes

Commands:
  create      Create a volume
  inspect     Display detailed information on one or more volumes
  ls          List volumes
  prune       Remove all unused local volumes
  rm          Remove one or more volumes

Run 'docker volume COMMAND --help' for more information on a command.

    #查看指定的具名挂载的卷信息
[root@VM-0-13-centos _data]# docker volume inspect juming_nginx
[
    {
        "CreatedAt": "2022-04-23T19:32:50+08:00",
        "Driver": "local",
        "Labels": null,
        "Mountpoint": "/var/lib/docker/volumes/juming_nginx/_data",
        "Name": "juming_nginx",
        "Options": null,
        "Scope": "local"
    }
]

  • 拓展

    #通过 -v 容器内路径：ro rw 改变读写权限
#ro		readonly只读权限，这个路径的内容是容器内部无法修改的，只能通过本地修改
#rw		readwrite读写权限，默认权限

#一旦设置了这个容器权限，容器对我们挂载出来的内容就有限定权限了
docker run -d -P --name nginx_ro -v juming_nginx_ro:/etc/nginx:ro nginx
docker run -d -P --name nginx_rw -v juming_nginx_rw:/etc/nginx:rw nginx

使用DockerFile进行挂载

  • 方式二

    #通过DockerFile文件生成镜像时，自动生成匿名挂载
#首先编写一个DockerFile
mkdir -p /home/docker/DockerFile
#DockerFile的文件名，推荐使用DockerFile即可
vim /home/docker/DockerFile/DockerFile01

#DockerFile中的指令都是大写的
#DockerFile中每一条就是镜像中的一层
FROM centos

#这里生成两个匿名挂载
VOLUME ["volume01", "volume02"]

CMD echo "-----end-----"

CMD /bin/bash

    #通过DockerFile构建镜像
docker build -f /home/docker/DockerFile/DockerFile01 -t Robotinx/centos:1.0 .
#查看生成的镜像
[root@VM-0-13-centos DockerFile]# docker images
REPOSITORY            TAG       IMAGE ID       CREATED         SIZE
robotinx/centos       latest    fbb58c90821a   6 seconds ago   231MB


    #使用生成的镜像创建容器
docker run -it --name robotinx_centos robotinx/centos
#查看根目录可以看到生成的两个挂载文件夹
[root@9dcf6b653c2d /]# ls /
bin  dev  etc  home  lib  lib64  lost+found  media  mnt  opt  proc  root  run  sbin  srv  sys  tmp  usr  var  volume01	volume02
#往目录内随便写一个文件
echo hello centos in docker >> /volume01/test

#返回本地，查看容器的相关信息
docker inspect robotinx_centos
        "Mounts": [
            {
                "Type": "volume",
                "Name": "d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968",
                "Source": "/var/lib/docker/volumes/d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968/_data",
                "Destination": "volume01",
                "Driver": "local",
                "Mode": "",
                "RW": true,
                "Propagation": ""
            },
            {
                "Type": "volume",
                "Name": "ab1813ef96d990f2b92000da7edb18e9e9d6d45ef34f1f777b79d1b871b61bb5",
                "Source": "/var/lib/docker/volumes/ab1813ef96d990f2b92000da7edb18e9e9d6d45ef34f1f777b79d1b871b61bb5/_data",
                "Destination": "volume02",
                "Driver": "local",
                "Mode": "",
                "RW": true,
                "Propagation": ""
            }
        ],

#可以看到指定的两个文件夹都已经匿名挂载到相应的随机目录中
cd /var/lib/docker/volumes/d97f297124a4f6cb4407fb1c456ae4dbb0e07070034c7b0ef151500f47675968/_data
cat hello

    这种方式我们经常使用，因为通常我们会自己构建镜像

    如果构建镜像时没有挂载卷，构建容器时就要时手动用 -v 卷名:容器内路径 来进行挂载

数据卷容器

  • 多容器共用数据卷

    #首先通过镜像创建几个容器
docker run -it --name centos01 robotinx/centos
docekr run -it --name centos02 --volumes-from centos01 robotinx/centos
docker run -it --nmae centos03 --volumes-from centos01 robotinx/centos

#可以发现在三个容器之中的volumes01、volumes02的两个文件夹的内容是互相同步修改的
#同时，如果我们删除掉centos01，可以发现另外两个容器中的数据卷并不会被删除

    通过数据卷容器可以实现多个容器之间的配置传递和文件修改传递

    数据卷容器的生命周期一直持续到没有容器使用该数据卷为止

    但是如果数据卷容器是挂载本地指定的文件夹的话

    哪怕所有使用该数据卷容器的容器都删掉了

    文件依然还是不会被删除

  • 多个mysql实现数据共享

    #docker run -d -p 3310:3306 \
#	-v /home/mysql/conf:/etc/mysql/conf.d \
#	-v /home/mysql/data:/var/lib/mysql \
#	-e MYSQL_ROOT_PASSWORD=Liang123 \
#	--name=mysql01 mysql

#生成第一个容器
docker run -d -p 3310:3306 \
	-v /home/mysql/conf:/etc/mysql/conf.d \
	-v /home/mysql/data:/var/lib/mysql \
	-e MYSQL_ROOT_PASSWORD=Liang123 \
	--name mysql01

#生成与第一个容器数据共享的第二个容器
docer run -d -p 3311:3306 \
	--volumes-from mysql01 \
	-e MYSQL_ROOT_PASSWORD=Liang123 \
	--name mysql02

DockerFile

镜像搭建流程

1、编写DockerFile文件

2、docker build 构建镜像

3、docker run 运行镜像

4、docker push 发布镜像

DockerFile文件实例

  • Centos官方镜像实例

    #由此可以看出Centos官方的镜像都很基础
#并没有其他的附加命令和功能
FROM scratch
ADD centos-7-x86_64-docker.tar.xz /

LABEL \
    org.label-schema.schema-version="1.0" \
    org.label-schema.name="CentOS Base Image" \
    org.label-schema.vendor="CentOS" \
    org.label-schema.license="GPLv2" \
    org.label-schema.build-date="20201113" \
    org.opencontainers.image.title="CentOS Base Image" \
    org.opencontainers.image.vendor="CentOS" \
    org.opencontainers.image.licenses="GPL-2.0-only" \
    org.opencontainers.image.created="2020-11-13 00:00:00+00:00"

CMD ["/bin/bash"]

  • nginx官方镜像实例

    #NGINX官方镜像的DockerFile

#
# NOTE: THIS DOCKERFILE IS GENERATED VIA "update.sh"
#
# PLEASE DO NOT EDIT IT DIRECTLY.
#
FROM debian:bullseye-slim

LABEL maintainer="NGINX Docker Maintainers <docker-maint@nginx.com>"

ENV NGINX_VERSION   1.21.6
ENV NJS_VERSION     0.7.2
ENV PKG_RELEASE     1~bullseye

RUN set -x \
# create nginx user/group first, to be consistent throughout docker variants
    && addgroup --system --gid 101 nginx \
    && adduser --system --disabled-login --ingroup nginx --no-create-home --home /nonexistent --gecos "nginx user" --shell /bin/false --uid 101 nginx \
    && apt-get update \
    && apt-get install --no-install-recommends --no-install-suggests -y gnupg1 ca-certificates \
    && \
    NGINX_GPGKEY=573BFD6B3D8FBC641079A6ABABF5BD827BD9BF62; \
    found=''; \
    for server in \
        hkp://keyserver.ubuntu.com:80 \
        pgp.mit.edu \
    ; do \
        echo "Fetching GPG key $NGINX_GPGKEY from $server"; \
        apt-key adv --keyserver "$server" --keyserver-options timeout=10 --recv-keys "$NGINX_GPGKEY" && found=yes && break; \
    done; \
    test -z "$found" && echo >&2 "error: failed to fetch GPG key $NGINX_GPGKEY" && exit 1; \
    apt-get remove --purge --auto-remove -y gnupg1 && rm -rf /var/lib/apt/lists/* \
    && dpkgArch="$(dpkg --print-architecture)" \
    && nginxPackages=" \
        nginx=${NGINX_VERSION}-${PKG_RELEASE} \
        nginx-module-xslt=${NGINX_VERSION}-${PKG_RELEASE} \
        nginx-module-geoip=${NGINX_VERSION}-${PKG_RELEASE} \
        nginx-module-image-filter=${NGINX_VERSION}-${PKG_RELEASE} \
        nginx-module-njs=${NGINX_VERSION}+${NJS_VERSION}-${PKG_RELEASE} \
    " \
    && case "$dpkgArch" in \
        amd64|arm64) \
# arches officialy built by upstream
            echo "deb https://nginx.org/packages/mainline/debian/ bullseye nginx" >> /etc/apt/sources.list.d/nginx.list \
            && apt-get update \
            ;; \
        *) \
# we're on an architecture upstream doesn't officially build for
# let's build binaries from the published source packages
            echo "deb-src https://nginx.org/packages/mainline/debian/ bullseye nginx" >> /etc/apt/sources.list.d/nginx.list \
            \
# new directory for storing sources and .deb files
            && tempDir="$(mktemp -d)" \
            && chmod 777 "$tempDir" \
# (777 to ensure APT's "_apt" user can access it too)
            \
# save list of currently-installed packages so build dependencies can be cleanly removed later
            && savedAptMark="$(apt-mark showmanual)" \
            \
# build .deb files from upstream's source packages (which are verified by apt-get)
            && apt-get update \
            && apt-get build-dep -y $nginxPackages \
            && ( \
                cd "$tempDir" \
                && DEB_BUILD_OPTIONS="nocheck parallel=$(nproc)" \
                    apt-get source --compile $nginxPackages \
            ) \
# we don't remove APT lists here because they get re-downloaded and removed later
            \
# reset apt-mark's "manual" list so that "purge --auto-remove" will remove all build dependencies
# (which is done after we install the built packages so we don't have to redownload any overlapping dependencies)
            && apt-mark showmanual | xargs apt-mark auto > /dev/null \
            && { [ -z "$savedAptMark" ] || apt-mark manual $savedAptMark; } \
            \
# create a temporary local APT repo to install from (so that dependency resolution can be handled by APT, as it should be)
            && ls -lAFh "$tempDir" \
            && ( cd "$tempDir" && dpkg-scanpackages . > Packages ) \
            && grep '^Package: ' "$tempDir/Packages" \
            && echo "deb [ trusted=yes ] file://$tempDir ./" > /etc/apt/sources.list.d/temp.list \
# work around the following APT issue by using "Acquire::GzipIndexes=false" (overriding "/etc/apt/apt.conf.d/docker-gzip-indexes")
#   Could not open file /var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages - open (13: Permission denied)
#   ...
#   E: Failed to fetch store:/var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages  Could not open file /var/lib/apt/lists/partial/_tmp_tmp.ODWljpQfkE_._Packages - open (13: Permission denied)
            && apt-get -o Acquire::GzipIndexes=false update \
            ;; \
    esac \
    \
    && apt-get install --no-install-recommends --no-install-suggests -y \
                        $nginxPackages \
                        gettext-base \
                        curl \
    && apt-get remove --purge --auto-remove -y && rm -rf /var/lib/apt/lists/* /etc/apt/sources.list.d/nginx.list \
    \
# if we have leftovers from building, let's purge them (including extra, unnecessary build deps)
    && if [ -n "$tempDir" ]; then \
        apt-get purge -y --auto-remove \
        && rm -rf "$tempDir" /etc/apt/sources.list.d/temp.list; \
    fi \
# forward request and error logs to docker log collector
    && ln -sf /dev/stdout /var/log/nginx/access.log \
    && ln -sf /dev/stderr /var/log/nginx/error.log \
# create a docker-entrypoint.d directory
    && mkdir /docker-entrypoint.d

COPY docker-entrypoint.sh /
COPY 10-listen-on-ipv6-by-default.sh /docker-entrypoint.d
COPY 20-envsubst-on-templates.sh /docker-entrypoint.d
COPY 30-tune-worker-processes.sh /docker-entrypoint.d
ENTRYPOINT ["/docker-entrypoint.sh"]

EXPOSE 80

STOPSIGNAL SIGQUIT

CMD ["nginx", "-g", "daemon off;"]

DockerFile构建过程

  • 基础知识

1、每个保留关键字（命令）都是大写

2、命令从上到下顺序执行

3、# 表示注释

4、每一个指令都会创建提交一个新的镜像层并提交

docker镜像原理

DockerFile命令

  • 命令讲解

    FROM              # 基础镜像，当前新镜像是基于哪个镜像构建的
MAINTAINER        # 镜像维护者的姓名和邮箱地址
RUN               # 镜像构建的时候需要运行的命令
EXPOSE            # 当前镜像对外暴露的端口，效果同docker run后的-p
WORKDIR           # 指定在创建容器后，终端默认登录的工作目录位置
ENV               # 用来构建镜像过程中设置环境变量，效果同docker run后的-e
ADD               # 将本地目录下的文件拷贝到镜像，且ADD命令会自动处理URL和解压tar压缩包
COPY              # 类似于ADD，拷贝文件和目录到镜像中
                  # 将从构建上下文目录中<src_dir>的文件或目录复制到新的一层的镜像内的<dst_dir>位置
VOLUME            # 容器数据卷，挂载的目录，用于数据保存和持久化工作，效果同docker run后的-v
CMD               # 指定容器启动时要运行的命令
                  # DockerFile 中可以有多个CMD命令，但只有最后一个生效，CMD会被docker run之后的参数替换
ENTRYPOINT        # 指定容器启动时要运行的命令
                  # ENTRYPOINT 的目的和CMD一样，都是指定容器启动程序和参数，但是ENTRYPOINT不会被替换
ONBUILD           # 当构建一个被继承的DockerFile时运行命令，父镜像在被子镜像继承后父镜像的onbuild会触发

构建Centos镜像

  • 编写DockerFile

    # 基础镜像
FROM centos

#作者
MAINTAINER Robotinx<robotinx@qq.com>

ENV MYPATH /usr/local

WORKDIR $MYPATH

RUN yum -y install vim
RUN yum -y install net-tools

EXPOSE 80

CMD echo $MYPATH
CMD /bin/bash

  • 构建镜像

    [root@VM-0-13-centos DockerFile]# docker build -f myCentos.dockerfile -t mycentos .

  • 查看镜像构建层次

    [root@VM-0-13-centos DockerFile]# docker history nginx
IMAGE          CREATED      CREATED BY                                      SIZE      COMMENT
fa5269854a5e   4 days ago   /bin/sh -c #(nop)  CMD ["nginx" "-g" "daemon…   0B
<missing>      4 days ago   /bin/sh -c #(nop)  STOPSIGNAL SIGQUIT           0B
<missing>      4 days ago   /bin/sh -c #(nop)  EXPOSE 80                    0B
<missing>      4 days ago   /bin/sh -c #(nop)  ENTRYPOINT ["/docker-entr…   0B
<missing>      4 days ago   /bin/sh -c #(nop) COPY file:09a214a3e07c919a…   4.61kB
<missing>      4 days ago   /bin/sh -c #(nop) COPY file:0fd5fca330dcd6a7…   1.04kB
<missing>      4 days ago   /bin/sh -c #(nop) COPY file:0b866ff3fc1ef5b0…   1.96kB
<missing>      4 days ago   /bin/sh -c #(nop) COPY file:65504f71f5855ca0…   1.2kB
<missing>      4 days ago   /bin/sh -c set -x     && addgroup --system -…   61.1MB
<missing>      4 days ago   /bin/sh -c #(nop)  ENV PKG_RELEASE=1~bullseye   0B
<missing>      4 days ago   /bin/sh -c #(nop)  ENV NJS_VERSION=0.7.2        0B
<missing>      4 days ago   /bin/sh -c #(nop)  ENV NGINX_VERSION=1.21.6     0B
<missing>      4 days ago   /bin/sh -c #(nop)  LABEL maintainer=NGINX Do…   0B
<missing>      5 days ago   /bin/sh -c #(nop)  CMD ["bash"]                 0B
<missing>      5 days ago   /bin/sh -c #(nop) ADD file:8b1e79f91081eb527…   80.4MB

构建tomcat镜像

  • 相关环境变量

    export JAVA_HOME=/usr/local/jdk1.8.0_311
export CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
export CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
export PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin

  • 手动搭建tomcat容器的步骤

    #首先下载tomcat和jdk的安装包，并解压
tar -zxf jdk-8u311-linux-x64.tar.gz
tar -zxf apache-tomcat-10.0.20
ls /root/tomcat_docker/
apache-tomcat-10.0.20         jdk1.8.0_311
apache-tomcat-10.0.20.tar.gz  jdk-8u311-linux-x64.tar.gz

    #创建一个新的centos7.9镜像，做好端口映射和容器卷挂载
docker run  -it --name tomcat_test \
	-v /root/tomcat_docker/:/usr/local \
	-p 3344:8080 centos:7.9.2009

    #编辑环境变量
vi /etc/profile

export JAVA_HOME=/usr/local/jdk1.8.0_311
export CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
export CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
export PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin

source /etc/profile

    #现在已经可以运行tomcat了
cd /usr/local/apache-tomcat-10.0.20/bin
./startup.sh
#也可以在运行的同时输出运行的日志
./startup.sh && tail -F /usr/local/apache-tomcat-10.0.20/logs/catalina.out

  • Dockerfile自动构建tomcat镜像

    #文件名为默认的Dockerfile
#指定工作路径
WORKDIR /usr/local

#将需要的包添加到镜像中
ADD jdk-8u311-linux-x64.tar.gz /usr/local/
ADD apache-tomcat-10.0.20.tar.gz /usr/local/


#暴露端口
EXPOSE 8080

#设置环境变量
ENV JAVA_HOME=/usr/local/jdk1.8.0_311
ENV CLASSPATH=$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
ENV CATALINA_HOME=/usr/local/apache-tomcat-10.0.20
ENV CATALINA_BASH=/usr/local/apache-tomcat-10.0.20
ENV PATH=$PATH:$JAVA_HOME/bin:CATALINA_HOME/lib:CATALINA_HOME/bin

#启动tomcat，并打印日志
#这里不推荐添加这一条命令
#添加之后可以自动启动tomcat，但是会一直卡在tomcat的日志打印命令
#官方镜像是添加了这一条命令的
#CMD ${CATALINA_HOME}/bin/startup.sh && tail -F ${CATALINA_HOME}/logs/catalina.out
#如果希望镜像自动启动tomcat，可以添加下面这一条命令
CMD ${CATALINA_HOME}/bin/startup.sh

    #这时候通过编写好的Dockerfile构建镜像就可以了
docker build -t mytomcat .

发布docker镜像

  • 发布到docker hub

    #首先登录docker hub
docker login -u robot1nx
#需要先将镜像的名字修改成符合要求的格式
docker tag mytomcat:lastest robot1nx/mytomcat
docker push robot1inx/mytomcat

  • 发布到腾讯云

    #同样先登录腾讯云
docker login ccr.ccs.tencentyun.com --username=2507697169
#在腾讯云中建立命名空间和mytomcat镜像仓库之后，会有一个仓库地址，给镜像添加一个地址tag
docker tag mytomcat:latest ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat
#之后就可以直接推送到对应的仓库
docker push ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat

#同样的，从仓库中拉取镜像也是使用相应的仓库地址
docker pull ccr.ccs.tencentyun.com/docker_test_robotinx/mytomcat

dockers镜像管理

在这里插入图片描述

1、首先编写dockerfile文件

2、编写完成后可以通过build命令来构建镜像

3、构建完成后可以通过tag命令来修改镜像的标签

4、也可以通过push将镜像推送到镜像仓库

5、后续可以通过pull将镜像拉去到其他设备中

6、可以通过run使用现有的镜像构建容器

7、容器的启停命令有start/stop/restart

8、还可以使用commit命令打包现有的镜像来构建新的镜像

9、也可以通过save/load来对镜像进行备份

Docker网络

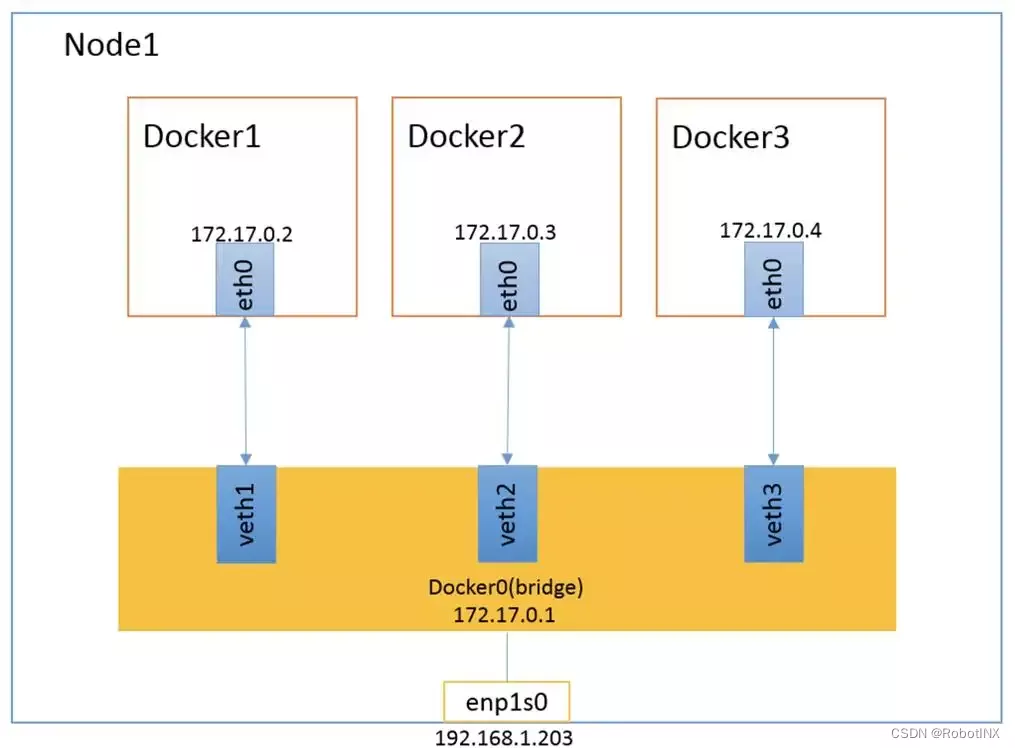

关于docker0

在这里插入图片描述

  • 在没有容器的情况下查看本机ip地址，会发现有一个docker0的网卡

    3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
    inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:2cff:fe67:e827/64 scope link
       valid_lft forever preferred_lft forever

  • 首先创建一个centos01，并查看他的IP地址

    [root@VM-0-13-centos ~]# docker run -it -P --name centos01 centos
[root@daac89144d42 /]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
       valid_lft forever preferred_lft forever

  • 这时候在本地查看ip地址会发现除了docker0还会多一个网卡

    3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
    inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:2cff:fe67:e827/64 scope link
       valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
       valid_lft forever preferred_lft forever

  • 再创建一个centos02

    [root@VM-0-13-centos ~]# docker run --name centos02 -P -it centos
[root@2e1080262248 /]# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
328: eth0@if329: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 172.18.0.3/16 brd 172.18.255.255 scope global eth0
       valid_lft forever preferred_lft forever

  • 再次查看网卡，发现又多了一个网卡

    3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:2c:67:e8:27 brd ff:ff:ff:ff:ff:ff
    inet 172.18.0.1/16 brd 172.18.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:2cff:fe67:e827/64 scope link
       valid_lft forever preferred_lft forever
327: veth70d770c@if326: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 92:6a:4f:b7:1b:a7 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::906a:4fff:feb7:1ba7/64 scope link
       valid_lft forever preferred_lft forever
329: veth46507ae@if328: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 8a:7a:7d:ca:e2:99 brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet6 fe80::887a:7dff:feca:e299/64 scope link
       valid_lft forever preferred_lft forever

  • 仔细查看会发现除了docker0，其他的两个本地网卡分别和容器内部的网卡是一一对应的

    #在centos01中的网卡和本地的网卡的对应关系
322: eth0@if323: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0
       valid_lft forever preferred_lft forever

323: veth5a3b2d1@if322: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether 7a:5b:bd:54:64:88 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::785b:bdff:fe54:6488/64 scope link
       valid_lft forever preferred_lft forever

    #在centos02中的网卡和本地的网卡的对应关系
324: eth0@if325: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 172.18.0.3/16 brd 172.18.255.255 scope global eth0
       valid_lft forever preferred_lft forever

325: vethaf7b3bf@if324: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
    link/ether ae:a0:d1:95:67:ed brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet6 fe80::aca0:d1ff:fe95:67ed/64 scope link
       valid_lft forever preferred_lft forever

  • 原理

    docker0 使用了veth-pair技术，是成对出现的虚拟设备接口

    1、只要我们安装了docker，就会有一个虚拟的网卡docker0

    2、docker0 相当与一个网关

    3、我们每启动一个容器，docker就会给容器分配一个ip

    4、每一次容器重新启动，这个IP都会变动

    5、容器删除或关闭之后，对应的网卡都会消失

    6、启动中的容器和主机之间都是能互通

docker网络图解

docker network 查看网络配置

  • 通过docker network 可以查看网络的相关配置

    docker network --help

Usage:  docker network COMMAND

Manage networks

Commands:
  connect     Connect a container to a network
  create      Create a network
  disconnect  Disconnect a container from a network
  inspect     Display detailed information on one or more networks
  ls          List networks
  prune       Remove all unused networks
  rm          Remove one or more networks

Run 'docker network COMMAND --help' for more information on a command.

  • 我们看一下docker0的网络配置

    [root@VM-0-13-centos ~]# docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
9b4873778c95   bridge    bridge    local
59fdb2170ace   host      host      local
760f93db25b8   none      null      local

[root@VM-0-13-centos ~]# docker network inspect 9b4873778c95
[
    {
        "Name": "bridge",
        "Id": "9b4873778c95a5796209b1d4acafa5d4563cdfd2413a26aa0d06497bde906204",
        "Created": "2022-04-25T16:02:08.636683876+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": null,
            "Config": [
                {
                    "Subnet": "172.18.0.0/16",
                    "Gateway": "172.18.0.1"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {
            "2f41dd2a4bd6a1c2ba690c7170a7d3c7df1cdcc975e8fcfdc7e0d0d21b5c3663": {
                "Name": "centos01",
                "EndpointID": "033e850175059e856af3afd8db54d33d6a0ecf0a5716d7acc220fd32f248ba7c",
                "MacAddress": "02:42:ac:12:00:02",
                "IPv4Address": "172.18.0.2/16",
                "IPv6Address": ""
            },
            "807d74ee030159e9064155e95c7ea98ce0e1cd15b476603b550fab7c69e9fe53": {
                "Name": "centos02",
                "EndpointID": "c6c23fa80e3691cc8e647bc65136d3aa4256b579f59e9c5c513167a2f6f27cde",
                "MacAddress": "02:42:ac:12:00:03",
                "IPv4Address": "172.18.0.3/16",
                "IPv6Address": ""
            },
            "b71f2bd1e484dfc926fc608df09d282814b4334a3c5b770be0c1a4627724ffc9": {
                "Name": "centos03",
                "EndpointID": "32b7b310229e7b327a652cc0c740bdb867001bd544d964a0fcfc6c94e54274c1",
                "MacAddress": "02:42:ac:12:00:04",
                "IPv4Address": "172.18.0.4/16",
                "IPv6Address": ""
            }
        },
        "Options": {
            "com.docker.network.bridge.default_bridge": "true",
            "com.docker.network.bridge.enable_icc": "true",
            "com.docker.network.bridge.enable_ip_masquerade": "true",
            "com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
            "com.docker.network.bridge.name": "docker0",
            "com.docker.network.driver.mtu": "1500"
        },
        "Labels": {}
    }
]

    可以看到docker0这个网卡被定义成了一个类似网桥/网关的设备

    同时还创建了一个子网，并且网关就是docker0

              "Subnet": "172.18.0.0/16",
          "Gateway": "172.18.0.1"

    其他创建的容器都在这个子网内有分配的ip地址

–link 通过容器名访问

  • 由于docker容器每一次重启都会导致IP变动，通过固定IP访问的服务就需要换一种访问方式

    #通过--link创建的容器可以直接用容器名访问指定的容器
#创建一个与centos01相连的centos03
docker run -it -P --name centos03 --link centos01 centos
#这时候centos03就可以通过容器名ping通centos01了
[root@VM-0-13-centos ~]# docker exec centos03 ping centos01
PING centos01 (172.18.0.2) 56(84) bytes of data.
64 bytes from centos01 (172.18.0.2): icmp_seq=1 ttl=64 time=0.120 ms
64 bytes from centos01 (172.18.0.2): icmp_seq=2 ttl=64 time=0.067 ms
#但是centos01因为不是指定与centos03相连的，所以还是无法通过容器名ping通centos03
[root@VM-0-13-centos ~]# docker exec centos01 ping centos03
ping: centos03: Name or service not known

  • 实际上是通过往hosts文件中添加了相应的dns

    [root@VM-0-13-centos ~]# docker exec centos03 cat /etc/hosts
127.0.0.1	localhost
::1	localhost ip6-localhost ip6-loopback
fe00::0	ip6-localnet
ff00::0	ip6-mcastprefix
ff02::1	ip6-allnodes
ff02::2	ip6-allrouters
#添加了一条指定host名为centos01和centos01 的容器ID的记录
172.18.0.2	centos01 2f41dd2a4bd6
#这条记录添加了centos03 自己的容器ID记录
172.18.0.4	b71f2bd1e484

  • 同时我们还可以通过 docker inspect centos03来查看相关的记录

    #多了一条这样的记录
            "Links": [
                "/centos01:/centos03/centos01"
            ],

自定义网络

  • 网络模式

    #查看所有的网络
[root@VM-0-13-centos ~]# docker network ls
NETWORK ID     NAME      DRIVER    SCOPE
9b4873778c95   bridge    bridge    local
59fdb2170ace   host      host      local
760f93db25b8   none      null      local

    这里有三种网络连接模式，还有一种额外的模式

    1、bridge 桥接模式（默认网络连接）

    2、host 主机模式（一般自定义配置）

    3、null 不配置网络（不推荐，自己固定IP）

    4、container 容器网络连通（用得少，局限大）

  • 测试

    #实际上下面两条指令是等价的
docker run -it -P --name centos01 cnetos:7.9.2009
docker run -it p_ --name centos01 --net bridge centos:7.9.2009

#docker0特点：默认，域名默认无法访问，可以通过--link连通

    #首先创建一个子网
docker network create --gateway 192.168.1.1 --subnet 192.168.1.0/24 mynet
#这时候可以查看子网的相关信息
docker network inspect mynet
#也可以通过子网创建新的虚拟机
docker run -P -it --name cnetos01 --net mynet centos:7.9.2009
docker run -P -it --name cnetos02 --net mynet centos:7.9.2009
#这时候我们再查看子网的相关信息会发现多了一些信息
docker network inspect mynet
        "Containers": {
            "15e46ecd488292c3025f525ff7cff7b7e6dada6d4c3c2309bcbdbf2439e3c3a8": {
                "Name": "centos02",
                "EndpointID": "f48b22be77085d2fbbd8aa32e5a4b164176ea642b3e0bc9efacd4d87c2caf69e",
                "MacAddress": "02:42:c0:a8:01:03",
                "IPv4Address": "192.168.1.3/24",
                "IPv6Address": ""
            },
            "a0df9d10a1fe611b487d23acaf5faaf5324eabdbe8ade44e4f9f6ee7e1c385ae": {
                "Name": "centos01",
                "EndpointID": "ddf917c17f51d8b163902d470e07101afec1b83add0094310cbd8e4748bf01b0",
                "MacAddress": "02:42:c0:a8:01:02",
                "IPv4Address": "192.168.1.2/24",
                "IPv6Address": ""
            }
        },
#同时，通过域名来ping彼此也是互通的
[root@VM-0-13-centos ~]# docker exec centos01 ping centos02
PING centos02 (192.168.1.3) 56(84) bytes of data.
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=1 ttl=64 time=0.058 ms
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=2 ttl=64 time=0.067 ms
64 bytes from centos02.mynet (192.168.1.3): icmp_seq=3 ttl=64 time=0.070 ms
#这时候我们再查看本地的ip信息，可以发现又多了三个网络
332: br-752dae1ac4fc: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:64:98:88:85 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.1/24 brd 192.168.1.255 scope global br-752dae1ac4fc
       valid_lft forever preferred_lft forever
    inet6 fe80::42:64ff:fe98:8885/64 scope link
       valid_lft forever preferred_lft forever
342: veth8a21fcf@if341: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-752dae1ac4fc state UP group default
    link/ether c6:83:50:26:ed:77 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::c483:50ff:fe26:ed77/64 scope link
       valid_lft forever preferred_lft forever
344: veth02489a4@if343: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-752dae1ac4fc state UP group default
    link/ether 22:b1:8d:22:2e:ac brd ff:ff:ff:ff:ff:ff link-netnsid 1
    inet6 fe80::20b1:8dff:fe22:2eac/64 scope link
       valid_lft forever preferred_lft forever

    这种做法的好处是不同的集群使用不同的网络，保证了集群之间是互通的

    但是有一点需要注意的是，通过这种方法分配的容器的IP，也是会变动的

    容器关闭之后再重启，IP就会改变

网络互通

#这个时候我们有四个不同容器
[root@VM-0-13-centos ~]# docker ps
CONTAINER ID   IMAGE             COMMAND       CREATED              STATUS              PORTS     NAMES
ab318d8cc387   centos:7.9.2009   "/bin/bash"   9 seconds ago        Up 8 seconds                  centos02
3c672037d852   centos:7.9.2009   "/bin/bash"   27 seconds ago       Up 26 seconds                 centos01
1c94f9565448   centos:7.9.2009   "/bin/bash"   49 seconds ago       Up 48 seconds                 centos_mynet_02
350ccd043887   centos:7.9.2009   "/bin/bash"   About a minute ago   Up About a minute             centos_mynet_01

#他们分别属于两个不同的子网
#我们可以把其中一个添加到另一个的子网中去
docker network connect mynet centos01
#之后centos01就可以与mynet子网下的所有容器互通
[root@VM-0-13-centos ~]# docker exec centos01 ping centos_mynet_01
PING centos_mynet_01 (192.168.1.2) 56(84) bytes of data.
64 bytes from centos_mynet_01.mynet (192.168.1.2): icmp_seq=1 ttl=64 time=0.076 ms
64 bytes from centos_mynet_01.mynet (192.168.1.2): icmp_seq=2 ttl=64 time=0.071 ms

[root@VM-0-13-centos ~]# docker exec centos01 ping centos_mynet_02
PING centos_mynet_02 (192.168.1.3) 56(84) bytes of data.
64 bytes from centos_mynet_02.mynet (192.168.1.3): icmp_seq=1 ttl=64 time=0.139 ms
64 bytes from centos_mynet_02.mynet (192.168.1.3): icmp_seq=2 ttl=64 time=0.077 ms

#查看centos01 的配置信息之后发现是把centos01也加到了mynet的网络中，并且分配了一个专属的IP
#所以本质就是给指定的容器加多了一个网卡，并且连接到了指定的子网当中
docker inspect centos01
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "9b4873778c95a5796209b1d4acafa5d4563cdfd2413a26aa0d06497bde906204",
                    "EndpointID": "4affaca7f787a1c50e3165e1fae54531ea201c9efe78efc83dd7d6d2cf7fc9d0",
                    "Gateway": "172.18.0.1",
                    "IPAddress": "172.18.0.2",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:12:00:02",
                    "DriverOpts": null
                },
                "mynet": {
                    "IPAMConfig": {},
                    "Links": null,
                    "Aliases": [
                        "3c672037d852"
                    ],
                    "NetworkID": "752dae1ac4fc9e2e53154d183f954dd715de6445c9aa85aadb732f48298ac345",
                    "EndpointID": "2e22a1628533846cae6eddef37045fae93233f3f1cc73891bab6f6f06f370f34",
                    "Gateway": "192.168.1.1",
                    "IPAddress": "192.168.1.4",
                    "IPPrefixLen": 24,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:c0:a8:01:04",
                    "DriverOpts": {}
                }
            }

部署redis集群

  • 编写redis配置生成脚本

    #!/bin/bash

for num in {1..6};do
        #echo $num
        mkdir -p /root/redis/node-${num}/conf
        touch /root/redis/node-${num}/conf/redis.conf
        # 批量输入文本内容，> 为覆盖重定向到文本，>> 为追加重定向到文本
        # <<EOF 标识符，当遇到EOF时停止输入内容到文本
        cat > /root/redis/node-${num}/conf/redis.conf <<EOF
#redis的配置
port 6379
bind 0.0.0.0
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
cluster-announce-ip 192.168.1.1${num}
cluster-announce-port 6379
cluster-announce-bus-port 16379
appendonly yes
#重定向结束
EOF
done

    # 生成后的文件夹
[root@VM-0-13-centos ~]# tree /root/redis/
/root/redis/
|-- docker.sh
|-- node-1
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
|-- node-2
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
|-- node-3
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
|-- node-4
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
|-- node-5
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
|-- node-6
|   |-- conf
|   |   `-- redis.conf
|   `-- data
|       |-- appendonly.aof
|       |-- dump.rdb
|       `-- nodes.conf
`-- redis.sh

  • 编写生成docker容器的脚本

    #!/bin/bash

for num in {1..6};do
docker run -p 637${num}:6379 -p 1637${num}:16379 --name redis-${num} \
	-v /root/redis/node-${num}/data:/data \
	-v /root/redis/node-${num}/conf/redis.conf:/etc/redis/redis.conf \
	-d --net redis --ip 192.168.1.1${num} redis redis-server /etc/redis/redis.conf
done

# 以下是redis-1节点的容器生成指令
# 块注释
:<<EOF
docker run -p 6371:6379 -p 16371:16379 --name redis-1 \
-v /root/redis/node-1/data:/data \
-v /root/redis/node-1/conf/redis.conf:/etc/redis/redis.conf \
-d --net redis --ip 192.168.1.11 redis redis-server /etc/redis/redis.conf
EOF

    #创建后的容器列表
[root@VM-0-13-centos ~]# docker ps
CONTAINER ID   IMAGE     COMMAND                  CREATED          STATUS          PORTS                                                                                      NAMES
adf634167caf   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6376->6379/tcp, :::6376->6379/tcp, 0.0.0.0:16376->16379/tcp, :::16376->16379/tcp   redis-6
54ea1500d23c   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6375->6379/tcp, :::6375->6379/tcp, 0.0.0.0:16375->16379/tcp, :::16375->16379/tcp   redis-5
fcd42b8fbd49   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6374->6379/tcp, :::6374->6379/tcp, 0.0.0.0:16374->16379/tcp, :::16374->16379/tcp   redis-4
7088e74db436   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6373->6379/tcp, :::6373->6379/tcp, 0.0.0.0:16373->16379/tcp, :::16373->16379/tcp   redis-3
854f3b9645b1   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6372->6379/tcp, :::6372->6379/tcp, 0.0.0.0:16372->16379/tcp, :::16372->16379/tcp   redis-2
1f2d1b2540f9   redis     "docker-entrypoint.s…"   12 minutes ago   Up 12 minutes   0.0.0.0:6371->6379/tcp, :::6371->6379/tcp, 0.0.0.0:16371->16379/tcp, :::16371->16379/tcp   redis-1

  • 进入redis中连接节点创建集群

    docker exec -it redis-1 /bin/sh

redis-cli --cluster create 192.168.1.11:6379 192.168.1.12:6379 192.168.1.13:6379 \
							192.168.1.14:6379 192.168.1.15:6379 192.168.1.16:6379 \
							--cluster-replicas 1

    # 创建集群成功后的集群信息
127.0.0.1:6379> cluster info
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:391
cluster_stats_messages_pong_sent:388
cluster_stats_messages_sent:779
cluster_stats_messages_ping_received:383
cluster_stats_messages_pong_received:391
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:779

    # 创建集群成功后的节点状态
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 slave 0cad009726d17ca7ef53a0d12eb4a2da95a28b58 0 1650914152525 3 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650914153127 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650914152124 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650914151000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650914153629 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650914153027 3 connected 10923-16383

  • 检查是否部署成功

    # 往集群中保存一个值
# redis-cli -c
127.0.0.1:6379> set x y
# 值被保存到了ip为14的节点上，这个节点是redis-4的容器
-> Redirected to slot [16287] located at 192.168.1.14:6379
OK

    # 把redis-4容器停掉
docker stop redis-4
# 查询x的值看是否还能查询到
# redis-cli -c
127.0.0.1:6379> get x
-> Redirected to slot [16287] located at 192.168.1.13:6379
"y"
#可以看到x仍然是可以查询到的
#但是是从备机13也就是redis-3中查询到的
#这说明在主机down掉之后，启用了备机

  • 再次查看集群的节点状态

    #可以看到节点14也就是redis-4是连接失败了的
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 master,fail - 1650914787784 1650914785273 7 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650914997003 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650914998006 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650914997000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650914998509 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650914998000 8 connected 10923-16383

  • 重启redis-4，并查看状态

    docker start redis-4

#这时候可以看到，redis-4又重新连接上来了
#不过这次redis-4是作为redis-3的备机
127.0.0.1:6379> cluster nodes
d7ebd111f110244092dafb348d2092593c84ee2a 192.168.1.14:6379@16379 slave 0cad009726d17ca7ef53a0d12eb4a2da95a28b58 0 1650915071160 8 connected
46a41b647fdd54796aada765a869bfe281af1da1 192.168.1.12:6379@16379 master - 0 1650915071261 2 connected 5461-10922
5a0626ee8e705a1c147fbb0be98a2f0cbbcf14bd 192.168.1.16:6379@16379 slave 46a41b647fdd54796aada765a869bfe281af1da1 0 1650915072264 2 connected
7124136c94464fe121a7b217dfdbd91c44b0970c 192.168.1.11:6379@16379 myself,master - 0 1650915071000 1 connected 0-5460
67d402fdf403a700a369ff52e7f60ddd5966a58d 192.168.1.15:6379@16379 slave 7124136c94464fe121a7b217dfdbd91c44b0970c 0 1650915073267 1 connected
0cad009726d17ca7ef53a0d12eb4a2da95a28b58 192.168.1.13:6379@16379 master - 0 1650915071000 8 connected 10923-16383

Docker compose

Docker Swarm

CI/CD Jenkins流水线

RobotINX
关注
ping 不同目标计算机,ping命令用法以及判断目标主机操作系统
weixin_26736139的博客
07-29 3825
1. ping命令当给某个IP地址发送一个数据包时，对方就要返回一个同样大小的数据包，根据返回的数据包可以确定目标主机的存在，也可以初步判断目标主机的操作系统等，利用它可以检查网络是否畅通。计算机“开始” - “运行” ，在弹出的对话框输入cmd，进入命令解释程序。1.1 ping 命令格式ping 127.0.0.1测试本机的TCP/IP协议，若不通，表示TCP/IP协议的安装或者运行存在某些问...
狂神说 docker笔记.zip
10-30
咱也是下载的别人的，感觉还行，分享给大家。
Rocky Linux 安装 Docker Engine
零一魔法
03-02 520
Rocky Linux Docker Engine
Install Docker Engine on CentOS
一起coding，一起嗨。
03-19 1008
【代码】Install Docker Engine on CentOS。
IP地址中的网络地址和主机地址分别是什么意思？怎么计算的呢？
Nothing is impossible to a willing heart.
12-24 1万+
什么意思呢？ 先理解下这个：01087654321这是一个电话号码，它是一坨数字但我们很清楚它分为两部分，其中010是表示北京的区号后面87654321是北京范围内的一台座机号（如有雷同纯属巧合）所以我们经常把它写成010-87654321以区分区号和座机号。 现在来看一个IP地址：192.168.1.3 看上去是一坨数字，里面也包含两个部分，具体的说是两个ID（楼主把它叫地址，我习惯叫它ID），一个是网络ID一个是主机ID。以后看到一个IP地址的时候一定要有这样的意识，我看到了一个网络标识和一个主机标识。
MySQL 1130错误，无法远程连接
weixin_48682352的博客
07-01 229
错误：ERROR 1130: Host '192.168.1.3' is not allowed to connect to thisMySQL serve 错误1130：主机192.168.1.3”不允许连接到thismysql服务 原因：被连接的数据不允许使用 192.168.1.3访问，只允许是用 localhost; 解决办法： 可能是你的帐号不允许从远程登陆，只能在localhost。这个时候只要在localhost的那台电脑，登入mysql后，更改"mysql" 数据...
Docker笔记
03-22
Docker笔记 B站狂神
狂神docker笔记（超详细）.zip
08-09
狂神docker笔记（超详细） 1:docekr进阶 2: docker基础入门 都是自己亲自看着bilibili上学习敲打的，还标注了一些，然后还有一些自己的err的解决方法
狂神docker笔记（超详细）.rar
06-14
狂神docker教学视频笔记，截图标注很全（本人增加了很多额外的标注），帮助更好理解，敲了很久，实在不易。上传来帮助大家学习，一方面攒点积分！
192.168.1.3 Login Now-crx插件
04-03
语言:English 登录立即登录！192.168.1.3一个不可路由的网络地址（内部），即无法通过路由器铺设此IP地址 192.168.1.3 登录admin，分配的IP地址访问路由器和调制解调器上的管理面板。 IP地址192.168.1.3支持路由器，桥接器，客户端，AP，中继模式，以允许众多远程应用程序。 192.168.1.3的用户名和密码列表 只需牢记不同的路由器，默认的IP访问地址是独特的。 在这里，用户通常被授权在默认地址中进行合适的更改。 因此，请参阅特定的访问地址。
学习笔记整理：网络应用技术-实验-ip地址、网关、掩码
Aure_xl的博客
03-11 1796
以下内容为个人的学习笔记整理，如有错误，请指出，谢谢~ 一、ip地址和掩码 如图，分别用两个交换机连两个客户机。 设置PC1ip地址：192.168.1.2 掩码：255.255.255.0 设置PC2ip地址：192.168.1.3 掩码：255.255.255.0 （1）用ping连PC1和PC2，可以连接成功 （2）掩码不变，将PC2ip地址改成192.168.2.3，再次ping连PC1和PC2，不可以成功 结论： 第一步骤的时候掩码为255.255.255.0，PC1和P
Docker的安装以及解决启动失败问题
07-28 1017
前言 　　本文章主要讲解在Linux虚拟机上安装Docker以及安装后启动失败的问题。 在Linux虚拟机上安装Docker以及解决启动问题 步骤： 检查Linux系统内核版本，必须是3.10及以上uname -r <!-- more --> 安装docker，yum ...
Docker学习笔记（七）：Docker常用安装
weixin_47382783的博客
04-23 757
1、总体步骤 搜索镜像 拉取镜像 查看镜像 启动镜像 停止容器 移除容器 2、Docker安装MySQL （1）docker hub 上面查找 MySQL 镜像 命令：docker search mysql （2）从docker hub上拉取mysql镜像到本地，其版本为为5.6。 命令：docker pull mysql:5.6 （3）使用 MySQL 5.6 的镜像创建容器 命令：docker run -p 3306:3306 --name mysql -v /my
VMware WorkStation的三种网络连接方式
热门推荐
啸傲居士
12-07 8万+
版权声明：对于本博客所有原创文章，允许个人、教育和非商业目的使用，但务必保证文章的完整性且不作任何修改地以超链接形式注明原始作者、出处及本声明。     博客地址：http://blog.youkuaiyun.com/shuxiao9058     原始作者：季亚 一. 首先贴出本人在网络上找到与VMware网络连接相关的知识         安装完虚拟机后，默认安装了两个虚拟网卡，VMn
Mysql:is not allowed to connect to this MySQL server
yanping_ren的专栏
09-11 680
Mysql:is not allowed to connect to this MySQL server 如果你想连接你的mysql的时候发生这个错误： ERROR 1130: Host '192.168.1.3' is not allowed to connect to this MySQL server 解决方法： 1。 改表法。可能是你的帐号不允许从远程登陆，只能在loc
配置NFS文件共享服务
优快云
12-28 1万+
NFS 网络文件系统，是一种使用于分布式文件系统的协议，功能是通过网络让不同的机器，不同的操作系统能够彼此分享各自的数据，让应用程序在客户端通过网络访问位于服务器磁盘中的数据，是在类Unix系统间实现磁盘文件共享的一种方法。moreNFS服务器可以允许NFS客户端将远端NFS服务器端的共享目录挂载到本地的NFS客户端中,在本地的NFS客户端的机器看来,NFS服务器端共享的目录就好像自己的磁盘分区和目录一样.NFS服务器是通过读取。
子网掩码和主机的关系，以及广播地址
wxa7039的博客
10-22 1753
子网掩码和主机的关系，以及广播地址 主机ip分为两部分组成：网络位+主机位 举个例子 主机ip: 192.168.1.3 子网掩码 255.255.255.0 子网掩码 255.255.255.0 二进制形式为11111111.11111111.11111111.0 前三位都是1，那么对于主机ip，前三位都被8个1掩盖住了。那么网络位就是192.168.1 最后一位是主机位 在192.168.1...
【Linux】常用 Linux 网络命令
RadiantJeral的博客
02-06 340
本文介绍 Linux 下常用网络命令.
docker 笔记下载
最新发布
07-14
要下载Docker笔记，首先需要了解Docker是什么以及其使用场景。 Docker是一种开源的容器化平台，可以帮助用户打包、部署和运行应用程序。通过使用容器化技术，用户无需担心运行环境的差异，可以将应用程序和其依赖项...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
