PowerDesigner 视图界面 显示列Comment注释 完美解决

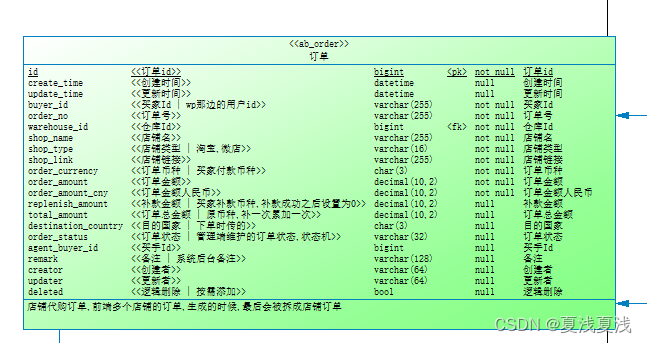

效果图

首先参考文章 PowerDesigner显示Comment注释

修改一下执行脚本,之前是赋值给name,改了会影响其他的,经过研究,换成stereotype就可以解决了,然后把 列的stereotype显示出来

    Option   Explicit
    ValidationMode   =   True
    InteractiveMode   =   im_Batch
    Dim blankStr
    blankStr   =   Space(1)
    Dim   mdl   '   the   current   model

    '   get   the   current   active   model
    Set   mdl   =   ActiveModel
    If   (mdl   Is   Nothing)   Then
          MsgBox   "There   is   no   current   Model "
    ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
          MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
    Else
          ProcessFolder   mdl
    End   If

    Private   sub   ProcessFolder(folder)
    On Error Resume Next
          Dim   Tab   'running     table
          for   each   Tab   in   folder.tables
                if   not   tab.isShortcut   then
                      rem 这行不需要执行,tab.comment 可以显示出来的
                      rem tab.stereotype   =   tab.comment
                      Dim   col   '   running   column
                      for   each   col   in   tab.columns
                      if col.comment = "" or replace(col.comment," ", "")="" Then
                            col.name = blankStr
                            blankStr = blankStr & Space(1)
                      else
                            col.stereotype = col.comment
                      end if
                      next
                end   if
          next

          Dim   view   'running   view
          for   each   view   in   folder.Views
                if   not   view.isShortcut   then
                      view.stereotype   =   view.comment
                end   if
          next

          '   go   into   the   sub-packages
          Dim   f   '   running   folder
          For   Each   f   In   folder.Packages
                if   not   f.IsShortcut   then
                      ProcessFolder   f
                end   if
          Next
    end   sub

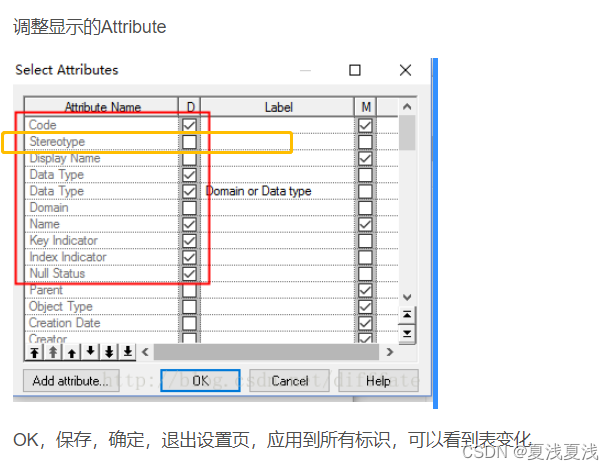

下面这张图还是来自 PowerDesigner显示Comment注释 ,注意把Srereotype勾选了,最后执行脚本完美解决
同样的,每次修改注释后都需要执行一次脚本
