本文档介绍了如何使用SAML进行基于角色的联盟访问，并通过我方IDP实现与阿里的对接。参考阿里云官方文档及开源项目Mujina，主要涉及上传XML配置到阿里云及修改IDP的IdpConfiguration和SsoController。由于阿里云功能尚处内测，目前对接未完成，存在错误待解决。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

文档：https://help.aliyun.com/document_detail/109791.html?spm=a2c4g.11186623.6.580.55031c6fdzUdch

开源项目(基于sercurity 实现的sp+idp)：https://github.com/OpenConext/Mujina

请先参考：【saml 基于用户的联盟访问(我方idp实现)】对接阿里

笔者未完成最终的对接，原因阿里云该功能处于内测阶段

大致思路就是根据文档上来，

一、上传至阿里云的xml（与【saml 基于用户的联盟访问(我方idp实现)】对接阿里一致，不用修改）

<?xml version="1.0"?>
<EntityDescriptor xmlns="urn:oasis:names:tc:SAML:2.0:metadata" entityID="https://mytest.com">
  <IDPSSODescriptor xmlns:ds="http://www.w3.org/2000/09/xmldsig#" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
    <KeyDescriptor use="signing">
      <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
        <ds:X509Data>
          <ds:X509Certificate>
MIIDEzCCAfugAwIBAgIJAKoK/heBjcOYMA0GCSqGSIb3DQEBBQUAMCAxHjAcBgNVBAoMFU9yZ2Fu
            aXphdGlvbiwgQ049T0lEQzAeFw0xNTExMTExMDEyMTVaFw0yNTExMTAxMDEyMTVaMCAxHjAcBgNV
            BAoMFU9yZ2FuaXphdGlvbiwgQ049T0lEQzCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEB
            ANBGwJ/qpTQNiSgUglSE2UzEkUow+wS8r67etxoEhlzJZfgK/k5TfG1wICDqapHAxEVgUM10aBHR
            ctNocA5wmlHtxdidhzRZroqHwpKy2BmsKX5Z2oK25RLpsyusB1KroemgA/CjUnI6rIL1xxFn3KyO
            Fh1ZBLUQtKNQeMS7HFGgSDAp+sXuTFujz12LFDugX0T0KB5a1+0l8y0PEa0yGa1oi6seONx849ZH
            xM0PRvUunWkuTM+foZ0jZpFapXe02yWMqhc/2iYMieE/3GvOguJchJt6R+cut8VBb6ubKUIGK7pm
            oq/TB6DVXpvsHqsDJXechxcicu4pdKVDHSec850CAwEAAaNQME4wHQYDVR0OBBYEFK7RqjoodSYV
            XGTVEdLf3kJflP/sMB8GA1UdIwQYMBaAFK7RqjoodSYVXGTVEdLf3kJflP/sMAwGA1UdEwQFMAMB
            Af8wDQYJKoZIhvcNAQEFBQADggEBADNZkxlFXh4F45muCbnQd+WmaXlGvb9tkUyAIxVL8AIu8J18
            F420vpnGpoUAE+Hy3evBmp2nkrFAgmr055fAjpHeZFgDZBAPCwYd3TNMDeSyMta3Ka+oS7GRFDeP
            kMEm+kH4/rITNKUF1sOvWBTSowk9TudEDyFqgGntcdu/l/zRxvx33y3LMG5USD0x4X4IKjRrRN1B
            bcKgi8dq10C3jdqNancTuPoqT3WWzRvVtB/q34B7F74/6JzgEoOCEHufBMp4ZFu54P0yEGtWfTwT
            zuoZobrChVVBt4w/XZagrRtUCDNwRpHNbpjxYudbqLqpi1MQpV9oht/BpTHVJG2i0ro=
</ds:X509Certificate>
        </ds:X509Data>
      </ds:KeyInfo>
    </KeyDescriptor>
    <SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="https://sgarcia-us-preprod.onelogin.com/trust/saml2/http-redirect/slo/672234"/>

      <NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress</NameIDFormat>

    <SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="http://kxhxs2.natappfree.cc/SingleSignOnService"/>
    <SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="http://kxhxs2.natappfree.cc/SingleSignOnService"/>
    <SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:SOAP" Location="http://kxhxs2.natappfree.cc/SingleSignOnService"/>
  </IDPSSODescriptor>
</EntityDescriptor>

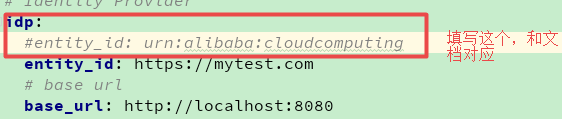

二、我方idp配置

修改IdpConfiguration.resetAttributes 中的方法

private void resetAttributes() {
    attributes.clear();
   //TODO 下面三条配置参考文档，第一条笔者未测试通过（着重看文档）
    putAttribute("https://www.aliyun.com/SAML-Role/Attributes/Role", "\n" +
      "acs:ram::1878148656329563:role/aliyuncccdefaultrole,acs:ram::$account_id:saml-provider/provider1");
    putAttribute("https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName","ss");
    putAttribute("https://www.aliyun.com/SAML-Role/Attributes/SessionDuration","1800");
  }

修改SsoController.doSSO 中方法

 private void doSSO(HttpServletRequest request, HttpServletResponse response, Authentication authentication, boolean postRequest) throws ValidationException, SecurityException, MessageDecodingException, MarshallingException, SignatureException, MessageEncodingException, MetadataProviderException, IOException, ServletException {
    SAMLMessageContext messageContext = samlMessageHandler.extractSAMLMessageContext(request, response, postRequest);
    AuthnRequest authnRequest = (AuthnRequest) messageContext.getInboundSAMLMessage();

    String assertionConsumerServiceURL = idpConfiguration.getAcsEndpoint() != null ? idpConfiguration.getAcsEndpoint() : authnRequest.getAssertionConsumerServiceURL();
    List<SAMLAttribute> attributes = attributes(authentication);

    SAMLPrincipal principal = new SAMLPrincipal(
      authentication.getName(),
      attributes.stream().filter(attr -> "urn:oasis:names:tc:SAML:1.1:nameid-format".equals(attr.getName()))
        .findFirst().map(attr -> attr.getValue()).orElse(NameIDType.UNSPECIFIED),
      attributes,
      authnRequest.getIssuer().getValue(),
      authnRequest.getID(),
      assertionConsumerServiceURL,
      messageContext.getRelayState());
    //参考文档
    principal.setAssertionConsumerServiceURL("https://signin.aliyun.com/saml-role/sso");




    samlMessageHandler.sendAuthnResponse(principal, response);
  }

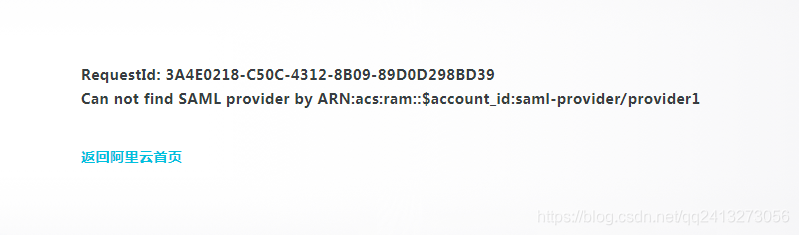

最终效果：
