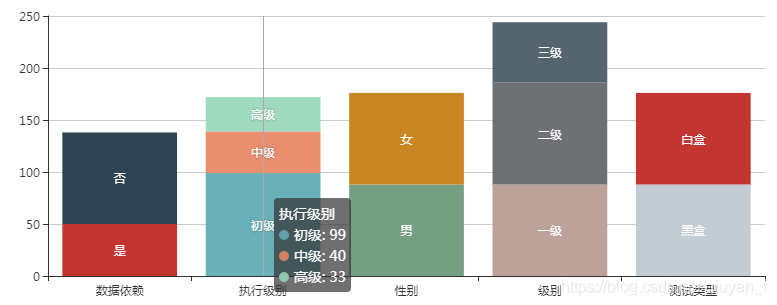

效果图：

代码：

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta http-equiv="X-UA-Compatible" content="ie=edge" />
    <title>Document</title>
  </head>
  <body>
    <div id="app" style="height:300px;"></div>
    <div id="fun"></div>
    <script src="../js/echarts.js"></script>
    <script>
      let option = {
        tooltip: {
          trigger: "axis",
          axisPointer: {
            // 坐标轴指示器，坐标轴触发有效
            type: "line" // 默认为直线，可选为：'line' | 'shadow'
          }
        },
        legend: {
          show: false
        },
        grid: {
          top: "10",
          left: "70",
          right: "30",
          bottom: "30"
        },
        xAxis: [
          {
            type: "category",
            data: ["数据依赖", "执行级别", "性别", "级别", "测试类型"]
          }
        ],
        yAxis: [
          {
            type: "value"
          }
        ],
        series: [
          {
            name: "是",
            type: "bar",
            stack: "属性",
            label: {
              show: true,
