SpringSecurity - 启动流程分析（十二）- ExceptionTranslationFilter 过滤器

前言

在 SpringSecurity - 启动流程分析（四）- 默认过滤器 这篇文章中，我们知道了 ExceptionTranslationFilter 是默认提供的，排序在倒数第 2 位的过滤器，接下来我们就来看一下它的作用是什么。

概述

ExceptionTranslationFilter 字面意思是：异常转换过滤器。

在 HttpSecurity 中的配置方法为：

public ExceptionHandlingConfigurer<HttpSecurity> exceptionHandling() throws Exception {
	return getOrApply(new ExceptionHandlingConfigurer<>());
}

// 可以接收一个函数式接口来自定义一些信息
public HttpSecurity exceptionHandling(
			Customizer<ExceptionHandlingConfigurer<HttpSecurity>> exceptionHandlingCustomizer) throws Exception {
	exceptionHandlingCustomizer.customize(getOrApply(new ExceptionHandlingConfigurer<>()));
	return HttpSecurity.this;
}

查看 ExceptionHandlingConfigurer 配置类的核心方法 configure() 方法：

@Override
public void configure(H http) {
	// 获取 AuthenticationEntryPoint
	AuthenticationEntryPoint entryPoint = getAuthenticationEntryPoint(http);
	// 核心流程，配置 ExceptionTranslationFilter
	ExceptionTranslationFilter exceptionTranslationFilter = new ExceptionTranslationFilter(entryPoint,
			getRequestCache(http));
	// 获取 AccessDeniedHandler
	AccessDeniedHandler deniedHandler = getAccessDeniedHandler(http);
	exceptionTranslationFilter.setAccessDeniedHandler(deniedHandler);
	exceptionTranslationFilter = postProcess(exceptionTranslationFilter);
	http.addFilter(exceptionTranslationFilter);
}

AccessDeniedHandler getAccessDeniedHandler(H http) {
	AccessDeniedHandler deniedHandler = this.accessDeniedHandler;
	if (deniedHandler == null) {
		// 如果没有配置，会创建默认的 AccessDeniedHandler
		deniedHandler = createDefaultDeniedHandler(http);
	}
	return deniedHandler;
}

AuthenticationEntryPoint getAuthenticationEntryPoint(H http) {
	AuthenticationEntryPoint entryPoint = this.authenticationEntryPoint;
	if (entryPoint == null) {
		// 如果没有配置，会创建默认的 AuthenticationEntryPoint
		entryPoint = createDefaultEntryPoint(http);
	}
	return entryPoint;
}

查看具体源码，可以看到，默认情况下，无论是 AuthenticationEntryPoint 还是 AccessDeniedHandler 都会返回 403 状态码。并且 AuthenticationEntryPoint 是 AuthenticationException 异常的处理类；AccessDeniedHandler 是 AccessDeniedException 异常的处理类。

分析

SpringSecurity 中的异常可以分为两大类，一种是认证异常，一种是授权异常。

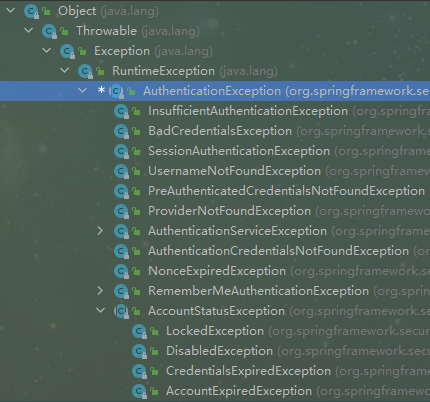

1、AuthenticationException（认证异常）

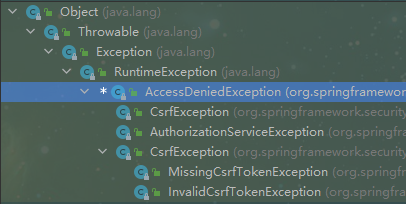

2、AccessDeniedException（授权异常）

3、ExceptionTranslationFilter

从上面分析中我们知道，ExceptionHandlingConfigurer 的 configure() 方法调用了 ExceptionTranslationFilter 的构造方法，传递了 AuthenticationEntryPoint 参数。查看核心方法 doFilter() 方法：

private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
			throws IOException, ServletException {
	try {
		chain.doFilter(request, response);
	}
	catch (IOException ex) {
		throw ex;
	}
	catch (Exception ex) {
		// Try to extract a SpringSecurityException from the stacktrace
		Throwable[] causeChain = this.throwableAnalyzer.determineCauseChain(ex);
		RuntimeException securityException = (AuthenticationException) this.throwableAnalyzer
				.getFirstThrowableOfType(AuthenticationException.class, causeChain);
		if (securityException == null) {
			securityException = (AccessDeniedException) this.throwableAnalyzer
					.getFirstThrowableOfType(AccessDeniedException.class, causeChain);
		}
		if (securityException == null) {
			// 不属于 Security 的两种异常的话在这里抛出
			rethrow(ex);
		}
		if (response.isCommitted()) {
			throw new ServletException("Unable to handle the Spring Security Exception "
					+ "because the response is already committed.", ex);
		}
		// 处理异常，这里的 securityException 已经处理过，只可能是上面两种
		handleSpringSecurityException(request, response, chain, securityException);
	}
}

private void handleSpringSecurityException(HttpServletRequest request, HttpServletResponse response,
			FilterChain chain, RuntimeException exception) throws IOException, ServletException {
	// 处理两大种类的异常
	if (exception instanceof AuthenticationException) {
		handleAuthenticationException(request, response, chain, (AuthenticationException) exception);
	}
	else if (exception instanceof AccessDeniedException) {
		handleAccessDeniedException(request, response, chain, (AccessDeniedException) exception);
	}
}

• 查看 handleAuthenticationException 逻辑

private void handleAuthenticationException(HttpServletRequest request, HttpServletResponse response,
			FilterChain chain, AuthenticationException exception) throws ServletException, IOException {
	this.logger.trace("Sending to authentication entry point since authentication failed", exception);
	sendStartAuthentication(request, response, chain, exception);
}

protected void sendStartAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain,
			AuthenticationException reason) throws ServletException, IOException {
	// SEC-112: Clear the SecurityContextHolder's Authentication, as the
	// existing Authentication is no longer considered valid
	// 清除 Authentication 信息
	SecurityContext context = SecurityContextHolder.createEmptyContext();
	SecurityContextHolder.setContext(context);
	this.requestCache.saveRequest(request, response);
	// 核心流程，也是我们可以实现 AuthenticationEntryPoint 自定义处理逻辑的地方
	this.authenticationEntryPoint.commence(request, response, reason);
}

• 查看 handleAccessDeniedException 逻辑

private void handleAccessDeniedException(HttpServletRequest request, HttpServletResponse response,
			FilterChain chain, AccessDeniedException exception) throws ServletException, IOException {
	// 判断是否是匿名用户访问
	...
		// 否则，处理异常，实现 AccessDeniedHandler 自定义处理逻辑
		this.accessDeniedHandler.handle(request, response, exception);
	}
}

总结

• 在过滤器链中，ExceptionTranslationFilter 的下一个过滤器是 FilterSecurityInterceptor，FilterSecurityInterceptor 是处理授权问题的，这里抛出的异常，会被 ExceptionTranslationFilter 捕获，来让我们做自定义处理
• 捕获到异常之后，通过 throwableAnalyzer.getFirstThrowableOfType 来判断是认证异常还是授权异常，如果都不是的话，抛出 ServletException 或者 RuntimeException
