承上启下

在 SpringSecurity - 启动流程分析（二）这篇文章中，我们分析了 HttpSecurity 是如何转换为 List<Filter>，并最终放入 DefaultSecurityFilterChain 的。

// HttpSecurity 的 build() 方法
@Override
protected DefaultSecurityFilterChain performBuild() {
	filters.sort(comparator);
	return new DefaultSecurityFilterChain(requestMatcher, filters);
}

WebSecurity 的 build() 方法在之后的逻辑中把 DefaultSecurityFilterChain 添加到了 List<SecurityFilterChain> 中，然后把 List<SecurityFilterChain> 作为参数 new 了一个 FilterChainProxy 类作为方法返回对象

for (SecurityBuilder<? extends SecurityFilterChain> securityFilterChainBuilder : securityFilterChainBuilders) {
	// 这里的 securityFilterChainBuilder 就是 HttpSecurity，build() 方法返回了 DefaultSecurityFilterChain
	securityFilterChains.add(securityFilterChainBuilder.build());
}
FilterChainProxy filterChainProxy = new FilterChainProxy(securityFilterChains);
...
Filter result = filterChainProxy;
...
return result;

也就是说 SpringSecurity - 启动流程分析（一）中的核心配置类 WebSecurityConfiguration 中的核心流程： springSecurityFilterChain() 方法返回的是一个 FilterChainProxy（又回到最初的起点）。

@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
	boolean hasConfigurers = webSecurityConfigurers != null
			&& !webSecurityConfigurers.isEmpty();
	if (!hasConfigurers) {
		WebSecurityConfigurerAdapter adapter = objectObjectPostProcessor
				.postProcess(new WebSecurityConfigurerAdapter() {
				});
		webSecurity.apply(adapter);
	}
	return webSecurity.build();
}

到此为止，我们知道了：

@EnableWebSecurity 注解为 IoC 容器 中添加了 WebSecurityConfiguration 配置类
WebSecurityConfiguration 配置类为容器中添加了 springSecurityFilterChain Bean
springSecurityFilterChain Bean 是一个类型为 Filter 的 FilterChainProxy
FilterChainProxy 中包含了 DefaultSecurityFilterChain 过滤器链
DefaultSecurityFilterChain 过滤器链中是由 HttpSecurity 转化而来的 Filters

从 SpringBoot - 配置 Filter 的几种方式文章中我们知道，在容器中添加一个 Filter 类型的 Bean，就会拦截所有请求，但是从上面代码中我们看到返回的是一个 FilterChainProxy：

从源码中可以看到，继承了 GenericFilterBean，关于 GenericFilterBean 可以查看 SpringMVC - 对于如何配置 Filter 的深度剖析这篇文章

public class FilterChainProxy extends GenericFilterBean {
    private static final Log logger = LogFactory.getLog(FilterChainProxy.class);
    private static final String FILTER_APPLIED = FilterChainProxy.class.getName().concat(".APPLIED");
    // 这里就是传进来的 DefaultSecurityFilterChain，当然还包含了其他的 SecurityFilterChain
    private List<SecurityFilterChain> filterChains;
    ...

    public FilterChainProxy(List<SecurityFilterChain> filterChains) {
        this.filterChainValidator = new FilterChainProxy.NullFilterChainValidator();
        this.firewall = new StrictHttpFirewall();

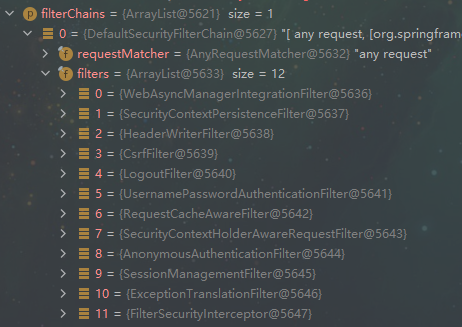

        // 过滤器链，可以打印一下看看里面都有啥
        this.filterChains = filterChains;
    }

    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        boolean clearContext = request.getAttribute(FILTER_APPLIED) == null;
        if (clearContext) {
            try {
                request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
                this.doFilterInternal(request, response, chain);
            } finally {
                SecurityContextHolder.clearContext();
                request.removeAttribute(FILTER_APPLIED);
            }
        } else {
            this.doFilterInternal(request, response, chain);
        }

    }

    private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        FirewalledRequest fwRequest = this.firewall.getFirewalledRequest((HttpServletRequest)request);
        HttpServletResponse fwResponse = this.firewall.getFirewalledResponse((HttpServletResponse)response);
        List<Filter> filters = this.getFilters((HttpServletRequest)fwRequest);
        if (filters != null && filters.size() != 0) {
        	// 虚拟过滤器链
            FilterChainProxy.VirtualFilterChain vfc = new FilterChainProxy.VirtualFilterChain(fwRequest, chain, filters);
            vfc.doFilter(fwRequest, fwResponse);
        } else {
            if (logger.isDebugEnabled()) {
                logger.debug(UrlUtils.buildRequestUrl(fwRequest) + (filters == null ? " has no matching filters" : " has an empty filter list"));
            }

            fwRequest.reset();
            chain.doFilter(fwRequest, fwResponse);
        }
    }

    ...

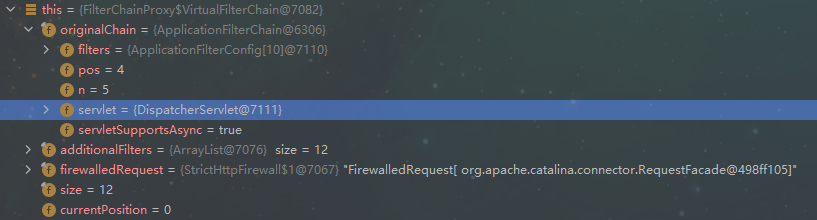

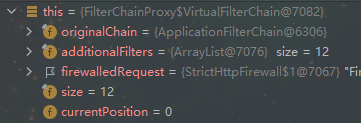

    private static class VirtualFilterChain implements FilterChain {
    	// Servlet 容器中的原始过滤器链
        private final FilterChain originalChain;
        // SpringSecurity 的过滤器链
        private final List<Filter> additionalFilters;
        private final FirewalledRequest firewalledRequest;
        private final int size;
        private int currentPosition;

        private VirtualFilterChain(FirewalledRequest firewalledRequest, FilterChain chain, List<Filter> additionalFilters) {
            this.currentPosition = 0;
            this.originalChain = chain;
            this.additionalFilters = additionalFilters;
            this.size = additionalFilters.size();
            this.firewalledRequest = firewalledRequest;
        }

        public void doFilter(ServletRequest request, ServletResponse response) throws IOException, ServletException {
        	// SpringSecurity 中的 Filter 执行完之后，接着执行 Servlet 容器中的 Filter
            if (this.currentPosition == this.size) {
                if (FilterChainProxy.logger.isDebugEnabled()) {
                    FilterChainProxy.logger.debug(UrlUtils.buildRequestUrl(this.firewalledRequest) + " reached end of additional filter chain; proceeding with original chain");
                }

                this.firewalledRequest.reset();
                this.originalChain.doFilter(request, response);
            } else {
            	// 执行 SpringSecurity 中的 Filter，知道执行完为止
                ++this.currentPosition;
                Filter nextFilter = (Filter)this.additionalFilters.get(this.currentPosition - 1);
                if (FilterChainProxy.logger.isDebugEnabled()) {
                    FilterChainProxy.logger.debug(UrlUtils.buildRequestUrl(this.firewalledRequest) + " at position " + this.currentPosition + " of " + this.size + " in additional filter chain; firing Filter: '" + nextFilter.getClass().getSimpleName() + "'");
                }

                nextFilter.doFilter(request, response, this);
            }

        }
    }
}
