本文详细介绍使用Retrofit结合OkHttp实现网络请求的方法，包括GET和POST请求、单文件及多文件上传等功能，并展示了如何配置统一请求头和请求体。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

奉上源码 - MvpApp，如果发现那里写的不对的，请好心人直接指出，我会努力去改正的。
主要包括：

简单的 get post请求、
统一请求头处理、
统一请求体处理、
单文件上传、
多文件上传、
一个key对用多个文件、
支持String转换器不强制使用Gson转换器、

使用介绍 - get请求

路径替换

(1) 路径替换
主域名 http://api.qianguan360.com/service/
接口地址 homePhone/loginPhone/
登录接口 http://api.qianguan360.com/service/homePhone/loginPhone/13146008029-123456
{} 用花括号包裹的是动态字符串 用@Path进行注解，参数名字必须一致
@GET("homePhone/loginPhone/{phone}-{pwd}")
Observable<LoginBean> loginQg(@Path("phone") String phone, @Path("pwd") String pwd);

添加请求行

主域名 http://192.168.4.39:8080/AlexApp/
接口地址 login
登陆接口 http://192.168.4.39:8080/AlexApp/login?phone=13146008025&pwd=123456
key要和服务器的一致
@GET("login")
Observable<LoginBean> loginGet1(@Query("phone") String phone, @Query("pwd") String pwd);

添加请求行

主域名 http://192.168.4.39:8080/AlexApp/
接口地址 login
登陆接口 http://192.168.4.39:8080/AlexApp/login?phone=13146008025&pwd=123456
key要和服务器的一致
@GET("login")
Observable<LoginBean> loginGet2(@QueryMap Map<String, String> params);

使用介绍 - post请求

主域名 http://192.168.4.39:8080/AlexApp/
接口地址 login
登陆接口 http://192.168.191.3:4477/AlexApp/login
提交参数 phone  pwd  userLogo

map方式提交

key要和服务器的一致
@POST("login")
Observable<LoginBean> login(@Body Map<String, String> params);

bean 方式提交

成员变量名要和后台一致
@POST("login")
Observable<LoginBean> login(@Body UserBean bean);

多参数表单提交

key要和服务器的一致
@FormUrlEncoded
@POST("login")
Observable<LoginBean> login(@Field("phone") String phone, @Field("pwd") String pwd);

单文件上传

key要和服务器的一致
@Multipart
@POST("upload")
Observable<LoginBean> upLoad(@Part MultipartBody.Part userLogo, @Part("phone") RequestBody phoneBody, @Part("pwd") RequestBody pwdBody);
MultipartBody.Part userLogo
RequestBody photoRequestBody = RequestBody.create(MediaType.parse("image/png"), file);
MultipartBody.Part photo = MultipartBody.Part.createFormData("photo", file.getName(), photoRequestBody);
RequestBody phoneBody
RequestBody phoneBody = RequestBody.create(MediaType.parse("text/plain"), phone);
或者
RequestBody phoneBody = RequestBody.create(null, phone);

一个key对应多个文件上传

key要和服务器的一致
@Multipart
@POST("upload")
Observable<String> upLoad2(@PartMap Map<String, RequestBody> params);

Map<String, RequestBody> paramsMap = new HashMap<>();
for (int i = 0; i < fileList.size(); i++) {
    File file = fileList.get(i);
    RequestBody fileBody = RequestBody.create(MediaType.parse("image/png"), fileList.get(i));
    paramsMap.put("userLogo\"; filename=\""+file.getName()+".png", fileBody);
}

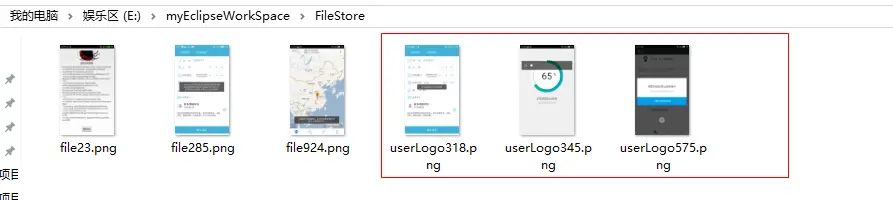

后端代码


汤姆猫写到 E盘，好心人士如果发现我写错了，请告诉我。谢谢


添加统一请求头

OkHttpClient okHttpClient = OkHttpUtil.getInstance().
    headParams(new HeadParams()
        .addHeader("phoneNum", "13146008029")
        .addHeader("uuid", DeviceUtil.getSafeDeviceSoleId(App.getApp())))
    .build();

添加统一请求体

OkHttpClient okHttpClient = OkHttpUtil.getInstance().
        headParams(new StringParams()
                .addHeader("phoneNum", phone)
                .addHeader("uuid", DeviceUtil.getSafeDeviceSoleId(App.getApp()))
                .addBody("body0","body0")
                .addBody("body1","body1"))
        .level(HttpLoggingInterceptor.Level.BODY)
        .build();

使用String转换器

Retrofit retrofit = new Retrofit.Builder().baseUrl(HttpMan.doMainApi).client(okHttpClient)
        .addConverterFactory(StringConverterFactory.create())//添加 String 转换器
        .addCallAdapterFactory(RxJavaCallAdapterFactory.create())//添加 RxJava 适配器
        .build();

- OkHttpUtil.build()方法

package github.alex.okhttp;
import android.util.Log;
import java.io.File;
import java.io.IOException;
import java.util.Iterator;
import java.util.Map;
import java.util.concurrent.TimeUnit;
import okhttp3.Cache;
import okhttp3.FormBody;
import okhttp3.Interceptor;
import okhttp3.OkHttpClient;
import okhttp3.Request;
import okhttp3.RequestBody;
import okhttp3.Response;
import okhttp3.logging.HttpLoggingInterceptor;
/**
 * Created by alex on 2016/6/22.
 * OkHttpUtil for Retrofit
 */
public class OkHttpUtil {
    private static OkHttpUtil instance;
    private static final String TAG = "#日志拦截器#";
    private boolean debug = true;
    private HttpLoggingInterceptor.Logger logInterceptor;
    private StringParams headParams;
    private long connectTimeout;
    private long readTimeout;
    private long writeTimeout;
    private boolean retryOnConnectionFailure;
    private File cacheDir;
    private long cacheMaxSize;
    private HttpLoggingInterceptor.Level level;
    private String method;
    private OkHttpUtil() {
        cacheMaxSize = 1024 * 1024 * 100;
        level = HttpLoggingInterceptor.Level.BASIC;
        debug = true;
        method = "POST";
    }
    /**
     * 单例模式  获取 OkHttpUtil
     */
    public static OkHttpUtil getInstance() {
        if (instance == null) {
            synchronized (OkHttpUtil.class) {
                instance = (instance == null) ? new OkHttpUtil() : instance;
            }
        }
        return instance;
    }
    /**
     * 设置 日志 拦截器
     */
    public OkHttpUtil httpLoggingInterceptor(HttpLoggingInterceptor.Logger logInterceptor) {
        this.logInterceptor = logInterceptor;
        return this;
    }
    /**
     * 设置请求头
     */
    public OkHttpUtil headParams(StringParams headParams) {
        this.headParams = headParams;
        return this;
    }
    /**
     * 设置连接超时时间
     */
    public OkHttpUtil connectTimeout(long connectTimeout) {
        this.connectTimeout = connectTimeout;
        return this;
    }
    /**
     * 设置读取超时时间
     */
    public OkHttpUtil readTimeout(long readTimeout) {
        this.readTimeout = readTimeout;
        return this;
    }
    /**
     * 设置写入超时时间
     */
    public OkHttpUtil writeTimeout(long writeTimeout) {
        this.writeTimeout = writeTimeout;
        return this;
    }
    /**
     * 连接失败自动重试
     */
    public OkHttpUtil retryOnConnectionFailure(boolean retryOnConnectionFailure) {
        this.retryOnConnectionFailure = retryOnConnectionFailure;
        return this;
    }
    /**
     * 设置缓存路径
     */
    public OkHttpUtil cacheDir(File cacheDir) {
        this.cacheDir = cacheDir;
        return this;
    }
    /**
     * 设置缓存大小
     */
    public OkHttpUtil cacheMaxSize(long cacheMaxSize) {
        this.cacheMaxSize = cacheMaxSize;
        return this;
    }
    /**设置log的等级*/
    public OkHttpUtil level(HttpLoggingInterceptor.Level level){
        this.level = level;
        return this;
    }
    /**设置处于 debug */
    public OkHttpUtil debug(boolean debug){
        this.debug = debug;
        return this;
    }
    /**设置请求方法*/
    public OkHttpUtil method(String method){
        this.method = method;
        return this;
    }
    /**
     * 得到 OkHttpClient 对象
     */
    public OkHttpClient build() {
        OkHttpClient.Builder builder = new OkHttpClient.Builder();
        if (debug) {
            // Log信息拦截器
            HttpLoggingInterceptor loggingInterceptor = new HttpLoggingInterceptor(new HttpLoggingInterceptor.Logger() {
                @Override
                public void log(String message) {
                    Log.e(TAG, message);
                    if (logInterceptor != null) {
                        logInterceptor.log(message);
                    }
                }
            });
            loggingInterceptor.setLevel(level);
            /*要在 OkHttpClient.Builder().build(); 之前，否则日志出不来*/
            builder.addInterceptor(loggingInterceptor);
        }
        if (headParams != null) {
            builder.addInterceptor(new HeadInterceptor(headParams));
        }
        if (cacheDir != null) {
            if (cacheMaxSize < 0) {
                cacheMaxSize = 1024 * 1024 * 128;
            }
            Cache cache = new Cache(cacheDir, cacheMaxSize);
            builder.cache(cache);
        }
        OkHttpClient okHttpClient = builder.build();
        OkHttpClient.Builder newBuilder = okHttpClient.newBuilder();
        if (connectTimeout > 0) {
            newBuilder.connectTimeout(connectTimeout, TimeUnit.MILLISECONDS);
        }
        if (readTimeout > 0) {
            newBuilder.readTimeout(readTimeout, TimeUnit.MILLISECONDS);
        }
        if (writeTimeout > 0) {
            newBuilder.writeTimeout(writeTimeout, TimeUnit.MILLISECONDS);
        }
        newBuilder.retryOnConnectionFailure(retryOnConnectionFailure);
        return okHttpClient;
    }
    final class HeadInterceptor implements Interceptor {
        private StringParams stringParams;
        public HeadInterceptor(StringParams headParams) {
            this.stringParams = headParams;
        }
        @Override
        public Response intercept(Chain chain) throws IOException {
            Request.Builder requestBuilder = chain.request().newBuilder().addHeader("Content-Type", "application/x-www-form-urlencoded; charset=UTF-8").addHeader("Accept-Encoding", "gzip, deflate").addHeader("Connection", "keep-alive").addHeader("Accept", "*/*");
            Map<String, String> stringHeadMap = stringParams.getHeadMap();
            Map<String, String> stringBodyMap = stringParams.getBodyMap();
             /*解析文本请求头*/
            if ((stringHeadMap != null) && (stringHeadMap.size() > 0)) {
                Iterator<?> iterator = stringHeadMap.entrySet().iterator();
                while (iterator.hasNext()) {
                    @SuppressWarnings("rawtypes") Map.Entry entry = (Map.Entry) iterator.next();
                    requestBuilder.addHeader(entry.getKey() + "", entry.getValue() + "");
                }
            }
            RequestBody requestBody = getStringRequestBody(stringBodyMap);
            if(requestBody!=null){
                requestBuilder.method(method, requestBody);
            }
            return chain.proceed(requestBuilder.build());
        }
    }
    /**
     * 添加文本请求体参数
     */
    @SuppressWarnings("rawtypes")
    private RequestBody getStringRequestBody(Map<?, ?> stringBodyMap) {
        FormBody.Builder multipartBodyBuilder = new FormBody.Builder();
        if ((stringBodyMap == null) || (stringBodyMap.size() <= 0)) {
            return null;
        }
        if ((stringBodyMap == null) || (stringBodyMap.size() <= 0)) {
            return null;
        }
        /*解析文本请求体*/
        if ((stringBodyMap != null) && (stringBodyMap.size() > 0)) {
            Iterator iterator = stringBodyMap.entrySet().iterator();
            while (iterator.hasNext()) {
                java.util.Map.Entry entry = (java.util.Map.Entry) iterator.next();
                multipartBodyBuilder.add(entry.getKey() + "", entry.getValue() + "");
            }
        }
        return multipartBodyBuilder.build();
    }
}

HeadParams

package github.alex.okhttp;
import android.support.annotation.NonNull;
import java.util.LinkedHashMap;
import java.util.Map;
/**
 * Created by alex on 2016/6/22.
 */
public class StringParams {
    /**
     * 文本请求头
     */
    private Map<String, String> stringHeadMap;
    /**
     * 文本请求体
     */
    private Map<String, String> stringBodyMap;
    public StringParams() {
        this.stringBodyMap = new LinkedHashMap<String, String>();
        this.stringHeadMap = new LinkedHashMap<String, String>();
    }
    /**
     * 添加文本请求体
     */
    public StringParams addHeader(@NonNull String key, @NonNull String value) {
        stringHeadMap.put(key, value);
        return this;
    }
    /**
     * 添加文本请求体
     */
    public StringParams addBody(@NonNull String key, @NonNull String value) {
        stringBodyMap.put(key, value);
        return this;
    }
    /**
     * 获取请求头参数
     */
    public Map<String, String> getHeadMap(){
        return stringHeadMap;
    }
    /**
     * 获取请求头体参数
     */
    public Map<String, String> getBodyMap(){
        return stringBodyMap;
    }
}

文／Alex_Cin（简书作者）
原文链接：http://www.jianshu.com/p/14e09c84869a
