RF之UI自动化测试环境

1：通过pip安装扩展库

        pip install robotframework-seleniumlibrary

2:下载谷歌游览器和对应驱动

       https://www.cnblogs.com/loved-wangwei/p/8993013.html

 3：将游览器驱动放在python的目录下



4：导入SeleniumLibrary扩展库

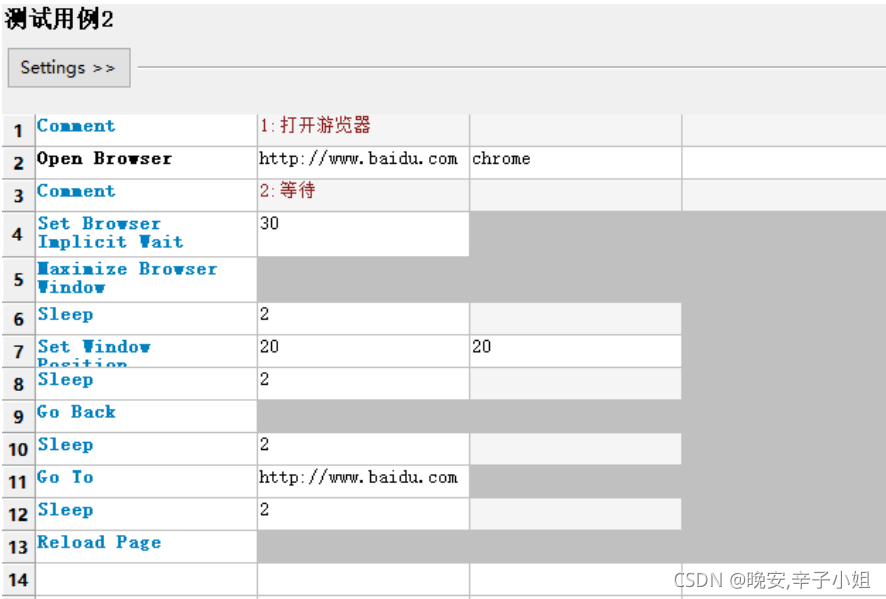

                                                        API演示

1：打开游览器(访问网站)

        Open Browser http://www.baidu.com chrome

2:设置睡眠时间

        sleep 时间(秒)

        Set Browser Implicit Wait 时间(秒)

3：窗口最大化

        Maximize Browser Window

4：设置窗口位置

        Set Window Position 20 40

5：返回上一步

        Go Back

6：跳转

        Go To http://www.baidu.com

7：刷新

        Reload Page

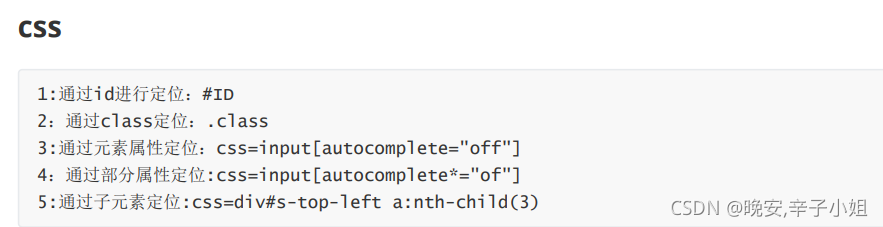

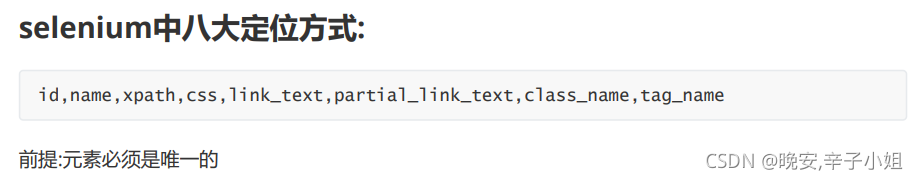

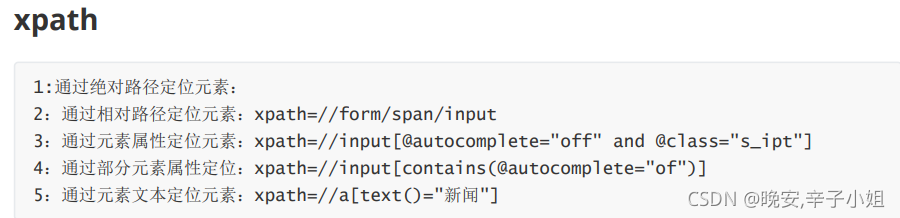

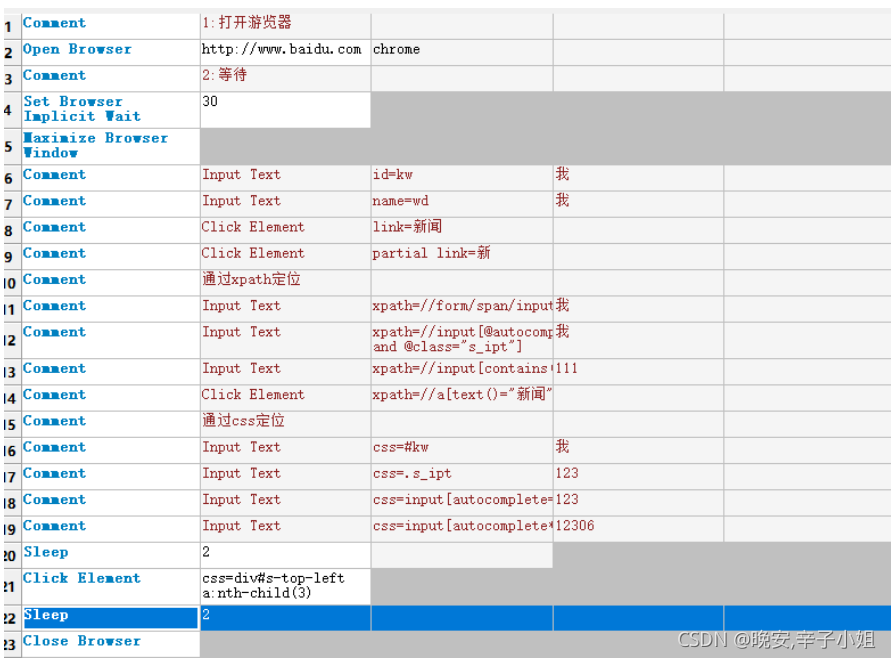

                                                         RF元素定位





                                                         API高级

一：窗口跳转

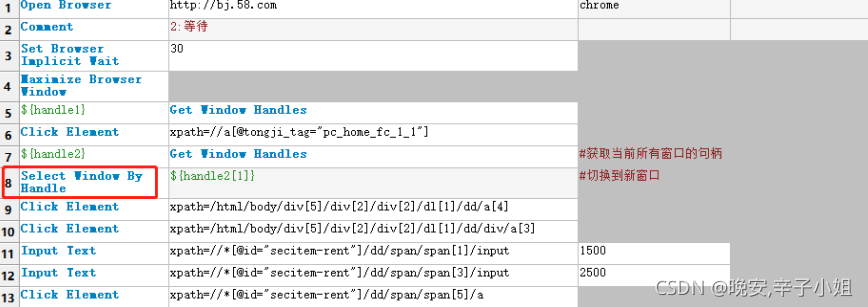

        案例：58租房:http://bj.58.com

        登录58同城>>点击租房>>选择区域>>选择租金>>进行筛选

          Get Window Handles：获取窗口的句柄

          Select Window By Handle：切换到新窗口

 注意:跳转窗口需要Select Window By Handle关键字，但是类库中没有对应的关键字，需要我们进行如下操作

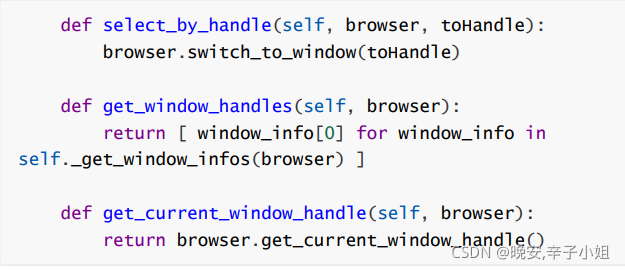

        1：在E:\ceshi\python\Lib\site-packages\SeleniumLibrary\locators\windowmanager.py中添加

        def select_by_handle(self, browser, toHandle):

                 browser.switch_to_window(toHandle)

        def get_window_handles(self, browser):

                return [ window_info[0] for window_info in

self._get_window_infos(browser) ]

        def get_current_window_handle(self, browser):

                return browser.get_current_window_handle()

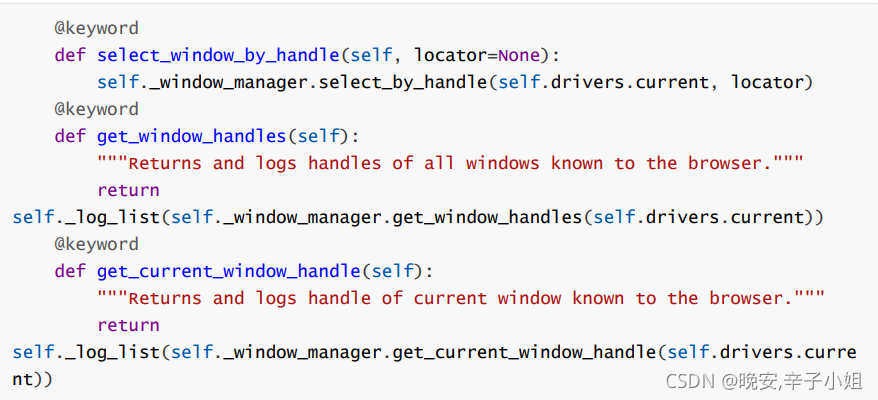

2:E:\ceshi\python\Lib\site-packages\SeleniumLibrary\keywords\browsermanagement.py中添加

        @keyword

        def select_window_by_handle(self, locator=None):                       self._window_manager.select_by_handle(self.drivers.current, locator)

        @keyword

        def get_window_handles(self):

                """Returns and logs handles of all windows known to the browser."""

                 return self._log_list(self._window_manager.get_window_handles(self.drivers.current))           @keyword

        def get_current_window_handle(self):

                  """Returns and logs handle of current window known to the browser."""                       return self._log_list(self._window_manager.get_current_window_handle(self.drivers.current))

 3:从新启动ride.py才能正常加载

        可以参考:https://blog.youkuaiyun.com/youxitou/article/details/92656020

二:表单跳转

        案例：https://qzone.qq.com/

        登录qq邮箱>>跳转表单>>填充用户密码>>主界面操作

        Select Frame：选择表单
