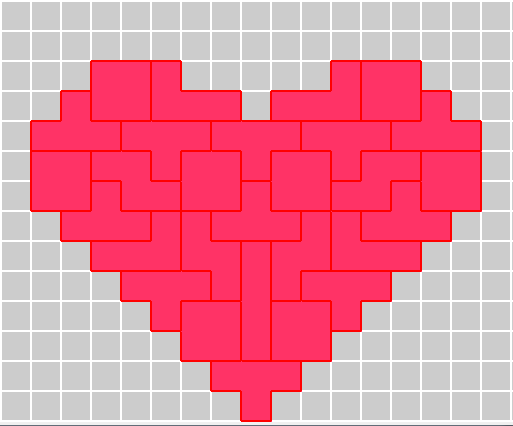

本项目效果如图
动画过程已投稿b站：https://www.bilibili.com/video/av88671119

四、动画展示

======================= 大爽歌作，made by big shuang =======================

四、动画展示

1、介绍

动画视频已投稿到我的b站，点击观看视频
动画只展示拼图结果，不展示结果的求解方法
结果的求解方法见之前的二三部分
这里为了好看，简单修改了下颜色和样式
最后展示后的结果如最上方的图
本部分代码是在第二部分手动拼图的代码基础上完成的
感兴趣的可以两个对照看看
其中新增py文件：
puzzle_show.py: 主入口,展示绘制动画
修改py代码:
drawer.py: 用于绘制的画板类
constants.py: 记录要用到的常量
results.py: 拼图结果
未修改的代码和文件
util.py: 用于绘制的画板类
love3.txt: 迷宫文本

2、代码

各个文件的代码如下
puzzle_show.py：

# usr/bin/env python
# -*- coding:utf-8- -*-

import tkinter as tk
import time
import turtle


from drawer import Drawer
from util import *
from constants import CELL_SIZE, C, R, SHAPE_LIST, SHAPES, FPS
from results import *


class PuzzleApp:
    def __init__(self, c, r, txt_path, res):
        self.win = tk.Tk()
        self.love_list = read_love_from_txt(txt_path)

        # 获取love_list 的长宽
        self.love_r = len(self.love_list)
        self.love_c = len(self.love_list[0])

        self.r = r
        self.c = c
        self.pr = r - self.love_r
        self.pc = (c - self.love_c) // 2

        self.generate_board()

        self.drawer = Drawer(self.win, self.c, self.r, CELL_SIZE)
        self.drawer.draw_background(self.board)

        self.block_id = -1  # 记录是第几个俄罗斯方块
        self.block = {}  # 俄罗斯方块的信息
        self.block_list = []  # 记录已经着陆的俄罗斯方块

        self.res = res
        self.show_over = False

    def print_block_list(self, event):
        if self.block_list:
            print('[')
            for block in self.block_list:
                print(block)
            print(']')

    def generate_board(self):
        # 生成全空的二维列表 board
        self.board  = [
            ['' for ci in range(self.c)] for ri in range(self.r)
        ]
        # 生成全空的二维列表 block_blard ，用于记录俄罗斯方块的存储情况
        self.block_board = [
            ['' for ci in range(self.c)] for ri in range(self.r)
        ]

        # 二维列表 board 中记录 love_list，将里面的粉红色方格记录为'R'
        for ri in range(len(self.love_list)):
            for ci in range(len(self.love_list[0])):
                if self.love_list[ri][ci] == "1":
                    self.board [ri+self.pr][ci + self.pc] = "R"

    def generate_new_block(self):
        self.block_id += 1
        cr = [self.pc + self.love_c // 2, 2]
        _kind = SHAPE_LIST[0]
        self.block = {
            'cr': cr,
            'kind': _kind,
            'cell_list': SHAPES[_kind],
            'angle': 0,  # 角度
        }
        self.drawer.draw_block(self.block, self.block_id)

    def check_move(self, cr, cell_list, direction):
        # 判断某个俄罗斯方块的方格能否在某个位置摆放
        cc, cr = cr
        cell_list = cell_list

        for cell in cell_list:
            cell_c, cell_r = cell
            c = cell_c + cc + direction[0]
            r = cell_r + cr + direction[1]
            # 判断该位置是否超出左右边界，以及下边界
            # 一般不判断上边界，因为俄罗斯方块生成的时候，可能有一部分在上边界之上还没有出来
            if c < 0 or c >= self.c or r >= self.r:
                return False

            # 必须要判断r不小于0才行，具体原因你可以不加这个判断，试试会出现什么效果
            if r >= 0 and self.block_board[r][c] not in ['', 'R']:
                return False

        return True

    def move_block(self, direction):
        """
        向指定方向移动俄罗斯方块
        """
        cr = self.block['cr']
        cell_list = self.block['cell_list']

        if self.check_move(cr, cell_list, direction):
            # 先清除原有的
            self.drawer.clean_by_block_id(self.block_id)
            # 再绘制新的
            new_cr = [cr[0]+direction[0], cr[1]+direction[1]]
            self.block['cr'] = new_cr
            self.drawer.draw_block(self.block, self.block_id)
            self.win.update()

    def rotate_block(self):
        angle = self.block['angle']
        angle += 1
        angle %= 4  # 除4取余数，避免角度超过4
        cell_list = self.block['cell_list']
        rotate_list = get_cell_list_by_angle(cell_list, 1)

        if self.check_move(self.block['cr'], rotate_list, [0, 0]):
            # 先清除原有的
            self.drawer.clean_by_block_id(self.block_id)
            # 再绘制新的
            self.block['angle'] = angle
            self.block['cell_list'] = rotate_list
            self.drawer.draw_block(self.block, self.block_id)
            self.win.update()

    def change_block(self):
        kind_index = SHAPE_LIST.index(self.block['kind'])
        next_kind = SHAPE_LIST[(kind_index + 1) % len(SHAPE_LIST)]

        if self.check_move(self.block['cr'], SHAPES[next_kind], [0, 0]):
            # 先清除原有的
            self.drawer.clean_by_block_id(self.block_id)
            # 再绘制新的
            self.block['angle'] = 0
            self.block['kind'] = next_kind
            self.block['cell_list'] = SHAPES[next_kind]
            self.drawer.draw_block(self.block, self.block_id)
            self.win.update()

    def land(self):
        # 俄罗斯方块直接着陆
        c, r = self.block['cr']
        cell_list = self.block['cell_list']

        new_r = self.get_land_r(cell_list, c)
        while r < new_r:
            # 先清除原有的
            self.drawer.clean_by_block_id(self.block_id)
            # 再绘制新的
            r += 1
            self.block['cr'] = [c, r]
            self.drawer.draw_block(self.block, self.block_id)
            self.win.update()
            time.sleep(0.01)

        self.drawer.draw_block_line(self.block, self.block_id)

        self.block_list.append(self.block)
        self.refresh_block_board()
        self.win.update()

    def get_land_r(self, cell_list, ci):
        # 获取当前俄罗斯方块降落后的行位置
        ri = 0
        for ri in range(2, self.r):
            # 从上到下依次尝试能否移动该行，如果这行移动不到，则说明上一行是降落的着陆点
            if not self.check_move((ci, ri), cell_list, (0, 0)):
                return ri - 1

        return self.r - 1

    def refresh_block_board(self):
        self.block_board = [
            ['' for ci in range(self.c)] for ri in range(self.r)
        ]

        for block in self.block_list:
            shape_type = block['kind']
            cc, cr = block['cr']
            cell_list = block['cell_list']

            for cell in cell_list:
                cell_c, cell_r = cell
                c = cell_c + cc
                r = cell_r + cr

                self.block_board[r][c] = shape_type

    def back(self, event):
        if self.block_id>0:
            # 先隐藏当前的俄罗斯方块
            self.drawer.clean_by_block_id(self.block_id)

            # 再回退到上一个俄罗斯方块
            self.block = self.block_list.pop()
            self.block['cr'][1] = 2
            self.drawer.clean_by_block_id(self.block_id-1)
            self.block_id -= 1
            self.drawer.draw_block(self.block, self.block_id)
            self.refresh_block_board()
            self.win.update()

    def game_loop(self):
        if self.show_over:
            return
        elif self.block:
            self.move_block_to_res()
        else:
            self.get_next_block()

        self.win.after(FPS, self.game_loop)

    def move_block_to_res(self):
        if self.block['kind'] != self.block['res_kind']:
            self.change_block()
        elif self.block['angle'] != self.block['res_angle']:
            self.rotate_block()
        elif self.block['cr'][0] != self.block['res_cr'][0]:
            c = self.block['cr'][0]
            rc = self.block['res_cr'][0]
            if c < rc:
                # 右移
                self.move_block([1, 0])
            elif c > rc:
                self.move_block([-1, 0])
        elif self.block['cr'][1] != self.block['res_cr'][1]:

            self.land()
            self.block = {}

    def get_next_block(self):
        # 从已保存的结果中取出下一个block
        self.block_id += 1
        if self.block_id >= len(self.res):
            # 所有block均被取出，演示完毕
            self.show_over = True
            return

        self.block = self.res[self.block_id]
        self.block['res_angle'] = self.block['angle']
        self.block['angle'] = 0

        c, r = self.block['cr']

        self.block['res_cr'] = [c+self.pc, r + self.pr]
        self.block['cr'] = [self.pc + self.love_c // 2, 2]

        self.block['res_kind'] = self.block['kind']
        self.block['kind'] = SHAPE_LIST[0]
        self.block['cell_list'] = SHAPES[SHAPE_LIST[0]]

        self.drawer.draw_block(self.block, self.block_id)

if __name__ == '__main__':
    txt_path = "love3.txt"
    app = PuzzleApp(C, R, txt_path, res2)
    app.game_loop()
    app.win.mainloop()

drawer.py:

# usr/bin/env python
# -*- coding:utf-8- -*-

import tkinter as tk
from constants import ALL_COLORS, DIRECTION


class Drawer(tk.Canvas):
    def __init__(self, master, c, r, cell_size):
        self.c = c
        self.r = r
        self.cell_size = cell_size
        height = r * cell_size
        width = c * cell_size
        super().__init__(master, width=width, height=height)
        self.pack()

    def draw_background(self, board):
        for ri in range(self.r):
            for ci in range(self.c):
                color = ALL_COLORS[board[ri][ci]]
                self.draw_cell_by_cr(ci, ri, color)

    def draw_cell_by_cr(self,c, r, color, tag=None):
        x0 = c * self.cell_size
        y0 = r * self.cell_size
        x1 = c * self.cell_size + self.cell_size
        y1 = r * self.cell_size + self.cell_size
        # tag用于在后面删除指定tag的方格
        if tag is None:
            # 没有tag代表的是背景色
            self.create_rectangle(x0, y0, x1, y1, fill=color, outline="white", width=2)
        else:
            # 有tag 代表的是俄罗斯方块
            _tag = "b%s" % tag
            self.create_rectangle(x0, y0, x1, y1, fill=color,
                                  outline=color, tag=_tag)

    def draw_block(self, block, block_id):
        c, r = block['cr']
        shape_type = block['kind']
        cell_list = block['cell_list']
        for cell in cell_list:
            cell_c, cell_r = cell
            ci = cell_c + c
            ri = cell_r + r
            # 判断该位置方格在画板内部(画板外部的方格不再绘制)
            if 0 <= c < self.c and 0 <= r < self.r:
                self.draw_cell_by_cr(ci, ri, ALL_COLORS[shape_type], block_id)

    def clean_by_block_id(self, block_id):
        _tag = "b%s" % block_id
        self.delete(_tag)

    def draw_line(self, c, r, d, color, block_id):
        if d == "W":
            x0 = c * self.cell_size
            y0 = r * self.cell_size
            x1 = c * self.cell_size + self.cell_size
            y1 = y0
        elif d == "S":
            x0 = c * self.cell_size
            y0 = r * self.cell_size + self.cell_size
            x1 = c * self.cell_size + self.cell_size
            y1 = y0
        elif d == "A":
            x0 = c * self.cell_size
            y0 = r * self.cell_size
            x1 = x0
            y1 = r * self.cell_size + self.cell_size
        elif d == "D":
            x0 = c * self.cell_size + self.cell_size
            y0 = r * self.cell_size
            x1 = x0
            y1 = r * self.cell_size + self.cell_size

        # tag用于在后面删除指定的线
        _tag = "b%s" % block_id
        self.create_line(x0, y0, x1, y1, fill=color, width=2, tag=_tag)

    def draw_block_line(self, block, block_id):
        c, r = block['cr']
        shape_type = block['kind']
        cell_list = block['cell_list']
        for cell in cell_list:
            for d in DIRECTION:
                dcr = DIRECTION[d]
                d_cell = (cell[0] + dcr[0], cell[1] + dcr[1])
                if d_cell not in cell_list:
                    # draw line
                    self.draw_line(c+cell[0], r++cell[1], d, ALL_COLORS["line"], block_id)

constants.py

# usr/bin/env python
# -*- coding:utf-8- -*-

C = 20
R = 20
CELL_SIZE = 30

FPS = 100

# 定义各种形状
SHAPES = {
    "O": [(-1, -1), (0, -1), (-1, 0), (0, 0)],
    "S": [(-1, 0), (0, 0), (0, -1), (1, -1)],
    "T": [(-1, 0), (0, 0), (0, -1), (1, 0)],
    "I": [(0, 1), (0, 0), (0, -1), (0, -2)],
    "L": [(-1, 0), (0, 0), (-1, -1), (-1, -2)],
    "J": [(-1, 0), (0, 0), (0, -1), (0, -2)],
    "Z": [(-1, -1), (0, -1), (0, 0), (1, 0)],
}

# 定义各种颜色，用于给第二第三阶段拼图上色
# ALL_COLORS = {
#     # 七种俄罗斯方块的颜色
#     "O": "#d25b6a",
#     "S": "#d2835b",
#     "T": "#e5e234",
#     "I": "#83d05d",
#     "L": "#2862d2",
#     "J": "#35b1c0",
#     "Z": "#5835c0",
#
#     # 其他颜色
#     "": "#CCCCCC",
#     "R": "#ffcccc",
#     "D": "#ff3366",
#     "line": "red"
# }

# 绘制动画时将七种俄罗斯方块全部换成深红色
ALL_COLORS = {
    # 七种俄罗斯方块的颜色
    "O": "#ff3366",
    "S": "#ff3366",
    "T": "#ff3366",
    "I": "#ff3366",
    "L": "#ff3366",
    "J": "#ff3366",
    "Z": "#ff3366",

    # 其他颜色
    "": "#CCCCCC",
    "R": "#ffcccc",
    "D": "#ff3366",
    "line": "red"
}

SHAPE_LIST = ["O", "S", "T", "I", "L", "J", "Z"]

DIRECTION = {
    "W": (0, -1),
    "S": (0, 1),
    "A": (-1, 0),
    "D": (1, 0),
}

result.py

#usr/bin/env python
#-*- coding:utf-8- -*-

res1 = [
    {'cr': [10, 18], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [10, 16], 'kind': 'I', 'cell_list': [(0, 1), (0, 0), (0, -1), (0, -2)], 'angle': 0},
    {'cr': [9, 17], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [12, 17], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [7, 15], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [13, 15], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [9, 14], 'kind': 'S', 'cell_list': [(0, 1), (0, 0), (-1, 0), (-1, -1)], 'angle': 1},
    {'cr': [12, 14], 'kind': 'Z', 'cell_list': [(-1, 1), (-1, 0), (0, 0), (0, -1)], 'angle': 1},
    {'cr': [13, 14], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [7, 13], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [5, 13], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [15, 13], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [4, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [17, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [14, 12], 'kind': 'S', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, -1)], 'angle': 0},
    {'cr': [6, 12], 'kind': 'Z', 'cell_list': [(-1, -1), (0, -1), (0, 0), (1, 0)], 'angle': 0},
    {'cr': [10, 13], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [9, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [12, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [10, 10], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [13, 10], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [7, 10], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [13, 8], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [7, 9], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [16, 10], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [4, 10], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [6, 9], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [15, 9], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
]

res2 = [
    {'cr': [10, 18], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [10, 16], 'kind': 'I', 'cell_list': [(0, 1), (0, 0), (0, -1), (0, -2)], 'angle': 0},
    {'cr': [9, 17], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [12, 17], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [7, 16], 'kind': 'L', 'cell_list': [(0, -1), (0, 0), (1, -1), (2, -1)], 'angle': 3},
    {'cr': [13, 15], 'kind': 'J', 'cell_list': [(0, 1), (0, 0), (-1, 0), (-2, 0)], 'angle': 1},
    {'cr': [6, 14], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [14, 14], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [8, 14], 'kind': 'Z', 'cell_list': [(-1, -1), (0, -1), (0, 0), (1, 0)], 'angle': 0},
    {'cr': [12, 14], 'kind': 'S', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, -1)], 'angle': 0},
    {'cr': [10, 13], 'kind': 'T', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, 0)], 'angle': 0},
    {'cr': [16, 12], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [4, 13], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [13, 11], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [7, 12], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [12, 11], 'kind': 'S', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, -1)], 'angle': 0},
    {'cr': [8, 11], 'kind': 'Z', 'cell_list': [(-1, -1), (0, -1), (0, 0), (1, 0)], 'angle': 0},
    {'cr': [10, 10], 'kind': 'T', 'cell_list': [(1, 0), (0, 0), (0, 1), (-1, 0)], 'angle': 2},
    {'cr': [6, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [15, 12], 'kind': 'O', 'cell_list': [(-1, -1), (0, -1), (-1, 0), (0, 0)], 'angle': 0},
    {'cr': [17, 11], 'kind': 'T', 'cell_list': [(0, 1), (0, 0), (-1, 0), (0, -1)], 'angle': 1},
    {'cr': [3, 11], 'kind': 'T', 'cell_list': [(0, -1), (0, 0), (1, 0), (0, 1)], 'angle': 3},
    {'cr': [6, 9], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [5, 9], 'kind': 'S', 'cell_list': [(-1, 0), (0, 0), (0, -1), (1, -1)], 'angle': 0},
    {'cr': [13, 8], 'kind': 'L', 'cell_list': [(0, 1), (0, 0), (-1, 1), (-2, 1)], 'angle': 1},
    {'cr': [7, 9], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [14, 10], 'kind': 'J', 'cell_list': [(0, -1), (0, 0), (1, 0), (2, 0)], 'angle': 3},
    {'cr': [15, 9], 'kind': 'Z', 'cell_list': [(-1, -1), (0, -1), (0, 0), (1, 0)], 'angle': 0},
]

剩下的util.py和love3.txt未做修改，和之前是一样的
util.py:

# usr/bin/env python
# -*- coding:utf-8- -*-


def read_love_from_txt(txt_path):
    # 从txt中读取二维爱心列表，并返回
    with open(txt_path, 'r') as f:
        fl = f.readlines()

    love_list = []
    for line in fl:
        line = line.strip('\n')
        new_line = line.split(' ')
        love_list.append(new_line)

    return love_list


def get_cell_list_by_angle(cell_list, angle):
    # 将当前的 cell_list旋转指定的角度
    angle_dict = {
        0: (1, 0, 0, 1),
        1: (0, 1, -1, 0),
        2: (-1, 0, 0, -1),
        3: (0, -1, 1, 0),
    }
    a, b, c, d = angle_dict[angle]
    if angle == 0:
        return cell_list

    rotate_cell_list = []
    for cell in cell_list:
        cc, cr = cell
        rc, rr = a * cc + b * cr, c*cc+d*cr
        rotate_cell_list.append((rc, rr))

    return rotate_cell_list

love3.txt:

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 1 1 1 0 0 0 0 0 1 1 1 0 0 0 0
0 0 0 0 1 1 1 1 1 1 0 1 1 1 1 1 1 0 0 0
0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0
0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0
0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0
0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0
0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0
0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0
0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
